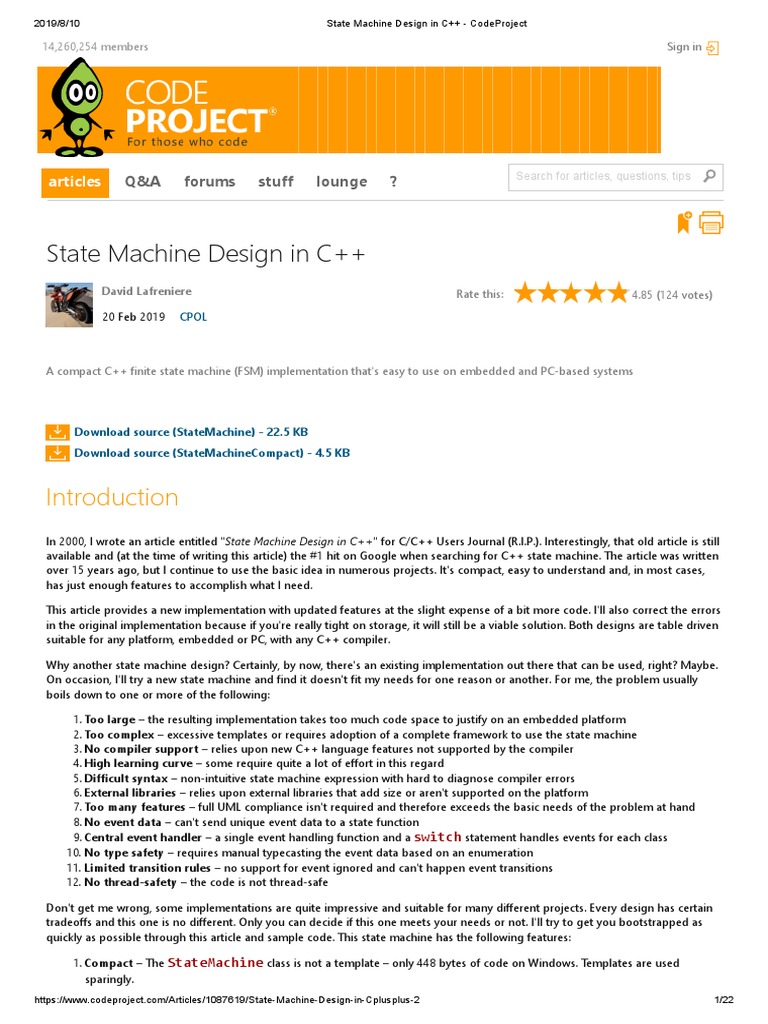

State Machine Design in C++

David Lafreniere Rate this: 4.85 (124 votes)
20 Feb 2019 CPOL
A compact C++ finite state machine (FSM) implementation that's easy to use on embedded and PC-based systems
Download source (StateMachine) - 22.5 KB

Download source (StateMachineCompact) - 4.5 KB
Introduction
In 2000, I wrote an article entitled "State Machine Design in C++" for C/C++ Users Journal (R.I.P.). Interestingly, that old article is still
available and (at the time of writing this article) the #1 hit on Google when searching for C++ state machine. The article was written
over 15 years ago, but I continue to use the basic idea in numerous projects. It's compact, easy to understand and, in most cases,
has just enough features to accomplish what I need.
This article provides a new implementation with updated features at the slight expense of a bit more code. I'll also correct the errors
in the original implementation because if you're really tight on storage, it will still be a viable solution. Both designs are table driven
suitable for any platform, embedded or PC, with any C++ compiler.
Why another state machine design? Certainly, by now, there's an existing implementation out there that can be used, right? Maybe.
On occasion, I'll try a new state machine and find it doesn't fit my needs for one reason or another. For me, the problem usually
boils down to one or more of the following:
1. Too large – the resulting implementation takes too much code space to justify on an embedded platform
2. Too complex – excessive templates or requires adoption of a complete framework to use the state machine
3. No compiler support – relies upon new C++ language features not supported by the compiler
4. High learning curve – some require quite a lot of effort in this regard
5. Difficult syntax – non-intuitive state machine expression with hard to diagnose compiler errors
6. External libraries – relies upon external libraries that add size or aren't supported on the platform
7. Too many features – full UML compliance isn't required and therefore exceeds the basic needs of the problem at hand
8. No event data – can't send unique event data to a state function
9. Central event handler – a single event handling function and a switch statement handles events for each class
10. No type safety – requires manual typecasting the event data based on an enumeration
11. Limited transition rules – no support for event ignored and can't happen event transitions
12. No thread-safety – the code is not thread-safe
Don't get me wrong, some implementations are quite impressive and suitable for many different projects. Every design has certain
tradeoffs and this one is no different. Only you can decide if this one meets your needs or not. I'll try to get you bootstrapped as
quickly as possible through this article and sample code. This state machine has the following features:
1. Compact – The StateMachine class is not a template – only 448 bytes of code on Windows. Templates are used
sparingly.
https://www.codeproject.com/Articles/1087619/State-Machine-Design-in-Cplusplus-2 1/22
2. Transition tables – Transition tables precisely control state transition behavior.

3. Events – Every event is a simple public instance member function with any argument types.
4. State action – Every state action is a separate instance member function with a single, unique event data argument if
desired.
5. Guards/entry/exit actions – Optionally a state machine can use guard conditions and separate entry/exit action functions
for each state.
6. State machine inheritance – Supports inheriting states from a base state machine class.
7. State function inheritance – Supports overriding a state function within a derived class.
8. Macros – Optional multiline macro support simplifies usage by automating the code "machinery".
9. Type safe – Compile time checks catch mistakes early. Runtime checks for the other cases.
10. Thread-safe – Adding software locks to make the code thread-safe is easy.
This state machine design is not trying to achieve a full UML feature set. It is also not a Hierarchical State Machine (HSM). Instead, its
goal is to be relatively compact, portable, and easy to use traditional Finite State Machine (FSM) with just enough unique features to
solve many different problems.
The article is not a tutorial on the best design decomposition practices for software state machines. I'll be focusing on state machine
code and simple examples with just enough complexity to facilitate understanding the features and usage.
See the article State Machine Design in C for a C language implementation of this state machine.
Background
A common design technique in the repertoire of most programmers is the venerable finite state machine (FSM). Designers use this
programming construct to break complex problems into manageable states and state transitions. There are innumerable ways to
implement a state machine.
A switch statement provides one of the easiest to implement and most common version of a state machine. Here, each case
within the switch statement becomes a state, implemented something like:
Hide Copy Code

switch (currentState) {
case ST_IDLE:
// do something in the idle state
break;
case ST_STOP:
// do something in the stop state
break;
// etc...
}
This method is certainly appropriate for solving many different design problems. When employed on an event driven, multithreaded
project, however, state machines of this form can be quite limiting.
The first problem revolves around controlling what state transitions are valid and which ones are invalid. There is no way to enforce
the state transition rules. Any transition is allowed at any time, which is not particularly desirable. For most designs, only a few
transition patterns are valid. Ideally, the software design should enforce these predefined state sequences and prevent the
unwanted transitions. Another problem arises when trying to send data to a specific state. Since the entire state machine is located
within a single function, sending additional data to any given state proves difficult. And lastly, these designs are rarely suitable for
use in a multithreaded system. The designer must ensure the state machine is called from a single thread of control.
Why Use a State Machine?

Implementing code using a state machine is an extremely handy design technique for solving complex engineering problems. State
machines break down the design into a series of steps, or what are called states in state-machine lingo. Each state performs some
narrowly defined task. Events, on the other hand, are the stimuli, which cause the state machine to move, or transition, between
states.
To take a simple example, which I will use throughout this article, let's say we are designing motor-control software. We want to
start and stop the motor, as well as change the motor's speed. Simple enough. The motor control events to be exposed to the client
software will be as follows:
1. Set Speed – sets the motor going at a specific speed

2. Halt – stops the motor
These events provide the ability to start the motor at whatever speed desired, which also implies changing the speed of an already
moving motor. Or we can stop the motor altogether. To the motor-control class, these two events, or functions, are considered
external events. To a client using our code, however, these are just plain functions within a class.
These events are not state machine states. The steps required to handle these two events are different. In this case, the states are:
1. Idle — the motor is not spinning but is at rest
Do nothing
2. Start — starts the motor from a dead stop
Turn on motor power

Set motor speed
3. Change Speed — adjust the speed of an already moving motor
Change motor speed
4. Stop — stop a moving motor
Turn off motor power

Go to the Idle state
As can be seen, breaking the motor control into discreet states, as opposed to having one monolithic function, we can more easily
manage the rules of how to operate the motor.
Every state machine has the concept of a "current state." This is the state the state machine currently occupies. At any given
moment in time, the state machine can be in only a single state. Every instance of a particular state machine class can set the initial
state during construction. That initial state, however, does not execute during object creation. Only an event sent to the state
machine causes a state function to execute.
To graphically illustrate the states and events, we use a state diagram. Figure 1 below shows the state transitions for the motor
control class. A box denotes a state and a connecting arrow indicates the event transitions. Arrows with the event name listed are
external events, whereas unadorned lines are considered internal events. (I cover the differences between internal and external
events later in the article.)
Figure 1: Motor state diagram
As you can see, when an event comes in the state transition that occurs depends on state machine's current state. When a
SetSpeed event comes in, for instance, and the motor is in the Idle state, it transitions to the Start state. However, that same
SetSpeed event generated while the current state is Start transitions the motor to the ChangeSpeed state. You can also see
that not all state transitions are valid. For instance, the motor can't transition from ChangeSpeed to Idle without first going
through the Stop state.
In short, using a state machine captures and enforces complex interactions, which might otherwise be difficult to convey and
implement.
Internal and External Events

As I mentioned earlier, an event is the stimulus that causes a state machine to transition between states. For instance, a button press
could be an event. Events can be broken out into two categories: external and internal. The external event, at its most basic level,
is a function call into a state-machine object. These functions are public and are called from the outside or from code external to
the state-machine object. Any thread or task within a system can generate an external event. If the external event function call
causes a state transition to occur, the state will execute synchronously within the caller's thread of control. An internal event, on the
other hand, is self-generated by the state machine itself during state execution.
A typical scenario consists of an external event being generated, which, again, boils down to a function call into the class's public
interface. Based upon the event being generated and the state machine's current state, a lookup is performed to determine if a
transition is required. If so, the state machine transitions to the new state and the code for that state executes. At the end of the
state function, a check is performed to determine whether an internal event was generated. If so, another transition is performed
and the new state gets a chance to execute. This process continues until the state machine is no longer generating internal events,
at which time the original external event function call returns. The external event and all internal events, if any, execute within the
caller's thread of control.
Once the external event starts the state machine executing, it cannot be interrupted by another external event until the external
event and all internal events have completed execution if locks are used. This run to completion model provides a multithread-safe
environment for the state transitions. Semaphores or mutexes can be used in the state machine engine to block other threads that
might be trying to be simultaneously access the same object. See source code function ExternalEvent() comments for where
the locks go.
Event Data
When an event is generated, it can optionally attach event data to be used by the state function during execution. Once the state
has completed execution, the event data is considered used up and must be deleted. Therefore, any event data sent to a state
machine must be created on the heap, via operator new, so that the state machine can delete it once used. In addition, for our
particular implementation the event data must inherit from the EventData base class. This gives the state machine engine a
common base class for which to delete all event data.
Hide Copy Code

class EventData
{
public:
virtual ~EventData() {}
};
The state machine implementation now has a build option that removes the requirement to create external event data on the heap.
See the External event no heap data section for details.
State Transitions
When an external event is generated, a lookup is performed to determine the state transition course of action. There are three
possible outcomes to an event: new state, event ignored, or cannot happen. A new state causes a transition to a new state where it
is allowed to execute. Transitions to the existing state are also possible, which means the current state is re-executed. For an ignored
event, no state executes. However, the event data, if any, is deleted. The last possibility, cannot happen, is reserved for situations
where the event is not valid given the current state of the state machine. If this occurs, the software faults.
In this implementation, internal events are not required to perform a validating transition lookup. The state transition is assumed to
be valid. You could check for both valid internal and external event transitions, but in practice, this just takes more storage space
and generates busywork for very little benefit. The real need for validating transitions lies in the asynchronous, external events
where a client can cause an event to occur at an inappropriate time. Once the state machine is executing, it cannot be interrupted. It
is under the control of the class's private implementation, thereby making transition checks unnecessary. This gives the designer
the freedom to change states, via internal events, without the burden of updating transition tables.
StateMachine Class
Two base classes are necessary when creating your own state machine: StateMachine and EventData. A class inherits from
StateMachine to obtain the necessary mechanisms to support state transitions and event handling. The StateMachine
header also contains various preprocessor multiline macros to ease implementation of the state machine (explained later in the
article). To send unique data to the state functions, the structure must inherit from the EventData base class.
The state machine source code is contained within the StateMachine.cpp and StateMachine.h files (see attached StateMachine.zip).
The code below shows the class declaration.
Hide Shrink Copy Code

class StateMachine
{
public:
enum { EVENT_IGNORED = 0xFE, CANNOT_HAPPEN };
StateMachine(BYTE maxStates, BYTE initialState = 0);

virtual ~StateMachine() {}
BYTE GetCurrentState() { return m_currentState; }
protected:
void ExternalEvent(BYTE newState, const EventData* pData = NULL);
void InternalEvent(BYTE newState, const EventData* pData = NULL);
private:
const BYTE MAX_STATES;
BYTE m_currentState;
BYTE m_newState;
BOOL m_eventGenerated;
const EventData* m_pEventData;
virtual const StateMapRow* GetStateMap() = 0;

virtual const StateMapRowEx* GetStateMapEx() = 0;
void SetCurrentState(BYTE newState) { m_currentState = newState; }
void StateEngine(void);
void StateEngine(const StateMapRow* const pStateMap);
void StateEngine(const StateMapRowEx* const pStateMapEx);
};
StateMachine is the base class used for handling events and state transitions. The interface is contained within four functions:
Hide Copy Code

void ExternalEvent(BYTE newState, const EventData* pData = NULL);
void InternalEvent(BYTE newState, const EventData* pData = NULL);
virtual const StateMapRow* GetStateMap() = 0;
virtual const StateMapRowEx* GetStateMapEx() = 0;
ExternalEvent() generates an external event to the state machine using as arguments the new state and a pointer to an
EventData object, if any. The InternalEvent() function generates internal events using the same set of arguments.
The GetStateMap() and GetStateMapEx() functions return an array of StateMapRow or StateMapRowEx
instances which will be retrieved by the state engine when appropriate. The inheriting class must return an array with one of these
functions. If the state machine only has state functions, GetStateMap() is used. If guard/entry/exit features are required, the
GetStateMapEx() is used. The other unused version must return NULL. However, multiline macros are provided to
implement these functions for us, as I will demonstrate shortly.
Motor Example
Motor and MotorNM classes are examples of how to use StateMachine. MotorNM (No Macros) exactly matches the
Motor design without relying upon macros. This allows viewing all the macro-expanded code for ease of understanding. However,
once up to speed, I find that the macros greatly simplify usage by hiding the required source machinery.
The MotorNM class declaration shown below contains no macros:

class MotorNMData : public EventData
{
public:
INT speed;
};
// Motor class with no macros

class MotorNM : public StateMachine
{
public:
MotorNM();
// External events taken by this state machine

void SetSpeed(MotorNMData* data);
void Halt();
private:
INT m_currentSpeed;
// State enumeration order must match the order of state method entries
// in the state map.
enum States
{
ST_IDLE,
ST_STOP,
ST_START,
ST_CHANGE_SPEED,
ST_MAX_STATES
};
// Define the state machine state functions with event data type
void ST_Idle(const NoEventData*);
StateAction<MotorNM, NoEventData, &MotorNM::ST_Idle> Idle;
void ST_Stop(const NoEventData*);

StateAction<MotorNM, NoEventData, &MotorNM::ST_Stop> Stop;
void ST_Start(const MotorNMData*);

StateAction<MotorNM, MotorNMData, &MotorNM::ST_Start> Start;
void ST_ChangeSpeed(const MotorNMData*);

StateAction<MotorNM, MotorNMData, &MotorNM::ST_ChangeSpeed> ChangeSpeed;
// State map to define state object order. Each state map entry defines a
// state object.
private:
virtual const StateMapRowEx* GetStateMapEx() { return NULL; }
virtual const StateMapRow* GetStateMap() {
static const StateMapRow STATE_MAP[] = {
&Idle,
&Stop,
&Start,
&ChangeSpeed,
};
C_ASSERT((sizeof(STATE_MAP)/sizeof(StateMapRow)) == ST_MAX_STATES);
return &STATE_MAP[0]; }
};
The Motor class uses macros for comparison:

class MotorData : public EventData
{
public:
INT speed;
};
// Motor class using macro support

class Motor : public StateMachine
{
public:
Motor();
// External events taken by this state machine

void SetSpeed(MotorData* data);
void Halt();
private:
INT m_currentSpeed;
// State enumeration order must match the order of state method entries
// in the state map.
enum States
{
ST_IDLE,
ST_STOP,
ST_START,
ST_CHANGE_SPEED,
ST_MAX_STATES
};
STATE_DECLARE(Motor, Idle, NoEventData)
STATE_DECLARE(Motor, Stop, NoEventData)
STATE_DECLARE(Motor, Start, MotorData)
STATE_DECLARE(Motor, ChangeSpeed, MotorData)
// state object.
BEGIN_STATE_MAP
STATE_MAP_ENTRY(&Idle)
STATE_MAP_ENTRY(&Stop)
STATE_MAP_ENTRY(&Start)
STATE_MAP_ENTRY(&ChangeSpeed)
END_STATE_MAP
};
Motor implements our hypothetical motor-control state machine, where clients can start the motor, at a specific speed, and stop
the motor. The SetSpeed() and Halt() public functions are considered external events into the Motor state machine.
SetSpeed() takes event data, which contains the motor speed. This data structure will be deleted upon completion of the state
processing, so it is imperative that the structure inherit from EventData and be created using operator new before the
function call is made.
When the Motor class is created, its initial state is Idle. The first call to SetSpeed() transitions the state machine to the
Start state, where the motor is initially set into motion. Subsequent SetSpeed() events transition to the ChangeSpeed
state, where the speed of an already moving motor is adjusted. The Halt() event transitions to Stop, where, during state
execution, an internal event is generated to transition back to the Idle state.
Creating a new state machine requires a few basic high-level steps:
1. Inherit from the StateMachine base class

2. Create a States enumeration with one entry per state function
3. Create state functions using the STATE macros
4. Optionally create guard/entry/exit functions for each state using the GUARD, ENTRY and EXIT macros
5. Create one state map lookup table using the STATE_MAP macros
6. Create one transition map lookup table for each external event using the TRANSITION_MAP macros
State Functions
State functions implement each state — one state function per state-machine state. In this implementation, all state functions must
adhere this state-function signature, which is as follows:
Hide Copy Code

void <class>::<func>(const EventData*)
<class> and <func> are not template parameters but just placeholders for the particular class and function name respectively.
For example, you might choose a signature such as void Motor::ST_Start(const MotorData*). The important
thing here is that the function returns no data (has a void return type) and that it has one input argument of type EventData*
(or a derived class thereof).
Declare state functions with the STATE_DECLARE macro. The macro arguments are the state machine class name, state
function name and event data type.
Hide Copy Code

STATE_DECLARE(Motor, Idle, NoEventData)
STATE_DECLARE(Motor, Stop, NoEventData)
STATE_DECLARE(Motor, Start, MotorData)
STATE_DECLARE(Motor, ChangeSpeed, MotorData)
Expanding the macros above yields:
Hide Copy Code

void ST_Idle(const NoEventData*);
StateAction<Motor, NoEventData, &Motor::ST_Idle> Idle;
void ST_Stop(const NoEventData*);

StateAction<Motor, NoEventData, &Motor::ST_Stop> Stop;
void ST_Start(const MotorData*);

StateAction<MotorNM, MotorData, &Motor::ST_Start> Start;
void ST_ChangeSpeed(const MotorData*);

StateAction<Motor, MotorData, &Motor::ST_ChangeSpeed> ChangeSpeed;
Notice the multiline macros prepend "ST_" to each state function name. Three characters are added to each state/guard/entry/exit
function automatically within the macro. For instance, if declaring a function using STATE_DEFINE(Motor, Idle,
NoEventData) the actual state function is called ST_Idle().
1. ST_ - state function prepend characters

2. GD_ - guard function prepend characters
3. EN_ - entry function prepend characters
4. EX_ - exit function prepend characters
After a state function is declared, define a state function implementation with the STATE_DEFINE macro. The arguments
are the state machine class name, state function name, and event data type. The code to implement your state behavior goes inside
the state function. Note, any state function code may call InternalEvent() to switch to another state. Guard/entry/exit
functions cannot call InternalEvent() otherwise a runtime error will result.
Hide Copy Code

STATE_DEFINE(Motor, Stop, NoEventData)
{
cout << "Motor::ST_Stop" << endl;
m_currentSpeed = 0;
// perform the stop motor processing here

// transition to Idle via an internal event
InternalEvent(ST_IDLE);
}
Expanding the macro yields this state function definition.
Hide Copy Code

void Motor::ST_Stop(const NoEventData* data)
{
cout << "Motor::ST_Stop" << endl;
m_currentSpeed = 0;
// perform the stop motor processing here

// transition to Idle via an internal event
}
Each state function must have an enumeration associated with it. These enumerations are used to store the current state of the state
machine. In Motor, States provides these enumerations, which are used later for indexing into the transition map and state
map lookup tables.
Hide Copy Code

enum States
{
ST_IDLE,
ST_STOP,
ST_START,
ST_CHANGE_SPEED,
ST_MAX_STATES
};
It is important that the enumeration order match the order provided within the state map. This way, a state enumeration is tied to a
particular state function call. EVENT_IGNORED and CANNOT_HAPPEN are two other constants used in conjunction with these
state enumerations. EVENT_IGNORED tells the state engine not to execute any state, just return and do nothing.
CANNOT_HAPPEN tells the state engine to fault. This abnormal catastrophic failure condition is never supposed to occur.
State Map
The state-machine engine knows which state function to call by using the state map. The state map maps the m_currentState
variable to a specific state function. For instance, if m_currentState is 2, then the third state-map function pointer entry will be
called (counting from zero). The state map table is created using these three macros:
Hide Copy Code

BEGIN_STATE_MAP
STATE_MAP_ENTRY
END_STATE_MAP
BEGIN_STATE_MAP starts the state map sequence. Each STATE_MAP_ENTRY has a state function name argument.
END_STATE_MAP terminates the map. The state map for Motor is shown below.
Hide Copy Code
BEGIN_STATE_MAP
STATE_MAP_ENTRY(&Idle)
STATE_MAP_ENTRY(&Stop)
STATE_MAP_ENTRY(&Start)
STATE_MAP_ENTRY(&ChangeSpeed)
END_STATE_MAP
The completed state map just implements the pure virtual function GetStateMap() defined within the StateMachine
base class. Now the StateMachine base class can get all the StateMapRow objects via this call. The macro-expanded code
is shown below:
Hide Copy Code

private:
virtual const StateMapRowEx* GetStateMapEx() { return NULL; }
virtual const StateMapRow* GetStateMap() {
static const StateMapRow STATE_MAP[] = {
&Idle,
&Stop,
&Start,
&ChangeSpeed,
};
C_ASSERT((sizeof(STATE_MAP)/sizeof(StateMapRow)) == ST_MAX_STATES);
return &STATE_MAP[0]; }
Notice the C_ASSERT macro. It provides compile time protection against a state map having the wrong number of entries. Visual
Studio gives an error of "error C2118: negative subscript". Your compiler may give a different error message.
Alternatively, guard/entry/exit features require utilizing the _EX (extended) version of the macros.
Hide Copy Code

BEGIN_STATE_MAP_EX
STATE_MAP_ENTRY_EX or STATE_MAP_ENTRY_ALL_EX
END_STATE_MAP_EX
The STATE_MAP_ENTRY_ALL_EX macro has four arguments for the state action, guard condition, entry action and exit action
in that order. The state action is mandatory but the other actions are optional. If a state doesn't have an action, then use 0 for the
argument. If a state doesn't have any guard/entry/exit options, the STATE_MAP_ENTRY_EX macro defaults all unused options
to 0. The macro snippet below is for an advanced example presented later in the article.
Hide Copy Code

BEGIN_STATE_MAP_EX
STATE_MAP_ENTRY_ALL_EX(&Idle, 0, &EntryIdle, 0)
STATE_MAP_ENTRY_EX(&Completed)
STATE_MAP_ENTRY_EX(&Failed)
STATE_MAP_ENTRY_ALL_EX(&StartTest, &GuardStartTest, 0, 0)
STATE_MAP_ENTRY_EX(&Acceleration)
STATE_MAP_ENTRY_ALL_EX(&WaitForAcceleration, 0, 0, &ExitWaitForAcceleration)
STATE_MAP_ENTRY_EX(&Deceleration)
STATE_MAP_ENTRY_ALL_EX(&WaitForDeceleration, 0, 0, &ExitWaitForDeceleration)
END_STATE_MAP_EX
Each entry within the transition map is a StateMapRow:
Hide Copy Code

struct StateMapRow
{
const StateBase* const State;
};
The StateBase pointer has a pure virtual interface called by StateEngine().
Hide Copy Code

class StateBase
{
public:
virtual void InvokeStateAction(StateMachine* sm, const EventData* data) const = 0;
};
The StateAction derives from StateBase and its sole responsibility is to implement InvokeStateAction() and
cast the StateMachine and EventData pointers to the correct derived class types, then call the state member function.
Therefore, the state engine overhead to call each state function is one virtual function call, one static_cast<> and one
dynamic_cast<>.
Hide Copy Code
template <class SM, class Data, void (SM::*Func)(const Data*)>

class StateAction : public StateBase
{
public:
virtual void InvokeStateAction(StateMachine* sm, const EventData* data) const
{
// Downcast the state machine and event data to the correct derived type
SM* derivedSM = static_cast<SM*>(sm);
// Dynamic cast the data to the correct derived type

const Data* derivedData = dynamic_cast<const Data*>(data);
ASSERT_TRUE(derivedData != NULL);
// Call the state function

(derivedSM->*Func)(derivedData);
}
};
The template arguments to StateAction<> are a state machine class (SM), an event data type (Data) and a member function
pointer to the state function (Func).
GuardCondition<>, EntryAction<> and ExitAction<> classes also exist and their role is the same – typecast state
machine and event data then call the action member function. Minor variations exist with the template arguments. The
GuardCondition<> class Func template parameter changes slightly and returns a BOOL. ExitAction<> doesn't have a
Data template argument.
Transition map
The last detail to attend to are the state transition rules. How does the state machine know what transitions should occur? The
answer is the transition map. A transition map is lookup table that maps the m_currentState variable to a state enum
constant. Every external event has a transition map table created with three macros:
Hide Copy Code

BEGIN_TRANSITION_MAP
TRANSITION_MAP_ENTRY
END_TRANSITION_MAP
The Halt() event function in Motor defines the transition map as:
Hide Copy Code

void Motor::Halt()
{
BEGIN_TRANSITION_MAP // - Current State -
TRANSITION_MAP_ENTRY (EVENT_IGNORED) // ST_IDLE
TRANSITION_MAP_ENTRY (CANNOT_HAPPEN) // ST_STOP
TRANSITION_MAP_ENTRY (ST_STOP) // ST_START
TRANSITION_MAP_ENTRY (ST_STOP) // ST_CHANGE_SPEED
END_TRANSITION_MAP(NULL)
}
The macro-expanded code for Halt() is below. Again, notice the C_ASSERT macro providing compile time protection against
an incorrect number of transition map entries.
Hide Copy Code

void Motor::Halt()
{
static const BYTE TRANSITIONS[] = {
EVENT_IGNORED, // ST_IDLE
CANNOT_HAPPEN, // ST_STOP
ST_STOP, // ST_START
ST_STOP, // ST_CHANGE_SPEED
};
ExternalEvent(TRANSITIONS[GetCurrentState()], NULL);
C_ASSERT((sizeof(TRANSITIONS)/sizeof(BYTE)) == ST_MAX_STATES);
}
BEGIN_TRANSITION_MAP starts the map. Each TRANSITION_MAP_ENTRY that follows indicates what the state machine
should do based upon the current state. The number of entries in each transition map table must match the number of state
functions exactly. In our example, we have four state functions, so we need four entries. The location of each entry matches the
order of state functions defined within the state map. Thus, the first entry within the Halt() function indicates an
EVENT_IGNORED as shown below.
Hide Copy Code
This is interpreted as "If a Halt event occurs while the current state is state Idle, just ignore the event."
Similarly, the third entry in the map is:
Hide Copy Code

TRANSITION_MAP_ENTRY (ST_STOP) // ST_START
This indicates "If a Halt event occurs while current is state Start, then transition to state Stop."
END_TRANSITION_MAP terminates the map. The argument to this end macro is the event data, if any. Halt() has no event
data so the argument is NULL, but ChangeSpeed() has data so it is passed in here.
State Engine
The state engine executes the state functions based upon events generated. The transition map is an array of StateMapRow
instances indexed by the m_currentState variable. When the StateEngine() function executes, it looks up a
StateMapRow or StateMapRowEx array by calling GetStateMap() or GetStateMapEx():
Hide Copy Code
void StateMachine::StateEngine(void)
{
const StateMapRow* pStateMap = GetStateMap();
if (pStateMap != NULL)
StateEngine(pStateMap);
else
{
const StateMapRowEx* pStateMapEx = GetStateMapEx();
if (pStateMapEx != NULL)
StateEngine(pStateMapEx);
else
ASSERT();
}
}
Indexing into the StateMapRow table with a new state value a state functions is executed by calling
InvokeStateAction():
Hide Copy Code
const StateBase* state = pStateMap[m_newState].State;
state->InvokeStateAction(this, pDataTemp);
After the state function has a chance to execute, it deletes the event data, if any, before checking to see if any internal events were
generated. One entire state engine function is shown below. The other overloaded state engine function (see attached source code)
handles state machines with a StateMapRowEx table containing the additional guard/entry/exit features.

void StateMachine::StateEngine(const StateMapRow* const pStateMap)
{
const EventData* pDataTemp = NULL;
// While events are being generated keep executing states

while (m_eventGenerated)
{
// Error check that the new state is valid before proceeding
ASSERT_TRUE(m_newState < MAX_STATES);
// Get the pointer from the state map

const StateBase* state = pStateMap[m_newState].State;
// Copy of event data pointer

pDataTemp = m_pEventData;
// Event data used up, reset the pointer

m_pEventData = NULL;
// Event used up, reset the flag

m_eventGenerated = FALSE;
// Switch to the new current state

SetCurrentState(m_newState);
// Execute the state action passing in event data

ASSERT_TRUE(state != NULL);
state->InvokeStateAction(this, pDataTemp);
// If event data was used, then delete it

if (pDataTemp)
{
delete pDataTemp;
pDataTemp = NULL;
}
}
}
The state engine logic for guard, entry, state, and exit actions is expressed by the following sequence. The StateMapRow engine
implements only #1 and #5 below. The extended StateMapRowEx engine uses the entire logic sequence.
1. Evaluate the state transition table. If EVENT_IGNORED, the event is ignored and the transition is not performed. If
CANNOT_HAPPEN, the software faults. Otherwise, continue with next step.
2. If a guard condition is defined execute the guard condition function. If the guard condition returns FALSE, the state
transition is ignored and the state function is not called. If the guard returns TRUE, or if no guard condition exists, the state
function will be executed.
3. If transitioning to a new state and an exit action is defined for the current state, call the current state exit action function.
4. If transitioning to a new state and an entry action is defined for the new state, call the new state entry action function.
5. Call the state action function for the new state. The new state is now the current state.
Generating Events
At this point, we have a working state machine. Let's see how to generate events to it. An external event is generated by creating
the event data structure on the heap using new, assigning the structure member variables, and calling the external event function.
The following code fragment shows how a synchronous call is made.
Hide Copy Code

MotorData* data = new MotorData();
data->speed = 50;
motor.SetSpeed(data);
To generate an internal event from within a state function, call InternalEvent(). If the destination doesn't accept event data,
then the function is called with only the state you want to transition to:
Hide Copy Code

In the example above, once the state function completes execution the state machine will transition to the Idle state. If, on the other
hand, event data needs to be sent to the destination state, then the data structure needs to be created on the heap and passed in
as an argument:
Hide Copy Code

data->speed = 100;
InternalEvent(ST_CHANGE_SPEED, data);
External Event No Heap Data
The state machine has the EXTERNAL_EVENT_NO_HEAP_DATA build option that changes the behavior of
ExternalEvent(). When defined, just pass in data on the stack instead of creating external event data on the heap as shown
below. This option relieves the caller from having to remember to create event data structure dynamically.
Hide Copy Code

MotorData data;
data.speed = 100;
motor.SetSpeed(&data);
The option doesn't effect internal events. InternalEvent() data, if any, must still be created on the heap.
Hide Copy Code

data->speed = 100;
InternalEvent(ST_CHANGE_SPEED, data);
Hiding and Eliminating Heap Usage

The SetSpeed() function takes a MotorData argument that the client must create on the heap. Alternatively, the class can
hide the heap usage from the caller. The change is as simple as creating the MotorData instance within the SetSpeed()
function. This way, the caller isn’t required to create a dynamic instance:
Hide Copy Code

void Motor::SetSpeed(INT speed)
{
MotorData* data = new MotorData;
pData->speed = speed;

TRANSITION_MAP_ENTRY (ST_START) // ST_IDLE
TRANSITION_MAP_ENTRY (CANNOT_HAPPEN) // ST_STOP
TRANSITION_MAP_ENTRY (ST_CHANGE_SPEED) // ST_START
TRANSITION_MAP_ENTRY (ST_CHANGE_SPEED) // ST_CHANGE_SPEED
END_TRANSITION_MAP(data)
}
Alternatively, use the EXTERNAL_EVENT_NO_HEAP_DATA build option and the caller is not required to create external event
data on the heap.
On some systems, using the heap is undesirable. For those systems, I've included the xallocator fixed block allocator within
the attached source code. It's optional, but when used it creates memory blocks from static memory or previously recycled heap
memory. A single XALLOCATOR macro in the EventData base class provides fixed block allocations for all EventData and
derived classes.
Hide Copy Code

#include "xallocator.h"
class EventData
{
public:
virtual ~EventData() {}
XALLOCATOR
};
For more information on xallocator, see the article "Replace malloc/free with a Fast Fixed Block Memory Allocator".
State Machine Inheritance

Inheriting states allows common states to reside in a base class for sharing with inherited classes. StateMachine supports state
machine inheritance with minimal effort. I’ll use an example to illustrate.
Some systems have a built in self-test mode where the software executes a series of test steps to determine if the system is
operational. In this example, each self-test has common states to handle Idle, Completed and Failed states. Using
inheritance, a base class contains the shared states. The classes SelfTest and CentrifugeTest demonstrate the concept.
The state diagram is shown below.
Figure 2: CentrifugeTest state diagram
SelfTest defines the following states:
0. Idle
1. Completed
2. Failed
CentrifugeTest inherits those states and creates new ones:
3. Start Test
4. Acceleration
5. Wait For Acceleration
6. Deceleration
7. Wait For Deceleration
The SeftTest base class defines the States enumeration and states but not the state map. Only the most derived state
machine class within the hierarchy defines a state map.
Hide Copy Code

enum States
{
ST_IDLE,
ST_COMPLETED,
ST_FAILED,
ST_MAX_STATES
};
// Define the state machine states

STATE_DECLARE(SelfTest, Idle, NoEventData)
ENTRY_DECLARE(SelfTest, EntryIdle, NoEventData)
STATE_DECLARE(SelfTest, Completed, NoEventData)
STATE_DECLARE(SelfTest, Failed, NoEventData)
The CentrifugeTest class defines its state machine below. Take note of the "ST_START_TEST =
SelfTest::ST_MAX_STATES" enumeration entry. It is critical that the derived class continue numbering states where the
base class left off.

enum States
{
// Continue state numbering using the last SelfTest::States enum value
ST_START_TEST = SelfTest::ST_MAX_STATES,
ST_ACCELERATION,
ST_WAIT_FOR_ACCELERATION,
ST_DECELERATION,
ST_WAIT_FOR_DECELERATION,
ST_MAX_STATES
};
STATE_DECLARE(CentrifugeTest, Idle, NoEventData)
STATE_DECLARE(CentrifugeTest, StartTest, NoEventData)
GUARD_DECLARE(CentrifugeTest, GuardStartTest, NoEventData)
STATE_DECLARE(CentrifugeTest, Acceleration, NoEventData)
STATE_DECLARE(CentrifugeTest, WaitForAcceleration, NoEventData)
EXIT_DECLARE(CentrifugeTest, ExitWaitForAcceleration)
STATE_DECLARE(CentrifugeTest, Deceleration, NoEventData)
STATE_DECLARE(CentrifugeTest, WaitForDeceleration, NoEventData)
EXIT_DECLARE(CentrifugeTest, ExitWaitForDeceleration)
// state object.
BEGIN_STATE_MAP_EX
STATE_MAP_ENTRY_ALL_EX(&Idle, 0, &EntryIdle, 0)
STATE_MAP_ENTRY_EX(&Completed)
STATE_MAP_ENTRY_EX(&Failed)
STATE_MAP_ENTRY_ALL_EX(&StartTest, &GuardStartTest, 0, 0)
STATE_MAP_ENTRY_EX(&Acceleration)
STATE_MAP_ENTRY_ALL_EX(&WaitForAcceleration, 0, 0, &ExitWaitForAcceleration)
STATE_MAP_ENTRY_EX(&Deceleration)
STATE_MAP_ENTRY_ALL_EX(&WaitForDeceleration, 0, 0, &ExitWaitForDeceleration)
END_STATE_MAP_EX
The state map contains entries for all states within the hierarchy, in this case SelfTest and CentrifugeTest. Notice the
use of the _EX extended state map macros so that guard/entry/exit features are supported. For instance, a guard condition for the
StartState is declared as:
Hide Copy Code
GUARD_DECLARE(CentrifugeTest, GuardStartTest, NoEventData)
The guard condition function returns TRUE if the state function is to be executed or FALSE otherwise.
Hide Copy Code

GUARD_DEFINE(CentrifugeTest, GuardStartTest, NoEventData)
{
cout << "CentrifugeTest::GuardStartTest" << endl;
if (m_speed == 0)
return TRUE; // Centrifuge stopped. OK to start test.
else
return FALSE; // Centrifuge spinning. Can't start test.
}
Base Class External Event Functions

When using state machine inheritance, it’s not just the most-derived class that may define external event functions. The base and
intermediary classes may also use transition maps. A parent state machine doesn’t have awareness of child classes. One or more
subclass state machine hierarchical levels may exist each adding more states. Therefore parent classes of the most-derived state
machine utilize a partial transition map, that is, the state transition map only handles the states that are known to the parent class.
Any events generated while the current state is outside the maximum parent state enumeration range must be handled by the
PARENT_TRANSITION macro which is placed directly above the transition map as shown below.
Hide Copy Code
void SelfTest::Cancel()
{
PARENT_TRANSITION (ST_FAILED)

TRANSITION_MAP_ENTRY (CANNOT_HAPPEN) // ST_COMPLETED
TRANSITION_MAP_ENTRY (CANNOT_HAPPEN) // ST_FAILED
END_TRANSITION_MAP(NULL)
}
The PARENT_TRANSITION example above is read “If the Cancel event is generated when the state machine is not in
ST_IDLE, ST_COMPLETE, or ST_FAILED then transition to the ST_FAILED state”. The macro preceding the transition
map is the catch-all if the current state is beyond what is known by the current state machine hierarchy level. The expanded
PARENT_TRANSITION macro for the above example is shown below.
Hide Copy Code
if (GetCurrentState() >= ST_MAX_STATES &&
GetCurrentState() < GetMaxStates()) {
ExternalEvent(ST_FAILED);
return; }
GetCurrentState() returns the state machine current state. ST_MAX_STATES is the maximum parent class State
enum value. GetMaxStates() returns the maximum state value for the entire state machine up to the most-derived class. The
expanded code shows that if the current state is higher than the maximum parent class state value (i.e.,
SelfTest::ST_MAX_STATES) but less than the entire state machine maximum state value (i.e.,
CentrifugeTest::ST_MAX_STATES), then transition to state Failed. In this way, transitions are uniformly handled if
outside the range handled by the parent partial transition map. Otherwise, the partial transition map handles the state transition.
EVENT_IGNORED and CANNOT_HAPPEN are also valid PARENT_TRANSITION arguments.
Let’s say the parent SelfTest::Cancel() is unacceptable for some child classes. Just override or make the external event
function virtual and use a full transition map within the derived Cancel() function.
Alternative to a partial transition map, a parent class may generate external events manually without any macro support. To have
external event functions within parent class hierarchy levels, use GetCurrentState() and ExternalEvent(). The
SelfTest class has one external event function: Cancel(). As shown in the code below, the state machine transitions to the
Failed state if the current state is not Idle.
Hide Copy Code

void SelfTest::Cancel()
{
if (GetCurrentState() != ST_IDLE)
ExternalEvent(ST_FAILED);
}
The state machine inheritance technique expressed here does not implement a Hierarchical State Machine (HSM). An HSM has
different semantics and behaviors including, among other things, a hierarchical event processing model. This feature explained here
offers code reuse by factoring common states into a base class, but the state machine is still considered a traditional FSM.
State Function Inheritance

State functions can be overridden in the derived class. The derived class may call the base implementation if so desired. In this case,
SelfTest declares and defines an Idle state:
Hide Copy Code
STATE_DECLARE(SelfTest, Idle, NoEventData)
STATE_DEFINE(SelfTest, Idle, NoEventData)

{
cout << "SelfTest::ST_Idle" << endl;
}
CentrifugeTest also declares and defines the same Idle state with the same event data type.
Hide Copy Code

STATE_DECLARE(CentrifugeTest, Idle, NoEventData)
STATE_DEFINE(CentrifugeTest, Idle, NoEventData)

{
cout << "CentrifugeTest::ST_Idle" << endl;
// Call base class Idle state

SelfTest::ST_Idle(data);
StopPoll();
}
The CentrifugeTest::ST_Idle() function calls the base implementation SelfTest::ST_Idle(). State function
inheritance is a powerful mechanism to allow each level within the hierarchy to process the same event.
In the same way a state function is overridden, a derived class may also override a guard/entry/exit function. Within the override,
you decide whether to call the base implementation or not on a case-by-case basis.
StateMachine Compact Class

If the StateMachine implementation is too large or too slow due to the virtual function and typecasting, then the
compact version is available at the expense of no type checking of the member function pointers. The compact version is only 68
bytes (on Windows release build) vs. 448 bytes on the non-compact version. See StateMachineCompact.zip for the source files.
Notice that we have to use reinterpret_cast<> operator within the STATE_MAP_ENTRY macro to cast the derived class
member function pointer to a StateMachine member function pointer.
Hide Copy Code

reinterpret_cast<StateFunc>(stateFunc)
It is necessary to perform this upcast since the StateMachine base class has no idea what the derived class is. So, it is
imperative that the entries provided to STATE_MAP_ENTRY are really member functions of an inheriting class and that they
conform to the state function signature discussed earlier (see State Functions section). Otherwise, bad things will happen.
On most projects, I’m not counting CPU instructions for the state execution and a few extra bytes of storage isn’t critical. The state
machine portion of my projects have never been the bottleneck. So I prefer the enhanced error checking of the non-compact
version.
Multithread Safety
To prevent preemption by another thread when the state machine is in the process of execution, the StateMachine class can
use locks within the ExternalEvent() function. Before the external event is allowed to execute, a semaphore can be locked.
When the external event and all internal events have been processed, the software lock is released, allowing another external event
to enter the state machine instance.
Comments indicate where the lock and unlock should be placed if the application is multithreaded. If using locks, each
StateMachine object should have its own instance of a software lock. This prevents a single instance from locking and
preventing all other StateMachine objects from executing. Note, software locks are only required if a StateMachine
instance is called by multiple threads of control. If not, then locks are not required.
See the article "C++ State Machine with Threads" for a complete multithreaded example using the state machine presented here.
Alternatives
Occasionally, you need something more powerful to capture the behavior of a system using events and states. The version
presented here is a variation of a conventional FSM. A true Hierarchical State Machine (HSM), on the other hand, can significantly
simplify the solution to certain types of problems. Many good HSM projects exist ready for you to explore. But sometimes a simple
FSM is all that you need.
Benefits
Implementing a state machine using this method as opposed to the old switch statement style may seem like extra effort.
However, the payoff is in a more robust design that is capable of being employed uniformly over an entire multithreaded system.
Having each state in its own function provides easier reading than a single huge switch statement, and allows unique event data to
be sent to each state. In addition, validating state transitions prevents client misuse by eliminating the side effects caused by
unwanted state transitions.
I’ve used variations of this code for self-test engines, a gesture recognition library, user interface wizards, and machine automation,
among other projects. This implementation offers easy use for the inheriting classes. With the macros it lets you just "turn the crank"
without much thought given to the underlying mechanics of how the state engine operates. This allows you more time to
concentrate on more important things, like the design of the state transitions and state function implementation.
References
State Machine Design in C - by David Lafreniere
C++ State Machine with Threads - by David Lafreniere
C++ State Machine with Asynchronous Multicast Delegates - by David Lafreniere
Replace malloc/free with a Fast Fixed Block Memory Allocator - by David Lafreniere
An Efficient C++ Fixed Block Memory Allocator - by David Lafreniere
History
23rd March, 2016
First release
28th March, 2016
Updated attached StateMachine.zip to help with porting
3rd April, 2016
Corrected an error in figure 1
17th April, 2016
Updated attached StateMachine.zip source code to include xallocator bug fixes
26th October, 2016
Fixed preprocessor bug in STATE_DECLARE within StateMachine.zip

Fixed macro bug in END_STATE_MAP within StateMachineCompact.zip
Minor fixes to make porting code to other platforms easier
Updated attached StateMachine.zip and StateMachineCompact.zip source code with bug fixes
19th November, 2016
Added References section
16th January, 2017
Added the EXTERNAL_EVENT_NO_HEAP_DATA build option

Updated article and attached StateMachine.zip source code
17th January, 2017
Added partial transition map feature

Updated article and attached StateMachine.zip source code.
20th Feburary, 2019
Added reference to C language state machine article.

Minor article corrections.
Updated source code with minor include fix within xallocator.cpp.
License
This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
Share
About the Author
David Lafreniere
United States
I've been a professional software engineer for over 20 years. When not writing code, I enjoy spending time with the family,
camping and riding motorcycles around Southern California.
Comments and Discussions

You must Sign In to use this message board.
Search Comments
First Prev Next
Message Closed
20-Jun-19 7:06
more readable transition map

andreasgass 13-May-19 22:25
state to string macro

Five stars
Manuela Arcuri 14-Mar-19 23:26
Re: Five stars

David Lafreniere 20-Mar-19 16:32
Give this man a 5

Mike Hankey 8-Mar-19 4:21
Re: Give this man a 5

David Lafreniere 20-Mar-19 16:33
My vote of 5
Slobos 19-Dec-18 8:06
Re: My vote of 5
David Lafreniere 20-Feb-19 13:16
Typo in xallocator.h
Member 14032673 25-Oct-18 23:22
Re: Typo in xallocator.h

David Lafreniere 22-Nov-18 2:19
new "NoEventData or EventData" object on Internal Event

Member 13628461 20-Aug-18 5:23
Re: new "NoEventData or EventData" object on Internal Event

David Lafreniere 23-Sep-18 5:05
Re: new "NoEventData or EventData" object on Internal Event

David Lafreniere 20-Feb-19 13:16
why use static_cast rather than dynamic_cast?

AlexYIN 21-Jul-18 4:20
Re: why use static_cast rather than dynamic_cast?

David Lafreniere 17-Sep-18 7:38
Crashing when i reallocate state machine

Bùi Quang Minh 16-Jul-18 6:28
Re: Crashing when i reallocate state machine

Gary Andriotakis 8-Nov-18 10:00

cmeyer42 16-Apr-19 1:25


scomari 16-May-19 4:33
Port for Atmel Studio and AVR MCUs?

Chuck844 31-Jul-17 13:15
Re: Port for Atmel Studio and AVR MCUs?

David Lafreniere 3-Aug-17 7:44

freeck02 24-Aug-17 2:58

David Lafreniere 25-Aug-17 6:49
Refresh 1 2 3 4 Next »
General News Suggestion Question Bug Answer Joke Praise Rant Admin
Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
Permalink Layout: fixed | fluid Article Copyright 2016 by David Lafreniere

Advertise Everything else Copyright © CodeProject, 1999-2019
Privacy
Cookies Web01 2.8.190808.1
Terms of Use

State Machine Design in C++ - CodeProject

Uploaded by

Copyright:

Available Formats

You might also like

State Machine Design in C++ - CodeProject

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

State Machine Design in C++ - CodeProject

Uploaded by

Copyright:

Available Formats

2019/8/10 State Machine Design in C++ - CodeProject

14,260,254 members Sign in

Search for articles, questions, tips

20 Feb 2019 CPOL

Download source (StateMachine) - 22.5 KB

2. Transition tables – Transition tables precisely control state transition behavior.

Hide Copy Code

Why Use a State Machine?

1. Set Speed – sets the motor going at a specific speed

2. Halt – stops the motor

1. Idle — the motor is not spinning but is at rest

2. Start — starts the motor from a dead stop

Turn on motor power

3. Change Speed — adjust the speed of an already moving motor

Change motor speed

4. Stop — stop a moving motor

Turn off motor power

Figure 1: Motor state diagram

Internal and External Events

Hide Copy Code

Hide Shrink Copy Code

StateMachine(BYTE maxStates, BYTE initialState = 0);

BYTE GetCurrentState() { return m_currentState; }

virtual const StateMapRow* GetStateMap() = 0;

void SetCurrentState(BYTE newState) { m_currentState = newState; }

Hide Copy Code

The MotorNM class declaration shown below contains no macros:

Hide Shrink Copy Code

// Motor class with no macros

// External events taken by this state machine

void ST_Stop(const NoEventData*);

void ST_Start(const MotorNMData*);

void ST_ChangeSpeed(const MotorNMData*);

The Motor class uses macros for comparison:

Hide Shrink Copy Code

// Motor class using macro support

// External events taken by this state machine

Creating a new state machine requires a few basic high-level steps:

1. Inherit from the StateMachine base class

Hide Copy Code

Hide Copy Code

Expanding the macros above yields:

Hide Copy Code

void ST_Stop(const NoEventData*);

void ST_Start(const MotorData*);

void ST_ChangeSpeed(const MotorData*);

1. ST_ - state function prepend characters

Hide Copy Code

// perform the stop motor processing here

Expanding the macro yields this state function definition.

Hide Copy Code

// perform the stop motor processing here

Hide Copy Code

Hide Copy Code

Hide Copy Code

Hide Copy Code

Hide Copy Code

Each entry within the transition map is a StateMapRow:

template <class SM, class Data, void (SM::Func)(const Data)>
