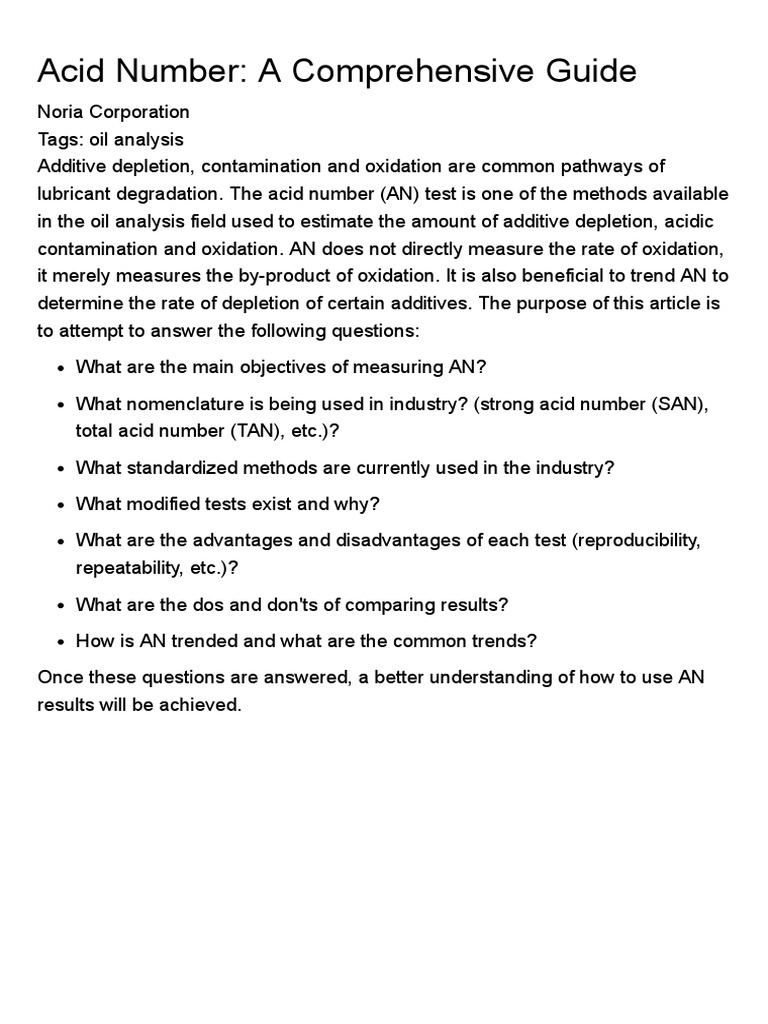

Acid Number - A Comprehensive Guide
Acid Number - A Comprehensive Guide
Noria Corporation
Tags: oil analysis
Additive depletion, contamination and oxidation are common pathways of
lubricant degradation. The acid number (AN) test is one of the methods available
in the oil analysis field used to estimate the amount of additive depletion, acidic
contamination and oxidation. AN does not directly measure the rate of oxidation,
it merely measures the by-product of oxidation. It is also beneficial to trend AN to
determine the rate of depletion of certain additives. The purpose of this article is
to attempt to answer the following questions:
Objectives of Measuring AN
AN is the measure of acid concentration in a nonaqueous solution. It is
determined by the amount of potassium hydroxide (KOH) base required to
neutralize the acid in one gram of an oil sample. The standard unit of measure is
mg KOH/g. AN does not represent the absolute acid concentration of the oil
sample. The AN measurement detects both weak organic acids and strong
inorganic acids.
A change in the acid concentration of an oil can originate from multiple sources.
Acidic contaminants, wrong oil, alkaline-reserve depletion and oxidation by-
products can cause an increase in acid concentration. Table 1 lists common
acids that can be detected.
Understanding the extent of additive depletion is key in determining the RUL of
an oil. Some additives are weakly acidic and can elevate the oil's initial AN. As
the lubricant ages these additives deplete, thereby reducing the acidity created
by the additives. The common antiwear additive, zinc dialkyl dithiophosphate
(ZDDP), produces certain AN trends during lubricant aging.
Figure 1 shows the underlying components that affect the AN during lubricant
aging. It can be seen that during an induction period the antioxidant additives are
depleting; once these additives are depleted, the base oil begins to oxidize if the
stressing conditions are sufficiently high. By trending the AN, this increase can
be detected.
pH vs. AN
The pH and AN test methods measure different aspects of the oil's acidic or
alkaline character. The pH test method measures the apparent pH of the oil. The
apparent pH is a representation of how corrosive the oil may be, but it does not
indicate the concentration of acidic or alkaline constituents. The pH test method
is useful in applications where corrosive oil could cause considerable damage. It
is also valuable in lubricant systems with a high potential for the formation or the
contamination of strong acids.
The AN and BN test methods respectively measure the concentration of acidic
and alkaline constituents. Both acidic and alkaline constituents can exist in oil at
the same time. In fact, some additives are amphoteric, meaning they can behave
as either a base or an acid. In some oils, it is important to monitor both the AN
and BN to determine the reactions in the oil.
AN and BN do not indicate the strength of the acidic or alkaline constituents in
the lubricant, which reduces their ability to indicate the oil's corrosiveness. AN
has a better ability than pH to detect and monitor weak acids, which do not
readily dissociate in water. This prevents the pH test method from obtaining a
good indication of how the weak acid concentration is changing in the lubricant.
Standardized Methods
Table 2 lists the current ASTM standard test methods for determining AN. Each
test has been designed for specific purposes, with ASTM D664 and ASTM D974
being the two most commonly used tests. ASTM D1534 and ASTM D3339 are
similar versions of D974, used for special cases. AN tests can be broken up into
two titration categories: potentiometric or colorimetric.
ASTM AN Tests
ASTM D664 measures acidic constituents by using a potentiometer to determine
an end point. This method can be used to measure both AN and SAN. To
prepare the sample a mixture of toluene, isopropyl alcohol and water is dissolved
into a sample. Potassium hydroxide is then titrated into the solution using a
burette. The potentiometer output is monitored while the KOH is titrated into the
solution.
If the inflection is indistinguishable, the buffer potential will be considered the AN.
The inflection point is commonly used on new oil; however, for used oils the
inflection may become indistinguishable requiring the use of the buffer potential
as the end point.
ASTM D974 is the measure of acidic constituents using a color change to
indicate the inflection. The sample is dissolved into a solution of toluene, p-
naphtholbenzne, and isopropyl alcohol containing water. The solution is titrated
with KOH while the color is monitored. This test is used on new oils and oils that
are not excessively dark.
ASTM D1534 is similar to ASTM D974 in that they both use a color change to
indicate the end point. ASTM D1534 is designed for electric insulating oils
(transformer oils), where the viscosity will not exceed 24 cSt at 40°C. The
standard range of applications is for oils with an AN between 0.05 mg KOH/g
and 0.50 mg KOH/g, which is applicable to the transformer oils.
ASTM D3339 is also similar to ASTM D974, but is designed for use on smaller
oil samples. ASTM D974 and D664 roughly use a 20 g sample; ASTM D3339
uses a 2.0 g sample, as shown in Table 2.
Modified Tests
AN tests are typically conducted to obtain an accurate indication of additive
depletion and possible contamination of ingressed acids. The standard ASTM
methods are time consuming, have relatively poor reproducibility and utilize
hazardous materials. In an effort to control the source of these issues, many
modified versions of the AN test are currently being used. Each test is specific to
its application. For example, a lab may automate the test to reduce labor and
increase throughput.
The cost of this standard test slate needs to be affordable for the end user;
therefore, each individual test performed may need to be streamlined to ensure
both quality and economy are achieved.
Field tests can also report actual results. For example, one such kit uses a
volume-sampling syringe to ensure that the oil samples are the same size. A
disposable burette is used to titrate the KOH. Because the oil sample is a
specific size, the burette has been scaled to indicate the AN. Once the color has
changed, the user only can read the acid number from the burette.
ASTM D974 has the repeatability as stated in Table 3. For example, a sample
that has a 0.15 AN could vary from 0.10 AN to 0.20 AN for ASTM D974 and
could vary 0.17 to 0.13 AN for ASTM D664.
Repeatability can be obtained on a modified test. A good lab should be able to
tell how reliable its modified version is. This confirms that comparing results from
one single lab or test procedure is best.
Reproducibility
ASTM's definition of reproducibility is "the difference between two single
independent results obtained by different operators working in different
laboratories on identical test material." Ninety-five percent of the time, the
reproducibility of ASTM D664 is +/- 20 percent of the mean for fresh oils using
the inflection point method or +/- 44 percent of the mean for used oil using the
buffer end point method.
For example, if a mean AN was 0.10 you could expect results from 0.14 to 0.06
95 percent of the time. The reproducibility of ASTM D974 is shown in Table 4.
Consider that you received an oil analysis report from multiple labs on the same
oil. It has a mean AN of 0.05, and the results could vary from 0.09 to 0.01.
It is hard if not impossible to compare results between labs when modified AN
tests are used. Quality labs will likely have a correlation to the ASTM standard;
unfortunately, this would also incorporate more error. It is best practice to
compare only results from the same test for trending purposes.
According to ASTM, "the AN obtained by this standard (D664) may or may not
be numerically the same as that obtained in accordance with test methods D974
and D3339." However, the magnitude of the results should be the same. By
trending results from one specific test method, additive depletion and
contamination can be detected.
Verify which lab has analyzed the lubricant and the test used.
Consistently use the same lab and test method for a specific lubricant.
Don't switch back and forth between labs. Don't delay oil analysis; instead,
provide the sample to the lab as soon as possible.
Common Trends of AN
Trending
In the world of AN tests, there is a current state of disillusionment. Each
laboratory provides results from its own modified test methods, which forces the
end user to rely on precision over accuracy. First, the user must be wary of
comparing results between labs. In an ideal environment, both accuracy and
precision would be provided. In a next-to-ideal world, only accuracy would be
provided.
Simple mathematics could be used to determine the exact value, but in the real
world of AN tests, the precision of each individual labs is what can be counted
on. The results are not on the true mark, but relative to each other they are good.
Comparing results from different labs would result in values all over the board.
By focusing on the precision of one lab or test procedure, a trend emerges.
Trending can enable the end user to properly evaluate his/her lubricant with
greater confidence.
General Trends
Trending results is the best way to work around the accuracy discrepancies that
come from using AN results in machine condition monitoring. By using results
from one specific test or lab, the ability to trend is good. Figure 2 illustrates the
common trends found in lubricants. Linear trends are for some ester-based
synthetics and oils going through oxidation. It represents the linear oxidation of
the base oil.
The parabolic curves may characterize rust and oxidized (R&O) oils. The AN
remains constant during the additive depletion induction phase. Once the R&O
additives have depleted, the base oil will begin to oxidize. The switching trend is
representative of EP oils, where some of the additives are acidic. As additives
deplete and react, the AN varies. These effects make it hard to trend EP oils
unless the normal switching pathway is known in advance.
AN is an important tool in the oil analysis industry when used properly.
Understanding how the AN is calculated and what variances exist will help in
interpreting the results. SAN is usually not tested, but it may be useful to an oil
analysis program if protection from corrosion is important or if there is a
possibility of contamination from an inorganic acid.
The two commonly used ASTM test methods both exhibit issues that create the
need for modified tests. With the modified tests currently being used in industry,
it is important to remember why they are in place and the implications when
comparing results. Being able to properly trend results will enable end users to
adequately evaluate their oil condition.
References
1. ASTM D664: Standard Test Method for Acid Number of Petroleum Products
by Potentiometric Titration. American Society of Testing and Materials
International, West Conshohocken, Pa.
2. ASTM D974: Standard Test Method for Acid Number and Base Number by
Color-Indicator Titration. ASTM Intl., West Conshohocken, Pa.
3. ASTM D1534: Standard Test Method for Approximate Acidity in Electrical
Insulating Liquids by Color-Indicator Titration. ASTM Intl., West
Conshohocken, Pa.
4. ASTM D3339: Standard Test Method for Acid Number of Petroleum
Products by Semi-Micro Color Indicator Titration. ASTM Intl., West
Conshohocken, Pa.
5. Finch, Stephen. "Evaluation of New Field Test Methods for Base Number
and Acid Number in Lubricating Fluids." Dexsil.
6. Smart, Clifford L. "Get Smart with Improved TAN Titrations." Practicing Oil
Analysis magazine. October 2000.
10. Ball, Peter G. "New pH Test Offers Benefits over TAN/TBN." Practicing Oil
Analysis magazine. September 1998.
11. Oil Analysis Level I Course Manual, Noria Corporation. 2006.
