Tutorial-4

Structural Analysis (CE21004)

Department of Civil Engineering,
Indian Institute of Technology Kharagpur
Due Date: 11/02/2020

February 4, 2020

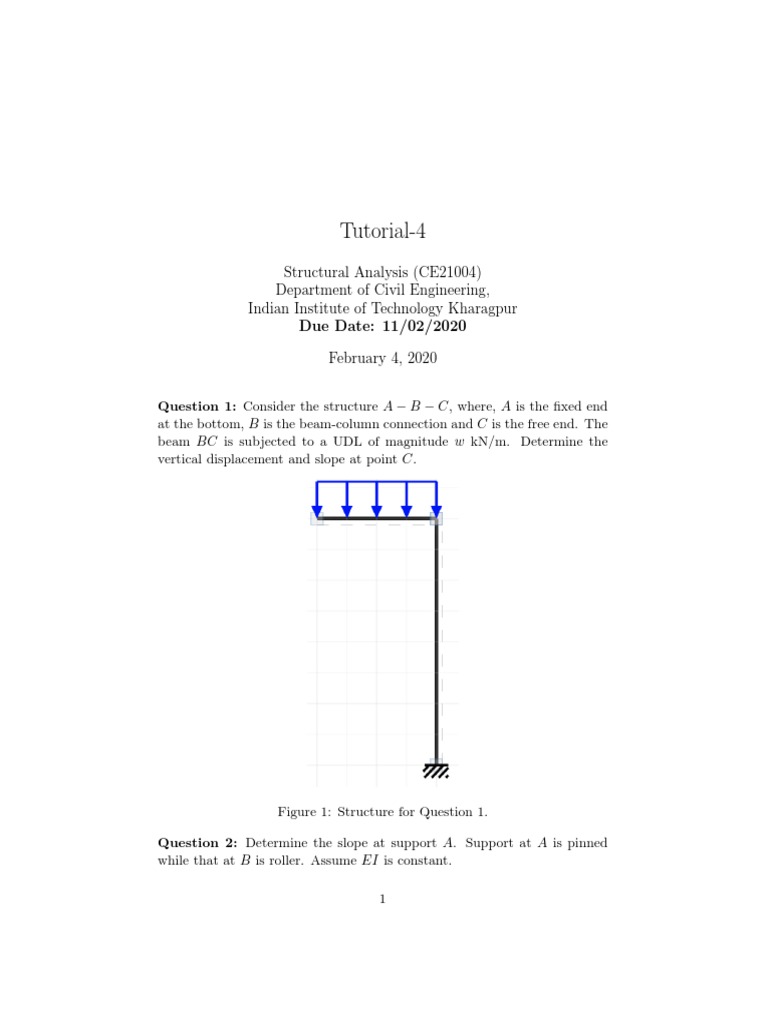

Question 1: Consider the structure A − B − C, where, A is the fixed end

at the bottom, B is the beam-column connection and C is the free end. The
beam BC is subjected to a UDL of magnitude w kN/m. Determine the
vertical displacement and slope at point C.

Figure 1: Structure for Question 1.

Question 2: Determine the slope at support A. Support at A is pinned

while that at B is roller. Assume EI is constant.

1
 Figure 2: Structure for Question 2.

Question 3: Find the slope at B and deflection at C.

Figure 3: Structure for Question 3.

Question 4: Consider a single-storey single-bay frame shown in figure 4.

Support on the left (A) is hinged while that on the right (D) is a roller.
Each column and beam have a length L. EI remains constant throughout.
A uniformly distributed load of w kN/m acts on the beam BC. Determine
the slope at C.

2
 Figure 4: Structure for Question 4.

Question 5: Find the value of a such that the slope at A is zero. EI

remains constant.

Figure 5: Structure for Question 5.

Question 6: Find the slope and deflection at B.

3
 Figure 6: Structure for Question 6.

Question 7: Use the moment-area method to find the deflection at the

middle of the simply supported beam.

4
 Figure 7: Structure for Question 7.

Question 8: Use the moment-area method to find the deflection and slope
at point B and C.

Figure 8: Structure for Question 8.

Question 9: Use the moment-area method to find the maximum deflection

at the middle of the beam. Assume that EI is constant, and neglect the
weight of the beam.

5
 Figure 9: Structure for Question 9.

Question 10: Find the deflection at the middle of the beam and slope at
the support of the beam. Assume that EI is constant.

Figure 10: Structure for Question 10.
