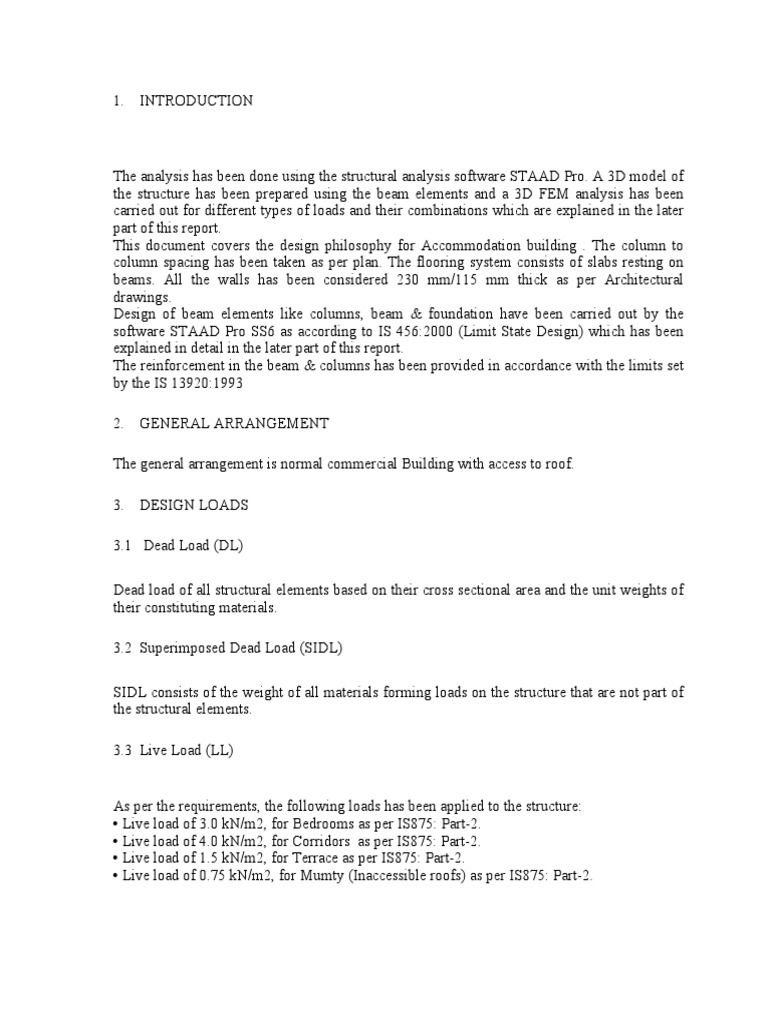

1.

INTRODUCTION

The analysis has been done using the structural analysis software STAAD Pro. A 3D model of
the structure has been prepared using the beam elements and a 3D FEM analysis has been
carried out for different types of loads and their combinations which are explained in the later
part of this report.
This document covers the design philosophy for Accommodation building . The column to
column spacing has been taken as per plan. The flooring system consists of slabs resting on
beams. All the walls has been considered 230 mm/115 mm thick as per Architectural
drawings.
Design of beam elements like columns, beam & foundation have been carried out by the
software STAAD Pro SS6 as according to IS 456:2000 (Limit State Design) which has been
explained in detail in the later part of this report.
The reinforcement in the beam & columns has been provided in accordance with the limits set
by the IS 13920:1993

2. GENERAL ARRANGEMENT

The general arrangement is normal commercial Building with access to roof.

3. DESIGN LOADS

3.1 Dead Load (DL)

Dead load of all structural elements based on their cross sectional area and the unit weights of
their constituting materials.

3.2 Superimposed Dead Load (SIDL)

SIDL consists of the weight of all materials forming loads on the structure that are not part of
the structural elements.

3.3 Live Load (LL)

As per the requirements, the following loads has been applied to the structure:
• Live load of 3.0 kN/m2, for Bedrooms as per IS875: Part-2.
• Live load of 4.0 kN/m2, for Corridors as per IS875: Part-2.
• Live load of 1.5 kN/m2, for Terrace as per IS875: Part-2.
• Live load of 0.75 kN/m2, for Mumty (Inaccessible roofs) as per IS875: Part-2.
3.4 Seismic Load

The seismic loads have been calculated, according to IS-1893 (Part -1), following the next
considerations:

Zone Factor 0.24 (Zone IV)

Importance Factor 1.00
Response Reduction Factor 5.00 (SMRF)
Damping Ratio 5.00%

The seismic response of the structure has been calculated using the STAAD Pro software,
considering as mass source the dead loads of the structure, and some portion of the Live loads
i.e. 0.25 as per the codal provisions.
The nomenclature and description of the specific load patterns used in the calculation model is
defined in STAAD Pro

4. DESIGN METHODOLOGY

Three dimensional frame analysis is carried out. The DL, SIDL & LL from the floor slab are
distributed to the beams as per CL: 24.5 of IS 456: 2000
All R.C.C structures shall be designed according to the Limit State Method as specified in IS:
456 – 2000. The analysis of the structures is carried out using the STAAD PRO software
package. Columns, slabs, Beams and foundations are designed as reinforced concrete
members.
Appropriate loads and its combinations, as per relevant clauses in IS codes, for most
unfavourable effects are chosen for design.

As Gurugram is in Zone III and IV, The frame is designed by response reduction method as
given in IS 1893(part 1): 2016.

4.1 Load Combinations

The various loads shall be combined in accordance with the stipulations in Indian Standards.
Whichever combination produces the most unfavourable effect in the building, foundation or
structural member concerned shall be adopted.

Ultimate Limit State

1.5(DL+LL)
1.5(DL+EQX) 1.2(DL+LL+EQX)
1.5(DL-EQX) 1.2(DL+LL-EQX)
1.5(DL+EQZ) 1.2(DL+LL+EQZ)
1.5(DL-EQZ) 1.2(DL+LL-EQZ)

Note:
DL: Dead Load
LL: Live Load
EQX: Seismic Load in X Direction
EQZ: Seismic Load in Z Direction

4.2 Load calculations for STAAD

Unit weight of RCC 25.00 kN/m3

Unit weight of Brick Masnaory 18.85 kN/m3

Unit weight of Tiles flooring 23.00 kN/m3

Unit weight of Cement mortar 20.40 kN/m3

Unit weight of plaster 20.40 kN/m3

Unit weight of mud phuska 18.00 kN/m3

4.3 Wall Load calculations for STAAD

Walls
4
(0.23 + 0.027) x (4-0.3) x 18.85 = 17.93 kN/sq m
4.5m HEIGHT 115mm thick
(0.115 + 0.027) x (4-0.3) x 18.85 = 9.91 kN/sq m
2.1m HEIGHT 230mm thick
(0.115 + 0.027) x (2.1-0) x 18.85 = 5.63 kN/sq m
2.1m HEIGHT 115 mm thick
(0.23 + 0.027) x (0.9-0) x 18.85 = 4.37 kN/sq m
AT TERRACE FLOOR LVL -2.7 HEIGHT
(0.23 + 0.027) x (2.44-0.3) x 18.85 = 10.37 kN/sq m
(0.115 + 0.027) x (2.44-0.3) x 18.85 = 5.73 kN/sq m
(0.23 + 0.027) x (0.9-0) x 18.85 = 4.37 kN/sq m
AT PARAPHET LVL.- 0.9 HEIGHT
(0.23 + 0.027) x (0.9-0) x 18.85 = 4.37 kN/sq m
4.4 stamb load calculations for STAAD
4.4 Roof Slab Loading

√𝑑
The Roof Floor slab is designed as a conventional R.C.C slab for floor loads as mentioned
below. Thickness of slab is 150 mm.

Typical Floors
Selfweight of slab 150 mm THK. Slab (0.15 x 25) = 3.75 kN/sq m
Load due to tiles/flooring 25 mm thick (0.025 x 23) = 0.575 kN/sq m
Load due to cement mortar 25 mm thick (0.025 x 20.4) = 0.51 kN/sq m
Load due to plaster/suspension load 6 mm thick (0.006 x 20.4) = 0.1224 kN/sq m
Total 4.9574 kN/sq m

Terrace Floors
Selfweight of slab 150 mm THK. Slab (0.15 x 25) = 3.75 kN/sq m
Load due to tiles/flooring 25 mm thick (0.025 x 23) = 0.575 kN/sq m
Load due to cement mortar 25 mm thick (0.025 x 20.4) = 0.51 kN/sq m
Load due to plaster/suspension load 6 mm thick (0.006 x 20.4) = 0.1224 kN/sq m
Load due to mud phuska 100 mm thick (0.1 x 18) = 1.80 kN/sq m
Total 6.7574 kN/sq m
1. INTRODUCTION

The analysis has been done using the structural analysis software STAAD Pro. A 3D model of
the structure has been prepared using the beam elements and a 3D FEM analysis has been
carried out for different types of loads and their combinations which are explained in the later
part of this report.
This document covers the design philosophy for Accommodation building . The column to
column spacing has been taken as per plan. The flooring system consists of slabs resting on
beams. All the walls has been considered 230 mm/115 mm thick as per Architectural
drawings.
Design of beam elements like columns, beam & foundation have been carried out by the
software STAAD Pro SS6 as according to IS 456:2000 (Limit State Design) which has been
explained in detail in the later part of this report.
The reinforcement in the beam & columns has been provided in accordance with the limits set
by the IS 13920:1993

2. GENERAL ARRANGEMENT

The general arrangement is normal Residential Building with access to roof.

3. DESIGN LOADS

3.1 Dead Load (DL)

Dead load of all structural elements based on their cross sectional area and the unit weights of
their constituting materials.

3.2 Superimposed Dead Load (SIDL)

SIDL consists of the weight of all materials forming loads on the structure that are not part of
the structural elements.

3.3 Live Load (LL)

As per the requirements, the following loads has been applied to the structure:
• Live load of 2.0 kN/m2, for Bedrooms as per IS875: Part-2.
• Live load of 3.0 kN/m2, for Corridors & staircases as per IS875: Part-2.
• Live load of 1.5 kN/m2, for Terrace as per IS875: Part-2.
• Live load of 0.75 kN/m2, for Mumty (Inaccessible roofs) as per IS875: Part-2.
• Appropriate Live load for water tank has also been considered

3.4 Temperate Load (TL)

As per recommendations of IS code, the temperature load on the structure can be considered.
Since the length of the structure is less than 45m, the temperature load need not be considered
as per IS 456.

3.5 Wind Load (WL)

As the Buildings height is less than 20m height in Zone IV of earthquake. Hence earthquake
forces shall govern over wind forces. Therefore, only seismic analysis has been performed.

3.6 Seismic Load

The seismic loads have been calculated, according to IS-1893 (Part -1), following the next
considerations:

Zone Factor 0.24 (Zone IV)

Importance Factor 1.00
Response Reduction Factor 5.00 (SMRF)
Damping Ratio 5.00%

The seismic response of the structure has been calculated using the STAAD Pro software,
considering as mass source the dead loads of the structure, and some portion of the Live loads
i.e. 0.25 as per the codal provisions.
The nomenclature and description of the specific load patterns used in the calculation model is
defined in STAAD Pro

4. DESIGN METHODOLOGY

Three dimensional frame analysis is carried out. The DL, SIDL & LL from the floor slab are
distributed to the beams as per CL: 24.5 of IS 456: 2000
All R.C.C structures shall be designed according to the Limit State Method as specified in IS:
456 – 2000. The analysis of the structures is carried out using the STAAD PRO software
package. Columns, slabs, Beams and foundations are designed as reinforced concrete
members.
Appropriate loads and its combinations, as per relevant clauses in IS codes, for most
unfavourable effects are chosen for design.

As Meham-Rohtak is in Zone III and IV, The frame is designed by response reduction method
as given in IS 1893(part 1): 2002.

4.1 Load Combinations

The various loads shall be combined in accordance with the stipulations in Indian Standards.
Whichever combination produces the most unfavourable effect in the building, foundation or
structural member concerned shall be adopted.

Ultimate Limit State

1.5(DL+LL)
1.5(DL+EQX) 1.2(DL+LL+EQX) 1.5(0.6 DL+EQX)
1.5(DL-EQX) 1.2(DL+LL-EQX) 1.5(06 DL-EQX)
1.5(DL+EQZ) 1.2(DL+LL+EQZ) 1.5(0.6 DL+EQZ)
1.5(DL-EQZ) 1.2(DL+LL-EQZ) 1.5 (0.6 DL-EQZ)

Note:
DL: Dead Load
LL: Live Load
EQX: Seismic Load in X Direction
EQZ: Seismic Load in Z Direction

4.2 STAAD Model

4.2 Load calculations for STAAD

Unit weight of RCC 25.00 kN/m3

Unit weight of Brick Masnaory 20.00 kN/m3

4.3 Wall Load calculations for STAAD

Walls
(0.115 + 0.027) x (3.15-0.3) x 20 = 8.10 kN/sq m
(0.23 + 0.027) x (3.85-0.3) x 20 = 18.25 kN/sq m
(0.23 + 0.027) x (2.44-0.3) x 20 = 11.00 kN/sq m
(0.115 + 0.027) x (3.85-0.3) x 20 = 10.09 kN/sq m
(0.23 + 0.027) x (0.9-0) x 20 = 4.63 kN/sq m
(0.115 + 0.027) x (2.1-0) x 20 = 5.97 kN/sq m
4.4 Roof Slab Loading

The Roof Floor slab is designed as a conventional R.C.C slab for floor loads as mentioned
below. Thickness of slab is 125 mm.

Typical Floors
Selfweight of slab 150 mm THK. Slab (0.15 x 25) = 3.75 kN/sq m
Load due to tiles/flooring 25 mm thick (0.025 x 23) = 0.575 kN/sq m
Load due to cement mortar 25 mm thick (0.025 x 21) = 0.525 kN/sq m
Load due to plaster/suspension load 6 mm thick (0.006 x 21) = 0.126 kN/sq m
Total 4.976 kN/sq m

Terrace Floors
Selfweight of slab 150 mm THK. Slab (0.15 x 25) = 3.75 kN/sq m
Load due to tiles/flooring 25 mm thick (0.025 x 23) = 0.575 kN/sq m
Load due to cement mortar 25 mm thick (0.025 x 21) = 0.525 kN/sq m
Load due to plaster/suspension load 6 mm thick (0.006 x 21) = 0.126 kN/sq m
Load due to mud phuska 50 mm thick (0.05 x 18) = 0.90 kN/sq m
Total 5.876 kN/sq m
4.5 Seismic Force Calculations

The earthquake forces are calculated for the full DL plus the percentage of LL as given in
Table 8 of IS 1893 (Part 1): 2002.

Following reduced live loads are used for analysis: Zero on terrace, and 25% of LL on other
floors are considered for the seismic weight calculation.

The static analysis method of analysis is performed and is done through assigning the dead
and live loads as Reference Loads and inputting the same in the seismic definition

The approximate fundamental natural period of vibration, (Ta) in seconds, of a moment

resisting frame building with brick infill panels is calculated as per Cl. 7.6.2 of IS 1893 (Part
I): 2002

Ta = 0.09 x h
√𝑑
where
h - Height of building in m = 11.14 m
d - base dimension m = dx = 14.73 m
dz = 12.60 m

Tax = 0.26 TaZ = 0.28

 Horizontal Vertical Horizontal Moment
Node L/C Fx kN Fy kN Fz kN Mx kNm My kNm Mz kNm
1 990 (DL+0.5LL) 20.601 119.286 22.955 0 0 0 1
2 990 (DL+0.5LL) 4.525 148.946 -14.966 0 0 0 2
3 990 (DL+0.5LL) 4.502 115.155 6.647 0 0 0 3
4 990 (DL+0.5LL) 4.852 124.209 -10.003 0 0 0 4
5 990 (DL+0.5LL) 24.681 106.564 -5.684 0 0 0 5
6 990 (DL+0.5LL) -20.769 147.988 27.53 0 0 0 6
7 990 (DL+0.5LL) -2.195 192.189 -18.261 0 0 0 7
8 990 (DL+0.5LL) 7.723 115.764 -1.478 0 0 0 8
9 990 (DL+0.5LL) -1.969 120.582 19.253 0 0 0 9
10 990 (DL+0.5LL) 24.41 161.38 -20.825 0 0 0 10
11 990 (DL+0.5LL) -14.666 104.707 -19.742 0 0 0 11
12 990 (DL+0.5LL) 8.743 27.495 12.641 0 0 0 12
13 990 (DL+0.5LL) 8.826 32.486 -8.758 0 0 0 13
14 990 (DL+0.5LL) -0.878 35.863 -2.713 0 0 0 14
15 990 (DL+0.5LL) 4.685 22.219 -3.028 0 0 0 15
16 990 (DL+0.5LL) -15.823 50.499 -1.583 0 0 0 16
17 990 (DL+0.5LL) -8.471 25.125 10.383 0 0 0 17
18 990 (DL+0.5LL) -9.704 28.655 -7.618 0 0 0 18
19 990 (DL+0.5LL) -10.011 30.144 3.265 0 0 0 19
20 990 (DL+0.5LL) -10.616 23.968 -2.058 0 0 0 20
21 990 (DL+0.5LL) -10.245 26.833 -6.364 0 0 0 21
43 990 (DL+0.5LL) -5.881 152.851 -5.105 0 0 0 43
44 990 (DL+0.5LL) 14.152 195.205 9.037 0 0 0 44
45 990 (DL+0.5LL) 1.955 180.134 -1.387 0 0 0 45
46 990 (DL+0.5LL) -1.75 132.045 -4.762 0 0 0 46
47 990 (DL+0.5LL) -24.681 60.708 5.684 0 0 0 47
48 990 (DL+0.5LL) -3.201 171.23 -7.581 0 0 0 48
49 990 (DL+0.5LL) -25.362 293.601 15.397 0 0 0 49
50 990 (DL+0.5LL) 5.588 301.386 18.308 0 0 0 50
51 990 (DL+0.5LL) -3.21 182.611 3.85 0 0 0 51
52 990 (DL+0.5LL) 7.89 308.96 -1.363 0 0 0 52
53 990 (DL+0.5LL) 14.666 107.657 19.742 0 0 0 53
54 990 (DL+0.5LL) 8.249 173.099 14.493 0 0 0 54
55 990 (DL+0.5LL) 8.378 318.836 -7.116 0 0 0 55
56 990 (DL+0.5LL) -3.763 289.024 -11.971 0 0 0 56
57 990 (DL+0.5LL) -4.685 94.677 3.028 0 0 0 57
58 990 (DL+0.5LL) -3.836 337.189 12.648 0 0 0 58
59 990 (DL+0.5LL) -8.597 159.233 13.243 0 0 0 59
60 990 (DL+0.5LL) -8.461 257.361 -12.834 0 0 0 60
61 990 (DL+0.5LL) -9.347 212.938 3.673 0 0 0 61
62 990 (DL+0.5LL) 10.616 57.682 2.058 0 0 0 62
63 990 (DL+0.5LL) -11.532 194.007 -8.004 0 0 0 63
98 990 (DL+0.5LL) 7.461 153.589 1.854 0 0 0 98
 99 990 (DL+0.5LL) 14.319 231.202 -1.282 0 0 0 99
100 990 (DL+0.5LL) 1.738 177.691 1.596 0 0 0 100
101 990 (DL+0.5LL) -0.286 107.175 -4.763 0 0 0 101
103 990 (DL+0.5LL) -12.798 191.749 -6.071 0 0 0 103
104 990 (DL+0.5LL) -18.997 315.698 8.578 0 0 0 104
105 990 (DL+0.5LL) 4.416 291.754 9.189 0 0 0 105
106 990 (DL+0.5LL) -2.009 182.263 5.272 0 0 0 106
107 990 (DL+0.5LL) -1.015 258.384 -6.23 0 0 0 107
109 990 (DL+0.5LL) 12.892 163.598 4.896 0 0 0 109
110 990 (DL+0.5LL) 26.406 252.402 11.209 0 0 0 110
111 990 (DL+0.5LL) 13.735 281.086 25.17 0 0 0 111
113 990 (DL+0.5LL) 1.558 264.018 -46.011 0 0 0 113
114 990 (DL+0.5LL) -12.825 158.539 8.975 0 0 0 114
115 990 (DL+0.5LL) -26.047 256.744 2.054 0 0 0 115
116 990 (DL+0.5LL) -22.153 214.315 5.606 0 0 0 116
118 990 (DL+0.5LL) -4.346 153.248 -15.571 0 0 0 118
135 990 (DL+0.5LL) 1.892 191.55 8.384 0 0 0 135
136 990 (DL+0.5LL) -3.402 287.759 -16.149 0 0 0 136
137 990 (DL+0.5LL) -0.721 206.53 11.797 0 0 0 137
138 990 (DL+0.5LL) 2.478 125.215 -3.691 0 0 0 138
139 990 (DL+0.5LL) 9.67 201.997 11.993 0 0 0 139
140 990 (DL+0.5LL) 14.975 343.574 -24.56 0 0 0 140
141 990 (DL+0.5LL) -17.727 301.106 -26.018 0 0 0 141
142 990 (DL+0.5LL) -0.442 229.576 -0.317 0 0 0 142
143 990 (DL+0.5LL) -24.563 291.626 0.3 0 0 0 143
144 990 (DL+0.5LL) -29.884 147.083 -32.03 0 0 0 144
145 990 (DL+0.5LL) -43.609 277.859 4.665 0 0 0 145
146 990 (DL+0.5LL) -9.094 395.537 -10.486 0 0 0 146
147 990 (DL+0.5LL) 18.1 281.908 34.946 0 0 0 147
148 990 (DL+0.5LL) 29.893 148.032 -32.601 0 0 0 148
149 990 (DL+0.5LL) 44.211 237.962 18.398 0 0 0 149
150 990 (DL+0.5LL) 41.51 228.889 -12.545 0 0 0 150
151 990 (DL+0.5LL) 26.123 137.672 29.94 0 0 0 151
162 990 (DL+0.5LL) -24.073 104.791 -28.087 0 0 0 162
163 990 (DL+0.5LL) -29.593 104.455 23.36 0 0 0 163
164 990 (DL+0.5LL) -7.475 70.978 -18.653 0 0 0 164
165 990 (DL+0.5LL) -5.294 73.748 23.219 0 0 0 165
166 990 (DL+0.5LL) 27.098 106.866 -25.87 0 0 0 166
167 990 (DL+0.5LL) 31.578 106.606 18.846 0 0 0 167
168 990 (DL+0.5LL) 7.63 72.614 -28.057 0 0 0 168
169 990 (DL+0.5LL) -6.723 70.599 28.117 0 0 0 169
WEIGHT 119.286
WEIGHT 148.946
WEIGHT 115.155
WEIGHT 124.209
WEIGHT 106.564
WEIGHT 147.988
WEIGHT 192.189
WEIGHT 115.764
WEIGHT 120.582
WEIGHT 161.38
WEIGHT 104.707
WEIGHT 27.495
WEIGHT 32.486
WEIGHT 35.863
WEIGHT 22.219
WEIGHT 50.499
WEIGHT 25.125
WEIGHT 28.655
WEIGHT 30.144
WEIGHT 23.968
WEIGHT 26.833
WEIGHT 152.851
WEIGHT 195.205
WEIGHT 180.134
WEIGHT 132.045
WEIGHT 60.708
WEIGHT 171.23
WEIGHT 293.601
WEIGHT 301.386
WEIGHT 182.611
WEIGHT 308.96
WEIGHT 107.657
WEIGHT 173.099
WEIGHT 318.836
WEIGHT 289.024
WEIGHT 94.677
WEIGHT 337.189
WEIGHT 159.233
WEIGHT 257.361
WEIGHT 212.938
WEIGHT 57.682
WEIGHT 194.007
WEIGHT 153.589
WEIGHT 231.202
WEIGHT 177.691
WEIGHT 107.175
WEIGHT 191.749
WEIGHT 315.698
WEIGHT 291.754
WEIGHT 182.263
WEIGHT 258.384
WEIGHT 163.598
WEIGHT 252.402
WEIGHT 281.086
WEIGHT 264.018
WEIGHT 158.539
WEIGHT 256.744
WEIGHT 214.315
WEIGHT 153.248
WEIGHT 191.55
WEIGHT 287.759
WEIGHT 206.53
WEIGHT 125.215
WEIGHT 201.997
WEIGHT 343.574
WEIGHT 301.106
WEIGHT 229.576
WEIGHT 291.626
WEIGHT 147.083
WEIGHT 277.859
WEIGHT 395.537
WEIGHT 281.908
WEIGHT 148.032
WEIGHT 237.962
WEIGHT 228.889
WEIGHT 137.672
WEIGHT 104.791
WEIGHT 104.455
WEIGHT 70.978
WEIGHT 73.748
WEIGHT 106.866
WEIGHT 106.606
WEIGHT 72.614
WEIGHT 70.599
 Column Loss of
Footing Column Footing Material Footing Size (LxBxD)
Grp. No.  Size contact
Mark Mark Type Property (mm) (mm) (%)
M25 : 3350 x 3300 x 850
1 FC1 C1 Sloped 450 x 375 0
Fe500 d=300
M25 : 3550 x 3500 x 875
2 FC2 C2 Sloped 450 x 375 0
Fe500 d=300
M25 : 2800 x 2800 x 650
3 FC3 C3 Sloped 375 x 375 0
Fe500 d=300
M25 : 2700 x 2700 x 625
4 FC4 C4 Sloped 375 x 375 0
Fe500 d=300
M25 : 3700 x 3650 x 900
5 FC5 C5 Sloped 450 x 375 0
Fe500 d=300
M25 : 3950 x 3900 x 975
6 FC6 C6 Sloped 450 x 375 0
Fe500 d=300
M25 : 3400 x 3350 x 825
7 FC7 C7 Sloped 450 x 375 0
Fe500 d=300
M25 : 3250 x 3200 x 800
8 FC8 C8 Sloped 450 x 375 0
Fe500 d=300
M25 : 3350 x 3350 x 825
9 FC9 C9 Sloped 375 x 375 0
Fe500 d=300
M25 : 3450 x 3400 x 850
10 FC10 C10 Sloped 450 x 375 0
Fe500 d=300
M25 : 3850 x 3800 x 950
11 FC11 C11 Sloped 450 x 375 0
Fe500 d=300
M25 : 3400 x 3400 x 800
12 FC12 C12 Sloped 375 x 375 0
Fe500 d=300
M25 : 3000 x 3000 x 700
13 FC13 C13 Sloped 375 x 375 0
Fe500 d=300
M25 : 3000 x 3000 x 725
14 FC14 C14 Sloped 375 x 375 0
Fe500 d=300
M25 : 3750 x 3700 x 900
15 FC15 C15 Sloped 450 x 375 0
Fe500 d=300
M25 : 3450 x 3400 x 800
16 FC16 C16 Sloped 450 x 375 0
Fe500 d=300
M25 : 2650 x 2650 x 600
17 FC17 C17 Sloped 375 x 375 0
Fe500 d=300
M25 : 3250 x 3250 x 550
18 FC18 C18 Sloped 375 x 375 0
Fe500 d=250
M25 : 2450 x 2450 x 550
19 FC19 C19 Sloped 375 x 375 0
Fe500 d=250
M25 : 3400 x 3400 x 500
20 FC20 C20 Sloped 375 x 375 0
Fe500 d=225
M25 : 3650 x 3650 x 450
21 FC21 C21 Sloped Fe500 375 x 375 0
d=200
 Bottom @ L Bottom @ B Top @ L Top @ B

T10 @ 185 T10 @ 165 T10 @ 240 T10 @ 240

T10 @ 155 T10 @ 155 T10 @ 235 T10 @ 240

T10 @ 190 T10 @ 190 T10 @ 280 T10 @ 280

T10 @ 180 T10 @ 210 T10 @ 300 T10 @ 300

T10 @ 175 T10 @ 150 T10 @ 230 T10 @ 235

T10 @ 150 T10 @ 140 T10 @ 220 T10 @ 210

T10 @ 190 T10 @ 165 T10 @ 240 T10 @ 245

T10 @ 200 T10 @ 175 T10 @ 250 T10 @ 250

T10 @ 155 T10 @ 190 T10 @ 240 T10 @ 240

T10 @ 170 T10 @ 160 T10 @ 245 T10 @ 230

T10 @ 175 T10 @ 140 T10 @ 215 T10 @ 215

T10 @ 170 T10 @ 165 T10 @ 245 T10 @ 245

T10 @ 180 T10 @ 200 T10 @ 275 T10 @ 275

T10 @ 180 T10 @ 200 T10 @ 275 T10 @ 275

T10 @ 145 T10 @ 150 T10 @ 235 T10 @ 225

T10 @ 165 T10 @ 185 T10 @ 245 T10 @ 250

T10 @ 190 T10 @ 205 T10 @ 295 T10 @ 295

T10 @ 300 T10 @ 250 T10 @ 300 T10 @ 300

T10 @ 300 T10 @ 275 T10 @ 300 T10 @ 300

T10 @ 300 T10 @ 285 T10 @ 300 T10 @ 300

T10 @ 300 T10 @ 300 T10 @ 300 T10 @ 300

 Horizontal Vertical Horizontal Moment
Node L/C Fx kN Fy kN Fz kN Mx kNm My kNm Mz kNm
1 990 (DL+0. 9.81 98.776 -12.603 0 0 0 1
2 990 (DL+0. 5.306 118.1 -20.692 0 0 0 2
3 990 (DL+0. -3.789 120.987 -22.891 0 0 0 3
4 990 (DL+0. -11.716 101.694 -12.638 0 0 0 4
7 990 (DL+0. 0.927 106.191 1.415 0 0 0 7
8 990 (DL+0. -1.116 106.963 0.069 0 0 0 8
9 990 (DL+0. 3.45 164.7 1.187 0 0 0 9
10 990 (DL+0. -4.859 169.087 3.413 0 0 0 10
11 990 (DL+0. 12.873 179.007 -9.453 0 0 0 11
13 990 (DL+0. 1.431 101.341 18.486 0 0 0 13
14 990 (DL+0. 8.335 112.806 22.811 0 0 0 14
15 990 (DL+0. -12.081 153.946 -4.301 0 0 0 15
17 990 (DL+0. 7.77 103.231 21.261 0 0 0 17
18 990 (DL+0. -6.5 102.479 18.219 0 0 0 18
33 990 (DL+0. -2.596 125.459 0.878 0 0 0 33
34 990 (DL+0. 1.539 289.627 -50.595 0 0 0 34
35 990 (DL+0. -2.109 303.097 -52.498 0 0 0 35
36 990 (DL+0. 3.119 129.485 0.646 0 0 0 36
37 990 (DL+0. -0.525 188.016 -0.624 0 0 0 37
38 990 (DL+0. 0.463 212.264 -0.424 0 0 0 38
39 990 (DL+0. 2.049 420.867 45.652 0 0 0 39
40 990 (DL+0. -1.089 484.801 48.198 0 0 0 40
41 990 (DL+0. -1.82 233.248 4.123 0 0 0 41
42 990 (DL+0. 0.191 177.251 -0.17 0 0 0 42
43 990 (DL+0. -1.86 138.736 -6.075 0 0 0 43
44 990 (DL+0. 0.849 215.067 2.948 0 0 0 44
45 990 (DL+0. -1.296 168.817 -0.557 0 0 0 45
46 990 (DL+0. 1.004 131.779 -4.593 0 0 0 46
50 990 (DL+0. 0.502 122.291 0.955 0 0 0 50
51 990 (DL+0. -0.217 306.452 22.878 0 0 0 51
52 990 (DL+0. 0.305 314.7 26.016 0 0 0 52
53 990 (DL+0. -0.625 127.513 0.84 0 0 0 53
54 990 (DL+0. 0.11 183.199 0.108 0 0 0 54
55 990 (DL+0. -0.01 185.602 1.997 0 0 0 55
56 990 (DL+0. -0.266 436.374 -17.957 0 0 0 56
57 990 (DL+0. 0.125 457.377 -23.545 0 0 0 57
58 990 (DL+0. 0.348 230.695 -1.624 0 0 0 58
59 990 (DL+0. -0.609 178.353 0.622 0 0 0 59
60 990 (DL+0. 0.366 138.259 1.597 0 0 0 60
61 990 (DL+0. -0.729 210.341 -2.382 0 0 0 61
62 990 (DL+0. 0.679 171.725 1.916 0 0 0 62
63 990 (DL+0. -0.652 132.802 2.69 0 0 0 63
67 990 (DL+0. -0.489 123.865 -2.683 0 0 0 67
 68 990 (DL+0. -1.355 280.285 -43.805 0 0 0 68
69 990 (DL+0. 1.417 286.188 -42.14 0 0 0 69
70 990 (DL+0. 0.566 128.894 -2.821 0 0 0 70
71 990 (DL+0. 0.224 181.28 0.326 0 0 0 71
72 990 (DL+0. -0.048 183.496 0.043 0 0 0 72
73 990 (DL+0. -2.111 403.221 32.008 0 0 0 73
74 990 (DL+0. 2.256 422.198 14.613 0 0 0 74
75 990 (DL+0. -0.56 232.101 2.484 0 0 0 75
76 990 (DL+0. 2.523 177.681 0.315 0 0 0 76
77 990 (DL+0. 0.309 138.745 -1.419 0 0 0 77
78 990 (DL+0. 3.614 212.083 4.66 0 0 0 78
79 990 (DL+0. -2.702 169.938 -6.22 0 0 0 79
80 990 (DL+0. 2.283 132.612 -7.4 0 0 0 80
84 990 (DL+0. -7.226 63.65 13.454 0 0 0 84
85 990 (DL+0. -5.273 237.807 92.213 0 0 0 85
86 990 (DL+0. 4.177 238.82 91.513 0 0 0 86
87 990 (DL+0. 8.657 67.504 13.973 0 0 0 87
88 990 (DL+0. -0.737 132.498 -1.225 0 0 0 88
89 990 (DL+0. 0.711 135.942 -1.686 0 0 0 89
90 990 (DL+0. -3.123 334.888 -60.89 0 0 0 90
91 990 (DL+0. 7.872 351.44 -19.325 0 0 0 91
92 990 (DL+0. -10.842 117.039 4.47 0 0 0 92
93 990 (DL+0. -3.536 130.292 -19.253 0 0 0 93
94 990 (DL+0. -7.15 71.853 -16.914 0 0 0 94
95 990 (DL+0. -3.803 116.937 -19.951 0 0 0 95
96 990 (DL+0. 1.256 111.782 14.665 0 0 0 96
97 990 (DL+0. 0.402 65.633 14.582 0 0 0 97
101 990 (DL+0. -4.306 61.054 -23.353 0 0 0 101
102 990 (DL+0. 12.151 58.289 19.027 0 0 0 102
103 990 (DL+0. -5.708 56.597 -31.065 0 0 0 103
104 990 (DL+0. 3.462 57.892 -23.499 0 0 0 104
WEIGHT 98.776
WEIGHT 118.1
WEIGHT 120.987
WEIGHT 101.694
WEIGHT 106.191
WEIGHT 106.963
WEIGHT 164.7
WEIGHT 169.087
WEIGHT 179.007
WEIGHT 101.341
WEIGHT 112.806
WEIGHT 153.946
WEIGHT 103.231
WEIGHT 102.479
WEIGHT 125.459
WEIGHT 289.627
WEIGHT 303.097
WEIGHT 129.485
WEIGHT 188.016
WEIGHT 212.264
WEIGHT 420.867
WEIGHT 484.801
WEIGHT 233.248
WEIGHT 177.251
WEIGHT 138.736
WEIGHT 215.067
WEIGHT 168.817
WEIGHT 131.779
WEIGHT 122.291
WEIGHT 306.452
WEIGHT 314.7
WEIGHT 127.513
WEIGHT 183.199
WEIGHT 185.602
WEIGHT 436.374
WEIGHT 457.377
WEIGHT 230.695
WEIGHT 178.353
WEIGHT 138.259
WEIGHT 210.341
WEIGHT 171.725
WEIGHT 132.802
WEIGHT 123.865
WEIGHT 280.285
WEIGHT 286.188
WEIGHT 128.894
WEIGHT 181.28
WEIGHT 183.496
WEIGHT 403.221
WEIGHT 422.198
WEIGHT 232.101
WEIGHT 177.681
WEIGHT 138.745
WEIGHT 212.083
WEIGHT 169.938
WEIGHT 132.612
WEIGHT 63.65
WEIGHT 237.807
WEIGHT 238.82
WEIGHT 67.504
WEIGHT 132.498
WEIGHT 135.942
WEIGHT 334.888
WEIGHT 351.44
WEIGHT 117.039
WEIGHT 130.292
WEIGHT 71.853
WEIGHT 116.937
WEIGHT 111.782
WEIGHT 65.633
WEIGHT 61.054
WEIGHT 58.289
WEIGHT 56.597
WEIGHT 57.892
