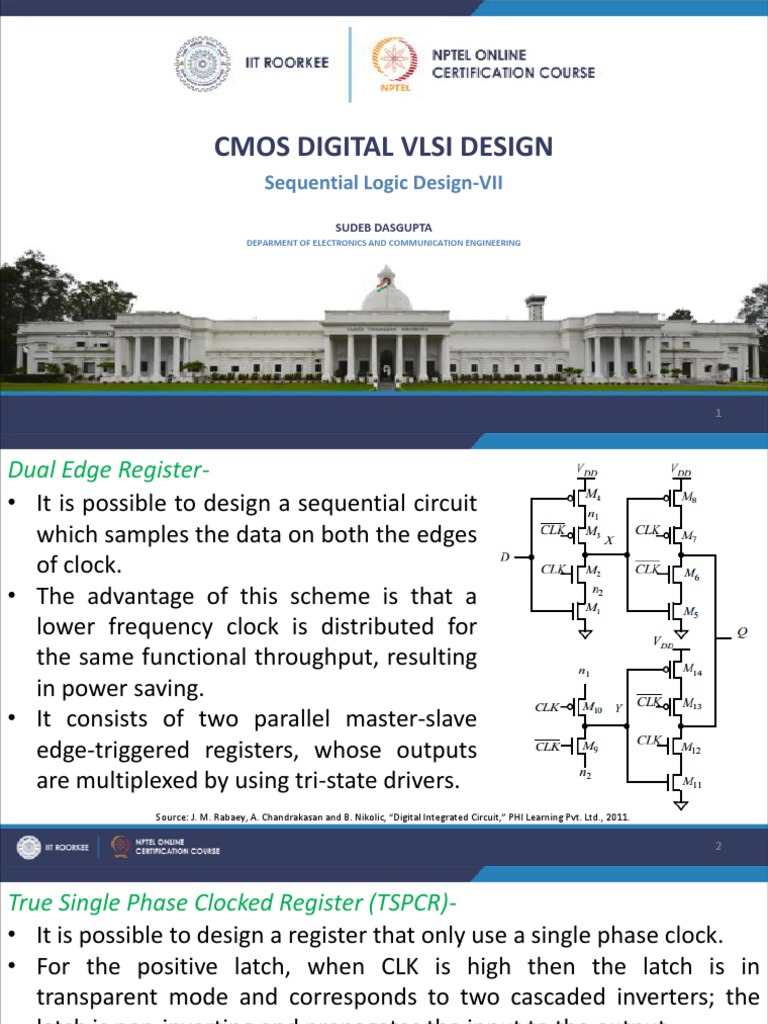

    CMOS DIGITAL VLSI DESIGN

    Sequential Logic Design-VII


    SUDEB DASGUPTA
    DEPARMENT OF ELECTRONICS AND COMMUNICATION ENGINEERING

    1
    Dual Edge Register-
    • It is possible to design a sequential circuit
    which samples the data on both the edges
    of clock.
    • The advantage of this scheme is that a
    lower frequency clock is distributed for
    the same functional throughput, resulting
    in power saving.
    • It consists of two parallel master-slave
    edge-triggered registers, whose outputs
    are multiplexed by using tri-state drivers.
    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    2
    True Single Phase Clocked Register (TSPCR)-
    • It is possible to design a register that only use a single phase clock.
    • For the positive latch, when CLK is high then the latch is in
    transparent mode and corresponds to two cascaded inverters; the
    latch is non-inverting and propagates the input to the output.
    • A register can be constructed by cascading positive and negative
    latches.

    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    3
    Cont…
    • TSPC offers an additional advantage of embedding logic functionality
    into the latches.

    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    4
    Cont…
    • TSPC can further be designed with less complexity as only the first
    inverter is controlled by the clock.
    • This reduce the clock load but having a disadvantage that all node
    voltages will not experience the full logic swing.

    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    5
    Alternative Register Styles
    Pulse Register-
    • The idea is to construct a short
    pulse around the rising or
    falling edge of the clock. So,
    the data sampling takes place
    over the short window.
    • The combination of glitch-
    generation circuitry and the
    latch results in a positive edge
    triggered register.
    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    6
    Cont…
    • Another version of pulsed register is shown below-

    • This circuit uses a pulse generator which is integrated into the


    register itself.
    • In this circuit the setup time is negative.
    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    7
    Sense Amplifier based Register-
    • Sense Amplifier circuits accept small input signals and amplify them
    to generate rail-to-rail swings.

    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    8
    • The need of shorting transistor M4 Cont…

    Source: J. M. Rabaey, A. Chandrakasan and B. Nikolic, “Digital Integrated Circuit,” PHI Learning Pvt. Ltd., 2011.

    9
    Recapitulation
    • The sequential logic circuit with a idea of temporary storage of charge
    on parasitic capacitors comes into the category of dynamic logic.
    • Dynamic Transmission Gate Edge Triggered Registers is suffered from
    the clock overlapping while C2MOS is insensitive to overlap.
    • Dual Edge Registers can reduce the clock frequency by half of the
    original rate.
    • The disadvantage of TSPCR is the slight increase of transistor count in
    the circuit.
