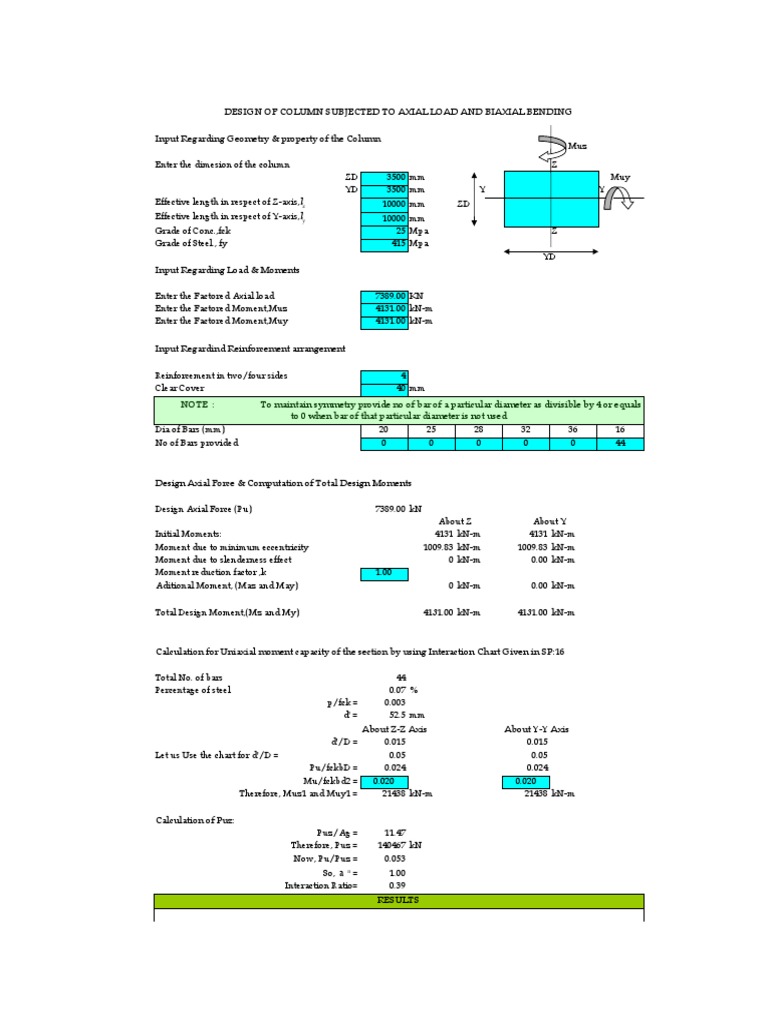

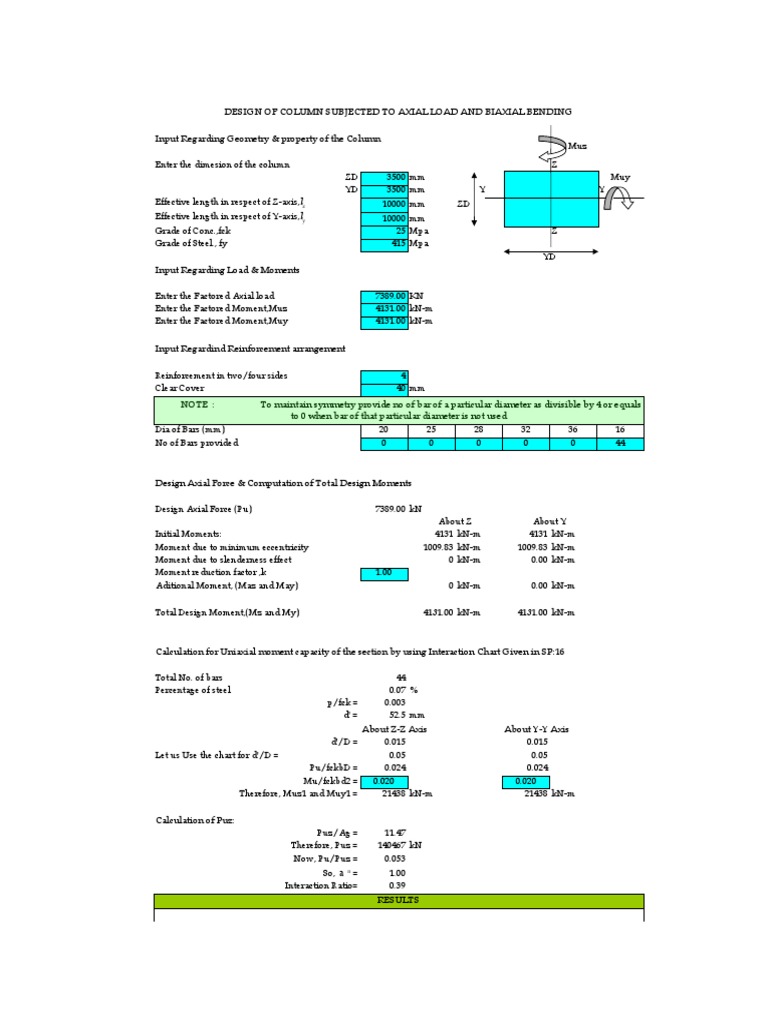

DESIGN OF COLUMN SUBJECTED TO AXIAL LOAD AND BIAXIAL BENDING

Input Regarding Geometry & property of the Column


Muz
Enter the dimesion of the column Z
ZD 3500 mm Muy
YD 3500 mm Y Y
Effective length in respect of Z-axis,lz 10000 mm ZD
Effective length in respect of Y-axis,ly 10000 mm
Grade of Conc.,fck 25 Mpa Z
Grade of Steel., fy 415 Mpa
YD
Input Regarding Load & Moments

Enter the Factored Axial load 7389.00 KN


Enter the Factored Moment,Muz 4131.00 kN-m
Enter the Factored Moment,Muy 4131.00 kN-m

Input Regardind Reinforcement arrangement

Reinforcement in two/four sides 4


Clear Cover 40 mm
NOTE : To maintain symmetry provide no of bar of a particular diameter as divisible by 4 or equals
to 0 when bar of that particular diameter is not used
Dia of Bars (mm) 20 25 28 32 36 16
No of Bars provided 0 0 0 0 0 44

Design Axial Force & Computation of Total Design Moments

Design Axial Force (Pu) 7389.00 kN


About Z About Y
Initial Moments: 4131 kN-m 4131 kN-m
Moment due to minimum eccentricity 1009.83 kN-m 1009.83 kN-m
Moment due to slenderness effect 0 kN-m 0.00 kN-m
Moment reduction factor ,k 1.00
Aditional Moment, (Maz and May) 0 kN-m 0.00 kN-m

Total Design Moment,(Mz and My) 4131.00 kN-m 4131.00 kN-m

Calculation for Uniaxial moment capacity of the section by using Interaction Chart Given in SP:16

Total No. of bars 44


Percentage of steel 0.07 %
p/fck = 0.003
d' = 52.5 mm
About Z-Z Axis About Y-Y Axis
d'/D = 0.015 0.015
Let us Use the chart for d'/D = 0.05 0.05
Pu/fckbD = 0.024 0.024
Mu/fckbd2 = 0.020 0.020
Therefore, Muz1 and Muy1 = 21438 kN-m 21438 kN-m

Calculation of Puz:
Puz/Ag = 11.47
Therefore, Puz = 140467 kN
Now, Pu/Puz = 0.053
So, a n = 1.00
Interaction Ratio= 0.39
RESULTS
SAFE
DESIGN OF COLUMN SUBJECTED TO AXIAL LOAD AND BIAXIAL BENDING

Input Regarding Geometry & property of the Column


Muz
Enter the dimesion of the column Z
ZD 700 mm Muy
YD 700 mm Y Y
Effective length in respect of Z-axis,lz 3500 mm ZD
Effective length in respect of Y-axis,ly 3500 mm
Grade of Conc.,fck 25 Mpa Z
Grade of Steel., fy 500 Mpa
YD
Input Regarding Load & Moments

Enter the Factored Axial load 8331.30 KN


Enter the Factored Moment,Muz 0.00 kN-m
Enter the Factored Moment,Muy 11.39 kN-m

Input Regardind Reinforcement arrangement

Reinforcement in two/four sides 4


Clear Cover 50 mm
NOTE : To maintain symmetry provide no of bar of a particular diameter as divisible by 4 or equals to
0 when bar of that particular diameter is not used
Dia of Bars (mm) 20 25 28 32 36 16
No of Bars provided 0 4 0 12 0 0

Design Axial Force & Computation of Total Design Moments

Design Axial Force (Pu) 8331.30 kN


About Z About Y
Initial Moments: 0 kN-m 11.39 kN-m
Moment due to minimum eccentricity 252.72 kN-m 252.72 kN-m
Moment due to slenderness effect 0.00 kN-m 0.00 kN-m
Moment reduction factor ,k 1.00
Aditional Moment, (Maz and May) 0.00 kN-m 0.00 kN-m

Total Design Moment,(Mz and My) 252.72 kN-m 252.72 kN-m

Calculation for Uniaxial moment capacity of the section by using Interaction Chart Given in SP:16

Total No. of bars 16


Percentage of steel 2.37 %
p/fck = 0.095
d' = 62.5 mm
About Z-Z Axis About Y-Y Axis
d'/D = 0.089 0.089
Let us Use the chart for d'/D = 0.1 0.1
Pu/fckbD = 0.680 0.680
Mu/fckbd2 = 0.055 0.055
Therefore, Muz1 and Muy1 = 471.625 kN-m 471.625 kN-m

Calculation of Puz:
Puz/Ag = 19.87
Therefore, Puz = 9737.26275 kN
Now, Pu/Puz = 0.856
So, a n = 2.00
Interaction Ratio= 0.57
RESULTS
SAFE
DESIGN OF COLUMN SUBJECTED TO AXIAL LOAD AND BIAXIAL BENDING

Input Regarding Geometry & property of the Column


Muz
Enter the dimesion of the column Z
ZD 1000 mm Muy
YD 1400 mm Y Y
Effective length in respect of Z-axis,lz 3700 mm ZD
Effective length in respect of Y-axis,ly 3700 mm
Grade of Conc.,fck 25 Mpa Z
Grade of Steel., fy 500 Mpa
YD
Input Regarding Load & Moments

Enter the Factored Axial load 2209.00 KN


Enter the Factored Moment,Muz 2320.00 kN-m
Enter the Factored Moment,Muy 1702.00 kN-m

Input Regardind Reinforcement arrangement

Reinforcement in two/four sides 4


Clear Cover 70 mm
NOTE : To maintain symmetry provide no of bar of a particular diameter as divisible by 4 or equals to
0 when bar of that particular diameter is not used
Dia of Bars (mm) 20 25 28 32 36 16
No of Bars provided 0 36 0 0 0 0

Design Axial Force & Computation of Total Design Moments

Design Axial Force (Pu) 2209.00 kN


About Z About Y
Initial Moments: 2320 kN-m 1702 kN-m
Moment due to minimum eccentricity 119.43 kN-m 89.98 kN-m
Moment due to slenderness effect 0.00 kN-m 0.00 kN-m
Moment reduction factor ,k 1.00
Aditional Moment, (Maz and May) 0.00 kN-m 0.00 kN-m

Total Design Moment,(Mz and My) 2320.00 kN-m 1702.00 kN-m

Calculation for Uniaxial moment capacity of the section by using Interaction Chart Given in SP:16

Total No. of bars 36


Percentage of steel 1.26 %
p/fck = 0.050
d' = 82.5 mm
About Z-Z Axis About Y-Y Axis
d'/D = 0.059 0.083
Let us Use the chart for d'/D = 0.1 0.1
Pu/fckbD = 0.063 0.063
Mu/fckbd2 = 0.100 0.100
Therefore, Muz1 and Muy1 = 4900 kN-m 3500 kN-m

Calculation of Puz:
Puz/Ag = 15.84
Therefore, Puz = 22177.9931 kN
Now, Pu/Puz = 0.100
So, a n = 1.00
Interaction Ratio= 0.96
RESULTS
SAFE
