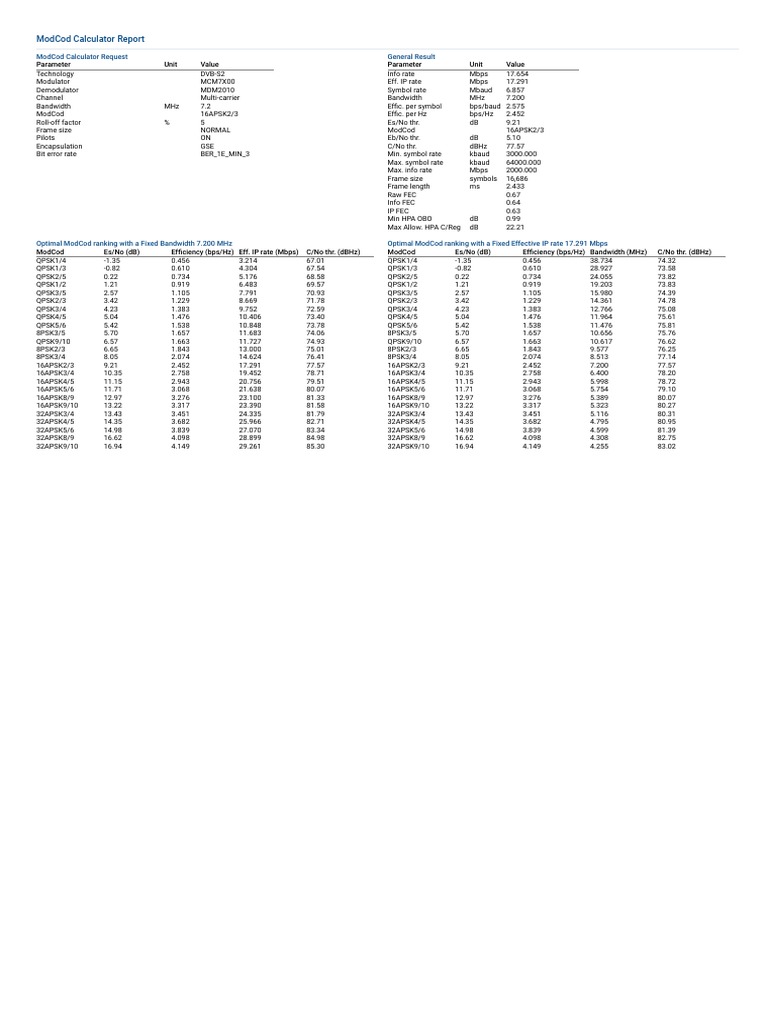

ModCod Calculator Report

ModCod Calculator Request General Result

Parameter Unit Value Parameter Unit Value
Technology DVB-S2 Info rate Mbps 17.654
Modulator MCM7X00 Eff. IP rate Mbps 17.291
Demodulator MDM2010 Symbol rate Mbaud 6.857
Channel Multi-carrier Bandwidth MHz 7.200
Bandwidth MHz 7.2 Effic. per symbol bps/baud 2.575
ModCod 16APSK2/3 Effic. per Hz bps/Hz 2.452
Roll-off factor % 5 Es/No thr. dB 9.21
Frame size NORMAL ModCod 16APSK2/3
Pilots ON Eb/No thr. dB 5.10
Encapsulation GSE C/No thr. dBHz 77.57
Bit error rate BER_1E_MIN_3 Min. symbol rate kbaud 3000.000
Max. symbol rate kbaud 64000.000
Max. info rate Mbps 2000.000
Frame size symbols 16,686
Frame length ms 2.433
Raw FEC 0.67
Info FEC 0.64
IP FEC 0.63
Min HPA OBO dB 0.99
Max Allow. HPA C/Reg dB 22.21

Optimal ModCod ranking with a Fixed Bandwidth 7.200 MHz Optimal ModCod ranking with a Fixed Effective IP rate 17.291 Mbps
ModCod Es/No (dB) Efficiency (bps/Hz) Eff. IP rate (Mbps) C/No thr. (dBHz) ModCod Es/No (dB) Efficiency (bps/Hz) Bandwidth (MHz) C/No thr. (dBHz)
QPSK1/4 -1.35 0.456 3.214 67.01 QPSK1/4 -1.35 0.456 38.734 74.32
QPSK1/3 -0.82 0.610 4.304 67.54 QPSK1/3 -0.82 0.610 28.927 73.58
QPSK2/5 0.22 0.734 5.176 68.58 QPSK2/5 0.22 0.734 24.055 73.82
QPSK1/2 1.21 0.919 6.483 69.57 QPSK1/2 1.21 0.919 19.203 73.83
QPSK3/5 2.57 1.105 7.791 70.93 QPSK3/5 2.57 1.105 15.980 74.39
QPSK2/3 3.42 1.229 8.669 71.78 QPSK2/3 3.42 1.229 14.361 74.78
QPSK3/4 4.23 1.383 9.752 72.59 QPSK3/4 4.23 1.383 12.766 75.08
QPSK4/5 5.04 1.476 10.406 73.40 QPSK4/5 5.04 1.476 11.964 75.61
QPSK5/6 5.42 1.538 10.848 73.78 QPSK5/6 5.42 1.538 11.476 75.81
8PSK3/5 5.70 1.657 11.683 74.06 8PSK3/5 5.70 1.657 10.656 75.76
QPSK9/10 6.57 1.663 11.727 74.93 QPSK9/10 6.57 1.663 10.617 76.62
8PSK2/3 6.65 1.843 13.000 75.01 8PSK2/3 6.65 1.843 9.577 76.25
8PSK3/4 8.05 2.074 14.624 76.41 8PSK3/4 8.05 2.074 8.513 77.14
16APSK2/3 9.21 2.452 17.291 77.57 16APSK2/3 9.21 2.452 7.200 77.57
16APSK3/4 10.35 2.758 19.452 78.71 16APSK3/4 10.35 2.758 6.400 78.20
16APSK4/5 11.15 2.943 20.756 79.51 16APSK4/5 11.15 2.943 5.998 78.72
16APSK5/6 11.71 3.068 21.638 80.07 16APSK5/6 11.71 3.068 5.754 79.10
16APSK8/9 12.97 3.276 23.100 81.33 16APSK8/9 12.97 3.276 5.389 80.07
16APSK9/10 13.22 3.317 23.390 81.58 16APSK9/10 13.22 3.317 5.323 80.27
32APSK3/4 13.43 3.451 24.335 81.79 32APSK3/4 13.43 3.451 5.116 80.31
32APSK4/5 14.35 3.682 25.966 82.71 32APSK4/5 14.35 3.682 4.795 80.95
32APSK5/6 14.98 3.839 27.070 83.34 32APSK5/6 14.98 3.839 4.599 81.39
32APSK8/9 16.62 4.098 28.899 84.98 32APSK8/9 16.62 4.098 4.308 82.75
32APSK9/10 16.94 4.149 29.261 85.30 32APSK9/10 16.94 4.149 4.255 83.02
