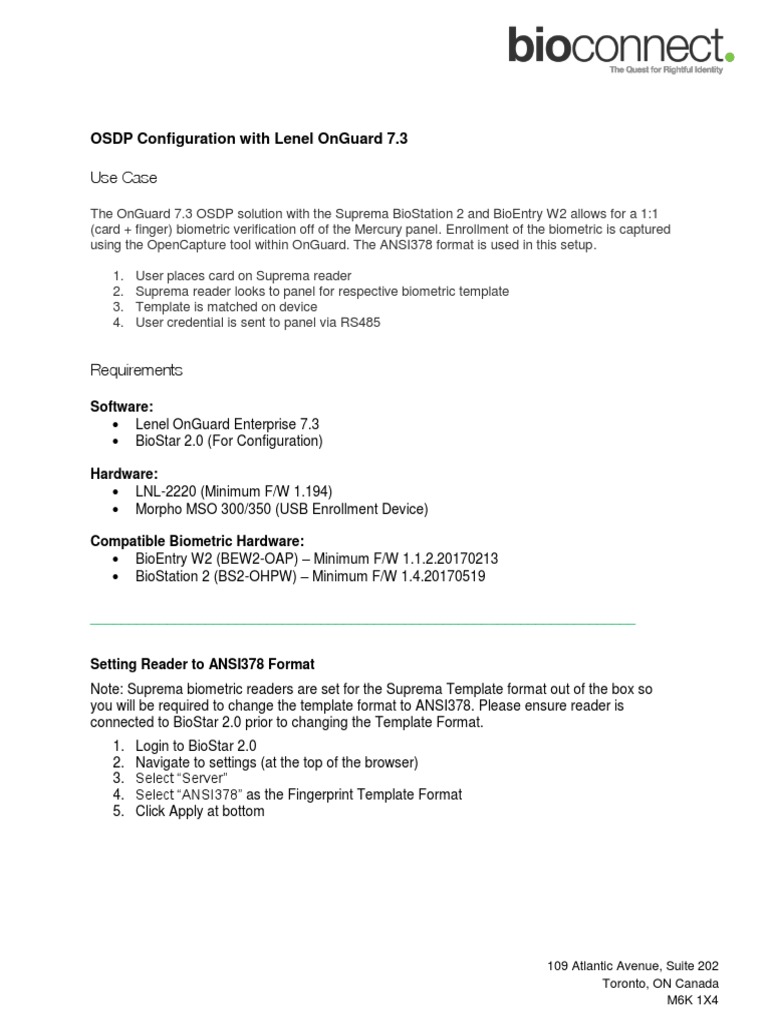

OSDP Configuration with Lenel OnGuard 7.

Use Case

The OnGuard 7.3 OSDP solution with the Suprema BioStation 2 and BioEntry W2 allows for a 1:1
(card + finger) biometric verification off of the Mercury panel. Enrollment of the biometric is captured
using the OpenCapture tool within OnGuard. The ANSI378 format is used in this setup.

1. User places card on Suprema reader

2. Suprema reader looks to panel for respective biometric template
3. Template is matched on device
4. User credential is sent to panel via RS485

Requirements

Software:
 Lenel OnGuard Enterprise 7.3
 BioStar 2.0 (For Configuration)

Hardware:
 LNL-2220 (Minimum F/W 1.194)
 Morpho MSO 300/350 (USB Enrollment Device)

Compatible Biometric Hardware:

 BioEntry W2 (BEW2-OAP) – Minimum F/W 1.1.2.20170213
 BioStation 2 (BS2-OHPW) – Minimum F/W 1.4.20170519

_______________________________________________________________________

Setting Reader to ANSI378 Format

Note: Suprema biometric readers are set for the Suprema Template format out of the box so
you will be required to change the template format to ANSI378. Please ensure reader is
connected to BioStar 2.0 prior to changing the Template Format.
1. Login to BioStar 2.0
2. Navigate to settings (at the top of the browser)
3. Select “Server”
4. Select “ANSI378” as the Fingerprint Template Format
5. Click Apply at bottom

109 Atlantic Avenue, Suite 202

Toronto, ON Canada
M6K 1X4
After making the server adjustment (above), ensure the connected reader displays the correct
format under the “Authentication” tab.

Configuring the Reader

1. Login to BioStar 2.0

2. Select Device
3. Configure the Serial RS-485 setting to Slave

4. Configure the Serial Baud Rate to 9600

5. Click Apply

Note: The default card format is 26 bit Standard. For other card format setup, please see the
BioStar 2.0 administration guide.

Wiring

109 Atlantic Avenue, Suite 202

Toronto, ON Canada
M6K 1X4
OSDP Reader SIO Reader Port
485 TRXN (Blue/White) D1 (CLK)
485 TRXP (Yellow/Black) D0 (DAT)
485 GND (Black/White) GND

Troubleshooting:

 Please be aware that the W2 device is “disabled” when the device bracket is removed
(Tamper ON). So always test this FW and OSDP with the back plate ON. (Make sure the
back plate is on before powering up device).
 If the device does not connect, please conduct a factory default of the W2 device. This is
because the slave device has its internal RS485 device address and can have another
device ID than the controller panel is set to connect. The factory default makes it go
back to the original default address 0. (Which is the default of Mercury panel)

Configuring OnGuard

Panel Set Up

 Panel > Options > OSDP biometrics > “Fingerprint (INCITS 378) large

109 Atlantic Avenue, Suite 202

Toronto, ON Canada
M6K 1X4
Reader Set Up

 Type: Outbound Reader

 Output: OSDP Reader
 Reader Modes: Card Only, Offline, Facility Code Only
 Select Card Format
