Page 1 of 1

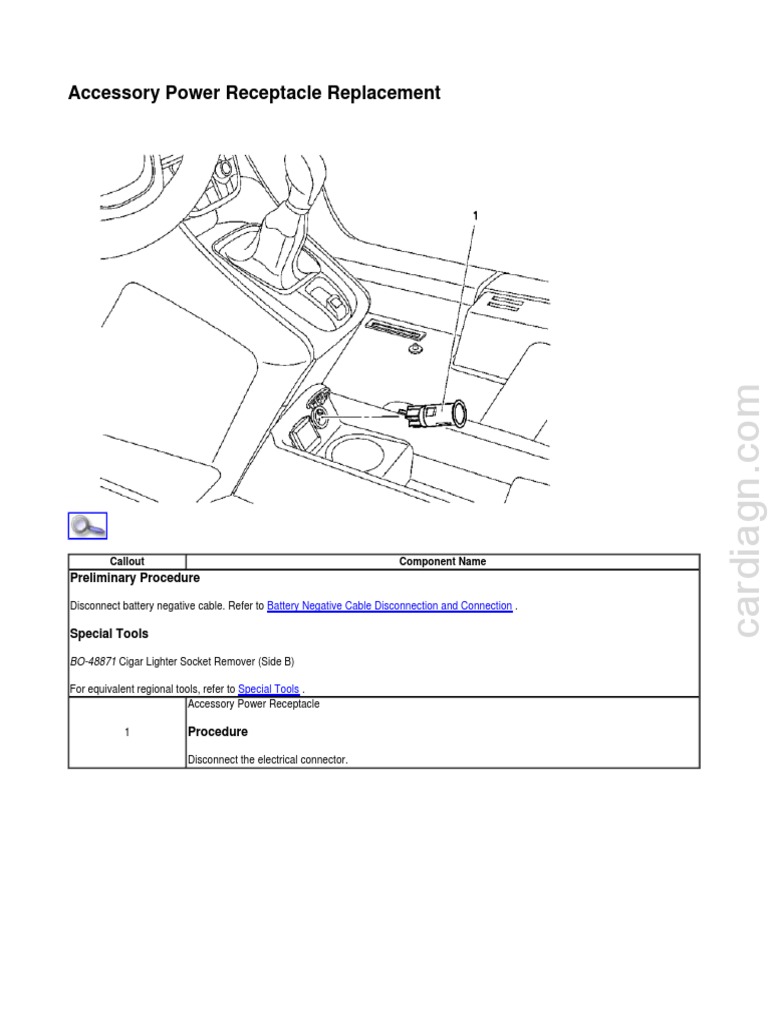

Accessory Power Receptacle Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Special Tools

BO-48871 Cigar Lighter Socket Remover (Side B)

For equivalent regional tools, refer to Special Tools .

Accessory Power Receptacle

1 Procedure

Disconnect the electrical connector.

 Page 1 of 1

Body Control Module Replacement - Left Hand Drive

cardiagn.com
Callout Component Name
Warning: After disconnecting, disassembling or replacing this Flex-Door relevant component, the following system safety check must be
carried out:

Initiate a system check by accelerating to a minimum speed of 4 km/h or above; neither the Flex-Door malfunction indicator light in the
instrument cluster should illuminate nor should any Flex-door warning chime be audible.

Preliminary Procedures

1. Prepare the body control module for replacement, refer to Control Module References for programming and set-up information.
2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
3. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
4. Remove the left floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side .
Body Control Module

Procedure

1 1. Disconnect the connectors.

2. Unclip the body control module from the body control module bracket.
3. For programming and set up information, refer to Control Module References .

Tip
For programming a control module connect an Opel/Vauxhall approved battery charger to guarantee a charged battery.
 Page 1 of 1

Body Control Module Replacement - Right Hand Drive

cardiagn.com
Callout Component Name
Warning: After disconnecting, disassembling or replacing this Flex-Door relevant component, the following system safety check must be
carried out:

Initiate a system check by accelerating to a minimum speed of 4 km/h or above; neither the Flex-Door malfunction indicator light in the
instrument cluster should illuminate nor should any Flex-door warning chime be audible.

Preliminary Procedures

1. Prepare the body control module for replacement, refer to Control Module References for programming and set-up information.
2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
3. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
4. Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side .
Body Control Module

Procedure

1 1. Disconnect the connectors.

2. Unclip the body control module from the body control module bracket.
3. For programming and set up information, refer to Control Module References .

Tip
For programming a control module connect an Opel/Vauxhall approved battery charger to guarantee a charged battery.
 Page 1 of 4

Body Wiring Harness Replacement

Special Tools

BO-569-A Plug Lifter

For equivalent regional tools, refer to Special Tools .

Removal Procedure
Warning: After disconnecting, disassembling or replacing this Flex-Door relevant component, the following system safety check must be
carried out:

Initiate a system check by accelerating to a minimum speed of 4 km/h or above; neither the Flex-Door malfunction indicator light in the
instrument cluster should illuminate nor should any Flex-door warning chime be audible.

Note: For a better description the following graphic shows the vehicle without attaching parts.

Note: For a better description the following graphic shows the vehicle without attaching parts.
cardiagn.com
 Page 2 of 4

cardiagn.com
Note: Arrange a place to embed the removed parts.

1. Install the MDI, turn on the ignition and read out the trouble codes.

Delete them and read out the trouble codes again. If there are any trouble codes notice them.

2. Remove the battery. Refer to Battery Replacement .

3. Remove the battery tray. Refer to Battery Tray Replacement .
4. Remove the front compartment fuse block housing. Refer to Front Compartment Fuse Block Housing Replacement .
5. Release the radiator surge tank. Do not remove. Refer to Radiator Surge Tank Replacement .
6. Remove the power vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .
7. Remove the electronic brake and traction control module. Refer to Electronic Brake and Traction Control Module Replacement .
8. Remove the windscreen wiper system module. Refer to Windscreen Wiper System Module Replacement .
9. Release all fixations.
10. Disconnect all related electrical connectors and unscrew the ground cables at the engine compartment.
11. Make pictures from the routing and fixing points of the body wiring harness for the orientation.
12. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
13. Disconnect the electrical connector from the windscreen washer pump.
14. Disconnect the indicator lamps at the wing, left and right side.
15. Remove the front side door, left and right side. Refer to Front Side Door Replacement .
16. Remove the driver and the passenger seat. Refer to Driver or Passenger Seat Replacement .
17. Remove the rear seats (outer). Refer to Rear Seat Replacement .
18. Remove the rear seat (centre). Refer to Rear Seat Replacement .
19. Remove the steering column. Refer to Steering Column Replacement .
20. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
21. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
22. Remove the HVAC remote control assembly. Refer to Heater and Air Conditioning Remote Control Replacement .
23. Remove the radio front centre speaker. Refer to Radio Front Centre Speaker Replacement .
24. Remove the driver information display. Refer to Driver Information Display Replacement .
25. Remove the turn signal multifunction switch. Refer to Indicator Multifunction Switch Replacement .
26. Remove the windshield wiper and washer switch. Refer to Windscreen Wiper and Washer Switch Replacement .
27. Remove the instrument cluster. Refer to Instrument Cluster Replacement .
28. Remove both windshield side garnish moldings. Refer to Windscreen Side Garnish Moulding Replacement .
29. Remove the front floor console rail bracket. Refer to Front Floor Console Rail Bracket Replacement .
30. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
31. Remove the front floor console. Refer to Front Floor Console Replacement .
32. Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement .
33. Remove the rear compartment stowage shelf. Refer to Rear Compartment Stowage Shelf Replacement .
34. Remove the rear compartment spare wheel stowage cover carpet. Refer to Rear Compartment Spare Wheel Stowage Cover Carpet
Replacement .
 Page 3 of 4

35. Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
36. Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
37. Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
38. Remove the rear floor panel carpet. Refer to Rear Floor Panel Carpet Replacement .
39. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
40. Remove the rear wheelhousing panel lining right side. Refer to Rear Wheelhouse Panel Liner Replacement .
41. Disconnect the electrical connector from the fuel tank filler flap lock actuator.
42. Disconnect the electrical connector from the electrical handbrake control module.
43. Disconnect the electrical connector from the front wheel speed sensor, left and right side.
44. Disconnect the rear wheel speed sensor wiring harness plug.
45. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
46. Make pictures from the routing and fixing points of the body wiring harness for the orientation.
47. Release all fixations.
48. Disconnect all related electrical connectors and unscrew the ground cables at the in the passenger compartment.
49. Release all mass connectors of the instrument panel wiring harness.
50. Release the X1 plug connector at the A-pillar using the BO-569-A plug lifter between the instrument panel and the body wiring
harness.
51. Remove the instrument panel wiring harness. Refer to Instrument Panel Wiring Harness Replacement .
52. Secure the HVAC module at the body.
53. Remove the body wiring harness guidance in the firewall and draw-out the body wiring harness from the engine compartment through
the passenger compartment.
54. Take care about destroyed cable straps and harness guidance regarding noises and rattle.
55. Remove the old body wiring harness and lay it on the floor.
56. Unpack the new body wiring harness and compare the old with the new harness concerning quantity of fixing points, cable straps,
guides, part numbers and pin assignments.

Installation Procedure

cardiagn.com
1. After compare the new with the old harness lay the new body wiring harness into the passenger compartment and carry the new
harness through the firewall into the engine compartment.

Note: Take care for the leak tightness.

2. Install the wiring harness guidance in the bulkhead.

3. Ensure that the body wiring harness is correctly positioned and secured.

Note: Check that there is no rotation and fix the new body wiring harness.

Caution: Refer to Fastener Caution in the Preface section.

Note: Take care for the correct counterpart and the pin assignment. Use the pictures for orientation and use new cable straps.

4. Install the body wiring harness on the instrument panel tie bar.
5. Connect all electrical connectors in the passenger compartment, install all mass cables.
6. Tighten all mass cables to the weld studs to 9 N·m (80 lb in) .

Note: Take care about rotations. Use the pictures for correct orientation and use new cable straps.

7. Install the instrument panel wiring harness. Refer to Instrument Panel Wiring Harness Replacement .
8. Ensure that the instrument panel wiring harness is correctly positioned and secured.

Note: Use the pictures for correct orientation and use new cable straps.

9. Connect the X1 plug connector at the A-pillar between the instrument panel and the body wiring harness.
10. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

Note: Use the pictures for the correct routing. Use new cable straps.

11. Connect the rear wheel speed sensor wiring harness plug.
12. Connect the electrical connector from the front wheel speed sensor, left and right side.
13. Connect the electrical connector from the electrical handbrake control module.
14. Connect the electrical connector from the fuel tank filler flap lock actuator.
15. Install the rear wheelhousing panel lining right side. Refer to Rear Wheelhouse Panel Liner Replacement .
16. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
17. Previous to the installation of the front and rear carpet, clean the car inside and remove all used tools.
18. Install the rear floor panel carpet. Refer to Rear Floor Panel Carpet Replacement .
19. Install the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
20. Install the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
21. Install the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
22. Install the rear compartment spare wheel stowage cover carpet. Refer to Rear Compartment Spare Wheel Stowage Cover Carpet
Replacement .
 Page 4 of 4

23. Install the rear compartment stowage shelf. Refer to Rear Compartment Stowage Shelf Replacement .
24. Install the headlining trim panel. Refer to Headlining Trim Panel Replacement .
25. Install the front floor console. Refer to Front Floor Console Replacement .
26. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
27. Install the front floor console rail bracket. Refer to Front Floor Console Rail Bracket Replacement .
28. Install both windscreen side trim mouldings. Refer to Windscreen Side Garnish Moulding Replacement .
29. Install the instrument cluster. Refer to Instrument Cluster Replacement .
30. Install the windshield wiper and washer switch. Refer to Windscreen Wiper and Washer Switch Replacement .
31. Install the turn signal multifunction switch. Refer to Indicator Multifunction Switch Replacement .
32. Install the driver information display. Refer to Driver Information Display Replacement .
33. Install the radio front centre speaker. Refer to Radio Front Centre Speaker Replacement .
34. Install the HVAC remote control assembly. Refer to Heater and Air Conditioning Remote Control Replacement .
35. Install the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
36. Install the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
37. Install the steering column. Refer to Steering Column Replacement .
38. Install the rear seat (centre). Refer to Rear Seat Replacement .
39. Install the rear seats (outer). Refer to Rear Seat Replacement .
40. Install the driver and the passenger seat. Refer to Driver or Passenger Seat Replacement .
41. Install the front side door, left and right side. Refer to Front Side Door Replacement .
42. Adjust the front side door as needed. Refer to Front Side Door Adjustment .
43. Connect the indicator lamps at the wing, left and right side.
44. Connect the electrical connector from the windscreen washer pump.
45. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
46. Connect all related electrical connectors and tighten the mass cables in the engine compartment. Tighten all mass cables to the weld
studs to 9 N·m (80 lb in) .

Note: Take care about rotations. Use the pictures for correct orientation and use new cable straps.

cardiagn.com
47. Ensure that the body wiring harness is correctly positioned and secured.
48. Install the windshield wiper system module. Refer to Windscreen Wiper System Module Replacement .
49. Install the electronic brake and traction control module. Refer to Electronic Brake and Traction Control Module Replacement .

Note: Tighten the antilock brake system control module fastener after the installation of the brake pipes and the vacuum brake
booster due to have more clearance.

50. Install the power vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .
51. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
52. Install the front compartment fuse block housing. Refer to Front Compartment Fuse Block Housing Replacement .
53. Install the battery tray. Refer to Battery Tray Replacement .
54. Install the battery. Refer to Battery Replacement .
55. Install the MDI, turn on the ignition and read out the trouble codes. If there are any stored DTCs, delete them and read out the trouble
codes again.
56. Program the volatile memory Volatile Memory Programming and then check all electrical functions and make a test run.
57. Clean the car outside and inside.
 Page 1 of 1

Cigar Lighter/Power Outlet Schematics

DC Power

Cigar Lighter/Power Outlet Schematics DC Power

X50A L
Fuse Block - O
Under- C
bonnet
D
KR76 E
S
Retained C
Accessory
Power
Relay F29UA F23UA
Fuse Fuse
20 A 20 A

X2 14 27 39 35 26

1141 1141 1141 241 241

BN BN BN BN BN

J171

WTS -WTS KD4 KC8+KD4 KC8

J251
J252

241
BN 241 241
BN BN

X203 7 12

241 241
BN BN

A A A
X80A X80B X80R
Accessory Accessory Accessory
Power Power Power
Receptacle - Receptacle - Receptacle -
Centre Centre Rear
Console 1 Console 2 Compartment

cardiagn.com
C C C

1950 1950 650

BK BK BK

G300 G401

FS V3 2012/Meriva-B SIE: 2628887 FIG: 2628543 2616826

Master Electrical Component List

 Page 1 of 1

Cigarette Lighter Receptacle Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Special Tools

BO-48871 Cigar Lighter Socket Remover (Side A)

For equivalent regional tools, refer to Special Tools .

Cigarette Lighter Receptacle

1 Procedure

Disconnect electrical connector.

 Page 1 of 1

Front Compartment Fuse Block Cover Replacement

cardiagn.com
Callout Component Name
1 Front Compartment Fuse Block Cover
 Page 1 of 1

Front Compartment Fuse Block Housing Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

1. Remove the alternator and starter cable. Refer to Alternator and Starter Cable Replacement .
2. Remove the front compartment fuse block cover. Refer to Front Compartment Fuse Block Cover Replacement .
Wiring Harness

1 Procedure

Release the front end wiring harness and the body wiring harness out of the fuse block housing.
Front Compartment Fuse Block Housing Nut

Caution: Refer to Fastener Caution in the Preface section.

2
Tighten
22 N·m (16 lb ft)
Front Compartment Fuse Block Housing

3 Procedure

Remove the front compartment fuse block housing.

 Page 1 of 1

Front Floor Console Accessory Power Rear Receptacle Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

Move the front seat to the full forward position.

Front Floor Console Accessory Power Rear Receptacle

Procedure

Disconnect electrical connector.

1
Special Tools

BO-48871 Cigar Lighter Socket Remover (Side B)

For equivalent regional tools, refer to Special Tools .

 Page 1 of 1

Fuse Block Replacement

cardiagn.com
Callout Component Name
Preliminary Procedures

1. Disconnect the battery positive cable. Refer to Battery Positive Cable Replacement .
2. Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement .
Front Compartment Fuse Block Positive Cable and Engine Power Supply Cable (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

1
Tighten
20 N·m (15 lb ft)
Fuse Block Terminal Wiring Harness (Qty: 4)
2
Tighten
4.7 N·m (3.5 lb in)
Master Fuse

3 Procedure

Remove the master fuse from the battery positive splitter.

Fuse Block

4 Procedure

Unclip and remove the fuse block from the battery.

 Page 1 of 1

High Speed GMLAN (1 of 2)

Data Communication Schematics High Speed GMLAN (1 of 2)

B99 L
Steering O
C
Wheel
X84 Angle
6 14 Data Link Sensor D
Connector E
4 2 S
C
X50A
FX3/TVI FX3/TVI Fuse Block -
Under-
2500 2501 2500 2501 bonnet
BU WH BU WH

A B

X3 32 47 31 46
2501 2500
K9 WH BU
Body
A90 Control
Logic Module

15 27
X1 45 44
B119 K26 K43 K17
Multi-axis Headlight Power Electronic
2500 2501 Acceleration Control Steering Brake
BU WH Sensor Module Control Control
Module Module
4 2 15 14 X1 2 3 14 26

FX3 FX3 TVI TVI

G K
2500 2501 2500 2501 2500 2501 2501 2500
K83 BU WH BU WH BN/WH BU/WH WH BU
Parking
Brake
Control
Module
F L

2500 2501
BU WH X204 2 3

2500 2501
FX3/TVI D-BU WH

J115
-FX3/TVI -FX3/TVI FX3/TVI

J114

2500 2501
BU WH

cardiagn.com
J113

J112

FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628519 2616817

Master Electrical Component List

High Speed GMLAN (2 of 2)

Mid Speed GMLAN

 Page 1 of 1

High Speed GMLAN (2 of 2)

Data Communication Schematics High Speed GMLAN (2 of 2)

L
K17 O
Electronic Brake Control C
Module
D
B A E
S
C
2500 2501
BU WH

X2 88 89
X50A
Fuse Block -
Under-
bonnet

X4 15 16
2500 2501
BU WH

M36 M36 M26/MPW/ M26/MPW/

LUH-KL7 LUH-KL7

X96 X129 14 15
LPG Data 2500 2501
Connector BU WH
2 3
LUH+KL7 PK/BK PK LUH+KL7 8 14
40 12 K71
K103 Transmission
Fuel Control
Injector Module
Control
Module 7 6
42 14 2500 2501
WH BU BU WH
X131 4 3
X129 12 13
2501 2500
WH BU
J188 J185 2500 2501
D-BU WH

M36 M36
LUH+KL7 LUH+KL7

2500 2501
D-BU WH

X1 45 44 (LUD/LUE)
X1 66 65 (LDV/LSF)

cardiagn.com
X1 10 11 (LDD/LUH/LUJ)
X1 20 21 (LUB)
K20
Engine
Control
Module

FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628522 2616818

Master Electrical Component List

Immobiliser Aerial and Data Communication Enable

High Speed GMLAN (1 of 2)

 Page 1 of 1

Ignition and Start Switch Housing Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

1. Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
Ignition and Start Switch Housing Bolt (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Procedure

1. Use any of the following common tools in order to remove the ignition and start switch housing bolts:
1
• An angle grinder and a screwdriver
• A chisel
• A screw extractor

• A centre punch
2. Discard the old ignition and start switch housing bolts.
3. Install 1 NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2 Ignition and Start Switch Housing Strap
Ignition and Start Switch Housing

3 Procedure

1. Disconnect any electrical connectors as necessary.

2. Transfer any parts as necessary.
 Page 1 of 1

Ignition and Start Switch Replacement

cardiagn.com
Callout Component Name
Preliminary Procedure

Remove the ignition lock cylinder bezel. Refer to Ignition Lock Cylinder Bezel Replacement .
Ignition and Start Switch Fastener (Qty: 2)
1
Caution: Refer to Fastener Caution in the Preface section.
Ignition and Start Switch

2 Procedure

Disconnect the electrical connector.

 Page 1 of 1

Ignition Lock Cylinder Replacement

cardiagn.com
Callout Component Name
For a better understanding the parts are shown in a developed condition.

Preliminary Procedures

1. Remove the ignition lock cylinder bezel. Refer to Ignition Lock Cylinder Bezel Replacement .
2. Remove the ignition and start switch. Refer to Ignition and Start Switch Replacement .
3. For adding the keys after changing the lock cylinder, refer to Control Module References .

Tip
For programming a control module connect an Opel/Vauxhall approved battery charger to guarantee a charged battery.
Ignition Lock Cylinder Interlock

1 Procedure

1. Insert a pin with a diameter of 2 mm into the hole on the upper side of the ignition lock cylinder housing.
2. Push the pin down and turn the key ignition lock cylinder clockwise into the ignition position.
Ignition Lock Cylinder

Procedure
2
Remove the ignition lock cylinder.

Tip
Don't remove the key from of the developed old or new lock cylinder.
 Page 1 of 1

Immobiliser Aerial and Data Communication Enable

Data Communication Schematics Immobilizer Antenna and Data Communication Enable

L
O
C

D
E
S
C
K9
A90 Body
Logic Control
Module
IGN

X3 1 X1 3

5986
WH/BU

J168

TVI

5986
WH/BU

7138 X204 1
YE (LHD)

7533 5986 5986 5986 5986

GN/WH (RHD) BK WH/D-BU WH/BU WH/BU

2 X1 1 13 35 P
K89 K43 K26 K17 K83
Immobiliser IGN Power IGN Headlight IGN Electronic IGN Parking
Control Steering Control Brake Brake
Module Control Module Control Control
Module Module Module

cardiagn.com
FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628523 2616819

Master Electrical Component List

Linear Interconnect Network (LIN)

High Speed GMLAN (2 of 2)

 Page 1 of 1

Linear Interconnect Network (LIN)

Data Communication Schematics Linear Interconnect Network (LIN)

K9 L
Body O
A90 C
Logic Control
Module
D
E
S
C
X1 20 X3 4 3 5

1132 6134 6135

BN/VT GN/WH GY

X203 37 36

6134 6135
GN/WH GY
-CE1 CFD+CE1 -CFD
J257 J343

J169
6134 6134
GN/WH GN/WH

X500 5 X600 5

6134 6134 6135 6135

CFD CE1 GN/WH GN/WH GY GY

4
M74P
Window
Motor -
Passenger
X309 E X700 6 X800 6

A33 -A33

J506

1132 1132 6134 6134 6135 6135 6133

BN/VT BN/VT D-GN/WH D-GN/WH GY GY GN/WH

4 3 5 4 4 4 X2 2
K62 B177 S79D M74D M74LR M74RR S3

cardiagn.com
Sunroof Rain/ Window Window Window Window Transmission
Sunshade Ambient Switch - Motor - Motor - Motor - Gearstick
Motor Light Driver Driver Left Rear Right Rear
Module Sensor
Module

FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628528 2616820

Master Electrical Component List

Immobiliser Aerial and Data Communication Enable

 Page 1 of 1

Low Speed GMLAN (2 of 2)

Data Communication Schematics Low Speed GMLAN (2 of 2)

L
O
C
K9
A90 Body D
Logic Control E
Module S
C

X3 17 18

5060
GN

27
P16
Instrument
Cluster

26

5060 5060
GN GN

X1 15 X2 3
K36 K33
Inflatable HVAC
Restraint Control
Sensing Module
and
X1 16 Diagnostic X2 2
Module

5060 5060
D-GN D-GN

J254

5060 5060
D-GN D-GN

UPI UL5 -UL5

X1 3 13 X1 14
K82 P5 A11
Mobile Chime Radio
Telephone Alarm
Control Control
Module Module

cardiagn.com
FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628513 2616815

Master Electrical Component List

Mid Speed GMLAN

Power, Ground, Low Speed GMLAN (1 of 2), and EBCM Diagnostics

 Page 1 of 1

Mid Speed GMLAN

Data Communication Schematics Mid Speed GMLAN

L
O
C

D
E
S
C
K82 A11 A12
Mobile Radio Digital
X84 Telephone Radio
Data Link Control Receiver
Connector Module Control
3 11 X1 12 13 X1 35 36 X1 3 12 Module

5169 5170 5169 5170 5169 5170 5169 5170

YE WH YE WH YE WH YE WH

UPH/UPJ UPH/UPJ UBT UBT

J256

J255

KTB KTB

5169 5170 5169 5170

YE WH YE WH

A B X1 19 9
R6 T11
Data Link Multimedia
121 Resistor Player
Interface
Module

cardiagn.com
FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628517 2616816

Master Electrical Component List

High Speed GMLAN (1 of 2)

Low Speed GMLAN (2 of 2)

 Page 1 of 1

Power, Ground, and Data Communication

Body Control System Power, Ground, and Data Communication

B+ L
O
C
X50D
Fuse
F1UB Block - D
Fuse Battery E
S
80 A C

X2 1

440
RD/GN

X6 1
K9
Body
Control
Module

Power
Distribution
Schematics

A90
B+ Logic

IGN

X1 3 15 45 44 20 X3 16 17 18 31 46 32 47 5 4 3 X5 9 10

5986 5060 2500 2501 1132 5060 5060 5060 2500 2501 2500 2501 6133 6134 6135 1450 1450
WH/BU D-GN BU WH BN/VT GN GN GN BU WH BU WH GN/WH GN/WH GY BK BK

cardiagn.com
Data
Communication
Schematics
G301

FS V3 2012/Meriva-B SIE: 2628886 FIG: 2628529 2616821

Master Electrical Component List

Subsystem References (1 of 4)
 Page 1 of 1

Power, Ground, Low Speed GMLAN (1 of 2), and EBCM Diagnostics

Data Communication Schematics Power, Ground, Low Speed GMLAN (1 of 2), and EBCM Diagnostics

L
B+ O
C
K9
A90 Body
Logic Control D
F3DA E
Fuse Module S
C
20 A

X5 1 X3 16 X1 15 X1 30

KA1

3340
RD/GY

X84 5060 5060

16 5 4 1 Data Link GN GN
Connector

750 750
BK BK

UD5 D8G

X311 25 (LHD)
X310 25 (RHD)

5060 5060 5060

GN GN D-GN

X3 11 X1 6 X1 1
K29D K41 K68
Seat Front and Trailer
Heating Rear Parking Lighting
Control Assist Control
Module - Control Module
Driver Module

cardiagn.com
G350

FS V3 2012/Meriva-B SIE: 2628884 FIG: 2628510 2616814

Master Electrical Component List

Low Speed GMLAN (2 of 2)

 Page 1 of 2

Relay Replacement - Attached to Wire Harness

Removal Procedure

cardiagn.com
1. Locate the relay. Refer to the Master Electrical Component List to locate the relay in the vehicle.
2. Remove any fasteners which hold the relay in place.
3. Remove any connector position assurance (CPA) devices or secondary locks.

Note: Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.

4. Separate the relay (1) from the wire harness connector (2).

Installation Procedure
 Page 2 of 2

cardiagn.com
1. Connect the relay (1) to the wire harness connector (2).
2. Install any connector position assurance (CPA) devices or secondary locks.
3. Install the relay using any fasteners or tape that originally held the relay in place.
 Page 1 of 3

Relay Replacement - Within an Electrical Center

Special Tools

EL 43244 Relay Puller Pliers

For equivalent regional tools, refer to Special Tools .

Removal Procedure
1. Remove the electrical center cover.
2. Locate the relay. Refer to Electrical Centre Identification Views to locate the electrical centre where the relay exists.

Note:

• Always note the orientation of the relay.

• If equipped with a notch style relay; observe the location of the notch on the old relay to verify the new relay is installed with the
notch in the same location.
• Ensure that the electrical centre is secure, as not to put added stress on the wires or terminals.

cardiagn.com
 Page 2 of 3

cardiagn.com
3. Using the EL 43244 relay puller pliers (1) position the tool on opposing corners of the relay (2).

Caution: Use EL-43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could
damage the electrical centre.

4. Remove the relay (2) from the electrical centre.

Installation Procedure
 Page 3 of 3

cardiagn.com
1. Install the relay (2) in the same position as removed.
2. Install the electrical center cover.
 Page 1 of 1

Subsystem References (1 of 4)

Body Control System Subsystem References (1 of 4)

L
O
C

D
E
S
C

K9
Body
A90 Control
Logic Module

12V

X4 5 4 X1 7 11 6 10 40 41 13 X3 15 28 25 50 59 39 X1 18

1597 1597 5996 5996 5997 5997 156 328 1382 1382 6816 7556 7555 719 6819 28
GY GY/BK OG/BK OG/WH OG/VT OG/GN GY GY/GN YE/GY YE/GY WH YE WH/BN BK/GY GN/WH BN/WH

Interior Lights Interior Lights Horn

Schematics Dimming Schematics
Schematics

cardiagn.com
FS V3 2012/Meriva-B SIE: 2628886 FIG: 2628534 2616822

Master Electrical Component List

Subsystem References (2 of 4)

Power, Ground, and Data Communication

 Page 1 of 1

Subsystem References (2 of 4)

Body Control System Subsystem References (2 of 4)

L
O
Headlights/ C
Daytime
Running Lights
(DRL) Exterior D
Schematics E
Lights S
Schematics C

306 103 524 307 720

GN/BN WH WH YE BK/BU

X3 11 56 55 38 60
K9
A90 Body
Logic Control
Module

X2 11 8 19 X4 6 X1 4 16 2 X2 10

TVI T96
312 7538 7539 712 1969 439 1317 122
YE/BU VT/RD YE/RD YE WH/VT VT/BN BN/WH YE/GY

Headlights/ Fog Lights

Daytime Schematics
Running Lights
(DRL) Exterior
Schematics Lights
Schematics

20 27 1717 13 663 664

BN/YE BN/YE BU/VT GN/GY WH/GN VT/D-BU

X1 38 X3 57 8 40 54 24

X2 5 15 16 1 3 2 4 14 7 18 17 6 13 X4 7 8 9

1314 1314 1334 1315 1315 1335 709 709 DD8 24 5221 5222 1255 309 6995 820
BU/WH BU/WH D-BU/WH GN/VT GN/VT BU/VT GY VT/GY WH/BK BN/YE BN/YE GN/GY RD/GY BN/GY BN/YE
1324

cardiagn.com
GN/WH

Exterior Exterior
Lights Inside Rear- Lights
Schematics view Mirror Schematics
Schematics

FS V3 2012/Meriva-B SIE: 2628886 FIG: 2628536 2616823

Master Electrical Component List

Subsystem References (3 of 4)

Subsystem References (1 of 4)
 Page 1 of 1

Subsystem References (3 of 4)

Body Control System Subsystem References (3 of 4)

L
O
C

D
Door Lock/ E
Indicator S
C
Schematics

7305 7304 718 645 5484 5910 5910 1903 195 251 251
GY/WH WH/GN BK/GY BK/YE YE/VT BN BN/OG BN/BU BU/WH BK/WH BK/WH

X1 55 56 29 49 48 52 51 35 X3 41 X4 31 29
K9
A90 Body
Logic Control
Module

X1 42 37 47 32 50 54 57 58 14 X3 12 19 X4 32

744 305 6725 6726 747 748 5479 5480 43 5926 5967 6165
BU/YE BN/VT WH BN BU/BK GN/BK YE BU/RD BN/YE GN VT/WH GN

Release Remote Door Lock/

Systems Function Indicator
Schematics Schematics Schematics

cardiagn.com
FS V3 2012/Meriva-B SIE: 2628886 FIG: 2628539 2616824

Master Electrical Component List

Subsystem References (4 of 4)

Subsystem References (2 of 4)
 Page 1 of 1

Subsystem References (4 of 4)

Body Control System Subsystem References (4 of 4)

L
O
Power C
Cruise Control Moding
Schematics Schematics
D
E
S
C
598 17 3 591 1073 4 1020 5
BU BN/GY VT/YE GN/VT WH/BK YE VT/GY YE/VT

X1 19 33 1 17 X3 27 23 49 6
K9
A90 Body
5V Logic Control
Module

12V

X3 29 30 14 36 10 52 43

MM1 MM1 MM1 WIY + K33/K34 WIY + K33/K34 WIY + K33/K34

143 7553 7554 1884 1444 6818 720

BN/YE VT/BK YE BN/D-GN WH/RD GN BK/BU

Cruise Control Cruise Control Radio/ Interior Lights

Gear Change Schematics Schematics Navigation Dimming
Lock Control System Schematics
Schematics Schematics
Anti-lock Tyre Pressure
Brake Monitoring Immobiliser
System System Schematics
Schematics Schematics
Hydraulic Theft Deterrent
Brake System
7138 7533 Schematics Schematics
1788 1145 7307 YE GN/WH 109
BU/VT VT/WH GN BN/GN
LHD RHD 1684 1149
FX3 UJO LHD UA6
BU/VT YE/BU

X3 53 58 2 1 X1 34 36 X4 20

X1 22 21 X3 35 42 21 44 34
151
C25 BK/WH MM1
196 6987 391 94 1715 5526
BN/GN BN/BU BN/BU WH/BK GY Exterior VT/YE

cardiagn.com
Lights
Schematics
Automatic
Transmission
Controls
Wiper/Washer Schematics
Schematics

FS V3 2012/Meriva-B SIE: 2628886 FIG: 2628541 2616825

Master Electrical Component List

Subsystem References (3 of 4)
