KT User Guide

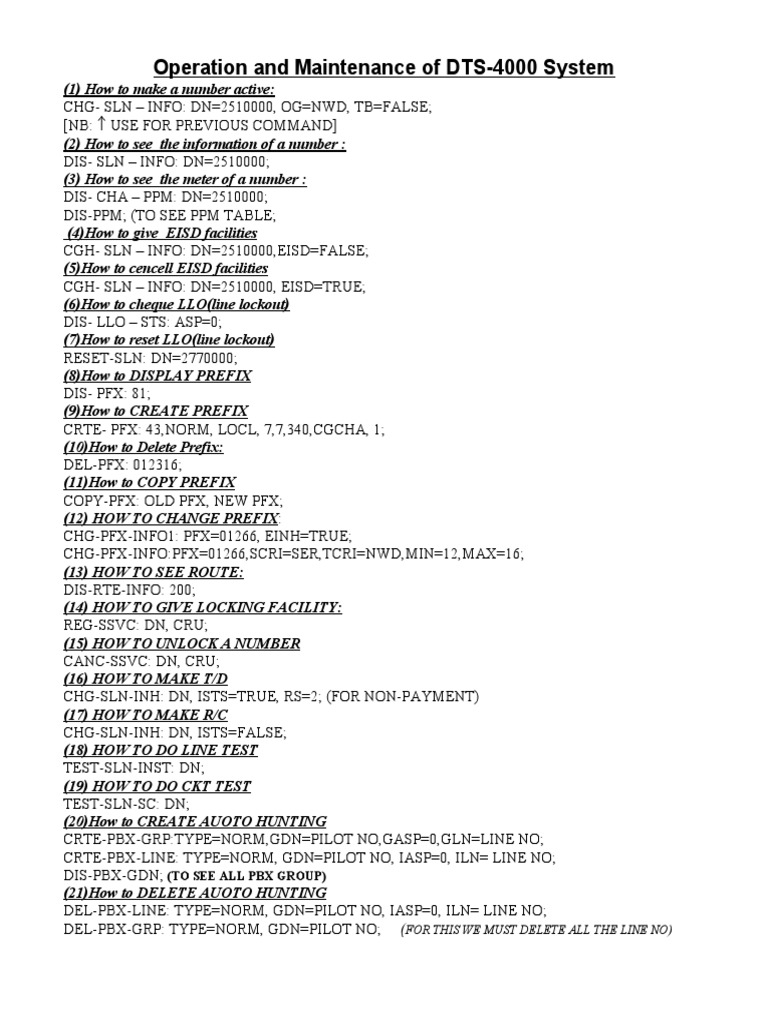

Operation and Maintenance of DTS-4000 System
(1) How to make a number active:

CHG- SLN – INFO: DN=2510000, OG=NWD, TB=FALSE;
[NB:  USE FOR PREVIOUS COMMAND]
(2) How to see the information of a number :
DIS- SLN – INFO: DN=2510000;
(3) How to see the meter of a number :
DIS- CHA – PPM: DN=2510000;
DIS-PPM; (TO SEE PPM TABLE;
(4)How to give EISD facilities
CGH- SLN – INFO: DN=2510000,EISD=FALSE;
(5)How to cencell EISD facilities
CGH- SLN – INFO: DN=2510000, EISD=TRUE;
(6)How to cheque LLO(line lockout)
DIS- LLO – STS: ASP=0;
(7)How to reset LLO(line lockout)
RESET-SLN: DN=2770000;
(8)How to DISPLAY PREFIX
DIS- PFX: 81;
(9)How to CREATE PREFIX
CRTE- PFX: 43,NORM, LOCL, 7,7,340,CGCHA, 1;
(10)How to Delete Prefix:
DEL-PFX: 012316;
(11)How to COPY PREFIX
COPY-PFX: OLD PFX, NEW PFX;
(12) HOW TO CHANGE PREFIX:
CHG-PFX-INFO1: PFX=01266, EINH=TRUE;
CHG-PFX-INFO:PFX=01266,SCRI=SER,TCRI=NWD,MIN=12,MAX=16;
(13) HOW TO SEE ROUTE:
DIS-RTE-INFO: 200;
(14) HOW TO GIVE LOCKING FACILITY:
REG-SSVC: DN, CRU;
(15) HOW TO UNLOCK A NUMBER
CANC-SSVC: DN, CRU;
(16) HOW TO MAKE T/D
CHG-SLN-INH: DN, ISTS=TRUE, RS=2; (FOR NON-PAYMENT)
(17) HOW TO MAKE R/C
CHG-SLN-INH: DN, ISTS=FALSE;
(18) HOW TO DO LINE TEST
TEST-SLN-INST: DN;
(19) HOW TO DO CKT TEST
TEST-SLN-SC: DN;
(20)How to CREATE AUOTO HUNTING
CRTE-PBX-GRP:TYPE=NORM,GDN=PILOT NO,GASP=0,GLN=LINE NO;
CRTE-PBX-LINE: TYPE=NORM, GDN=PILOT NO, IASP=0, ILN= LINE NO;
DIS-PBX-GDN; (TO SEE ALL PBX GROUP)
(21)How to DELETE AUOTO HUNTING
DEL-PBX-LINE: TYPE=NORM, GDN=PILOT NO, IASP=0, ILN= LINE NO;
DEL-PBX-GRP: TYPE=NORM, GDN=PILOT NO; (FOR THIS WE MUST DELETE ALL THE LINE NO)
(22)How to CHANGE TIMER
CHG-CALL-TMR;
(23)HOW TO SEE THE ALARM
DIS-ALM: STS;
DIS-ALM: STS,CCP;
DIS-ALM: STS,ASP0;
DIS-ALM: STS,ASP1;
DIS-ALM: HIS,CCP; ( IT SHOWS ALL ALARM)
(24)HOW TO SEE DEVICE STATUS
DIS-DEVC-STS: ASP0;
DIS-DEVC-STS: ASP1;
(25)HOW TO SEE TIME SWITCH STATUS
DIS-TSW-STS: 0;
(26)HOW TO SEE PROCESSOR STATUS
DIS-PRC-STS: ASS0;
(27)HOW TO KNOW SELF NO
DIS-PFX: 108;
(28)HOW TO SEE PPM DATA
DIS-PPM;
(29)HOW TO SEE DETAIL BILL
DIS-CHA-BC: BOTH;
(30)HOW TO CLEAR ALARM
CLR-RAPU: GRD;
(31)HOW TO RE-ESTABLISH CONNECTON BETWEEN MSU AND RSU IF FAILED
DIS-PRC-STS: GRP=ASS03;
RST-PRC: GRP=ASS03;
(32)HOW TO SEE HOLIDAY LIST
DIS-DCNT-DATE:;
(33 )HOW TO ADD HOLIDAY LIST
ADD-DCNT-DATE: DATE;
(34 )HOW TO DO SUBSCRIBER’S PREVENTIVE TEST
TEST-SC-PRV: 0, , 0&&4095, YES ;( FOR ASP0 AND LINE NO FROM 0 TO 4095)
(35)HOW TO SEE THE ACTIVE SIDE OF THE SWITCH LINK
DIS-LINK-MODE: 0, SSL;
(36 )HOW TO DISPLAY PORT NO
DIS-IO-PORT;
(37 )HOW TO CHANGE PORT NO
CHG-IO-PORT: PORT=NO; (LIKE LASMO IN E-10)
(38 )HOW TO SEE THE STATUS OF A SUBSCRUBER CARD(32 NO)
DIS-SLC-STS: 0,, 8,3;
(39 )HOW TO FIND A FAULT IN A NUMBER
TEST-SC-INST: 2510000;
(40 )HOW TO TRACE CALL PATH
TRC-CALP: DN;
(41 )HOW TO STOP CALL TRACE PATH
STOP-CALP-TRC: DN;
(42 )HOW TO GIVE CALL LIMIT FACILITY
CHG-SLN-INFO: DN=2850000, CL=TRUE/FALSE;
(43 )HOW TO TAKE MALICIOUS CALL TRACE
REG-SOBS: DN;
(44)HOW TO SEE THE EN OF DN:
DIS-EDN:,0,,1229; [TO SEE THE EN OF 2511229]
45)TESTING AANOUNCEMENT:
TEST-ANM:1;
DIS-ANM-STS:1;
46) DIS-EXE-CMD;
47) DIS-LD-STS:MP;
48) DIS-CALL;
FOR MALICIOUS CALL:

DIS-MSG-HIS:TYPE=STS,PRN=3501,SDT,STM;
(10) HOW TO TAKE CHARGING IN A CASSETE

>DIS-SDU-STS;
>ACT-SDU:SDU=6,MODE=CHRG;
>OVWR-SD:SDU=6; ( FOR OVERWRITE)
*Pulse charging
>DUMP-CHA:CT=SUB,RM=PPM; [FOR ADTL, ]
>DUMP-CHA:CT=COM,RM=ADTL;
>DUMP-CHA: CT=TRK, RM=PPM ;( TANDEM AND TAX)
>CLR-RAPU:GRD;
.DUMP-CHA-EXIP:CT=SUB,RM=PPM ;( DATA TRANSFER)
>CLR-RAPU:GRD;
CAPTURE METER FILE FROM EXIP

EXIP
180.150.4.70
CLICK >FILE>NEW CONNECTION>TCP/IP>HOST ENTER
T
Log in: cama enter
Password: cama enter
 cd space / enter
 cd space/ pool enter
 ls enter
 cd space space Subppm enter ( for trunk TRKPPM)
 ls enter
 cview_exip enter
 cview_exip space-p space SUBPPM_11 20 1145.DAT >FILENAME
 vi Achinta enter (now the charge data is shown)
>OPEN COMMAND PROMT

>q enter
>d:
>cd Achinta
>Dir
>ftp space 180.150.4.70 enter
User> cama
Password>cama
>PWD
>cd space/pool
>cd Subppm enter
>ls (for checking)
>bi
> Get Achinta enter
HOW TO READ DETAIL BILL :( New system)

CLIC K TERA TERM >FILE>NEW CONNECTION>TCP/IP>HOST (180.150.4.70) ENTER
Log in: cama enter
 cd ~ /
 cd ~ / pool
 cd ~ complete/
 ls
 cview_exip~-d ~2510000~nBTTBAC0-0.I0705~ > ~/pool/2510000
 cd~..
 ls
1. Then open WS_FTP

2. Open the file with excel
3. click fixed width
4. select called number position and click next
5. select all field
6. then press shift and select all the field
7. then click on text
8. click on don’t import
9. then finish
10. select total screen
11. then click on data bar and on sort
12. sort from column D
HOW TO READ DETAIL BILL: Old system)

CLICK TERA TERM >FILE>NEW CONNECTION>TCP/IP>HOST (180.150.4.70) ENTER
Log in: cama enter
 cd ~ /
 cd ~ / pool
 cd ~ complete/
 ls
 ls~ nBTTBAC0-0.I0608*
 cp ~ nBTTBAC0-0.I0608* ~ /pool/ADTL/.
 cd ~ /pool/ADTL
 Enter
 ls
 cview_dn ~ DN
 vi ~ DN (open file) …. :q!(close)
 ls
 \rm ~ nBTTBAC0-0.I0608*
 ls (cview_dn , 2510000)
 cp~2510000~200608_2510000
-DTS-4000 System OPERATION COMMAND -
☞Processor/Device Check Command
DIS-PRC-STS:ALL/MP/CCS/INS/ASS0; ※PROC CHECK
DIS-DEVC-STS:INP/ASP0; ※DEVICE CHECK
DIS-NODE-STS:INS/ASS00; ※NODE CHECK
DIS-NC-STS:INS/ASS0; ※Node Contral CHECK
DIS-HITC-STS:INP/ASP0; ※HIT_BUS CHECK
DIS-SP(SRTE)-INFO;
DIS-LD-STS:MP/CCP/INP/ASP0;
DIS-DEV-CONF;
DIS-SUB-EQP; ※SUBSCRIBER EQUIP ALL CHECK
DIS-SSVC-REG; ※SPECIAL SERVICE ALL CHECK
DIS-RTE-CONF; ※ROUTE CONFIGRATION ALL CHECK
☞Dku Check Command

DIS-DKU-STS:CCP; ※DISK STATUS CHECKI
DIS-SDU-STS; ※SDU STATUS CHECK
☞Disk File Command

LIST-DK-FILE:CCP,,C/D/E/F;
LIST-DK-FILE:CCP,,C,PROG/DATA/PLD;
LIST-DK-FILE:CCP,,C,PROG/DATA/PLD;
☞SYSTEM BACK_UP
1) DIS-SDU-STS; ※STATUS=READY
2) SDU Insert
3) BLK-SDU:6;
4) TEST-SDU:6;
5) UBLK-SDU:6;
6) ACT-SDU:SDU=6,MODE=BKUP(CHRG,CHRG_BKUP,DUMP,STAT)
DIS-SDU-STS; ※STATUS=OVWR
OVWR-SD:SDU=6
7) DIS-SDU-STS; ※SDU=6 ACTIVE CHECKING
8) ACT-LDNG-BKUP:TYPE=SYS,SDU=6,DKVOL=C,CHKLOG=YES;
※TYPE=SYS,PLD,PROG,DATA
9) DIS-DB-INFO; ※ALW →INH changed
............
→SYS ALL FILE BACK UP COMPLETED
10) DIS-SDU-STS;
☞Ring & Tone & Switch Network Display

DIS-RING-STS:0;
DIS-TONE-STS:0;
DIS-SIGD-STS:0;
DIS-TSW-STS:0;
DIS-SN-STS; ※SN=SWITCH NETWORK
DIS-LINK-MODE:0,TSL/SSL;
☞I/O Command
DIS-IO-PORT;
CHG-IO-PORT:PORT=4,MODE=CRT,BR=9600; ※MODE CHANGE(CRT,PRT..)
CHG-PORT-INFO:PORT=4,CLS=3; ※CLASS CHANGE(1~5)
INH-MSG:TYPE=ALM(FLT,STS),PORT=4; ※MESSAGE INHIBIT
☞Print Port Set Up (PRT=9port , CRT=2port)

DIS-STUP-PRT;
SET-UP-PRT:PRT=9,CRT=2;
DIS-STUP-PRT;
SET-UP-PRT:9,,,TRUE; →SET-UP ALL CLEAR
☞Excution Message
DIS-EXE-CMD;
CANC-EXE-CMD:JOB=1;
☞Alarm Status Checking

DIS-RAPU:0(1); ※ alarm pannel display
DIS-ALM:STS,ALL; ※ All processor Alarm display
DIS-ALM:STS,CCP; ※ CCP processor Alarm display
DIS-ALM-INFO:PRN=6100; ※"A6100" alarm display
CLR-RAPU:GRD; ※ GRD=minor&major&critical alarm clearing
RSTR-RAPU:GRD/CRI/MAJ/MIN;
DIS-ALM:MODE=OOS,PRC=ASP0; ※ MODE=STS,INH,NEQP,HIS,OOS
DIS-ALM-TBL:CCP(ASP0,INP),,MP(LGSI,EXIP,SPCI);
DIS-ALM-INFO:PRC=CCP,ALMID=MP,SRC=0;
DIS-RAPU:ITEM=GRD; ※ITEM=GRD,CRI,MAJ,MIN
☞Alarm Message Inhbition

INH-ALM-MSG:PRN=300;
ALW-ALM-MSG:PRN=300
☞Call Trace
REG-SOBS:DN=2830000【,CNT=100】; -> trace register
CANC-SOBS:DN=2830000; -> trace stop
TRC-CALP:2830000; -> CALP=call path trace

STOP-CALP-TRC:DN=2830000; -> trace stop
TRC-ISUP:RTE=400【,CNT=30】; -> NO7 route trace

TRC-ISUP:DN=2830000; -> DN trace(DEFAULT:100개)
STOP-ISUP-TRC:DN=2830000; -> NO7 route trace stop
TRC-R2:RTE=400; -> R2 route trace

STOP-R2-TRC:RTE=400;
TRC-R2:DN=2830000; -> DN trace(DEFAULT=100)
STOP-R2-TRC:DN=2830000;
☞Extempore Charging
REG-CHA-EXT:DN=2830000;
DIS-CHA-SVC:DN=2830000; -> EXT, VERI checking
-Subscriber Command-
☞Subscriber Create
DIS-SLN-INFO:DN=2830000;
CRTE-SLN :DN=2830000,ASP=0,LN=0,SSVC=ABD&GCF;
DIS-EDN:DN=2510000; , DIS-EDN:ASP=00,LN=00;
☞Subscriber Delete
DIS-SLN-INFO:DN=2850000
DEL-SLN:DN=2830000;
☞Special Service Rrgister

REG-SSVC:DN=2830000,SSVC=ABS【,TDN】;
※ACR,CIDN,CAW,GCF,ABS,ABD,WKP,HTL,TWC..
REG-SSVC:DN=2830000,SSVC=HTL,TDN=2830001; ※HTL
REG-SSVC:DN=2830000,SSVC=GCF,TDN=2830001,MD=UNC; ※UNC=ACTIVE
DIS-SSVC-INFO:DN=2830000;
DIS-SSVC-INFO:DN=2830000,SSVC=GCF(ABD); ※Number Checking
☞Special Service Cancel

CANC-SSVC:DN=2830000,SSVC=ABS;
DIS-SSVC-REG; ※Total Special Service view-find

DIS-SSVC-REG:ASP=0,【SSVC=GCF】; ※ASP Processor Total Service separate View-find
☞Call Barred
CHG-SLN-INFO:DN=2830000,OG=BARR; →Calling Barried(NOMAL Subscriber Calling Only )
CHG-SLN-INFO:DN=2830000,TB=TRUE; →Called Barried(NOMAL Subscriber Called Only )
CHG-SLN-INFO:DN=2830000,EINH=TRUE; →Economic_ISD Call Barried
☞PBX Create Delete

DIS-SLN-INFO: DN=2830000; ※LN Checking(LN=0)
CRTE-PBX-GRP: TYPE=NORM, GDN=2830000,GASP=0,GLN=0; ※2830000 Group Number
Creating
DIS-PBX-GRP:TYPE=NORM,GDN=2830000;
DIS-PBX-GDN:ASP=0;
CRTE-PBX-LINE:TYPE=NORM,GDN=2830000,IASP=0,ILN=10; ※2830010 Line Number1
Creating
CRTE-PBX-LINE:TYPE=NORM,GDN=2830000,IASP=0,ILN=20; ※2830020 Line Number2
Creating
DIS-PBX-LINE:TYPE=NORM,DN=2830010;
CHG-PBX-GRP:TYPE=NORM,GDN=2830000,HUNT=CIR; ※HUNT=SEQ,CIR,UCD
☞PBX delete
DEL-PBX-LINE:TYPE=NORM,GDN=2830000,IASP=0,ILN=20; ※2830020 Line Number2
Deleting
DEL-PBX-LINE:TYPE=NORM,GDN=2830000,IASP=0,ILN=10; ※2830020 Line Number1
Deleting
DEL-PBX-GRP:TYPE=NORM,GDN=2830000; ※2830000 Group Number Deleting
DIS-PBX-GRP:TYPE=NORM,GDN=2830000
☞PBX Charging type changed

1) PBX GDN-Charging -> DEFAULT=GDN
2) CHG-PBX-GRP:TYPE=NORM,GDN=2830000,CT=IDN; ※PBX IDN-Charging
☞ Special pbx group Create

1) DIS-PFX:PFX=109;
2) DEL-PFX:PFX=109;
3) CRTE-PFX:109,SPNO,,3,3;
4) CRTE-SPNO-INFO:SPNO=109,ORG=0,CLTY=INTR,ASP=0,LN=100;
5) CRTE-PBX-GRP:TYPE=SPNO,GDN=109,GASP=0,GLN=100;
6) CRTE-PBX-LINE:TYPE=SPNO,GDN=109,IASP=0,ILN=200;
7) DIS-PBX-GRP:TYPE=SPNO,GDN=109,GASP=0,GLN=100;
☞Public Telephone (COIN-BOX) Create

1)DEL-SLN:DN=283xxxx,NO=32;
2)CHG-CARD-TYPE:ASP=0,SHELF=xx,CARD=xx,TYPE=METER; ※NORMAL LINE =ASI
3)CRTE-SLN:DN=2830000,ASP=0,LN=0;
4)CANC-SSVC:DN=2830000,SSVC=CIDN&CRU;
5)CHG-SLN-INFO:DN=2830000,OG=LOCL,LC=CB,CT=CT16K;
→LC(LINE_CAT) : CB(COIN BOX) , LN(NORMAL LINE)
→CT(COIN BOX_TYPE) : MPUL(MULTI PULSE),CT16K(MULTI PULSE 16K),
CMUL(CARD PULSE)
☞Subscriber etc Command

DIS-EN-NEQ:ASP,[RASP],[SLN],[LLN]; ※SLN:START LN , LLN:LAST LN
DIS-DEV-CONF:ASS0,SLN;
DIS-SUB-CONF:PFX=283; ※283 Prefix Number of All Subscribers Writing
DIS-SUB-EQP:ASP=0; ※The Number of All Subscribers List Writing
DIS-DN-NEQ:283; ※"283" Prefix Not-Equipped DN
DIS-EN-NEQ:ASP=1,SLN=0,LLN=100; ※ASP=1 START LN=0 to LAST LN=100 NEQ EN
DISPLAY
DIS-EDN:DN=2830000,NO=10; ※DN View find
DIS-EDN:ASP=0,LN=0,NO=10; ※LN View find
CHG-SLN-INFO:DN=2830000,LP=PRI; ※Priarity Subscriber Command
CHG-SLN-INFO:DN=2830000,DL=NWD; ※DL=INTR,LOCL,NWD,INTL,BARR
DIS-LLO-STS:ASP=0;
DIS-LLO-STS:ASP=0,OT=LLO/LBLK; ※OT=LLO,LBLK
RESET-SLN:DN=2830000;
☞AUTO ANSWER Creating

CRTE-AUTO-ANS:2839999;
☞Subscriber Testing
TEST-SLN-SC:2830000; ※Circuit & Line testing
TEST-SC-INST:2830000; ※Circuit testing
→ACT,DCH,B1,B2,CMR testing (board)
→LC :LOOP CURRENT
→PR :public phone
→DT,DD :DIAL or DIGIT
→RG,RD :RING test
TEST-SLN-INST:2830000; ※Line METAL testing
→T-R,T-G,R-G VOLT,Mohms(subscriber line)
ex) OPEN:telephone open, CROSS:line cross, LLO:Line Lock-
Out,GROUNG:Tip/Ring/Both
TEST-SC-PRV:ASP=0,LN=0&&1023,SMRY=YES; ※ Circuit Preventive testing
-TRUNK COMMAND-
☞Trunk Status Check
1) DIS-TRK-INFO:ASP=0,TRK=10; →trunk status checking
DIS-TRK-INFO:0,,,10;
2) DIS-TRK-STS:ASP=0,TI=0,LINK=20; →trunk status checking
DIS-TRK-STS:ASP=0,TRK=0&&10; →trunk status checking
DIS-TRK-STS:0,,,,0&&10; →trunk status checking
☞Trunk Testing
DIS-OOS-STS:ASP=0,DEV=TRK;(ASP=0,DEV=TRK) ※ASP=0 OOS_TRK checking
DIS-TRK-STS:0,,0,10;(ASP=0,TI=0,LINK=10)
TEST-DTK-CH:ASP=0,CH=1;
TEST-DTK-CH:ASP=0,CH=0&&31;
TEST-DTK-LNK:ASP=0,TI=0,LINK=10,ITEM=LL(RL);
※ITEM=RL(remote line loop testing),DEFAULT=LL(local line loop testing)
RESET-TRK:0,,0,10;
☞Trunk Block,Unblock
BLK(UBLK)-TRK:ASP=0,TI=0,TRK=291; channel block
BLK(UBLK)-TLC:ASP=0,TI=0,LNK=9; link block
BLK(UBLK)-TRK:ASP=0,TRK=225&&255;
☞Trunk, route Command → CH=225~255 , RTE=201

1)DIS-TRK-INFO:0,,10;
2)DIS-RTE-INFO:RTE=100;
DIS-RTE-EQP:RTE=100;
3)DIS-RTE-RSEQ:100;
4)DIS-RTE-SEQ:100;
5)DIS-RSEQ-PFX:RSEQ=100; → RTE=201 Prifix checking
☞Exist Trunk deleting

1)BLK-TRK:ASP=0,TRK=33&&42;
2)DEL-TRK:ASP=0,TRK=33,CNTR=10;
3)DIS-TRK-INFO:ASP=0,TRK=33,NO=10;
DIS-TRK-INFO:0,,,,33&&42;
☞RTE etc Command
DIS-RTE-TOT;
DIS-RTE-CONF;
DIS-RTE-DATA:ASP=00;
DIS-RTE-SEQ;
DIS-RSEQ-EQP;
DIS-RSEQ-PFX;
DIS-RTE-INFO:RTE=10;
DIS-RSEQ-PFX:100;
DIS-RTE-SEQ:RSEQ=100;
DIS-OOS-STS:ASP=0,DEV=TRK;(ASP=0,DEV=TRK,SLN,SIGD,ANM,CMX)
DIS-RTE-STS:100;
-NO7 SIGNAL POINT Create /Delete-

☞ OSP(H'2103) Create
【KHU_E10_CEN:H'2103】
DIS-SP-INFO;
CRTE-OSP:,H’2103,KHU__KT_CEN; ※SYSTEM = 1 OSP Exist
☞ SP (H'2108) SLC=0 Create

(ex) H’0001
1)DIS-TRK-ENCD:ASP=0,TI=0,LNK=xx;
CHG-TRK-ENCD:ASP=0,TI=0,LINK=xx,SM=CCS;
2)DIS-SP-INFO;
CRTE-SP:,H’0001,KHU_KT_KHAL;
3)DIS-ST-STS:ASP=0,TP=0,STG=0;
CRTE-ST:ASP=0,TP=0,STG=0,ST=xx;
4)CRTE-SDLK:0,xx;
5)DIS-LKS-STS:LS=H’0001;
CRTE-LKS:,H’0001;
6)DIS-SLK-INFO;
CRTE-SLK:LS=H’0001,SLC=0,TASP=0,TRK=xx,SASP=0,TP=0,STG=0,ST=x,BR=K64;
7)DIS-SRTE-INFO;
CRTE-SRTE:DPC=H’0001,LSHB=0,LS=H’0001;
8)DIS-SP-INFO;
CHG-LKS-STS:LS=H’0001,TYPE=ACT(DACT);
☞ SP (H'2108) SLC=1 Create

(ex) H’0001
1)DIS-TRK-ENCD:ASP=0,TI=0,LINK=x;
CHG-TRK-ENCD:ASP=0,TI=0,LINK=x,SM=CCS;
2)DIS-ST-STS:ASP=0,TP=0,STG=0;
CRTE-ST:ASP=0,TP=0,STG=0,ST=xx;
3)CRTE-SDLK:0,xx;
4)DIS-SLK-INFO;
CRTE-SLK:LS=H’0001,SLC=1,TASP=0,TRK=xx,SASP=0,TP=0,STG=0,ST=x,BR=K64;
5)DIS-SLK-INFO:LS=H’0001,SLC=1;
CHG-SLK-STS:LS=H’0001,SLC=1,TYPE=ACT(DACT);
☞ SP(H'2106) DELETING
【 KHU__KT_CEN:H'2106】
DIS-CIC-INFO:DPC=H'2106(8454);
DIS-SP-INFO; SP Status=ACCESS
CHG-LKS-STS:,H'2106,,DACT; Link SET DACT
DIS-SRTE-INFO; H'2106 :Signaling Route = UNAVAIL
CHG-SRTE:,H'2106,,0,H'2106,,,,REM,PRI;
DIS-SRTE-INFO;
CHG-LKS-STS:,H'2106,,ACT; 신호점을 살림
DIS-SP-INFO; SP ACCESS dDisplay
DIS-SRTE-INFO; H'2106→AVAIL
DIS-SP-INFO;
DIS-LKS-INFO;
DIS-SLK-INFO;
DIS-SRTE-INFO;
DIS-SDLK-INFO;
DIS-STG-STS;
DIS-CIC-INFO:ASP= ,DCIU = ,LINK= ;
☞N0.7 Trunk Handing

EX) DPC=H’0001
1) Route information checking
DIS-RTE-INFO:RTE=yyy; ※REASON=RTE_NOT_EX
2) Route creating
CRTE-RTE:RTE=yyy,NAME=xxxx,CLS=BTW,ST=ISUP,TT=NORM,SCAR=E1;
3) TRUNK ENCODING checking
DIS-TRK-ENCD:ASP=0,TI=0,LINK=xx; ※ ch=16 "CCS" encoding , TI=DCIU,LINK=E1
number
4) TRUNK CODING changing
CHG-TRK-ENCD:ASP=0,TI=0,LINK=xx,SM=CCS; ※ SIG_MODE=CAS -> SIG_MODE=CCS
5) TRUNK Creating
CRTE-TRK:ASP=0,TRK=xxxx,RTE=yyy,CNTR=xx;
(DEL-TRK:ASP=0,TRK=xxxx,CNTR=xx;)
DIS-RTE-EQP:xx;
6) SEQuence display
DIS-RTE-SEQ:xxx; ※REASON=RTE_SEQ_NOT_EX
7) Direct Route
CRTE-RTE-SEQ:RSEQ=xxx,RT=DR,RTE=yyy,DEL=x;
CRTE-RTE-SEQ:RSEQ=xxx,RT=IDR,RTE=yyy,DEL=x;
DIS-RTE-INFO:RTE=yyy;
8) CIC Creating
CRTE-CIC :ASP=0 ,TI=xx ,LINK=xx,DPC=H’0001 ,PCM=xx; ※LINK UNIT
CRTE-CIC :ASP=0 ,TRK=xx,DPC=H’0001 ,CIC=H’xxx ,CNTR=xx; ※Trunk CH
DIS-CIC-INFO:DPC=H’0001;
DIS-CIC-INFO:DPC=H’0001,PCM=0;
9) Prefix information checking
DIS-PFX:PFX=zzzz; ※REASON=NOT_ASSIGNED_PFX
10) Prefix creating
CRTE-PFX:PFX=zzzz,PTY=NORM,CLTY==LOCL,MIN=7,MAX=7,SEQ=xxx,PPMRC=x;
※SZ=MIN
11) ROUTE SEQENCE INFORMATION CHECKING
DIS-RTE-SEQ:RSEQ=xxx;
12) ROUTE PREFIX INFORMATION CHECKING
DIS-RSEQ-PFX:RSEQ=xxx;
13) Calling (EX 2850000)
STUP-TRK:DN1=2850000,ASP0=0,TRK=34(~61),DN2=2850000;
※Calling DN=2850000 -> CH=225 -> Called DN=2850000 : calling test checking
-R2 Trunk Handing (OGT)-
ex) OGT=1000, PFX=286
DIS-RTE-INFO:RTE=1000; ※REASON=RTE_NOT_EX
2) Route creating
CRTE-RTE:RTE=1000,NAME=TEST1000,CLS=OGT,ST=R2; ※ST Default=DECADIC
3) TRUNK Creating
CRTE-TRK:ASP=0,TRK=xxx,RTE=xxx,CNTR=xx;
(DEL-TRK:ASP=0,TRK=xxx,CNTR=xx;)
DIS-RTE-EQP:1000;
4) SEQuence display
DIS-RTE-SEQ:1000; ※REASON=RTE_SEQ_NOT_EX
5) Direct Route
CRTE-RTE-SEQ:RSEQ=yyy,RT=DR,RTE=1000,DEL=x;
CRTE-RTE-SEQ:RSEQ=yyy,RT=IDR,RTE=1000,DEL=x; ※TANDEM = NO7 CALL
DIS-RTE-SEQ:1000;
6) Prefix information checking
DIS-PFX:PFX=286; ※REASON=NOT_ASSIGNED_PFX
7) Prefix creating
CRTE-PFX:PFX=286,PTY=NORM,CLTY=LOCL,MIN=7,MAX=xx,SEQ=1000; ※SZ=MIN
(CHG-PFX-INFO:PFX=286,RT=NORM,SEQ=1000; ※SEQ Change
DIS-PFX:PFX=286;
8) ROUTE PREFIX INFORMATION CHECKING
DIS-RSEQ-PFX:RSEQ=xxx;
9) TRC-R2:RTE=1000;
10) Calling (EX 2850000)
STUP-TRK:DN1=2830000,ASP=0,TRK=xx,DN2=2860001;
※Calling DN=2830000 -> CH=xx -> Called DN=2860001 : calling test checking
-R2 Trunk Handing (ICT)-
ex) ICT=1001
DIS-RTE-INFO:RTE=1001; ※REASON=RTE_NOT_EX
2) Route creating
CRTE-RTE:RTE=1001,NAME=TEST1001,CLS=ICT,ST=R2; ※ST Default=DECADIC
3) TRUNK Creating
CRTE-TRK:ASP=0,TRK=xxx,RTE=1001,CNTR=xx;
(DEL-TRK:ASP=0,TRK=xxx,CNTR=xx;)
DIS-RTE-EQP:1001;
4) TRC-R2:RTE=1001;
5) Calling (Called DN = 2860001)
STUP-TRK:DN1=2830000,ASP=0,TRK=xx,DN2=2860001;
※Calling DN=2830000 -> CH=xx -> Called DN=2860001 : calling test checking
-PREFIX COMMAND –
DIS-PFX-CONF; →ALL PREFIX CONFIGRATION DISPLAY
DIS-PFX-DATA; →ALL PREFIX DATA INFORMATION DISPLAY
DIS-PFX-DATA:CLTY=INTR; ※INTRAL PREFIX DISPLAY
DIS-PFX-DATA:CODE=81;
DIS-PFX:PFX=81;
DIS-AREA-CODE;
☞PFX Create,Copy
1) DEL-PFX:PFX=810;
2) CRTE-PFX:810,NORM,LOCL,7,8,,301,,,1;
3) DIS-PFX:PFX=810;
4) COPY-PFX:810,811; →810 -> 811 COPY
- SPECIAL NUMBER CODE CONVERSION-

☞SPECIAL NUMBER CONVERSION
2) DIS-PFX:PFX=109;
3) DEL-PFX:PFX=109;
4) CRTE-PFX:109,SPNO,,3,3; →prefix creating
5) REG-MCN:109&8151299;
6) DIS-MCN:CODE=109;
☞SPECIAL CODE DISPLAY

1) DIS-PFX:*20;
2) DIS-PFX-DATA:CODE=*;
3) DIS-SPPT;
-STATISTICS COMMAND-
DIS-NM-STAT; ※Network Management Measurment
STAT-RTA:ITEM=NMS,STM=180500,MPRD=60,MTIM=0;
STAT-SD:ITEM=ALL,STM=180500,MPRD=60,MTIM=0;
STAT-TT:ITEM=ALL,STM=180500,MPRD=60,MTIM=0,ALL,DETAIL;
DIS-MSG-HIS:TYPE=STS,PRN=8210,SDT=0809,STM=080000;
※TYPE=STS(FLT,ALM),PRN=DATA,SDT=START DATE,STM=START TIME
PRN=8200(ALM),8201(FLT),8202(점유율),8211(BHCA),8503(PROCESSOR
ALM),3104(LONG TIME)
-CHARGING DATA HANDLING-

DIS-CHA-BLK:LAMA【,DK】;
DIS-CHA-BLK:LAMA,ABUF,,,PSDN; ※ABUF=ASM BUF
DIS-CHA-BC:LAMA; ※BC=BLOCK COUNT
DUMP-CHA:LAMA,DTL;
DIS-PPM-FREE;
DIS-CHA-DC(SM, RM, RI); ※SM=SENDING METHOD, RM=RECORD METHOD,
RI=RECORD ITEMS
TDX100=DTL(detail charging data),
DIS-CHA-SSVC; DIS-CHA-ANM;
DIS-PPM; DIS-PPMRC:PPMRC=0~9;
DIS-RCHA-TIME; DIS-DCNT-DATE;
DIS-CHA-DAY;
DIS-CHA-BC:CAMA(BOTH,LAMA);
DIS-CHA-RCTL; ※RCTL=RECORD CONTROL →BCNT=60
CHG-CHA-RCTL:TI,,5;
※DISK→MODU로 DUMP timer is minute
CHG-CHA-RCTL:TOD,15; ※special time DUMP
CHG-CHA-RCTL:NOL; ※only User DUMP
CHG-CHA-RI:,NO(YES);
CHG-CHA-RI:FPPM,NO;
DIS-DKU-STS:CCP;
DIS-SDU-STS; ※SDU:STORAGE DEVICE UNIT
SCH-CHA-BLK:LAMA,ISDN,130009,10;
※SEARCH RECENT DETAIL CHARGING BLOCK
DIS-CHA-SVC:2830000; ※EXTE=extemporary charge, FLAT=flat charge
REG-CHA-EXT:DN=2830000; ※charging data registed
CANC-CHA-EXT:DN=2830000; ※charging data cancel
DIS-CHA-BLK:SM=CAMA,DEV=ABUF,ABUF=PSTN/ISDN;
SCH-CHA-DATA:SM=CAMA,DN=2830000; ※DISK SEARCH
-CHARGING DATA BACKUP -

> SDU 6 or 7 DAT TAPE INSERT
DIS-SDU-STS; ※SDU STATUS REDY CHECK
ACT-SDU:6,CHRG; ※SDU 6 CHARGING MODE ACTIVATE
OVWR-SD:6; ※SYSTEM OVERWRITE REQUEST TIME
DIS-SDU-STS; ※SDU MODE CHRG STATUS ACTV CHECK
DUMP-CHA:SUB,PPM; ※SUBPPMDK DISK TO DAT CHARGING BACK-UP
> DAT TAPE AUTO DATCTIVE => SEND TO CHARGING CENTER
DUMP-CHA-EXIP:SUB,PPM; ※DISK SAME DATA EXIP CHARGING BACK-UP
-EXIP CHARGING DIR-

* TCP IP
CCP : 180.150.4.73
EXIPa : 180.150.4.70
EXIPb : 180.150.4.71
PMI PC : 180.150.4.74
EXIP GUI : 180.150.4.72
login:root
Password: root
[EXIPa:DTS-4000:root:/] ls
./ .profile bin@ etc/ lib@ platform/ usr/
../ .rhosts* cama/ export/ lost+found/ pool/ var/
.cpr_config .sh_history cdrom/ home/ mnt/ proc/ vol/
.dtprofile* .Xauthority dev/ imsi/ net/ sbin/ xfn/
.kshrc* AOUT/ devices/ kernel/ opt/ tmp/
[EXIPa:DTS-4000:root:/] cd pool
[EXIPa:DTS-4000:root:/pool] ls
./ CCBS/ Creat/ Rtedtl/ Subppm/ Trkppm/ Working/
../ Chabkup/ lost+found/ sent/ Temp/ Work_adtl/ zmap/
already/ complete/ mirror/ Subdtl/ Trkdtl/ Work_ppm/
* Subppm/ ※DUMP-CHA-EXIP:SUB,PPM;
* Trkppm/ ※DUMP-CHA-EXIP:TRK,PPM;
* Subdtl/ ※DUMP-CHA-EXIP:SUB,DTL; => SUB VERIFICATION DATA
* Trkdtl/ ※DUMP-CHA-EXIP:TRK,DTL; => TRK VERIFICATION DATA
* Chabkup/ ※Everyday 23:30 make/2week memory/05:00 remove => PPM cha
* complete/ ※5min auto-dump charging data => DTL cha
-EXIP CHARGING VIEW-
ex1) Subdtl view

[EXIPa:DTS-4000:root:/pool] cd Subdtl
[EXIPa:DTS-4000:root:/pool/Subdtl] ls
./ VDN2830000_11170851.DAT VDN2830002_11170851.DAT
../ VDN2830001_11170851.DAT
[EXIPa:DTS-4000:root:/pool/Subdtl] cview_exip
cview: DTS-4000 Charge File Analyser
Usage: cview [-a|-s|-t|-r|-k|-p|-d] charge_filename
-a : Auto Charging Call (ex: cview -a nBANGEXC-0.Ixxxxxxxxxx)
-s : SUBDTL Charging (ex: cview -s VDNxxxxxxx_xxxxxxxx.DAT)
-t : TRKDTL Charging (ex: cview -t VTKxxxxxxx_xxxxxxxx.DAT)
-k : TRKPPM Charging (ex: cview -k TRKPPM_xxxxxxxx.DAT)
-p : SUBPPM Charging (ex: cview -p SUBPPM_xxxxxxxx.DAT)
-d : DN Search (ex: cview -d orig_dn nBANGEXC-0.Ixxxxxxxxxx)
[EXIPa:DTS-4000:root:/pool/Subdtl] cview_exip -s VDN2830001_11170851.DAT > 2830001
[EXIPa:DTS-4000:root:/pool/Subdtl] ls
./ 2830001 VDN2830001_11170851.DAT
../ VDN2830000_11170851.DAT VDN2830002_11170851.DAT
[EXIPa:DTS-4000:root:/pool/Subdtl] vi 2830001
ex2) Trkppm view

[EXIPa:DTS-4000:root:/pool] cd Trkppm
[EXIPa:DTS-4000:root:/pool/Trkppm] ls
./ ../ TRKPPM_11170854.DAT
[EXIPa:DTS-4000:root:/pool/Trkppm] cview_exip -k TRKPPM_11170854.DAT > trk
[EXIPa:DTS-4000:root:/pool/Trkppm] ls
./ ../ trk TRKPPM_11170854.DAT
[EXIPa:DTS-4000:root:/pool/Trkppm] vi trk
ex3) Subppm view

[EXIPa:DTS-4000:root:/pool] cd Subppm
[EXIPa:DTS-4000:root:/pool/Subppm] ls
./ ../ SUBPPM_11170855.DAT
[EXIPa:DTS-4000:root:/pool/Subppm] cview_exip -p SUBPPM_11170855.DAT > test
[EXIPa:DTS-4000:root:/pool/Subppm] ls
./ SUBPPM_11170855.DAT
../ test
[EXIPa:DTS-4000:root:/pool/Subppm] vi test
ex4) complete view (1 file, 1 sub)

[EXIPa:DTS-4000:root:/pool] cd complete
[EXIPa:DTS-4000:root:/pool/complete] ls
./ ../ nBANGEXC-0.Ixxxxxxxxxx
[EXIPa:DTS-4000:root:/pool/ complete] cview_exip -d 2830000 nBANGEXC-0.Ixxxxxxxxxx >
2830000
[EXIPa:DTS-4000:root:/pool/ complete] ls
./ SUBPPM_11170855.DAT
../ 2830000
[EXIPa:DTS-4000:root:/pool/Subppm] vi 2830000
ex5) complete view (all file, 1 sub)

[EXIPa:DTS-4000:root:/pool] cd complete
[EXIPa:DTS-4000:root:/pool/complete] ls
[EXIPa:DTS-4000:root:/pool/ complete] cview_dn 2830000
.
.
.
.
../ 2830000
[EXIPa:DTS-4000:root:/pool/ complete] vi 2830000
ex6) EXIP -> DAT -> EXIP view (all file, 1 sub)
> SDU 6 or 7 DAT TAPE IN-SERT
* on-line
ACT-EXIP-BKUP:SIDE=A,DIR=COMPLETE; ※EXIP A-SIDE TO DAT TAPE BACK-UP
> DAT TAPE AUTO DACTIVE
> EXIP A OR B SIDE DAT TAPE IN-SERT
* EXIP GUI
login:root
Password: root
[EXIPa:DTS-4000:root:/] ls
[EXIPa:DTS-4000:root:/] cd imsi
[EXIPa:DTS-4000:root:/imsi] ls
./ ../
[EXIPa:DTS-4000:root:/imsi] tar –xvf /dev/rmt/0 (ex:cvf=back-up, tvf=check, xvf=dump)
.
.
[EXIPa:DTS-4000:root:/imsi] ls
./ ../ pool/
[EXIPa:DTS-4000:root:/imsi] cd pool
[EXIPa:DTS-4000:root:/imsi/pool] ls
./ ../ complete/
[EXIPa:DTS-4000:root:/imsi/pool] cd complete
[EXIPa:DTS-4000:root:/imsi/pool/complete] ls
.
.
[EXIPa:DTS-4000:root:/imsi/pool/ complete] cview_dn1 2830000

.
.
/ 2830000
[EXIPa:DTS-4000:root:/pool/ complete] vi 2830000
-end-
-EXIP Charging data Handling -

login:cama
Password:cama
Last login: Fri Nov 11 15:04:02 from CAMA_GUI
Sun Microsystems Inc. SunOS 5.7 Generic October 1998
[EXIPa:DTS-4000:cama:/home/cama]
[EXIPa:DTS-4000:cama:/home/cama] cd /pool
[EXIPa:DTS-4000:cama:/pool] ls
[EXIPa:DTS-4000:cama:/pool] cd Subdtl
[EXIPa:DTS-4000:cama:/pool/Subdtl] ls
./ ../
./ VDN2830000_11170851.DAT VDN2830002_11170851.DAT
../ VDN2830001_11170851.DAT
[EXIPa:DTS-4000:cama:/pool/Subdtl] cview_exip

[EXIPa:DTS-4000:cama:/pool/Subdtl] cview_exip -s VDN2830001_11170851.DAT > 2830001
./ 2830001 VDN2830001_11170851.DAT
../ VDN2830000_11170851.DAT VDN2830002_11170851.DAT
[EXIPa:DTS-4000:cama:/pool/Subdtl] vi 2830001
"2830001" 4 lines, 214 characters CI C SS CALLING_______DN CALLED________________DN
START___TIME
END_____TIME CTXN PCYC METERS CHA_DUR
0100010 4 000 2830001fffffffff 8106000fffffffffffffffff 111617300608
111617300800 1000 3000112
~
~ "2830001" 4 lines, 214 characters
:q!
[EXIPa:DTS-4000:cama:/pool/Subdtl]
./ 2830001 VDN2830001_11170851.DAT
../ VDN2830000_11170851.DAT VDN2830002_11170851.DAT
[EXIPa:DTS-4000:cama:/pool/Subdtl] rm 2830001
[EXIPa:DTS-4000:cama:/pool/Subdtl]
[EXIPa:DTS-4000:cama:/pool/Subdtl] cd ..
[EXIPa:DTS-4000:cama:/pool] ls
[EXIPa:DTS-4000:cama:/pool] cd Trkppm
[EXIPa:DTS-4000:cama:/pool/Trkppm] ls
./ ../ TRKPPM_11170854.DAT
[EXIPa:DTS-4000:cama:/pool/Trkppm] cview_exip

[EXIPa:DTS-4000:cama:/pool/Trkppm] cview_exip -k TRKPPM_11170854.DAT > trk
[EXIPa:DTS-4000:cama:/pool/Trkppm] ls
./ ../ trk TRKPPM_11170854.DAT
[EXIPa:DTS-4000:cama:/pool/Trkppm] vi trk
[EXIPa:DTS-4000:cama:/pool/Trkppm] cd ..
[EXIPa:DTS-4000:cama:/pool] cd Subppm
[EXIPa:DTS-4000:cama:/pool/Subppm] ls
./ ../ SUBPPM_11170855.DAT test1
[EXIPa:DTS-4000:cama:/pool/Subppm] cview_exip

[EXIPa:DTS-4000:cama:/pool/Subppm] cview_exip -p SUBPPM_11170855.DAT > test
[EXIPa:DTS-4000:cama:/pool/Subppm] ls
./ SUBPPM_11170855.DAT test1
../ test
[EXIPa:DTS-4000:cama:/pool/Subppm] vi test
"test" 35972 lines, 2825865 characters
BLOCK 00000'TH [NPPM]: BSEQ = 0, RCNT = 31
RCD# SUBSCRIBER____NUMBERLOCNWDISDFACTYSERV
[00] 2830000fffffffffffff124161000
[01] 2830001fffffffffffff20000
[03] 2830003fffffffffffff73540000
IP ADDRESS:
CCP: 180.150.4.73
PMI_PC: 180.150.4.72
EXIP_A: 180.150.4.70
EXIP_B: 180.150.4.71
Another
PMI_PC2: 180.150.4.74

KT User Guide

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

KT User Guide

Uploaded by

Copyright:

Available Formats

Operation and Maintenance of DTS-4000 System

(1) How to make a number active:

FOR MALICIOUS CALL:

(10) HOW TO TAKE CHARGING IN A CASSETE

CAPTURE METER FILE FROM EXIP

>OPEN COMMAND PROMT

HOW TO READ DETAIL BILL :( New system)

1. Then open WS_FTP

HOW TO READ DETAIL BILL: Old system)

☞Dku Check Command

☞Disk File Command

☞Ring & Tone & Switch Network Display

☞Print Port Set Up (PRT=9port , CRT=2port)

☞Alarm Status Checking

☞Alarm Message Inhbition

TRC-CALP:2830000; -> CALP=call path trace

TRC-ISUP:RTE=400【,CNT=30】; -> NO7 route trace

TRC-R2:RTE=400; -> R2 route trace

☞Special Service Rrgister

☞Special Service Cancel

DIS-SSVC-REG; ※Total Special Service view-find

☞PBX Create Delete

☞PBX Charging type changed

☞ Special pbx group Create

☞Public Telephone (COIN-BOX) Create

☞Subscriber etc Command

☞AUTO ANSWER Creating

TEST-SC-PRV:ASP=0,LN=0&&1023,SMRY=YES; ※ Circuit Preventive testing

☞Trunk, route Command → CH=225~255 , RTE=201

☞Exist Trunk deleting

-NO7 SIGNAL POINT Create /Delete-

☞ SP (H'2108) SLC=0 Create

☞ SP (H'2108) SLC=1 Create

☞N0.7 Trunk Handing

- SPECIAL NUMBER CODE CONVERSION-

☞SPECIAL CODE DISPLAY

-CHARGING DATA HANDLING-

-CHARGING DATA BACKUP -

-EXIP CHARGING DIR-

-EXIP CHARGING VIEW-

ex1) Subdtl view

ex2) Trkppm view

ex3) Subppm view

ex4) complete view (1 file, 1 sub)

ex5) complete view (all file, 1 sub)

[EXIPa:DTS-4000:root:/imsi/pool/ complete] cview_dn1 2830000

-EXIP Charging data Handling -

Usage: cview [-a|-s|-t|-r|-k|-p|-d] charge_filename

Usage: cview [-a|-s|-t|-r|-k|-p|-d] charge_filename

Usage: cview [-a|-s|-t|-r|-k|-p|-d] charge_filename

You might also like
