MODSIM Version 2 under DOS (Version 2 flowsheet files have the file extension .

tr), accept
the currently displayed flowsheet, print the flowsheet, export the graphic image as a
Windows metafile or PostScript file or cancel the current editing session.
The editing tools that are used to draw the flowsheet are available from the EDIT menu on
the graphics editor.

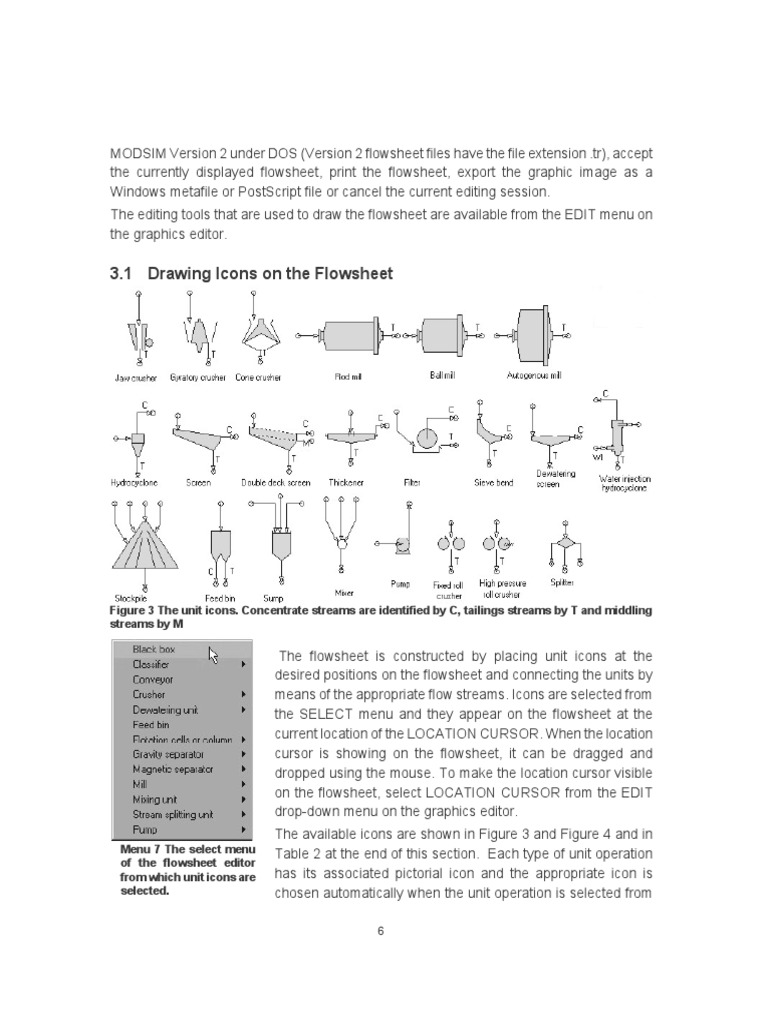

3.1 Drawing Icons on the Flowsheet

Figure 3 The unit icons. Concentrate streams are identified by C, tailings streams by T and middling
streams by M

The flowsheet is constructed by placing unit icons at the

desired positions on the flowsheet and connecting the units by
means of the appropriate flow streams. Icons are selected from
the SELECT menu and they appear on the flowsheet at the
current location of the LOCATION CURSOR. When the location
cursor is showing on the flowsheet, it can be dragged and
dropped using the mouse. To make the location cursor visible
on the flowsheet, select LOCATION CURSOR from the EDIT
drop-down menu on the graphics editor.
The available icons are shown in Figure 3 and Figure 4 and in
Menu 7 The select menu Table 2 at the end of this section. Each type of unit operation
of the flowsheet editor
from which unit icons are has its associated pictorial icon and the appropriate icon is
selected. chosen automatically when the unit operation is selected from
