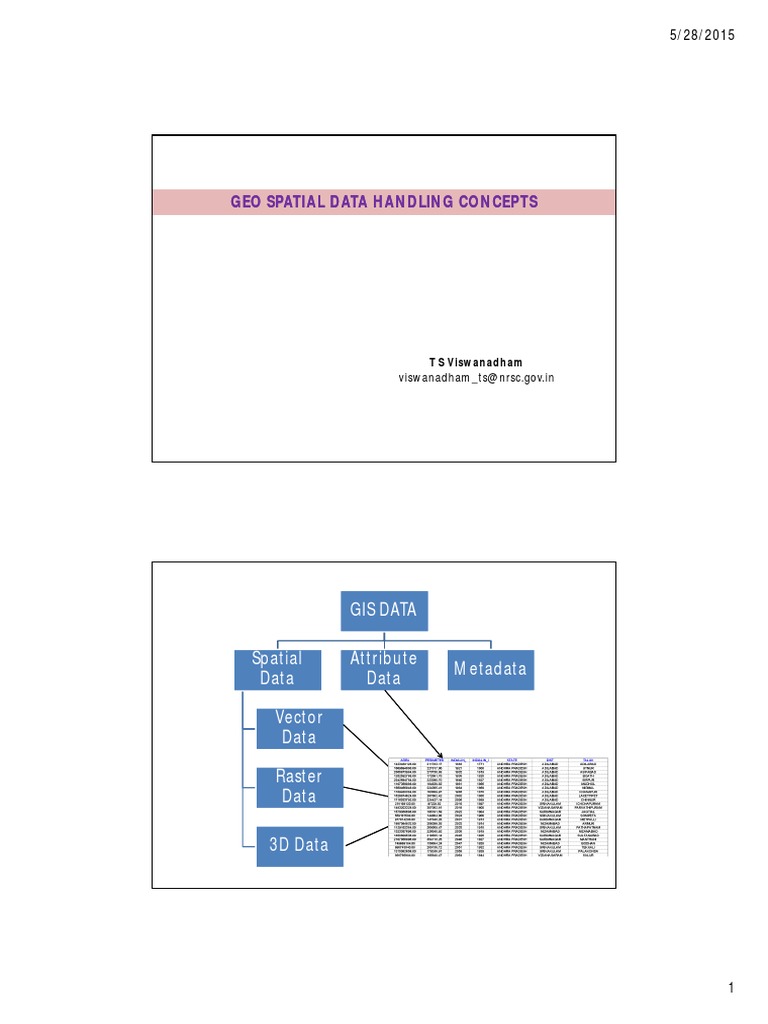

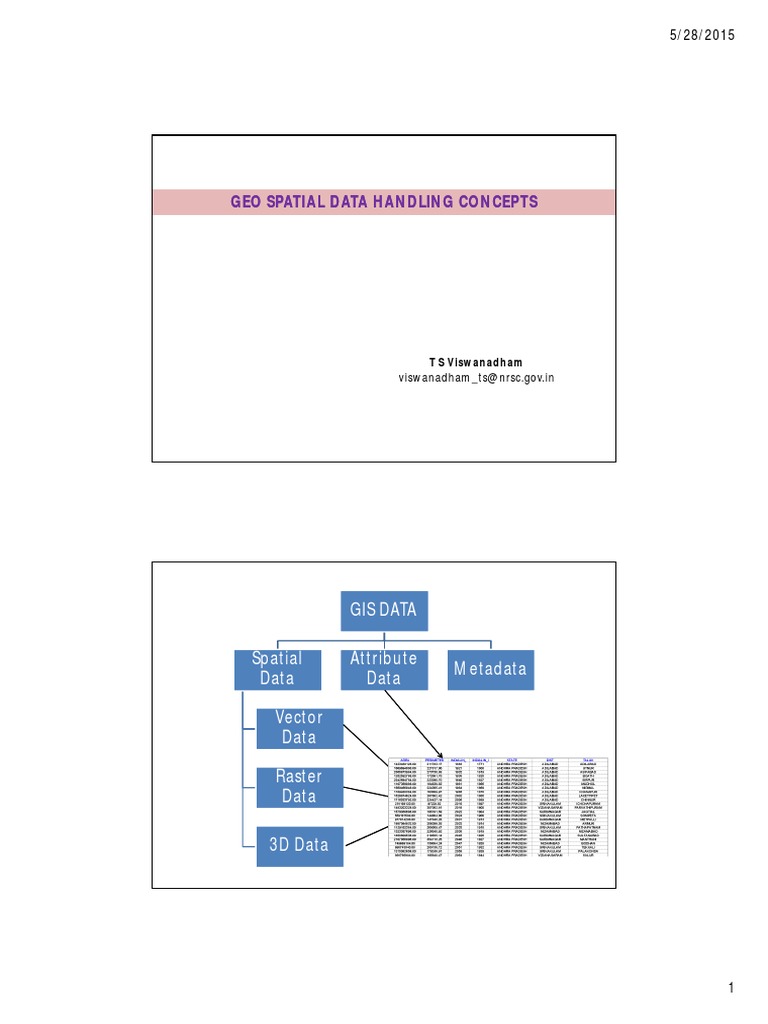

GEO SPATIAL DATA HANDLING CONCEPTS

T S Viswanadham
viswanadham_ts@nrsc.gov.in

GIS DATA

Spatial Attribute
Metadata
Data Data

Vector
Data

Raster
Data

3D Data

1
 5/28/2015

Data Sources

VECTOR DATA SOURCES

Survey Data GPS

COGO

Data Sources

RASTER DATA SOURCES

Aerial Photography
Remote Sensing Data

2
 5/28/2015

Data Sources
3D DATA SOURCES
LiDAR

Ground Survey

Photogrammetry

ID Mandal LatChar LongChar Lat Long Jun99 Jul99

1 AGALI 13 48 32.00 N 77 02 55.27 E 13.8089 77.0487 40.00 95.40
2 AMADAGUR 13 55 42.84 N 78 03 13.09 E 13.9286 78.0536 24.00 18.00
3 AMARAPURAM 14 04 53.26 N 76 59 19.58 E 14.0815 76.9888 36.60 41.60
4 ANANTAPUR 14 39 41.69 N 77 33 55.90 E 14.6616 77.5655 44.80 16.60
5 ATMAKUR 14 35 54.98 N 77 25 37.08 E 14.5986 77.4270 63.60 17.80
6 BATHALAPALLE 14 28 17.98 N 77 48 08.30 E 14.4717 77.8023 35.80 21.00
7 BELUGUPPA 14 40 14.73 N 77 08 39.14 E 14.6708 77.1442 37.20 6.40
8 BOMMANAHAL 14 55 48.55 N 77 01 40.76 E 14.9302 77.0280 40.50 5.00
9 BRAHMASAMUDRAM 14 32 13.41 N 76 58 27.73 E 14.5371 76.9744 24.00 88.20

LOCATION WISE 10
11
12
BUKKAPATNAM
BUKKARAYASAMUDRAM
CHENNE KOTHAPALLE
14 14 17.23 N
14 41 52.09 N
14 16 40.40 N
77 54 20.10 E
77 40 22.35 E
77 38 31.72 E
14.2381
14.6978
14.2779
77.9056
77.6729
77.6421
4.60
19.40
4.00
64.40
22.40
41.00

RAIN FALL DATA

13 CHILAMATHUR 13 51 46.76 N 77 44 01.80 E 13.8630 77.7338 34.60 91.00
14 D.HIRCHAL 14 56 02.65 N 76 53 47.75 E 14.9341 76.8966 38.50
15 DHARMAVARAM 14 23 41.12 N 77 44 59.78 E 14.3948 77.7499 48.60 44.20
16 GANDLAPENTA 14 04 02.23 N 78 13 56.21 E 14.0673 78.2323 35.00 93.80
17 GARLADINNE 14 49 47.16 N 77 32 45.57 E 14.8298 77.5460 40.20 21.40
18 GOOTY 15 07 17.43 N 77 38 29.55 E 15.1215 77.6415 34.60 9.60
19 GORANTLA 13 59 13.11 N 77 47 07.99 E 13.9870 77.7856 64.00 118.40
20 GUDIBANDA 13 58 42.12 N 77 06 59.75 E 13.9784 77.1166 9.40 50.20
21 GUMMAGATTA 14 36 41.00 N 76 52 53.27 E 14.6114 76.8815 14.60 88.20
22 GUNTAKAL 15 06 09.20 N 77 27 53.60 E 15.1026 77.4649 82.80 23.40
23 HINDUPUR 13 49 14.62 N 77 31 03.32 E 13.8207 77.5176 50.00 52.00
24 KADIRI 14 07 10.30 N 78 07 18.00 E 14.1195 78.1217 67.20 35.80
25 KALYANADURGAM 14 32 21.70 N 77 12 07.95 E 14.5394 77.2022 84.20
26 KAMBADUR 14 23 40.24 N 77 15 36.27 E 14.3945 77.2601 12.80 41.80
27 KANAGANAPALLE 14 25 12.04 N 77 29 53.79 E 14.4200 77.4983 21.00 13.20
28 KANEKAL 14 48 31.86 N 77 05 22.66 E 14.8089 77.0896 21.60 9.40
29 KOTHACHERUVU 14 11 44.60 N 77 44 07.71 E 14.1957 77.7355 16.20 44.20
30 KUDERU 14 44 23.80 N 77 24 00.87 E 14.7399 77.4002 13.40 1.00
31 KUNDURPI 14 17 52.69 N 77 03 59.16 E 14.2980 77.0664 10.20 53.40
32 LEPAKSHI 13 48 30.42 N 77 35 54.14 E 13.8085 77.5984 108.00 41.00
33 MADAKASIRA 13 55 25.32 N 77 17 37.06 E 13.9237 77.2936 18.80 79.20
34 MUDIGUBBA 14 21 32.43 N 78 01 07.33 E 14.3590 78.0187 49.80 80.40
35 NALLACHERUVU 14 00 08.64 N 78 09 42.88 E 14.0024 78.1619 18.20 42.00
36 NALLAMADA 14 09 05.65 N 78 00 35.87 E 14.1516 78.0100 16.20 56.00
37 NAMBULIPULIKUNTA 14 02 59.54 N 78 23 04.32 E 14.0499 78.3845 12.40 99.80
38 NARPALA 14 40 11.48 N 77 48 51.40 E 14.6699 77.8143 34.00 16.40
39 OBULADEVARACHERUVU 14 01 26.98 N 77 58 27.87 E 14.0242 77.9744 10.20
40 PAMIDI 14 56 26.78 N 77 31 58.62 E 14.9408 77.5330 40.20 9.40
41 PARIGI 13 53 44.73 N 77 28 42.57 E 13.8958 77.4785 30.60 56.60
42 PEDDAPAPPUR 14 54 05.03 N 77 51 27.71 E 14.9014 77.8577 19.40 2.60
43 PEDDAVADUGUR 14 59 11.56 N 77 42 47.33 E 14.9865 77.7131 41.80 4.00
44 PENU KONDA 14 06 26.93 N 77 37 00.48 E 14.1075 77.6168 56.80 118.40
45 PUTLUR 14 45 10.19 N 77 56 34.13 E 14.7528 77.9428 16.80 11.60
46 PUTTAPARTHI 14 06 55.22 N 77 48 41.50 E 14.1153 77.8115 25.80 78.60
47 RAMAGIRI 14 18 57.55 N 77 28 11.98 E 14.3160 77.4700 20.00
48 RAPTADU 14 31 25.19 N 77 34 54.53 E 14.5237 77.5818 32.80 7.20
49 RAYADURG 14 43 20.29 N 76 53 19.74 E 14.7223 76.8888 25.00 37.20
50 RODDAM 14 04 14.59 N 77 27 04.28 E 14.0707 77.4512 5.40 68.20
51 ROLLA 13 52 33.09 N 77 06 36.29 E 13.8759 77.1101 31.20 105.80
52 SETTUR 14 24 32.94 N 77 00 42.34 E 14.4092 77.0118 6.00 3.00
53 SINGANAMALA 14 48 54.64 N 77 42 30.01 E 14.8152 77.7083 29.60 17.40
54 SOMANDEPALLE 13 58 32.50 N 77 35 42.78 E 13.9757 77.5952 41.80 87.40
55 TADIMARRI 14 33 05.89 N 77 53 21.33 E 14.5516 77.8893 35.80 4.60
56 TADPATRI 14 54 36.59 N 78 00 48.15 E 14.9102 78.0134 31.80 23.20
57 TALUPULA 14 14 08.58 N 78 16 34.16 E 14.2357 78.2762 29.80 102.80
58 TANAKAL 13 53 00.53 N 78 12 50.97 E 13.8835 78.2142 31.40 105.20
59 URAVAKONDA 14 50 42.00 N 77 15 08.19 E 14.8450 77.2523 50.40 14.00
60 VAJRAKARUR 14 58 43.75 N 77 21 49.44 E 14.9788 77.3637 30.00
61 VIDAPANAKAL 15 02 25.12 N 77 11 15.61 E 15.0403 77.1877 16.40 23.20
62 YADIKI 15 03 21.00 N 77 52 34.79 E 15.0558 77.8763 37.60 25.00
63 YELLANUR 14 38 52.64 N 78 01 29.19 E 14.6480 78.0248 5.80 9.20

3
 5/28/2015

FIELD DATA CONVERTED TO SPATIAL DATA

FIELD DATA FURTHER CONVERTED TO SURFACE

Surface depends on interpolation technique

selected (here it is IDW)

4
 5/28/2015

Zonal Statistics

Sometimes it is required to know:

 Average surface temperature of each landuse
category
 Average soil nitrogen content per paddy field
 Average slope per watershed or so on.

Zonal Statistics function summarizes the values of

a raster within the zones of another dataset (either
raster or vector) and reports the results to a table.

Zonal Statistics

Zone Layer
A zone is defined as all areas in
the input that have the same
value. The areas do not have to
be contiguous. Both raster and Value Layer
feature datasets can be used
for the zone input.

The zone and value inputs are

both rasters of the same Output Layer

resolution and it must have an

attribute table.

5
 5/28/2015

Zonal Statistics - Maximum

The highest value in each zone is assigned to all

cells in that zone.

Zonal Statistics - Minimum

The lowest value in each zone is assigned to all

cells in that zone.

6
 5/28/2015

Zonal Statistics - Majority

The most frequently occurring value in each zone is assigned to

all cells in that zone.
When there is a tie for the majority value in a zone, the output
for all cell locations in the zone is assigned the lowest of the tied
values.

Zonal Statistics - Mean

The average of the values in each zone is assigned to all output

cells in that zone.

7
 5/28/2015

Zonal Statistics as Table

Summarizes the values of a raster within the zones of

another dataset and reports the results to a table.

Input Layers for Zonal Statics

Output Statistical Summary
