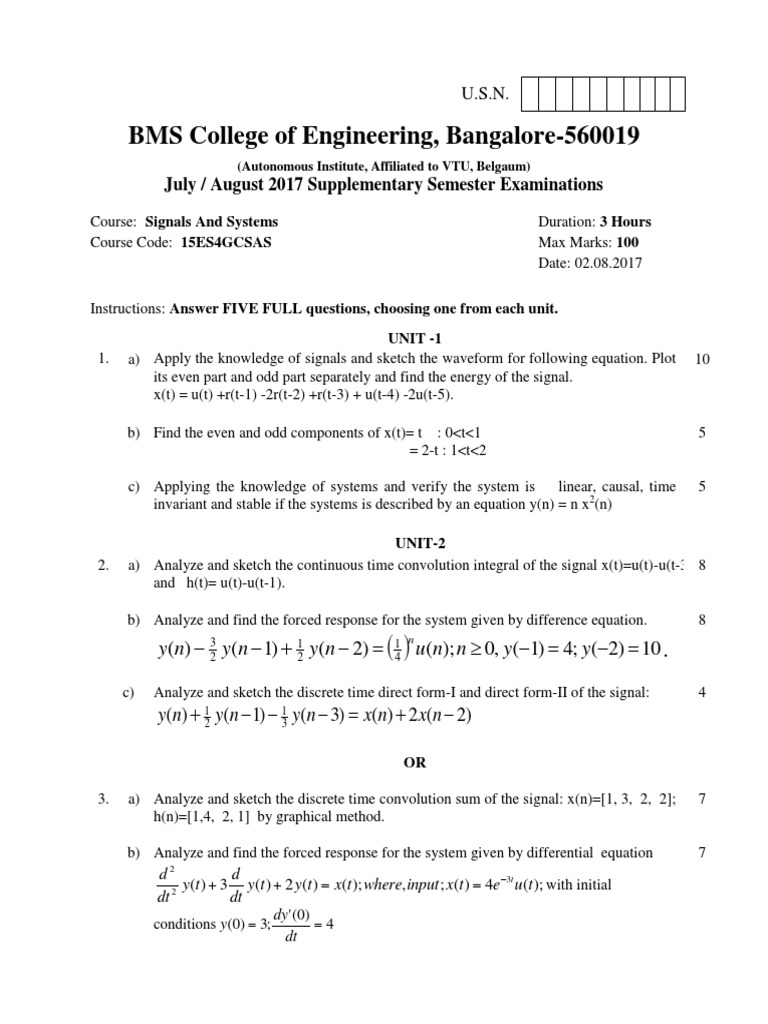

U.S.N.

BMS College of Engineering, Bangalore-560019

(Autonomous Institute, Affiliated to VTU, Belgaum)
July / August 2017 Supplementary Semester Examinations
Course: Signals And Systems Duration: 3 Hours
Course Code: 15ES4GCSAS Max Marks: 100
Date: 02.08.2017

Instructions: Answer FIVE FULL questions, choosing one from each unit.
UNIT -1
1. a) Apply the knowledge of signals and sketch the waveform for following equation. Plot 10
its even part and odd part separately and find the energy of the signal.
x(t) = u(t) +r(t-1) -2r(t-2) +r(t-3) + u(t-4) -2u(t-5).

b) Find the even and odd components of x(t)= t : 0<t<1 5

= 2-t : 1<t<2

c) Applying the knowledge of systems and verify the system is linear, causal, time 5
invariant and stable if the systems is described by an equation y(n) = n x2(n)

UNIT-2
2. a) Analyze and sketch the continuous time convolution integral of the signal x(t)=u(t)-u(t-3) 8
and h(t)= u(t)-u(t-1).

b) Analyze and find the forced response for the system given by difference equation. 8
y(n)  32 y(n  1)  12 y(n  2)   14  u(n); n  0, y(1)  4; y(2)  10 .
n

c) Analyze and sketch the discrete time direct form-I and direct form-II of the signal: 4
y(n)  12 y(n 1)  13 y(n  3)  x(n)  2x(n  2)

OR

3. a) Analyze and sketch the discrete time convolution sum of the signal: x(n)=[1, 3, 2, 2]; 7
h(n)=[1,4, 2, 1] by graphical method.

b) Analyze and find the forced response for the system given by differential equation 7
d2 d
2
y(t )  3 y(t )  2 y(t )  x(t ); where, input ; x(t )  4e 3t u (t ); with initial
dt dt
dy' (0)
conditions y (0)  3; 4
dt
 c) List out properties of unit impulse response of the continuous time signals. 6

UNIT-3
4. a) Determine the Fourier series representation for the square wave shown in Figure 4(a). 10

Fig4.(a)

b) Evaluate the frequency domain representation of the following signal and sketch the 10
magnitude and phase spectra 𝒙(𝒕) = 𝒆−𝟑𝒕 𝒖(𝒕 − 𝟏) .
UNIT-4
5. a) Illustrate that the Fourier Transform of a sinusoidal signal has a pair of conjugate 6
impulses.

b) Find the Fourier transform of the given periodic function and sketch the Magnitude 8
and the Phase spectrum.
𝑥(𝑡) = 3 + 2 𝑐𝑜𝑠(10𝜋𝑡).
c) Using convolution theorem find the time domain signal from the given Fourier 6
Transform.
1
𝑋(𝜔) = (𝑎+𝑗𝜔)2
UNIT-5

6. a) Find the Z- Transform of following signals with ROC 99

i) x(n)= CosΩ0nu(n) ii)x(n)= a-lnl iii) x(n)= nan-1u(n-1)

b) Find the IZT of X(Z)= (Z4-Z2) / [(Z-1/2)(Z-1/4)] 4

c) Solve the difference equation y(n)+3y(n-1)= x(n) given x(n)=u(n) and y(-1)=1 using 7
Z-transform.
 OR

7. a) Find the Z- Transform of following signals 6 6

i). x(n)= sin Ω0n ii) x(n)= (1/2)ncos(πn/4)u(n)

b) Given H(Z)= Z (Z+2)/[(Z-1/4)(Z-1/2)] find impulse response for i)causal system 66

ii)stable system

c) solve the difference equation y(n)-5y(n-1)+6y(n-2)= 2x(n) given x(n)=(1/2)n u(n) and 8
y(-1)=1 and y(-2)=2

*******
