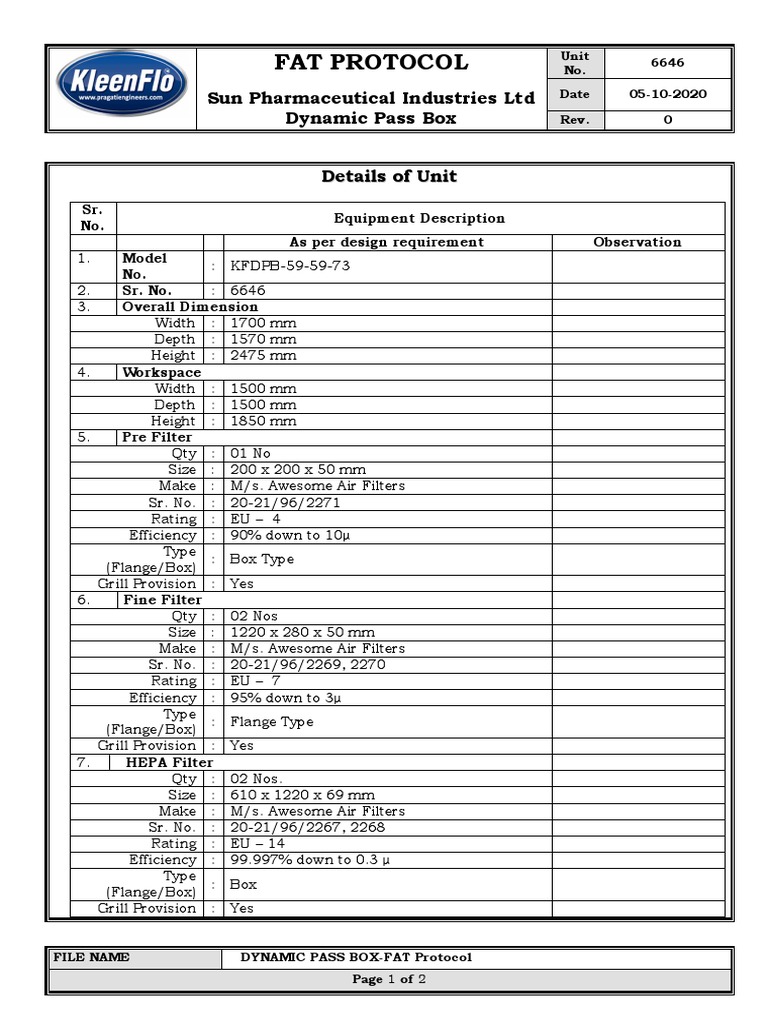

    Unit

    FAT PROTOCOL No.


    6646

    Sun Pharmaceutical Industries Ltd Date 05-10-2020

    Dynamic Pass Box Rev. 0

    Details of Unit
    Sr.
    Equipment Description
    No.
    As per design requirement Observation
    1. Model
    : KFDPB-59-59-73
    No.
    2. Sr. No. : 6646
    3. Overall Dimension
    Width : 1700 mm
    Depth : 1570 mm
    Height : 2475 mm
    4. Workspace
    Width : 1500 mm
    Depth : 1500 mm
    Height : 1850 mm
    5. Pre Filter
    Qty : 01 No
    Size : 200 x 200 x 50 mm
    Make : M/s. Awesome Air Filters
    Sr. No. : 20-21/96/2271
    Rating : EU – 4
    Efficiency : 90% down to 10µ
    Type
    : Box Type
    (Flange/Box)
    Grill Provision : Yes
    6. Fine Filter
    Qty : 02 Nos
    Size : 1220 x 280 x 50 mm
    Make : M/s. Awesome Air Filters
    Sr. No. : 20-21/96/2269, 2270
    Rating : EU – 7
    Efficiency : 95% down to 3µ
    Type
    : Flange Type
    (Flange/Box)
    Grill Provision : Yes
    7. HEPA Filter
    Qty : 02 Nos.
    Size : 610 x 1220 x 69 mm
    Make : M/s. Awesome Air Filters
    Sr. No. : 20-21/96/2267, 2268
    Rating : EU – 14
    Efficiency : 99.997% down to 0.3 µ
    Type
    : Box
    (Flange/Box)
    Grill Provision : Yes

    FILE NAME DYNAMIC PASS BOX-FAT Protocol


    Page 1 of 2
    Unit
    FAT PROTOCOL No.
    6646

    Sun Pharmaceutical Industries Ltd Date 05-10-2020

    Dynamic Pass Box Rev. 0

    8. Blower
    Qty : 02 Nos.
    Type : Centrifugal
    Make : Airscaner Engineers & Fabricators
    Sr. No. : F-20-000112 & 116
    Rated Power : 370 W
    Rated RPM : 1350
    Phase (1φ/3φ) : 1 φ
    9. Impeller
    Size & Comb. : 8” x 8”
    MOC of Casing : GI
    MOC of Scroll : Aluminum
    10. Controller with Pressure Sensor
    Qty. : 01 set
    Make : Sanyo Technology India
    Sr. No. : STI-091
    Pressure Sensor : Model-5852-003-D-3LR (0-211 mm Wc)
    11. U.V. Light
    Size : 3’
    Qty : 1 No.
    Make : Philips
    Rating) : 30 Watt
    12. Tube Light (LED)
    Size : 4’
    Qty : 1 No.
    Make : Syska
    Rating) : 10 Watt
    13. PAO Port
    MOC : SS 304
    Qty : 01 No.
    Use : PAO Testing Upstream of HEPA filter
    14. Other Details:
    1 PAO Port : 01 Nos.
    2 Hepa Filter Clamp : 02 Nos.
    3 Atmosphere Nozzle SS 304 : 01 Nos.
    4 Door release button : 02 Nos.
    5 U.V. Light with Hour Meter : 01 Nos.
    6 Tube Light : 01 Nos.
    7 Electrical Cable : 4 Mtrs.
    8 Door drop seal 760 mm long : 04 Nos.
    9 S.S. 304 Handle D Type : 04 Nos.
    10 Mechanical Door catcher : 02 Nos.
    11 As Built Drawing No. : PE/S/6646
    12 Electrical Circuit Diagram : PEM/ECD/6646
    13 Magnehelic Gauge : 0-50 mm Wc

    FILE NAME DYNAMIC PASS BOX-FAT Protocol


    Page 2 of 2
