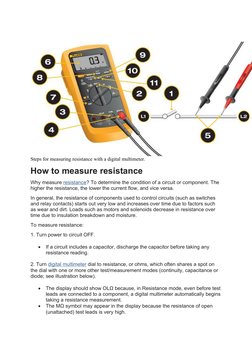

Steps for measuring resistance with a digital multimeter.

How to measure resistance

Why measure resistance? To determine the condition of a circuit or component. The
higher the resistance, the lower the current flow, and vice versa.
In general, the resistance of components used to control circuits (such as switches
and relay contacts) starts out very low and increases over time due to factors such
as wear and dirt. Loads such as motors and solenoids decrease in resistance over
time due to insulation breakdown and moisture.
To measure resistance:
1. Turn power to circuit OFF.

 If a circuit includes a capacitor, discharge the capacitor before taking any

resistance reading.

2. Turn digital multimeter dial to resistance, or ohms, which often shares a spot on

the dial with one or more other test/measurement modes (continuity, capacitance or
diode; see illustration below).

 The display should show OLΩ because, in Resistance mode, even before test
leads are connected to a component, a digital multimeter automatically begins
taking a resistance measurement.
 The MΩ symbol may appear in the display because the resistance of open
(unattached) test leads is very high.

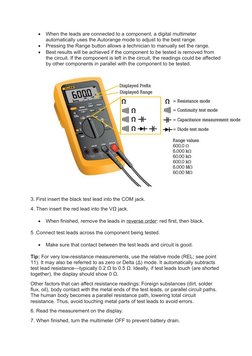

  When the leads are connected to a component, a digital multimeter
automatically uses the Autorange mode to adjust to the best range.
 Pressing the Range button allows a technician to manually set the range.
 Best results will be achieved if the component to be tested is removed from
the circuit. If the component is left in the circuit, the readings could be affected
by other components in parallel with the component to be tested.


3. First insert the black test lead into the COM jack.
4. Then insert the red lead into the VΩ jack.

 When finished, remove the leads in reverse order: red first, then black.

5 .Connect test leads across the component being tested.

 Make sure that contact between the test leads and circuit is good.

Tip: For very low-resistance measurements, use the relative mode (REL; see point
11). It may also be referred to as zero or Delta (Δ) mode. It automatically subtracts
test lead resistance—typically 0.2 Ω to 0.5 Ω. Ideally, if test leads touch (are shorted
together), the display should show 0 Ω.
Other factors that can affect resistance readings: Foreign substances (dirt, solder
flux, oil), body contact with the metal ends of the test leads, or parallel circuit paths.
The human body becomes a parallel resistance path, lowering total circuit
resistance. Thus, avoid touching metal parts of test leads to avoid errors.
6. Read the measurement on the display.
7. When finished, turn the multimeter OFF to prevent battery drain.

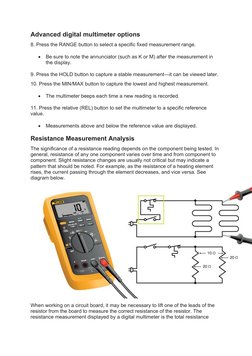

Advanced digital multimeter options
8. Press the RANGE button to select a specific fixed measurement range.

 Be sure to note the annunciator (such as K or M) after the measurement in

the display.

9. Press the HOLD button to capture a stable measurement—it can be viewed later.
10. Press the MIN/MAX button to capture the lowest and highest measurement.

 The multimeter beeps each time a new reading is recorded.

11. Press the relative (REL) button to set the multimeter to a specific reference
value.

 Measurements above and below the reference value are displayed.

Resistance Measurement Analysis

The significance of a resistance reading depends on the component being tested. In
general, resistance of any one component varies over time and from component to
component. Slight resistance changes are usually not critical but may indicate a
pattern that should be noted. For example, as the resistance of a heating element
rises, the current passing through the element decreases, and vice versa. See
diagram below.

When working on a circuit board, it may be necessary to lift one of the leads of the
resistor from the board to measure the correct resistance of the resistor. The
resistance measurement displayed by a digital multimeter is the total resistance

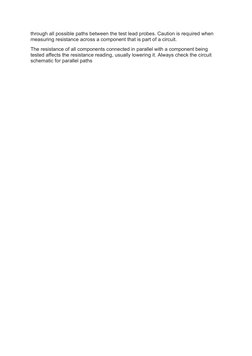

through all possible paths between the test lead probes. Caution is required when
measuring resistance across a component that is part of a circuit.
The resistance of all components connected in parallel with a component being
tested affects the resistance reading, usually lowering it. Always check the circuit
schematic for parallel paths
