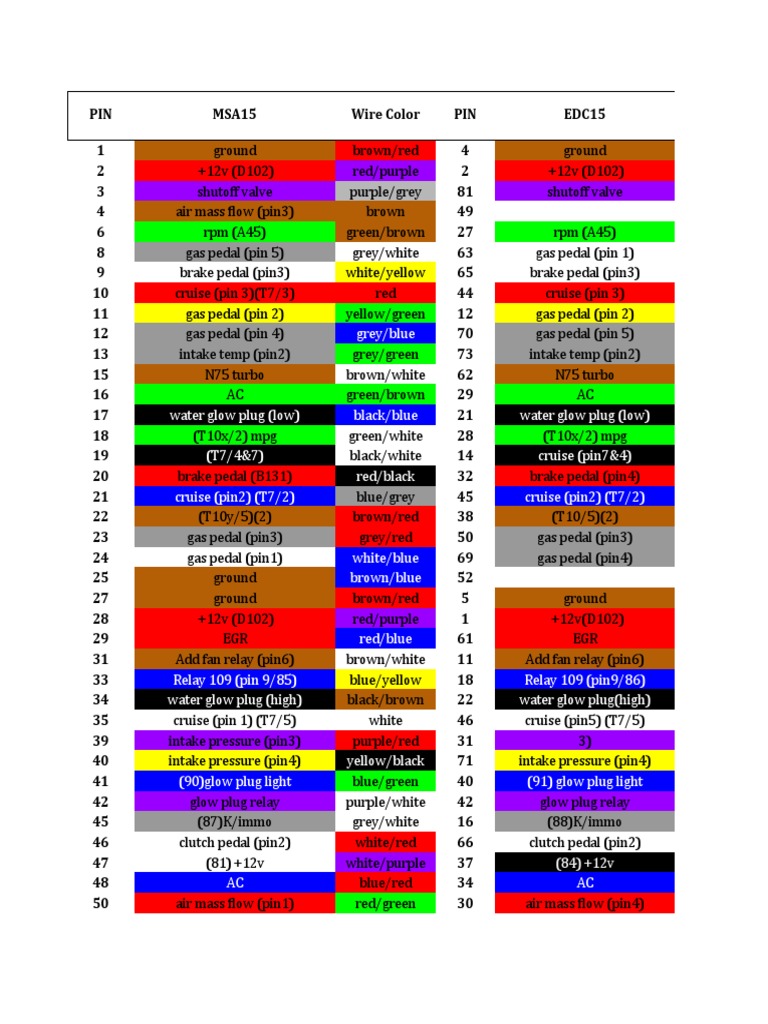

PIN MSA15 Wire Color PIN EDC15

1 ground brown/red 4 ground

2 +12v (D102) red/purple 2 +12v (D102)
3 shutoff valve purple/grey 81 shutoff valve
4 air mass flow (pin3) brown 49
6 rpm (A45) green/brown 27 rpm (A45)
8 gas pedal (pin 5) grey/white 63 gas pedal (pin 1)
9 brake pedal (pin3) white/yellow 65 brake pedal (pin3)
10 cruise (pin 3)(T7/3) red 44 cruise (pin 3)
11 gas pedal (pin 2) yellow/green 12 gas pedal (pin 2)
12 gas pedal (pin 4) grey/blue 70 gas pedal (pin 5)
13 intake temp (pin2) grey/green 73 intake temp (pin2)
15 N75 turbo brown/white 62 N75 turbo
16 AC green/brown 29 AC
17 water glow plug (low) black/blue 21 water glow plug (low)
18 (T10x/2) mpg green/white 28 (T10x/2) mpg
19 (T7/4&7) black/white 14 cruise (pin7&4)
20 brake pedal (B131) red/black 32 brake pedal (pin4)
21 cruise (pin2) (T7/2) blue/grey 45 cruise (pin2) (T7/2)
22 (T10y/5)(2) brown/red 38 (T10/5)(2)
23 gas pedal (pin3) grey/red 50 gas pedal (pin3)
24 gas pedal (pin1) white/blue 69 gas pedal (pin4)
25 ground brown/blue 52
27 ground brown/red 5 ground
28 +12v (D102) red/purple 1 +12v(D102)
29 EGR red/blue 61 EGR
31 Add fan relay (pin6) brown/white 11 Add fan relay (pin6)
33 Relay 109 (pin 9/85) blue/yellow 18 Relay 109 (pin9/86)
34 water glow plug (high) black/brown 22 water glow plug(high)
35 cruise (pin 1) (T7/5) white 46 cruise (pin5) (T7/5)
39 intake pressure (pin3) purple/red 31 3)
40 intake pressure (pin4) yellow/black 71 intake pressure (pin4)
41 (90)glow plug light blue/green 40 (91) glow plug light
42 glow plug relay purple/white 42 glow plug relay
45 (87)K/immo grey/white 16 (88)K/immo
46 clutch pedal (pin2) white/red 66 clutch pedal (pin2)
47 (81) +12v white/purple 37 (84) +12v
48 AC blue/red 34 AC
50 air mass flow (pin1) red/green 30 air mass flow (pin4)

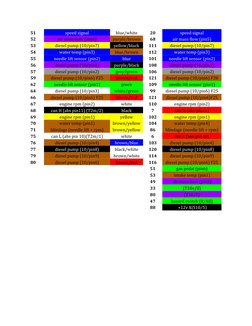

51 speed signal blue/white 20 speed signal
52 air mass flow (pin6) purple/brown 68 air mass flow (pin5)
53 diesel pump (10/pin7) yellow/black 111 diesel pump (10/pin7)
54 water temp (pin3) blue/brown 112 water temp (pin3)
55 needle lift sensor (pin2) blue 101 needle lift sensor (pin2)
56 diesel pump (10/pin1) purple/black 108 diesel pump (10/pin1)
57 diesel pump (10/pin2) grey/green 106 diesel pump (10/pin2)
59 diesel pump (10/pin6) F25 brown/red 121 diesel pump (10/pin6) F20
62 needle lift sensor (pin1) green 109 needle lift sensor (pin1)
64 diesel pump (10/pin3) white/green 99 diesel pump (10/pin6) F25
66 diesel pump (10/pin6) F25 brown/red 121 diesel pump (10/pin6)F25
67 engine rpm (pin2) white 110 engine rpm (pin2)
68 can H (abs pin11) (T2m/2) black 7 can H (abs pin11)
69 engine rpm (pin1) yellow 102 engine rpm (pin1)
70 water temp (pin1) brown/yellow 104 water temp (pin4)
71 blindage (needle lift + rpm) brown/yellow 86 blindage (needle lift + rpm)
75 can L (abs pin 10)(T2m/1) white 6 can L (abs pin 10)
76 diesel pump (10/pin4) brown/blue 103 diesel pump (10/pin4)
77 diesel pump (10/pin8) black/white 120 diesel pump (10/pin8)
79 diesel pump (10/pin9) brown/white 114 diesel pump (10/pin9)
80 diesel pump (10/pin6) brown/red 116 diesel pump (10/pin6) F25
51 gas pedal (pin6)
53 intake temp (pin1)
49 air mass flow (pin3)
33 (T10e/8)
80 (T10/7)
47 hazard switch (8/AB)
88 +12v X(S10/5)

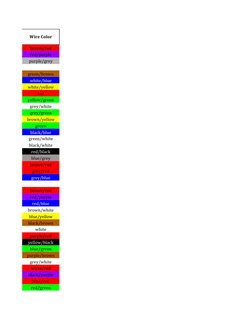

 Wire Color

brown/red
red/purple
purple/grey

green/brown
white/blue
white/yellow
red
yellow/green
grey/white
grey/green
brown/yellow
green
black/blue
green/white
black/white
red/black
blue/grey
brown/red
grey/red
grey/blue

brown/red
red/purple
red/blue
brown/white
blue/yellow
black/brown
white
purple/red
yellow/black
blue/green
purple/brown
grey/white
white/red
black/purple
blue/red
red/green
 blue/white
blue
yellow/black
blue/brown
blue
purple/black
grey/green
brown/red
green
white/green
brown/red
white
red/black
yellow
brown/green
brown/yellow
red/brown
brown/blue
black/white
brown/whine
brown/red
green/red
brown/blue
purple/green
green
purple/yellow
green/purple
black/green
