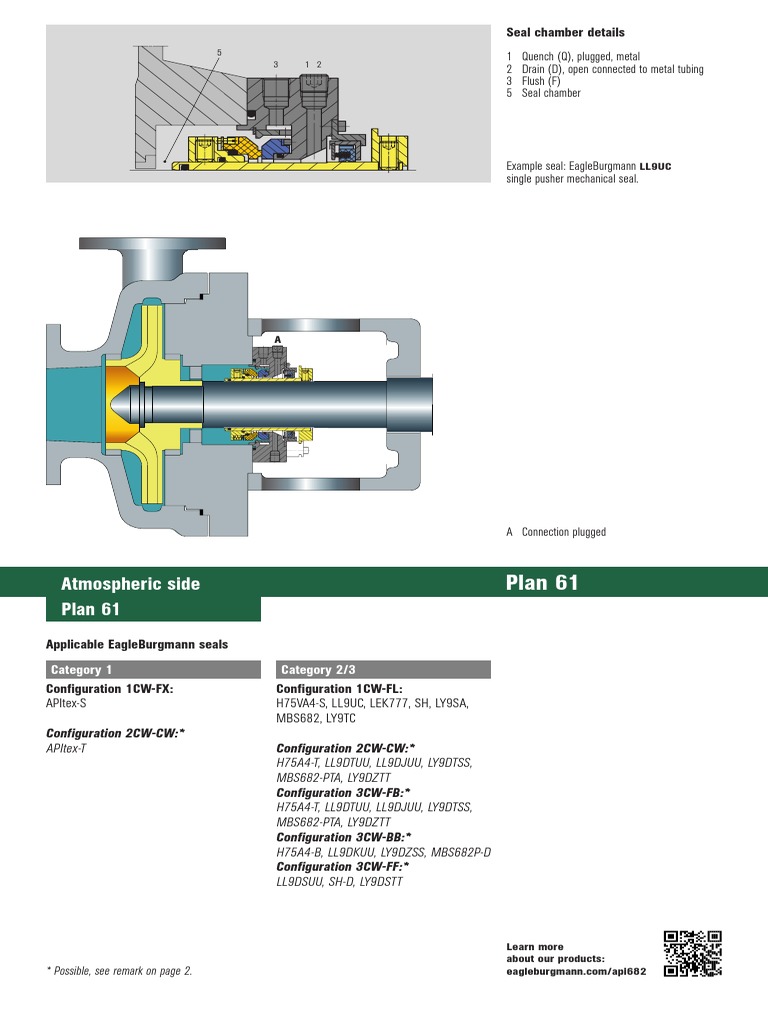

    Seal chamber details

    5
    1 Quench (Q), plugged, metal
    3 1 2
    2 Drain (D), open connected to metal tubing
    3 Flush (F)
    5 Seal chamber

    Example seal: EagleBurgmann LL9UC


    single pusher mechanical seal.

    A Connection plugged

    Atmospheric side Plan 61


    Plan 61
    Applicable EagleBurgmann seals

    Category 1 Category 2/3


    Configuration 1CW-FX: Configuration 1CW-FL:
    APItex-S H75VA4-S, LL9UC, LEK777, SH, LY9SA,
    MBS682, LY9TC
    Configuration 2CW-CW:*
    APItex-T Configuration 2CW-CW:*
    H75A4-T, LL9DTUU, LL9DJUU, LY9DTSS,
    MBS682-PTA, LY9DZTT
    Configuration 3CW-FB:*
    H75A4-T, LL9DTUU, LL9DJUU, LY9DTSS,
    MBS682-PTA, LY9DZTT
    Configuration 3CW-BB:*
    H75A4-B, LL9DKUU, LY9DZSS, MBS682P-D
    Configuration 3CW-FF:*
    LL9DSUU, SH-D, LY9DSTT

    Learn more
    about our products:
    * Possible, see remark on page 2. eagleburgmann.com/api682
