tension link

TLLC
9001

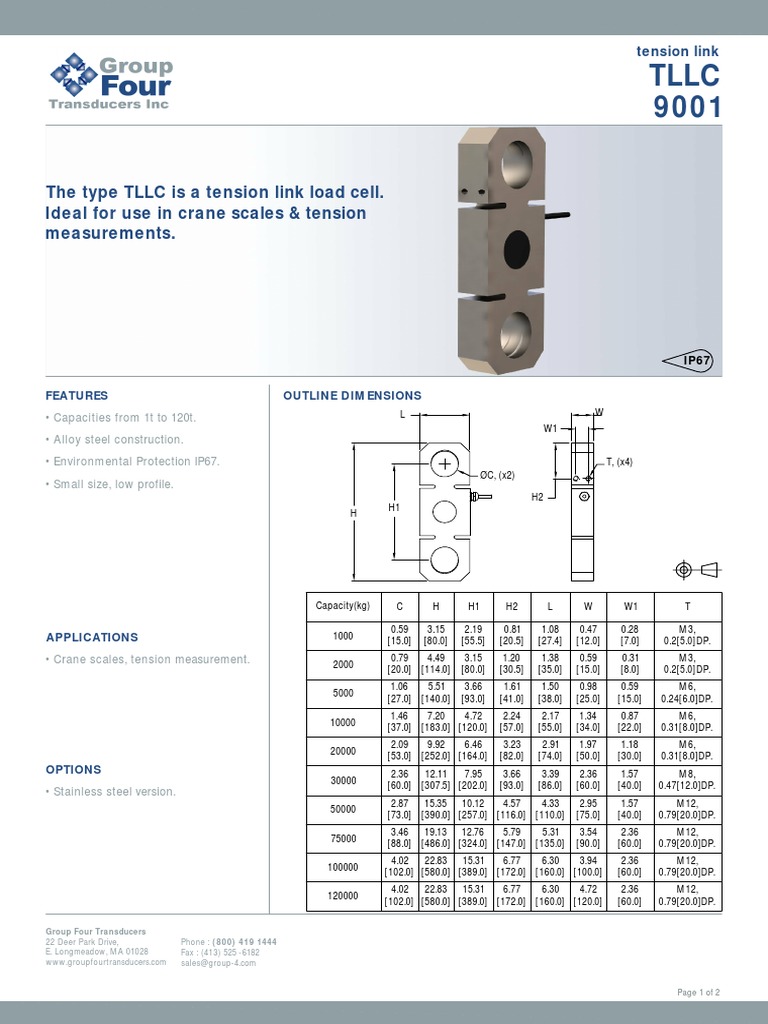

The type TLLC is a tension link load cell.

Ideal for use in crane scales & tension
measurements.

IP67

FEATURES OUTLINE DIMENSIONS

L W
• Capacities from 1t to 120t.
W1
• Alloy steel construction.
• Environmental Protection IP67. T, (x4)
ØC, (x2)
• Small size, low profile.
H2
H1
H

Capacity(kg) C H H1 H2 L W W1 T

0.59 3.15 2.19 0.81 1.08 0.47 0.28 M3,

APPLICATIONS 1000
[15.0] [80.0] [55.5] [20.5] [27.4] [12.0] [7.0] 0.2[5.0]DP.

• Crane scales, tension measurement. 2000

0.79 4.49 3.15 1.20 1.38 0.59 0.31 M3,
[20.0] [114.0] [80.0] [30.5] [35.0] [15.0] [8.0] 0.2[5.0]DP.
1.06 5.51 3.66 1.61 1.50 0.98 0.59 M6,
5000
[27.0] [140.0] [93.0] [41.0] [38.0] [25.0] [15.0] 0.24[6.0]DP.
1.46 7.20 4.72 2.24 2.17 1.34 0.87 M6,
10000
[37.0] [183.0] [120.0] [57.0] [55.0] [34.0] [22.0] 0.31[8.0]DP.
2.09 9.92 6.46 3.23 2.91 1.97 1.18 M6,
20000
[53.0] [252.0] [164.0] [82.0] [74.0] [50.0] [30.0] 0.31[8.0]DP.
OPTIONS 2.36 12.11 7.95 3.66 3.39 2.36 1.57 M8,
30000
[60.0] [307.5] [202.0] [93.0] [86.0] [60.0] [40.0] 0.47[12.0]DP.
• Stainless steel version.
2.87 15.35 10.12 4.57 4.33 2.95 1.57 M12,
50000
[73.0] [390.0] [257.0] [116.0] [110.0] [75.0] [40.0] 0.79[20.0]DP.
3.46 19.13 12.76 5.79 5.31 3.54 2.36 M12,
75000
[88.0] [486.0] [324.0] [147.0] [135.0] [90.0] [60.0] 0.79[20.0]DP.
4.02 22.83 15.31 6.77 6.30 3.94 2.36 M12,
100000
[102.0] [580.0] [389.0] [172.0] [160.0] [100.0] [60.0] 0.79[20.0]DP.
4.02 22.83 15.31 6.77 6.30 4.72 2.36 M12,
120000
[102.0] [580.0] [389.0] [172.0] [160.0] [120.0] [60.0] 0.79[20.0]DP.

Group Four Transducers

22 Deer Park Drive, Phone : (800) 419 1444
E. Longmeadow, MA 01028 Fax : (413) 525 -6182
www.groupfourtransducers.com sales@group-4.com

Page 1 of 2
tension link

TLLC
9001
SPECIFICATIONS
Model TLLC
Accuracy class C3
1/ 2/ 5/ 10/ 20/ 30/
Capacities t
50/ 75/ 100/ 120
Full scale output(FS) mV/V 3±10%
Non-linearity %FS ≤±0.017
Hysteresis %FS ≤±0.017
Non- repeatability %FS ≤±0.017
Creep@30min %FS ≤±0.023
Zero Balance mV/V ±0.05
Temperature range
Operating °C -10... +40
Bridge resistance Ω 350±3
WIRING
Excitation voltage V(DC/AC) 12(18Max.)
+ Excitation (Red) Insulation resistance@50VDC MΩ ≥2000
+ Signal (Green) Safe overload limit %FS 200
- Excitation (Black) Ultimate load %FS 400
- Signal (White) 6 ( <20t)
Cable length m
Shield(Bare) 10 ( ≥20t)
Seal type IP67
Cable : Ø5.0mm , 4 Conductor cable.
Element material Alloy steel

Dimensions and specifications subject to change without notice
