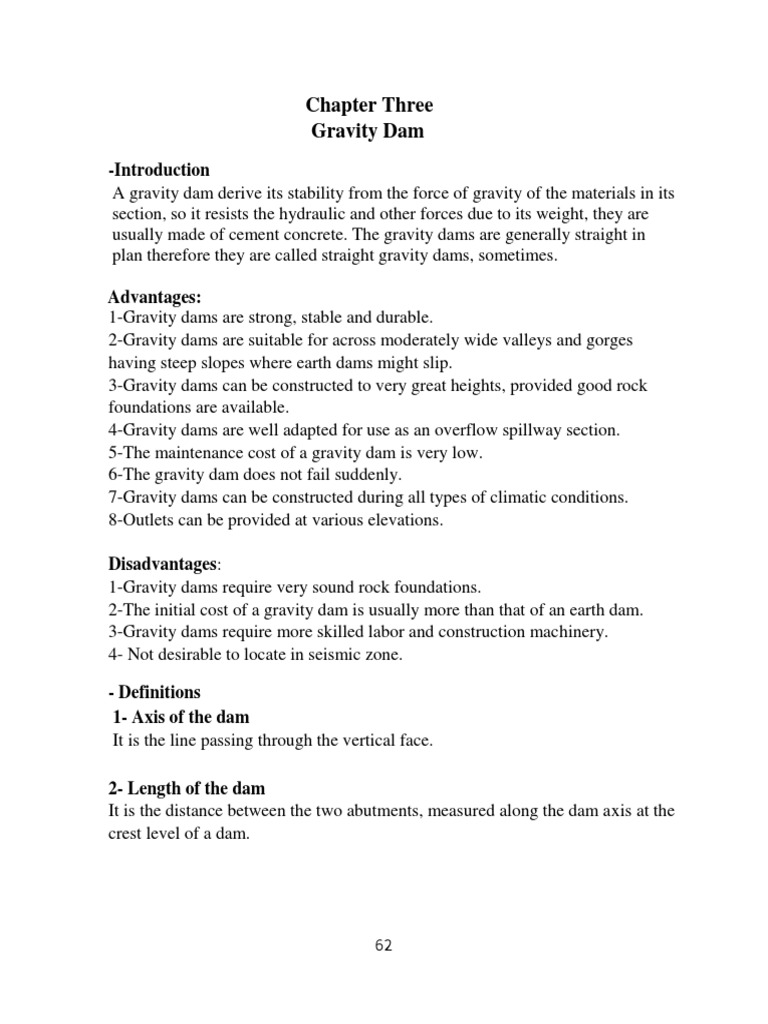

Chapter Three

Gravity Dam
-Introduction
A gravity dam derive its stability from the force of gravity of the materials in its
section, so it resists the hydraulic and other forces due to its weight, they are
usually made of cement concrete. The gravity dams are generally straight in
plan therefore they are called straight gravity dams, sometimes.

Advantages:
1-Gravity dams are strong, stable and durable.
2-Gravity dams are suitable for across moderately wide valleys and gorges
having steep slopes where earth dams might slip.
3-Gravity dams can be constructed to very great heights, provided good rock
foundations are available.
4-Gravity dams are well adapted for use as an overflow spillway section.
5-The maintenance cost of a gravity dam is very low.
6-The gravity dam does not fail suddenly.
7-Gravity dams can be constructed during all types of climatic conditions.
8-Outlets can be provided at various elevations.

Disadvantages:
1-Gravity dams require very sound rock foundations.
2-The initial cost of a gravity dam is usually more than that of an earth dam.
3-Gravity dams require more skilled labor and construction machinery.
4- Not desirable to locate in seismic zone.

- Definitions
1- Axis of the dam
It is the line passing through the vertical face.

2- Length of the dam

It is the distance between the two abutments, measured along the dam axis at the
crest level of a dam.

62
3- Structural height of the dam
The vertical distance from the deepest point of foundation to the top of the dam,
in general, the height of dam means its structural height.
4- Hydraulic height of dam
The hydraulic height of the dam is equal to the difference in elevations of the
highest controlled water surface on the upstream of the dam and the lowest point
on the river bed.
5- Maximum base width of the dam
Is the maximum horizontal distance between the heel and the toe of the
maximum section of the dam in the middle of the valley.
6-Abutment: Is a substructure at the ends of a dam at the sides of the valley on
which the structure of the dam rest.

Figure 1: A typical cross section of a concrete gravity dam

63
-Forces Acting on a Gravity Dam
The gravity dam is mainly subjected to the following main forces

Figure 2: Forces acting on gravity dam

64
 1-Primary Loads:
a-Weight of Dam
The weight of dam can be computed by knowing unit weight of concrete. The
cross section of the dam may be divided into several triangles and rectangles and
the weight of each shape is computed (Figure 2). The weight of each shape will
act at its center of gravity.

Figure 3: Dividing a gravity dam to regular shapes

b- Weight of Water (or Water Pressure)

The water impounded behind a dam, impose a force on the body of a dam. The
magnitude of this force is computed using hydrostatic rules.

(a) (b)

Figure 4: Water pressure diagram on a dam

For overflowing sections of a gravity dam the water surface profile will be like in
(Figure 5). The water pressure diagram on the upstream face will be equal to the
trapezoid abcd. The tail water pressure depends upon whether a hydraulic jump has
occurred or not. If no jump has occurred then its pressure can be calculated like in
figure 4b. Otherwise, the pressure will be hydrodynamic that usually are neglected.

65
 Figure 5 : Pressure diagram of an overflowing section of dam

c- Uplift Pressure
When water seeps through joints and discontinuities of foundation and dam
body itself, it imposes an upward force which is called uplift pressure. Because
this force acts upward, it reduces the weight of the dam. The intensity of uplift
pressure at the heel of a dam equals the U.S water level and at the toe it equals
the depth of tail water. The distribution of uplift pressure between heel and toe is
assumed to be linear. To reduce the uplift pressure drainage galleries are
provided near the heel.
Drainage Galleries
Galleries are openings provided within the body of a gravity dam to drain off
water seepage, providing access to the interior of dam to observe and control
behavior of dam structure, and for inspection of dam and doing any repairs.

Figure 6: Uplift pressure diagram on the base of a gravity dam with

and without drainage

66
Example 1: For the cross section of gravity dam shown below calculate the,
weight of dam, weight of water, uplift pressure in existence and non-existence of
drainage, and the horizontal hydrostatic pressure, per one meter length of dam.
Also find the line of action and direction of each force with respect to the toe, and
calculate the moments about the toe , freeboard is 4m, Sc=2.4 and γw=10 KN/m3.

Solution: a- Calculations without existence of drainage

Design Dimensions Force Vert. Force Hor. L from Moment
ation (KN) (KN) toe (m) about toe
(KN. m)
Weight of dam
WR 6*(289-205)*1*24 12096 53 641088
WT 0.5*50*75*1*24 45000 33.33 1499850

Wt. of water on d/s face

PV 0.5*3.33*5*10 83.35 1.11 92.52
Uplift pressure
U1 50*56 -2800 28 -78400
U2 0.5*750*56 -21000 37.33 -783930

Horizontal water pressure

PHU 0.5*10*802 -32000 26.67 -853440
PHD 0.5*10*52 125 1.67 208.75
Sum 33379.35 -31875 425469.27

67
b- Calculations with existence of drainage
Design Dimensions Force Vert. Force Hor. L from Moment
ation (KN) (KN) toe (m) about toe
(KN. m)
Weight of dam
WR 6*(289-205)*1*24 12096 53 641088
WT 0.5*50*75*1*24 45000 33.33 1499850

Wt. of water on d/s face

PV 0.5*3.33*5*10 83.35 1.11 92.52
Uplift pressure
U1 50*56 -2800 28 -78400
U2 0.5*(56-8)*(300-50) -6000 32 -192000
U3 8*250 -2000 52 -104000
U4 0.5*8*(800-300) -2000 53.33 -106660
Horizontal water pressure
PHU 0.5*10*802 -32000 26.67 -853440
PHD 0.5*10*52 125 1.67 208.75
Sum 44379.35 -31875 806321.77

68
2- Secondary Loads
a- Silt Pressure
Silt deposits in the upstream face of a dam, thus it imposes a force on the dam. If
data is available about the silt then it is computed as follow:

Where,
hs, is the depth of silt above the bed
: submerged unit weight of silt
Ka: coefficient of active earth pressure
, is the angle of shearing resistance of the silt
Psv is equal to the weight of the submerged weight of silt in the area abcd over
the inclined surface ad.

Figure 5: Silt pressures

If the characteristics of the silt is unknown, it can be treated like a fluid. To

compute its horizontal force use a unit weight of 3.6 KN/m3 and for the vertical
force use 9.2 KN/m3.

b-Wave Pressure
Waves are generated on the surface of the reservoir by the winds, which causes
a pressure towards the downstream side. Wave pressure depends upon the wave
height, which can be calculated as follow:
⁄
√

69
 √
Where;
hw: height of wave calculated from its peak to its trough (m)
V: wind velocity in Km/hr
F: Fetch or straight length of water expanse in Km (Figure 6).
The maximum pressure intensity due to wave action is given by:

This maximum pressure intensity acts at hw/8 above the still water level
(Figure 7), the force due to wave pressure acts at 3hw / 8 and is given by:

Figure 6: Measuring fetch

70
 Figure 7: Diagram of wave pressure

c- Ice Pressure
The ice pressure is more important for dams constructed in cold countries or at
height elevation. The ice formed in the water surface of the reservoir subject to
expansion and contraction due to temperature variation. Its magnitudes varies
between (250 – 1500) KN/m2 depending upon temperature variations, an
average of 500 KN/m2 may be taken as pressure acting linearly along length of
the dam under ordinary conditions.
d- Wind Pressure
It is a minor force and required to be considered only on the portion of structure
which exposed to the action of wind, it is taken as (1-1.5) KN / m2 for the area
exposed to wind.

Example 2:
For the dam cross section shown below calculate the force due to sedimentation,
force due to water waves, and their locations, if the expected sediment R.L. after
50 years is 225 m, the fetch equals to 35 Km and maximum wind velocity is 160
Km / hr , γsub =3.6 KN/ m3 .

71
Solution:

Force of waves generated by the wind:

√
√

( )

Earthquake Force
An earthquake wave is capable of shaking the foundation of a dam with the
impounded water at any direction. For design purpose, the wave is resolved into
a horizontal and a vertical component. Thus earthquakes have a horizontal
acceleration αh and a vertical acceleration αv.
The effect of earthquakes is not considered always. If a dam is located in a
seismic region, it should be designed for earthquake forces. (Figure 8) can be
used to decide on considering the force caused by earthquakes.

Figure 8: Need for earthquake analysis based on Richter and distance from
causative faults

72
Effect of vertical acceleration
A vertical acceleration may either act downward or upward. When it is acting in
the upward direction, inertia force in the dam will be generated opposite to the
acceleration, thus the weight of the dam will be increased. However, when the
acceleration is moving downward, inertia force will be directed upward and
decreasing the weight of the dam and the stability of the structure will be at risk.
The magnitude of the vertical inertia force is equal to the product of weight and
the vertical seismic coefficient:

Effect of horizontal acceleration: The horizontal acceleration causes the

generation of two forces:

1- Horizontal hydrodynamic force (Water force)

2- Horizontal inertia force (Body force)

1-Horizontal hydrodynamic force (Water force) :

The horizontal acceleration toward the reservoir, causes shaking in the dam and
its foundation toward the reservoir. The impounded water resists the movement
by its inertia force toward the dam. Hence an additional water pressure will be
exerted on the dam face, (Figure 9) shows the parabolic distribution of the
hydrodynamic force. The pressure at any depth can be computed using Zangar’s
formula:

⁄
[ ( ) ( ( )) ]

( )

Where;
Pey: hydrodynamic pressure at depth y below water surface
C: a dimensionless coefficient giving the distribution and magnitude of
pressures at depth y

73
αh: horizontal acceleration of the earthquake
h: total water depth of reservoir
y: vertical distance from the reservoir surface to the elevation needed, will be
given in the question
θ: the angle that U.S face makes with horizontal
Cm: maximum value of pressure coefficient for a constant slope
The hydrodynamic force and moment about the toe, caused by Pey are given by:

Figure 9: Hydrodynamic pressure due to earthquake

Two different cases of considering or disregarding slope of the U.S face of the
dam for calculating are shown in (Figure 10).

Figure 10: Angle for sloped U.S face of dam

74
2-Horizontal inertia force (Body force):
The horizontal acceleration of earthquake becomes sever at two cases of full and
empty reservoir. When reservoir is full the worst case occurs when the wave of
earthquake moves towards upstream then a horizontal inertial force due to dam’s
weight will act oppositely and toward downstream, this force also will
contribute in overturning the dam. When reservoir is empty the worst case is
when the horizontal acceleration acts toward downstream. Then inertia force
will act oppositely and trying to overturn the dam about its heel.
The horizontal inertia force is computed using the following equation:

Example 3:
For the dam cross section shown below (free board =2m),
(a) Calculate hydrodynamic force and its moment about the toe due to
horizontal acceleration of earthquake at the section of a-a 30m below water
surface and at the base . Use αh=0.1
(b) Calculate the horizontal and vertical inertia force, their lines of actions with
respect to toe and their direction due to earthquake, Sc=2.4, αv=0.05
(c) Calculate the force that silt exerts on the dam, if the maximum level that
sedimentation will reach is 30 m, Ss is 1.5 and φ is 30o.

75
Solution:

a) -Hydrodynamic force and moment about toe of the section a-a .

The straight part of the u/s face = 98 - 60 = 38 m < (98/2)

Consider u/s face as inclined

To calculate hydrodynamic force exerted by full depth of water: (y = h)

76
Example 4:
In the dam cross section shown below FB is 4 m, Calculate:
(a) The exerted force and moment by a seismic wave of horizontal acceleration
of 0.15 toward U/S and an upward acceleration of 0.1.

77
(b) Check the sufficiency of FB if wind velocity is 50 m/s and the length of
fetch is55 Km .

Solution:
a) 1- Hydrodynamic force.
Straight portion of U/ S face =75-20 =55 > (75/2) therefore, ignore the inclined
portion and consider the whole face as vertical

78
2- Horizontal inertia force

3- Vertical (Upward) inertia force

b)

The freeboard is sufficient.

-Modes of failure and Criteria for Structural Stability

A gravity dam may fail by one of the following:
1-By overturning about the toe
2- By shear failure called sliding
3-By crushing of material
4-By development of tension, causing ultimate failure by crushing

79
The failure may occur at the foundation plane (i.e. at the base of the dam) or at
any other plane at higher level.
1-Overturning about the toe
A dam fails in overturning when total horizontal forces acting on the dam
section are quite great in comparison with total vertical forces. In such cases the
resultant of two, passes outside the base of the dam. There is a factor of safety to
check the resistance against overturning.
∑
∑
2- Sliding on base
Sliding or shear failure will occur at dam base or any other horizontal plane if
the summation of all the horizontal forces above that plane is greater than the
resisting friction force.

Where,
µ: Coefficient of friction between two planes and it varies from 0.65-0.8
∑V: The summation of all the vertical forces (upward and downward).
In order to not permit sliding, the ratio of horizontal forces must be less than
shear resistance:
∑
∑

The above equation ignores the shear strength between two planes, for low dams
the above equation is used, but for higher dams, the shear between planes is also
considered:
∑
∑
Where,

80
 : Factor of safety against sliding and shear together
B: width of the planes
q: Shear strength between planes
3-Crushing of material
A dam may fail by the failure of its materials i.e. the compressive stresses
produced may exceed the allowable stresses and the dam material may get crushed.
The vertical direct stress distributing at the base is given by:

∑ ∑ ∑ ∑
[ ]
⁄

∑
[ ]

Where;
e: Eccentricity of the resultant force from the center of the base
∑V: Total vertical force, B: Base width
The maximum normal stress will be at the end that is closer to the resultant force
If the reservoir is full then pmax will be at the toe and pmin at the heel and
conversely when reservoir is empty.
If pmax is larger than the allowable stress of the concrete then the material will
crush. When p becomes negative then tensile stresses are generated.

Figure 11: Vertical stress diagram for a full and empty reservoir conditions

81
4-Development of tension, causing ultimate failure by crushing
Concrete gravity dams are usually designed in such a way that no tension is
developed anywhere, because these materials cannot withstand tensile stresses.
If subjected to such stress, it might finally get cracked. To ensure that tensile
stresses does not occur, it is necessary to make pmin equals zero:

∑
[ ]

∑
[ ]

* +

This means that the resultant force must lie within the middle one third of the
width of the dam. If the value of e > B/6 then tensile stresses will occur.

82
Example 5: For the dam cross section shown below, check:

a. The stability of the dam against overturning

b. The stability of the dam against sliding when =0.7

c- The stability of the dam against sliding and shear, if the shear strength
between concrete and the foundation is 150 ton/m2

d. The possibility of crushing of the concrete at the base.

The compressive strength of the concrete is 300 ton/m2, permissible tensile
stress is 50 ton/m2.The drainage axis is 4 m far from the heel and its efficiency is
60%. The horizontal coefficient of earthquake acceleration is 0.1,
, SC =2.4

83
Solution:

Design Dimensions Force Vert. Force Hor. L from Moment about

ation (ton) (ton) toe (m) toe (ton. m)
Weight of dam
WR 5*44*1* 2.4 528 29.5 15576
WT 0.5*27*33.75*1*2.4 1093.5 18 19683

Uplift pressure
U1 4*16 -64 30 -1920
U2 0.5*16*28 -224 18.67 -4182
U3 8*4*24 -48 30.67 -1472

Horizontal water pressure

PHU 0.5*10*402 - 800 13.33 -10664

Inertia force
FR 0.1* 528 -52.8 22 -1162
FT 0.1*1094 -109.4 11.25 -1231
Hydrodynamic force
Peh 0.735*0.1*1*40=2.94
Feh 0.722*2.94*40 - 85
Meh 0.299*2.94*402 -1406
Sum 1622 -1047 35259
-336 -22036

84
a- Factor of safety against overturning
∑
∑

the dam is safe

b- Factor of safety against sliding

∑
∑

the dam is unsafe

c- Factor of safety against sliding and shear
∑
∑

the dam is safe

d- Compressive stresses at base

∑
[ ]

∑
̅
∑
̅

∑
[ ] [ ]

The base of dam is safe against crushing.

∑
[ ] [ ]

The base of dam is safe against tensile cracks.

85
Principal Stress
The which has been founded earlier is not the maximum or minimum
stress that occurs within the body of the dam. To find the maximum stress that
occurs, principal stresses should be found.
Consider an elementary triangular section at either the heel or the toe of the dam
section such that stress intensities may be assumed to be uniform on its faces.
The face of the dam will be a principal plane as water pressure acts on it in the
perpendicular direction, with no accompanying shear stress.
Therefore u/s and d/s faces of the dam are the principal stress planes. (Figure 12)
shows a dam cross section with principal planes. Figure 12(ii) shows a small
element from d/s for the case of full reservoir. Derivation of an expression for σd
is included below for the case of full reservoir:

Figure 12: Dam cross section with principal planes

Where,
Pd = pressure intensity of water
= principal stress
= maximum normal stress
= shear stress

86
If tail water does not exist or it is ignored then the major d/s principal stress is:

The d/s face of the dam in full reservoir conditions is the plane of the major
principal stress, and the u/s face plane is the minor principal stress and is given
by (considering the hydrodynamic pressure due to earthquake):

( hydro dynamic pressure)

Shear stress at toe and heel are given by:

Example 6:
For the dam cross section in Example 5, find the major and minor principal
stresses and shear stresses at toe and heel.
Solution:

( )

87
 ( =0)

6-Elementary Profile of a Gravity Dam

It is the theoretical shape of its cross-section when it is subjected only to three
main forces: self-weight, water pressure and uplift pressure. Moreover, the
elementary profile has zero top width and no free board. Thus the elementary
profile is a right-angled triangle with its apex at the water surface and a base
width B (Figure 13).

Figure 13: Elementary profile of a gravity dam

A right-angles triangle is suitable for an elementary profile for the following

reasons:
1-When reservoir is empty, the only acting force (self-weight) passes through
the inner middle third. Thus no tensile stresses will develop at the base.
2-When reservoir is full, the width increases with the increasing of the water
pressure and uplift pressure.

Base Width of Elementary Profile

The base width B of the elementary profile for reservoir full condition is found
separately for no-tension and no-sliding bases. The larger of the two values is
taken as the minimum base width of the elementary profile.

88
1-Base width for no-tension
To avoid the development of tensile stresses at heel of dam when the reservoir is
full, the resultant must pass through the outer middle third (B/3), point A in
Figure 13.

∑ ( ) ( ) ( )

( ) ( ) ( )

( )

√
Where;
H: depth of water
Sgc: specific gravity of concrete
c: uplift pressure intensity
2-Base width for no-sliding
For elementary profile to be safe against sliding, the resisting force of friction
only is considered.

∑ ∑

( )

( )
High and Low Gravity Dam
The principal stress at the toe of an elementary profile for reservoir full
condition is given by:
( )

89
 The maximum value of the principal stress should not exceed the allowable
stress fa for the material of the dam. Thus,
( )

( )
Critical Height Hcr is the limit between a high and a low gravity dam. If the
height of a proposed dam is larger than Hcr then it will be designed as a high
dam otherwise it will be considered a low dam .

Hcr
H > Hcr

(a) Low dam

(b) High dam

Figure 14: Elementary profile of a low and high gravity dam

-Practical Profile of a Gravity Dam

For practical purposes, the elementary must be provided with a top width and
freeboard (Figure 15). Top width is necessary for road access on the top of dam.
Freeboard is necessary to be provided for safety against an unexpected flood and
waves.
Top Width
The most economical top width is found to be about 14% of dam height. However
for dam of low heights this value might be insufficient. Therefore a minimum
width that satisfies the requirements of road (6-10) m is provided.
90
Freeboard
Freeboard is the distance between the top of a dam and maximum water level in
the reservoir. Freeboard is set according to height of wave and it will be 3/2 hw.
Some designers prefer to provide a freeboard of 3-4 % of height of dam.

Figure 15: Practical profile of a gravity dam

Notes
1-Upstream batter is not always provided such as in Figure 15. There are cases
that a slope of 1H:16 V starting at 2a√Sc is provided.
2-The downstream slope usually has a slope of 0.7H-0.9H:1 V.
3-According to the existing concrete gravity dams, B=(0.8-0.9)H

Example 7:
It is desired to design a concrete gravity dam where the normal water depth in
the reservoir is 50 m. The coefficient of friction between concrete and the rock
foundation is 0.7, and Sc = 2.4. Design an elementary profile and check its
stability against overturning for the following conditions,( ).
(a)No drainage is considered.
(b) An uplift pressure reduction of 0.6 is achieved.

91
Solution:
(a)

√ √

( )

Adopt B as 52 m.

∑
∑

(b)

√ √

( )
Adopt B=36 m.

92
Example 8:
Design a practical profile for the gravity dam in Example 7 when 60% uplift
relief is achieved. Compute the principal and shear stresses at toe and heel. The
compressive strength of concrete is 450 ton/m2, shear strength is 320 ton/m2 and
the permissible tensile stress is 75 ton/m2.
Solution:
B=36 m and H=50 m.

( )

Design as a low gravity dam.

Use a freeboard of 3 m

Two alternatives are there. The first one is the provision of an u/s batter and the
second is the provision of a slope of 1:16.

The upstream batter starts at

√ √
It ends at

√ √

93
 All the forces and the corresponding moments are tabulated below

∑
̅
∑

94
 ( )

( )

( ( ) )

The second alternative is to provide a slope that starts 21.6 m below water depth
and its magnitude is 1H:16 V.

95
 ∑
̅
∑

( )

( )

( ( ) )

( ( ) ) ( )

96
Design of High Gravity Dam
The portion of dam height that is in excess of Hcr is designed with a different
procedure. This portion is divided into a number of strips and each strip is
designed separately. (Figure 16) shows the strips.

Figure 16: Strip procedure for design of high gravity dam

Exact width of each strip is given by the following equation. In this equation it is
considered that principal stress does not exceed maximum allowable stress and
the section remain economical as well.

√ * +

[ ]

[ ][ ] [ ]

97
Where,
B1: base width of low dam
B2: the base width required at the bottom of the 1st strip
H2: height of dam portion from M.W.L to the bottom of the strip
f: allowable compressive stress of the dam material
W1: total vertical weight of dam and water above the top of the strip
W2: total weight of dam portion and water above the bottom of the strip
Example 9:
Design a concrete gravity dam for the following data:
Maximum allowable compressive stress in concrete=3000 KN/m2
Maximum reservoir level=200 m, R.L of bottom of river=100 m, Specific
gravity of concrete=2.4, Unit weight of water =10 KN/m3, Top width =5.18 m
No uplift pressure exist (i.e. c = 0).
Solution:
-Calculating height of dam:
Freeboard=3%H=0.03*100=3m
R.L of top of dam=200+3=203 m
Height of dam=103 m
To decide whether the dam is a low or high gravity dam:

( )
Design the dam as a low gravity dam from R.L of 200 up to 111.8 m and for the
rest follow high gravity dam design procedure.
Design of dam from R.L of 200 m to 111.8 m:

√ √ √

98
 √

Design of the dam form R.L of 111.8 m to 100 m:

Use three strips: 3.8 m, 4 m and 4 m height
Design of the first strip:

[ ]

99
Approximate width of strip one:

Approximate weight of strip I

√ * +

√ * +

[ ]

[ ][ ] [ ]

[
]

[ ][ ] [ ]

100
 √

Design of the two remained strips is H.W.

-Construction of Gravity Dams

1-Diversion of Stream
Rivers have to be diverted from its natural course before dam construction
begins. Diversion of stream can be done in two methods:

1. Provision of a tunnel or an open channel: If topography and geological

formation of river surroundings permit, then a tunnel or an open channel is
provided to divert river from its natural course. In addition, two coffer dams
must be constructed on downstream and upstream of the diversion as in (Fig.17).

101
 Figure 17: Provision of a channel or tunnel for river diversion
2.Constructing dam in two stages: A dam can be constructed in two stages. A
portion is freed from water by means of a semi-circular coffer dam and the
construction will be performed there. Then the other half will be constructed in
the same manner.

Figure 18: Stage I of diversion and construction

Figure 19: Stage II of diversion and construction

2- Control of Cracking in a Gravity Dam

To reduce the temperature and shrinkage stresses within a gravity dam that is
under construction, the following measures can be taken:
1- Using minimum amount of cement for a given strength.
2-Using low heat cement.
102
3-Cooling aggregate before mixing.
4-Using low lifts for each process of concrete pouring. Usually concrete is
poured up to 1.5 m depth at each step.
5-Contraction joints must be provided.
6-The poured concrete can be cooled by circulating cold water in the pipes laid
within the dam.

3- Joints in a Gravity Dam

There are two kind of joints in a gravity dam:
1-Construction joints are horizontal and are in between of each two lifts of
poured concrete. These joints are unavoidable due to pouring of concrete in
stages.
2-Contraction joints are vertical and run from crest to foundation of a dam. They
are especially provided to overcome cracking caused by shrinkage of concrete
and temperature stresses.

4-Shear Keys
When it is expected that differential settlement might occur, shear keys are
provide along vertical joints so as to transfer shear stress to adjacent blocks. In
this way the whole structure will act together. (Figure 20) shows different types
of such keys.

103
 Figure 20: Shear keys in vertical joints

5-Foundation Treatment
Failure of many dams has been attributed to a failure in foundation. Therefore it
is very important that foundation be investigated and proper treatment applied.
The foundation treatment falls into two steps:

1- Surface preparation
Preparation of surface includes removal of the whole loose soil that lies above
the rock foundation. In addition, the following points must be considered:
(a)The excavation should not damage the rock foundation.
(b)The rock foundation is stepped and keyed so as to increase the safety against
sliding (Figure 21).

104
 Figure 21: Stepping and shear key at rock foundation

2- Grouting the foundation

The foundation grouting is the drilling of deep holes in the foundation and
injecting a mixture of water and cement into them. Grouting has the advantage
of increasing the bearing capacity of the foundation and decreasing uplift
pressure and seepage volume. Foundation grouting is done in two steps:
(a)Consolidation grouting
Consolidation grouting is done to improve characteristics of the rock foundation
and increasing its strength. It is done on the entire area of the base of a dam,
their depth varies between 3 to 15 m.
(b)Curtain grouting
Curtain grouting is aimed at forming a barrier against seepage and reducing
uplift pressure. Curtain grouting is done just downstream of the heel of a dam
and parallel to the axis of dam all along. Curtain grouting is usually done after a
few concrete lifts were laid.
6-Drainage system
After establishing a grout curtain, still water seeps through foundation.
Therefore a drainage might be provided. Holes are drilled downstream of the
grout curtain and water is drained via the holes and collected in the drainage
gallery.

105
7-Rolled Compacted Concrete (RCC)

Construction of gravity dam using conventional (normal) concrete takes a

considerable time and investment. Therefore gravity dams were constructed rarely
in the past. However, a new material was proposed that accelerated the
construction process significantly. Rolled compacted concrete is consisted of the
same material of the conventional concrete but with a low moisture content that
gives zero slump test. The maximum aggregate size of RCC is low and about 56
mm. This is mostly for the purpose of minimizing permeability. The concrete is
placed in layers of 30 cm thick and then get rolled by machines of 10 tons weight.
The cost of RCC dams is 25 to 50% lesser than the conventional concrete dams.

Figure 22: RCC dams

106
 *( )( )+

⁄
√ √

⁄
* ( ) ( ( )) + ( )

∑
∑

∑ ∑
∑
* +

( )
( ) ( )

√ * +

[ ]

[ ][ ] [ ]

107
