Install Guide For RPi+LabVIEW+MakerHub

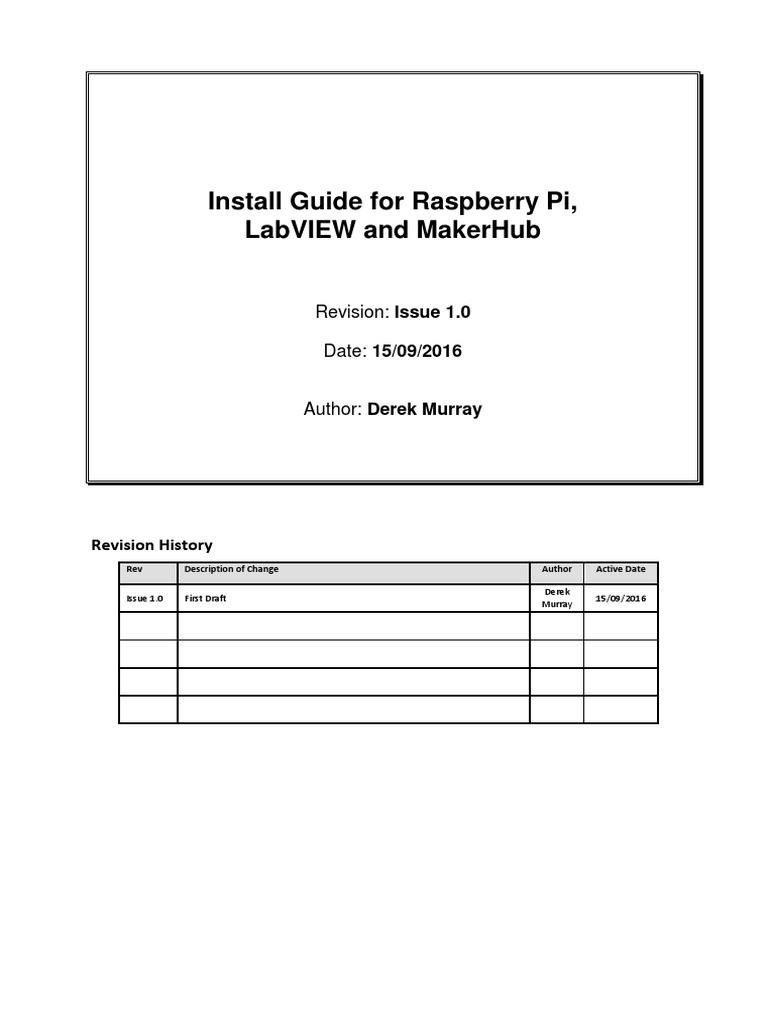

Install Guide for Raspberry Pi,
LabVIEW and MakerHub
Revision: Issue 1.0
Date: 15/09/2016
Author: Derek Murray
Revision History
Rev Description of Change Author Active Date
Derek
Issue 1.0 First Draft 15/09/2016
Murray
Install Guide: RPi, LabVIEW and MakerHub
Contents
1 Introduction ............................................................................................................................... 3
1.1 Required Downloads ............................................................................................................... 3
1.2 Steps Covered in this Guide ..................................................................................................... 8
2 Set Up the RPi ............................................................................................................................ 9
3 Install LabVIEW 2014 Home Bundle .......................................................................................... 14
4 Install NI-VISA .......................................................................................................................... 32
5 Install Control and Design Simulation Module ........................................................................... 40
6 Install MathScript RT Module ................................................................................................... 48
7 Install JKI VIPM......................................................................................................................... 55
8 Install the MakerHub LINX Package ........................................................................................... 61
9 Configure the RPi to use LINX.................................................................................................... 71
10 Activating LabVIEW 2014 at a Later Date ................................................................................... 83
15/09/2016 Page 2 of 84 Issue 1.0

1 Introduction
This install guide outlines a step-by-step process for installing LabVIEW 2014 Home Bundle and the
LabVIEW MakerHub LINX package for use with the Raspberry Pi (RPi). The flow has been tested on an
RPi 3 Model B, but it should also work for an RPi 2 Model B; note that these are the only two RPi models
which are supported by the MakerHub package. The following points are also important to note in using
this guide:
1. The RPi is using a MicroSD card preloaded with NOOBs, as this is the quickest way to get up and
running. Raspian Jessie is the default RPi OS in the version of NOOBS used in the guide. If you're
not using NOOBS, you will likely have to carry out additional steps which are not covered in the
text.
2. The remote access client PuTTY will be used to interface with the RPi. If you have a
keyboard/mouse/monitor combination connected to the RPi, however, you do not need to use
PuTTY.
3. LabVIEW 2014 32-bit is the only LabVIEW version supported for RPi, and the very good value
Home Bundle is used in this guide. In the EU, this can be sourced here; in the US it can sourced
here. Note that you will generally only be buying an activation code; the software can be
downloaded as detailed in the next section. Alternatively, engineers who already have support
accounts with National Instruments may be able to source the Home Bundle via their usual
sales channels.
4. The guide assumes that you already have the License Code for LabVIEW 2014 Home Bundle
(obtained via the sources listed in the previous point). It is also permissible to install the
program for evaluation purposes (30-days), and purchase a license code at a later date. The
program can then be officially activated using the code.
5. The license for the Home Bundle also covers the use of the Control and Simulation module and
the MathScript module. Installation of these tools is covered in the guide.
6. The MakerHub LINX package is installed via the JKI VI Package Manager, which has become the
defacto standard for installing LabVIEW addons.
7. The host PC in the guide is running Win 7 64-bit. The install steps may be different for other
operating systems. As I understand it, Mac or Linux systems are not currently supported with
LabVIEW-LINX.
1.1 Required Downloads

All the programs required to get up and running with the RPi can be downloaded from various online
locations, as detailed next. First, it is necessary to create an account with National Instruments (if you
don't already have one) as follows:
1. Go to http://www.ni.com.
2. Click on MY ACCOUNT.
Figure 1.1. Go to ni.com and click on MY ACCOUNT
3. Click on "create a new user account", and follow the instructions:
15/09/2016 Page 3 of 84 Issue 1.0

Figure 1.2. Click on create a new user account
The following NI programs need to be downloaded, with specific details given below:
 LabVIEW 2014 Home Bundle
 NI-VISA
 Control Design and Simulation Package
 MathScript RT Module
To download LabVIEW 2014 Home Bundle, go to the MakerHub LabVIEW page, and click on
Download Now.
Figure 1.3. Go to the MakerHub LabVIEW page and click on Download Now
Log into your NI account if necessary and you should end up at the following dialog (figure 1.4). Save
to your desired location; note that the download can take some time depending on your network speed.
15/09/2016 Page 4 of 84 Issue 1.0

Figure 1.4. Download the Home Bundle
Scroll down further on the LabVIEW MakerHub page to find the NI-VISA package, as well as the
Control Design and Simulation Module, and the MathScript RT Module:
Figure 1.5. Scroll down to find the additional modules
Download these three packages as well.

Next, download the JKI VI Package Manager by going to the JKI VIPM download page. The Free
version is all that is required. Note that you will be required to enter an email address.
15/09/2016 Page 5 of 84 Issue 1.0

Figure 1.6. Download the JKI VIPM
Finally, PuTTY should be downloaded if the user intends to communicate with the RPi remotely. (This
can be skipped if a keyboard/mouse/monitor combination is used with the RPi). The PuTTY download
page can be found here: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html.
The version to download is "putty.exe":
15/09/2016 Page 6 of 84 Issue 1.0

Figure 1.7. Download putty.exe
Save to a suitable location, e.g. C:/PuTTY.
Figure 1.8. Save to C:/PuTTY
15/09/2016 Page 7 of 84 Issue 1.0

Finally, a Desktop Shortcut can be used for easy access to the program.
Figure 1.9. Create a desktop shortcut for putty.exe
1.2 Steps Covered in this Guide

The steps covered in this guide are as follows:
1. Set up the RPi.
2. Install LabVIEW 2014 Home Bundle.
3. Install NI-VISA.
4. Install Control and Design Simulation Module.
5. Install MathScript RT Module.
6. Install JKI VIPM.
7. Add the LabVIEW MakerHub LINX package to LabVIEW using JKI VIPM.
8. Configure the RPi to use MakerHub LINX , and run a simple example where an LED connected
to the RPi can be turned on or off using LabVIEW.
9. A brief section about using the NI License Manager at a later date to activate NI software.
15/09/2016 Page 8 of 84 Issue 1.0

2 Set Up the RPi

To set up the RPi, start by inserting the MicroSD card in the card slot underneath the RPi.
Figure 2.1. Insert the MicroSD card
Next, connect a LAN cable between your router or other access point to the RPi, and connect the
power cable:
Figure 2.2. Connect LAN cable and power cable
15/09/2016 Page 9 of 84 Issue 1.0

The RPi will take about 30-60 seconds to boot up. Next, if accessing the Pi remotely, its IP address
must be found. The best method is to log in to your router using a specific IP address (e.g.
192.168.1.254, although this will be router-specific) and find a page or field where the IP addresses of
connected devices are given. In my case, I found the address of 192.168.1.15.
Figure 2.3. Find the RPi IP address
Run PuTTY, and enter the correct parameters as shown below for an SSH session (your IP address
may obviously be different). Click Open to start a session with the RPi.
Figure 2.4. Configure PuTTY for an SSH session with the RPi
15/09/2016 Page 10 of 84 Issue 1.0

Figure 2.5. Accept the Security Alert by clicking Yes
Enter the login details (default = "pi") and password (default = "raspberry") to login to the RPi. Try a
simple command such as "ls" to verify that you are logged in.
Figure 2.6. Log in to the RPi
15/09/2016 Page 11 of 84 Issue 1.0

You might also want to update the RPi system using the following commands (note that this can take
a LONG time, 30 minutes or more). You can skip this and come back to it at a later stage if desired.
sudo apt-get update
sudo apt-get dist-upgrade
Figure 2.7. Update the RPi system
15/09/2016 Page 12 of 84 Issue 1.0

Some other useful commands to try are:

uname -a
cat /etc/os-release
Figure 2.8. Type commands such as uname and os-release
As can be seen, the RPi in this case is running Raspbian Jessie by default. LabVIEW-LINX is compatible
with this OS and the RPi is ready for use. The PuTTY session can be ended by typing "exit" at the shell
prompt.
In the next section, LabVIEW will be installed on the user's PC.
15/09/2016 Page 13 of 84 Issue 1.0

3 Install LabVIEW 2014 Home Bundle

In this section, the install steps for LabVIEW 2014 Home bundle will be detailed, along with some
required updates; note that a couple of Windows restarts will be required. If you haven't already done
so, download the Home Bundle software as detailed in the Introduction. The downloaded file name is
"2014sp1LV-WinEng.exe". Right-click it and select "Run as administrator".
Figure 3.1. Right-click and select "Run as Administrator"
Figure 3.2. Click OK
Figure 3.3. Click Unzip to extract the package contents
Above, ensure that the option "When done unzipping open: \setup.exe" is checked, so that the
LabVIEW install procedure will start automatically.
15/09/2016 Page 14 of 84 Issue 1.0

Figure 3.4. Click OK to finish the unzip procedure
The install dialog should appear automatically:
Figure 3.5. Click Next to continue
15/09/2016 Page 15 of 84 Issue 1.0

Figure 3.6. Enter a user name
Figure 3.7. Enter the serial number, or leave all fields blank for evaluation mode
15/09/2016 Page 16 of 84 Issue 1.0

Figure 3.8. Choose destination directory, and click Next
15/09/2016 Page 17 of 84 Issue 1.0

15/09/2016 Page 18 of 84 Issue 1.0

Figure 3.12. Accept the license agreements
15/09/2016 Page 19 of 84 Issue 1.0

Figure 3.14. Click Next to start the installation
Figure 3.15. The installation runs...
15/09/2016 Page 20 of 84 Issue 1.0

Figure 3.16. Click on Decline Support
Figure 3.17. Click Next when the installation completes
15/09/2016 Page 21 of 84 Issue 1.0

Figure 3.18. Follow the instructions to activate the software
Figure 3.19. Click Yes to check for updates
Figure 3.20. Click on Restart
15/09/2016 Page 22 of 84 Issue 1.0

When Windows restarts, the NI Update Service will run. Click on View Updates.
Figure 3.21. Click on View Updates
Figure 3.22. Select the updates as shown and click Install
15/09/2016 Page 23 of 84 Issue 1.0

Figure 3.23. The updates will download...
Figure 3.24. The "Preparing for installation" dialog appears...
15/09/2016 Page 24 of 84 Issue 1.0

Figure 3.25. Accept the two license agreements and click Next
Figure 3.26. Again, accept the two license agreements and click Next
15/09/2016 Page 25 of 84 Issue 1.0

Figure 3.27. The patch is installed
Figure 3.28. NI Microsoft Silverlight is installed
15/09/2016 Page 26 of 84 Issue 1.0

Figure 3.29. Click Finish when the installation is complete
Figure 3.30. Click Yes to restart the PC
15/09/2016 Page 27 of 84 Issue 1.0

Figure 3.31. Click the Update button to update the NI Update Service
For completeness, you should also update the NI Update service.
15/09/2016 Page 28 of 84 Issue 1.0

Figure 3.32. The update downloads...
Figure 3.33. Accept the license agreements and click Next
15/09/2016 Page 29 of 84 Issue 1.0

Figure 3.34. The update is installed...
Figure 3.35. Click Finish when the update completes
15/09/2016 Page 30 of 84 Issue 1.0

Figure 3.36. No more critical updates required
At this point, the LabVIEW Home bundle and all necessary updates are installed. NI LabVIEW 2014
SP1 should appear in the Windows Start menu, as shown below.
Figure 3.37. NI LabVIEW 2014 SP1 (32-bit) appears in the Start menu
In the next section, NI-VISA will be installed.
15/09/2016 Page 31 of 84 Issue 1.0

4 Install NI-VISA
In this section NI-VISA will be installed. Start by double-clicking the downloaded software
(NIVISA1400full.exe) and unzipping it as in the previous section. The installer should start automatically.
Figure 4.1. Double-click the download to unzip the software
Figure 4.2. The installer should start automatically
15/09/2016 Page 32 of 84 Issue 1.0

Figure 4.3. destination directory, and click Next
15/09/2016 Page 33 of 84 Issue 1.0

15/09/2016 Page 34 of 84 Issue 1.0

15/09/2016 Page 35 of 84 Issue 1.0

Figure 4.10. Click Next when the installation completes
15/09/2016 Page 36 of 84 Issue 1.0

Figure 4.11. Click on Restart
When Windows restarts, the NI Update Service will run. Click on View Updates.
Figure 4.12. Click on View Updates
Figure 4.13. Select the update, and click Install
15/09/2016 Page 37 of 84 Issue 1.0

Figure 4.14. Accept the license agreement and click Next to install the update
Figure 4.15. Click Finish when the update is installed
15/09/2016 Page 38 of 84 Issue 1.0

Figure 4.16. Restart the PC
Figure 4.17. No critical updates required
At this point NI-VISA is installed. The Control and Design Simulation Module will be installed next.
15/09/2016 Page 39 of 84 Issue 1.0

5 Install Control and Design Simulation Module

Unzip the downloaded file as before (the file-name is "2014CDSim.exe") and the installer should start
automatically.
Figure 5.2. Enter your name and LabVIEW 2014 Home Bundle serial number
15/09/2016 Page 40 of 84 Issue 1.0

Figure 5.3. Click next to continue
15/09/2016 Page 41 of 84 Issue 1.0

Figure 5.6. Accept the license agreement
15/09/2016 Page 42 of 84 Issue 1.0

15/09/2016 Page 43 of 84 Issue 1.0

Figure 5.9. Click Next to launch the Activation Wizard (unless installing in evaluation mode)
Figure 5.10. Click Next to activate online
15/09/2016 Page 44 of 84 Issue 1.0

Figure 5.11. Enter the Home Bundle serial number
Figure 5.12. Log in to your NI account
15/09/2016 Page 45 of 84 Issue 1.0

15/09/2016 Page 46 of 84 Issue 1.0

Figure 5.15. Click Finish when activation completes
The Control Design and Simulation Module is now installed. Next, the MathScript RT module will be
installed.
15/09/2016 Page 47 of 84 Issue 1.0

6 Install MathScript RT Module

Unzip the downloaded file as before (the file-name is "2014MSRT-Win.exe") and the installer should
start automatically.
Figure 6.2. Enter your name and LabVIEW 2014 Home Bundle serial number
15/09/2016 Page 48 of 84 Issue 1.0

15/09/2016 Page 49 of 84 Issue 1.0

15/09/2016 Page 50 of 84 Issue 1.0

Figure 6.8. Next to launch the Activation Wizard (unless installing in evaluation mode)
15/09/2016 Page 51 of 84 Issue 1.0

Figure 6.9. Click Next to activate online
Figure 6.10. Enter the Home Bundle serial number
15/09/2016 Page 52 of 84 Issue 1.0

Figure 6.11. Log in to your NI account
15/09/2016 Page 53 of 84 Issue 1.0

Figure 6.14. Click Finish when activation complet
The MathScript RT Module is now installed.
15/09/2016 Page 54 of 84 Issue 1.0

7 Install JKI VIPM

Download the JKI VIPM installer if it has not already been done (see the Introduction). Right-click on
the download and select "Run as administrator".
Figure 7.1. Right-click the download and select "Run as administrator"
15/09/2016 Page 55 of 84 Issue 1.0

Figure 7.4. Select the install location (if necessary) and click Next
15/09/2016 Page 56 of 84 Issue 1.0

Figure 7.5. Choose whether to add a Desktop shortcut and click Install
15/09/2016 Page 57 of 84 Issue 1.0

Figure 7.7. Click Finish when the installation completes
Figure 7.8. When VIPM runs, it will download package links as shown
15/09/2016 Page 58 of 84 Issue 1.0

Figure 7.9. Change "2015" option to "2014"
The package manager window will be empty if you don't have LabVIEW 2015 installed. At this point
you must switch the LabVIEW version to "2014".
15/09/2016 Page 59 of 84 Issue 1.0

Figure 7.10. The package windows populates correctly for LabVIEW 2014
The package window will populate correctly for LabVIEW 2014, as shown. For details on installing the
MakerHub package, go directly to the next section.
15/09/2016 Page 60 of 84 Issue 1.0

8 Install the MakerHub LINX Package

The best approach in installing the MakerHub LINX package is to just install that package and the
MakerHub Toolbox package first. If you require any other packages, install those later. Scroll down the
package list to select the Digilent LINX package (figure 8.1). Then, scroll-down further and find the
MakerHub Toolbox package (figure 8.2); use right-ctrl when selecting it to ensure both packages are
selected.
Figure 8.1. Select the Digilent LINX package
15/09/2016 Page 61 of 84 Issue 1.0

Figure 8.2. Select the MakerHub Toolbox package (use right-ctrl)
Figure 8.3. Click the "Install and Upgrade Package(s)" button
15/09/2016 Page 62 of 84 Issue 1.0

Figure 8.4. VIPM confirms the packages to be installed
Figure 8.5. You may get a prompt to allow access for LabVIEW (you should allow it)
15/09/2016 Page 63 of 84 Issue 1.0

Figure 8.6. Accept the license agreements (Click Yes)
At this point, LabVIEW 2014 will probably be running in the background, and the following dialog
may appear:
Figure 8.7. Click OK to close the "Please Reboot" dialog
15/09/2016 Page 64 of 84 Issue 1.0

Figure 8.8. The packages are installing...
15/09/2016 Page 65 of 84 Issue 1.0

Figure 8.9. Click Finish when the packages are installed
15/09/2016 Page 66 of 84 Issue 1.0

Figure 8.10. You should now see the LabVIEW icon beside the installed packages
15/09/2016 Page 67 of 84 Issue 1.0

Figure 8.11. Install the Open G Toolkit if desired
Other packages can now also be installed. Examples include Open G (see above).
15/09/2016 Page 68 of 84 Issue 1.0

Figure 8.12. The Control Suite packages are also useful
Figure 8.13. Click in "File -> New VI"
To see that the MakerHub LINX package installed correctly, first run LabVIEW 2014 (restart if
necessary), and click in "File -> New VI".
15/09/2016 Page 69 of 84 Issue 1.0

Figure 8.14. Find the MakerHub palette on the block diagram.
On the block diagram, search through the functions and find the MakerHub palettes (LINX and
Toolbox).
Next the RPi must be configured to be allow it to run LabVIEW programs; this will be covered in the
next section.
15/09/2016 Page 70 of 84 Issue 1.0

9 Configure the RPi to use LINX

In this section, the RPi is configured to use LINX. To gain an understanding of what is happening at a
hardware level, have a look at the Local I/O sections at this link.
Note that some of the steps in this section can take 60 seconds or more, in which it may appear that
the installation is 'hanged', so the user should be patient. Don't cancel or abort any steps unless you are
sure that there is indeed a problem with the installation. Note also that the steps may differ slightly in
your case.
To begin, run LabVIEW 2014, and go to Tools->MakerHub->LINX->LINX Target Configuration.
Figure 9.1. Go to Tools->MakerHub->LINX->LINX Target Configuration
15/09/2016 Page 71 of 84 Issue 1.0

Figure 9.2. Enter RPi IP address, username and password (default = raspberry), and click Connect
Figure 9.3. Click OK when the message "Successfully connected to the target" appears
15/09/2016 Page 72 of 84 Issue 1.0

Figure 9.4. The message "Target configuration updated" appears. Click "Target Info"
Figure 9.5. Click "Install Software"
15/09/2016 Page 73 of 84 Issue 1.0

Figure 9.6. Click the Install button to continue
Figure 9.7. Click the "Expand Partition" option if it appears
15/09/2016 Page 74 of 84 Issue 1.0

Figure 9.8. Wait during the "Rebooting Target..." phase
Figure 9.9. If the Enable UART option appears, choose whether to enable it or not.
15/09/2016 Page 75 of 84 Issue 1.0

Figure 9.10. Click Continue when all issues are resolved
Figure 9.11. Wait while the package index is updated
15/09/2016 Page 76 of 84 Issue 1.0

Figure 9.12. Wait during the "Installing LabVIEW..." phase
Figure 9.13. Wait during the "Rebooting Target..." phase
15/09/2016 Page 77 of 84 Issue 1.0

Figure 9.14. Click Launch Example when LINX is installed
Figure 9.15. The example project launches.
Open RPi2 Main.vi when the example project launches.
15/09/2016 Page 78 of 84 Issue 1.0

Figure 9.16. Connect up LED/resistor and click the Run arrow
Before running the code, connect an LED and 220ohm series resistor to pin 7 (see also Figure 9.20).
Click the Run arrow to download the code to the RPi.
15/09/2016 Page 79 of 84 Issue 1.0

Figure 9.17. The code is deployed...
Figure 9.18. Click Close when the code is fully downloaded. Optionally, also check "Close on successful completion"
15/09/2016 Page 80 of 84 Issue 1.0

Figure 9.19. Click the LED button to turn the LED on
15/09/2016 Page 81 of 84 Issue 1.0

Figure 9.20. The LED will light if everything is installed and deployed correctly
15/09/2016 Page 82 of 84 Issue 1.0

10 Activating LabVIEW 2014 at a Later Date

In this document, it has been assumed that the user already has the required serial code for
activation. However if you install the NI software for evaluation purposes and get a code at a later date,
you can activate the software as follows. First, run the NI License Manager (Go to Programs->National
Instruments->NI License Manager).
Figure 10.1. Run the NI License Manager
15/09/2016 Page 83 of 84 Issue 1.0

Use your code to activate the following modules under LabVIEW 2014 SP1:
 Home Edition
 Control Design and Simulation Module 2014
 MathScript RT Module
Figure 10.2. Activate the required modules
15/09/2016 Page 84 of 84 Issue 1.0

Install Guide For RPi+LabVIEW+MakerHub

Uploaded by

Copyright:

Available Formats

You might also like

Install Guide For RPi+LabVIEW+MakerHub

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Install Guide For RPi+LabVIEW+MakerHub

Uploaded by

Copyright:

Available Formats

Install Guide for Raspberry Pi,

LabVIEW and MakerHub

Revision: Issue 1.0

Author: Derek Murray

15/09/2016 Page 2 of 84 Issue 1.0

1.1 Required Downloads

Figure 1.1. Go to ni.com and click on MY ACCOUNT

3. Click on "create a new user account", and follow the instructions:

15/09/2016 Page 3 of 84 Issue 1.0

Figure 1.2. Click on create a new user account

15/09/2016 Page 4 of 84 Issue 1.0

Figure 1.4. Download the Home Bundle

Figure 1.5. Scroll down to find the additional modules

Download these three packages as well.

15/09/2016 Page 5 of 84 Issue 1.0

Figure 1.6. Download the JKI VIPM

The version to download is "putty.exe":

15/09/2016 Page 6 of 84 Issue 1.0

Figure 1.7. Download putty.exe

Save to a suitable location, e.g. C:/PuTTY.

Figure 1.8. Save to C:/PuTTY

15/09/2016 Page 7 of 84 Issue 1.0

Figure 1.9. Create a desktop shortcut for putty.exe

1.2 Steps Covered in this Guide

15/09/2016 Page 8 of 84 Issue 1.0

2 Set Up the RPi

Figure 2.1. Insert the MicroSD card

Figure 2.2. Connect LAN cable and power cable

15/09/2016 Page 9 of 84 Issue 1.0

Figure 2.3. Find the RPi IP address

15/09/2016 Page 10 of 84 Issue 1.0

Figure 2.5. Accept the Security Alert by clicking Yes

Figure 2.6. Log in to the RPi

15/09/2016 Page 11 of 84 Issue 1.0

Figure 2.7. Update the RPi system

15/09/2016 Page 12 of 84 Issue 1.0

Some other useful commands to try are:

Figure 2.8. Type commands such as uname and os-release

15/09/2016 Page 13 of 84 Issue 1.0

3 Install LabVIEW 2014 Home Bundle

Figure 3.1. Right-click and select "Run as Administrator"

Figure 3.2. Click OK

Figure 3.3. Click Unzip to extract the package contents

15/09/2016 Page 14 of 84 Issue 1.0

Figure 3.4. Click OK to finish the unzip procedure

The install dialog should appear automatically:

Figure 3.5. Click Next to continue

15/09/2016 Page 15 of 84 Issue 1.0

Figure 3.6. Enter a user name

15/09/2016 Page 16 of 84 Issue 1.0

Figure 3.8. Choose destination directory, and click Next

Figure 3.9. Click Next to continue

15/09/2016 Page 17 of 84 Issue 1.0

Figure 3.10. Click Next to continue

Figure 3.11. Click Next to continue

15/09/2016 Page 18 of 84 Issue 1.0

Figure 3.12. Accept the license agreements
