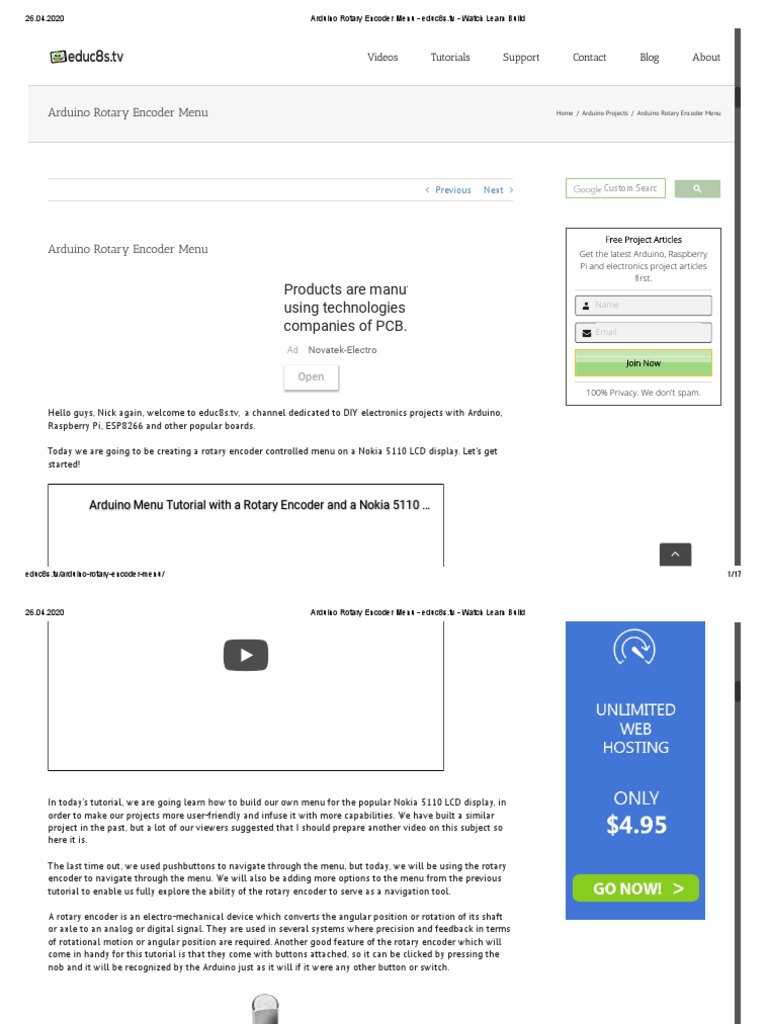

Hello guys, Nick again, welcome to educ8s.tv, a channel dedicated to DIY electronics projects with Arduino,
Raspberry Pi, ESP8266 and other popular boards.
Today we are going to be creating a rotary encoder controlled menu on a Nokia 5110 LCD display. Let’s get
started!
Arduino Menu Tutorial with a Rotary Encoder and a Nokia 5110 …

educ8s.tv/ardu no-rotary-encoder-menu/ 1/17
26.04.2020 Ardu no Rotary Encoder Menu - educ8s.tv - Watch Learn Bu ld
In today’s tutorial, we are going learn how to build our own menu for the popular Nokia 5110 LCD display, in
order to make our projects more user-friendly and infuse it with more capabilities. We have built a similar
project in the past, but a lot of our viewers suggested that I should prepare another video on this subject so
here it is.
The last time out, we used pushbuttons to navigate through the menu, but today, we will be using the rotary
encoder to navigate through the menu. We will also be adding more options to the menu from the previous
tutorial to enable us fully explore the ability of the rotary encoder to serve as a navigation tool.
A rotary encoder is an electro-mechanical device which converts the angular position or rotation of its shaft
or axle to an analog or digital signal. They are used in several systems where precision and feedback in terms
of rotational motion or angular position are required. Another good feature of the rotary encoder which will
come in handy for this tutorial is that they come with buttons attached, so it can be clicked by pressing the
nob and it will be recognized by the Arduino just as it will if it were any other button or switch.
Rotary Encoder

To demonstrate the Arduino rotary encoder menu, we will be creating a simple menu which is displayed on
the Nokia 5110 LCD display when the project is powered and with the rotary encoder, we will be able to
navigate up or down the menu, selecting a menu option by pressing the rotary encoder button. The menu has
6 items, and as we navigate and select each item, the display will change accordingly. Sound’s exciting then
let’s build.
Required Components and Where to Buy
The following components/parts are required to build this project and they can be bought through the link in
front of each component.
1. Arduino Uno https://educ8s.tv/part/ArduinoUno
2. Rotary Encoder https://educ8s.tv/part/RotaryEncoder
3. Nokia 5110 LCD https://educ8s.tv/part/NOKIA5110
4. Small Breadboard https://educ8s.tv/part/SmallBreadboard
5. Jumper Wires https://educ8s.tv/part/JumperWires
6. Wires https://educ8s.tv/part/Wires
7. Power Bank https://educ8s.tv/part/Powerbank
Full disclosure: All of the links above are af liate links. I get a small percentage of each sale they generate.
Thank you for your support!
Schematics
Connect the components/parts as shown in the schematics below.

Schematics
To simplify the schematics further, the pin connection between the components is described below.
LCD Arduino
Reset D3
pin2 D4
pin3 D5
pin4 D11
pin5 D13 
VCC 3.3v
Backlight D7
GND GND
Rotary Encoder Arduino
GND GND
VCC VCC
SW A2
DT A1
CLK A0
Connect the components as described and double check your connections to make sure there is no mistake.
Code
The code of the project is complex but I will do my best to explain it. You will get a basic understanding of
how the code works but to totally grab it, I will advise you try creating your own menu and see exactly how it
works.
To implement this project, we will be using 4 libraries. Two out of the four libraries will be used for the
display, and the remaining two will be used to interface with the rotary encoder.
LIBRARIES
Adafruit GFX: https://github.com/adafruit/Adafruit-GFX-Library
Nokia 5110: https://github.com/adafruit/Adafruit-PCD8544-Nokia-5110-LCD-library
Encoder Library: https://github.com/0xPIT/encoder/tree/arduino
TimerOne library: https://github.com/PaulStoffregen/TimerOne 

To brie y explain the code;
The rst thing we do is include the libraries we will be using for the project.
//////////////////////////////////////////////
// Arduino Rotary Encoder Menu //
// v1.0 //
// http://www.educ8s.tv //
/////////////////////////////////////////////
#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>
#include <ClickEncoder.h>
#include <TimerOne.h>
Next, we create variables to hold the menus after which we create an object of the click encoder and the LCD
library.
int menuitem = 1;
int frame = 1;
int page = 1;
int lastMenuItem = 1;
String menuItem1 = "Contrast";

String menuItem2 = "Volume";
String menuItem3 = "Language";
String menuItem4 = "Difficulty";
String menuItem5 = "Light: ON";
String menuItem6 = "Reset";
boolean backlight = true;

int contrast=60;
int volume = 50;
String language[3] = { "EN", "ES", "EL" };

int selectedLanguage = 0;
String difficulty[2] = { "EASY", "HARD" };

int selectedDifficulty = 0;
boolean up = false;
boolean down = false;

boolean middle = false;
ClickEncoder *encoder;
int16_t last, value;
Adafruit_PCD8544 display = Adafruit_PCD8544( 5, 4, 3); //Download the latest Adafruit Library in order to use this constructor
Next, we write the void setup function. The void setup function contains the code used to initialize our screen
and the rotary encoder setting it to start at zero. We also created an interrupt routine which will be used to
detect button press during within any of the menu pages.
void setup() {
pinMode(7,OUTPUT);
turnBacklightOn();
encoder = new ClickEncoder(A1, A0, A2);

encoder->setAccelerationEnabled(false);
display.begin();
display.clearDisplay();
setContrast();
Timer1.initialize(1000);
Timer1.attachInterrupt(timerIsr);
last = encoder->getValue();
}
With the void setup() all done, we proceed to write the void loop function which is the one with some level of
complexity. The function basically creates the menu and uses the variables created initially to keep track of
the previous, current and next state so when the rotary encoder is turned, it knows the right menu to display.
The menu selection part of the code is also handled by a routine within the void loop() function.
The complete code for this project (Arduino Rotary Encoder Menu.) can be downloaded by clicking the link
below.
CODE OF THE PROJECT

 DOWNLOAD


Upload the code to your Arduino board and you should see the display come up as shown in the image below.
Demo
That’s it for this tutorial guys, thanks for watching/reading. As usual, feel free to reach out to me via
comments should you get stuck with any of the steps, I will be glad to help. Also by subscribing, you get
noti ed by youtube whenever we post a new tutorial video so please, subscribe.
——————–
