Exploded View & Part List

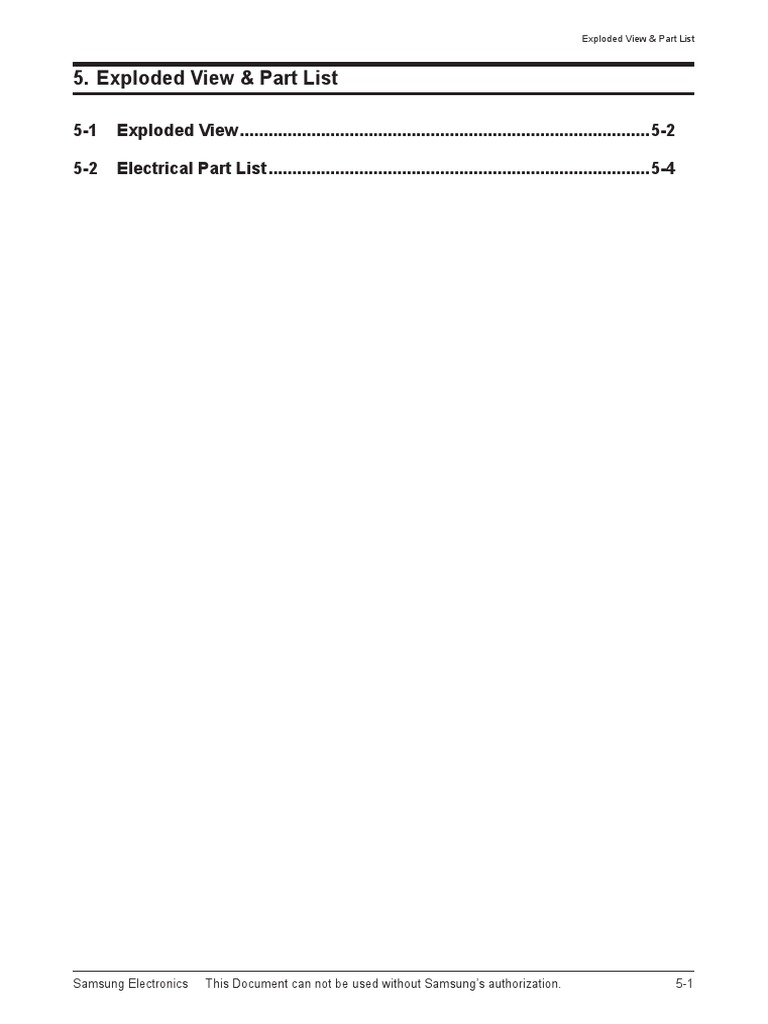

5. Exploded View & Part List

5-1 Exploded View.......................................................................................5-2

5-2 Electrical Part List.................................................................................5-4

Samsung Electronics This Document can not be used without Samsung’s authorization. 5-1
Exploded View & Part List

5-1 Exploded View

AH383
AM020
AC085
AB145

SPRIN

PS100
AC020

AC080
AL008

AK120
AK170
AL210

AC311
AS285
AL035

AK061

AC320
AK290
AC010

AK420
AC010

AS261

AC145
AC227

5-2 This Document can not be used without Samsung’s authorization. Samsung Electronics
 Exploded View & Part List

 Part List

Loc. No. Part No. Description;Specification Q’ty SNA Remark

AB145 AH61-02657A BRACKET-DUCT;MAX-A66,SPT T0.6,T0.6,W154 1 SNA

AC010 AH64-04580E CABINET FRONT;MAX-DA60,PMMA CLEAR,T28,W4 1 SNA

AC010 AH97-02661E ASSY CABINET-FRONT;MAX-DA60,-,ASSY,- 1 SA

AC020 AH64-04598E CABINET-BOTTOM;MAX-DA60,SECC T0.8,T87,W3 1 SNA

AC080 AH64-04593A CABINET-TOP;MAX-DA60,ABS,T141,W322,L357, 1 SA

AC085 6502-001048 CABLE CLAMP;DACW130,-,T1.0,PE,BLK 1 SA

AC145 AH67-00513A CAP-VOLUME KNOB;MAX-DA60,ABS,T15,W44,L44 1 SA

AC227 AH63-01642B COVER-DOOR CD;MAX-DA60,ABS,T20,W39,L174, 1 SA

AC311 AH63-01646A COVER-TOP CD;MAX-DA60,ABS,T13,W350,L356, 1 SA

AC320 AH63-01643A COVER-USB;MAX-DA60,ABS,T20,W39,L174,-,-, 1 SA

AH383 AH61-02588A HOLDER-SMPS;MAX-DA60,ABS V0,T40,W120,L17 1 SA

AK061 AH64-04596A KNOB-CD OPEN;MAX-DA60,ABS,T24,W34,L34,-, 1 SA

AK120 AH64-04595A KNOB-ECHO;MAX-DA60,ABS,T18,W42.5,L46,-,- 1 SA

AK170 AH64-04594A KNOB-FUNCTION;MAX-DA60,ABS,T17.5,W64,L84 1 SA

AK290 AH64-04581A KNOB-POWER;MAX-DA60,ABS CLEAR,T58,W58,L3 1 SA

AK420 AH64-04597A KNOB-VOLUME;MAX-DA60,ABS,T31,W54,L54,-,- 1 SA

AL008 AH67-00511A LENS-CAP VOLUME;MAX-DA60,ABS,-,110,T24,- 1 SA

AL035 AH67-00512A LENS-DECO;MAX-DA60,ABS,-,110,T24,-,- 1 SA

AL210 AH67-00510A LENS-VOLUME;MAX-DA60,PMMA CLEAR,BLACK,99 1 SA

AM020 AH31-00044A MOTOR FAN;CD71HL100040,RDL7015S1,0.16A,- 1 SA

AS261 AH61-02527B SPRING ETC-DOOR CD;MAX-DA60,SUS 0.6,0.6, 1 SA

AS285 AH61-02527C SPRING ETC-DOOR USB;MAX-DA60,SUS T0.5,-, 1 SA

PS100 AH63-01654A CUSHION-BOTTOM;MAX-DA60,PS,T39,W133,L170 4 SNA

SPRIN AH61-02527D SPRING ETC-GROUND;MAX-DA60,SUS T0.3,-,-, 1 SA

MECHA AH97-02740A ASSY-MECHA;MAX-A60,TRAY TYPE(NO DE,MOLD, 1 SNA

PCB-FRONT AH92-02826A ASSY PCB FRONT;-,MAX-DA66,KOR FRONT,- 1 SA

PCB-MAIN AH92-02896A ASSY PCB MAIN;-,MAX-A65T/RCL,-,- 1 SA

PCB-SMPS AH44-00175B SMPS;MAX-DA66,-,SMPS,-,110/120V,50/ 1 SA

POWER-CORD AH39-00258U CBF-POWER CORD;MXK55V,-,EP2,125V,7A,1830 1 SA

A 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S 12 SA

B 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WHT),SW 12 SNA

C 6003-000278 SCREW-TAPTITE;BH,+,-,B,M3,L14,ZPC(WHT),S 4 SNA

D 6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT) 18 SNA

E 6002-000126 SCREW-TAPPING;FH,+,-,2S,M3,L10,ZPC(BLK), 2 SA

Samsung Electronics This Document can not be used without Samsung’s authorization. 5-3
Exploded View & Part List
5-2 Electrical Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
AH59-01937C SPEAKER SYSTEM;PS-A65,-,-,-,-,-,-,X 1 SA
AH81-03824F A/S PART-CUSHION;PS-FDA66,-,-,CUSHI 1 SNA
AH81-03830R A/S PART-L-FRONT SPK SYSTEM;PS-A65, 1 SA
AH81-03824C A/S PART-T/W UNIT;PS-FDA66,-,-,T/W 1 SA
AH81-03824D A/S PART-CABINET WOOD;PS-FDA66,-,-, 1 SNA
AH81-03824G A/S PART-F DUCT PAPER;PS-FDA66,PAPE 1 SNA
AH81-03824T A/S PART-WOOFER UNIT;PS-A65,-,-,WOO 1 SA
AH81-03824U A/S PART-SPK CORD-FLH;PS-FDA69,-,-, 1 SA
AH81-03824V A/S PART-SPK CORD-FLL;PS-FDA69,-,-, 1 SA
AH81-03825A A/S PART-F FRONT PANEL;PS-FDA66,HIP 1 SNA
AH81-03826A A/S PART-F TOP PANEL;PS-FDA66,HIPS, 1 SNA
AH81-03827A A/S PART-F WOOER RING;PS-FDA66,HIPS 1 SNA
AH81-03828A A/S PART-F DECO T/W;PS-FDA66,HIPS,- 1 SNA
AH81-03838B A/S PART-F GRILL;PS-FDA66,STEEL,-,F 1 SNA
AH81-03849A A/S PART-T/W CAVITY;PS-FDA66,HIPS,- 1 SNA
AH81-03830S A/S PART-R-FRONT SPK SYSTEM;PS-A65, 1 SA
AH81-03824C A/S PART-T/W UNIT;PS-FDA66,-,-,T/W 1 SA
AH81-03824D A/S PART-CABINET WOOD;PS-FDA66,-,-, 1 SNA
AH81-03824G A/S PART-F DUCT PAPER;PS-FDA66,PAPE 1 SNA
AH81-03824T A/S PART-WOOFER UNIT;PS-A65,-,-,WOO 1 SA
AH81-03824W A/S PART-SPK CORD-FRH;PS-FDA69,-,-, 1 SA
AH81-03824X A/S PART-SPK CORD-FRL;PS-FDA69,-,-, 1 SA
AH81-03825A A/S PART-F FRONT PANEL;PS-FDA66,HIP 1 SNA
AH81-03826A A/S PART-F TOP PANEL;PS-FDA66,HIPS, 1 SNA
AH81-03827A A/S PART-F WOOER RING;PS-FDA66,HIPS 1 SNA
AH81-03828A A/S PART-F DECO T/W;PS-FDA66,HIPS,- 1 SNA
AH81-03838B A/S PART-F GRILL;PS-FDA66,STEEL,-,F 1 SNA
AH81-03849A A/S PART-T/W CAVITY;PS-FDA66,HIPS,- 1 SNA
AH92-02826A ASSY PCB FRONT;-,MAX-DA66,KOR FRON 1 SA
AUX1 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
BD8 3301-001345 BEAD-SMD;600ohm,2012,300mA,TP,679oh 1 SA
BD9 3301-001345 BEAD-SMD;600ohm,2012,300mA,TP,679oh 1 SA
C1 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C10 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C18 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
C19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C20 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
C21 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5 1 SA
C22 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
C23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C24 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 1 SA
C25 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
C26 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
C27 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5 1 SA
C28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C29 2401-001508 C-AL;47uF,20%,16V,GP,TP,6.3x5,5 1 SA
C4 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
C5 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
C6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
C7 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C8 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
C9 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
5-4 This Document can not be used without Samsung’s authorization.
Loc. No. Part No. Description;Specification Q’ty SNA Remark
CON1 3708-001212 CONNECTOR-FPC/FFC/PIC;27P,1.25MM,ST 1 SA
CON4 AH39-00982A WIRE HARNESS;MAX-DA66/67/69 MAX-A66 1 SA
D1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D4 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D5 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D6 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D7 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D8 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
FRONT PCB AH41-01115A PCB-FRONT;MAX-DA66,KH,1,0,1.6T,-,-, 0.5 SNA
HOLDER-VFD AH61-02586A HOLDER-VFD;MAX-DA60,ABS,T21.5,W60,L 1 SA
HP1 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
IC1 1003-002129 IC-VFD;PT6315A,LQFP,44P,10x10mm,-,- 1 SA
IC2 0609-001189 MODULE REMOCON;HORIZONTAL,16.4MM,TR 1 SA
IC3 1204-002731 IC-AUDIO PROCESSOR;R2A15906SP,SOP,2 1 SA
J1 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J10 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J11 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J12 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J13 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J14 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J15 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J16 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J17 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J18 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J19 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J2 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J20 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J21 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J22 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J23 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J24 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J25 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J26 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J27 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J28 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J29 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J3 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J31 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J32 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J33 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J34 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J35 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J36 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J37 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J38 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J39 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J4 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J41 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J42 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J43 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J44 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J45 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J46 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J47 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
Samsung Electronics

Loc. No. Part No. Description;Specification Q’ty SNA Remark
J48 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J49 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J5 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J50 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J51 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J52 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J53 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J54 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J55 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J56 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J57 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J62 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J63 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J8 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
J9 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC10 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
JC11 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
JC14 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
JC15 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 SA
JC16 2301-000387 C-FILM,LEAD-PEF;150nF,10%,50V,TP,12 1 SA
JC17 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
JC18 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
JC19 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608 1 SA
JC2 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
JC20 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
JC21 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
JC22 2404-000227 C-TA,CHIP;4.7##F,10%,10V,-,TP,3216 1 SA
JC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC24 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
JC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC26 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608 1 SA
JC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC29 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
JC3 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
JC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
JC31 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 SA
JC4 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
JR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
JR11 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
JR12 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA
JR13 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR14 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR15 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
JR17 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
JR18 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
JR19 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608 1 SA
JR2 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
JR20 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR21 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR22 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
JR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
JR4 3301-001345 BEAD-SMD;600ohm,2012,300mA,TP,679oh 1 SA
JR7 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
Samsung Electronics This Document can not be used without Samsung’s authorization.
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
L3 2703-002646 INDUCTOR-SMD;10uH,20%,2012 1 SA
L4 2703-002646 INDUCTOR-SMD;10uH,20%,2012 1 SA
LED1 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED2 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED3 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED4 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED5 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
MIC1 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
MIC2 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
Q1 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22 1 SA
Q2 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22 1 SA
Q3 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22 1 SA
Q4 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22 1 SA
Q5 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO 1 SA
R1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R10 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
R11 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
R12 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
R13 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
R14 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
R15 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
R16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R18 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R19 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R20 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
R21 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
R22 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA
R23 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
R24 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA
R25 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
R26 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R27 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608 1 SA
R28 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R29 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R30 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R31 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R32 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R33 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R34 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R35 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R36 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R37 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R38 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R39 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R40 2007-000101 R-CHIP;82Kohm,5%,1/10W,TP,1608 1 SA
R43 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
R44 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608 1 SA
R45 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
R46 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R8 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
SPRING-GROUND AH61-02527D SPRING ETC-GROUND;MAX-DA60,SUS T0.3 1 SA
5-5
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
SW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW14 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
USBJ1 3722-002313 JACK-USB;4P/1C,AU30U,BLK,STRAIGHT,A 1 SA
UVR1 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm 1 SA
VFD AH07-00222B VF DISPLAY;-,MAX-DA65/66/A65/66,68* 1 SA
VFD FILTER AH63-01772A FILTER-VFD;MAX-DA60,PC,0.5,40,30,RE 1 SA
AH99-10013V ASSY AUTO INSERT-PCB-FRONT;-,MAX-DA 1 SNA
AH97-02033E ASSY POWER-CORD;HT-Q70/80/40/45,-,1 1 SNA
3301-000132 CORE-FERRITE;AC,28.8x19.3x7.5mm,140 1 SA
AH39-00258U CBF-POWER CORD;MXK55V,-,EP2,125V,7A 1 SA
AH97-02695E ASSY-MAIN OTHER;MAX-A65,XAX,-,- 1 SNA
AH63-01301A SHEET-SET;HT-Q40,-,-,-,-,-,- 1 SNA
AH68-01929B LABEL RATING;ALL,XTL,ART PAPER,-,W3 1.05 SNA
AH68-01929D LABEL SHIPPING;HT-Q9,ALL,ART PAPER, 1.05 SNA
AH68-01984A MANUAL-CLEANING;HT-X200,-,-,-,ART P 1 SNA
AH68-02086N LABEL-POP;MAX-A65,BASIC,RAINBOW SHE 1 SA
AH69-02261A CUSHION-LEFT;MAX-DA60,EPS,T500,W200 1 SNA
AH69-02261B CUSHION-RIGHT;MAX-DA60,EPS,T500,W20 1 SNA
AH97-02698E ASSY ACCESSORY;MAX-A65,-,XAX,- 1 SNA
6801-001668 CARD-WARRANTY;MEX,XAX,SPN,SNOWWHITH 1 SA
6902-000385 BAG PE;LDPE,T0.03,W250,L350,TRP,8,1 1 SA
AH42-00021A ANT FM T;T18011F-1,75 ohm,1800mm 1 SA
AH68-01929E LABEL-SERIAL;MM-X7,XAX,ART PAPER,-, 1.05 SNA
AH68-02058L MANUAL USERS;MAX-A65/A66,XAH/XAX/XA 1 SA
AH68-40371A CARD-RESISTER;AUDIO,-,-,-,MOJO,-,-, 1 SNA
AH68-50254B LABEL-SERIAL;ART PAPER,T0.1,L10,W45 1.05 SNA
AH81-02286C A/S-EYEGLASS CLOTH;HT-TXQ120,POLY-B 1 SNA
AH92-02896A ASSY PCB MAIN;-,MAX-A65T/RCL,-,- 1 SA
A 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
A1 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
AC1 2203-006391 C-CER,CHIP;1000NF,10%,10V,X7R,-,160 1 SA
AC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC11 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC12 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
AC13 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC14 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC15 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC16 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC17 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC20 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
AC21 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
5-6 This Document can not be used without Samsung’s authorization.
Loc. No. Part No. Description;Specification Q’ty SNA Remark
AC24 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA
AC26 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
AC27 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
AC3 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AC4 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC6 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
AC7 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
AC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC9 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2.5 1 SA
AD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
AD2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
ADC1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
AE1 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA
AE2 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA
AIC3 1002-001558 IC-A/D CONVERTER;AK5367,24,VSOP,30P 1 SA
AJ1 3722-002042 JACK-PIN;2P/2C,NI,WHT/RED,ANGLE 1 SA
AL1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
AL3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
AQ101 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
AQ102 0501-000422 TR-SMALL SIGNAL;KTA1273,PNP,-30V,-3 1 SA
AQ103 0501-000422 TR-SMALL SIGNAL;KTA1273,PNP,-30V,-3 1 SA
AQ115 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
AR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR101 2007-000598 R-CHIP;22ohm,5%,1/4W,TP,3216 1 SA
AR102 2007-000598 R-CHIP;22ohm,5%,1/4W,TP,3216 1 SA
AR103 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR104 2007-000598 R-CHIP;22ohm,5%,1/4W,TP,3216 1 SA
AR104A 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
AR105 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
AR106 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
AR107 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR13 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR14 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR15 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR16 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR17 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR18 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR19 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR20 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR24 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
AR25 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR26 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR27 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR29 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR32 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
AR33 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
AR38 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
AR39 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
AR40 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR41 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
AR42 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
AR43 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
Samsung Electronics

Loc. No. Part No. Description;Specification Q’ty SNA Remark
AR44 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
AR45 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
AR46 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR5 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR6 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR7 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
B 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
B1 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
C 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
C1 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 SA
C15 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,160 1 SA
C15A 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
C16 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,160 1 SA
C16A 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
C19 2203-001083 C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1 1 SA
C1A 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
C2 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 SA
C20 2203-001083 C-CER,CHIP;0.0050nF,0.1pF,50V,NP0,1 1 SA
C3 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 SA
C30 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C31 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C32 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C33 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C34 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C35 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C36 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C37 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C38 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
C4 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
C5 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm 1 SA
C6 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C8 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C801 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
C802 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C803 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C805B 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C806 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C807 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C808 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
C809 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C810 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C811 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C812 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 SA
C813 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C814 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C815 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C816 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C819 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C819A 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C820 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C821 2401-000243 C-AL;100uF,20%,10V,GP,TP,6.3x5,5 1 SA
C822 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C825 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
C826 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
C827 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C828 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C829 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
Samsung Electronics This Document can not be used without Samsung’s authorization.
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
C830A 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C831 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C832 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C833 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
C834 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
C835 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C836 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm 1 SA
C837 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm 1 SA
C840 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,160 1 SA
C841 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,160 1 SA
C845 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C846 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C847 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
C848 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C849 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C850 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C851 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C852 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
C853 2401-003010 C-AL;1000uF,20%,6.3V,GP,TP,8x11.5mm 1 SA
C854 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
C855 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C856 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C857 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C858 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C863 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
C864 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C865 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
C866 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C867 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
C9 2401-002112 C-AL;10uF,20%,16V,GP,TP,4x7,2.5 1 SA
C9A 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
CC1 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
CC3 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
CC5 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
CN106 3711-006759 HEADER-BOARD TO BOARD;NOWALL,9P,1R, 1 SA
CN108 3711-000820 HEADER-BOARD TO CABLE;BOX,2P,1R,2.5 1 SNA
CN801 3708-001765 CONNECTOR-FPC/FFC/PIC;24P,0.5mm,SMD 1 SA
CN803 3711-000483 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm 1 SA
CON2 3711-006760 HEADER-BOARD TO BOARD;NOWALL,15P,1R 1 SA
CON802 3708-002023 CONNECTOR-FPC/FFC/PIC;6P,1MM,SMD-S, 1 SA
CQ1 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22 1 SA
CQ2 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
CQ3 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
CR4 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
CR6 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
CR7 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
D 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
D1 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
D1A 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D4 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
D5 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
DBD1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
DBD2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
DBD3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
DBD6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
DC1 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
DC10 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
5-7
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
DC11 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
DC12 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC13 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC14 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC16 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 1 SA
DC17 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
DC18 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC19 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC2 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
DC20 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 1 SA
DC21 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC22 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC23 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC25 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC26 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC27 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC28 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC29 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC3 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA
DC30 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC31 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 1 SA
DC32 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 1 SA
DC33 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC34 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC35 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC36 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC37 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC4 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
DC8 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
DC9 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
DD10 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW 1 SA
DD11 0403-001064 DIODE-ZENER;RLZ5.1B,4.94-5.2V,500mW 1 SA
DD12 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
DD13 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
DIC4 1204-002627 IC-MODULATOR;PS9829B,LQFP,100P,14x1 1 SA
DIC5 AH14-10004R IC-CMOS LOGIC;74HCU04,-,SOP,14P,-,- 1 SA
DQ10 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
DQ11 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO 1 SA
DR1 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
DR12 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR13 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR14 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR15 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR18 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR19 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
DR2 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
DR20 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR21 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
DR22 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DR23 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DR24 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DR25 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DR26 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR27 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR28 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR29 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
5-8 This Document can not be used without Samsung’s authorization.
Loc. No. Part No. Description;Specification Q’ty SNA Remark
DR3 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR32 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR33 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR34 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR35 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR40 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
DR41 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
DR5 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
DR6 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
DR7 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR8 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
DR9 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
E 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
E1 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
EC1 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
EC2 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
EC3 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
EC4 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
EC5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
EC6 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
EC7 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
ER1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
ER2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
ER3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
F 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
F1 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
HC1 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
HC1L 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC1R 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC2 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
HC2L 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC2R 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC3L 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC3R 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC6L 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SA
HC6R 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SA
HC7L 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SA
HC7R 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SA
HC8L 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
HC8R 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
HC9L 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HC9R 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
HEAT-SINK AMP AH62-00189D HEAT SINK;MAX-DA60,AL,T2,W50,L140,- 1 SNA
HIC 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,1 1 SA
HL1L 2703-000404 INDUCTOR-SMD;220uH,10%,3225 1 SA
HL1R 2703-000404 INDUCTOR-SMD;220uH,10%,3225 1 SA
HOLDER-IC AH61-02614A HOLDER-IC;MAX-DA60,PBT,T8,W20,L135, 1 SA
HQ1 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22 1 SA
HQ2 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
HQ3 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,S 1 SA
HQ4 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,S 1 SA
HR10L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
HR10R 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
HR2L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
HR2R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
HR39 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
HR40 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
Samsung Electronics

Loc. No. Part No. Description;Specification Q’ty SNA Remark
HR41 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
HR42 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
HR43 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
HR44 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
HR45 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
HR46 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
HR4L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
HR4R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
HR5L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
HR5R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
HR6L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
HR6R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
HR7L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
HR7R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
HR8L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
HR8R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
HR9L 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
HR9R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
IC1 0904-002343 IC-DSP;LC786921W-E,SQFP80,80P,12x12 1 SA
IC2 1003-001978 IC-MOTOR DRIVER;AM5766,HSOP28H,28P, 1 SA
IC3 AH11-00266A IC MASK ROM;-,MAX-A25/24##MASK USB 1 SA
IC4 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,1 1 SA
KB01 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
KB02 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
KC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
KC2 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
KC3 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
KC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
KC5 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
KC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
KC7 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5 1 SA
KC8 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
KIC1 1002-001513 IC-A/D CONVERTER;AK5358AET,24,TSSOP 1 SA
KR10 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
KR11 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
KR12 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
KR4 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
KR7 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
KR8 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
KR9 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
L801 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
L802 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
LC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC10 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
LC11 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
LC12 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC13 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC14 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC16 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
LC17 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
LC18 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
LC19 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
LC2 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
LC20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC21 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
LC22 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC23 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
Samsung Electronics This Document can not be used without Samsung’s authorization.
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
LC25 2401-004106 C-AL;680uF,20%,50V,-,BK,12.5 x 35,5 1 SA
LC26 2401-004106 C-AL;680uF,20%,50V,-,BK,12.5 x 35,5 1 SA
LC27 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
LC28 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
LC29 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC3 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
LC30 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC31 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC32 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC33 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC34 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC35 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC36 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
LC37 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC38 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC39 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC4 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
LC40 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC5 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5mm 1 SA
LC6 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
LC7 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
LC8 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
LC9 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
LIC 1201-002673 IC-AUDIO AMP;TAS5352DDV,HTSSOP,44P, 1 SA
LL1 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
LL2 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
LL3 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
LL4 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
LR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
LR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
LR11 2007-000034 R-CHIP;1ohm,5%,1/4W,TP,3216 1 SA
LR12 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
LR13 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
LR14 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
LR15 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
LR16 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA
LR17 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA
LR18 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
LR19 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
LR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
LR20 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
LR21 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
LR26 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
LR27 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
LR28 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
LR29 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
LR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
LR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
LR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
LR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
LR7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
LR8 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
LR9 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
MAIN PCB AH41-01118A PCB-MAIN PCB;MAX-A66,KH,2,0,-,163* 1 SNA
MC99 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 1 SA
ML103 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML104 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML105 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
5-9
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
ML106 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
OPERTION2 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
OPERTION3 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5 1 SA
OPTION1 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA
PB1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB14 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB15 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB16 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PB4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PC10 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
PC3 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
PC31 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5 1 SA
PC33 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
PC9 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5 1 SA
PD1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
PQ1 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22 1 SA
PQ2 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
PR1 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
PR2 2003-002288 R-METAL OXIDE(S);2.2Kohm,5%,2W,AF,T 1 SA
PR5 2007-000401 R-CHIP;150ohm,5%,1/8W,TP,2012 1 SA
Q801 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW, 1 SA
Q802 0501-000422 TR-SMALL SIGNAL;KTA1273,PNP,-30V,-3 1 SA
R01 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
R02 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R1 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
R10 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R11 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R12 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R13 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R14 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R15 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R16 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R18 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R18A 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R19 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R1A 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R2 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
R20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R21 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
R22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R28 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
R29 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
R29A 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R29B 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R3 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
R30 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
R30A 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R31 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
R31A 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R32A 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
5-10 This Document can not be used without Samsung’s authorization.
Loc. No. Part No. Description;Specification Q’ty SNA Remark
R33A 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R42 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
R44 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R5 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R6 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R7 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R8 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R801 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R803 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
R804 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
R805 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R806 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R807 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 1 SA
R809 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R809A 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R810 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608 1 SA
R811 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R812 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R813 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA
R814 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
R815 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 SA
R816 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
R817 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 SA
R818 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA
R819 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R820 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R821 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R822 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R823 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R830 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R831 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R832 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R833 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R834 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R835 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
R836 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
R837 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R838 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
R839 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R840 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R841 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
R842 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
R847 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R848 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R849 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R850 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R854 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R854A 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R856 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
R857 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA
R858 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R860 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608 1 SA
R9 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
RC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC10 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
RC11 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC12 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC13 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
Samsung Electronics

Loc. No. Part No. Description;Specification Q’ty SNA Remark
RC14 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC15 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
RC16 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
RC17 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
RC18 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
RC19 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
RC2 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
RC20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC21 2203-000787 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,201 1 SA
RC22 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC23 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC25 2401-004106 C-AL;680uF,20%,50V,-,BK,12.5 x 35,5 1 SA
RC26 2401-004106 C-AL;680uF,20%,50V,-,BK,12.5 x 35,5 1 SA
RC27 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
RC28 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
RC29 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC3 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
RC30 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC31 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC32 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC33 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC34 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC35 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC36 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC37 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC38 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC39 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC4 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5mm 1 SA
RC40 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC5 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
RC6 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
RC7 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
RC8 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
RC9 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,1608 1 SA
RIC 1201-002673 IC-AUDIO AMP;TAS5352DDV,HTSSOP,44P, 1 SA
RL1 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
RL2 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
RL3 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
RL4 AH27-00064A COIL FILTER;MAX-DT99,10UH,45mOHM,2, 1 SA
RR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR11 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
RR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR13 2007-000034 R-CHIP;1ohm,5%,1/4W,TP,3216 1 SA
RR14 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR15 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
RR16 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
RR17 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
RR18 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA
RR19 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA
RR2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR20 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
RR21 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
RR22 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
RR23 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012 1 SA
RR28 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
RR29 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
Samsung Electronics This Document can not be used without Samsung’s authorization.
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
RR3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
RR30 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
RR31 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 SA
RR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR8 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
RR9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
SCREW 6003-001375 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(WH 4 SNA
SP101 3716-001243 TERMINAL-BLOCK;-,12P,14mm,-,- 1 SA
TUNER AH40-00140A TUNER-MODULE;KST-MW004FV1-S55,MAX-D 1 SA
UB5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
UC1 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC10 2401-000243 C-AL;100uF,20%,10V,GP,TP,6.3x5,5 1 SA
UC11 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC12 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC13 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC16 2401-000243 C-AL;100uF,20%,10V,GP,TP,6.3x5,5 1 SA
UC17 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC2 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC20 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 SA
UC3 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC4 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
UC5 2401-003010 C-AL;1000uF,20%,6.3V,GP,TP,8x11.5mm 1 SA
UC6 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm 1 SA
UC7 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
UC8 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
UC9 2401-001931 C-AL;220nF,20%,50V,-,TP,4x7mm,5 1 SA
UCW0 3708-000448 CONNECTOR-FPC/FFC/PIC;6P,1.25MM,STR 1 SA
UCW1 3708-000249 CONNECTOR-FPC/FFC/PIC;27P,1.25mm,ST 1 SA
UCW2 3711-002810 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm 1 SA
UD1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD10 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD11 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD12 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD13 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD14 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD15 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD16 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD17 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD18 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD19 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD21 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD22 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD4 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD5 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD6 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD7 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD8 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UD9 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA, 1 SA
UIC1 0903-001565 IC-MICROCONTROLLER;LC87F5NC8AVU,QFP 1 SA
UQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
UR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR11 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
5-11
Exploded View & Part List

Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark

UR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR14 2007-000401 R-CHIP;150ohm,5%,1/8W,TP,2012 1 SA
UR15 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR16 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA

UR17 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

UR18 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
UR19 2007-001026 R-CHIP;560Kohm,5%,1/10W,TP,1608 1 SA
UR20 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR21 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

UR22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

UR23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
UR24 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
UR25 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR26 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

UR27 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

UR28 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR29 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR34 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR35 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR36 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR37 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 SA

UR38 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

UR4 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR40 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR41 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR42 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR44 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR45 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR46 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR9 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UX2 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3 1 SA

WC20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA

WC22 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
WC23 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
WC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
WR16 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA

WR17 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 1 SA

X11 2801-004354 CRYSTAL-UNIT;12.288MHZ,30PPM,ATS-49 1 SA
X801 2802-000211 RESONATOR-CERAMIC;16.93MHz,0.5%,TP, 1 SA
X802 2801-004164 CRYSTAL-SMD;12MHZ,50PPM,28-ACI,7PF, 1 SA
X-TAL1 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY 1 SA

AH99-10015C ASSY AUTO INSERT-PCB-MAIN;-,MAX-A65 1 SNA

AH97-02749A ASSY-MECHA KITTING;A66/A65/DA66/DA, 1 SNA

AH44-00175B SMPS;MAX-DA66,-,SMPS,-,110/120V,50/ 1 SA
AH61-02588A HOLDER-SMPS;MAX-DA60,ABS V0,T40,W12 1 SA

AH59-01959G REMOCON-ASSY;MM-A66/A65 NO RDS REMO 1 SA

AH69-02204E PACKING CASE;MAX-DA60,PAPER,-,-,W50 1.02 SNA

5-12 This Document can not be used without Samsung’s authorization. Samsung Electronics
