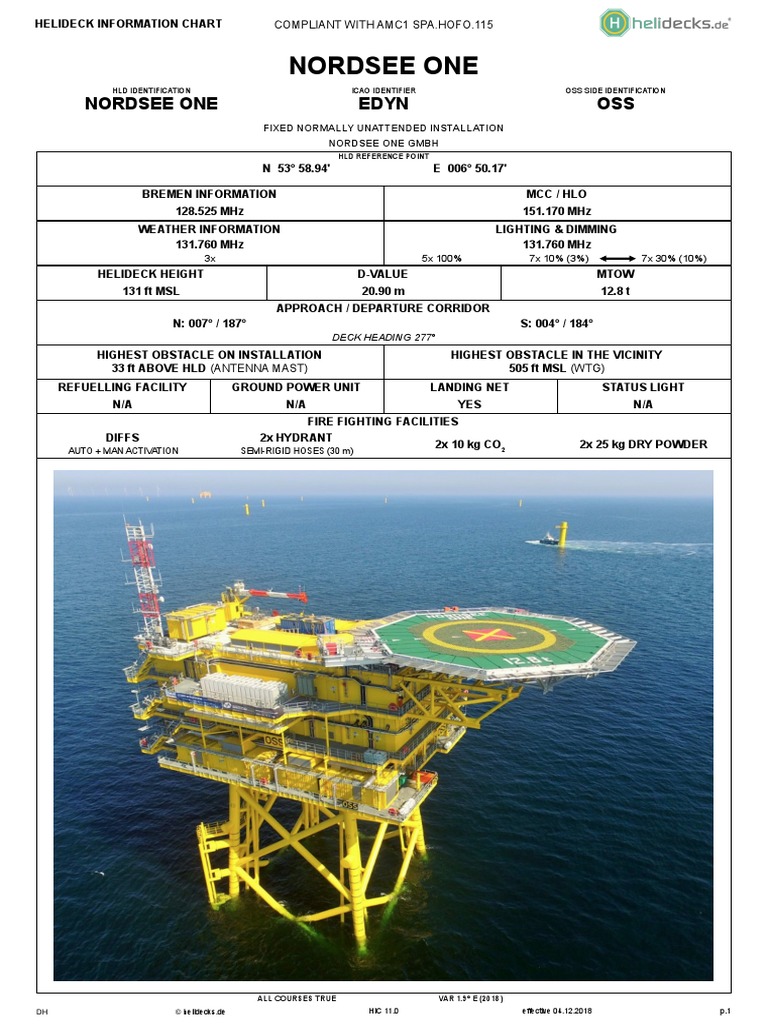

HELIDECK INFORMATION CHART COMPLIANT WITH AMC1 SPA.HOFO.

115

NORDSEE ONE
HLD IDENTIFICATION ICAO IDENTIFIER OSS SIDE IDENTIFICATION

NORDSEE ONE EDYN OSS

FIXED NORMALLY UNATTENDED INSTALLATION
NORDSEE ONE GMBH
HLD REFERENCE POINT
N 53° 58.94' E 006° 50.17'

BREMEN INFORMATION MCC / HLO

128.525 MHz 151.170 MHz
WEATHER INFORMATION LIGHTING & DIMMING
131.760 MHz 131.760 MHz
3x 5x 100% 7x 10% (3%) 7x 30% (10%)
HELIDECK HEIGHT D-VALUE MTOW
131 ft MSL 20.90 m 12.8 t
APPROACH / DEPARTURE CORRIDOR
N: 007° / 187° S: 004° / 184°
DECK HEADING 277°
HIGHEST OBSTACLE ON INSTALLATION HIGHEST OBSTACLE IN THE VICINITY
33 ft ABOVE HLD (ANTENNA MAST) 505 ft MSL (WTG)
REFUELLING FACILITY GROUND POWER UNIT LANDING NET STATUS LIGHT
N/A N/A YES N/A
FIRE FIGHTING FACILITIES
DIFFS 2x HYDRANT
2x 10 kg CO2 2x 25 kg DRY POWDER
AUTO + MAN ACTIVATION SEMI-RIGID HOSES (30 m)

ALL COURSES TRUE VAR 1.9° E (2018)

DH © helidecks.de HIC 11.0 effective 04.12.2018 p.1
HELIDECK INFORMATION CHART COMPLIANT WITH AMC1 SPA.HOFO.115

NORDSEE ONE
HLD IDENTIFICATION ICAO IDENTIFIER OSS SIDE IDENTIFICATION

NORDSEE ONE EDYN OSS

FIXED NORMALLY UNATTENDED INSTALLATION
NORDSEE ONE GMBH
HLD REFERENCE POINT
N 53° 58.94' E 006° 50.17'

BREMEN INFORMATION MCC / HLO

128.525 MHz 151.170 MHz
WEATHER INFORMATION LIGHTING & DIMMING
131.760 MHz 131.760 MHz
3x 5x 100% 7x 10% (3%) 7x 30% (10%)
HELIDECK HEIGHT D-VALUE MTOW
131 ft MSL 20.90 m 12.8 t
APPROACH / DEPARTURE CORRIDOR
N: 007° / 187° S: 004° / 184°
DECK HEADING 277°
HIGHEST OBSTACLE ON INSTALLATION HIGHEST OBSTACLE IN THE VICINITY
33 ft ABOVE HLD (ANTENNA MAST) 505 ft MSL (WTG)
REFUELLING FACILITY GROUND POWER UNIT LANDING NET STATUS LIGHT
N/A N/A YES N/A
FIRE FIGHTING FACILITIES
DIFFS 2x HYDRANT
2x 10 kg CO2 2x 25 kg DRY POWDER
AUTO + MAN ACTIVATION SEMI-RIGID HOSES (30 m)
NON - COMPLIANCES LIMITATIONS

NIL TEMPORARILY VFR DAY ONLY

REMARKS

CONTACT MCC / HLO PRIOR TO ENTERING OWF AND FOR FURTHER CLEARANCES
BE AWARE OF WTG IN CLOSE PROXIMITY TO HELIDECK
OSS WX DATA FOR INFORMATION ONLY
APPROACH MARKINGS AND LIGHTING NOT ALIGNED WITH PREFERRED FINAL APPROACH DIRECTIONS
(DIVERGENCE 2°)

ALL COURSES TRUE VAR 1.9° E (2018)

DH © helidecks.de HIC 11.0 effective 04.12.2018 p.2
HELIDECK INFORMATION CHART COMPLIANT WITH AMC1 SPA.HOFO.115

NORDSEE ONE
HLD IDENTIFICATION ICAO IDENTIFIER OSS SIDE IDENTIFICATION

NORDSEE ONE EDYN OSS

FIXED NORMALLY UNATTENDED INSTALLATION
NORDSEE ONE GMBH
HLD REFERENCE POINT
N 53° 58.94' E 006° 50.17'

BREMEN INFORMATION MCC / HLO

128.525 MHz 151.170 MHz
WEATHER INFORMATION LIGHTING & DIMMING
131.760 MHz 131.760 MHz
3x 5x 100% 7x 10% (3%) 7x 30% (10%)
HELIDECK HEIGHT D-VALUE MTOW
131 ft MSL 20.90 m 12.8 t
APPROACH / DEPARTURE CORRIDOR
N: 007° / 187° S: 004° / 184°
DECK HEADING 277°
HIGHEST OBSTACLE ON INSTALLATION HIGHEST OBSTACLE IN THE VICINITY
33 ft ABOVE HLD (ANTENNA MAST) 505 ft MSL (WTG)
REFUELLING FACILITY GROUND POWER UNIT LANDING NET STATUS LIGHT
N/A N/A YES N/A
FIRE FIGHTING FACILITIES
DIFFS 2x HYDRANT
2x 10 kg CO2 2x 25 kg DRY POWDER
AUTO + MAN ACTIVATION SEMI-RIGID HOSES (30 m)
WINDFARM LAYOUT N
007° / 187°

N08
N07
N01 N06
N09 N04 N05
N10
N11 N03 N19
N02
N20 N12 N18
N21 N16
N13 N17
N22 N14
N23 N15 N32
N33 N24 N31
N34 N29
N25 N28 N30
N35
N27 N46
N36 N26
DolWin Beta
N45
N37
N47 N38 N44
N41 N43
N48
N49 N40 N42
N39
N51
004° / 184°

N50
N54
N53
N52

ALL COURSES TRUE VAR 1.9° E (2018)

DH © helidecks.de HIC 11.0 effective 04.12.2018 p.3
HELIDECK INFORMATION CHART COMPLIANT WITH AMC1 SPA.HOFO.115

NORDSEE ONE
HLD IDENTIFICATION ICAO IDENTIFIER OSS SIDE IDENTIFICATION

NORDSEE ONE EDYN OSS

FIXED NORMALLY UNATTENDED INSTALLATION
NORDSEE ONE GMBH
HLD REFERENCE POINT
N 53° 58.94' E 006° 50.17'

BREMEN INFORMATION MCC / HLO

128.525 MHz 151.170 MHz
WEATHER INFORMATION LIGHTING & DIMMING
131.760 MHz 131.760 MHz
3x 5x 100% 7x 10% (3%) 7x 30% (10%)
HELIDECK HEIGHT D-VALUE MTOW
131 ft MSL 20.90 m 12.8 t
APPROACH / DEPARTURE CORRIDOR
N: 007° / 187° S: 004° / 184°
DECK HEADING 277°
HIGHEST OBSTACLE ON INSTALLATION HIGHEST OBSTACLE IN THE VICINITY
33 ft ABOVE HLD (ANTENNA MAST) 505 ft MSL (WTG)
REFUELLING FACILITY GROUND POWER UNIT LANDING NET STATUS LIGHT
N/A N/A YES N/A
FIRE FIGHTING FACILITIES
DIFFS 2x HYDRANT
2x 10 kg CO2 2x 25 kg DRY POWDER
AUTO + MAN ACTIVATION SEMI-RIGID HOSES (30 m)
INSTALLATION PROFILE VIEW (SOUTH)

ALL COURSES TRUE VAR 1.9° E (2018)

DH © helidecks.de HIC 11.0 effective 04.12.2018 p.4
HELIDECK INFORMATION CHART COMPLIANT WITH AMC1 SPA.HOFO.115

NORDSEE ONE
HLD IDENTIFICATION ICAO IDENTIFIER OSS SIDE IDENTIFICATION

NORDSEE ONE EDYN OSS

FIXED NORMALLY UNATTENDED INSTALLATION
NORDSEE ONE GMBH
HLD REFERENCE POINT
N 53° 58.94' E 006° 50.17'

BREMEN INFORMATION MCC / HLO

128.525 MHz 151.170 MHz
WEATHER INFORMATION LIGHTING & DIMMING
131.760 MHz 131.760 MHz
3x 5x 100% 7x 10% (3%) 7x 30% (10%)
HELIDECK HEIGHT D-VALUE MTOW
131 ft MSL 20.90 m 12.8 t
APPROACH / DEPARTURE CORRIDOR
N: 007° / 187° S: 004° / 184°
DECK HEADING 277°
HIGHEST OBSTACLE ON INSTALLATION HIGHEST OBSTACLE IN THE VICINITY
33 ft ABOVE HLD (ANTENNA MAST) 505 ft MSL (WTG)
REFUELLING FACILITY GROUND POWER UNIT LANDING NET STATUS LIGHT
N/A N/A YES N/A
FIRE FIGHTING FACILITIES
DIFFS 2x HYDRANT
2x 10 kg CO2 2x 25 kg DRY POWDER
AUTO + MAN ACTIVATION SEMI-RIGID HOSES (30 m)
INSTALLATION TOP VIEW N
007° / 187
°

2
CO
DP
022
°
OFS

277°
LOS
D = 20.9 M

DP

2
CO
172°
004° / 184°

ALL COURSES TRUE VAR 1.9° E (2018)

DH © helidecks.de HIC 11.0 effective 04.12.2018 p.5
HELIDECK INFORMATION CHART

NORDSEE ONE
DEPARTURE NO1 ES
EXIT POINT NO1ES
N 53° 56.84' E 006° 49.61'
DEPARTURE PROCEDURE

DEPART ON TRACK 184°

OBSTACLE-FREE WHEN WITHIN DEPARTURE CORRIDOR
ABOVE WTG HEIGHT WHEN PASSING 505 ft MSL
CORRIDOR DESIGNED TO REACH 200 ft ABOVE WTG HEIGHT AT EXIT POINT NO1ES (4.5% CLIMB RATE)

DEPARTURE TOP VIEW N

184°

2.1 NM 705 ft*

EXIT
*200 ft above WTG
NO1ES
ALL COURSES TRUE VAR 1.9° E (2018)
DH © helidecks.de HIC 11.0 effective 04.12.2018 p.6
HELIDECK INFORMATION CHART

NORDSEE ONE
DEPARTURE NO1 EN
EXIT POINT NO1EN
N 54° 01.03' E 006° 50.61'
DEPARTURE PROCEDURE

DEPART ON TRACK 007°

OBSTACLE-FREE WHEN WITHIN DEPARTURE CORRIDOR
ABOVE WTG HEIGHT WHEN PASSING 505 ft MSL
CORRIDOR DESIGNED TO REACH 200 ft ABOVE WTG HEIGHT AT EXIT POINT NO1EN (4.5% CLIMB RATE)

DEPARTURE TOP VIEW N

EXIT
NO1EN

2.1 NM 705 ft*

007°

*200 ft above WTG

ALL COURSES TRUE VAR 1.9° E (2018)
DH © helidecks.de HIC 11.0 effective 04.12.2018 p.7
