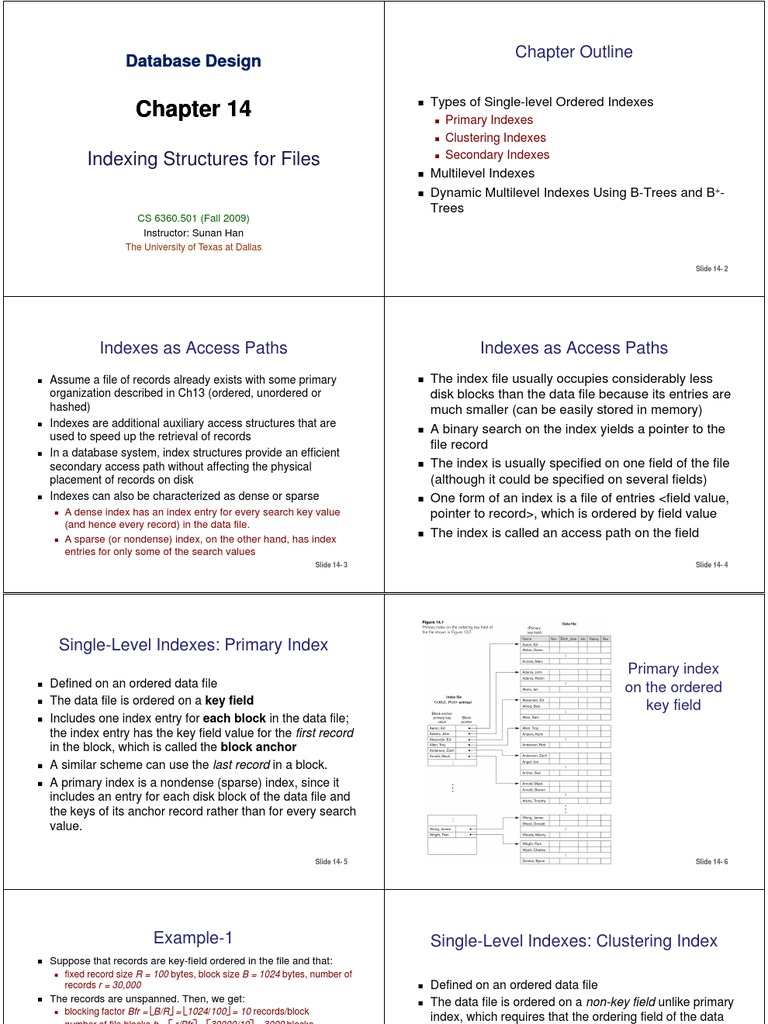

Chapter Outline
Database Design
Chapter 14
Indexing Structures for Files
CS 6360.501 (Fall 2009)
Instructor: Sunan Han
The University of Texas at Dallas
Indexes as Access Paths

Assume a file of records already exists with some primary
organization described in Ch13 (ordered, unordered or
hashed)

Indexes are additional auxiliary access structures that are
used to speed up the retrieval of records

In a database system, index structures provide an efficient
secondary access path without affecting the physical
placement of records on disk

Indexes can also be characterized as dense or sparse

A dense index has an index entry for every search key value
(and hence every record) in the data file.

A sparse (or nondense) index, on the other hand, has index
entries for only some of the search values
Slide 14- 3
Types of Single-level Ordered Indexes



Primary Indexes

Clustering Indexes

Secondary Indexes

Multilevel Indexes

Dynamic Multilevel Indexes Using B-Trees and B+-
Trees
Slide 14- 2
Indexes as Access Paths

The index file usually occupies considerably less
disk blocks than the data file because its entries are
much smaller (can be easily stored in memory)

A binary search on the index yields a pointer to the
file record

The index is usually specified on one field of the file
(although it could be specified on several fields)

One form of an index is a file of entries <field value,
pointer to record>, which is ordered by field value

The index is called an access path on the field
Slide 14- 4
 Single-Level Indexes: Primary Index
Primary index

Defined on an ordered data file on the ordered

The data file is ordered on a key field key field

Includes one index entry for each block in the data file;
the index entry has the key field value for the first record
in the block, which is called the block anchor

A similar scheme can use the last record in a block.

A primary index is a nondense (sparse) index, since it
includes an entry for each disk block of the data file and
the keys of its anchor record rather than for every search
value.

Slide 14- 5 Slide 14- 6

Example-1 Single-Level Indexes: Clustering Index

Suppose that records are key-field ordered in the file and that:

fixed record size R = 100 bytes, block size B = 1024 bytes, number of
records r = 30,000
Defined on an ordered data file

The records are unspanned. Then, we get:
The data file is ordered on a non-key field unlike primary

blocking factor Bfr = B/R = 1024/100 = 10 records/block
index, which requires that the ordering field of the data

number of file blocks b =  r/Bfr = 30000/10 = 3000 blocks

For an index on the key field, assume the field size V = 9 bytes,
file have a distinct value for each record.
assume the record pointer size P = 6 bytes. Then:
Includes one index entry for each distinct value of the

index entry size Ri = (V + P) = (9 + 6) = 15 bytes field; the index entry points to the first data block that

index blocking factor Bfri = B/Ri  = 1024/15  = 68 entries/block contains records with that field value.

number of index blocks bi = b/ Bfri = 3000/68 = 45 blocks
(One index entry corresponds to one file block for sparse indexing)
It is another example of nondense index where Insertion

binary search needs log2bi = log245 = 6 block accesses. It requires an and Deletion is relatively straightforward with a
additional block access to the data file => total block access is 7 clustering index.

Without index, the binary search cost on the file itself would be:

log2b = log23000 = 12 block accesses
Slide 14- 7 Slide 14- 8
 A Clustering
Index Another Clustering
Example Index Example:
Records of same
clustering field value
are in separate blocks

Slide 14- 9 Slide 14- 10

Single-Level Indexes: Secondary Index

A secondary index provides a secondary means of accessing
a file for which some primary access already exists.

The secondary index may be on a field which is a candidate Example of a
key and has a unique value in every record, or a non-key with Dense
duplicate values. They are non-ordering fields

The index is an ordered file with two fields.
Secondary Index

The first field is of the same data type as some non-ordering for a Key Field
field of the data file that is an indexing field.

The second field is either a block pointer or a record pointer.

There can be many secondary indexes (and hence, indexing
fields) for the same file, for different records fields

Includes one entry for each record in the data file; hence, it is
a dense index
Slide 14- 11 Slide 14- 12
 Example-2

Suppose that:

fixed record size R = 100 bytes, block size B = 1024 bytes, number of
records r = 30,000

The records are unspanned. Then, we get:

blocking factor Bfr = B/R = 1024/100 = 10 records/block Example of a

number of file blocks b =  r/Bfr = 30000/10 = 3000 blocks

We construct a secondary index on a nonordering candidate key
Secondary Index
field, assume the field size V = 9 bytes, assume the record pointer for a Nonkey
size P = 6 bytes. Then:

index entry size Ri = (V + P) = (9 + 6) = 15 bytes
Field

index blocking factor Bfri = B/Ri  = 1024/15 = 68 entries/block

number of index blocks bi = r/ Bfri = 30000/68 = 442 blocks
(Each index entry corresponds to one file record for dense indexing)

binary search needs log2bi = log2442 = 9 block accesses (10 is the
total for the final data file block access)

This is compared to an average linear search cost (w/o index) of:

(b/2) = 3000/2 = 1500 block accesses
Slide 14- 13 Slide 14- 14

Summary of Single-Level Indexing Multi-Level Indexes

Primary indexing reduces the search cost of the original file

search on an ordering field

Because a single-level index is an ordered file, we can create
a primary index to the index itself to further reduce the
search cost

In this case, the original index file is called the first-level index
and the index to the index is called the second-level index.

We can repeat the process, creating a third, fourth, ..., top
level until all entries of the top level fit in one disk block

A multi-level index can be created for any type of first-level
index (primary, secondary, clustering) as long as the first-
level index consists of more than one disk block
Slide 14- 15 Slide 14- 16

Two-level Primary
Index
Slide 14- 17
Multi-Level Indexes

Such a multi-level index is a form of search tree

However, insertion and deletion of new index entries
is a severe problem because every level of the index
is an ordered file

This leads to dynamic multi-level indexes

Dynamic multi-level indexing leaves some additional
space in each block for inserting new entries
Slide 14- 19
Example-3

In example 1 (sparse primary index)

fixed record size R = 100 bytes, block size B = 1024 bytes, number of
records r = 30,000

blocking factor Bfr = B/R = 1024/100 = 10 records/block

number of file blocks b = r/Bfr = 30000/10 = 3000 blocks

index entry size Ri = (V + P) = (9 + 6) = 15 bytes

index blocking factor Bfri = B/Ri  = 1024/15  = 68 entries/block
(This is called the fan-out factor of the multi-level index)

number of index blocks b1 = b/ Bfri = 3000/68 = 45 blocks

binary search needs log2b1 = log245 = 6 block accesses (7 is the total
for an additional access to the data file block)

For the second-level index to the 45 first-level index file blocks:

number of index blocks b2 = b1 / Bfri = 45/68 = 1 block

Total file block access is 1 (2nd-level) + 1 (1st-level) + 1 (data file) =
3
Slide 14- 18
Search Trees

A search tree of order p is a tree such that each
node contains at most p-1 search values and p
pointers in the order <P1,K1,P2,K2, …, Pq-1,Kq-1,Pq>,
where q ≤ p, each Pi is a pointer to a child node, or
null and each Ki is a unique search value from some
ordered set of values, and the following must hold:
1. Within each node, K1 < K2 < …, < Kq-1
2. For all values X in the subtree pointed at by Pi,
Ki-1 < X < Ki, for 1<i<q and X < Ki if i=1, and Ki-1 < X
if i=q
Slide 14- 20
 A Node in a Search Tree with Pointers to FIGURE 14.9
Subtrees below It A search tree of order p = 3.

Slide 14- 21 Slide 14- 22

Dynamic Multilevel Indexes Using B-Trees and
B+-Trees

In B-Tree and B+-Tree data structures, each node
corresponds to a disk block

Most multi-level indexes use B-tree or B+-tree data
structures because of the insertion and deletion problem

Space has to be reserved in each tree node to allow for
new index entries

Each node is kept between half-full and completely full
Dynamic Multilevel Indexes Using B-Trees and
B+-Trees

An insertion into a node that is not full is quite
efficient

If a node is full the insertion causes a split into two
nodes

Splitting may propagate to other tree levels

A deletion is quite efficient if a node does not
become less than half full

If a deletion causes a node to become less than half
full, it must be merged with neighboring nodes

Slide 14- 23 Slide 14- 24

 Difference between B-tree and B+-tree

When used as an access structure on a key field in a data

In a B-tree, pointers to data records exist at all levels
of the tree

In a B+-tree, all pointers to data records exists at the
leaf-level nodes

A B+-tree can have less levels (or higher capacity of
search values) than the corresponding B-tree
Slide 14- 25
B-Trees
file, a B-Tree of order p can be defined as follows
1. Each internal node in the B-tree is of the form
<P1,<K1,Pr1>,P2,<K2,Pr2>, …, Pq-1,<Kq-1,Prq>,Pq>, where q ≤ p,
each Pi is a tree pointer and Pri is a data pointer to the record
whose search key field value is Ki (or the block containing the
record)
2. Within each node, K1 < K2 < …, < Kq-1
3. For all values X in the subtree pointed at by Pi,
Ki-1 < X < Ki, for 1<i<q and X < Ki if i=1, and Ki-1 < X if i=q
4. Each internal node has at least p/2 tree pointers
5. A node with q tree pointers (q ≤ p) has q-1 search key field
values (and q-1 data pointers)
6. All leaf nodes are at the same level and have their tree
pointers to be null
Slide 14- 26

B-tree Structures B-Trees Insertion

It starts with a single root node at level 0

When it’s full with p-1 key values and an insertion occurs, two
nodes at level 1 are created and all values except the middle
one are evenly distributed in the two new nodes

The root keeps the middle value and adds two tree pointers
to the new split nodes

When any node in the B-tree is full, it undergoes the same
process to split into two node at the next level

When a node used up all its tree pointers (can not be split
any more) the split will propagate upwards

If it happens at the root, the root is split and a new root and
therefore a new tree level is added
Slide 14- 27 Slide 14- 28
 B-Trees Deletion B+-Trees

The internal nodes are similar a search tree defined

When deletion of a record causes two neighboring earlier (<P1,K1,P2,K2, …, Pq-1,Kq-1,Pq>) except that
nodes to be less than half full, a merge will happen
Ki-1 < X ≤ Ki, for 1<i<q and X ≤ Ki if i=1, and Ki-1 < X if i=q

Each internal node has at least p/2 tree pointers

This merge may cause a reduction of a tree level

The leaf nodes are define as follows

<<K1,Pr1>,<K2,Pr2>, …, ,<Kq-1,Prq>,Pnext>, where q ≤ p, each
Pri is a data pointer to the record whose search key field
value is Ki, or to a file block containing the record. Pnext
points to the next leaf node

K1 < K2 < …, < Kq-1

Each leaf node has at least p/2 values, or a
redistribution/deletion is needed

All leaf nodes are at the same level
Slide 14- 29 Slide 14- 30

The Nodes of a B+-tree

An Example
of an Insertion
in a B+-tree

Internal nodes form paths

to the leaf nodes that point
to the actual data

2 levels => up to 9 leaves

Slide 14- 31 Slide 14- 32

 An Example of a
Deletion in a B+- Summary
tree

Types of Single-level Ordered Indexes

Primary Indexes
Causes a redistribution
at the same level
Clustering Indexes

Secondary Indexes

Multilevel Indexes

Dynamic Multilevel Indexes Using B-Trees and B+-
Causes a redistribution Trees
at higher levels

Slide 14- 33 Slide 14- 34

Assignment #12

Page 545: 14.14 a, b, c, d, e

Due date 11/23/09

Slide 14- 35
