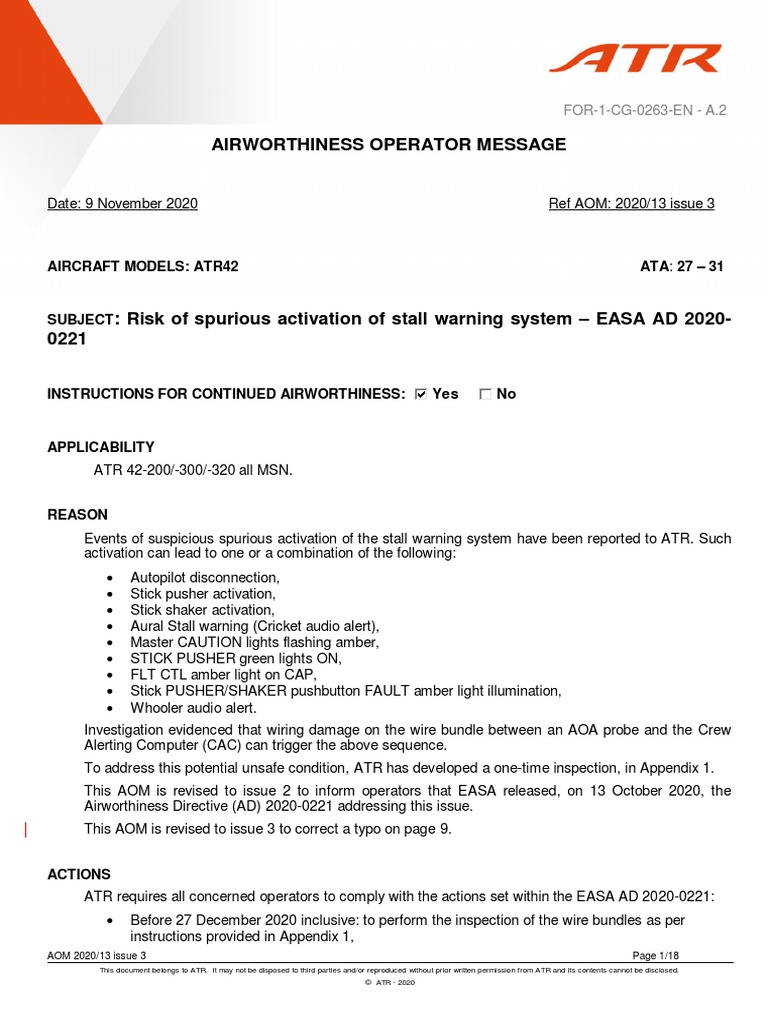

APPLICABILITY
ATR 42-200/-300/-320 all MSN.
REASON
Events of suspicious spurious activation of the stall warning system have been reported to ATR. Such
activation can lead to one or a combination of the following:
Autopilot disconnection,
Stick pusher activation,
Stick shaker activation,
Aural Stall warning (Cricket audio alert),
Master CAUTION lights flashing amber,
STICK PUSHER green lights ON,
FLT CTL amber light on CAP,
Stick PUSHER/SHAKER pushbutton FAULT amber light illumination,
Whooler audio alert.
Investigation evidenced that wiring damage on the wire bundle between an AOA probe and the Crew
Alerting Computer (CAC) can trigger the above sequence.
To address this potential unsafe condition, ATR has developed a one-time inspection, in Appendix 1.
This AOM is revised to issue 2 to inform operators that EASA released, on 13 October 2020, the
Airworthiness Directive (AD) 2020-0221 addressing this issue.
This AOM is revised to issue 3 to correct a typo on page 9.
ACTIONS
ATR requires all concerned operators to comply with the actions set within the EASA AD 2020-0221:
Before 27 December 2020 inclusive: to perform the inspection of the wire bundles as per
instructions provided in Appendix 1,
AOM 2020/13 issue 3 Page 1/18
This document belongs to ATR. It may not be disposed to third parties and/or reproduced without prior written permission from ATR and its contents cannot be disclosed.
© ATR - 2020
FOR-1-CG-0263-EN - A.2
Within 30 days after the inspection: to provide ATR with a feedback whatever the inspection
result is. This feedback shall be done by filling the reporting form attached in Appendix 2 of this
AOM.
REFERENCE DOCUMENTS
EASA AD 2020-0221 dated 13 October 2020, attached to this AOM.
ATTACHMENT
Appendix 1: Inspection instructions of the wire bundles between LH and RH Angle of Attack
probes and the CAC
APPROVAL
The technical content of this document is approved under the authority of the DOA ref. EASA.21J.044
D. CAILHOL
ATR Head of Continued Airworthiness
Email: continued.airworthiness@atr-aircraft.com
Appendix 1
1. PLANNING INFORMATION
A. INSPECTION FLOWCHART
The following flowchart presents the work to be done in a simplified way, details are
described in paragraphs "ACCOMPLISHMENT INSTRUCTIONS".
B. MANPOWER
Manhours
Mechanic None
Electrician 10
Total manhours 10
Elapsed time (hours) 5
The above estimates are only provided for general guidance in operator's modification
planning.
NOTE: This inspection assumes that the aircraft has been placed in the appropriate
maintenance configuration. The manhours/elapsed time estimates do not include
preparation for the inspection, non-productive elapsed time or administrative
functions.
C. REFERENCES
MP: ATR-A-24-4X-XX-00ZZZ-561Z-A
ATR-A-24-4X-XX-00ZZZ-761Z-A
ATR-A-25-11-10-00ZZZ-520Z-A
ATR-A-25-11-10-00ZZZ-720Z-A
2. ACCOMPLISHMENT INSTRUCTIONS
A. GENERAL
The following instructions assume that work will be accomplished when the aircraft is in the
appropriate maintenance configuration.
B. JOB SET-UP
(1) De-energize the aircraft electrical network and connect the aircraft to ground as per MP
ATR-A-24-4X-XX-00ZZZ-561Z-A.
(2) In cockpit, remove captain and first officer seats as per MP ATR-A-25-11-10-00ZZZ-520Z-
A.
C. INSPECTION
NOTE: During accomplishment of this inspection, fill the enclosed Accomplishment Report
and send it to the address mentioned on the Accomplishment Report
NOTE: When reaching a step requiring to contact ATR, provide ATR with pictures.
IF THERE IS ANY FOD OR IF ELECTRICAL ROUTING AND CONDUITS ARE NOT PROPERLY
ATTACHED, PLEASE CONTACT ATR BEFORE NEXT FLIGHT.
(1) In cockpit, zone 211, inspection of electrical routing of LH AOA probe harness.
INSPECTION
Item Description Part Number Qty Figure
1, sheet 1 area 1
1 Conduit - A.R.
1, sheet 2
INSPECTION OBJECT:
Check the presence and integrity of LH AOA probe ACTION TO BE
RESULT
harness conduit between connector (FIN7WW-A) PERFORMED
and FR9
Contact ATR
before next flight
and continue
YES
inspection as per
Is conduit missing or is there damage on the
paragraph
conduit?
2.C.(1)(b)
Inspection as per
NO paragraph
2.C.(1)(b)
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
INSPECTION
Item Description Part Number Qty Figure
LH AOA probe 1, sheet 1 area 2
2 - A.R.
harness 1, sheet 2
INSPECTION OBJECT:
ACTION TO BE
Check the integrity of each wires of the LH AOA RESULT
PERFORMED
probe harness between FR8 and FR10.
Contact ATR
before next flight
and continue
YES
inspection as per
Is there damage on wires of LH AOA probe harness? paragraph
2.C.(2)(a)
Inspection as per
NO paragraph
2.C.(2)(a)
(2) In cockpit, zone 212, inspection of electrical routing of RH AOA probe harness.
INSPECTION
Item Description Part Number Qty Figure
3 Conduit - A.R. 2, area 1
INSPECTION OBJECT:
Check the presence and integrity of RH AOA probe ACTION TO BE
RESULT
harness conduit between FR9 and below 702VU PERFORMED
panel.
Contact ATR
before next flight
and continue
YES
inspection as per
Is the conduit missing or is there damage on the
paragraph
conduit?
2.C.(2)(b)
Inspection as per
NO paragraph
2.C.(2)(b)
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
INSPECTION
Item Description Part Number Qty Figure
RH AOA probe
4 - A.R. 2, area 2
harness
INSPECTION OBJECT:
ACTION TO BE
Check the integrity of each wires of the RH AOA RESULT
PERFORMED
probe harness between FR7 and FR10.
Contact ATR
before next flight
and continue
YES
inspection as per
Is there damage on wires of RH AOA probe
paragraph
harness?
2.C.(3)(a)
Inspection as per
NO paragraph
2.C.(3)(a)
(3) In cockpit, on 93VU shelf, inspection of electrical routing around connectors (FIN 934VC,
934VC-A, 937VC and 937VC-A).
(a) Visual inspection of LH AOA wires connected to connectors (FIN 937VC, 937VC-A).
INSPECTION
Item Description Part Number Qty Figure
- Wires - A.R. 3
INSPECTION OBJECT:
Check the integrity of wires connected to ACTION TO BE
RESULT
connectors (FIN 937VC and 937VC-A) pins 6, 7 and PERFORMED
11 thru 16.
Contact ATR
before next flight
and continue
YES
inspection as per
Is there damage on wires? paragraph
2.C.(3)(b)
Inspection as per
NO paragraph
2.C.(3)(b)
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
(b) Visual inspection of RH AOA wires connected to connectors (FIN 934VC, 934VC-A).
INSPECTION
Item Description Part Number Qty Figure
- Wires - A.R. 3
INSPECTION OBJECT:
Check the integrity of wires connected to ACTION TO BE
RESULT
connectors (FIN 934VC and 934VC-A) pins 2, 4 and PERFORMED
14 thru 19.
Contact ATR
before next flight
and continue
YES
inspection as per
Is there damage on wires? paragraph
2.C.(4)(a)
Inspection as per
NO paragraph
2.C.(4)(a)
(4) In cockpit, on 91VU shelf, inspection of electrical routing around connectors (FIN 918VC,
918VC-A, 971VC and 971VC-A).
(a) Visual inspection of LH AOA wires connected to connectors (FIN 971VC, 971VC-A).
INSPECTION
Item Description Part Number Qty Figure
- Wires - A.R. 3
INSPECTION OBJECT:
Check the integrity of wires connected to ACTION TO BE
RESULT
connectors (FIN 971VC and 971VC-A) pins 6 and 75 PERFORMED
thru 77.
Contact ATR
before next flight
and continue
YES
inspection as per
Is there damage on wires? paragraph
2.C.(4)(b)
Inspection as per
NO paragraph
2.C.(4)(b)
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
(b) Visual inspection of RH AOA wires connected to connectors (FIN 918VC, 918VC-A).
INSPECTION
Item Description Part Number Qty Figure
- Wires - A.R. 3
INSPECTION OBJECT:
Check the integrity of wires connected to ACTION TO BE
RESULT
connectors (FIN 918VC and 918VC-A) pins 13 and 53 PERFORMED
thru 55.
Contact ATR
YES
before next flight
Is there damage on wires?
Perform
NO
paragraph 2.E
D. TESTS
None.
E. CLOSE-UP
(3) In cockpit, re-install captain and first officer seats as per MP ATR-A-25-11-10-00ZZZ-
720Z-A.
(4) Re-energize the aircraft electrical network and disconnect the aircraft from ground as
per MP ATR-A-24-4X-XX-00ZZZ-761Z-A.
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
MAIN VIEW
AREA 1: INSPECTION OF
AREA 2: INSPECTION OF
CONDUIT.
EACH WIRES OF LH AOA
SEE SHEET 2 FOR PROBE HARNESS
CONNECTOR (FIN 7WW-A)
CONNECTED TO AOA
PROBE AND DETAILS ITEM 2
ITEM 1
FWD
In cockpit, zone 211, inspection of LH AOA probe harness
Figure 1, sheet 1 of 2
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
FR9
FWD
ITEM 2
ITEM 1
Figure 1, sheet 2 of 2
AOM 2020/13 Issue 3 – Risk of spurious activation of stall warning system – Wire routing inspection
ITEM 3
FR7 FWD FR9
FR8
AREA 1: INSPECTION
OF CONDUIT AREA 2: INSPECTION
OF EACH WIRE OF RH
AREA 2: INSPECTION AOA PROBE HARNESS
OF EACH WIRE OF RH
AOA PROBE HARNESS ITEM 4
ITEM 3
A
CONNECTOR (FIN 937VC)
A B
91VU
93VU
CONNECTOR (FIN 971VC)
In cockpit, on 91VU and 93VU shelves, inspection of electrical routing on connectors (FIN 934VC, 937VC, 971VC and 918VC)
Figure 3
FOR-1-CG-0263-EN - A.2
Appendix 2
ACCOMPLISHMENT REPORT
Aircraft identification
Aircraft MSN:
Flight cycles:
Flight hours:
Inspection results
Remarks:
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
Date:
EASA AD No.: 2020-0221
Airworthiness Directive
AD No.: 2020-0221
Issued: 13 October 2020
Note: This Airworthiness Directive (AD) is issued by EASA, acting in accordance with Regulation
(EU) 2018/1139 on behalf of the European Union, its Member States and of the European third
countries that participate in the activities of EASA under Article 129 of that Regulation.
This AD is issued in accordance with Regulation (EU) 748/2012, Part 21.A.3B. In accordance with Regulation (EU) 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an aircraft to which
an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency [Regulation (EU) 1321/2014 Annex I,
Part M.A.303] or agreed with the Authority of the State of Registry [Regulation (EU) 2018/1139, Article 71 exemption].
Manufacturer(s):
ATR-GIE Avions de Transport Régional, formerly EADS ATR - Alenia, Aerospatiale Matra ATR -
ALENIA, Aerospatiale - Alenia, Aerospatiale – Aeritalia
Applicability:
ATR 42-200, ATR 42-300 and ATR 42-320 aeroplanes, all manufacturer serial numbers.
Definitions:
For the purpose of this AD, the following definitions apply:
Affected wiring: Electrical wire routing of the left-hand and right-hand side Angle of Attack (AOA)
probes.
Reason:
Several events have been reported by ATR 42 operators of experiencing spurious activation of the
stall warning system. Such activation can lead to one or a combination of the following events:
Autopilot disconnection
Stick pusher activation
Stick shaker activation
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 1 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2020-0221
Subsequent investigation results indicated that wiring damage on the wire bundle between an AOA
probe and the Crew Alerting Computer can trigger the above scenario.
This condition, if not detected and corrected, could lead to loss of control of the aeroplane during
take-off and landing phases.
To address this potential unsafe condition, ATR issued the AOM to provide inspection instructions.
For the reasons described above, this AD requires a one-time visual inspection of the affected
wiring and, depending on findings, accomplishment of applicable corrective action(s). This AD also
requires reporting to ATR of the inspection results.
Inspection(s):
(1) Within 2 months after the effective date of this AD, accomplish a visual inspection of the
affected wiring in accordance with the instructions of the AOM.
Corrective Action(s):
(2) If, during the inspection as required by paragraph (1) of this AD, discrepancies are detected as
identified in the AOM, before next flight, contact ATR for approved repair instructions and
accomplish those instructions accordingly.
Reporting:
(3) Within 30 days after the inspection as required by paragraph (1) of this AD, report the results
(including no findings) to ATR. This can be accomplished in accordance with the instructions
of the AOM.
Ref. Publications:
ATR AOM 2020/13 Issue 1 dated 28 September 2020.
The use of later approved revisions of the above-mentioned document is acceptable for compliance
with the requirements of this AD.
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2020-0221
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. Based on the required actions and the compliance time, EASA have decided to issue a Final AD
with Request for Comments, postponing the public consultation process until after publication.
3. Enquiries regarding this AD should be referred to the EASA Programming and Continued
Airworthiness Information Section, Certification Directorate. E-mail: ADs@easa.europa.eu.
4. Information about any failures, malfunctions, defects or other occurrences, which may be
similar to the unsafe condition addressed by this AD, and which may occur, or have occurred on
a product, part or appliance not affected by this AD, can be reported to the EU aviation safety
reporting system. This may include reporting on the same or similar components, other than
those covered by the design to which this AD applies, if the same unsafe condition can exist or
may develop on an aircraft with those components installed. Such components may be
installed under an FAA Parts Manufacturer Approval (PMA), Supplemental Type Certificate
(STC) or other modification.
5. For any question concerning the technical content of the requirements in this AD, please
contact: ATR - GIE Avions de Transport Régional, Continued Airworthiness Service,
Telephone: +33 (0)5 62 21 62 21, Fax: +33 (0) 5 62 21 67 18;
E-mail: continued.airworthiness@atr-aircraft.com.
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
