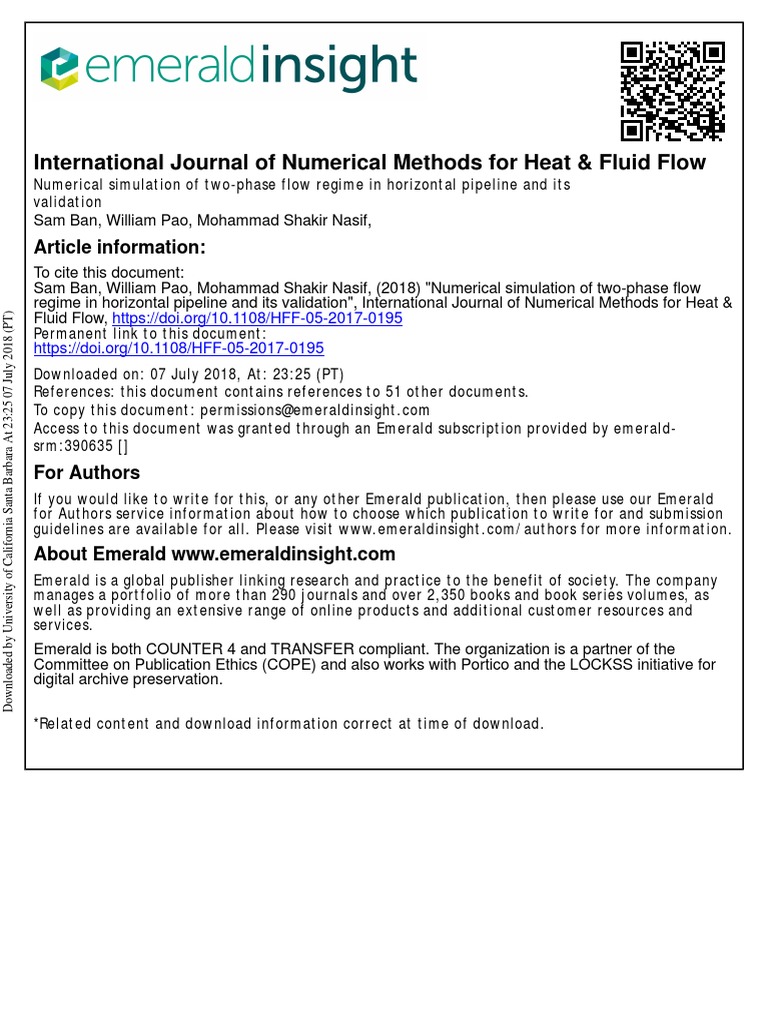

International Journal of Numerical Methods for Heat & Fluid Flow
Numerical simulation of two-phase flow regime in horizontal pipeline and its

validation
Sam Ban, William Pao, Mohammad Shakir Nasif,
Article information:
To cite this document:
Sam Ban, William Pao, Mohammad Shakir Nasif, (2018) "Numerical simulation of two-phase flow
regime in horizontal pipeline and its validation", International Journal of Numerical Methods for Heat &
Downloaded by University of California Santa Barbara At 23:25 07 July 2018 (PT)
Fluid Flow, https://doi.org/10.1108/HFF-05-2017-0195

Permanent link to this document:
https://doi.org/10.1108/HFF-05-2017-0195
Downloaded on: 07 July 2018, At: 23:25 (PT)
References: this document contains references to 51 other documents.
To copy this document: permissions@emeraldinsight.com
Access to this document was granted through an Emerald subscription provided by emerald-
srm:390635 []
For Authors
If you would like to write for this, or any other Emerald publication, then please use our Emerald
for Authors service information about how to choose which publication to write for and submission
guidelines are available for all. Please visit www.emeraldinsight.com/authors for more information.
About Emerald www.emeraldinsight.com
Emerald is a global publisher linking research and practice to the benefit of society. The company
manages a portfolio of more than 290 journals and over 2,350 books and book series volumes, as
well as providing an extensive range of online products and additional customer resources and
services.
Emerald is both COUNTER 4 and TRANSFER compliant. The organization is a partner of the
Committee on Publication Ethics (COPE) and also works with Portico and the LOCKSS initiative for
digital archive preservation.
*Related content and download information correct at time of download.

The current issue and full text archive of this journal is available on Emerald Insight at:
www.emeraldinsight.com/0961-5539.htm
Simulation of
Numerical simulation of two- two-phase flow
phase flow regime in horizontal regime
pipeline and its validation

Sam Ban, William Pao and Mohammad Shakir Nasif
Department of Mechanical Engineering, Universiti Teknologi Petronas,
Seri Iskandar, Malaysia Received 12 May 2017
Revised 8 July 2017
Accepted 16 July 2017
Abstract
Purpose – The purpose of this paper is to investigate oil-gas slug formation in horizontal straight pipe and
its associated pressure gradient, slug liquid holdup and slug frequency.
Design/methodology/approach – The abrupt change in gas/liquid velocities, which causes transition
of flow patterns, was analyzed using incompressible volume of fluid method to capture the dynamic gas-
liquid interface. The validity of present model and its methodology was validated using Baker’s flow regime
chart for 3.15 inches diameter horizontal pipe and with existing experimental data to ensure its correctness.
Findings – The present paper proposes simplified correlations for liquid holdup and slug frequency by
comparison with numerous existing models. The paper also identified correlations that can be used in
operational oil and gas industry and several outlier models that may not be applicable.
Research limitations/implications – The correlation may be limited to the range of material
properties used in this paper.
Practical implications – Numerically derived liquid holdup and holdup frequency agreed reasonably
with the experimentally derived correlations.
Social implications – The models could be used to design pipeline and piping systems for oil and gas
production.
Originality/value – The paper simulated all the seven flow regimes with superior results compared to
existing methodology. New correlations derived numerically are compared to published experimental
correlations to understand the difference between models.
Keywords CFD, Numerical simulation, Two-phase flow, Baker’s chart, Oil-gas flow, VOF technique
Paper type Technical paper
Nomenclature
A = Pipe cross-sectional area (m2);
D = Pipe diameter (m);
F = External body forces (kg/(m2 s2));
fS = Liquid slug frequency (1/s);
g = Gravitational acceleration (m/s2);
GG = Mass flux of gas phase (kg/(m2 s));
GL = Mass flux of liquid phase (kg/(m2 s));
The authors appreciate the financial and administrative support from the Universiti Teknologi
PETRONAS (UTP) through the Graduate Assistantship Program to Cambodian national (first
author), Ministry of Education Malaysia through the FRGS 0153AB-L03 and PETRONAS
International Journal of Numerical
Foundation through YUTP Fundamental Research Grant 0153AA-E03. The authors would also like Methods for Heat & Fluid Flow
to acknowledge the UTP Gas Separation Research Centre for the office space, software licenses and © Emerald Publishing Limited
0961-5539
high-end computing facilities to perform the simulation. DOI 10.1108/HFF-05-2017-0195
HFF l = Pipe length (m);
p = Pressure (Pa);
t = Time (s);
T = Temperature (°C);
U = Fluid velocity (m/s);
Ud = Drift velocity (m/s);
UM = Mixture velocity (m/s);
USG = Superficial gas velocity (m/s);
USL = Superficial liquid velocity (m/s);
Nf = Dimensionless inverse viscosity number (-);
Re = Reynolds number; and
Fr = Mixture Froude number.
Greek symbols
u = Pipe angle with the horizontal;
ak = Volume fraction of phase k;
aG = Gas volume fraction;
aL = Liquid volume fraction;
rk = Density of phase k (kg/m3);
mk = Viscosity of phase k (Pa s);
l = Dimensionless parameter;
m = Viscosity (Pa s);
mL = Viscosity of liquid (Pa s);
mW = Viscosity of water (Pa s);
r = Fluid density (kg/m3);
ra = Density of air (kg/m3);
rG = Density of gas (kg/m3);
rL = Density of liquid (kg/m3);
rW = Density of water (kg/m3);
s = Gas-liquid surface tension (N/m);
sW = Water surface tension (N/m); and
c = Dimensionless parameter.
Subscripts
a = Air phase;
G = Gas phase;
k = Phase No.;
L = Liquid phase;
M = Gas-liquid mixture;
W = Water phase;
SG = Superficial gas; and
SL = Superficial liquid.
1. Introduction
Due to the wide occurrence of slug flow in oil and gas industry, a vast amount of work has
been dedicated to the understanding and prediction of the slug transition in horizontal and
near horizontal pipes. Slug flow is known to cause mechanical fatigue to the pipelines.
Consequently, accurate numerical prediction of pressure drop along the pipe, slug body
length, slug holdup and slug frequency were necessary for downstream infrastructure and Simulation of
separation process design before actual work being carryout. two-phase flow
Fan et al. (1993) conducted the experimental works to investigate the initiation of air-
water slugs flow in horizontal 0.095-m inner diameter (ID) pipe at atmospheric pressure. The
regime
test experiments observed the form of slugs in a stratified flow and the gas superficial
velocities were less than 3 m/s. They concluded that initiation of slug position was strongly
affected by the superficial gas velocity as well as liquid holdup. Similarly, Ujang et al. (2006)
studied the evolution and slug initiation of air-water two-phase experiments in horizontal
pipe of 0.078-m ID and 37-m length. The experimental study investigated the effects of gas
and liquid superficial velocities and the atmospheric pressure 4 bar (a) and 9 bar (a) were
carried out for the slug initiation and growth. To study initiation and the evolution of
hydrodynamic slugs, the structural measurements of interfacial developments were created
at 14 axial locations along the pipe. They found that at the first 3 m from the inlet of the test
section, a large number of slugs were initiated. This investigation also found that the effect
of pressure on the slug initiation frequency was very small. In the meantime, the increase in
pressure delays the slug initiation.
Taitel and Barnea (1990) proposed a consistent approach for calculating pressure drop in
steady-state slug flow in a 0.5-m and 0.05-m diameter pipeline. The pressure drop was
calculated by using an overall momentum balance over the slug unit. This method
considered only gravitational and frictional pressure drop terms in the horizontal slug flow.
They studied and compared the pressure drop by using variable film thickness model with
simplified sub-models of slug flow. The results showed that the suggested method for the
pressure drop calculation using a global control volume was closer to the exact solution.
Likewise, Petalas and Aziz (2000) suggested a mechanistic model for predicting the flow
regimes in the pipes. It was found that their available mechanistic models for the
calculations of flow patterns could improve the capability of predicting the pressure
gradient along the pipe and liquid holdup in pipe. These new empirical correlations were
applied to all the fluid properties and pipe geometries. The liquid/wall and liquid/gas
interfacial friction in the stratified regime, liquid volume fraction and interfacial friction in
intermittent flow and the distribution coefficient were taken into account during the
development of these correlation models. Later, the mechanistic model and the sub-model of
Taitel and Barnea (1990) was reformulated by Orell (2005) to improve the Reynolds number
for calculating the friction factor and slug pressure drop in the horizontal pipes. The
proposed model was developed to test extensively against 12 pressure drop and eight liquid
holdup data for both air-water and air-oil horizontal slug flow over wide ranges of operating
conditions and pipe diameters.
Issa and Kempf (2003) demonstrated the transient slug flow of two fluid model to capture
the slug flow initiation process in horizontal and near horizontal pipes and categorized them
into empirical slug specification, slug tracking and slug capturing models. In the
simulations, the liquid volume fraction can increase until it eventually becomes unity,
leading to the onset of a slug. Slugs develop, grow, merge and collapse solely based on the
solution of the transport equations for mass and momentum for each phase. The results of
their computation for the transition from stratified to slug flow were compared with the
experimental data and concluded that the transitional numerical model conformed to the
widely accepted boundaries drawn by Taitel and Dukler (1976). In addition, when slugs
develop to form a fully intermittent slug flow, the slug characteristics such as slug length
and frequency were predicted quite well.
Similar to Ujang et al. (2006), each used a different liquid phase. The influence of the
operation pressure on hydrodynamic slug length in near horizontal pipe flow for gas and
HFF liquid were observed by Kadri et al. (2010). The operations were conducted with pipe length
of 103 m and internal diameter of 0.069 m. Air or sulfur hexafluoride (SF6) gas and oil
(ExxsolD80) were used for the fluids in the experimental work. Air was used when operating
at atmospheric conditions, whereas SF6 was used in higher pressure experiments. SF6 is a
dense gas with density approximately 5.5 times of air. Therefore, it simulated high pressure
conditions (natural gas up to 65 bar). This study identified three types of slugs based on the
difference of liquid levels between the slug front and slug tail. It was found that only short
slugs existed at high pressure.
Loh et al. (2016) conducted experimental flow loop to study the pressure and gas
density effects on air and water horizontal transition from stratified to slug flow. The
different pressures in the range 0-10 Barg were tested using internal diameter pipe of
4-in (108.2-mm ID) and length of 40-m long loop. The stratified-slug boundary moves up
in the flow regime map with increasing in the pressure. Furthermore, they found that
the sudden changes of average liquid holdup were linked to the flow transition when
the pressure changed.
The flow visualization experiments of characterization of air-water slug flow sub-
regimes in 8-m long transparent pipe of 25 6 0.15 mm ID were implemented by Thaker
and Banerjee (2015). Five different slug flow sub-regimes such as slug formation zone,
less aerated slug zone, highly aerated slug zone, slug and wavy zone and slug and plug
zone were identified based on the visual observations. These studies observed the
minimum and maximum slug frequencies in slug formation zone and highly aerated
slug zone, respectively. They developed an empirical correlation to predict the non-
dimensional slug frequency as a function of superficial Reynolds number of gas (ReSG)
and liquid (ReSL) and length to diameter ratio (L/D). The relationship of non-
dimensional slug frequency was represented as a product of Strouhal number and
Froude number. Recently, Thaker and Banerjee (2017) studied the horizontal transition
of plug to slug flow and associated fluid dynamics using the same experimental
measurements and test fluid. The inlet flow conditions of 13 different data points were
reported carefully based on the intermittent flow sub-regime map of Thaker and
Banerjee (2015) to analyze the interfacial structure of plug flow sub-pattern and its
transition to slug. This developed map was represented in terms of superficial Reynolds
number of gas (ReSG) and liquid (ReSL) for horizontal pipe. They found that ReSG had
significant influence on liquid slug velocity, however it had only marginal effect on
liquid film velocity. ReSG plays an important role for onset of bubble entrainment
process inside the liquid slug leading to transition from plug to slug flow.
In the oil and gas industries, the transportation of the gas-oil two-phase flow always
involves slug flow which not only damages the flowlines but also causes difficulty in phase
separation process. As a result, the main objective of this work is to explore oil-gas slug flow
in horizontal straight pipes. The developed numerical correlations for pressure gradient,
slug liquid holdup and slug frequency were compared with the existing models in the
literature. The quantitative validation was performed using the experimental data from
Mohmmed (2016). Morphology of the slug flow regime, slug translational velocity, slug body
length and slug frequency from experiments were compared with present model to ensure
the correctness of the methodology. The horizontal air-water two-phase flow regimes were
reproduced and compared with the experimental data from the Baker chart (Baker, 1954).
Furthermore, the produced numerical results and flow regime were cross-validated by
superimposing the numerical solution onto Taitel and Dukler (1976) flow regime map for
quality assurance.
1.1 Numerical simulation of two-phase slug flows Simulation of
In the oil and gas production and transportation industry, gas-liquid two-phase flow in pipes two-phase flow
is one of the most common occurrences. Accurate predictions of the liquid holdup, pressure
drop and flow behavior are imperative for maintenance and uninterrupted operation of the
regime
facilities. At the same time, it is almost impossible to design consistently accurate
production facilities that take into account the complete life cycle of a reservoir. As reservoir
depleted and matured, its multiphase flow behavior changed. Compounding to the
complexity of the issue are parameters such as pipe diameter, inclination angle, gas and
liquid flow rates and fluid properties (densities, viscosities and surface tension). In the
industry, multiphase flows have been examined mainly analytically and experimentally due
to their complexity. Most of the existing experimental results and the empirical correlation
for complex flow are limited due to experimental constrains such as cost and construction
space. Computational fluid dynamics (CFD) offers an easier and flexible method to design
and use large-scale computational models to predict this complex two-phase flow with huge
saving in terms of laborious and expensive experimental research (Lun et al., 1996).
Among the CFD model, the volume of fluid (VOF) method enables accurate tracking and
capturing of two-phase interface. In VOF, the motion of the interface is not tracked directly
by itself, but rather the volume of each phase in each cell is evolved in time and the interface
of both phases at the new time is reconstructed from the values of the volumes at new time.
For this reason, the VOF models are sometimes referred to as volume tracking methods
(Rider and Kothe, 1998).
Several methods have been proposed for generating slug flow and its formation. Similar
method of interface tracking was implemented in the commercial CFX-5.7 which used to
model air-water two-phase slug flow regime in horizontal pipes by Frank (2005). The slug
formation, propagation and liquid holdup in a horizontal circular pipe was investigated.
Moreover, Ghorai and Nigam (2006) used FLUENT 6.0 to model air-water two-phase flow in
a horizontal pipe. The VOF models were found more suitable for simulating interface
between two or more fluids in this work. This approach was used to study the liquid volume
fraction, gas velocity and interfacial roughness. The comparison of their numerical model
between the predicted interfacial roughness and the data in the literature was validated. Lu
et al. (2007) performed experimental and numerical investigations on the characteristics of
an oil-gas flow in a large-scale horizontal pipe with an ID of 125 mm by means of VOF
technique. They concluded that, for a flow transition from stratified flow to slug flow, a
critical liquid superficial velocity of 0.113 m/s is required. Also, the gas superficial velocity
decreased with the increasing liquid superficial velocity. In addition, the appearance of a
slug flow was found to be independent of the gas superficial velocity. The results were
shown to match well between their computations and the measured data in the experiments.
De Schepper et al. (2008) claimed that the existing commercial CFD codes by using VOF
formulation were able to predict the gas-liquid flow regimes in horizontal pipes. They
compared their numerical results with Baker chart and claimed that all horizontal flow
regimes from the chart could be predicted and simulated. Similarly, Rahimi et al. (2013) used
commercial CFD model with the VOF method to predict the gas-liquid two-phase flow
regimes in a pipeline. They tried to improve all flow regimes from Baker chart by using CFD
method. More recently, VOF method has been used by Deendarlianto et al. (2016) to study
air-water two-phase plug flow in the horizontal pipe with 0.026-m ID and 9.5-m length. They
found that the gas superficial velocity was significantly affected to the liquid plug holdup,
and it was fluctuated strongly with the time variation by increasing the superficial velocity
of gas. From their experimental results, it was found that the gas slug length was higher
than liquid slug length for all conditions. The gas, liquid and total slug lengths were
HFF increased with the increase in gas superficial velocities, but they were decreased with the
increase of liquid superficial velocities. However, Horgue et al. (2012) pointed out that some
numerical simulation problems related to the VOF method were associated with poor model
parametrization because of the discretization scheme and were unsuitable and the time steps
too large. For that reason, they suggested that the simulation of slug flows using VOF model
needs a suitable parameterization to improve accuracy and computational speed. In this
work, the VOF of multiphase flow technique was applied to model the slug flow patterns
and determine the slug flow characteristics to obtain the accurate results with less
computational time.
1.2 Slug holdup correlations for validation

In two-phase gas-liquid flow, the slug flow always happens due to an increasing gas
superficial velocity. The liquid slugs and gas pockets propagate alternatively in the pipe.
The liquid volume fraction in the slug body of gas-liquid two-phase flow is recognized as the
slug liquid holdup. The slug liquid holdup is an important parameter for modeling of slug
flow transition. Most of the pressure gradient in the slug flow along the pipe occurs in the
slug body. The liquid film acceleration also causes significant pressure gradient in the
mixing zone at the slug front. As a result, the overall pressure gradient depends greatly on
the slug liquid holdup and slug length (Brito et al., 2013; Kora et al., 2011; Lu et al., 2007; Lu,
2015; Pao et al., 2015, 2016; Sam et al., 2017; Wang et al., 2013).
The widely used correlation for gas fraction prediction as a function of mixture velocity
was proposed by Gregory et al. (1978). Their correlation was based on air and light-oil two-
phase mixtures in pipes with internal diameter of 0.0258 and 0.0512 m. They mentioned that
the correlation should be limited to cases for the superficial mixture velocity which was less
than 10 m/s to decrease the feasibility of entering the transitional zone between the annular
and slug flows, where the correlation model would not be appropriate. Kokal and Stanislav
(1989) conducted the experimental study on a series of oil-air two-phase flow in horizontal
and inclined pipes with the three different internal diameters (0.0258, 0.0512 and 0.0763 m)
and 25-m long. The correlation of liquid holdup in the slug body model was considered an
interfacial shear term which was added for the gas film. Therefore, the correlation had an
added term of (1 r G/ r L)0.5 in the gas-phase drift velocity (Ud) relation of their correlation
model. This additional term in the gas-phase drift velocity (Ud) relation would not impact the
results significantly, as the density ratio ( r G/ r L) was very small for most gas and liquid
combinations. The experimental studies on a unified correlation model for air-kerosene two-
phase slug flow in the pipe with internal diameter of 0.051 m and length of 15 m were
developed by Felizola and Shoham (1995). The entire range of inclination angles of the pipe
from horizontal (0°) to upward (90°) vertical flow was considered for these studies. However,
the correlation methods were based entirely on empirical data. As a result, extrapolation
beyond the range of experimental conditions needs to be treated with reserve. Furthermore,
the correlation of liquid holdup in the slug body was based on their own experimental data
only, and it required 15 coefficients for different inclination angles. For the horizontal flow,
the correlation did not give the right trend. Later, Gomez et al. (2000) used the data from
various different authors. The dimensionless correlation of liquid holdup in the slug body
was developed with the pipe diameters from 0.051 to 0.203 m, pressures from 150 to 2000 kPa
and the inclination angles of the pipe from horizontal to upward vertical flow. The data were
relied on inclination angle of the pipe, Reynolds number and void fraction of the slug.
Alternatively, phenomenological models (Brito et al., 2013; Felizola and Shoham, 1995;
Gomez et al., 2000; Gregory et al., 1978; Gregory and Scott, 1969; Kokal and Stanislav,
1989; Kora et al., 2011; Lu, 2015; Mattar and Gregory, 1974; Neal and Bankoff, 1965;
Nicklin et al., 1962; Wang et al., 2013) measured the slug liquid holdup and proposed a Simulation of
simple correlation as a function of mixture velocity. These models generally rely on the two-phase flow
estimation through experimental correlations as shown in Table I for horizontal pipe
flows. However, Al-Safran et al. (2004) noticed that the accuracy of the models
regime
correlations was not good unless the application scenario was closer to the experimental
condition where the correlation came from.
Table I summarized all the eight published mean liquid holdup correlations available in
the open literature. The majority of the correlation is reported with internal diameters of
0.75-3 inches, which is too limited as far as operational usage is concerned. The only
exception is Gomez et al. (2000) who collected data from different sources and reported the
holdup correlation for 2-8 inches pipe.
1.3 Slug frequency correlations for validation

A critical issue in modeling the slug flow behavior is the slug frequency prediction and the
relevance of slug lengths. Accurate prediction of the slug frequency is important for design
of transportation pipelines and gas-liquid receiving facilities. The frequency of slug flow is
required as an input in mechanistic models to predict slug lengths and slug characteristics
such as pressure gradient and liquid holdup accurately (Gokcal et al., 2009).
Gregory and Scott (1969) proposed one of the first slug frequency correlations based
on their experimental data using 0.75-inch ID horizontal pipe with carbon dioxide and
water. The authors concluded that the slug frequency was dependent on pipe diameter.
This conclusion was based on a comparison of their data collected from the experiment
of air-water system with data from literature reviews. Later, Greskovich and Shrier
(1972) reformulated the Gregory and Scott slug frequency correlation using the Froude
number and no-slip liquid holdup. The slug frequency correlation was tested by using a
kerosene-nitrogen system in the pipe diameter of 1.25”, 1.5” and 6”. By using the data
collected from a 6-inch ID line, they suggested that the diameter effects are over-
predicted by Gregory and Scott (1969) model. To overcome this, they recommended that
their graphical correlation should be used instead, for cases involving large diameters.
Zabaras (1999) compared numerous correlations and mechanistic models for the slug
frequency prediction in horizontal and inclined pipes against open data. The data set
included both his experimental results and published slug frequency results. He found
that the performance of existing methods was not sufficiently accurate for inclined slug
flow. He modified the correlation of Gregory and Scott (1969) model, taking into account
the effect of inclination angle.
Gokcal et al. (2009) conducted the experimental works of horizontal gas-liquid two-phase
flow in a pipe with oil viscosities between 0.181 and 0.589 Pa.s. The experimental results
showed that viscosity was a major parameter that affected the slug frequency significantly.
The slug frequency was increased with increasing liquid viscosity. Based on dimensionless
analysis, the slug frequency closure model for high viscosity of oil in the horizontal pipes
was developed. Although this correlation model was a better alternative than the rest of the
above correlations for high viscosity of oils, the comparison against published data
indicated that this model was not valid for kerosene or water fluids that had very low
viscosity.
Perez et al. (2010) recently reported the existence of wisp-like structures in a vertical air-
water flow revealed by wire mesh sensor studies with a 67-mm diameter pipe at atmospheric
pressure. They studied a mixture of air and water with gas superficial velocities in the range
0.05-5.7 m/s and the liquid superficial velocities of 0.2, 0.25 and 0.7 m/s. The frequencies of
the periodicity of the flow obtained from power spectral density analysis were seen to
HFF
Table I.
correlations, HLs
Slug liquid holdup
Author D (m) L (m) u (o) USL (m/s) USG (m/s) Fluids p (kPa) HLs (-)

c d
Gomez et al. 0.051-0.203 15-418 0-90 0.1, 0.2, 1, 1.05, 1.07, 1.98, Air -water , 150-2000 exp 2:48 106 Re þ 0:45u
(2000)a 0.5, 1, 1.02 2, 2.22, 3.02 Airc-kerosenee,
Airc-light oilf
2
Felizola and 0.051 15 0-90 0.05, 0.1, 0.5, 1.0, 2, 3 Airc-kerosenee 250 0:775 þ 0:041UM 0:019UM
Shoham (1995) 0.5, 1.0, 1.5 (u =0°, horizontal flow)
Kokal and 0.0258, 0.0512, 25 0, 61, 65, 69 0.03-3 0.4-15.3 Airc-light oilf 230-350 1 USG =ð1:2UM þ Ud Þ
Stanislav 0.0763
(1989)b h i1
Gregory et al. 0.0258-0.0512 15, 17 0 0.03-2.32 0.09-15.37 Airc-light oilf 255, 3.45 1 þ ðUM =8:66Þ1:39
(1978)
Mattar and 0.0254 27.43 0, 3, 6, 10 0.09-1.52 0.3-7.62 Airc-light oilf 0-345 1 USG =ð1:3UM þ 0:7Þ
Gregory (1974)
Gregory and 0.01905, 0.0351 – 0 0.442-1.3 1.05-7.7 Carbon 101.325 1 USG =ð1:19UM Þ
Scott (1969) dioxideg-waterd 2 !0:2 3
1:88 2
4 USG USL 5
Neal and 0.0254 1.524 0-90 0.43-0.9 0.5-3 Mercury- 101.325 1 1:25
Bankoff (1965) nitrogen UM gD
pffiffiffiffiffiffi
Nicklin et al. 0.057 1.83 90 0.12-0.27 0.003-0.12 Airc-waterd 101.325 1 USG = 1:2UM þ 0:35 gD
(1962)
qffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi
gDð r L r G Þ
Notes: awhere Re = ( r L UM D)/ m L and 0 # u # p /2; bUd ¼ 0:345 rL is the drift velocity; cDensity of air r G = 1.225 kg/m3; dDensity of water r L =
998.2 kg/m3 and Viscosity of water m L = 0.001003 Pa s; eDensity of kerosene r L = 800 kg/m3 and Viscosity of kerosene m L = 0.0016 Pa s; fDensity of light oil r L
= 858 kg/m3 and Viscosity of light oil m L = 0.007 Pa s; gDensity of carbon dioxide r G = 1.98 kg/m3
decrease with increasing gas superficial velocity. In contrast, the frequencies for the Simulation of
occurrence of wisps were seen to increase as the gas velocity was increased. two-phase flow
Slug flow is one of the most observed flow pattern in the industry that characterize the
gas-liquid two-phase flow in multiphase transportation pipelines. The most distinctive
regime
characteristic of the slug flow or slug tracking models is the need for the slug properties
such as velocities, slug liquid holdups, lengths and frequencies to be considered at the inlet
or along the pipelines. The reviews of previous models and correlations (Al-Safran, 2009;
Gokcal et al., 2009; Gregory and Scott, 1969; Greskovich and Shrier, 1972; Perez et al., 2010;
Zabaras, 1999) were proposed for slug frequency prediction based on experimental data of
gas-liquid two-phase flow in horizontal and inclined pipes as summarized in Table II.
Overall, slug frequency decreases with increasing gas superficial velocity but vice versa
with increasing liquid superficial velocity.
2. Numerical modeling
2.1 Multiphase flow modeling
Depending on the operating conditions, different flow regimes from one to another are
displayed in multiphase flow processing. In modeling multiphase flow, there are three
main steps that need to be addressed. Defining the number of phases and the flow
regime in which they are flowing is the first step in the procedure of model selection.
Second, the governing equations formulation plays an important role in the
development of multiphase flow model. All the flow problems and any flow behavior for
the motion of all phases in numerical simulation are developed by formulating local,
instantaneous conservation of mass, momentum and energy equations in the control
volume. Finally, these governing equations are solved for the multiphase flow model
(Ranade, 2002).
FLUENT 16.1 is based on the finite volume method to discretize the governing equations
(Versteeg and Malalasekera, 1995). The present work used the Eulerian approaches with
VOF model where liquid and gas were treated as two distinct phases. The VOF model is a
method used to track and capture the gas-liquid immiscible interface finding the solution for
the single set of momentum equations and tracking the volume fraction of gas and liquid
phase throughout the domain (Ranade, 2002). The k-« model was used to treat turbulence
phenomena in the fluids.
If ak is the volume fraction of the k-th phase in a computational cell, when ak equals 0
means that the cell is empty of the k-th fluid, ak equal to 1, the cell is full of the k-th fluid and
the cell consists of the mixture of the k-th fluid and one or more types of fluids when ak is
between 0 and 1. Therefore, based on these appropriate properties of ak, variables are
assigned to each computational cell.
The flow processes around each dispersed phase particles are resolved using the
VOF method. In this approach, a surface-tracking technique was applied to a fixed
Eulerian mesh. A single set of mass conservation equation, equation (1), and
momentum equation, equation (2), are solved continuously and shared by the fluids and
volume fraction of both phases in each computational cell. The volume fraction of the
phase in interface tracking between the phases is accomplished by solving an
additional continuity equation as expressed in equation (3). The expression of
continuity equation, equation (3), is to introduce for the volume fraction of the primary
phase which is gas, aG. Therefore, the volume fraction of the secondary phase is liquid,
aL that is computed as 1 aG (Ansys Fluent, 2016; Ranade, 2002):
HFF
Table II.
slug frequency, fs
Correlations for the
Author D (m) L (m) u (o) USL (m/s) USG (m/s) Fluids p (kPa) fs (sec1)
" !#1:2
USL 19:75
0:0226 þ UM cosðu Þ
gD UM
Perez et al. 0.067 6 0-90 0.1-2.5 0.5-40 Airc-waterd 600 " !#0:25
(2010) USL 19:75
þ 0:8428 þ UM sinðu Þ
gD UM
1 USL
Gokcal 0.0508 18.9 0-90 0.05-0.8 0.1-2 Airc-high oile 758.42 2:816
et al. (2009)a Nf0:612 D

USL
Al-Safran 0.0508 420 0 0.06-1.25 0.64-4.3 Airc-mineral oilf – exp 0:8 þ 1:53lnðUSL Þ þ 0:27 34:1ð DÞ
(2009) UM
" !#1:2
USL 19:75
Zabaras 0.0254, 0.1016 – 0-11 – – Airc-waterd – 0:0226 þ UM
gD UM
(1999)
0:836 þ 2:75sin0:25 ðu Þ
" #1:2
USL 2:02 2
Greskovich 0.0381, 0.1524 – 0 – – Airc-waterd – 0:0226 þ FrM
and Shrier UM D
(1972)b
1:2
USL 19:75
Gregory 0.01905, 0.0351 – 0 0.442-1.3 1.05-7.7 Carbon dioxideg- 101.325 0:0226 þ UM
and Scott waterd gD UM
(1969)
pffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi pffiffiffiffiffiffi
Notes: awhere Nf ¼ D3=2 r L ð r L r G Þg= m L is dimensionless inverse viscosity number; bFr ¼ UM = gD is mixture Froude number; cDensity of air r G =
3 d 3 e
1.225 kg/m ; Density of water r L = 998.2 kg/m and Viscosity of water m L = 0.001003 Pa s; Density of high oil r L = 889 kg/m3 and Viscosity of high oil m L =
0.181-0.589 Pa s; fDensity of paraffinic mineral oil r L = 890.6 kg/m3 and Viscosity of paraffinic mineral oil m L = 0.0102 Pa s; gDensity of carbon dioxide r G =
1.98 kg/m3
@ Simulation of
ðr Þ þ r ðr U Þ ¼ 0 (1)
@t two-phase flow
regime
@
ð r U Þ þ r ð r UU Þ ¼ rp þ r m ðrU þ rU T Þ þ r g þ F (2)
@t
@ aG
þ U ra G ¼ 0 (3)
@t
where t is time, r is fluid density, U is the fluid velocity, p is pressure, m is fluid viscosity, g
is the acceleration of gravity and F is body forces.
The body force, F, in equation (2) accounts for the surface tension, s and the contact
angle. This body force is computed in FLUENT as the continuum surface force model (CSF),
FCSF (Brackbill et al., 1992). The model used the value of contact angle to adjust the interface
normal in each cells near the wall rather than imposing the effect of contact angle as the
boundary condition of the wall.
The CFD code with VOF multiphase flow model, the sum of gas and liquid volume
fractions in each control volume is equal to one. When the mixture is fully saturated:
X
n
ak ¼ 1 (4)
k¼1
where a is the volume fraction of k-th phase, n phases in total. The equation (4) specifies that
the computation of the volume fraction from the phase continuity equation could be omitted
for one phase. In most cases, the volume fraction of the continuous phase is resolved with
equation (4) from the fractions of the other phases.
Generally, in the VOF model, the mixture properties of density ( r ) and viscosity ( m ) are
defined in the usual way (Ghorai and Nigam, 2006):
Xn
r¼ ak r k (5)
k¼1
X
n
m¼ ak m k (6)
k¼1
2.2 Mesh quality and mesh dependency study

The horizontal pipe considered for present analysis had an internal diameter of 0.08 m and a
length of 8 m. This pipe geometry was divided into a hexahedral mesh, which was generated
with the help of a mesh generating tool known as ICEM/CFD-Hexa. In this work, the 3D
geometry was meshed using different numbers of elements from 65 to 1,536 thousands
hexahedral cells. To present the apparent 3D computational domain with hexahedral cells,
Figure 1 illustrated four different types of the volume tessellation in the computational
domain with different level of grid refinement.
Poor mesh quality may lead to inaccurate solution and/or slow convergence. To avoid the
effect of poor mesh quality, the mesh quality check was generally taken prior to performing
HFF
Figure 1.
Mesh of the domain –
hexahedral mesh
the numerical simulation. Mesh expansion factor measures the magnitude of the rate of
change of the adjacent element areas or volumes. The most important mesh matrices for
FLUENT, such as maximum aspect ratio and minimum orthogonal quality check, are
involved in quantifying the quality. The mesh aspect ratio is determined by dividing the
smallest element edge length by the largest; usually it should be less than 40. Orthogonal
quality is computed for cells using the vector from the cell centroid to each of its faces, the
corresponding face area vector and the vector from the cell centroid to the centroids of each
of the adjacent cells. The worst cells will have an orthogonal quality closer to 0, with the best
cells closer to 1. The minimum orthogonal quality for all types of cells should be more than
0.01. The primary mesh quality check was executed with ICEM-CFD meshing then the
report mesh quality was double-checked and displayed in the console in FLUENT
simulation.
All the seven 3D computational domains with different number of elements have been
checked for the quality before the simulation. The lowest mesh quality and the mesh used
for the main study are presented in Table III, and it is found that the lowest mesh quality
Lowest mesh Optimum mesh

CFD tool Key factor Requirement quality for the study
ICEM-CFD Minimum determinant >0.2 0.71 0.74

Table III. Minimum angle Preferably >18o 46.71 47.88
FLUENT Maximum aspect ratio <40 11.58 11.6
ICEM-CFD and Minimum orthogonal >0.01 (best cells 0.75 0.8
FLUENT criteria to quality closer to 1)
determine acceptable
mesh quality Source: Fluent (2016); ICEM (2016)
still meets the requirement of acceptable mesh quality. Hence, good quality mesh for Simulation of
the numerical simulation has been met for all the seven 3D computational domains. The two-phase flow
geometry with number of elements of 629.3 thousands hexahedral cells was found to be the
regime
lowest mesh quality. Table III shows the detail ICEM/CFD-Hexa and FLUENT criteria used
in this work to determine the acceptable mesh quality for the simulation solver (Ansys
Fluent, 2016; Ansys ICEM-CFD, 2016).
However, the mesh quality check was effectively completed, the optimum numbers of
elements for the mesh dependency study is a crucial step that one needs to compromise and
carry out. Therefore, model validation was started with mesh dependency check analysis.
This analysis was conducted to study the mesh dependent convergence behavior. To study
the convergence behavior, several runs of simulation had been performed by varying total
number of hexahedral cells. The pressure gradient distribution in the horizontal pipe was
the criteria selected to check on the convergence behavior. To ensure the solution
independency from grid size, the geometry was meshed using different numbers of elements
cell between 65 and 1,536 thousands hexahedral cells as shown in Figure 1. The pressure
gradient values obtained corresponding to each number of elements are tabulated in
Table IV. Moreover, the calculations were carried out under the same setup and physical
parameters such as the velocity desired flow regime, turbulence model and time step. The
results are illustrated in Figure 2 for the cases of air-water two-phase slug flow regime. At
the inlet was gas and liquid superficial velocities and at the outlet was pressure outlet. Air
and water superficial velocities of slug flow were USG = 3.26 m/s and USL = 0.4 m/s,
respectively. The simulations were performed under the atmospheric pressure (101.3 kPa)
with temperature 24°C.
Figure 2 shows the model’s convergence behavior of different numbers of elements cell
based on the pressure gradient obtained along the whole length, 8 m, of the horizontal pipe.
No. of elements Pressure gradient, dp/dx (kPa/m)
65,000 0.2243
1,02,300 0.2452
Table IV.
2,12,800 0.6758
3,03,690 0.8059 The different number
5,22,500 0.8505 of elements with
6,29,300 0.8521 convergent criteria of
15,36,000 0.8543 pressure gradient
0.9
0.8
0.7
dp/dx (kPa/m)
0.6
0.5
Optimum number
0.4
of elements
0.3
0.2 Figure 2.
0.1 Pressure gradient
0 convergence versus
0 500 1,000 1,500 2,000
number of mesh
(Thousands)
Number of Elements elements
HFF The pressure gradient increases gradually until it plateaus to a constant value at around 500
thousands hexahedral cells. Figure 2 shows that the solution with coarser meshes is unstable
and varied with the changes of numbers of elements cell. This error on the coarser mesh is due
to insufficient element fineness to capture the solution. The pressure gradient curve converges
as the mesh was refined, showing that the numerical solution is converging toward the “true”
solution. The simulation time for the model with the finest mesh, Figure 1(d), took about three
weeks to complete. A balance approach of computing time and accuracy of solution has to be
compromised. It was decided that the 3D model with 522.5 thousands hexahedral cells are the
lowest limit of the required mesh resolution to achieve a reasonable converged results. From
here onwards, unless otherwise stated, the mesh configuration shown in Figure 1(c) is the
mesh used for the simulation in this study.
2.3 Initial and boundary conditions

The boundary conditions are critical components of FLUENT simulations, and it is
important to note that the initial and boundary conditions of the present study are specified
appropriately. Based on the previous investigations, there are two techniques which were
used in the boundary conditions for the simulation of flow regimes and especially slug flow.
The first technique was as used by Frank (2005), where perturbations of the free surface were
imposed at the inlet producing initially set sinusoidal agitation of free surface in time. In this
work, the technique was modified where the perturbations were as a result of the volume
fraction of liquid phases entering the pipe as a function of time as shown in equation (7). This
idea was to improve the CFD codes in the present study to provide better observation of air-
water flow patterns and make it independent of pipe diameter and pipe length. The key
points of the present simulations are the constant gas and liquid superficial velocities that
were input at the inlet of the pipe according to Baker chart, and a transient liquid level at the
inlet cross section was set as the following function:

2p x
yI ¼ y0 þ AI sin þp (7)
pI
where y0 = 0.0005, AI = 0.25y0, pI = 0.25. yI is the height of the gas-liquid interface from the
reference y0. y0 is the liquid film. AI is the liquid level fluctuation amplitude. pI is the
wavelength and x is the axial position.
The second technique, the initial condition was set in such a way that the gas-liquid
volume fraction has a 50-50 share in volume with only liquid occupying the bottom of the
pipeline and gas phase filling the top of the liquid surface. This implicitly implied that the
starting condition is the stratified gas and liquid two-phase flow with zero velocity (Frank,
2005; Ghorai and Nigam, 2006; Lu et al., 2007; Lu, 2015; Mo et al., 2014). The initial and
boundary conditions of gas and liquid in horizontal pipe are demonstrated schematically in
Figure 3.
Figure 3.
Boundary condition
of gas-liquid flow in
horizontal pipe
The no-slip boundary condition was applied at the pipe walls and atmospheric pressure is Simulation of
set at the outlet boundary condition. The influence of the gravitational force on the flow has two-phase flow
been taken into account. All of the inlet values of the velocities desired flow regimes for all
cases of numerical simulation were taken from the Baker chart (Baker, 1954).
regime
2.4 Solution method

The PRESTO (pressure staggering options) scheme was applied for pressure interpolation.
A combination of the PISO (pressure implicit with splitting of operators) algorithm for
pressure–velocity coupling and the second-order upwind calculation scheme for the
determination of volume fraction and momentum were used to perform the calculations
(Versteeg and Malalasekera, 1995).
Gas was chosen as primary phase and liquid was secondary phase. The surface tension
was set a constant value, for air-water of s W = 0.072 N/m and oil and gas of s = 0.018653 N/m.
Gas-liquid two-phase flow was the dynamic flow behavior; therefore, all cases of numerical
simulation for unsteady state calculation were carried out with a time step of 0.001 s. All the
calculations were run, and the Courant number (Co) was fixed at 0.25 for the volume fraction
equations. The residual value of the calculated variables for the mass, velocity components and
volume fraction of two-phase was contributed to the convergence criterion. When the scaled
residuals of the different variables were lowered by four orders of magnitude, the numerical
calculations were considered converged in this works.
3. Results and discussions

3.1 Air-water two-phase flow simulation
3.1.1 Air-water two-phase flow conditions. The horizontal pipe with internal diameter of 0.08 m
(3.15 inches) and 8 m length was used to validate the air-water two-phase flow model. The
general geometry of horizontal pipe flow for the case studies modeled is shown in Figure 4.
Based on the regime map of flow characteristic in the literature review, the Baker Chart
(Baker, 1954) was used to generate the flow regimes in this work. The selected data points
for different regimes in this validation are shown in Figure 5. The Baker flow pattern map
and the boundaries of the various flow pattern regions is the function of the mass flux of gas
(air), GG and the ratio of mass flux of liquid and gas, GL/GG is illustrated in Figure 5. The
dimensionless parameters l and c are included to make the chart useful for any gas-liquid
combination different from the standard combination. The parameters l and c equal unity
when the standard combinations are air and water at atmospheric pressure and at room
temperature 25°C. By using the accurate calculation of l and c , the geometry of two-phase
flows with any gas (GG) and liquid (GL) at different temperatures and pressures conditions
can be predicted using the same chart. Although solid lines are used to represent the
transition flow regimes from one region to another in Figure 5, however, these lines
represents broad transition zones in reality.
To use the map, first the mass flux of the liquid and gas (air, vapor) must be determined.
Then Baker’s parameters l and c are calculated. The gas-phase parameter is l and the
liquid-phase parameter is c . The values of the x-axis and y-axis are then determined to
Figure 4.
Horizontal pipe
geometry and zones
of the computational
flow domain
HFF identify the particular flow regime. These dimensionless parameters of mass flux of gas and
liquid phase are given by (Baker, 1954):
" #0:5
rG rL
l ¼ (8)
ra rW
" 2 #1=3
sW mL rW
c ¼ (9)
s mW rL
where l and c are dimensionless parameter; r G, r L, r a and r W are density of gas, liquid,
air and water, respectively. m L and m W are viscosity of liquid and water, respectively; s w is
surface tension of water and s is gas-liquid surface tension.
In this study, the commercial FLUENT 16.1 was used to simulate two-phase flow model
to reproduce the seven flow regimes for air-water two-phase flow in a horizontal pipe as a
mean to validate the correctness of the CFD procedures. The established methodology will
be applied in Section 3.3 to evaluate the effect of fluid properties for oil-gas two-phase slug
flow predicted by Baker chart, using the suitable values for factors of l and c [equations (8)
and (9)].
The three-dimensional simulations of the two-phase flow regimes for air and water are
presented in this work. All seven cases, representing seven flow regimes in the Baker Chart,
of air-water two-phase flow under atmospheric pressure and at room temperature were
implemented. The superficial velocities of water and air, determined from the Baker chart,
were used as inlet conditions for the calculation. The selected operating conditions are listed
in Table V. The inlet temperature was set at a constant value of 25°C. The fluid pressure at
the pipe outlet was set to 101,325 Pa (atmospheric pressure). The physical properties of air
and water used for the simulation are tabulated in Table VI.
3.1.2 Volume fraction contour of flow regimes. All seven flow regimes that appeared in
the Baker chart (Baker, 1954) were simulated and the discussion of them now follows. The
mixture density contour for seven different horizontal flow regimes is illustrated in Figure 6.
The air and water two-phase mixture density in the horizontal pipe is proportional to its
phase composition. The red color denotes water phase and the blue color represents air
1,000
100 Dispersed flow
Annular flow
Wavy flow Bubble flow
10
GG/λ
(kg/m2 s) Slug flow
Figure 5.
1
Baker chart () Stratified flow Plug flow
operating conditions
for the simulation of 0.1
seven flow regimes of 0.1 1 10 100 1,000 10,000
GLλψ/GG (–)
air and water two
phase flow
Source: Baker (1954)
phase. Figure 6(a) depicts the resultant stratified flow regime according to data selected Simulation of
from Baker chart (Figure 5 and Table V). The air and water are separated by a smooth two-phase flow
interface at low gas-liquid velocity of USG = 1.22 m/s and USL = 0.003 m/s, respectively. A
normal condition of gravitational effect is that the heavy liquid flows at the bottom, while
regime
the gas flows over the liquid in the pipe. Figure 6(b) shows the density contour of wavy flow
regime based on the data selected from Baker chart in Figure 5 at USG = 20.41 m/s and
USL = 0.0063 m/s. The flow started from stratified flow and the higher gas velocity causes
the gas-liquid interface to travel in a wavy fashion along the pipe in the flow direction.
Figure 6(c) presents the simulation results of plug flow regime obtained from Baker chart in
Figure 5 at USG = 0.16 m/s and USL = 1 m/s. Intermittent flow is usually called plug flow
regime which has medium flow rates of water and low air flow rates. The liquid plugs are
Flow regime GG/l (kg/(m2 s)) GG (kg/(m2 s)) USG (m/s) GLl c /GG GL (kg/(m2 s)) USL (m/s)
Stratified 1.5 1.5 1.22 2 3 0.003

Wavy 25 25 20.41 0.25 6.25 0.0063
Plug 0.2 0.2 0.16 5000 1000 1
Slug 4 4 3.26 100 400 0.4 Table V.
Annular 20 20 16.33 10 200 0.2 Selected operating
Bubble 40 40 32.65 1000 40,000 40.1 conditions for the
Spray 105 105 85.71 11 1,155 1.16 water-air simulations
Operating phase r (kg/m3) m (Pa s) s (N/m)

Table VI.
Water 998.2 0.001003 0.0719404 Physical properties
Air 1.225 1.7894e-05 of water-air
Figure 6.
Contours of mixture
density (kg/m3) for
water-air flow
HFF separated by elongated gas bubbles and the large bubbles travelling along the top of the
pipe whereby large waves are presented on the stratified layer. From the contour, small
bubbles and elongated bubbles flow and rise at the upper part of the horizontal pipe because
of the upward force of buoyancy. Plug flow is also sometimes referred to as elongated
bubble flow. The numerical simulation results of slug flow pattern according to the Baker
chart as shown in Figure 5 and with USG = 3.26 and USL = 0.4 m/s is illustrated in Figure 6
(d). When gas velocities increase to 3.26 m/s, aeration takes place at the liquid slugs and
contains small gas bubbles. The gas bubbles grow and it becomes elongated bubbles. The
liquid slugs separating such elongated bubbles can also be described as large amplitude
waves. These waves touch the top wall of the pipe and form a liquid slug which passes
rapidly along the pipe. The CFD prediction results of annular flow regime given by Baker
chart in Figure 5 at gas and liquid superficial velocities USG = 16.33 and USL = 0.2 m/s,
respectively can be seen in Figure 6(e). The gas velocity increased further through the
central core, the liquid forms a continuous annular film around the perimeter of the pipe, and
the liquid film is thicker at the bottom than the top due to gravity. Figure 6(f) indicates the
bubble flow regime as reported by the data selected from Baker chart in Figure 5 and USG =
32.65 m/s and USL = 40.1 m/s. In this case, the flow is called dispersed bubble flow, the small
gas bubbles move along the pipe or at the top of the pipe in continuous flow of the liquid
phase (gas phase discontinuous) and both bubbles and liquid are approximately the same
velocity. Figure 6(g) illustrates the spray/dispersed flow consistent with the Baker chart as
shown in Figure 5 at USG = 85.71 m/s and USL = 1.16 m/s. As mentioned by Baker (1954), the
spray flow is the type of flow in the group of dispersed flow. It can be clearly seen from axial
direction of the contour, small droplets of water are entrained along the pipe as spray by the air
phase. The small water droplets are dispersed in continuous air phase. The contour clearly
showed that small liquid film and some liquid droplets flow at the bottom of the pipe due to
gravity effect.
3.1.3 Model comparison of flow regimes. The comparisons between present models of
mixture density in horizontal layout for air-water flow with the model of De Schepper et al.
(2008) are shown in Figure 7. However, it can be seen that the model prediction of De
Schepper et al. (2008) on the right-hand side in Figure 7(d) shows poor slug flow regime. It is
Figure 7.
Comparisons
between present
models of mixture
density in horizontal
pipe layout (kg/m3)
for air-water flow
with the model of De
Schepper et al. (2008)
important to note that based on the finding of De Schepper et al. (2008), the liquid slugs do not Simulation of
touch the upper part of the pipe as expected from the observation of their study. two-phase flow
Furthermore, the authors themselves explained that it was very difficult to simulate a good
slug flow regime due to the transition zones of Baker chart, and the region of slug flow
regime
pattern for air-water flow is very small compared to the other flow pattern regions. This is
one possible explanation to a poor simulation result of slug flow regime. Conversely,
remember that the slug flow should be presented as intermittent nature or plug flow
according to Baker flow pattern map. The slug behavior is found to be unsteady, and hence
the liquid slug jumps to plug the pipe section and travels along the pipe with gas bubbles
and elongated gas bubbles on the top of the pipe which makes a series of slug (slug body
length) as shown in Figure 7(d) on the left-hand side.
For annular flow in Figure 7(e), De Schepper et al. (2008) contour showed almost no liquid
film at the bottom of the pipe. The present model clearly showed the presence of a thin liquid
film at the bottom of the pipe, which is the characteristic of annular. Due to the gravity effect
and the different density of both phases, in addition to higher flux momentum in the liquid, a
thin liquid film should appear at the perimeter of the pipe. Furthermore, the liquid film
should be thicker at the bottom and thinner at the top of the pipe.
The comparisons of contours of mixture density between present CFD model and the
model of Rahimi et al. (2013) for air-water two-phase flow regimes in horizontal pipe are
represented in Figure 8. In Figure 8(c), both models are plug flow, but Rahimi et al. (2013)
results do not look like plug flow at all. Based on Baker’s (1954) explanation, plug flow is the
flow in which gas bubbles and elongated gas bubbles move along the upper part of the pipe.
The slug flow model of Rahimi et al. (2013) in Figure 8(d) shows a very poor slug regime. No
liquid is seen touching the upper part of the pipe his result for slug flow as expected from the
observation of Baker (1954).
Figure 8(e) compares the bubble flow of both models. Again, Rahimi et al.’s (2013) results
do not show the pattern of bubble flow. According to Baker (1954), bubble flow is the flow in
which gas bubbles mix with the liquid moving along a horizontal pipe at approximately the
same velocity as the liquid. This flow is similar to Froth flow where the whole pipe is filled
with gas bubbles mix with water.
Figure 8.
Comparisons
between present
models of mixture
density in horizontal
pipe layout (kg/m3)
for air-water flow
with the model of
Rahimi et al. (2013)
HFF 3.1.4 Comparison with Taitel and Dukler map. The simulation data for different flow
regimes were obtained and superimposed on Taitel and Dukler (1976) map as shown in
Figure 9 for the sake of comparison purpose. Cluster of data points for each regime is taken
at different time steps at the outlet of the pipe of the test section, as is typically done in a
physical experiment. The superficial velocities that are plotted in Figure 9 are averaged
superficial velocities at the outlet face. A reasonably good agreement of the present
numerical results with the Taitel and Dukler (1976) map was observed. Some data points of
plug flow are “spilled over” in slug region and some data points of slug flow are “captured
numerically” in the plug flow region of the Taitel and Dukler (1976) map. This means that
the gas-liquid two-phase flow in a horizontal pipe could be either plug flow or slug flow
depending upon the flow time. It is also observed that some data points of “supposedly”
annular flow are in the slug flow region. The elongated bubble-slug or plug flow can become
either slug or annular flow by increasing the superficial gas velocity.

It can be concluded that the numerical validation for horizontal air-water two phase flow
gave a reasonably good qualitative prediction with the expected flow patterns of the
experimental data reported by Baker chart and then cross referenced and validated with
Taitel and Dukler (1976) flow regime map. Therefore, all different flow patterns can be
generated by using the three-dimensional CFD FLUENT 16.1 models.
3.1.5 Air-water two-phase slug flow transitions. Figure 10 shows the contours of water
volume fraction and the different time frames of the simulation for air-water slug
transitions. The red color represents liquid and blue color is representing gas. The flow is
from left to right. Time evolution of slug flow in the horizontal can be clearly seen. The
liquid slugs touch the upper part of the pipe respected to Baker (1954) chart.
From Figure 10, it can be observed that initially the pipe was filled with stratified air and
water with 50-50 equal volume percentile and zero velocity. The water phase was steady,
and it took some simulation time until the generation of the first wave was crested, growing
to a slug which blocks the cross-section of the pipe (at time 0.1 s) and then progressing
further along the pipe. The long slug was observed from 0.2 to 2.5 s. These disturbances
100
Dispersed flow
10
USL (m/s)
Slug flow
1
Elongated
bubble flow
Annular-
0.1 annular
mist flow
Stratified flow Wave flow

0.01
Figure 9.
Comparison of the
CFD simulation data 0.001
with Taitel and 0.01 0.1 USG ( m/s) 1 10 100
Dukler (1976) map for
air-water two-phase Notes: ■ = stratified flow; ♦ = wavy flow; ▲ = plug flow; □ =
flow in horizontal slug flow; ◊ = annular flow; ● = bubble flow; ○ = dispersed
pipe
flow
were captured by the model and as the simulation proceeds further in time, they grew into Simulation of
slugs which completely block the cross section of the pipe. two-phase flow
regime
3.2 Model validation against experimental data
3.2.1 Experimental details. In the previous validation, the slug flow was validated
qualitatively. The second validation was based on the comparison of the present solution
with experimental work of Mohmmed (2016), where photographs of water volume fraction
of slug flow, numerical data for slug translational velocity, lengths and frequencies were
available. The present study used the experimental work of Mohmmed (2016) for the
validation of the present model. The boundary conditions of the CFD simulations in terms of
representing the experimental configuration of the two-phase flow in the horizontal pipe
were chosen based on the experimental setup. A pipe model exactly the same as the
experimental test section with 0.074 m- (3 inches) ID and 8-m long was built. Air and water
were used for two-phase flow. The gas and liquid physical properties from the experiment is
shown in Table VII, and air and water superficial velocities were in the ranges USG = 1-
3.5 m/s and USL = 0.7-1 m/s, respectively. The entire experimental tests were performed
under the atmospheric pressure (101.3 kPa) in the room temperature of 24°C.
The measurement points were specified along the test pipe for the appropriate
calculations of slug flow regime. As shown in Figure 11, the distance of each point from
the reference section 54D was taken to be 7D, 10D, 12D and 14D to make sure that the
distance between the two sections were not affecting the obtained results and also to
calculate the slug velocity along this test section.
3.2.2 Comparison between computational fluid dynamics and experiment. The steps of
slug development in a horizontal pipe between the present model and experimental
Figure 10.
Contours of water
volume fraction of
simulation results
showing the time
evolution of air-water
slug flow in
horizontal pipe for
USG = 3.26 m/s and
USL = 0.4 m/s
Table VII.
Physical properties
of air and water in
Water 998.6 0.08899 0.074 the experiment
Air 1.185 0.001831 – (Mohmmed, 2016)
HFF photographs are shown in Figure 12. The red color represents the water and the blue color
represents the air. The slug development started from the slug initiation which was initially
equal to 50 per cent water volume fraction in the test section as shown in Figure 12(a). As
can be seen by the red ellipse in Figure 12(b) and 12(c), the slug was initiated after the
occurrence of the hydraulic jump which the liquid holdup was increased about to HLs = 0.75,
and then this slug of liquid holdup was developed into the downstream as the form of liquid
slug. When the liquid superficial velocity increased to 0.93 m/s, the momentum of the liquid
was increased which could be a reason to delay the hydraulic jump occurrence.
Consequently, the slug flow regime developed further in the pipeline. There are reasonable
agreement between experimental photographs and present contours of liquid phase,
indicating that the VOF model has been used correctly to capture the gas and liquid
interface. The slug initiation is consistent with the results reported by Wang et al. (2007).
The comparison of slug flow morphology along the horizontal pipe with the time
sequences between the present model and the experiment were illustrated in Figure 13.
The slug movement along the pipe at USG = 2.44 m/s and USL = 0.86 m/s. There are
reasonable agreement between experimental photographs and present contours of liquid
phase, indicating that the VOF model has been used correctly to capture the gas and liquid
interface.
The slug flow appeared in Figure 13 could be interpreted as elongated slug flow. Based
on the experimental procedure, the photograph of Slug 1 in Figure 13 has the length of
1.24 m and used the camera resolution of 960 480 pixels that physically covered 1 m from
the pipe length. In Figure 13, each 1 cm of scale represented 0.034 m of reality; therefore, the
Figure 11.
The experimental test
section and
measurement points
Figure 12.
Water volume
fraction comparison
of the slug
development steps
between CFD
simulation and
experiment for USG =
2.1 m/s, USL =
0.93 m/s
first photograph of Figure 13 showed a segment of about 0.95 m length from total length Simulation of
of Slug 1. two-phase flow
3.2.3 Slug translational velocity. Slug flow regime is unsteady; therefore, its
regime
translational slug velocity varied along the pipe, and this makes it difficult to be
measured accurately. Based on the experimental works, to determine the average
velocities magnitude for each case of different superficial air and water velocities,
translational velocities at four positions, 61D, 64D, 66D and 68D (Figure 11), were taken
and averaged. These averaged translational slug velocities were reported for three
superficial liquid velocities at USL = 0.7, 0.86 and 1 m/s corresponding to four
superficial gas velocities USG = 1, 2.1, 2.44, 2.79 and 3.14 m/s.
As illustrated in Figure 14, a good agreement can be achieved for the comparison of
translational slug velocity between present model and experimental data for the various gas
and liquid superficial velocities. The translational slug velocity for a constant superficial
liquid velocity increased with increasing gas superficial velocity. Also, as liquid superficial
velocity increases, the translational slug velocity is increased.
Figure 13.
Water volume
fraction of slug flow
morphology,
photographs and
CFD for USG =
2.44 m/s, USL =
0.86 m/s
5.5 Experiment (USL = 0.7 m/s)

CFD (USL = 0.7 m/s)
Translational slug velocity (m/s)
5 Experiment (USL = 0.86 m/s)

CFD (USL = 0.86 m/s)
Experiment (USL = 1 m/s)
4.5 CFD (USL = 1 m/s)
Figure 14.
4
The comparison of
3.5 translational slug
velocity between
3 present model and
experimental data
2.5 (Mohmmed, 2016) for
different gas and
2 liquid superficial
0 0.5 1 1.5 2 2.5 3 3.5 velocities
USG (m/s)
HFF 3.2.4 Slug body length. By multiplying the slug velocity, Us, and the time difference between
the slug nose, tn, and the slug tail, tt, when the slug passing along the monitoring station 54D
and 81D (Figure 11), the mean slug length, Ls, could be determined as:
Ls ¼ Us ðtt tn Þ (10)
Figures 15 and 16 illustrate the comparison between present model and experimental data of
mean liquid slug length for difference gas and liquid superficial velocities. The slug body
length as shown in Figures 15 and 16 were measured at the station 54D and 81D,
respectively. It can be observed that when the gas superficial velocity increases at constant
liquid superficial velocity, the slug length also increased. However, the mean slug length
decreased when the liquid superficial velocity increased. The present model compares
favorably to the experimental study, and a good agreement can be obtained. Moreover, the
interesting results were found for slug length by increasing the gas superficial velocity at
different liquid superficial velocities. It has been noticed that the slug length results of CFD
and experimental studies were observed to increase with decreasing liquid superficial
velocities. This phenomenon could be explained that the slug length increases as more liquid
is scooped up at the slug front than is shed from its tail. Behind the slug, the liquid level
drops. These results are expected. In a slug unit, mass is conserved from the input gas and
liquid flow rates. The ratio of gas to liquid in the slug unit will be increased with increasing
10
Experiment (USL = 0.7 m/s)
CFD (USL = 0.7 m/s)
8 Experiment (USL = 1 m/s)
Slug length, Ls/D
CFD (USL = 1 m/s)

Figure 15.
The comparison of 6
mean liquid slug
length between
present model and 4
experimental data
(Mohmmed, 2016)
measured at the 2
section 54D 1.5 2 2.5 3 3.5 4
USG (m/s)
16
CFD (USL = 0.7 m/s)
14 Experiment (USL = 0.86 m/s)
Slug length, Ls/D
12 Experiment (USL = 1 m/s)

Figure 16. CFD (USL = 1 m/s)
The comparison of 10
mean liquid slug
length between 8
present model and 6
experimental data
(Mohmmed, 2016) 4
measured at the 2
section 81D 0 1 2 3 4
USG (m/s)
gas superficial velocity at constant liquid superficial velocity. Typically, higher ratio of gas Simulation of
to liquid leads to larger mixing zone for same slug unit length. As a result, increasing gas two-phase flow
superficial velocity, the unit length will be increased. At higher gas and liquid velocities, the
gas volume fraction in the slug will be much greater due to higher turbulence leads. To some
regime
extent, the mixing zone will be decreased; however, the length of film region will be
remained relatively constant. In this case, the length of slug unit will be decreased.
Figure 16 shows that the mean slug length at section 81D is about 6 m. The comparison
of slug length between two sections at x = 54D and x = 81D shows that the liquid slug
length in section 81D is larger than liquid slug length in section 54D. This is because the
slug length at section 54D is not fully developed. Based on the explanation of Rogero (2009),
this is due to the rate of liquid pick-up at the slug nose is larger than the rate of liquid
shedding at the slug tail. Consequently, the slug body length is increased as the slug
travelled along the downstream pipeline.

3.2.5 Slug frequency. Based on the experimental procedure, the frequency of the slug (fS)
was monitored at the section x = 54D and x = 81D from the pipe inlet (Figure 11). The reason
for selecting these two positions, according to Mohmmed (2016), is that it is desirable to
measure the slug frequency near the inlet and outlet of the test section, and there were
numerous cases in his study at which the slugs were initiated after Section 54D from the
inlet, so it was not possible to determine the liquid slug frequency for such cases unless they
were measured at another section.
Figures 17 and 18 show the comparison of slug frequency between the present model and
experimental data (Mohmmed, 2016) at Section 54D and 81D, respectively. It can be
concluded that the slug frequency increased with increasing liquid superficial velocity.
Conversely, the slug frequency decreased when gas superficial velocity is increased for the
constant liquid superficial velocity. The present model matched the experimental data with
reasonable agreement.
3.3 Oil-gas two-phase flow simulation

3.3.1 Oil-gas two-phase slug flow condition. The horizontal pipe with internal diameter of
0.08 m (3.15 inches) and 8-m length as shown in Figure 19 was used to simulate the oil-gas
two-phase flow model.
The Baker chart was used to generate the slug flow regime in this section. The selected
data points for the slug flow regime area were shown in Figure 20.
The 3D simulations of slug transition performed for two-phase oil-gas flow in horizontal
pipe is reported. It is important to note that there is no reported two-phase oil-gas flow
0.8
Slug frequency (s –1)
0.6
Figure 17.
0.4 Comparison of liquid
Experiment (USL = 0.7 m/s) slug frequency
0.2
CFD (USL = 0.7 m/s) between present
CFD (USL = 0.86 m/s) model and
Experiment (USL = 1 m/s)
CFD (USL = 1 m/s)
experimental data
0 (Mohmmed, 2016) at
2 2.5 3 3.5 4 section 54D
USG (m/s)
HFF regime map similar to Baker chart or Tiatel and Dukler map for these investigations.
Therefore, to carry out the investigation, parameters l and c [equations (8) and
equations (9)] were calculated using the Baker chart. The superficial velocities of slug flow
regime for the oil-gas phases were set as initial and inlet velocity for each phase. Oil and gas
superficial velocities selected are in the ranges USL = 0.05-0.3 m/s and USG = 0.2-1.5 m/s,
respectively. The range of operating conditions covered in this investigation is summarized
in Table VIII. The physical properties of oil-gas are shown in Table IX.
The simulation was performed with the outlet boundary condition prescribed at
atmospheric pressure of 101,325 Pa. The constant temperature of 25°C is assumed. The
1.2
1
Slug frequency (s –1)
0.8
Figure 18.
Comparison of mean 0.6
liquid slug frequency
0.4 Experiment (USL = 0.7 m/s)
between present CFD (USL = 0.7 m/s)
model and 0.2
experimental data Experiment (USL = 1 m/s)
CFD (USL = 1 m/s)
(Mohmmed, 2016) at 0
the section 81D 0 1 2 3 4
USG (m/s)
Figure 19.
Horizontal pipe
geometry and zones
of the computational
flow domain
1,000
Dispersed flow
100
Annular flow
Wavy flow Bubble flow
10
GG/λ
(kg/m2 s)
Slug flow
1
Stratified flow
Plug flow
Figure 20.
Baker chart (s) 0.1
operating conditions 0.1 1 10 100 1,000 10,000
GLλψ/GG (–)
for the simulation of
oil-gas slug flow
Source: Baker (1954)
components and the corresponding physical properties as shown in Table IX are given to Simulation of
the authors from PETRONAS Exploration and Production Company. two-phase flow
3.3.2 Slug flow transitions. The results of the CFD modeling for oil-gas two-phase slug
transition in horizontal pipe are discussed. Figure 21 shows the contours of oil volume
regime
fraction and oil-gas two-phase slug evolution in horizontal pipe. The red color represents the
oil and the blue color represents the gas. Flow is from left to right. Figure 21 should be
compared morphologically with Figure 10. The formation of slug body in Figure 21 is seen
to be more “orderly” and less chaotic in comparison to Figure 10 for air and water. This can
be attributed to the increased oil viscosity effect. Initially, the flow is stratified and the
interface is flat and smooth. After 0.5 s, the first wave is developed and blocks the pipe cross
section, indicating the start of a slug flow. The slug body propagates along the horizontal
pipe and grows in size (from 1.0 to 3.5 s). It was intended point out that this large slug is
generated using the perturbation condition at the interface.

3.3.3 Pressure gradient. In the industry, the pressure gradient can be used as an
indicator to reflect the flow characteristics and can be obtained easily. Lu et al. (2007)
observed the characteristics of the flow patterns from stratified to slug flow by using the
pressure gradient to compare with the experimental data. They showed that the variation of
pressure gradient is mainly dependent on the flow patterns. The time series pressure
gradient measurements of slug flow are quite complicated because of its intermittent nature
Table VIII.
Range of operating
Flow regime GG/l (kg/(m2 s)) GG (kg/(m2 s)) USG (m/s) GLl c /GG GL (kg/(m2 s)) USL (m/s) conditions for the oil
and gas slug
Slug flow 1.02-7.62 3.42-25.65 0.2-1.5 39.3-1768.48 40.52-243.09 0.05-0.3 simulations

Table IX.
Oil 810.3 0.004652 0.018653 Physical properties
Vapor 17.1 0.0000115 of oil and gas
Figure 21.
Contours of oil
volume fraction and
time evolution for oil-
gas slug flow in
horizontal pipe for
USL = 0.1 m/s and
USG = 1.5 m/s
HFF and the slug behavior. Despite that, it is possible and relatively easy to compare the mean
pressure gradient along the test section. In this study, the pressure gradient was calculated
by the time averaged pressure drop over the entire length of the test section. Because of non-
availability of experimental time series pressure gradient data and the difficulty in
extracting time series data points from open literature, the time series comparison of the
present numerical results with experimental data can only be presented as shown in
Figure 22.
To check the accuracy of the present model, Figure 22 shows the comparison of mean
pressure gradient versus superficial gas velocity among the present model and the
theoretical models by Petalas and Aziz (2000) and Orell (2005) for the constant superficial
liquid velocity of 0.05 m/s. As can be seen that the pressure gradient increases with
increasing superficial gas velocity.
Figure 23 shows the average pressure gradient in a slug unit against superficial gas
velocity at difference liquid velocity. As expected, the pressure gradient increases with
increasing superficial gas velocity for a given superficial liquid velocity. Also, the pressure
gradient continuously increases with increasing superficial liquid velocity.
3.3.4 Slug liquid holdup. The liquid volume fraction in the slug unit is recognized as the
slug liquid holdup. The slug liquid holdup is a mixture of liquid and gas phases, and it can
carry different amount of entrained gas. Slug liquid holdup is an important parameter for
the processing slug flow in pipeline.
Figure 24 presents the comparison between the present numerical results of liquid
holdup at constant USL = 0.3 m/s. As can be seen, the present model and correlations follow
the trend of decreasing slug liquid holdup as the superficial gas velocity increases. The
results are in good agreement between the present model and the correlations, but
Figure 22.
dp/dx (KPa/m)
Pressure gradient 2
comparison between
the simplified Orell USL = 0.05 m/s
1
(2005) model, the CFD Model
Petalas and Aziz Orell (2005)
Petalas-Aziz (2,000)
(2000) model and CFD
0
model for USL=
0 0.5 1 1.5 2
0.05 m/s USG (m/s)
3
dp/dx (KPa/m)
Figure 23. USL (m/s)

Pressure gradient are 1
0.05 0.1
reported as a function 0.15 0.2
of superficial gas 0.25 0.3
0
velocity at difference 0 0.5 1 1.5 2
oil velocities USG (m/s)
substantial deviation is observed with the correlation by Gomez et al. (2000), Gregory et al. Simulation of
(1978) and Gregory and Scott (1969). two-phase flow
The correlation of Gomez et al. (2000) proposed a general dimensionless correlation to predict
slug liquid holdup for inclination angle from horizontal to vertical upward based on six sets of
regime
data points. The results are unsatisfactory probably because the model is highly dependent on
the parameter slug Reynolds number. This shows that at very low liquid velocity relative to the
gas velocity, similar to the present study, this correlation may over-estimate the liquid holdup.
The correlation by Gregory et al. (1978) over-predict the liquid holdup, whereas the
correlation by Gregory and Scott (1969) under-predict it. The real reason for these deviations
is not known but could be attributed to various reasons:
In Gregory et al. (1978), experiments, the pipe diameter is limited to 1” and 2”, while
in Gregory and Scott (1969), the pipe diameter is 0.75” and 1.38”. In the current
model, the pipe diameter is 3.15”, much larger than their experiments.
The over-prediction by Gregory et al. (1978) model could be attributed to the fact
that they used mixture velocity, UM, as the only correlating parameter, even though
all other components of parameters fit within the range of the present case.
The under-prediction of liquid holdup by Gregory and Scott (1969) could be
attributed to the range of superficial velocities they had chosen even though it is
within the slug flow regime.
The mean liquid holdup from the present study is compared with eight reported
experimental correlations in Table X. The percentile error is calculated based on the
correlation model from the present study. It should be mentioned here that the present
correlation is obtained by fitting the curve using the Excel polynomial trend line function.
The least square residual from fitting the present numerical data yield R2 = 0.9996, showing
that the polynomial is a good fit.
Figure 25 shows the liquid holdup versus superficial gas velocity at various superficial
liquid velocity. The liquid holdup increases with an increase in superficial liquid velocity.
Also, the liquid holdup continuously decreases with an increase in superficial gas velocity
for a given various liquid superficial velocities. However, the slug behavior can be explained
Figure 24.
Comparison between
CFD simulation result
of liquid holdup at
USL = 0.3 m/s and the
theoretical models of
1 Gomez et al. (2000),
Felizola and Shoham
0.8 (1995), Kokal and
Stanislav (1989),
HLS (–)
0.6 Gregory et al. (1978),

USL = 0.3 m/s Mattar and Gregory
0.4
CFD Model Gomez et al. (2000) (1974), Gregory and
Felizola-Shoham (1995) Kokal-Stanislav (1989) Scott (1969), Neal
0.2 Gregory et al. (1978) Mattar-Gregory (1974)
Gregory-Scott (1969) Neal-Bankoff (1965) and Bankoff (1965)
Nicklin et al. (1962) and Nicklin et al.
0
0 0.5 U (m/s) 1 1.5
(1962)
SG
HFF Author HLS (-) Error (%)
Present study 2
0:063USG 0:29USG þ 0:77

Gomez et al. (2000) a
exp 2:48 106 Re þ 0:45u 65.64
Felizola and Shoham (1995) 0:775 þ 0:041UM 2
0:019UM 28

Kokal and Stanislav (1989)b 1 USG =ð1:2UM þ Ud Þ 9.95
h i1
Gregory et al. (1978) 1 þ ðUM =8:66Þ1:39 62.2

Mattar and Gregory (1974) 1 USG =ð1:3UM þ 0:7Þ 9.52

Gregory and Scott (1969) 1 USG =ð1:19UM Þ 19.93
2 !0:2 3
1:88 2
USG U
Table X. Neal and Bankoff (1965) 1 41:25 SL 5 1.64
Comparison of slug UM gD
liquid holdup
correlations, HLS and Nicklin et al. (1962) pffiffiffiffiffiffi
1 USG = 1:2UM þ 0:35 gD 6.93
the percentile qffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi
gDð r L r G Þ
deviation Notes: awhere Re = ( r L UM D)/ m L and 0 # u # p /2; bUd ¼ 0:345 rL is the drift velocity
1
USL (m/s)
0.8 0.05 0.1
0.15 0.2
0.6 0.25 0.3
HLS (–)
0.4
Figure 25.
Slug liquid holdup 0.2
versus superficial gas
0
velocity at difference
0 0.5 1 1.5 2
oil velocities USG (m/s)
at low gas superficial velocity. The flow regime can be defined as bubbly flow. The short
gas bubbles separated by short oil plug with high values of holdup, and the increase in gas
velocity leads the typical of slug flow to longer gas bubbles and the liquid holdup in the slug
body gets lower.
Figure 26 illustrates an increase in superficial liquid velocity for a given superficial gas
velocity leads to an increase in the liquid holdup value. Also, the liquid holdup decreases
with an increase in superficial gas velocity.
3.3.5 Slug frequency. Slug holdup and slug frequency are important parameters for
predicting the gas-liquid two phase flow in pipe. The frequency of slug flow in the pipeline is
described as the number of slugs traversed at a specific point along a horizontal and inclined
pipes over a certain period.
Figure 27 shows the comparison of the present model with the correlations in Table XI at
USL = 0.2 m/s. The numerical results are compared to seven experimental correlations
available in literature and the comparison showed a reasonable agreement with correlations
by Greskovich and Shrier (1972), Gregory and Scott (1969) and Perez et al. (2010). A
substantial difference, almost 100 per cent deviation, is found with the correlation by Gokcal Simulation of
et al. (2009) correlation, which is valid only for high viscosity oil. Table XI shows the two-phase flow
correlation developed from the present model and its comparison to five other correlations.
The percentile error was calculated based on the correlation model from the present study. It
regime
should be mentioned here that the present correlation is obtained by fitting the curve using
the Excel polynomial trend line function. The least square residual from fitting the present
numerical data yields R2 = 1, showing that the polynomial is a good fit. It is noticed that the
best results one can obtain for slug frequency is about 20 per cent deviation.
Figure 28 illustrates the slug frequency plotted against superficial gas velocity for
different oil superficial velocities. It can be seen that the slug frequency increases with the
increase in superficial oil velocity. However, the slug frequency at first increases and then
slightly decreases with the increase in gas superficial velocity. This happened because of the
high liquid level in the pipe when superficial liquid velocity increase, which makes the
frequency of the slug sensitive to the change in gas superficial velocity. After certain value,
the gas phase suppresses liquid holdup. So, the results of slug frequency were decreased.
4. Conclusions
The transition of flow regime into another is a very common phenomenon in pipeline
networks, which is potentially hazardous for the structural integrity of the pipeline. The
understanding of flow regime and its underlying physics is therefore, of prime importance to
oil/gas operator. All the objectives of this study have been successfully achieved. The
0.8
0.6
HLs (–)
0.4 Figure 26.

USG (m/s) Slug liquid holdup
0.2 0.2 0.7 versus superficial
1 1.5 liquid velocity at
0 difference superficial
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 gas velocities
USL (m/s)
Figure 27.
Comparison between
CFD simulation result
0.6
USL = 0.2 m/s of frequency at USL =
CFD Model 0.2 m/s and the
Perez et al (2010)
0.4 Gokcal et al (2009) theoretical models of
Zabaras (1999) Perez et al. (2010),
fs (Hz)
Greskovich-Shrier (1972) Gokcal et al. (2009),

Gregory-Scott (1969)
0.2 Zabaras (1999),
Greskovich and
Shrier (1972) and
0 Gregory and Scott
0 0.5 1 1.5 2 (1969)
USG (m/s)
HFF Reference fS (Hz) Error (%)
" 0:42USG þ 0:47!#1:2

2
Present study 0:15USG
USL 19:75
0:0226 þ UM cosðu Þ
gD UM
Perez et al. (2010) " !#0:25 19.86
USL 19:75
þ 0:8428 þ UM sinðu Þ
gD UM
1 USL
Gokcal et al. (2009)a 2:816 90.49
Nf0:612 D
" !#1:2
USL 19:75
0:0226 þ UM
Zabaras (1999) gD UM 33

0:836 " þ 2:75sin
0:25
ðu Þ #
1:2
USL 2:02
Table XI. Greskovich and Shrier (1972)b 0:0226 þ FrM 2
19.65
UM D
Comparison of
1:2
correlations for the USL 19:75
Gregory and Scott (1969) 0:0226 þ UM 19.86
slug frequency fS, gD UM
and percentile 3=2 pffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi
Notes: awhere
pffiffiffiffiffiffi N f ¼ D r L ð r L r G Þ g = m L is dimensionless inverse viscosity number;
deviation b
Fr ¼ UM = gD is mixture Froude number
0.6
USL (m/s)
0.05 0.1
0.15 0.2
0.4 0.25 0.3
fs (Hz)
Figure 28. 0.2

Slug frequency
versus superficial gas
velocity at difference 0
oil velocities 0 0.5 1 1.5 2
USG (m/s)
present CFD with VOF model was able to accurately predict all flow regimes presented in
Baker (1954) chart, Taitel and Dukler (1976) and experimental study (Mohmmed, 2016).
Quantitative validation using experimental data from Mohmmed (2016) gives more
confident to the correctness of the established methodology.
Comparison of density contour with De Schepper et al. (2008) and Rahimi et al. (2013) is
generally favorable. However, De Schepper et al. (2008) density contour failed to show a
formation of proper slug regime. Their annular flow contour showed almost no liquid film at
the bottom of the pipe. On the other hand, Rahimi et al. (2013) density contour for plug, slug
and bubble flow showed completely different flow pattern with great deviation from the
conventional flow regime definition given by Baker (1954).
Once the modeling methodology was established, attention was turned to investigate of
oil-gas slug flow behavior in horizontal pipe. Pressure gradient, slug liquid holdup and slug
frequency were numerically simulated and compared to existing correlations in the
literature to gauge and quantify the deviation of numerical results from experimental
correlations. The present numerical models were found to produce favorable and agreeable
comparison with majority of experimental correlations. At the same time, few exceptional Simulation of
experimental correlations were also identified, which were not applicable to the range and two-phase flow
limits of the present investigation.
Oil-gas slug flow behavior in horizontal pipe with 3.15-inch ID and 8-m length was
regime
generated respected to Baker chart. The evolution of slug for oil and gas two phase flow was
observed as early as 0.5 sections with increasing slug length as time increased to 3.5 s.
Pressure gradient from the present model compares favorably with simplified Orell
(2005) model and the Petalas and Aziz (2000) model.
Liquid holdup correlation from the present model compares favorably with four
experimental correlations, and moderately favorable with Felizola and Shoham (1995) and
Gregory and Scott (1969) with error 28 and 20 per cent, respectively. The experimental
correlations from Gomez et al. (2000) and Gregory et al. (1978) produced an error in exceed of
60 per cent when compared with the present numerical model.

The slug frequency correlation from the present model compares favorably with the
correlations from Perez et al. (2010), Greskovich and Shrier (1972) and Gregory and Scott
(1969) with an error below 20 per cent. The model from Zabaras (1999) produced an error of
33per cent, while Gokcal et al. (2009) produced an error of 90 per cent.
Predictive models were proposed for pressure gradient, liquid holdup and slug
frequency. Pressure gradient increased with increasing gas superficial velocity for each
constant liquid superficial velocity. The slug liquid holdup decreased with increasing gas
superficial velocity however increased with increasing liquid superficial velocity.
Furthermore, slug frequency was observed to decrease with increasing gas superficial
velocity for each constant liquid superficial velocity.
References
Al-Safran, E. (2009), “Investigation and prediction of slug frequency in gas/liquid horizontal pipe flow”,
Journal of Petroleum Science and Engineering, Vol. 69 Nos 1/2, pp. 143-155.
Al-Safran, E.M., Taitel, Y. and Brill, J.P. (2004), “Prediction of slug length distribution along a hilly
terrain pipeline using slug tracking model”, Journal of Energy Resources Technology, Vol. 126
No. 1, pp. 54-62.
Ansys Fluent (2016), Fluent 16.1 User’s Guide, Fluent Inc., Lebanon.
Ansys ICEM-CFD (2016), ICEM-CFD 16.1 Theory Guide, Ansys Inc.
Baker, O. (1954), “Simultaneous flow of oil and gas”, Oil and Gas Journal, Vol. 53, pp. 185-195.
Brackbill, J.U., Kothe, D.B. and Zemach, C. (1992), “A continuum method for modeling surface tension”,
Journal of Computational Physics, Vol. 100 No. 2, pp. 335-354.
Brito, R., Pereyra, E. and Sarica, C. (2013), “Effect of medium oil viscosity on two-phase oil-gas
flow behavior in horizontal pipes”, Offshore Technology Conference, Houston, TX, 6-9 May,
pp. 1-18.
De Schepper, S.C.K., Heynderickx, G.J. and Marin, G.B. (2008), “CFD modeling of all gas–liquid and
vapor–liquid flow regimes predicted by the baker chart”, Chemical Engineering Journal, Vol. 138
Nos 1/3, pp. 349-357.
Deendarlianto, A.M., Widyaparaga, A., Dinaryanto, O., Khasani and Indarto, (2016), “CFD studies on
the gas-liquid plug two-phase flow in a horizontal pipe”, Journal of Petroleum Science and
Engineering, Vol. 147, pp. 779-787.
Fan, Z., Lusseyran, F. and Hanratty, T.J. (1993), “Initiation of slugs in horizontal gas-liquid flows”,
AIChE Journal, Vol. 39 No. 11, pp. 1741-1753.
Felizola, H. and Shoham, O. (1995), “A unified model for slug flow in upward inclined pipes”, Journal of
Energy Resources Technology, Vol. 117 No. 1, pp. 7-12.
HFF Frank, T. (2005), “Numerical simulation of slug flow regime for an air-water two-phase flow in
horizontal pipes”, Proceedings of the 11th International Topical Meeting on Nuclear Reactor
Thermal-Hydraulics (NURETH-11), Avignon, 2-6 October, pp. 1-13.
Ghorai, S. and Nigam, K.D.P. (2006), “CFD modeling of flow profiles and interfacial phenomena in two-
phase flow in pipes”, Chemical Engineering and Processing: Process Intensification, Vol. 45 No. 1,
pp. 55-65.
Gokcal, B., Al-Sarkhi, A., Sarica, C. and Al-Safran, E.M. (2009), “Prediction of slug frequency for high
viscosity oils in horizontal pipes”, SPE Annual Technical Conference and Exhibition, Society of
Petroleum Engineers, New Orleans, LA, 4-7 October, pp. 1-13.
Gomez, L.E., Shoham, O. and Taitel, Y. (2000), “Prediction of slug liquid holdup: horizontal to upward
vertical flow”, International Journal of Multiphase Flow, Vol. 26 No. 3, pp. 517-521.
Gregory, G.A. and Scott, D.S. (1969), “Correlation of liquid slug velocity and frequency in horizontal
cocurrent gas-liquid slug flow”, AIChE Journal, Vol. 15 No. 6, pp. 933-935.
Gregory, G.A., Nicholson, M.K. and Aziz, K. (1978), “Correlation of the liquid volume fraction in
the slug for horizontal gas-liquid slug flow”, International Journal of Multiphase Flow,
Vol. 4 No. 1, pp. 33-39.
Greskovich, E.J. and Shrier, A.L. (1972), “Slug frequency in horizontal gas-liquid slug flow”, Industrial
& Engineering Chemistry Process Design and Development, Vol. 11 No. 2, pp. 317-318.
Horgue, P., Augier, F., Quintard, M. and Prat, M. (2012), “A suitable parametrization to simulate
slug flows with the volume-of-fluid method”, Comptes Rendus Mécanique, Vol. 340 No. 6,
pp. 411-419.
Issa, R.I. and Kempf, M.H.W. (2003), “Simulation of slug flow in horizontal and nearly horizontal
pipes with the two-fluid model”, International Journal of Multiphase Flow, Vol. 29 No. 1,
pp. 69-95.
Kadri, U., Mudde, R.F. and Oliemans, R.V.A. (2010), “Influence of the operation pressure on slug length
in near horizontal gas–liquid pipe flow”, International Journal of Multiphase Flow, Vol. 36 No. 5,
pp. 423-431.
Kokal, S.L. and Stanislav, J.F. (1989), “An experimental study of two-phase flow in slightly inclined
pipes—II, Liquid holdup and pressure drop”, Chemical Engineering Science, Vol. 44 No. 3,
pp. 681-693.
Kora, C., Sarica, C., Zhang, H.Q., Al-Sarkhi, A. and Al-Safran, E.M. (2011), “Effects of high oil viscosity
on slug liquid holdup in horizontal pipes”, Canadian Unconventional Resources Conference,
Society of Petroleum Engineers, Calgary, Alberta, 15-17 November, pp. 1-15.
Loh, W.L., Hernandez-Perez, V., Tam, N.D., Wan, T.T., Yuqiao, Z. and Premanadhan, V.K. (2016),
“Experimental study of the effect of pressure and gas density on the transition from
stratified to slug flow in a horizontal pipe”, International Journal of Multiphase Flow,
Vol. 85, pp. 196-208.
Lu, G-.Y., Wang, J. and Jia, Z-.H. (2007), “Experimental and numerical investigations on horizontal oil-
gas flow”, Journal of Hydrodynamics, Vol. 19 No. 6, pp. 683-689.
Lu, M. (2015), Experimental and Computational Study of Two-Phase Slug Flow, Department of Chemical
Engineering Imperial College, London.
Lun, I., Calay, R.K. and Holdo, A.E. (1996), “Modelling two-phase flows using CFD”, Applied Energy,
Vol. 53 No. 3, pp. 299-314.
Mattar, L. and Gregory, G.A. (1974), “Air-oil slug flow in an upward-inclined pipe-I: Slug velocity,
holdup and pressure gradient”, Journal of Canadian Petroleum Technology, Vol. 13 No. 1,
pp. 69-76.
Mo, S., Ashrafian, A., Barbier, J.C. and Johansen, S.T. (2014), “Quasi-3D modelling of two-phase slug
flow in pipes”, The Journal of Computational Multiphase Flows, Vol. 6 No. 1, pp. 1-12.
Mohmmed, A.O.I. (2016), Effect of Slug Two-Phase Flow on Fatigue of Pipe Material, Department of Simulation of
Mechanical Engineering, Universiti Teknologi, Petronas.
two-phase flow
Neal, L.G. and Bankoff, S.G. (1965), “Local parameters in cocurrent mercury-nitrogen flow: Parts I and
II”, AIChE Journal, Vol. 11 No. 4, pp. 624-635.
regime
Nicklin, D.J., Wilkes, J.O. and Davidson, J.F. (1962), “Two-phase flow in vertical tubes”, Transactions of
the Institution Chemical Engineering Science, Vol. 40, pp. 61-68.
Orell, A. (2005), “Experimental validation of a simple model for gas–liquid slug flow in horizontal
pipes”, Chemical Engineering Science, Vol. 60 No. 5, pp. 1371-1381.
Pao, W., Hashim, F.M. and Ming, L.H. (2015), “Numerical investigation of gas separation in T-
junction”, International Conference on Mathematics, Engineering and Industrial
Applications 2014 (ICoMEIA 2014), AIP Publishing, Penang, 28-30 May,
pp. 70001-70009.
Pao, W., Sam, B. and Nasif, M.S. (2016), “Simulation of two phase oil-gas flow in pipeline”, ARPN
Journal of Engineering and Applied Sciences, Vol. 11 No. 6, pp. 4208-4213.
Perez, V.H., Azzopardi, B.J., Kaji, R., Da Silva, M.J., Beyer, M. and Hampel, U. (2010), “Wisp-like
structures in vertical gas–liquid pipe flow revealed by wire mesh sensor studies”, International
Journal of Multiphase Flow, Vol. 36 Nos 11/12, pp. 908-915.
Petalas, N. and Aziz, K. (2000), “A mechanistic model for multiphase flow in pipes”, Journal of
Canadian Petroleum Technology, Vol. 39 No. 6, pp. 43-55.
Rahimi, R., Bahramifar, E. and Sotoodeh, M.M. (2013), “The indication of two-phase flow pattern
and slug characteristics in a pipeline using CFD method”, Gas Processing Journal, Vol. 1
No. 1, pp. 70-87.
Ranade, V.V. (2002), Computational Flow Modeling for Chemical Reactor Engineering, Academic Press,
St. Louis, MO.
Rider, W.J. and Kothe, D.B. (1998), “Reconstructing volume tracking”, Journal of Computational Physics,
Vol. 141 No. 2, pp. 112-152.
Rogero, E.C. (2009), Experimental Investigation of Developing Plug and Slug Flows, Faculty of
Mechanical Engineering, Technische Universität München.
Sam, B., Pao, W., Nasif, M.S. and Ofei, T.N. (2017), “Preliminary numerical simulation of steady-state
gas-liquid flow in horizontal T-junction”, ARPN Journal of Engineering and Applied Sciences,
Vol. 11 No. 8, pp. 2570-2575.
Taitel, Y. and Barnea, D. (1990), “A consistent approach for calculating pressure drop in inclined slug
flow”, Chemical Engineering Science, Vol. 45 No. 5, pp. 1199-1206.
Taitel, Y. and Dukler, A.E. (1976), “A model for predicting flow regime transitions in horizontal and
near horizontal gas-liquid flow”, AIChE Journal, Vol. 22 No. 1, pp. 47-55.
Thaker, J. and Banerjee, J. (2015), “Characterization of two-phase slug flow Sub-regimes using flow
visualization”, Journal of Petroleum Science and Engineering, Vol. 135, pp. 561-576.
Thaker, J. and Banerjee, J. (2017), “Transition of plug to slug flow and associated fluid dynamics”,
International Journal of Multiphase Flow, Vol. 91, pp. 63-75.
Ujang, P.M., Lawrence, C.J., Hale, C.P. and Hewitt, G.F. (2006), “Slug initiation and evolution in
two-phase horizontal flow”, International Journal of Multiphase Flow, Vol. 32 No. 5,
pp. 527-552.
Versteeg, H.K. and Malalasekera, W. (1995), An Introduction to Computational Fluid Dynamics:
The Finite Volume Method, Pearson Education, Longman Scientific and Technical, Harlow,
Essex.
Wang, S., Pereyra, E., Sarica, C. and Zhang, H.Q. (2013), “A mechanistic slug liquid holdup model for
wide ranges of liquid viscosity and pipe inclination angle”, Offshore Technology Conference,
Houston, TX, 6-9 May, pp. 1-11.
HFF Wang, X., Guo, L. and Zhang, X. (2007), “An experimental study of the statistical parameters of gas–
liquid two-phase slug flow in horizontal pipeline”, International Journal of Heat and Mass
Transfer, Vol. 50 Nos 11/12, pp. 2439-2443.
Zabaras, G.J. (1999), “Prediction of slug frequency for gas-liquid flows”, SPE Annual Technical
Conference and Exhibition, Society of Petroleum Engineers, Houston, TX, 3-6 October,
pp. 1-8.
Corresponding author
William Pao can be contacted at: william.pao@utp.edu.my
For instructions on how to order reprints of this article, please visit our website:
www.emeraldgrouppublishing.com/licensing/reprints.htm
Or contact us for further details: permissions@emeraldinsight.com

Ban Sam Paper

Uploaded by

Copyright:

Available Formats

You might also like

Ban Sam Paper

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Ban Sam Paper

Uploaded by

Copyright:

Available Formats

International Journal of Numerical Methods for Heat & Fluid Flow

Numerical simulation of two-phase flow regime in horizontal pipeline and its

Fluid Flow, https://doi.org/10.1108/HFF-05-2017-0195

*Related content and download information correct at time of download.

pipeline and its validation

1.2 Slug holdup correlations for validation

1.3 Slug frequency correlations for validation

2.2 Mesh quality and mesh dependency study

Lowest mesh Optimum mesh

ICEM-CFD Minimum determinant >0.2 0.71 0.74

No. of elements Pressure gradient, dp/dx (kPa/m)

2.3 Initial and boundary conditions

2.4 Solution method

3. Results and discussions

100 Dispersed flow

Stratiﬁed 1.5 1.5 1.22 2 3 0.003

Operating phase r (kg/m3) m (Pa s) s (N/m)

either slug or annular ﬂow by increasing the superﬁcial gas velocity.

Stratified flow Wave flow

5.5 Experiment (USL = 0.7 m/s)

5 Experiment (USL = 0.86 m/s)

CFD (USL = 1 m/s)

12 Experiment (USL = 1 m/s)

travelled along the downstream pipeline.

3.3 Oil-gas two-phase ﬂow simulation

generated using the perturbation condition at the interface.

Operating phase r (kg/m3) m (Pa s) s (N/m)

Figure 23. USL (m/s)

0.6 Gregory et al. (1978),

0.4 Figure 26.

Greskovich-Shrier (1972) Gokcal et al. (2009),

" 0:42USG þ 0:47!#1:2

Figure 28. 0.2

60 per cent when compared with the present numerical model.

You might also like
