Description - Structure Classification

09-07-2020 A320 - SRM - 01-May-2020 - 51-11-12 - Description - Structure Classification
CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

A320 SRM 01-May-2020 133 51-11-12 - Description - Structure Classification
TAIL NUMBER - MSN - FSN:
Print date: 2020-07-09 18:47:33

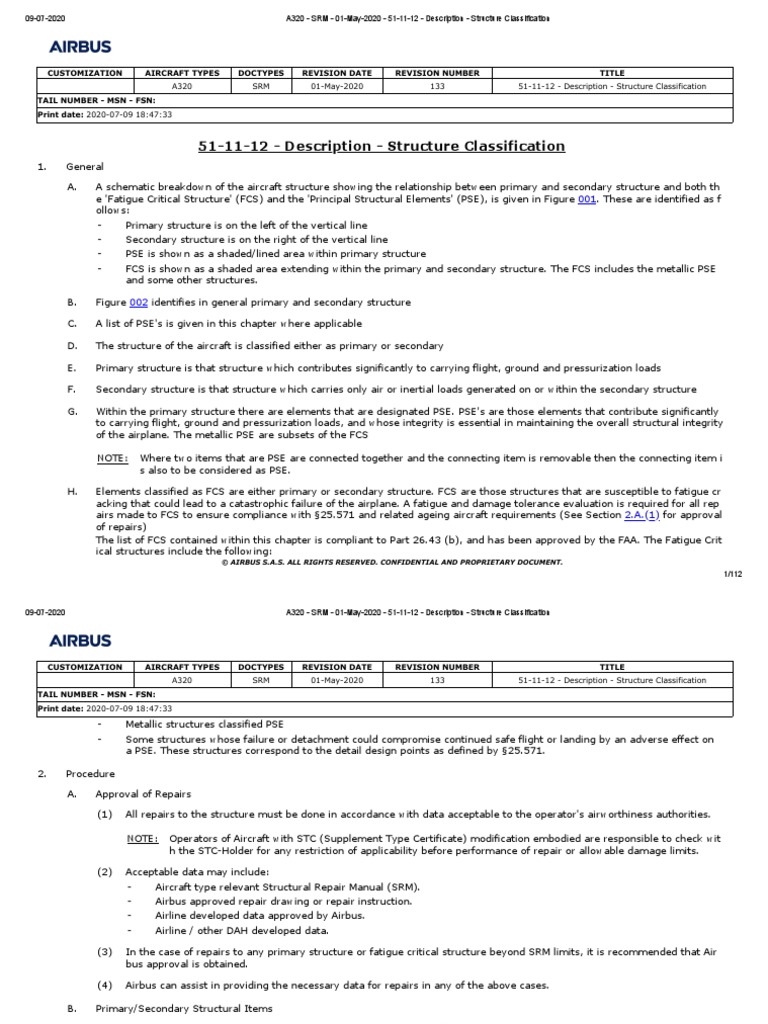

51-11-12 - Description - Structure Classification

1. General
A. A schematic breakdown of the aircraft structure showing the relationship between primary and secondary structure and both th
e 'Fatigue Critical Structure' (FCS) and the 'Principal Structural Elements' (PSE), is given in Figure 001. These are identified as f
ollows:
- Primary structure is on the left of the vertical line
- Secondary structure is on the right of the vertical line
- PSE is shown as a shaded/lined area within primary structure
- FCS is shown as a shaded area extending within the primary and secondary structure. The FCS includes the metallic PSE
and some other structures.
B. Figure 002 identifies in general primary and secondary structure
C. A list of PSE's is given in this chapter where applicable
D. The structure of the aircraft is classified either as primary or secondary
E. Primary structure is that structure which contributes significantly to carrying flight, ground and pressurization loads
F. Secondary structure is that structure which carries only air or inertial loads generated on or within the secondary structure
G. Within the primary structure there are elements that are designated PSE. PSE's are those elements that contribute significantly
to carrying flight, ground and pressurization loads, and whose integrity is essential in maintaining the overall structural integrity
of the airplane. The metallic PSE are subsets of the FCS
NOTE: Where two items that are PSE are connected together and the connecting item is removable then the connecting item i
s also to be considered as PSE.
H. Elements classified as FCS are either primary or secondary structure. FCS are those structures that are susceptible to fatigue cr
acking that could lead to a catastrophic failure of the airplane. A fatigue and damage tolerance evaluation is required for all rep
airs made to FCS to ensure compliance with §25.571 and related ageing aircraft requirements (See Section 2.A.(1) for approval
of repairs)
The list of FCS contained within this chapter is compliant to Part 26.43 (b), and has been approved by the FAA. The Fatigue Crit
ical structures include the following:
© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.
1/112

Print date: 2020-07-09 18:47:33
- Metallic structures classified PSE

- Some structures whose failure or detachment could compromise continued safe flight or landing by an adverse effect on
a PSE. These structures correspond to the detail design points as defined by §25.571.
2. Procedure
A. Approval of Repairs
(1) All repairs to the structure must be done in accordance with data acceptable to the operator's airworthiness authorities.
NOTE: Operators of Aircraft with STC (Supplement Type Certificate) modification embodied are responsible to check wit
h the STC-Holder for any restriction of applicability before performance of repair or allowable damage limits.
(2) Acceptable data may include:

- Aircraft type relevant Structural Repair Manual (SRM).
- Airbus approved repair drawing or repair instruction.
- Airline developed data approved by Airbus.
- Airline / other DAH developed data.
(3) In the case of repairs to any primary structure or fatigue critical structure beyond SRM limits, it is recommended that Air
bus approval is obtained.
(4) Airbus can assist in providing the necessary data for repairs in any of the above cases.
B. Primary/Secondary Structural Items
(1) The primary and secondary structural items general details are illustrated in Figure 002:
Detailed Primary parts are illustrated as follows:
- Fuselage in Figure 003
- Horizontal and Vertical Stabilizer Trailing Edge in Figure 004
- The Wing Trailing Edge in Figure 005
- The Wing Leading Edge in Figure 006
- The Pylon in Figure 007
- The Nose Landing Gear in Figure 008
- The Main Landing Gear (single axis) in Figure 009
2/112

Print date: 2020-07-09 18:47:33
- The Main Landing Gear (double axis) in Figure 010

- The Nose and Main Landing Gear doors in Figure 011.
(2) The following secondary structural items are not illustrated in Figure 002:
- Unpressurized service doors.
- Vertical stabilizer to fuselage (side) fairings .
C. Principle Structural Elements (PSE), Safe Life Items and Fatigue Critical Structure (FCS) - Identification
The Fatigue Critical Structures include the following:
- Metallic structures classified as PSE
- Other structures that are not classified as PSE.
For safe life items, in case of a discrepancy between the SRM and the ALS part 1, the latter must be considered.
Figures 012 thru 035 identify all the PSE, FCS and safe life items.
(1) Index of Figures

3/112

Print date: 2020-07-09 18:47:33
FIGURE TITLE FIGURE NUMBER

Passenger/Crew doors Figure 012
Emergency Exit Doors Figure 013
Cargo Compartment Doors Figure 014 (sheet 1)
Bulk Cargo Compartment Door Figure 014 (sheet 2)
Service and Access Doors, Entrance Stair Door and Main Landing Gear
Figure 015
Doors FCBS
Forward Fuselage - Section 11 and 12 Figure 016
Forward Fuselage - Section 13 and 14 Figure 017
Center Fuselage - Center Box - Sections 15/21 Figure 018
Aft Fuselage - Section 16 and 17 Figure 019
Aft Fuselage - Section 18 Figure 020
Aft Fuselage - Tail Section 19 Figure 021
Pylon and Nacelle - CFM 56-5 Engine - Config 1 Figure 022
Pylon and Nacelle - V2500 Engine - Config 2 Figure 023
Horizontal Stabilizer Figure 024
Elevator Figure 025
Vertical Stabilizer Figure 026
Rudder Figure 027
Wings - Center Wing Box Figure 037
Wings - Outer Wing Structure Figure 028
Wings - Auxiliary Structure Figure 029
Wings - Spoilers and Ailerons Figure 030
Wings - Inboard Flaps Figure 031
4/112

Print date: 2020-07-09 18:47:33
FIGURE TITLE FIGURE NUMBER

Wings - Outboard Flaps Figure 032
Wings - Slats Figure 033
Main Landing Gear Figure 034 and 036
Nose Landing Gear Figure 035
Table 1
ITEM PSE FCS SAFE LIFE NOMENCLATURE

1 X X Outer and inner skin p
anel
2 X X Longerons and frame s
egments
3 X X Window frame
4 X X All door stops and stop
support fittings
Table 2
Key to Fig: Figure 012

anel
egments
3 X X Window frame
Table 3

5/112

Print date: 2020-07-09 18:47:33

anel
egments/beams and fo
rmers
3 X X All hinge fittings, piano
hinge, hinge arms and
hinge pins
4 X X All door stops, support
fittings, locking latches
and pivot pins
Table 4

1 X X Avionics access door a
nd connecting fittings
2 X Entrance stairs door in
cluding attachment fitt
ings
3 X Main landing gear fixe
d hinged fairing attach
ment fittings
4 X Main landing gear door
hinge fittings (Twin ve
rsion)
5 Main landing gear door
hinge fittings (Bogie v
ersion)

6/112

Print date: 2020-07-09 18:47:33
Table 5

7/112

Print date: 2020-07-09 18:47:33

1 X X All fuselage skin panel
s
2 X X Forward pressure bulk
head assembly
3 X X Windshields frames
4 X X All frames from FR1 to
FR23
5 X X Circumferential and lo
ngitudinal fuselage joi
nts including connectio
n parts between sectio
ns 12 and 13
6 X Floor crossbeam FR8,
FR11, FR16, FR18 and
FR20
7 X X All stringers between F
R1 and FR23
8 X X Forward passenger/cre
w door aperture frame
assembly between FR1
6 and FR20 including s
top fittings and latch fi
ttings
9 X X Upper structure forwar
d of FR8
10 X X Formed edging section
11 X X Nose landing gear well
assembly

8/112

Print date: 2020-07-09 18:47:33
12 X X Frame of access door

between FR3 and FR35
including door fittings
13 X X All cabin window fram
es
14 X X Entrance stairs door fit
tings (A/C side)
15 X Nose landing gear actu
ator upper fittings
<1> X X Nose landing gear dra
g strut fittings and tru
nnions
<2> X Instrument panel struc
ture
<3> X 80VU attachment fittin
gs
Table 6
<1> Items not illustrated

9/112

Print date: 2020-07-09 18:47:33

1 X X All frames from FR24 t
o FR34 including clips
and shear webs
2 X X All circumferential and
longitudinal panel joint
s
es
s
5 X X All stringers and string
er combinations betwe
en FR24 and FR34
6 X X Skin panel around for
ward cargo compartm
ent door aperture inclu
ding stiffeners and ma
chined frames
7 X X Forward cargo compar
tment door aperture fr
ame assembly includin
g upper and lower doo
r frame members and
door attachment fittin
gs
8 X X Floor crossbeams betw
een FR24 and FR28
Table 7

10/112

Print date: 2020-07-09 18:47:33

1 X X Connecting straps at F
R35 including stringer
couplings
2 X X All frames between FR
36 and FR47
s
4 X X Connecting straps at F
R47 including stringer
couplings
s
6 X X All stringers between F
R35 and FR47
es
8 X X Emergency exit apertu
re frame assemblies b
etween FR38 and FR41
between STGR13 and
STGR20A including up
per and lower beams a
nd shear webs, and int
ernal doublers
9 X X Pressure bulkhead ass
emblies at FR35 and F
R46

11/112

Print date: 2020-07-09 18:47:33
10 X X Pressurized floor, longi

tudinal floor beams an
d support assemblies b
etween FR42 and FR47
11 X X Side box assemblies
12 X X Main gear up-lock fitti
ngs
13 X X Keel beam assembly a
nd connecting parts in
cluding main landing g
ear door actuator fittin
gs and hinge fittings
14 X X Pressure floor between
FR35 and the front spa
r
Table 8

12/112

Print date: 2020-07-09 18:47:33

s including crackstopp
ers
2 X X All frames from FR47 t
o FR64 including conn
ecting straps and strin
ger couplings
3 X X All stringer, connecting
straps and stringer co
uplings
s
es
6 X X Skin around aft cargo
compartment door ape
rture including stringer
s, stiffeners and machi
ned frames
7 X X Aft cargo door apertur
e frame assembly bet
ween FR52 and FR57 a
nd from STGR18 to ST
GR41 including upper
shear web, sill beam,
upper and lower torsio
n box, machined fram
es, piano hinge, latch f
ittings, actuator suppo
rt fittings, shear webs
and internal doublers
13/112

Print date: 2020-07-09 18:47:33
8 X X Bulk cargo door apertu

re frame assembly bet
ween FR59 and FR63 a
nd from STGR23 to ST
GR41 including sill bea
m, all shear webs, inte
rnal doublers and door
stop fittings
9 X X Skin around bulk carg
o compartment door a
perture including strin
gers, stiffeners and m
achined frames
10 X Floor crossbeams betw
een FR52 and FR56
Table 9

14/112

Print date: 2020-07-09 18:47:33

s (upper, lateral LH/R
H and lower skins) incl
uding skin around was
te service and skin aro
und portable water ser
vice panel
s including circumfere
ntial butt joints and co
nnecting straps at FR6
7 and longitudinal lap j
oints at STGR6 LH/RH,
STGR32 LH/RH and ST
GR41 RH
3 X X Aft passenger/crew do
or aperture frame asse
mbly between includin
g FR66 and FR68, door
lintel upper torsion bo
x, door sill, door stops
and stops support fitti
ngs and internal corne
r doublers
4 X Floor crossbeams betw
een FR66 and FR68
es
6 X X All frames between FR
65 and FR69 and fram
e clips
15/112

Print date: 2020-07-09 18:47:33
7 X X All stringers and gusse

ts from FR64 to FR70
<1> X X Internal reinforcement
doublers
Table 10

16/112

Print date: 2020-07-09 18:47:33

1 X X Rear pressure bulkhea
d (skin dome, dome jo
ints and stiffeners)
2 X X Pressure bulkhead and
VTP attachment frame
FR70 including buttstr
ap
3 X X Machined VTP attachm
ent frames FR72, FR74
and Machined HTP fra
me FR77
4 X Tailcone to section 19
attachment fittings
5 X X All skin panels includin
g stringers and longitu
dinal panel joints and
doublers
6 X X All frames (other than
machined) including cli
ps and shear webs
7 X X Access door surround
assembly
8 X X Vertical stabilizer attac
hment fittings
9 X X Horizontal stabilizer su
pport hinge fittings
10 X X Center fittings
11 X X Struts at FR77

17/112

Print date: 2020-07-09 18:47:33
12 X X Longerons at horizonta
l stabilizer cut out
13 X X Internal horizontal sta
bilizer cut-out corner d
oubler
14 X X Spindle bracket
Table 11

18/112

Print date: 2020-07-09 18:47:33

1 X X Lateral Panels
2 X X Spars
3 X X Skin reinforcement aro
und cut-outs
4 X X Pylon to wing attachm
ent fittings and links, i
ncluding all pins and b
earings
5 X X Pylon to engine attach
ment fittings including
all pins and bearings
6 X X Pylon ribs
7 X Cowl hinges on pylon s
ide
8 X Reserver cowl hinges o
n pylon box
9 X Thrust reverser pivotin
g door attachments
10 X J ring (also called V bl
ade)
11 X Actuator and FWD fra
me at actuator attach
ment
12 X 3/6/9 and 12 o'clock b
eam interface to FWD
frame
<1> X X Forward engine mount
s
19/112

Print date: 2020-07-09 18:47:33
<2> X X Rear engine mounts
Table 12

20/112

Print date: 2020-07-09 18:47:33

1 X X Lateral Panels
2 X X Spars
3 X X Skin reinforcement aro
und cut-outs
4 X X Pylon to wing attachm
ent fittings and links, i
ncluding all pins and b
earings
5 X X Pylon to engine attach
ment fittings including
all pins and bearings
6 X X Pylon ribs
7 X Cowl hinges on pylon s
ide
8 X Reserver cowl hinges o
n pylon box
9 X Thrust reverser transla
ting sleeve attachment
10 X V blade (also called J r
ing)
11 X Actuator and FWD fra
me at actuator attach
ment
12 X 6 and 12 o'clock beam
<1> X X Forward engine mount
s
<2> X X Rear engine mounts

21/112

Print date: 2020-07-09 18:47:33
Table 13

22/112

Print date: 2020-07-09 18:47:33

1 X Lateral box upper skin
2 X Lateral box lower skin
3 X Lateral box rear spar
4 X Lateral box front spar
5 X Upper central joining p
art
6 X Lower central joining p
art
7 X Rear spar joint bracket
including assembly par
ts (rear angle)
8 X Upper and lower attac
hment fittings
9 X Rear support fittings
10 X Screw jack fitting inclu
ding assembly parts
11 X Actuator fitting
12 X Center joint rib web
13 X Lateral box ribs includi
ng assembly parts
14 X Lateral box hinge arms
X X Lateral box fittings
15 X X Lateral box lateral load
fitting
16 X X Y-load fitting
Table 14
23/112

Print date: 2020-07-09 18:47:33

1 X Elevator upper skin
2 X Elevator lower skin
3 X Elevator front spar
4 X X Elevator actuator fittin
gs
5 X X Elevator hinge fittings
6 X Elevator ribs 1, 4 and
5
7 X X Elevator rib 10
Table 15

24/112

Print date: 2020-07-09 18:47:33

1 X Skin plates LH and RH
including integral stiffe
ners, attachment fittin
gs including attaching
parts
2 X Ribs R1 thru R11
3 X Front, center and rear
spars including shear l
oad fittings
4 X X Hinge arms
5 X X Actuator fittings
5 X Actuator fittings
X X Actuator fittings for a/
c:
- post-mod 21733K18
72B
- post-mod 22111K22
52A
- post-mod 25484K43
99
Table 16

25/112

Print date: 2020-07-09 18:47:33

1 X X Rudder tip
1 X Upper rib pre-mod 241
25K3546
X X Rudder tip post-mod 2
4125K3546
2 X Lower rib
3 X Spar
4 X Skin plate LH and RH
5 X Upper angle pre-mod
24125K3546
6 X Lower angle
7 X X Attachment fittings inc
luding attachment pin
s, hinge support fitting
s
8 X X Actuator attachment fi
ttings
Table 17

1 X X All center wing box str
ucture including lower
external buttstraps at
the wing root
Table 18

26/112

Print date: 2020-07-09 18:47:33

1 X X Top skin ribs 1 to 27
2 X X Stringers including join
ts - top and bottom ski
ns
3 X X Butt strap top and bott
om skin
4 X X Ribs R2 to R19 includi
ng flap support and br
ackets
5 X X Main landing gear jack
fittings and attaching
points (including gear
rib 5)
6 X X Rear false spar and Ri
b R6A
7 X X Rear spar including joi
nts
8 X Ribs R20 to R27
9 X X Front spar including joi
nts
10 X X Dry bay assembly
11 X X Closing plates
12 X X Rib R6B
13 X X Reinforcing plates
14 X X Bottom skin ribs 1 to 2
7
15 X X Rear pylon attachment
27/112

Print date: 2020-07-09 18:47:33
16 X X Front pylon attachmen

t and pylon thrust and
drag attachment
17 X Rib 27A
18 X Ribs 28-1, 28-2 and 2
8-3
19 X Mid Inboard Spar 1 an
d2
Table 19

28/112

Print date: 2020-07-09 18:47:33

1 X Trailing edge skin and
plating: Attachment fit
tings to overwing pane
l, fixed under wing pan
el, fixed shroud
2 X Shroud box attachmen
t fittings
3 X X Aileron brackets and fi
ttings
4 X X Flap drive brackets an
d fittings
5 X X Flap track beams
6 X X Jacking bracket
7 X X Spoiler bracket and fitt
ings
8 X X L/E Ribs - slat and jac
k ribs
9 X Fixed leading edge inb
oard of pylons (slat 1)
including skins, stiffen
ers, inboard ribs and s
pars
Table 20

29/112

Print date: 2020-07-09 18:47:33

1 X Spoilers inboard and o
utboard hinge bracket
s including hinge pins
and links
2 X Spoilers center includi
ng hinge pin and actua
tor bracket assembly
3 X Aileron (minus hinge a
nd actuator fittings)
4 X X Aileron: hinge bracket
s, actuator fittings incl
uding hinges, hinge pi
ns and hinge brackets
Table 21

30/112

Print date: 2020-07-09 18:47:33

1 X X Upper skin and stringe
rs
2 X X Lower skin and stringe
rs
3 X X Rear spar
4 X X Front spar
5 X X Track 1 casting (Ribs 1
and 2)
6 X X Track 1 trunnion
7 X X Track 1 drive link
8 X X Track 2 casting (Ribs 9
and 10)
9 X X Track 2 external rear a
nd aft fitting
10 X X Nose bracket (Rib 10)
11 X X Track 2 drive link
12 X X Track 2 main fitting
13 X X Outboard End-Rib (Rib
14)
14 X X Interconnection strut
Table 22

31/112

Print date: 2020-07-09 18:47:33

1 X X Upper skin and stringe
rs
2 X X Lower skin and stringe
rs
3 X X Rear spar
4 X X Front spar
5 X X Rib 1
6 X X Track 3, Rib fitting (Ri
b 5 and 6)
7 X X Track 3, external fittin
g
8 X X Track 3, nose bracket
(Rib 6)
9 X X Track 3, drive link
<1> X X Track 3, Main fitting
10 X X Track 4, Rib fitting (Ri
b 14 and 15)
11 X X Track 4, external fittin
g
12 X X Track 4, nose fitting
13 X X Track 4, drive link
<2> X X Track 4, Main fitting
Table 23
32/112

Print date: 2020-07-09 18:47:33

1 X X Tracks
2 X X Track ribs (1 thru 12)
3 X X Hold down rib
4 X X Slat to track attachme
nts
5 X X Lower skin/girder com
bination
6 X X Upper skin/girder com
bination
7 X X Trailing edge assembly
Table 24

33/112

Print date: 2020-07-09 18:47:33

1 X X Forward pintle pin
2 X X Lock stay
3 X X Side stay - upper and l
ower
4 X X Shock absorber sliding
fitting
5 X X Torque links
6 X X Axle
7 X X Main fitting
8 X X Drag stay
9 X X Cross tube
10 X X Attachment lugs
<1> X X All hinge point pins
Table 25

34/112

Print date: 2020-07-09 18:47:33

1 X X Forward pintle pin
2 X X Lock stay
3 X X Basic side stay - upper
and lower
4 X X Torque links
5 X X Bogie assembly (beam
and axles)
6 X X Shock absorber and sli
ding fitting
7 X X Main fitting
8 X X Drag stay
9 X X Cross tube
10 X X Attachment lugs
Table 26

35/112

Print date: 2020-07-09 18:47:33

1 X X Drag strut upper arm
2 X X Drag strut lower arm
3 X X Sliding tube with integ
ral axle
4 X X Torque links
5 X X Shock absorber barrel
6 X X Lock link - lower arm
7 X X Lock link - upper arm
Table 27
Figure 001 / 51-11-12 (sheet 1) Structure Breakdown - Schematic
Figure 002 / 51-11-12 (sheet 1) Primary and Secondary Structure - General Details
Figure 003 / 51-11-12 (sheet 1) Fuselage Primary detailed Parts
Figure 004 / 51-11-12 (sheet 1) Horizontal Stabilizer Trailing Edge Primary detailed Parts
Figure 004 / 51-11-12 (sheet 2) Vertical Stabilizer Trailing Edge Primary detailed Parts
Figure 005 / 51-11-12 (sheet 1) Wing Trailing Edg Primary detailed Parts
Figure 006 / 51-11-12 (sheet 1) Wing Leading Edge Primary detailed Parts
Figure 007 / 51-11-12 (sheet 1) Pylons Primary detailed Parts
Figure 007 / 51-11-12 (sheet 2) Pylons Primary detailed Parts
Figure 008 / 51-11-12 (sheet 1) Nose Landing Gear Primary detailed Parts
Figure 008 / 51-11-12 (sheet 2) Nose Landing Gear Primary detailed Parts
Figure 009 / 51-11-12 (sheet 1) Main Landing Gear (Single Axle) Primary detailed Parts
Figure 010 / 51-11-12 (sheet 1) Main Landing Gear (Double Axle) Primary detailed Parts
36/112

Print date: 2020-07-09 18:47:33
Figure 011 / 51-11-12 (sheet 1) Nose and Main Landing Gear Doors Primary detailed Parts
Figure 012 / 51-11-12 (sheet 1) FCS / PSE Location - FWD Passenger/Crew Door
Figure 012 / 51-11-12 (sheet 2) FCS / PSE Location - AFT Passenger/Crew Door
Figure 013 / 51-11-12 (sheet 1) FCS / PSE Location - Emergency Exit Doors
Figure 014 / 51-11-12 (sheet 1) FCS / PSE Location - Cargo Compartment Doors
Figure 014 / 51-11-12 (sheet 2) FCS / PSE Location - Bulk Cargo Compartment Door
Figure 015 / 51-11-12 (sheet 1) FCS / PSE Location - Service and Access Doors, Entrance Stair Door and Main Landing
Gear Doors
Figure 015 / 51-11-12 (sheet 2) FCS / PSE Location - Entrance Stair Door FCBS Items
Figure 015 / 51-11-12 (sheet 3) FCS / PSE Location - Main Landing Gear Doors FCBS Items
Figure 015 / 51-11-12 (sheet 4) FCS / PSE Location - Main Landing Gear Doors FCBS Items
Figure 016 / 51-11-12 (sheet 1) FCS / PSE - Forward Fuselage - Section 11 and 12
Figure 017 / 51-11-12 (sheet 1) FCS / PSE Location - Forward Fuselage - Sections 13 and 14
Figure 017 / 51-11-12 (sheet 2) FCS / PSE Location - Forward Fuselage - Sections 13 and 14
Figure 018 / 51-11-12 (sheet 1) FCS / PSE Location - Center Fuselage - Center Box - Sections 15/21
Figure 018 / 51-11-12 (sheet 2) FCS / PSE Location - Center Fuselage - Center Box - Sections 15/21
Figure 019 / 51-11-12 (sheet 1) FCS / PSE Location - Aft Fuselage - Section 16 and 17
Figure 020 / 51-11-12 (sheet 1) FCS / PSE Location - Aft Fuselage - Section 18
Figure 021 / 51-11-12 (sheet 1) FCS / PSE Location - Tail Section 19
37/112

Print date: 2020-07-09 18:47:33

Figure 022 / 51-11-12 (sheet 1) FCS / PSE Location - Nacelles and Pylons Config 1 (CFM56)
Figure 023 / 51-11-12 (sheet 1) FCS / PSE Location - Nacelles and Pylons Config 2 (V2500)
Figure 024 / 51-11-12 (sheet 1) FCS / PSE Location - Horizontal Stabilizer
Figure 024 / 51-11-12 (sheet 2) FCS / PSE Location - Horizontal Stabilizer Trailing Edge
Figure 025 / 51-11-12 (sheet 1) FCS / PSE Location - Elevator
Figure 026 / 51-11-12 (sheet 1) FCS / PSE Location - Vertical Stabilizer Spar Box
Figure 026 / 51-11-12 (sheet 2) FCS / PSE Location - Vertical Stabilizer Fittings
Figure 027 / 51-11-12 (sheet 1) FCS / PSE Location - Rudder/Rib Connecting Angles
Figure 027 / 51-11-12 (sheet 2) FCS / PSE Location - Rudder Fittings
Figure 027 / 51-11-12 (sheet 3) FCS / PSE Location - Rudder Fittings
Figure 027 / 51-11-12 (sheet 4) FCS / PSE Location - Rudder/Rib Connecting Angles
Figure 027 / 51-11-12 (sheet 5) FCS / PSE Location - Rudder/Main Structure
Figure 028 / 51-11-12 (sheet 1) FCS / PSE Location - Outer Wing Structure
Figure 028 / 51-11-12 (sheet 3) Sharklet device
Figure 029 / 51-11-12 (sheet 1) FCS / PSE Location - Auxiliary Structure
Figure 029 / 51-11-12 (sheet 2) FCS / PSE Location - Auxiliary Structure
Figure 030 / 51-11-12 (sheet 1) FCS / PSE Location - Spoilers and Ailerons
38/112

Print date: 2020-07-09 18:47:33
Figure 031 / 51-11-12 (sheet 1) FCS / PSE Location - Inboard Flaps

Figure 031 / 51-11-12 (sheet 2) FCS / PSE Location - Inboard Flaps
Figure 032 / 51-11-12 (sheet 1) FCS / PSE Location - Outboard Flaps
Figure 032 / 51-11-12 (sheet 2) FCS / PSE Location - Outboard Flaps
Figure 033 / 51-11-12 (sheet 1) FCS / PSE Location - Slats
Figure 034 / 51-11-12 (sheet 1) Safe Life Items - Main Landing Gear
Figure 035 / 51-11-12 (sheet 1) FCS / Safe Life / PSE Location - Nose Landing Gear
Figure 036 / 51-11-12 (sheet 1) Safe Life Items - Main Landing Gear
Figure 037 / 51-11-12 (sheet 1) FCS / PSE Location - Center Wing Box

39/112

Print date: 2020-07-09 18:47:33
PRIMARY SECONDARY
STRUCTURE STRUCTURE
NS6 51 11 12 0 AAM0 0 02
METALLIC PRINCIPLE STRUCTURAL ELEMENTS (PSE)
NON-METALLIC PRINCIPAL STRUCTURAL ELEMENTS (PSE) COMPLETE STRUCTURE
AND FATIGUE CRITICAL STRUCTURE (FCS)
Figure 001 / 51-11-12 (SHEET 1) - Structure Breakdown - Schematic

40/112

Print date: 2020-07-09 18:47:33
VERTICAL STABILIZER
NOTE: FIXED TRAILING EDGE
- REFER TO PARAGRAPH 2.B FOR GENERAL INFORMATION. PANELS
- THIS FIGURE GIVES AN OVERVIEW AND IS ONLY GIVEN FOR

GENERAL INFORMATION. REFER TO THE NEXT FIGURES AND
PARAGRAPHS DETAILING THE PSE, FCS AND SAFE LIFE ITEMS VERTICAL STABILIZER TIP
WHEN CHECKING THE STRUCTURE CLASSIFICATION OF A PART.
- PRIMARY / SECONDARY STRUCTURE BREAKDOWN SHOWN FOR
LH. RH SYMMETRICAL.
VERTICAL STABILIZER
PRIMARY STRUCTURE LEADING EDGE
SECONDARY STRUCTURE
HORIZONTAL
STABILIZER FIXED
TRAILING EDGE PANELS
DORSAL FIN
HORIZONTAL STABILIZER HORIZONTAL

LEADING EDGE STABILIZER TIP
MAIN LANDING
GEAR AFTER
MOD 20139J0016
WING TRAILING EDGE

WING TO FUSELAGE
FAIRINGS SHARKLET AFTER
MOD 160500J3283
OR 160080J3705
WING TIP
BELLY FAIRING
MAIN LANDING GEAR DOORS
(EXCEPT ATTACHMENTS)
FENCE
PYLONS CONFIG 2
MAIN LANDING
GEAR WING LEADING EDGE
NOSE LANDING
GEAR
RADOME
NOSE LANDING GEAR DOORS CONFIG 2 (IAE)
(EXCEPT ATTACHMENTS) CONFIG 1 (CFM)
N_SR_511112_0_6ACM000C_01_02
Figure 002 / 51-11-12 (SHEET 1) - Primary and Secondary Structure - General Details

41/112

Print date: 2020-07-09 18:47:33
FR64
FR64
FR46
4 9
1
FR47
5
A
7
ITEM NOMENCLATURE
1 CABIN FLOOR STRUCTURE CROSS BEAMS
6
2 SEAT TRACKS
LONGERONS SUPPORTING CABIN
3
INTERIOR FURNISHINGS
4 AUXILIARY RAILS
5 SUPPORT STRUTS AND PAX FLOOR PANELS
FORWARD AND AFT CARGO COMPARTMENT FLOOR
6
CROSS BEAMS AND ASSOCIATED SUPPORT STRUTS
7 CARGO FLOOR PANELS
BULK COMPARTMENT FLOOR CROSS BEAMS AND
8
ASSOCIATED SUPPORT STRUTS
9 LONGITUDINAL BEAMS AND FLOOR PANELS
N_SR_511112_0_6DAM000E_01_01
Figure 003 / 51-11-12 (SHEET 1) - Fuselage Primary detailed Parts

42/112

Print date: 2020-07-09 18:47:33
A
L
LH SHOWN
RH SYMMETRICAL
NOTE:
FOR NOMENCLATURE, REFER TO SHEET 2.
N_SR_511112_0_6DJM0000_01_01
Figure 004 / 51-11-12 (SHEET 1/2) - Horizontal Stabilizer Trailing Edge Primary detailed Parts

43/112

Print date: 2020-07-09 18:47:33
A RIB11
RIB1
A
ITEM NOMENCLATURE
1 HORIZONTAL STABILIZER TRAILING EDGE
2 VERTICAL STABILIZER TRAILING EDGE
N_SR_511112_0_6DJM000A_01_01
Figure 004 / 51-11-12 (SHEET 2/2) - Vertical Stabilizer Trailing Edge Primary detailed Parts

44/112

Print date: 2020-07-09 18:47:33
RIB1
A RIB18
LH SHOWN
RH SYMMETRICAL
ITEM NOMENCLATURE
1 WING TRAILING EDGE
N_SR_511112_0_6DKM0000_01_01
Figure 005 / 51-11-12 (SHEET 1) - Wing Trailing Edg Primary detailed Parts

45/112

Print date: 2020-07-09 18:47:33
A
LH SHOWN
RH SYMMETRICAL
ITEM NOMENCLATURE
1 WING LEADING EDGE
N_SR_511112_0_6DLM0000_01_01
Figure 006 / 51-11-12 (SHEET 1) - Wing Leading Edge Primary detailed Parts

46/112

Print date: 2020-07-09 18:47:33
C
B
5
2
A
NOTE:
FOR NOMENCLATURE, VIEWS B AND C, REFER TO SHEET 2.
N_SR_511112_0_6DEM0000_01_01
Figure 007 / 51-11-12 (SHEET 1/2) - Pylons Primary detailed Parts

47/112

Print date: 2020-07-09 18:47:33
FWD B
TYPICAL
ITEM NOMENCLATURE
1 LATERAL PANELS
2 SPARS
3 PYLON TO WING ATTACHMENT FITTINGS
4 PYLON TO ENGINE ATTACHMENT FITTINGS
5 PYLON RIBS
N_SR_511112_0_6DEM000A_01_01
Figure 007 / 51-11-12 (SHEET 2/2) - Pylons Primary detailed Parts

48/112

Print date: 2020-07-09 18:47:33
NOTE:
FOR NOMENCLATURE AND VIEW B, REFER TO SHEET 2.
N_SR_511112_0_6DFM0000_01_01
Figure 008 / 51-11-12 (SHEET 1/2) - Nose Landing Gear Primary detailed Parts

49/112

Print date: 2020-07-09 18:47:33
4 2
10
5
8
7
ITEM NOMENCLATURE
1 ALL HINGE POINT PINS
2 ALL HINGE POINT PINS
3 LOCK LINK - UPPER ARM
4 LOCK LINK - LOWER ARM
5 BARREL B
6 STEERING CYLINDER
7 TORQUE LINKS
SHOCK ABSORBER SLIDING
8
TUBE AND INTEGRAL AXEL
9 BRACE STRUT LOWER ARM
10 BRACE STRUT UPPER ARM
N_SR_511112_0_6DFM000A_01_01
Figure 008 / 51-11-12 (SHEET 2/2) - Nose Landing Gear Primary detailed Parts

50/112

Print date: 2020-07-09 18:47:33
A
10
1 9
2 8
3
7
ITEM NOMENCLATURE
1 FORWARD PINTLE PIN
2 LOCK STAY
3 BASIC SIDE STAY
4 TORQUE LINKS
5 BOOGIE ASSEMBLY
6 SHOCK ABSORBER SLIDING FITTING
A
7 MAIN FITTING
8 DRAG STAY
9 CROSS TUBE
10 ATTACHMENT LUGS
N_SR_511112_0_6DGM0000_01_01
Figure 009 / 51-11-12 (SHEET 1) - Main Landing Gear (Single Axle) Primary detailed Parts

51/112

Print date: 2020-07-09 18:47:33
10
A
9
3
7
ITEM NOMENCLATURE
1 FORWARD PINTLE PIN
2 LOCK STAY
3 BASIC SIDE STAY
4 TORQUE LINKS
5 BOOGIE ASSEMBLY
6 SHOCK ABSORBER SLIDING FITTING 5
7 MAIN FITTING
8 DRAG STAY A
9 CROSS TUBE
10 ATTACHMENT LUGS
10 ALL HINGE POINTS PINS
N_SR_511112_0_6DHM0000_01_01
Figure 010 / 51-11-12 (SHEET 1) - Main Landing Gear (Double Axle) Primary detailed Parts

52/112

Print date: 2020-07-09 18:47:33
B
FR9
C
2
1
FR20
NOTE:
FOR VIEW B, REFER TO SHEET 2.
FOR NOMENCLATURE AND VIEW C, REFER TO SHEET 3.
N_SR_511112_0_6DMM0000_01_01
Figure 011 / 51-11-12 (SHEET 1/3) - Nose and Main Landing Gear Doors Primary detailed Parts

53/112

Print date: 2020-07-09 18:47:33
B
LH SHOWN
RH SYMMETRICAL
NOTE:
FOR NOMENCLATURE, REFER TO SHEET 3.
N_SR_511112_0_6DMM000A_01_01

54/112

Print date: 2020-07-09 18:47:33
C 01
LH SHOWN
RH SYMMETRICAL
ITEM NOMENCLATURE
LANDING GEAR DOOR HINGE FITTINGS AND DOOR
1 ATTACHMENT FITTINGS (HINGES AND LATCHES)
LANDING GEAR AND LANDING GEAR DOORS

2
RETRACTION FITTINGS
3 LANDING GEAR UPLOCK FITTINGS
MAIN LANDING GEAR DRAG STRUT FITTINGS
4
AND TRUNNIONS
5 SERVICE DOORS ATTACHMENT FITTINGS
NOTE:
01 AFTER MODIFICATION 20139J0016.
N_SR_511112_0_6DMM000B_01_01

55/112

Print date: 2020-07-09 18:47:33
A
LH SHOWN
FR20
RH SYMMETRICAL
FR16
3 2
4
NS6 51 11 12 0 AEMA 0 01
Figure 012 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - FWD Passenger/Crew Door

56/112

Print date: 2020-07-09 18:47:33
FR66
A
LH SHOWN
RH SYMMETRICAL
A
FR66
FR64
3 2
1
4
NS6 51 11 12 0 AEMC 0 01
Figure 012 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - AFT Passenger/Crew Door

57/112

Print date: 2020-07-09 18:47:33
FR38
FR40
FR39
FR41
1 3
N S 6 5 1 11 1 2 0 A G M C 0 0 0
Figure 013 / 51-11-12 (SHEET 1) - FCS / PSE Location - Emergency Exit Doors

58/112

Print date: 2020-07-09 18:47:33
A
A
2
N S 6 5 1 11 1 2 0 A J M 0 0 0 0
Figure 014 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Cargo Compartment Doors

59/112

Print date: 2020-07-09 18:47:33
2
N S 6 5 1 11 1 2 0 A J M A 0 0 0
Figure 014 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Bulk Cargo Compartment Door

60/112

Print date: 2020-07-09 18:47:33
D
E 1 FR13 A
FR15
B FR5 C
FR3
FR14 FR12
FR21
1
FR23
NS6 51 11 12 0 AKMB 00 0
1 AFTER MODIFICATION 20139J0016
NOTE: FOR DETAIL C SEE SHEET 2

FOR DETAIL D SEE SHEET 3
FOR DETAIL E SEE SHEET 4
Figure 015 / 51-11-12 (SHEET 1/4) - FCS / PSE Location - Service and Access Doors, Entrance Stair Door and Main Landing Gear Doors

61/112

Print date: 2020-07-09 18:47:33
FR20
FR16
2
NS6 51 11 12 0 AKMC 00 0
Figure 015 / 51-11-12 (SHEET 2/4) - FCS / PSE Location - Entrance Stair Door FCBS Items

62/112

Print date: 2020-07-09 18:47:33
D
LH SHOWN
RH SYMMETRICAL 3
4
NS6 51 11 12 0 AKMD 00 0
Figure 015 / 51-11-12 (SHEET 3/4) - FCS / PSE Location - Main Landing Gear Doors FCBS Items

63/112

Print date: 2020-07-09 18:47:33
E 1
LH SHOWN
RH SYMMETRICAL
3
NS6 51 11 12 0 AKMG 00 0 5
Figure 015 / 51-11-12 (SHEET 4/4) - FCS / PSE Location - Main Landing Gear Doors FCBS Items

64/112

Print date: 2020-07-09 18:47:33
1 5
13
A
3
FR24
1
FR16
6
6
FR20
2 FR12
FR1 7
A
8
7
NS6 51 11 12 0 ALMA 01 0
Figure 016 / 51-11-12 (SHEET 1/3) - FCS / PSE - Forward Fuselage - Section 11 and 12

65/112

Print date: 2020-07-09 18:47:33
B A
FR12
FR1
B 1
10
NS6 51 11 12 0 ALMC 01 0
1 ONLY FOR EXAMPLE.

FOR DETAILS REFER TO CHAPTERS
53-11-11 SKIN PLATES,
53-11-12 FRAMES

66/112

Print date: 2020-07-09 18:47:33
13
15
FR24
14
FR12
11
NS6 51 11 12 0 ALMG 01 0
FR1
12

67/112

Print date: 2020-07-09 18:47:33
A
A
4
5
FR35
NS6 51 11 12 0 ANMA 00 0
FR24
B
NOTE: FOR DETAIL B SEE SHEET 2
Figure 017 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Forward Fuselage - Sections 13 and 14

68/112

Print date: 2020-07-09 18:47:33
8 7
FR29
NS6 51 11 12 0 ANME 01 0
FR24
Figure 017 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Forward Fuselage - Sections 13 and 14

69/112

Print date: 2020-07-09 18:47:33
A A
4
3 7
1 2 6
FR47
13
8
NS6 51 11 12 0 ASM0 01 0
FR35
Figure 018 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Center Fuselage - Center Box - Sections 15/21

70/112

Print date: 2020-07-09 18:47:33
FR47
A A
10
FR35
9
11
12
9 14
NS6 51 11 12 0 ASME 00 0
13
Figure 018 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Center Fuselage - Center Box - Sections 15/21

71/112

Print date: 2020-07-09 18:47:33
A
FR64
8 9 4
A
1
6 7
2
3
NS6 51 11 12 0 AWMA 01 0
10
FR47
Figure 019 / 51-11-12 (SHEET 1) - FCS / PSE Location - Aft Fuselage - Section 16 and 17

72/112

Print date: 2020-07-09 18:47:33
A FR70
1
2
FR64 7
5
NS6 51 11 12 0 AYM0 00 0
Figure 020 / 51-11-12 (SHEET 1) - FCS / PSE Location - Aft Fuselage - Section 18

73/112

Print date: 2020-07-09 18:47:33
A
A 3
4
FR77
FR78
3
F
B
3 E
C
1 2 4
D
FR70
7
NS6 51 11 12 0 BAM0 01 0
5
6
NOTE: FOR DETAIL B, C, D SEE SHEET 2

FOR DETAIL F SEE SHEET 4
FOR DETAIL H SEE SHEET 5
FOR DETAIL J SEE SHEET 6
Figure 021 / 51-11-12 (SHEET 1/6) - FCS / PSE Location - Tail Section 19

74/112

Print date: 2020-07-09 18:47:33
B
FR74
C 3
FR72
D
3
FR70
2
NS6 51 11 12 0 BAMA 01 0

75/112

Print date: 2020-07-09 18:47:33
FR77
11
11
3
10
9
3
11
NS6 51 11 12 0 BAME 01 0
11

76/112

Print date: 2020-07-09 18:47:33
4
F
FR78
4
G
EXAMPLE
4
NS6 51 11 12 0 BAMH 01 0

77/112

Print date: 2020-07-09 18:47:33
H
LH SHOWN 12
RH SYMMETRICAL
13
NS6 51 11 12 0 BAMJ 01 0

78/112

Print date: 2020-07-09 18:47:33
FR74
FR73
FR72
NS6 51 11 12 0 BAMK 01 0
14

79/112

Print date: 2020-07-09 18:47:33
C
B
B
A 2
A
1
2 3
4 2
NS6 51 11 12 0 BCM0 0 02
NOTE: FOR DETAIL B, C SEE SHEET 2

4 FOR DETAIL D SEE SHEET 3
Figure 022 / 51-11-12 (SHEET 1/3) - FCS / PSE Location - Nacelles and Pylons Config 1 (CFM56)

80/112

Print date: 2020-07-09 18:47:33
E
E G
G 6
E
F
E
7
F
7
NS6 51 11 12 0 BCMC 0 01

81/112

Print date: 2020-07-09 18:47:33
A
12
10
11
12
SYMMETRICAL
NS6 51 11 12 0 BCME 02 0
12

82/112

Print date: 2020-07-09 18:47:33
C
B
B
A 2
A
1
2 3
4 2
NS6 51 11 12 0 BEM0 0 02
NOTE: FOR DETAIL B, C SEE SHEET 2

4 FOR DETAIL D SEE SHEET 3
Figure 023 / 51-11-12 (SHEET 1/4) - FCS / PSE Location - Nacelles and Pylons Config 2 (V2500)

83/112

Print date: 2020-07-09 18:47:33
3
NS6 51 11 12 0 BEMA 0 03

84/112

Print date: 2020-07-09 18:47:33
9
9
12
11
10
NS6 51 11 12 0 BEMC 02 0
12

85/112

Print date: 2020-07-09 18:47:33
E
E
G
F E
F
E 6
G 7
NS6 51 11 12 0 BEME 0 03

86/112

Print date: 2020-07-09 18:47:33
A B
10 4
NS6 51 11 12 0 BGM0 01 0
7 13
12
NOTE: FOR DETAIL D SEE SHEET 2
Figure 024 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Horizontal Stabilizer

87/112

Print date: 2020-07-09 18:47:33
9
16
D 14
E
14
15
E
14
11
NS6 51 11 12 0 BGMC 01 0
11
14
Figure 024 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Horizontal Stabilizer Trailing Edge

88/112

Print date: 2020-07-09 18:47:33
1 A
LH SHOWN
RH SYMMETRICAL
4
4
3
5
NS6 51 11 12 0 BJM0 01 0
Figure 025 / 51-11-12 (SHEET 1) - FCS / PSE Location - Elevator

89/112

Print date: 2020-07-09 18:47:33
A
2
S TA 5 6 1 / R I B 11
A
2
2
1
2
3
2
3
2
N S 6 5 1 11 1 2 0 B L M 0 0 0 0
S TA 5 / R I B 1
Figure 026 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Vertical Stabilizer Spar Box

90/112

Print date: 2020-07-09 18:47:33
A
4
S TA 5 6 1 / R I B 11
S TA 4 1 3 / R I B 9
S TA 2 9 9 / R I B 7 4
S TA 2 6 3 / R I B 6
5
S TA 2 2 8 / R I B 5
5 4
S TA 1 9 3 / R I B 4 5 4
S TA 7 8 / R I B 2
N S 6 5 1 11 1 2 0 B L M A 0 1 0
Figure 026 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Vertical Stabilizer Fittings

91/112

Print date: 2020-07-09 18:47:33
1 1
STA586/BR7
STA406/BR6
STA249/BR5
STA206/BR4
STA163/BR3
STA120/BR2
NS6 51 11 12 0 BNMA 01 0
STA8/BR1
1 AFTER MODIFICATION 24125K3546 2
Figure 027 / 51-11-12 (SHEET 1/5) - FCS / PSE Location - Rudder/Rib Connecting Angles

92/112

Print date: 2020-07-09 18:47:33
A A
EXAMPLE
RUDDER
A ATTACH-FITTING
NO 1,2,3,4,5 AND 7
A B
A
B
A
B 7
B
A
ACTUATOR
ATTACH-FITTING
NS6 51 11 12 0 BNMC 00 0
NO 1,2 AND 3
RUDDER
ATTACH-FITTING
NO 6
EFFECTIVITY: BEFORE MODIFICATION 21733K1872
Figure 027 / 51-11-12 (SHEET 2/5) - FCS / PSE Location - Rudder Fittings

93/112

Print date: 2020-07-09 18:47:33
E A
EXAMPLE
D
RUDDER
ATTACH-FITTING
NO.1,2 AND 5
A
B C
7
B
C
A B
C
EXAMPLE
E RUDDER
ATTACH-FITTING
NO.3 AND 4
C
RUDDER EXAMPLE
ATTACH-FITTING
NO.7
D
8
NS6 51 11 12 0 BNME 01 0
RUDDER
ATTACH-FITTING ACTUATOR
NO.6 ATTACH-FITTING
NO.1,2 AND 3
Figure 027 / 51-11-12 (SHEET 3/5) - FCS / PSE Location - Rudder Fittings

94/112

Print date: 2020-07-09 18:47:33
A 1
B 2
N S 6 5 1 11 1 2 0 B N M H 0 0 0
1 B E F O R E M O D I F I C AT I O N 2 4 1 2 5 K 3 5 4 6
Figure 027 / 51-11-12 (SHEET 4/5) - FCS / PSE Location - Rudder/Rib Connecting Angles

95/112

Print date: 2020-07-09 18:47:33
1 1
S TA 5 8 6 / B R 7
A
S TA 4 0 6 / B R 6
S TA 2 4 9 / B R 5
S TA 2 0 6 / B R 4
S TA 1 6 3 / B R 3
S TA 1 2 0 / B R 2
N S 6 5 1 11 1 2 0 B N M J 0 0 0
S TA 8 / B R 1
1 BEFORE MODIFICATION
24125K3546
2
Figure 027 / 51-11-12 (SHEET 5/5) - FCS / PSE Location - Rudder/Main Structure

96/112

Print date: 2020-07-09 18:47:33
A
A 1
C
D 2
1
B 1
4
10
RIB 1(REF)
4 B
11
5
12
RIB20
6 6 6
9 7
RIB27
2
14
14
NS6 51 11 12 0 BSM0 0 02
13
14
14 13
NOTE:
FOR DETAIL C, D SEE SHEET 3
Figure 028 / 51-11-12 (SHEET 1/4) - FCS / PSE Location - Outer Wing Structure

97/112

Print date: 2020-07-09 18:47:33
PLAN VIEW 13
(TOP SKINS)
INVERTED PLAN VIEW

(BOTTOM SKINS)
3
13
3
NS6 51 11 12 0 BSMA 01 0
13

98/112

Print date: 2020-07-09 18:47:33
E
F
18
18
19
18
17
OUTER WING SIDE

NS6 51 11 12 0 BSMB 0 00
17
SHARKLET SIDE
Figure 028 / 51-11-12 (SHEET 3/4) - Sharklet device

99/112

Print date: 2020-07-09 18:47:33
16
C
FWD ATTACHMENT
17
D
REAR ATTACHMENT
NS6 51 11 12 0 BSMC 0 02
15

100/112

Print date: 2020-07-09 18:47:33
A
D E
9
2
A
8 F
A
A
B
A
A
C
A
LH SHOWN
3 RH SYMMETRICAL
B
C
SPOILER HINGE-ATTACHMENT
FITTINGS
SPOILER 4 SHOWN
SPOILERS 1, 3 AND 5 SIMILAR
5 4
A A
TYPICAL
NOTE:
FOR VIEWS D, E AND F, REFER TO SHEET 2.
N_SR_511112_0_6BUM0000_01_01
Figure 029 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Auxiliary Structure

101/112

Print date: 2020-07-09 18:47:33
1
1
1
1 D
F
N_SR_511112_0_6BUM000B_01_00
Figure 029 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Auxiliary Structure

102/112

Print date: 2020-07-09 18:47:33
A
TYPICAL ARRANGEMENT
B SPOILERS 1 - 5
B
LH SHOWN
RH SYMMETRICAL
3
NS6 51 11 12 0 BWM0 01 0
Figure 030 / 51-11-12 (SHEET 1) - FCS / PSE Location - Spoilers and Ailerons

103/112

Print date: 2020-07-09 18:47:33
3
1
4
A
A
NS6 51 11 12 0 BYM0 01 0
13
14
Figure 031 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Inboard Flaps

104/112

Print date: 2020-07-09 18:47:33
TRACK 1 - SUPPORT + DRIVE 5
6 7
TRACK 2 - DRIVE
10
11
TRACK 2 - SUPPORT 8
NS6 51 11 12 0 BYMA 00 0
12
Figure 031 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Inboard Flaps

105/112

Print date: 2020-07-09 18:47:33
5
6
3
1
8
2
DRIVE LINK TRACK 3
RIB 5
RIB 6
6
6
A
A
NS6 51 11 12 0 CAM0 01 0
Figure 032 / 51-11-12 (SHEET 1/2) - FCS / PSE Location - Outboard Flaps

106/112

Print date: 2020-07-09 18:47:33
RIB 15
10
RIB 14
10
DRIVE LINK TRACK 4

10
12
NS6 51 11 12 0 CAMA 00 0
11
13
Figure 032 / 51-11-12 (SHEET 2/2) - FCS / PSE Location - Outboard Flaps

107/112

Print date: 2020-07-09 18:47:33
A
B C D E
7 1
1 A SLAT 1
4 1
2
4
2
6
3
4
5 2
4
2
B SLAT 2 SHOWN
7
C SLAT 3 SIMILAR
1
D SLAT 4 SIMILAR
E SLAT 5 SIMILAR
1
NS6 51 11 12 0 CGM0 01 0
2 4
3 5
2
4
Figure 033 / 51-11-12 (SHEET 1) - FCS / PSE Location - Slats

108/112

Print date: 2020-07-09 18:47:33
A
A
10 1
1
9 1
2
8 1
7 1
3
4
N S 6 5 1 11 1 2 0 C J M 0 0 1 0
6
NOTE:
1 ONE PIECE FITTING
E F F E C T I V I T Y: B E F O R E M O D I F I C AT I O N 2 0 1 3 9 J 0 0 1 6
Figure 034 / 51-11-12 (SHEET 1) - Safe Life Items - Main Landing Gear

109/112

Print date: 2020-07-09 18:47:33
7
1
2 5
3 4
N S 6 5 1 11 1 2 0 C N M 0 0 1 0
Figure 035 / 51-11-12 (SHEET 1) - FCS / Safe Life / PSE Location - Nose Landing Gear

110/112

Print date: 2020-07-09 18:47:33
A
A
10 1
2 9 1
8 1
3 7 1
4
N S 6 5 1 11 1 2 0 C L M 0 0 1 0
NOTE:
1 ONE PIECE FITTING
E F F E C T I V I T Y: A F T E R M O D I F I C AT I O N 2 0 1 3 9 J 0 0 1 6
Figure 036 / 51-11-12 (SHEET 1) - Safe Life Items - Main Landing Gear

111/112

Print date: 2020-07-09 18:47:33
FR42
FR36
N S 6 5 1 11 1 2 0 B Q M 0 0 0 0
LOWER EXTERNAL
BUTTSTRAP
Figure 037 / 51-11-12 (SHEET 1) - FCS / PSE Location - Center Wing Box

112/112

Description - Structure Classification

Uploaded by

Copyright:

Available Formats

You might also like

Description - Structure Classification

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Description - Structure Classification

Uploaded by

Copyright:

Available Formats

09-07-2020 A320 - SRM - 01-May-2020 - 51-11-12 - Description - Structure Classification

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

51-11-12 - Description - Structure Classification

B. Figure 002 identifies in general primary and secondary structure

C. A list of PSE's is given in this chapter where applicable

D. The structure of the aircraft is classified either as primary or secondary

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

- Metallic structures classified PSE

(2) Acceptable data may include:

B. Primary/Secondary Structural Items

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

- The Main Landing Gear (double axis) in Figure 010

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

FIGURE TITLE FIGURE NUMBER

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

FIGURE TITLE FIGURE NUMBER

ITEM PSE FCS SAFE LIFE NOMENCLATURE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

12 X X Frame of access door

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

10 X X Pressurized floor, longi

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

8 X X Bulk cargo door apertu

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

7 X X All stringers and gusse

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE

ITEM PSE FCS SAFE LIFE NOMENCLATURE

CUSTOMIZATION AIRCRAFT TYPES DOCTYPES REVISION DATE REVISION NUMBER TITLE
