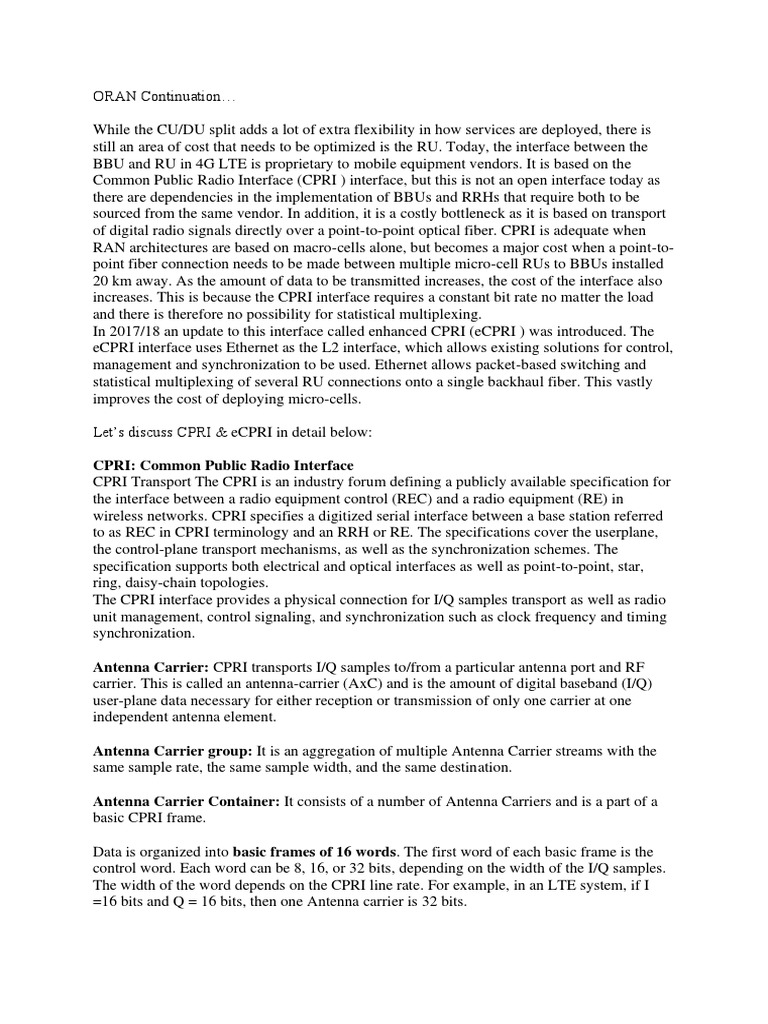

ORAN Continuation…

While the CU/DU split adds a lot of extra flexibility in how services are deployed, there is
still an area of cost that needs to be optimized is the RU. Today, the interface between the
BBU and RU in 4G LTE is proprietary to mobile equipment vendors. It is based on the
Common Public Radio Interface (CPRI ) interface, but this is not an open interface today as
there are dependencies in the implementation of BBUs and RRHs that require both to be
sourced from the same vendor. In addition, it is a costly bottleneck as it is based on transport
of digital radio signals directly over a point-to-point optical fiber. CPRI is adequate when
RAN architectures are based on macro-cells alone, but becomes a major cost when a point-to-
point fiber connection needs to be made between multiple micro-cell RUs to BBUs installed
20 km away. As the amount of data to be transmitted increases, the cost of the interface also
increases. This is because the CPRI interface requires a constant bit rate no matter the load
and there is therefore no possibility for statistical multiplexing.
In 2017/18 an update to this interface called enhanced CPRI (eCPRI ) was introduced. The
eCPRI interface uses Ethernet as the L2 interface, which allows existing solutions for control,
management and synchronization to be used. Ethernet allows packet-based switching and
statistical multiplexing of several RU connections onto a single backhaul fiber. This vastly
improves the cost of deploying micro-cells.

Let’s discuss CPRI & eCPRI in detail below:

CPRI: Common Public Radio Interface

CPRI Transport The CPRI is an industry forum defining a publicly available specification for
the interface between a radio equipment control (REC) and a radio equipment (RE) in
wireless networks. CPRI specifies a digitized serial interface between a base station referred
to as REC in CPRI terminology and an RRH or RE. The specifications cover the userplane,
the control-plane transport mechanisms, as well as the synchronization schemes. The
specification supports both electrical and optical interfaces as well as point-to-point, star,
ring, daisy-chain topologies.
The CPRI interface provides a physical connection for I/Q samples transport as well as radio
unit management, control signaling, and synchronization such as clock frequency and timing
synchronization.

Antenna Carrier: CPRI transports I/Q samples to/from a particular antenna port and RF
carrier. This is called an antenna-carrier (AxC) and is the amount of digital baseband (I/Q)
user-plane data necessary for either reception or transmission of only one carrier at one
independent antenna element.

Antenna Carrier group: It is an aggregation of multiple Antenna Carrier streams with the
same sample rate, the same sample width, and the same destination.

Antenna Carrier Container: It consists of a number of Antenna Carriers and is a part of a

basic CPRI frame.

Data is organized into basic frames of 16 words. The first word of each basic frame is the
control word. Each word can be 8, 16, or 32 bits, depending on the width of the I/Q samples.
The width of the word depends on the CPRI line rate. For example, in an LTE system, if I
=16 bits and Q = 16 bits, then one Antenna carrier is 32 bits.
Each 256 basic frames make up a hyperframe and 150 hyperframes are needed to transport an
LTE 10 ms frame. Data in a basic frame is encoded with 8B/10B encoding, that is, 8 bits of
data are encoded in 10 bits. The extra bits are used to detect link failures. Some of the CPRI
rates support 64B/66B encoding scheme and this extension is used to detect sync header
impairments and link failures.
One of the CPRI technical requirements defines the clock frequency accuracy of RRH as
0.002 ppm. This requirement states that the maximum impact of jitter from the CPRI
fronthaul on the frequency accuracy of RRH should be less than 0.002 ppm.

ECPRI:
eCPRI Transport The concepts of CPRI-over-Ethernet and replacing the TDM-like CPRI
format with Ethernet messaging both hold the promise of reducing the bandwidth
requirements of CPRI transport and making fronthaul affordable and available to all mobile
operators.
eCPRI, introduces improved transport efficiency to match the speed and bandwidth
requirements of 5G fronthaul networks.The main advantages of the eCPRI protocol include
support of functional split option 7, flexible bandwidth scaling according to user-plane traffic,
and the use of mainstream transport technologies, which makes it possible carrying eCPRI
and other traffic simultaneously in the same switched network.

As shown in figure below, in eCPRI, the radio base station is divided into two building
blocks: eCPRI radio equipment control (eREC) and eCPRI radio equipment (eRE), which are
physically separated and are connected via a transport network. The eREC implements part of
the physical layer functions and higher layer functions of the air interface, whereas the eRE
contains the remaining part of the physical layer functions and the analog RF functions.
Userplane data, control and management, and synchronization signals (i.e., synchronization
data used for frame and timing alignment) are packetized, multiplexed, and transferred over
the transport network which connects eREC(s) and eRE(s). The eCPRI does not rely on
specific transport network and data-link-layer protocols, thus any type of network can be used
for eCPRI.
eCPRI Protocol planes: This method typically involves the transmission and reception of
eCPRI messages.
1) C&M Plane: Control and management data flow for the operation, administration and
maintenance of nodes.
2) User Plane: Data flows covered by user plane as:
a) Data flow to be transferred from radio base station to user equipment and vice
versa.
b) Other eCPRI flows not covered by others flows and protocol planes.
c) Real time control data.

3) Synchronization Plane: As eCPRI is being used in Open RAN architecture and nodes
are from different OEM’s So Synch plane has been introduced to maintain the data
flow for synchronization timing information between nodes.

The main difference between eCPRI and CPRI can be summarized by looking at their
respective characteristics

CPRI characteristics

• It is intrinsically a point-to-point interface.

• There is a master port and a slave port connected directly by optical/electrical cable (s) as a
hop.
• Networking functions are application layer functions and not supported by the CPRI
interface itself. .
• Supported logical connections include point-to-point (one REC to one RE) and point-to-
multipoint (one REC to several REs).
• Redundancy, QoS, security, etc. are REC/RE functions.
eCPRI characteristics

• An eCPRI network consists of eCPRI nodes (eRECs and eREs), transport network, as well
as other network elements including grand master for timing and EMS/NMS for
management.
• There is no longer a master port/slave port classification at physical level
• The eCPRI layer is above the transport networking layer.
• The eCPRI layer does not depend on a specific transport network layer (TNL) topology.
• The transport network may include local network and local switches provided by the
eREC/eRE vendors.
• Supported logical connections include point-to-point (one eREC to one eRE), point-to-
multipoint (one eREC to several eREs), multipoint-to-multipoint (eRECs to eREs, eRECs to
eRECs, eREs to eREs).
• Redundancy, QoS, security, etc. are mainly transport network functions; eCPRI nodes need
to implement proper TNL protocols to support these capabilities.
