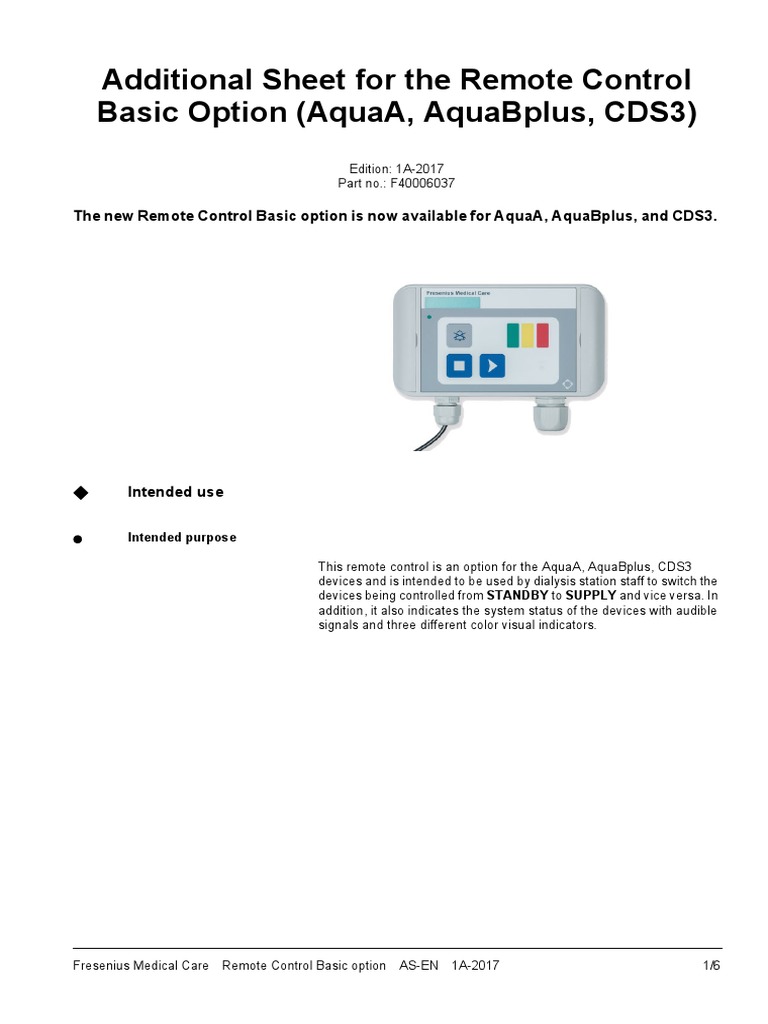

Additional Sheet for the Remote Control

Basic Option (AquaA, AquaBplus, CDS3)

Edition: 1A-2017
Part no.: F40006037

The new Remote Control Basic option is now available for AquaA, AquaBplus, and CDS3.

 Intended use

 Intended purpose

This remote control is an option for the AquaA, AquaBplus, CDS3

devices and is intended to be used by dialysis station staff to switch the
devices being controlled from STANDBY to SUPPLY and vice versa. In
addition, it also indicates the system status of the devices with audible
signals and three different color visual indicators.

Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017 1/6
 Operation

 Controls and indicators

4 5 6

1 On visual indicator

2 Mute key

3 Stop key

4 Start key

5 Green / yellow / red visual indicators

6 Please wait visual indicator

 Functions

Visual indicator Meaning

state

On visual indicator This indicator lights up green when voltage is

being supplied to the remote control.

Mute key The Mute key is used to silence an audible

alarm for 1 minute.

Stop key The Stop key can be used to terminate the

SUPPLY mode.

2/6 Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017
 Visual indicator Meaning
state

Start key The Start key is used to switch the AquaA /

AquaBplus / CDS3 device from the STANDBY
operating mode to the SUPPLY operating
mode.

Visual indicators Green (SUPPLY), yellow (warning),

green / yellow / red red (failure)

Visual indicator The device is in a preparation phase.

Please wait

 Connections

1
2

1 Power supply input

2 Communications cable and connected device

 Starting the SUPPLY mode

 Press the Start key for approx. three

seconds.
The device will switch to the SUPPLY mode.

Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017 3/6
 Terminating the SUPPLY mode

 Press the Stop key for three seconds.

The device will switch to the STANDBY
mode.

 Muting

 When an alarm occurs, the audible signal

can be deactivated for 1 minute by
pressing the Mute key.
 Messages cannot be confirmed using the
remote control. They must be confirmed
locally on the device.

4/6 Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017
 Specifications

 Dimensions and weight

Dimensions Height: 90 mm
Width: 160 mm
Depth: 50 mm

Weight 0.2 kg

 Identification label (device identification)

The identification label shown here is only an example. The actual data
is the data specified on the identification label of the device.

1
6
5
2
4

1. CE marking
2. Identification of electrical and electronic devices
3. Manufacturer (year of manufacture, address)
4. Power requirements
5. Serial number
6. Type identification

 Electrical safety

Classification according to EN 60601-1, IEC 60601-1

Type of protection against Protection class II

electric shock

Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017 5/6
 Degree of protection Drip-proof
against ingress of liquids

Warning
Risk of injury from electrical voltage
The remote control may only be used with a power supply unit in
protection class II (surface-mounted version) or protection class I
(flush-mounted or built-in version) tested in accordance with 60601-1,
with an insulation voltage of at least 4 KV between the primary and
secondary circuits and 2x MOPPs.

 Electrical supply

Line voltage 24 V DC

Radiated heat 6W

Warning
Standards and regulations for connection to the power supply
system
The applicable national regulations for the design of premises used for
medical purposes (e.g., DIN VDE 0100-710) must be observed.

 Fuse

(F1) 500 mAT

 Operating conditions

Note
The use of the Remote Control Basic is only allowed inside professional
healthcare facilities. The option is not suitable for use in the home
healthcare environment.

Operating temperature +5 to +40 °C

range

Noise level of alarm Max. 55 dB (A) at a distance of 1 m

Atmospheric pressure 700 to 1150 hPa

Relative humidity Up to 80% at 20 °C (non-condensing)

6/6 Fresenius Medical Care Remote Control Basic option AS-EN 1A-2017
