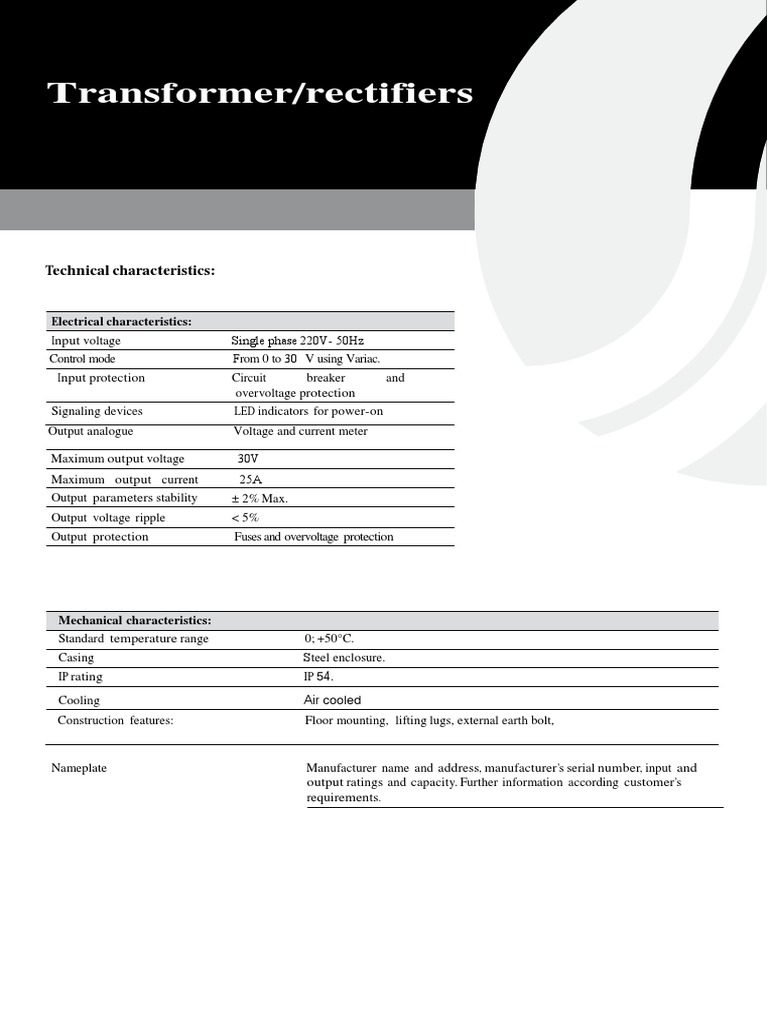

Transformer/rectifiers

Technical characteristics:

Electrical characteristics:
Input voltage Single phase 220V- 50Hz
Control mode From 0 to 30 V using Variac.
Input protection Circuit breaker and
overvoltage protection
Signaling devices LED indicators for power-on
Output analogue Voltage and current meter

Maximum output voltage 30V


Maximum output current 25A
Output parameters stability ± 2% Max.
Output voltage ripple < 5%
Output protection Fuses and overvoltage protection

Mechanical characteristics:
Standard temperature range 0; +50°C.
Casing Steel enclosure.
IP rating IP 54.
Cooling Air cooled
Construction features: Floor mounting, lifting lugs, external earth bolt,

Nameplate Manufacturer name and address, manufacturer’s serial number, input and
output ratings and capacity. Further information according customer’s
requirements.
CATHODIC PROTECTION
Tube Anode 25 mm in Coke Backfill for soil
Mecorr uses
Data Sheet Revision: March 2018

Typical Installations Titanium tube MMO activated, used as anode for Impressed
Current Cathodic Protection of underground structures, directly
in soil or embedded in backfill carboncoke.
Applications: Vertical - Horizontal - Deep - Open Holes

Spazio per foto

Tube Anode 25 mm

Technical Data
Substrate Material
Choice of: Titanium ASTM B338 / B861 Grade 1 / 2 Diameter 25,4 mm
Length 1000 mm
Thickness 0,9 mm
Pre coating treatment
Degreasing
Sandblasting
Etching
Thermal Ceramic Protective Underlayer Formation (TiO2 + Ta2O5)
MMO Coating
TaOx - IrOx Multilayer Tantalum / Iridium mixed oxides thermally formed
Iridium Load
According to duration requested of 35 years of operation in calcined petroluem coke breeze backfill
Coating tests Iridium Load measuremente
X Ray Analyser: NITON XL2 800
Adhesion Test
ASTM D 3359 - 09 e2
Standard Coating Electrochemical Tests
NACE TM 0108 - 2012 (External - performed by third party)
High current density accelerated (Internal)
Electrical Current Output
Designed Life (Years) Current Load Current Density
8A 100 A / m2
Delivery Packaging
Wooden box
®
Handy Cap IP and XL IP
O t h e r P r o d u c t s

Royston®
Tapecoat®
Technical Data Sheet
DESCRIPTION Royston Handy Cap IP and Handy Cap XL IP provide quick, field applied
corrosion protection to anode and test wire leads welded onto metal
substrates. The Handy Cap IP and XL IP are made using a durable plastic
sheet that has a dome filled with a moldable compound to assure complete
encapsulation of the item being protected. The sheet is then capped with an
adhesive layer for easy and permanent application.
The Handy Cap IP and XL IP use Tapecoat’s gray elastomeric adhesive with
integrated primer. This exclusive formulation allows for faster application as
there is no need to apply a separate primer when application temperatures
are above 40°F. The Handy Cap XL IP has a similar construction as the IP, but
it is designed for larger wires and welds areas.
The Handy Cap IP and XL IP can be applied by hand or using the Royston Key
Hole Tool.

RECOMMENDED USE Sealing the welded connection of a anode or test wire to a metal substrate.
These products are ideal in limited access and key hole applications.

SUBSTRATE COMPATIBILITY Steel, Stainless Steel, Ductile Iron, Other Metals, FBE, Epoxy, PE, PP

SURFACE PREPARATION SSPC SP-3 Power Tool Cleaning or SSPC SP-6/NACE No. 3 Commercial Blast
Cleaning

OPTIONAL PRIMER Royston Handy Cap IP and Handy Cap XL IP have an integrated primer to al-
low for quick, easy and permanent adhesion. When required by the job
specification or when application temperatures are below 40°F, a 4 mil WFT
of Tapecoat Omniprime may be applied to the pipe surface to ensure the
required bond.

SAFETY Refer to Material Safety Data Sheet: MSDS-Handy Cap IP

APPLICATION Refer to Application Guidelines: AG-HANDY-CAP

C h a s e C o r p o r at i o n
The information contained here is provided for product selection purposes only and is not to be
295 University Avenue
considered specification or performance data. Under no circumstance will the seller be liable for Westwood, MA 02090
any loss, damage, expense or incidental or consequential damage of any kind arising in connec-
Phone: 800-323-4182
tion with the use or inability to use its product. Specific conditions of sale and Chase's limited Fax: 781-332-0701
warranty are set out in detail in Chase Corporation Terms and Conditions of Sale. Those Terms www.chasecorp.com
and Conditions are the only source that contain Chase's limited warranty and other terms and
An ISO 9001:2008
REGISTERED COMPANY

TDS-Handy-Cap-IP-REV1-Aug13 1
®
Handy Cap IP and XL IP
O t h e r P r o d u c t s

Typical Technical Data


Property Handy Cap IP Handy Cap XL IP Test Method
4” x 4” 5” x 5”
Overall Size
(101 mm x 101 mm) (127 mm x 127 mm)
2.75” x 4” 2.75” x 4”
Plastic Sheet Size
(70 mm x101 mm) (70 mm x101 mm)
Plastic Dome Height 0.8” (20 mm) 1.5” (38 mm)
Plastic Dome Diameter 1.65” (42 mm) 1.75” (44 mm)
Total Thickness 175 mils (4.44 mm) 190 mils (4.83 mm) ASTM D1000
Sheet Thickness 10 mils (0.25 mm) 10 mils (0.25 mm) ASTM D1000
Adhesive Thickness 165 mils (4.19 mm) 180 mils (4.57mm) ASTM D1000
Adhesion to Steel 10 lb/in (1.75 N/mm) 10 lb/in (1.75 N/mm) ASTM D1000
2 2
Maximum Wire Size 8 AWG (8 mm ) 2 AWG (35 mm )
Holiday Detection Setting 5000 V 5000 V
-20°F to +140°F -20°F to +140°F
Service Temperature Range
-29°C to +60°C -29°C to +60°C

ORDERING INFORMATION
Handy Cap IP and XL IP
Product Pieces Per Case Case Weight
Handy Cap IP 20 5#
Handy Cap XL IP 10 6#

TDS-Handy-Cap-IP-REV1-Aug13 2
Positive Junction Box

1. Scope

This document specifies the technical requirements for manufacturing supply and quality
control of AJB.

2. Technical Requirements

Technical specifications
Function
Anode Junction Box
Enclosure& Fitting
Material GRP
Dimensions Suitable size for 8-Circuits

Earth bolt Ok
ID label PJB
Input cable entry PVC Tube
Ingress Protection n/a
Exploding Proof n/a
Board
Material Phenolic
Thickness 2 mm
Terminals
BusBar Cu
Bolts Cu
Size M8
Quantity One or two
Foundation
Cem ent 400x400x400 m ade from others
Certificate of conformity stamped by MECORR Egypt.
'::J;.':::iJ?i
ffi,H:g,nttl,#l***:?ffi
terminals,pressuremonitors,resistors,gas valves,groundbondsand surgearrestor
. t i l i z e db y t e l e p h o n ea n d c a b l ec o m p a n i e w
t e r m i n abl l o c k sU theBgf||lf@
s orldwide
enclosureis manufactured by Cottin Pittsburgh, Pennsylvania and LosAngeles,California.

Hardware
Featuresl Standardnickelplated
brassor optionalstainless
steelfor guaranteed long
servicelife.Upto 1'ttermi-
nalsaccessible fromboth
sidesof the board.

Terminal - Accessories
Enclosure
All BtgflnK@terminal
Cap,Terminal
Board boardscanaccommodate
and CollectNut madefrom COTTShuntsP SlideResis-
Makrolon@ polycarbonate. tors,Rheostats
One of the toughestplastics COTTMetePlVottor Amp)
in the world. Burndyconnectors, Cott
bonding/shortingstraps,
BananaJacks,ZAPGardP
lockingdevices,lightning-
surgearrestors,flange
mountingbrackets and
SupportPost gasvalves.
COTTPipe@PE (standard)poly-
ethylenehasover20 yearsof proven Colors
COTTPipesPC (optional)
durability. Red,Orange, Yellow,Green,
polycarbonate is availableforthe Blue,Whiteand Blackare
toughestapplications.)Standard standardon Bgflhl@ and
length6 feet,availableto 40 feet. COTTPipeP Anycoloris
as an option.
available

Anchor Sizes
GOTTPipe@ PE is easily Available to fit
in models
andpreventspullout.
installed 11/t',2"and 3" pipe.

*ssHGENERALOFFICES
1944 GardenaAvenue
Glendale,California91204U.S.A.
1-800-423-638
PRINCIPALMANUFACTU
LosAngeles,
Pittsburgh,
California
Pennsylvan ia
RINGFACILITI
ES

(B1B)246-3900,FAX (818)246-2645
Cott ManufacturingCompany,Glendale,CaliforniaU.S.A. All Rights Reserved.@CottManufacturingCompany @BayerCorporation
Cu-nnect Exothermic Welding

Product Catalogue
Welcome to our new
Cu-nnect Exothermic
Welding catalogue.
Our comprehensive,
competitively priced product
range has been brought
together for the first time, into
one brochure to make
purchasing and specifying so
much easier.

This, coupled with our rapid delivery promise, makes


A. N. Wallis your first choice every time.

Our large Cu-nnect range of products is used worldwide


on power stations, substations, transmission lines;
petro-chemical facilities and pipelines; oil and gas facilities
and sports stadia. All backed by over fifty years of A. N. Wallis
experience for that extra piece of mind.

So whatever you need whether it is moulds and powders,


or tools and accessories it’s all here in one catalogue.

Just one phone call, fax or mouse click away.

A. N. WALLIS & Co. Ltd • Telephone +44 (0)115 927 1721 • Fax +44 (0)115 875 6630 • E-mail info@an-wallis.com • Website www.an-wallis.com
THE CU-NNECT EXOTHERMIC WELDING SYSTEM

Cu-nnect exothermic welding is a simple, economical method of making permanent, very high quality electrical connections.
The process uses the high temperature reaction of copper oxide and aluminium, within a semi-permanent graphite mould, to
form electrical connections mainly between copper to copper or copper to steel.

No outside source of power or heat is required when using the Cu-nnect system. It is also light and completely portable, making it
ideal for field use. It is a straightforward method which requires very little training in order to safely obtain a quality, maintenance
free connection, therefore making it both time and cost effective.

Making a Cu-nnect joint is a simple procedure which requires a mould, weld powder, handle clamp and various tools and
cleaning accessories as detailed below:

7. Remove weld and


clean mould
carefully before
making next
connection.

1. Position cleaned conductors


in mould after ensuring
mould is dry, by pre-heating
or making a test joint.

6. Reaction takes place. 2. Lock mould with handle


Wait several seconds to clamp and place metal
allow metal to solidify retaining disc in bottom
before opening mould. of mould crucible.

5. Ignite starting 3. Pour weld powder into


powder using mould and place small
flint gun. amount of starting
powder on edge of
mould for easy ignition.

4. Close mould lid securely.

2 A. N. WALLIS & Co. Ltd • Telephone +44 (0)115 927 1721 • Fax +44 (0)115 875 6630 • E-mail info@an-wallis.com • Website www.an-wallis.com
