PT.

Pertamina (Persero) RU VII Kasim

Jl. Raya Kilang No. 1 Distrik Seget Kab. Sorong - Papua Barat

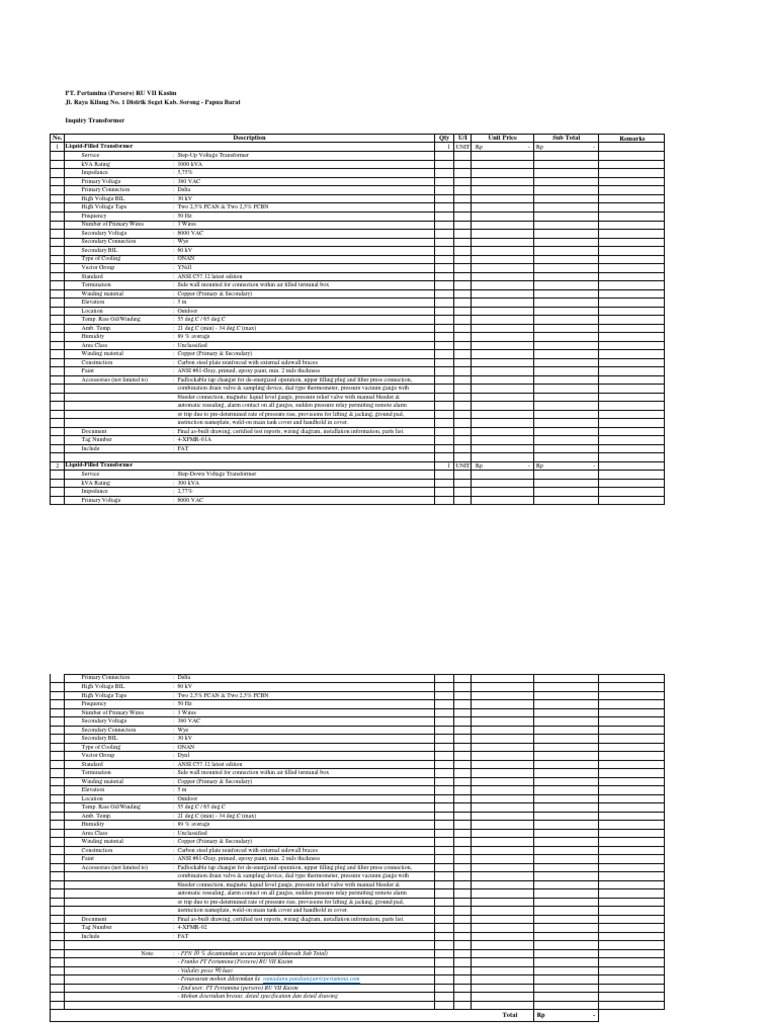

Inquiry Transformer

No. Description Qty U/I Unit Price Sub Total Remarks

1 Liquid-Filled Transformer 1 UNIT Rp - Rp -
Service : Step-Up Voltage Transformer
kVA Rating : 1000 kVA
Impedance : 5,75%
Primary Voltage : 380 VAC
Primary Connection : Delta
High Voltage BIL : 30 kV
High Voltage Taps : Two 2,5% FCAN & Two 2,5% FCBN
Frequency : 50 Hz
Number of Primary Wires : 3 Wires
Secondary Voltage : 6000 VAC
Secondary Connection : Wye
Secondary BIL : 60 kV
Type of Cooling : ONAN
Vector Group : YNd1
Standard : ANSI C57.12 latest edition
Termination : Side wall mounted for connection within air filled terminal box
Winding material : Copper (Primary & Secondary)
Elevation : 5m
Location : Outdoor
Temp. Rise Oil/Winding : 55 deg.C / 65 deg.C
Amb. Temp. : 21 deg.C (min) - 34 deg.C (max)
Humidity : 89 % average
Area Class : Unclassified
Winding material : Copper (Primary & Secondary)
Construction : Carbon steel plate reinforced with external sidewall braces
Paint : ANSI #61-Gray, primed, epoxy paint, min. 2 mils thickness
Accessories (not limited to) : Padlockable tap changer for de-energized operation, upper filling plug and filter press connection,
combination drain valve & sampling device, dial type thermometer, pressure vacuum gauge with
bleeder connection, magnetic liquid level gauge, pressure relief valve with manual bleeder &
automatic resealing, alarm contact on all gauges, sudden pressure relay permitting remote alarm
or trip due to pre-determined rate of pressure rise, provisions for lifting & jacking, ground pad,
instruction nameplate, weld-on main tank cover and handhold in cover.
Document : Final as-built drawing, certified test reports, wiring diagram, installation information, parts list.
Tag Number : 4-XFMR-01A
Include : FAT

2 Liquid-Filled Transformer 1 UNIT Rp - Rp -

Service : Step-Down Voltage Transformer
kVA Rating : 300 kVA
Impedance : 2,77%
Primary Voltage : 6000 VAC
 Primary Connection : Delta
High Voltage BIL : 60 kV
High Voltage Taps : Two 2,5% FCAN & Two 2,5% FCBN
Frequency : 50 Hz
Number of Primary Wires : 3 Wires
Secondary Voltage : 380 VAC
Secondary Connection : Wye
Secondary BIL : 30 kV
Type of Cooling : ONAN
Vector Group : Dyn1
Standard : ANSI C57.12 latest edition
Termination : Side wall mounted for connection within air filled terminal box
Winding material : Copper (Primary & Secondary)
Elevation : 5m
Location : Outdoor
Temp. Rise Oil/Winding : 55 deg.C / 65 deg.C
Amb. Temp. : 21 deg.C (min) - 34 deg.C (max)
Humidity : 89 % average
Area Class : Unclassified
Winding material : Copper (Primary & Secondary)
Construction : Carbon steel plate reinforced with external sidewall braces
Paint : ANSI #61-Gray, primed, epoxy paint, min. 2 mils thickness
Accessories (not limited to) : Padlockable tap changer for de-energized operation, upper filling plug and filter press connection,
combination drain valve & sampling device, dial type thermometer, pressure vacuum gauge with
bleeder connection, magnetic liquid level gauge, pressure relief valve with manual bleeder &
automatic resealing, alarm contact on all gauges, sudden pressure relay permitting remote alarm
or trip due to pre-determined rate of pressure rise, provisions for lifting & jacking, ground pad,
instruction nameplate, weld-on main tank cover and handhold in cover.
Document : Final as-built drawing, certified test reports, wiring diagram, installation information, parts list.
Tag Number : 4-XFMR-02
Include : FAT

Note: : - PPN 10 % dicantumkan secara terpisah (dibawah Sub Total)

- Franko PT Pertamina (Persero) RU VII Kasim
- Validity price 90 hari
- Penawaran mohon dikirimkan ke ramadanu.pandiangan@pertamina.com
- End user: PT Pertamina (persero) RU VII Kasim
- Mohon disertakan brosur, detail specification dan detail drawing

Total Rp -

Note: Terbilang : Nol Rupiah

Tempat, tanggal
Nama Perusahaan
Pimpinan Perusahaan
Nama Pimpinan
