Dolphin Integration
1
www.dolphin-integration.com

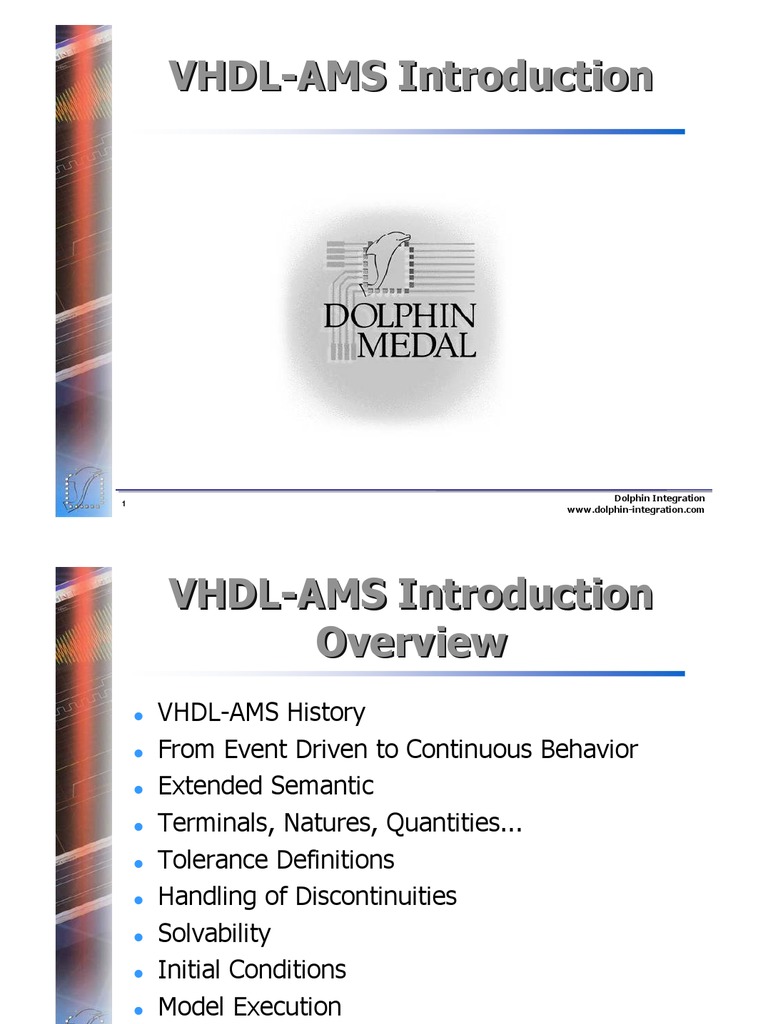

VHDL-AMS Introduction
Overview
VHDL-AMS History
From Event Driven to Continuous Behavior
Extended Semantic
Terminals, Natures, Quantities...
Tolerance Definitions
Handling of Discontinuities
Solvability
Initial Conditions
Model Execution
Dolphin Integration
2
www.dolphin-integration.com
Introduction to VHDL-AMS
History
VHDL (Very High Speed Integrated Circuit Hardware
Description Language) is a powerful language for the
description of event driven circuits
First standardization of VHDL in 1987 (IEEE 1076),
second standardization in 1993 (IEEE 1076-1993)
t t
value discreet, time discreet value continuous, time discreet
v v
t t
value discreet, time continuous value continuous, time continuous
Dolphin Integration
4
www.dolphin-integration.com
1 1.
VHDL Model
Event Driven Behavior
LIBRARY IEEE;
2. USE IEEE.std_logic_1164.all;
3.
Dolphin Integration
6
www.dolphin-integration.com
2 VHDL-AMS Model
Continuous Behavior
<smash_install_dir>\lib\vhdl\packages\electrical_systems_pkg.vhd
<smash_install_dir>\lib\vhdl\packages\fundamental_constants_pkg.vhd
1. LIBRARY IEEE;
USE IEEE.ELECTRICAL_SYSTEMS.all;
2.
USE IEEE.FUNDAMENTAL_CONSTANTS.all;
elec_p
3.
Parameter
4.
5. ENTITY Capacitor IS i
6. GENERIC (C := 1.0 : capacitance); v
7. -- GENERIC (A, d, EPS_R := 1.0 : REAL);
8. PORT (TERMINAL elec_p, elec_n: electrical);
9. END ENTITY Capacitor; Terminal elec_n
10.
connections
11. ARCHITECTURE simple OF Capacitor IS
12. QUANTITY v ACROSS i THROUGH elec_p TO elec_n;
13. -- CONSTANT C: capacitance := PHYS_EPS0 * EPS_R * A/d; C = ε0εr * A/d
14.
15. BEGIN
16. i == C * v'DOT; i = C * d/dt (v)
17. -- v == i'INTEG / C;
VHDL Syntax
18. END ARCHITECTURE simple; v = I(i)dt / C
VHDL-AMS Syntax
Dolphin Integration
7
www.dolphin-integration.com
2 1.
2.
>>> VHDL
LIBRARY IEEE;
Extended Model
Model Instantiation
net1
3. USE IEEE.ELECTRICAL_SYSTEMS.all;
4. USE work.all;
5.
Ω
R1=2kΩ
6. ENTITY testbench IS
∼
7. END testbench; V=5V
8. f=100kHz
9. ARCHITECTURE simple OF testbench IS net2
10. TERMINAL net1,net2 : electrical;
11.
C1=300pF
12. BEGIN
13. vsin1: ENTITY vsin(simple)
14. GENERIC MAP (ampl => 5.0,
15. freq => 100.0e3, Terminal
16. phi0 => 0.0) connections
17. PORT MAP (elec_p => net1, elec_n => ground);
18. R1: ENTITY resistor(simple)
19. GENERIC MAP (R => 2.0e3) Parameter
20. PORT MAP (elec_p => net1, elec_n => net2);
21. C1: ENTITY capacitor(simple)
22. GENERIC MAP (C => 300.0e-12)
23. PORT MAP (elec_p => net2, elec_n => ground); VHDL-Syntax
24. END simple; VHDL-AMS-Syntax
Dolphin Integration
8
www.dolphin-integration.com
2 Extended Model
Model Instantiation
SMASH 5.3.3p1 - Transient c:\Users\Lars\Projects\Patent\2004ME~1\Dolphin\TUTORI~2\2\testbench.nsx - Thu Nov 25 15:39:43 2004
1u 2u 3u 4u 5u 6u 7u 8u 9u
TB.VSIN1.V
TB.R1.V
TB.C1.V 5V
4V
3V
2V
1V
0V
-1V
-2V
-3V
-4V
Dolphin Integration
9
www.dolphin-integration.com
Introduction to VHDL-AMS
VHDL-AMS provides a new mechanism for analog
behavior specification and hybrid system modeling
o Continuous models are based on differential
analog solver
o VHDL-AMS supports the handling of initial
Port Quantity
1. ENTITY example IS
2. PORT (
3. QUANTITY interface_q: REAL;
4. TERMINAL elec_p, elec_n: ELECTRICAL);
5. END ENTITY example;
6. Branch Quantities
7. ARCHITECTURE simple OF example IS
8. TERMINAL net1, net2, net3: ELECTRICAL;
9. QUANTITY v1, v2 ACROSS i1, i2, i3 THROUGH elec_p TO elec_n;
10. QUANTITY free_q: REAL; Free Quantity
11. QUANTITY v_intern ACROSS i_intern THROUGH net1 TO net2;
12. QUANTITY v ACROSS i THROUGH net3;
13. BEGIN
14. ...
15. END ARCHITECTURE simple;
16.
VHDL-Syntax
VHDL-AMS-Syntax
Dolphin Integration
11
www.dolphin-integration.com
Introduction to VHDL-AMS
Extended Semantics
Extended structural semantics
o Conservative semantics to model physical systems (e.g.
Kirchhoff’s law for electrical circuits)
o Non-conservative semantics for abstract models (signal-flow
descriptions)
o Mixed-signal interfaces
Mixed-signal semantics
o Unified model of time for a consistent synchronization of
mixed event-driven/continuous behavior
o Mixed-signal initialization and simulation cycle
o Mixed-signal descriptions of behavior
Frequency domain support
o Small-signal frequency and noise modeling and simulation
Dolphin Integration
12
www.dolphin-integration.com
3 Resonator
Small-Signal Domain
net1
Resonator
o Resonance frequency fr L1
o Quality factor Q
o Bandwidth B
net2
1 R fr 1 L
fr = B = Q = = C1
2π LC 2πL B R C
net3
1.
2.
ARCHITECTURE simple OF VSin IS
QUANTITY v ACROSS i THROUGH elec_p TO elec_n;
∼ Vsin1
TB.C1.V 100 200 300 400 500 1K 2K 3K 7V4K 5K 6K 7K 10K 20K 30K 40K 50K
TB.L1.V DB(TB.C1.V) 6V 20dB
DB(TB.L1.V) 5V 10dB
4V
0dB
3V
2V -10dB
1V -20dB
0V
-30dB
-1V
-2V -40dB
-3V -50dB
Amplitude in decibel
-4V
-5V
-60dB
-6V -70dB
-80dB
P(TB.C1.V) 200Deg
P(TB.L1.V)
150Deg
Phase 100Deg
50Deg
0Deg
-50Deg
simulation -150Deg
-200Deg
Dolphin Integration
14
www.dolphin-integration.com
Introduction to VHDL-AMS
Terminals and Natures
Terminal
o Serves as Interface or as local object
o Belongs to a nature
Nature
o Represents a physical discipline or energy domain
o Has two aspects related to physical effects
- Across: potentional like effects (e.g. voltage, velocity,
temperature, etc.)
- Through: flow like effects (e.g. current, force, heat flow rate,
etc.)
o Can be composite: array or record
o Up to now: No predefined natures in VHDL-AMS
Dolphin Integration
15
www.dolphin-integration.com
Introduction to VHDL-AMS
Nature Def. in Packages
<smash_install_dir>\lib\vhdl\packages\electrical_systems_pkg.vhd
Dolphin Integration
17
www.dolphin-integration.com
4 Pulse Voltage Source
Implicit Quantities
Branch Declared between
Quantities two terminals Gets its type from the nature
of its plus and minus
terminals
1. ARCHITECTURE simple OF Vpulse IS (see Packages)
2. QUANTITY v ACROSS i THROUGH elec_p TO elec_n;
3. SIGNAL pulse : voltage:= low;
4. BEGIN
5. v == pulse'SLEW(rising_slope, falling_slope);
6. -- v == pulse'RAMP(rising_time, falling_time);
7.
-2
-4
TB.VPULSE1.V
TB.R1.V 4V
TB.R2.V
2V
0V
-2V
-4V
Dolphin Integration
19
www.dolphin-integration.com
Introduction to VHDL-AMS
Tolerances
Tolerance definitions
o Each quantity and each simultaneous statement belongs to
a tolerance group, indicated by a string expression
o Tolerances are used to specify how good the simulation
must be
o The language does not define the way how tolerance groups
should be handled by the simulator ⇒ Tool dependent
implementations
Supporting tolerances results in a faster and more
accurate simulation, especially if quantity values of
large different dimensions exist
Dolphin Integration
20
www.dolphin-integration.com
5 Tolerance Definitions
in Packages and Models
<smash_install_dir>\lib\vhdl\packages\electrical_systems_pkg.vhd
1. SUBTYPE voltage IS real TOLERANCE "Voltage";
2. SUBTYPE current IS real TOLERANCE "Current";
3. NATURE electrical IS
4. voltage ACROSS Tolerance definitions in
5. current THROUGH packages
6. electrical_ref REFERENCE;
Q’Slew
Dolphin Integration
22
www.dolphin-integration.com
6 Operational Amplifier
Handling Discontinuities
ENTITY OpAmp IS
vdd=15V
+
1.
net1
2. GENERIC (vdd : voltage := 15.0;
net2
vss : voltage := -15.0;
−
3.
6.
PORT (TERMINAL in_p, in_n: ELECTRICAL;
TERMINAL output: ELECTRICAL);
∼ V=20mV
f=100kHz
vss=-15V Ω
R1=1kΩ
10.9u 10.95u 11u 11.05u 11.1u 11.15u 11.2u 11.25u 11.3u 11.35u 11.4u 11.45u 11.5u 11.55u 11.6u 11.65u 11.7u 11.75u 11.8u
TB.OPAMP1.VOUT 15.4V
15.2V
15V
14.8V
14.6V
14.4V
14.2V
14V
Dolphin Integration
24
www.dolphin-integration.com
Introduction to VHDL-AMS
Solvability
A necessary condition for solvability is that there be
as many equations as unknowns in the model
In a VHDL-AMS design entity, the number of
equations must be equal to the number of
o through quantities plus
Dolphin Integration
25
www.dolphin-integration.com
DC Source
7 1. LIBRARY IEEE;
Solvability
VHDL-Syntax
2. USE IEEE.ELECTRICAL_SYSTEMS.all;
3. ENTITY vdc IS voltage source VHDL-AMS-Syntax
4. GENERIC (ampl: voltage := 5.0);
5. PORT (TERMINAL elec_p, elec_n: ELECTRICAL);
6. END ENTITY vdc;
7. ARCHITECTURE simple OF vdc IS
8. QUANTITY v ACROSS i THROUGH elec_p TO elec_n;
9. BEGIN
10. v == ampl;
You need to define this additionally
THROUGH quantity even this is not
11. END ARCHITECTURE simple; explicit used in the model!
1. LIBRARY IEEE;
2. USE IEEE.ELECTRICAL_SYSTEMS.all;
3. ENTITY idc IS current source
4. GENERIC (ampl: current := 1.0e-3);
5. PORT (TERMINAL elec_p, elec_n: ELECTRICAL);
6. END ENTITY idc;
7. ARCHITECTURE simple OF idc IS
8. QUANTITY i THROUGH elec_p TO elec_n;
9. BEGIN Here, the depended ACROSS quantity
10. i == -ampl; is not necessary but sometimes useful
11. END ARCHITECTURE simple; for display proposes.
Dolphin Integration
26
www.dolphin-integration.com
DC Source
7 Solvability
SMASH 5.3.3p1 - Transient C:\Users\Lars\Projects\patent\2004 Meeting\Dolphin\Tutorial_VHDL-AMS\7\testb_idc.nsx - Fri Nov 26 10:22:57 2004
4.8V
4.6V
4.4V
The internal voltage of the current source is
only visible, if a quantity for the voltage 4.2V
3.8V
3.6V
3.4V
3.2V
3V
2.8V
2.6V
2.4V
2.2V
2V
1.8V
Dolphin Integration
27
www.dolphin-integration.com
Introduction to VHDL-AMS
Initial Conditions
An initial condition specifies the value of a quantity at the
beginning of a continuous interval
o Beginning of a time domain simulation
o After a discontinuity
Initial conditions can be specified with the break statement
Initial conditions replace implicit equations. An initial condition
for Q replaces:
o The equation Q’Dot == 0 while finding the quiescent point
o The equation Q == Q(T-) when reinitializing after a discontinuity
Dolphin Integration
28
www.dolphin-integration.com
Pre-loaded Capacitor
8 1.
Initial Conditions
ENTITY Capacitor IS
2. GENERIC (C: capacitance);
3. PORT (TERMINAL elec_p, elec_n: ELECTRICAL);
4. END ENTITY Capacitor;
1u 2u 3u 4u 5u 6u 7u 8u 9u
TB.R1.V
10V
Preloaded capacitor:
9V
Initial condition: v = 10V
8V
7V
6V
5V
4V
3V
2V
1V
0V
Dolphin Integration
30
www.dolphin-integration.com
Introduction to VHDL-AMS
Model execution
A VHDL model is the result of the elaboration of the
design hierarchy
o Digital part => set of processes + digital simulation kernel
o Analog part => set of equations + analog solver
Two phases
o Initialization: to compute the quiescent state of the model
o Simulation: time domain, small-signal frequency, or noise
Reduces to the VHDL 1076 initialization and
simulation cycle if the model does not include any
quantities
Only the analog solver is executed after initialization
if the model does not include any signals
Dolphin Integration
31
www.dolphin-integration.com
Introduction to VHDL-AMS
Summary
VHDL 1076.1 extends VHDL 1076 to the continuous
domain
No fundamental changes to VHDL 1076
Adds support for continuous and mixed continuous/discrete
behavior
VHDL 1076.1 is equally applicable to electrical and
non-electrical domains
Mixed discipline
Control systems
Two standards
VHDL 1076 for digital (event-driven) applications
VHDL 1076.1 for digital and mixed-signal applications
Dolphin Integration
32
www.dolphin-integration.com
VHDL-AMS Introduction
Dolphin Integration
33
www.dolphin-integration.com
