Control System Components 205

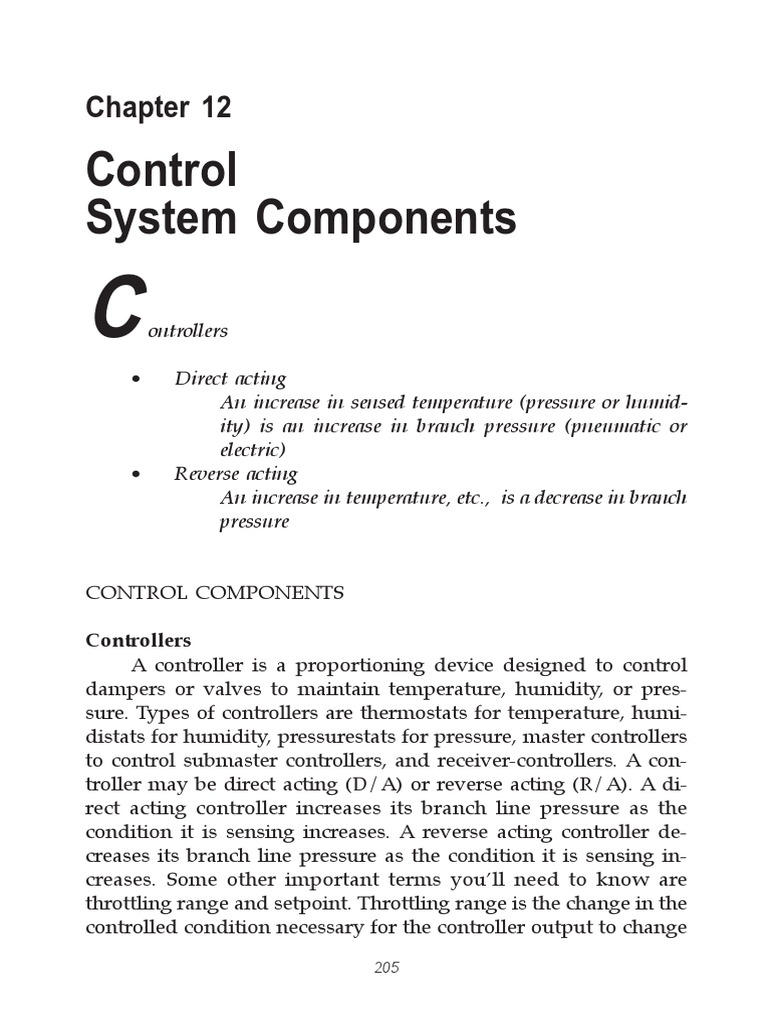

Chapter 12

Control
System Components

C ontrollers

• Direct acting
An increase in sensed temperature (pressure or humid-
ity) is an increase in branch pressure (pneumatic or
electric)
• Reverse acting
An increase in temperature, etc., is a decrease in branch
pressure

CONTROL COMPONENTS

Controllers
A controller is a proportioning device designed to control
dampers or valves to maintain temperature, humidity, or pres-
sure. Types of controllers are thermostats for temperature, humi-
distats for humidity, pressurestats for pressure, master controllers
to control submaster controllers, and receiver-controllers. A con-
troller may be direct acting (D/A) or reverse acting (R/A). A di-
rect acting controller increases its branch line pressure as the
condition it is sensing increases. A reverse acting controller de-
creases its branch line pressure as the condition it is sensing in-
creases. Some other important terms you’ll need to know are
throttling range and setpoint. Throttling range is the change in the
controlled condition necessary for the controller output to change

205
206 HVAC Fundamentals

over a certain range. For example, a 4 degree throttling range (TR)

means that the thermostat’s branch line output will vary from 3
to 15 psig over a 4 degree change in temperature. “Setpoint” is the
point at which the controller is set and the degree of temperature,
or percent relative humidity, or pressure which is to be main-
tained. An example of a DDC controller’s output signals for both
direct acting and reverse acting operation for a 6 degree throttling
range is that the electrical signal will vary from 6 to 9 vdc over a
6 degree change in temperature. You’ll understand these terms
better when we describe the various controllers, controlled de-
vices and relays.

Single Pressure Thermostat

A single pressure thermostat may be a one-pipe, bleed-type
or a two pipe, relay-type controller. The bleed-type thermostat has
only one pipe connection. The main air is introduced through a
restrictor into the branch line between the thermostat and the
controlled device. The two-pipe thermostat has two connections,
branch and main, and receives main air directly. The two-pipe
thermostat will provide a greater volume of air to the controlled
device which produces a faster response to a change in tempera-
ture. Thermostats may be either direct or reverse acting. The stan-
dard thermostat has a temperature range of 55°F to 85°F and a 3
to 15 psig output range. Generally, the throttling range may be
adjusted between 2 and 12 degrees. As an example, a room has a
direct acting thermostat set for 72°F and a 4 degree throttling
range is selected (70°F to 74°F). A direct acting thermostat means
that a rise in space temperature causes a rise in the branch pres-
sure output of the thermostat. Therefore, when the room tempera-
ture is at or below 70°F the thermostat will put out 3 psig branch
pressure. When the room is 72°F the output will be 9 psig. At 74
degrees or above the branch output will be 15 psig. Another ex-
ample would be a room that has a reverse acting thermostat with
a 6 degree throttling range and a setpoint of 72°F. The control
sequence is: at 75°F, the branch output would be 3 psig (a rise in
space temperature is a decrease in pressure output), at 72°F the
