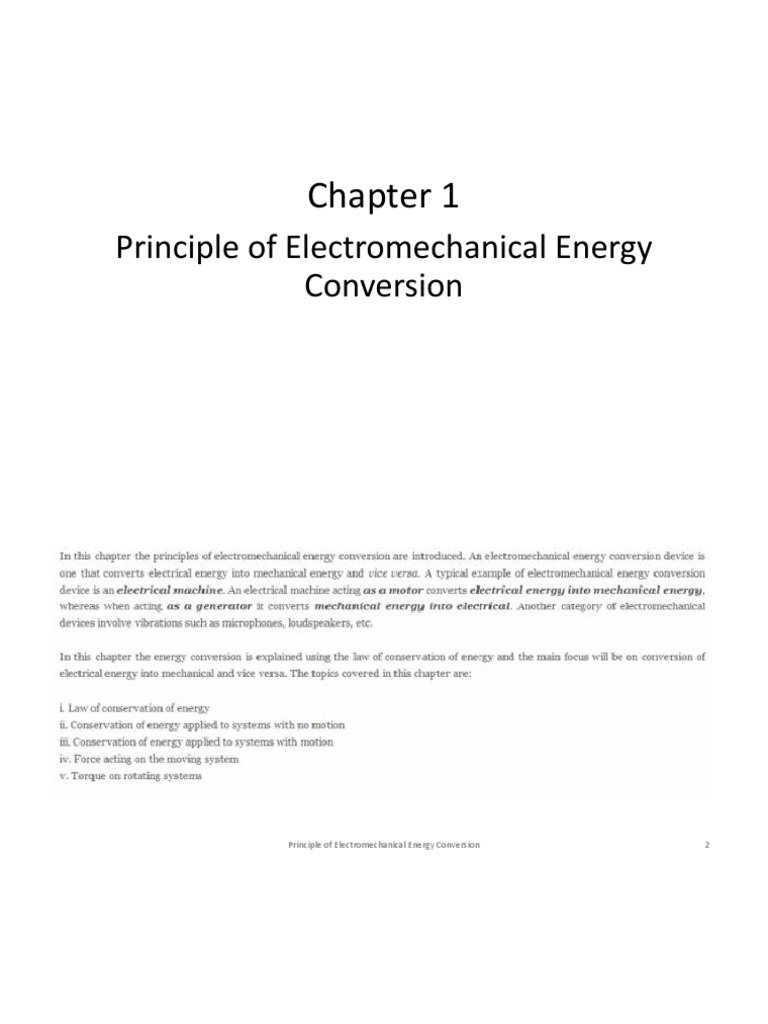

Chapter 1

Principle of Electromechanical Energy

Conversion
Principle of Electromechanical Energy Conversion 2
1.1 Force and torque in magnetic field system

Principle of Electromechanical Energy Conversion 3

• Suppose a charged particle q moving with velocity v through an electric field E and
magnetic field B.
• The entire electromagnetic force F on the charged particle is called the Lorentz force and
is given by
F = qE + qv × B.
• The first term is contributed by the electric field.
• The second term is the magnetic force and has a direction perpendicular to both the
velocity and the magnetic field.
• The magnetic force is proportional to q and to the magnitude of the vector cross product
v × B.
• In terms of the angle ϕ between v and B, the magnitude of the force equals qvB sin ϕ.

Principle of Electromechanical Energy Conversion 4

• Since a current represents a movement of charges in the wire, the Lorentz force acts on the
moving charges.
• Because these charges are bound to the conductor, the magnetic forces on the moving charges
are transferred to the wire.
• The force on a small length dl of the wire depends on the orientation of the wire with respect to
the field.
• The force is given by dF= idl × B
• The magnitude of the force is given by idlB sin ϕ, where ϕ is the angle between B and dl.
• There is no force when ϕ = 0 or 180°, both of which correspond to a current along a direction
parallel to the field. The force is at a maximum when the current and field are perpendicular to
each other.

Principle of Electromechanical Energy Conversion 5

 Example

• A non-magnetic rotor containing a single-turn coil is placed in a uniform magnetic field of

magnitude 𝐵0 , as shown in Fig. (next slide). The coil sides are at radius R and the wire carries

current I as indicated. Find the θ-directed torque as a function of rotor position α when I=10A,

𝐵0 =0.02 T and R= 0.05 m. Assume that the rotor is of length l= 0.3 m.

6
Single coil rotor

7
 Solution
• Thus, for wire 1 carrying current I into the paper, the θ-directed force is given by
𝐹1𝜃 = - I 𝐵0 𝑙 sin α
and for wire 2 (which carries current in the opposite direction and is located 180° away from wire 1)
𝐹2𝜃 = - I 𝐵0 𝑙 sin α
where l is the length of the rotor.

• The torque T acting on the rotor is given by the sum of the force-moment-arm products for each
wire
T = -2 I 𝐵0 𝑅𝑙 sin α = -2(10)(0.02)(0.05)(0.3) sin α = -0.006sin α N.m

8
1.2 Energy balance

Principle of Electromechanical Energy Conversion 9

Principle of Electromechanical Energy Conversion 10
Principle of Electromechanical Energy Conversion 11
Principle of Electromechanical Energy Conversion 12
Principle of Electromechanical Energy Conversion 13
Principle of Electromechanical Energy Conversion 14
1.3 Energy in a singly-excited system

Principle of Electromechanical Energy Conversion 15

Conservation of energy applied to systems with no motion

Principle of Electromechanical Energy Conversion 16

Principle of Electromechanical Energy Conversion 17
Principle of Electromechanical Energy Conversion 18
Principle of Electromechanical Energy Conversion 19
Principle of Electromechanical Energy Conversion 20
Principle of Electromechanical Energy Conversion 21
Principle of Electromechanical Energy Conversion 22
Conservation of energy applied to systems with motion

Principle of Electromechanical Energy Conversion 23

Principle of Electromechanical Energy Conversion 24
Principle of Electromechanical Energy Conversion 25
Principle of Electromechanical Energy Conversion 26
Principle of Electromechanical Energy Conversion 27
Principle of Electromechanical Energy Conversion 28
Principle of Electromechanical Energy Conversion 29
Principle of Electromechanical Energy Conversion 30
Principle of Electromechanical Energy Conversion 31
Principle of Electromechanical Energy Conversion 32
Principle of Electromechanical Energy Conversion 33
Principle of Electromechanical Energy Conversion 34
Principle of Electromechanical Energy Conversion 35
Principle of Electromechanical Energy Conversion 36
Principle of Electromechanical Energy Conversion 37
1.4 Force acting on the moving system using energy

Principle of Electromechanical Energy Conversion 38

Principle of Electromechanical Energy Conversion 39
Principle of Electromechanical Energy Conversion 40
Principle of Electromechanical Energy Conversion 41
Principle of Electromechanical Energy Conversion 42
Principle of Electromechanical Energy Conversion 43
Principle of Electromechanical Energy Conversion 44
Principle of Electromechanical Energy Conversion 45
Principle of Electromechanical Energy Conversion 46
Principle of Electromechanical Energy Conversion 47
Principle of Electromechanical Energy Conversion 48
Principle of Electromechanical Energy Conversion 49
Torque acting on a rotating system

Principle of Electromechanical Energy Conversion 50

Principle of Electromechanical Energy Conversion 51
Principle of Electromechanical Energy Conversion 52
Principle of Electromechanical Energy Conversion 53
End of Chapter 1!!
