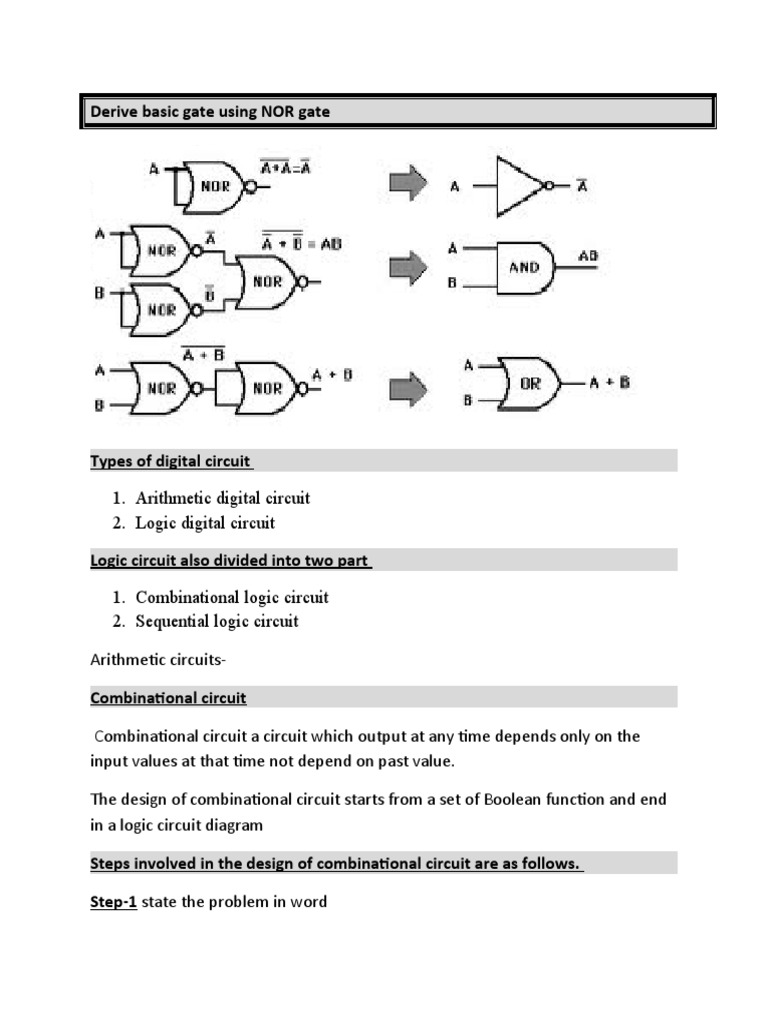

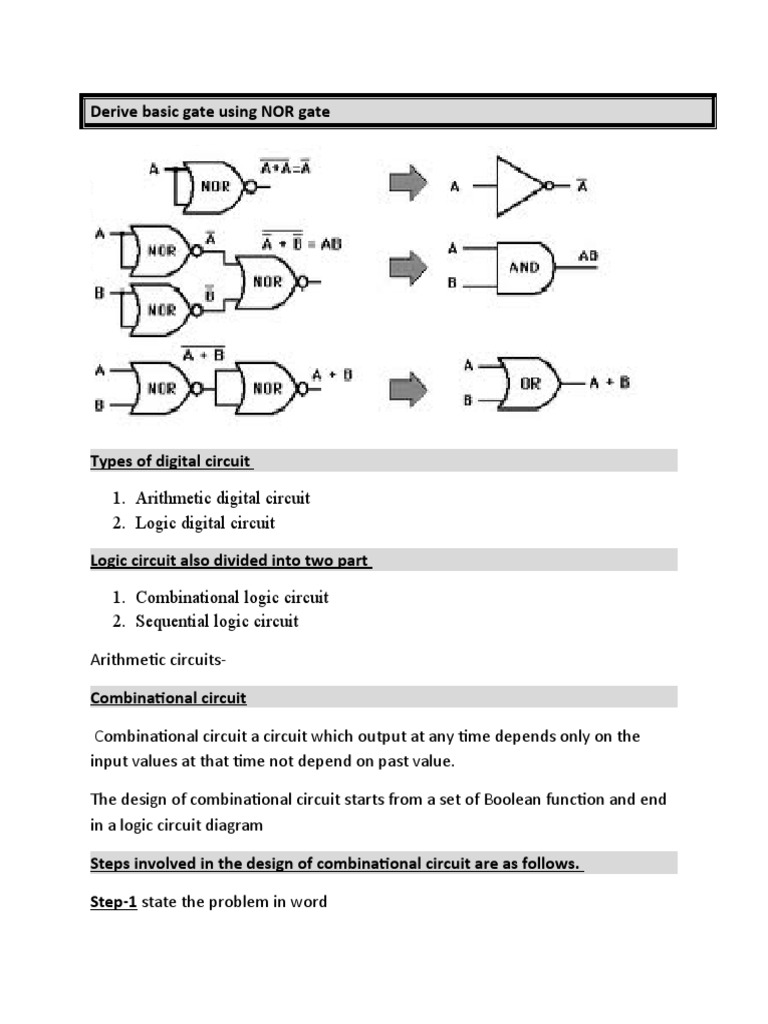

Derive basic gate using NOR gate

Types of digital circuit

1. Arithmetic digital circuit


2. Logic digital circuit

Logic circuit also divided into two part

1. Combinational logic circuit


2. Sequential logic circuit

Arithmetic circuits-

Combinational circuit

Combinational circuit a circuit which output at any time depends only on the
input values at that time not depend on past value.

The design of combinational circuit starts from a set of Boolean function and end
in a logic circuit diagram

Steps involved in the design of combinational circuit are as follows.

Step-1 state the problem in word


Step-2 finds the number of input and output variables

Step-3 Assign letter symbols to the input and output variables.

Step-4 Obtain the truth table using the word statement.

Step-5 obtains Boolean expression for each output from the truth table.

Step -6 simplify the Boolean expression to minimize the number of variables by


using laws of Boolean algebra or karnaugh map method or McCluskey’s method

Step-7 draws the logic circuit diagram corresponding to the simplified Boolean
expression.

Types of combinational circuit

1. Half adder
2. Full adder
3. Half sub-tractor
4. Full sub-tractor
5. Encoder
6. Decoder
7. Multiplexer
8. De-multiplexer

Half adder
Half adder is a combinational circuit which perform the arithmetic addition of two binary digits is
called half adder .As figure the half adder has two input and two output .
The two input are the two 1- bit number A & B and the two output S & C

Above show that figure of half adder and


Input port A & B

Output port S-sum & C- carry


Table – truth table of half adder

k –map method be used for simplifying and derive the expression for half adder

logic expression for half adder by using k map
