The German University in Cairo Irrigation and Drainage Engineering – CIW 702

Winter 2020
Faculty of Engineering and Material Science
Dr. Ahmed Abdelsattar
Civil Engineering – 9th Semester Eng. Menntualah Reyad / Eng. Sara El Faramawy

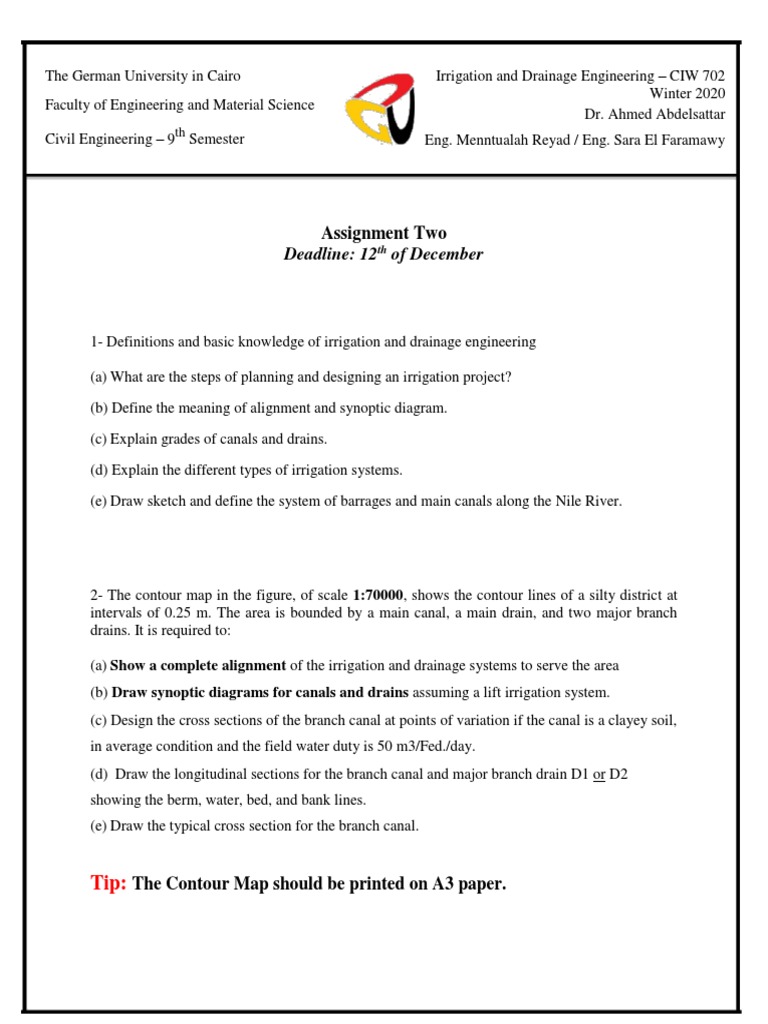

Assignment Two
Deadline: 12th of December

1- Definitions and basic knowledge of irrigation and drainage engineering

(a) What are the steps of planning and designing an irrigation project?
(b) Define the meaning of alignment and synoptic diagram.
(c) Explain grades of canals and drains.

(d) Explain the different types of irrigation systems.

(e) Draw sketch and define the system of barrages and main canals along the Nile River.

2- The contour map in the figure, of scale 1:70000, shows the contour lines of a silty district at
intervals of 0.25 m. The area is bounded by a main canal, a main drain, and two major branch
drains. It is required to:

(a) Show a complete alignment of the irrigation and drainage systems to serve the area
(b) Draw synoptic diagrams for canals and drains assuming a lift irrigation system.
(c) Design the cross sections of the branch canal at points of variation if the canal is a clayey soil,
in average condition and the field water duty is 50 m3/Fed./day.
(d) Draw the longitudinal sections for the branch canal and major branch drain D1 or D2
showing the berm, water, bed, and bank lines.
(e) Draw the typical cross section for the branch canal.

Tip: The Contour Map should be printed on A3 paper.

The German University in Cairo Irrigation and Drainage Engineering – CIW 702
Winter 2020
Faculty of Engineering and Material Science Dr. Ahmed Abdelsattar
Civil Engineering – 9th Semester Eng. Menntualah Reyad / Eng. Sara El Faramawy

Contour Map
