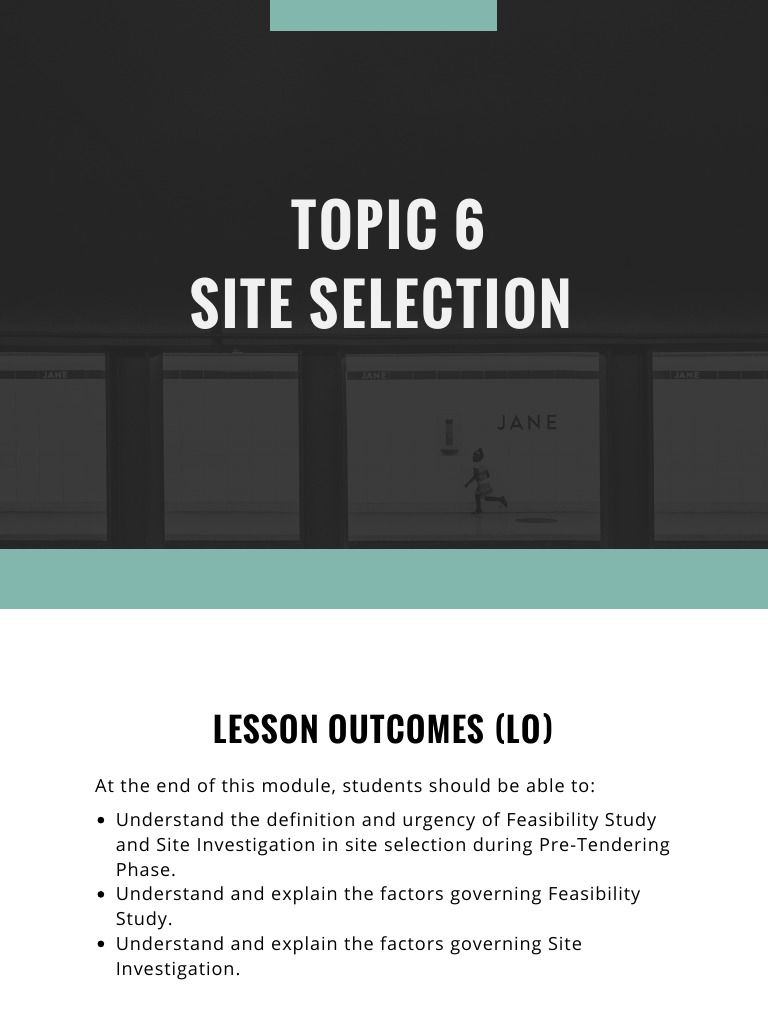

Topic 6 Site Selection
Topic 6 Site Selection
SITE SELECTION
LESSON OUTCOMES (LO)
At the end of this module, students should be able to:
Understand the definition and urgency of Feasibility Study
and Site Investigation in site selection during Pre-Tendering
Phase.
Understand and explain the factors governing Feasibility
Study.
Understand and explain the factors governing Site
Investigation.
SITE SELECTION
Site selection and land acquisition is crucial when the client does not own
the site desired to be developed. This matter should be undertaken as
early as possible, ideally, in parallel with feasibility studies. This work may
be carried out by a specialist consultant.
The key to the process is ensuring that the requirements for the site are
properly defined and that the selected site meets these requirements
within the constraints of the project programme and with minimal risks to
the client.
awang295@sarawak.uitm.edu.my
FEASIBILITY STUDY
Objectives of
the project
Factors governing
Feasibility study
awang295@sarawak.uitm.edu.my
OBJECTIVES OF THE
PROJECT
The client must define the need and
objectives of the project in the project
brief.
Sometimes money/expenses is not the
priority compare to the need of the
project.
Examples: Project of infrastructure for
people (such as school, public hall and
etc.), flood disaster area, landslide disaster
area and etc.
awang295@sarawak.uitm.edu.my
FEASIBILITY STUDY
Land Financial
Valuation Study
Market
Risk Analysis (Economic)
Analysis
awang295@sarawak.uitm.edu.my
BUSINESS POINT OF VIEW
Land Valuation – The owner/client needs to assess the
current value of the proposed land and decide whether to
acquire/buy the land.
Financial Study – Then, the owner/client has to prepare
budget and forecast the cashflow of the project for the
items as follow:
‒ Pre-Development Cost
‒ Infrastructural Cost
‒ Preliminaries
‒ Construction
‒ Sales Revenue
‒ Profitable Return
‒ Cashflow
awang295@sarawak.uitm.edu.my
BUSINESS POINT OF VIEW
Market (Economic) Analysis
The owner/client has to identify potential buyer, carry out
the market analysis and determinewhetherf the percentage
of profit margin is worthwhile to proceed the project or not.
Concerned with the supply and demand situation and also
the country’s economic market situation (discuss further in
class for current situation).
Risk Analysis
Usually carried out together with the market analysis.
Purpose is to make known the liability should the project fail.
At the same time, it encourage the owner/client to work
towards success.
awang295@sarawak.uitm.edu.my
FEASIBILITY STUDY
Site Visit
Preliminary
Preliminary
Layout Plan
Investigation
awang295@sarawak.uitm.edu.my
TECHNICAL POINT OF VIEW
TECHNICAL SITE SUITABILITY FACTORS
awang295@sarawak.uitm.edu.my
TECHNICAL SITE SUITABILITY FACTORS
awang295@sarawak.uitm.edu.my
TECHNICAL SITE SUITABILITY FACTORS
6. Environment
The surrounding may affect the project feasibility. A remote area
is normally not suitable for a housing scheme. On the other hand,
the project will affect the surrounding.
Interfacing with human activities include components like soil,
rock, water and geologic hazard (flooding, erosion, slope failures
and subsidence).
Understanding on these geological components are important so
that the construction activities can be carried out according to the
adopted designs with minimal impacts on the geological
environments.
awang295@sarawak.uitm.edu.my
TECHNICAL SITE SUITABILITY FACTORS
The existing and project drainage scheme for flash flood or flood
mitigation shall be checked. These existing drainage systems record/
as-built are available at JPS, JKR, district office, resident office and
municipal/city council office.
awang295@sarawak.uitm.edu.my
TECHNICAL SITE SUITABILITY FACTORS
8. Topography
Available hard/soft copy of topography map are available at Survey
Department Malaysia. This map provide information on contours
level, elevations, river, facilities and etc.
Site topography map can be used to determine the volume of earth
to be cut and/or filled, the location (storage) of resources, building,
and services; the temporary access and etc.
awang295@sarawak.uitm.edu.my
SITE INVESTIGATION
Site Investigation is a study to examine the suitability of the
site in terms of physical properties, geological and
geotechnical materials properties (soils, rocks and geological
structures) and the environment aspects in order to meet the
standards with the most economical layout for the proposed
site location.
awang295@sarawak.uitm.edu.my
GEOLOGICAL & GEOTECHNICAL
Geotechnical Engineering is the branch of Civil Engineering that
concerned with the engineering behavior of earth materials. It includes
investigation on existing subsurface conditions and materials; assessing
risks posed by site conditions; designing earthworks and structure
foundations; and monitoring site conditions, earthwork and foundation
construction.
Engineering Geology is the ‘application’ of the geologic sciences in
engineering practice for the purpose of assuring that the factors
affecting the location, design, construction, operation and maintenance
of engineering works are recognized and adequately provided.
Engineering Geologists investigate and provide geologic and
geotechnical recommendations, analysis, and design. Engineering
Geologic studies may be performed during the planning, environmental
impact analysis, and construction phases of public and private works
projects, and during post construction and forensic phase of projects.
awang295@sarawak.uitm.edu.my
Factors governing
Site Investigation
Economical Technical
Factor Factor
awang295@sarawak.uitm.edu.my
➤ Development Cost
Compare cost of any similar project in the area
nearby, and study if the project is worthwhile.
➤ Transportation Cost
Economical
Poor transportation may increase the contract sum
Factor
due cost of transportation for materials, labours and
equipments.
awang295@sarawak.uitm.edu.my
➤ Ground Water Level (G.W.L.)
Ground water presence need to be identified, and
the level of corrosiveness must be examined.
Ground water level may be determining the type of
foundation to be used.
awang295@sarawak.uitm.edu.my
➤ Location of Existing Services (water pipe, electrical cable
and etc.)
The existing services underground must be seriously
assessed to avoid disturbance or damaging to
existing underground services such as water pipe,
sewerage pipe, electrical cable, telephone cable and
etc.
Usually any existing services will be mapped on plan
Technical using sophisticated detectors equipment.
Factor
➤ Marine Effect
Structures on the shore, i.e. wharf and jetty, are
subjected to environment marine effect.
The tide of water encourages sea water attacks against
the structural elements (reinforcement); as there are
periodic supply of air, saltwater (from the sea), and
heat (from sun).
As a result, structure may fail during service due to
corrosion problem.
awang295@sarawak.uitm.edu.my
➤ Site Survey
Boundary stone for the site must be determined to ensure
the construction is on the exact location.
If available topography survey is incomplete or not
consistent, additional survey is required before detailed
design stage.
Data survey includes TBM, contour line, elevation, spot
Technical level, existing features on ground and etc. It is useful to
Factor determine the volume of earth to be cut and/or filled, to
assign the location (storage) of resources, building, and
services; the road access and etc.
awang295@sarawak.uitm.edu.my
➤ Environment
Interfacing impacts the ecosystem and surrounding
area to minimize direct and indirect impacts on the
Technical geological environment.
Factor Samples Studies frequently conducted are as follow:
1. Environment Impact Assessment (EIA)
2. Traffic Impact Assessment (TIA)
3. Social Impact Assessment (SIA)
awang295@sarawak.uitm.edu.my
METHOD OF SITE INVESTIGATION
Method of Site Investigation (SI) can be grouped into 2 types, i.e. Surface
and Sub-Surface Method. The need depends on the type of structures to
be constructed and other factors as follow;
Stage of investigation
Condition and topography of the site
Amount of information required
Allocated fund
Accessibility
Availability of materials required for the investigation (e.g. water for
flushing in drilling)
awang295@sarawak.uitm.edu.my
METHOD OF SITE INVESTIGATION
➤ Limitations:
awang295@sarawak.uitm.edu.my
METHOD OF SITE INVESTIGATION
➤ Some of SI methods are:
Desk study of previous records publications Sampling taken either
Trial pits from disturb or
Soil electrical sensitivity probe kit undisturbed samples.
Land survey Generally, reports are
Auger boring divided into 2
Wash boring categories namely
Rotary drilling preliminary and
Constant Rate Penetrate Test detailed investigation
Mackintosh probe test report.
Maintain Load Test
Satellite image and topographic maps
Seismic wave propagation (reflection) and seismic effect (reflection)
awang295@sarawak.uitm.edu.my
SUMMARY
awang295@sarawak.uitm.edu.my
