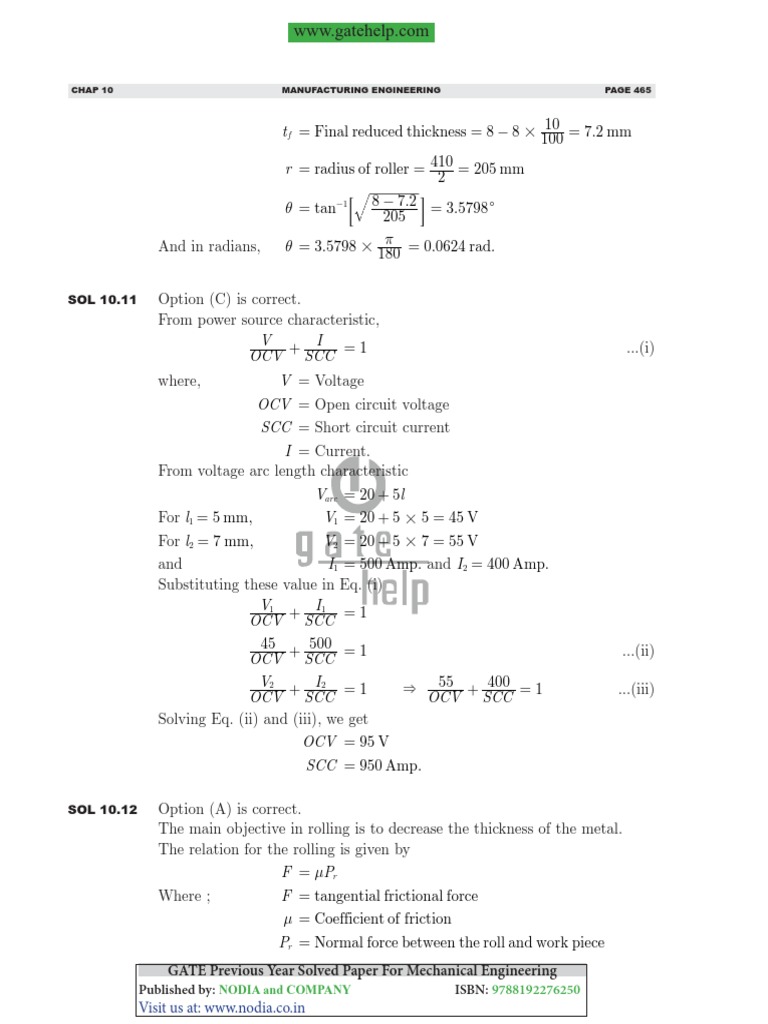

t f = Final reduced thickness = 8 − 8 # 10 = 7.2 mm
100 r = radius of roller = 410 = 205 mm 2 θ = tan−1 : 8 − 7.2 = 3.5798c 205 D And in radians, θ = 3.5798 # π = 0.0624 rad. 180
SOL 10.11 Option (C) is correct.
From power source characteristic, V + I =1 ...(i) OCV SCC where, V = Voltage OCV = Open circuit voltage SCC = Short circuit current I = Current. From voltage arc length characteristic Varc = 20 + 5l For l1 = 5 mm, V1 = 20 + 5 # 5 = 45 V For l2 = 7 mm, V2 = 20 + 5 # 7 = 55 V and I1 = 500 Amp. and I2 = 400 Amp. Substituting these value in Eq. (i) V1 + I1 = 1 OCV SCC 45 + 500 = 1 ...(ii) OCV SCC V2 + I2 = 1 & 55 + 400 = 1 ...(iii) OCV SCC OCV SCC Solving Eq. (ii) and (iii), we get OCV = 95 V SCC = 950 Amp.
SOL 10.12 Option (A) is correct.
The main objective in rolling is to decrease the thickness of the metal. The relation for the rolling is given by F = μPr Where ; F = tangential frictional force μ = Coefficient of friction Pr = Normal force between the roll and work piece GATE Previous Year Solved Paper For Mechanical Engineering Published by: NODIA and COMPANY ISBN: 9788192276250 Visit us at: www.nodia.co.in
