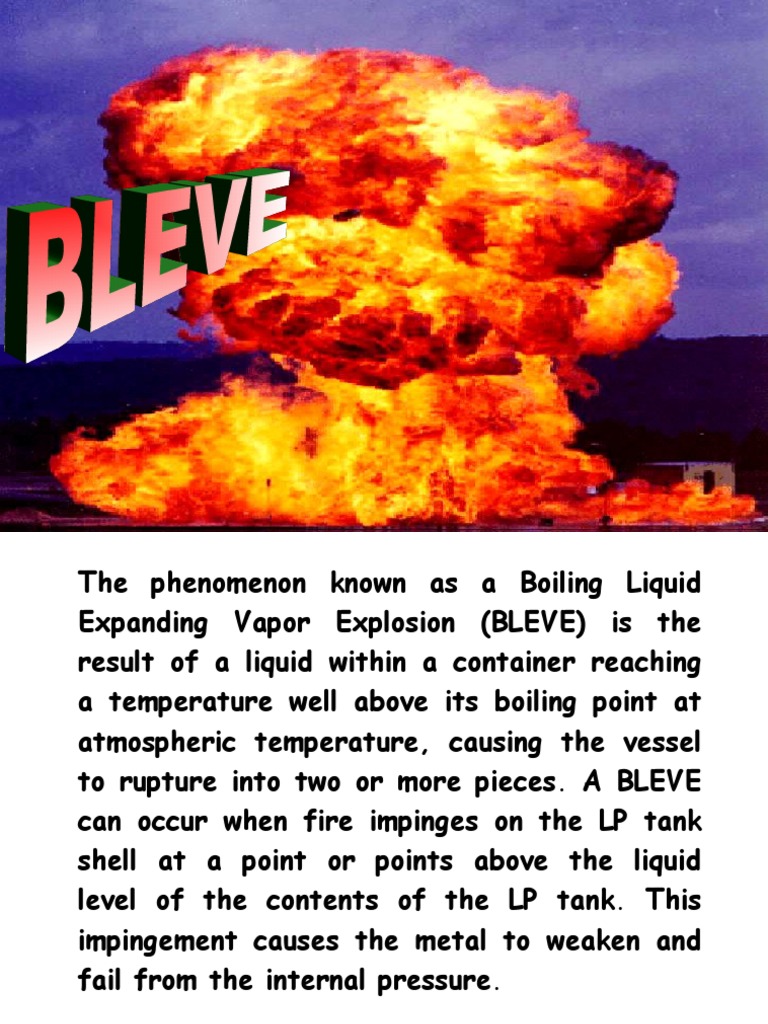

 The phenomenon known as a Boiling Liquid
Expanding Vapor Explosion (BLEVE) is the
result of a liquid within a container reaching
a temperature well above its boiling point at
atmospheric temperature, causing the vessel
to rupture into two or more pieces. A BLEVE
can occur when fire impinges on the LP tank
shell at a point or points above the liquid
level of the contents of the LP tank. This
impingement causes the metal to weaken and
fail from the internal pressure.

Safety
Safety Control
Control Dept.
Dept. Rev.
Rev. -- 0
0 2
 BLEVEs can result from mechanical damage to a tank, as
well.
This damage can be the result of a train derailment,
traffic accident, or other physical shock.

In these cases, the BLEVE generally occurs simultaneously

with impact.
When a BLEVE occurs, debris may travel hundreds of
feet, with tremendous force, and the escaping fuel can
ignite causing an expanding fireball.
Although most liquefied gas BLEVEs that involve container
failure result from fire exposure, a few BLEVEs have
occurred due to container failures from other causes,
such as corrosion or impact from an outside force.
Safety
Safety Control
Control Dept.
Dept. Rev.
Rev. -- 0
0 3
 (A) Two-Step Slow BLEVE

First a small
hole forms in
the vapour space
wall and this
leads to a
pressure drop
which then
causes a liquid
boiling response
that causes
pressure
recovery in the
tank.

Safety Control Dept. Rev. - 0

 This pressure recovery drives the crack along the length of
the tank to cause the total loss of containment and BLEVE

The crack
velocity may
be as low as
1 m/s.

Safety Control Dept. Rev. - 0

 In this case there is a significant time
between when the original fissure opens and
when the tank fails catastrophically.

Safety Control Dept. Rev. - 0

 (B) Single-Step Rapid BLEVE
The BLEVE of a
400 liter propane
tank exposed to
torch fire
impingement.
(non- ASME code)
The tank has a 3
mm wall rather than
the 6 mm.

Safety Control Dept. Rev. - 0

 This tank failed so rapidly that the liquid flashing had
little or no role in the tank failure.

The vapour
energy was
sufficient to
drive the
failure crack
the full length
of the tank.

Safety Control Dept. Rev. - 0

 In this case the crack velocity was of the order of 150 m/s.

Safety Control Dept. Rev. - 0

 (C) Transient Jet Release

If the tank has not been weakened sufficiently then a BLEVE

does not take place after thermal rupture is initiated.

The fissure does

not run the entire
tank length but is
arrested in strong
material.

Safety Control Dept. Rev. - 0

 The tank contents vent
as a two-phase
transient jet. If the
hole is large (i.e., the
hole length is of the
order of the tank
diameter) then the
release looks very
much like a BLEVE
(i.e., all contents vent
in a fraction of a
second, large fireball,
tank may rocket).

Safety Control Dept. Rev. - 0

 Fireballs from BLEVEs
The shape and liftoff of BLEVE fireballs vary
significantly and depend on the detailed thermodynamic
state of the liquid, and the details of the tank failure.

1) If the tank fails rapidly then

classical spherical fireballs result.

Safety Control Dept. Rev. - 0
 2) If the failure is slow then the initial jet
release sends the fireball high in to the air.
Safety Control Dept. Rev. - 0
 3) If the liquid is relatively cool then a large ground fire is
possible. These differences can change the hazards to
nearby objects (such as emergency responders) significantly.

Safety Control Dept. Rev. - 0

 Suggested Safety Distances
For Propane or LPG Tank Size for BLEVE

Distance

1 10 100 1000 10000 100000 1000000

Tank Capacity (Liters)
4R (R=fireball radius) working distance for firefighters and emergency responders.
It must be stressed that at 4R personnel will still be exposed to some projectile
threat.
A distance
Safety of 15R isDept.
Control suggested as a minimum for the evacuation of the public.
Rev. - 0
 Time to Failure vs Capacity & Fire Type
(Propane, initial fill 80%, PRV flow based on 20% engulfment)
Time to Failure (Min)

Tank Diameter (M)

The tanks are not equipped with thermal barriers or water spray systems.
Safety Control Dept. Rev. - 0
 Emergency Response Planners

To estimate hazards and plan response tactics.

Study likely fire scenarios and plan evacuation
procedures.

Engineers and Managers

Plant designer can fine tune plant layout.

Study various accident scenarios and use this
information to assist in the planning for minimal
damage.

Safety Control Dept. Rev. - 0

 Step by Step Input.
The questions should include:
• is life or property at stake ?
• what was the time to respond ?
• how long has the fire been burning ?
• how big is the tank?
• is the tank thermally protected?
• what is the fire contact type and
severity ?
• what are the wind conditions ?
• what is the ground topography ?
• are there other tanks or hazards?
• are there confining structures ?
Safety Control Dept. Rev. - 0
 BLEVE Hazards Prediction.
Estimate the hazards including:
• BLEVE blast
• BLEVE fireball
• projectiles and tub rockets
• Vapour cloud explosions (VCE)

From this critical advice given on:

• responder command position
• fireball damage vs distance
• blast damage vs distance
• expected projectile ranges
• possible VCE blast vs distance
• recommended evacuation distances
• effects of wind
• cooling water flow rates
• cooling water supply
Safety Control Dept. Rev. - 0
 Case Study:

On the morning of June 27, 1993 at 9:02 a.m.,

The Warwick - Canada, Volunteer Fire Department

responded to a report of a barn fire.

When they arrived at approximately 9:12 a.m.

The fire department found a large cattle barn ablaze. During

the size-up phase, a 4000 liter (1055 gallon) propane tank
was found close to the involved barn.

The relief vents were operating on the tank shooting flames

over five meters (16 ft.) into the air.

Safety Control Dept. Rev. - 0

 Case Study: Cont...

Fire fighters began to apply water to the exposed LP

tank in an effort to cool it.

Suddenly, the tank BLEVE'd and split into two large

pieces.

The blast sent one of the pieces into an open field,

While the other piece traveled over 45 meters (150 ft.),

and struck a fire engine, and continued another 230
meters (754 ft.) where it struck a vehicle parked on the
road trapping an occupant.

Safety Control Dept. Rev. - 0

 Case Study: Cont...

Three fire fighters were killed when the piece struck the
engine, where they were donning protective equipment and
preparing hoselines.

The fourth fire fighter was killed when he was thrown

approximately 45 meters (150 ft.) as the LP tank part
slammed into the engine.

The blast also injured three fire fighters as well as four

civilians, including an occupant in the vehicle on the road.

Safety Control Dept. Rev. - 0

 Controlling an LP-Gas leak and/or fire the following three
methods of control should be utilized:

1. If there is a leak with no fire present,

- the flow of gas should be slowed or stopped.

This action is appropriate when the flow can be controlled,

through intact valves or control devices, and by personnel

that are trained in the operation of the control devices.

Safety Control Dept. Rev. - 0

 2. Dissipating gas vapors through ventilation or the

application of water streams to prevent the vapors

from reaching a flammable mixture within the

flammable range.

Safety Control Dept. Rev. - 0

 3. Applying water to exposed containers and equipment

to cool them and prevent failures and BLEVEs from

occurring.

The major consideration for this method is the

availability of an adequate water source for the constant
and long-term application of water to the exposed
equipment. The amount of water required is dependent
on the size of the leak or fire and its location.
