Service Manual BV Family R1.2

Service Manual BV Family R1.
2 Section 1
Technical Data

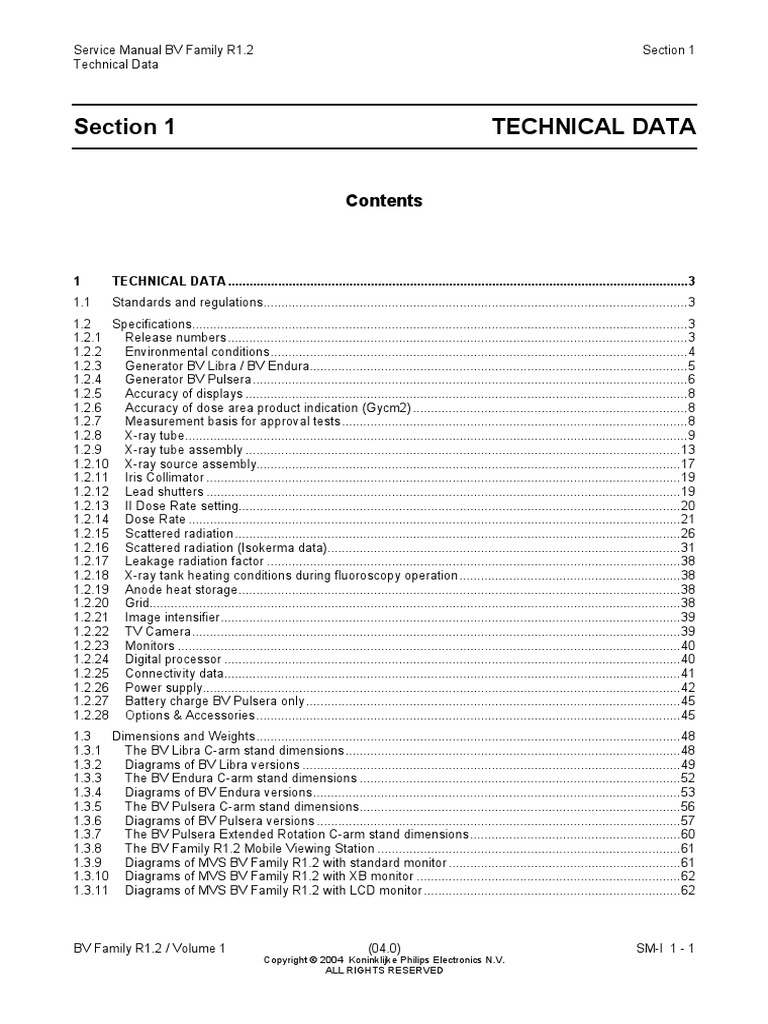

Section 1 TECHNICAL DATA
Contents
1 TECHNICAL DATA .................................................................................................................................3

1.1 Standards and regulations.......................................................................................................................3
1.2 Specifications...........................................................................................................................................3
1.2.1 Release numbers .................................................................................................................................3
1.2.2 Environmental conditions.....................................................................................................................4
1.2.3 Generator BV Libra / BV Endura..........................................................................................................5
1.2.4 Generator BV Pulsera ..........................................................................................................................6
1.2.5 Accuracy of displays ............................................................................................................................8
1.2.6 Accuracy of dose area product indication (Gycm2) .............................................................................8
1.2.7 Measurement basis for approval tests .................................................................................................8
1.2.8 X-ray tube.............................................................................................................................................9
1.2.9 X-ray tube assembly ..........................................................................................................................13
1.2.10 X-ray source assembly.......................................................................................................................17
1.2.11 Iris Collimator .....................................................................................................................................19
1.2.12 Lead shutters .....................................................................................................................................19
1.2.13 II Dose Rate setting............................................................................................................................20
1.2.14 Dose Rate ..........................................................................................................................................21
1.2.15 Scattered radiation .............................................................................................................................26
1.2.16 Scattered radiation (Isokerma data)...................................................................................................31
1.2.17 Leakage radiation factor ....................................................................................................................38
1.2.18 X-ray tank heating conditions during fluoroscopy operation ..............................................................38
1.2.19 Anode heat storage............................................................................................................................38
1.2.20 Grid.....................................................................................................................................................38
1.2.21 Image intensifier.................................................................................................................................39
1.2.22 TV Camera.........................................................................................................................................39
1.2.23 Monitors .............................................................................................................................................40
1.2.24 Digital processor ................................................................................................................................40
1.2.25 Connectivity data................................................................................................................................41
1.2.26 Power supply......................................................................................................................................42
1.2.27 Battery charge BV Pulsera only .........................................................................................................45
1.2.28 Options & Accessories .......................................................................................................................45
1.3 Dimensions and Weights .......................................................................................................................48
1.3.1 The BV Libra C-arm stand dimensions ..............................................................................................48
1.3.2 Diagrams of BV Libra versions ..........................................................................................................49
1.3.3 The BV Endura C-arm stand dimensions ..........................................................................................52
1.3.4 Diagrams of BV Endura versions.......................................................................................................53
1.3.5 The BV Pulsera C-arm stand dimensions..........................................................................................56
1.3.6 Diagrams of BV Pulsera versions ......................................................................................................57
1.3.7 The BV Pulsera Extended Rotation C-arm stand dimensions ...........................................................60
1.3.8 The BV Family R1.2 Mobile Viewing Station .....................................................................................61
1.3.9 Diagrams of MVS BV Family R1.2 with standard monitor .................................................................61
1.3.10 Diagrams of MVS BV Family R1.2 with XB monitor ..........................................................................62
1.3.11 Diagrams of MVS BV Family R1.2 with LCD monitor ........................................................................62
BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 1

Copyright © 2004 Koninklijke Philips Electronics N.V.
ALL RIGHTS RESERVED
Section 1 Service Manual BV Family R1.2
Technical Data
2 MATERIAL SAFETY DATA SHEET.....................................................................................................63

2.1 Sealed Lead Battery ..............................................................................................................................64
3 LOOSE ITEMS ......................................................................................................................................66

3.1 Loose items ...........................................................................................................................................66
4 IDENTIFICATION ..................................................................................................................................67
5 CERTIFIABLE ITEMS ...........................................................................................................................68

5.1 The BV Libra / BV Endura .....................................................................................................................68
5.2 The BV Pulsera......................................................................................................................................69
SM-I 1 - 2 (04.0) BV Family R1.2 / Volume 1

ALL RIGHTS RESERVED
Service Manual BV Family R1.2 Section 1
Technical Data
1 TECHNICAL DATA
1.1 STANDARDS AND REGULATIONS
The BV Family R1.2 Systems, the BV Libra, the BV Endura and the BV Pulsera are developed and
manufactured with observance of a number of directives, regulations and standards. Information regarding the
compliance status with relevant national and international standards, regulations and laws can be obtained –
on request - from your PMS representative or from:
Philips Medical systems

Corporate Technology Department
Building QM 099
P.O. Box 10 000
5680 DA Best
The Netherlands
Fax: +31 40 27 63110
The system conforms to IEC 601-1, class 1, type B, ordinary equipment (enclosed without protection against
ingress of water). The footswitch is watertight equipment (IPX7). In the BV Pulsera, the X-ray source
assembly is splash-proof equipment (IPX4). Mode of operation: continuous operation with intermittent loading
as described in the sections dealing with the generators in the system.
The system is not suitable for use in the presence of a flammable anesthetic mixture.
PMS will make available on request circuit diagrams, component parts list, descriptions, calibration
instructions and any other information which will assist the appropriately qualified technical personnel to repair
those parts of the equipment that have been designated by the manufacturer as repairable.
1.2 SPECIFICATIONS
1.2.1 Release numbers

The release numbers of the systems can be found as follows:
• C-arm stand (CAS)
During initial installation the release number is displayed on the console display at the bottom left-
hand corner.
• Mobile viewing station (MVS)
After start-up, activate the Help function. The release number can be found on every page of the help
menu, at the bottom left-hand corner.

ALL RIGHTS RESERVED
Technical Data
1.2.2 Environmental conditions
BV Libra / BV Endura - Environmental conditions
Condition Value
Operating temperature 10 to 40 ˚C (maximum permitted range)

10 to 35 ˚C (optimal performance)
Storage temperature -25 to 70˚C
Relative humidity operation 20 – 80 %
Relative humidity storage 5 – 95 % (non condensing)
Air pressure operation & storage 700 / 1100 Hp
Vibration 10 – 150 Hz, 0.35 mm peak
Shock 25 g, 6 ms
BV Pulsera – Environmental conditions
Condition Value
Operating temperature 10 to 40˚C (maximum permitted range)

10 to 35˚C (optimal performance)
Storage temperature -25 to 55˚C short term storage
-25 to 40˚C long term storage
Relative humidity operation 20 – 80 %
Relative humidity storage 5 – 95 % (non condensing)
Air pressure operation & storage 700 / 1100 Hp
Vibration 10 – 150 Hz, 0.35 mm peak
Shock 25 g, 6 ms

ALL RIGHTS RESERVED
Technical Data
1.2.3 Generator BV Libra / BV Endura
BV Libra / BV Endura - Generator
Definition Data
Type HF converter, DC generator

Loading data: Fluoroscopy Focus 0.6 IEC
kV range: 40 to 110 kV
mA range: 0.10 to 7.2 mA
Max. continuous loading 105 s
Average load 200 W up to 30 s on
Average load 150 W up to 60 s on
Loading data: High Definition Focus 0.6 IEC
Fluoroscopy kV range: 40 to 110 kV
mA range: 0.24 to 7.2 mA
Max. loading time 20 s
Average load 100 W up to 110 kV
Average load 150 W up to 80 kV
Loading data: Radiography Focus 1.4 IEC
kV range 40 to 105 kV
Fixed 20 mA
Single load – Average load 150 W
Two loads – Cooling time between exposures 30 s;
- Waiting time for next 2 exposures 62 s
Loading data: Radiography 30 mA
(France) - Max. loading time 320 ms
- Waiting time for next exposures 20 s
BV Libra / BV Endura - Maximum loading factors
Definition Fluoro Rad Rad (France)
Nominal X-ray tube voltage 110 kV 105 kV 105 kV

Highest X-ray tube current 7.2 mA 20 mA 30 mA
Highest electric power 792 W 2100 W 3150 W
Nominal electric power 2000 W (0.1 s, 20 mA, 100 kV)
Lowest current time product 2.0 mAs, (0.1 s, 20 mA, from
40 kV to 105 kV)

ALL RIGHTS RESERVED
Technical Data
1.2.4 Generator BV Pulsera
BV Pulsera – Generator
Definition Data
Loading data Fluoroscopy Focus 0.3 / 0.6 IEC

kV range: 40 – 120 kV
mA range: 0.1 – 8.3 mA
Max cont. loading 10 min up to 360 W
Max cont. loading 5 min up to 600 W
Cont. average load 300 W
Loading data HDF Focus 0.3 / 0.6 IEC
mA range: 0.24 – 20 mA
Loading data Pulsed LDF Focus 0.6 IEC
kV range 40 - 110 kV
mA range 0.4 - 12 mA; average < 6 mA
Frequency 12½ pps
Pulse width 24 or 40 ms
Max. cont loading 10 min. up to 396 W
Max. cont loading 5 min. up to 660 W
Loading data Pulsed Exposure Focus 0.6 IEC
mA range: 2 – 60 mA; average < 20 mA
Max frequency 25
Loading data Digital Exposure Focus 0.6 IEC
mA range: 0.9 – 75 mA
Max loading time 500 ms
Loading data Radiography Focus 0.6 IEC
mA fixed 60 mA
Max loading time 2 s

ALL RIGHTS RESERVED
Technical Data
BV Pulsera - Maximum loading factors
Definition Data
Continuous mode LDF

Nominal X-ray tube voltage 120 kV (@ 5 mA)
Highest X-ray tube current 10 mA (@ 110 kV)
Highest electric power 1100 W (110 kV / 10 mA)
Continuous mode HDF
Highest electric power 1440 W Isowatt (72 kV / 20 mA to 120 kV / 12 mA)
Audible signal during HDF Yes
Max run time 30 s
Number of runs to max heat capacity 6
X-ray tube current in thermal equilibrium 8.3 mA avg @ 72 kV (30 s on, 42 s off)
Pulsed Fluoroscopy mode
Nominal X-ray tube voltage 110 kV @ 12 mA pk / 6 mA avg
Highest X-ray tube current 12 mA pk / 6 mA avg (@ 110 kV)
Highest electric power 1320 W pk / 660 W avg
Max run time
Pulsed exposure mode
Nominal X-ray tube voltage 110 kV @ 60 mA pk / 20 mA avg
Highest X-ray tube current 60 mA pk / 20 mA avg (@ 110 kV)
Highest electric power 6600 W pk / 2200 W avg
Image storage Always on
Max run time 30 s
Digital exposure mode
Highest electric power 5400 W Isowatt (72 kV / 75 mA to 120 kV / 45 mA)
Max loading time < 500 ms
Image storage Always on
Radiography
Highest X-ray tube current 60 mA (40 – 120 kV)
Highest electric power 7200 W (120 kV / 60 mA)
Nominal electric power 6000 W, 60 mA, 0.1 s (@ 100 kV)
Lowest current time product 3.2 mAs (0.053 s, 60 mA, from 40 – 120 kV)

ALL RIGHTS RESERVED
Technical Data
1.2.5 Accuracy of displays

Accuracy of displays
Definition Value
Voltage deviation +/- (8 % + 0.8 kV)

Fluoroscopy current deviation +/- (8.5 % + 0.01 mA)
Radiography mAs deviation +/- (10 % + 0.2 mAs)
Dose rate accuracy +/- 25 %
BV Pulsera only:
Digital exposure mAs deviation +/- (15 % mA + 5.0 ms)
Pulse exposure mA avg deviation +/- (15 % mA)
1.2.6 Accuracy of dose area product indication (Gycm2)

Accuracy of dose area product indication (Gycm2)
<30% of max beam diameter >30% of max beam diameter

Below 55 kV +/- 40% +/- 30%
Above 55kV +/- 30% +/- 25%
1.2.7 Measurement basis for approval tests

BV Libra / BV Endura - Measurement basis for approval tests
Definition Value
kV pk Measured using a non invasive kV pk meter placed 30 cm from the focus

Additional filters (1mm Al & 0.1 mm Cu) removed
mA Measured directly in the rectified high voltage circuit
The voltage over the mA feedback resistor was measured on the test points
Time The exposure time measured using a time function in the dose meter
mAs The mAs product calculated using the mA and time results
X-ray output Measured using a dose meter placed in the reference axis of the X-ray beam
Leakage and - Use manual kV control and set to kV max
scattered radiation - Read the displayed mA value and scale the radiation results for the test mA

ALL RIGHTS RESERVED
Technical Data
BV Pulsera - Measurement basis for approval tests
Definition Value
kV pk Measured using a non invasive kV pk meter placed 30 cm from the focus

Filter pack (2mm Al, 0.1 mm Cu, 1mm Al) removed and replaced with 2 mm Al
mA Measured directly in the rectified high voltage circuit;
mA jumper P16 was removed and measured with a mA meter
Time The exposure time measured using a time function in the dose meter
mAs The mAs product calculated using the mA and time results
X-ray output Measured using a dose meter placed in the reference axis of the X-ray beam
Leakage and - Use manual kV control and set to kV max
scattered radiation - Read the displayed mA value and scale the radiation results for the test mA
1.2.8 X-ray tube

BV Libra / BV Endura - X-ray tube
Definition Specification
Type Fixed anode

Manufacturer Philips Medical Systems DMC
Model name FO17
Model number 9890 000 64801
Nominal anode input power small focus 0.81 kW
Nominal anode input power large focus 2.1 kW
Maximum anode heat content 35.5 kJ (50.1 kHU)
Maximum continuous heat dissipation 200 W
Maximum heat dissipation 360 W (30.6 kHU/min)
Target material Tungsten
Target angle 12°
Nominal focal spot values 0.6 & 1.4 IEC
Quality equivalent filtration 0.6 mm Al eq.
Nominal X-ray tube voltage 110 kV

ALL RIGHTS RESERVED
Technical Data
BV Pulsera - X-ray tube
Definition Specification Alternative tube
Type Rotating anode Rotating anode

Manufacturer Varian Inc. Philips Medical Systems
Development and
Manufacturing Centre
Model number A145 RO 0306
Nominal anode input power small focus 6.0 kW 6.0 kW
Nominal anode input power large focus 25 kW 25 kW
Maximum anode heat content 222 kJ (300 kHU) 222 kJ (300 kHU)
Maximum continuous heat dissipation 296 W 296 W
Maximum heat dissipation 870 W (70 kHU/min) 870 W (70 kHU/min)
Target material Rhenium-Tungsten Rhenium-Tungsten
Target angle 10° 10°
Nominal focal spot values 0.3 & 0.6 IEC 0.3 & 0.6 IEC
Quality equivalent filtration 0.5 mm Al eq. 0.5 mm Al eq.
Nominal X-ray tube voltage 120 kV 120 kV
Rotating anode supply Single phase 50 / 60 Hz Single phase 50 / 60 Hz
BV Libra / BV Endura – Single load chart, small focus; c150 W eq. Anode input power

ALL RIGHTS RESERVED
Technical Data
BV Libra / BV Endura - Single load chart, large focus; 150 W eq. anode input power
BV Pulsera - Single load rating, small focus (40% anode heat content)

ALL RIGHTS RESERVED
Technical Data
BV Pulsera - Single load rating, large focus (40% anode heat content)
BV Libra / BV Endura – Anode heating and cooling curve
100
90
80
70
550 W
Heat Capasity (%)
60 300 W
200 W
50 Series4
Series5
Series6
40
COOLING
30
20
10
0
0 1 2 3 4 5 6 7 8 9 10
Time ( min )

ALL RIGHTS RESERVED
Technical Data
BV Pulsera – Anode heating and cooling curve

100
90
80
70
60 900 W
500 W
HC ( % )
300 W
50
200 W
80 W
40 COOLING
30
20
10
0
0.1 1.0 10.0 100.0
Time ( min )
1.2.9 X-ray tube assembly

BV Libra / BV Endura - X-ray tube assembly
Manufacturer Philips Medical Systems

Model name HT converter tank
Model number 9890 000 61831
Nominal X-ray tube housing voltage 110 kV
Inherent filtration 2.7 mm Al eq. @ 75 kV
Additional filtration 0.95 mm Al + 0.1 mm Cu
Permanent filtration (IEC 60522) 6.35 mm Al eq. @ 75 kV
Leakage technique factors 110 kV, 200 W
BV Pulsera - X-ray tube assembly
Manufacturer Gilardoni
Model name iXion monoblock
Model number 102 63300
Nominal X-ray tube housing voltage 120 kV
Inherent filtration 1 mm Al eq. @ 75 kV
Additional filtration 3 mm Al + 0.1 mm Cu
Permanent filtration (IEC 60522) 6.75 mm Al eq. @ 75 kV
Leakage technique factors 120 kV, 300 W

ALL RIGHTS RESERVED
Technical Data
BV Libra / BV Endura - X-ray tube emission chart, small focus, Voltage DC
BV Libra / BV Endura - X-ray tube emission chart, large focus, Voltage DC

ALL RIGHTS RESERVED
Technical Data
BV Libra / BV Endura - X-ray tank emission chart, small focus
BV Libra / BV Endura - X-ray tank emission chart, large focus

ALL RIGHTS RESERVED
Technical Data
BV Pulsera – Emission characteristics small focus
20
18
16
14
12
I_tube (mA)
40 kV
10 70 kV
120 kV
8
0
2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8
I_fil (A)
BV Pulsera – emission characteristics large focus
100
90
80
70
60
I_tube (mA)
120 kV
50 70 kV
40 kV
40
30
20
10
0
3.0 3.2 3.4 3.6 3.8 4.0 4.2 4.4 4.6 4.8
I_fil (A)

ALL RIGHTS RESERVED
Technical Data
1.2.10 X-ray source assembly
BV Libra / BV Endura - X-ray source assembly
Definition Values
Maximum X-ray tube assembly heat content 840 kJ (1200 kHU)

Maximum continuous heat dissipation 140 W (11880 HU/min)
BV Pulsera - X-ray source assembly
Definition Value
Maximum X-ray tube assembly heat content 1350 kJ (1900 kHU)

Maximum continuous heat dissipation 192 W (16300 HU/min)

ALL RIGHTS RESERVED
Technical Data
BV Libra / BV Endura – Heating and cooling curves
300 W 200 W 150 W

50
100 W
45
40
SURFACE TEMP ( °C )
35
30
25
COOLING
20
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480
TIME ( min )
BV Pulsera – Heating and cooling curves
600 W 400 W 300 W 200 W 150 W

50
100 W
45
SURFACE TEMPERATURE ( °C )
40
35
30
25
COOLING
20
0 20 40 60 80 100 120 140 160 180 200 220 240
TIME ( minutes )

ALL RIGHTS RESERVED
Technical Data
1.2.11 Iris Collimator
BV Libra / BV Endura - Iris collimator
Definition 6” version 9” version 12” version

BV Libra BV Libra/BV Endura BV Endura
Minimum beam diameter < 5 cm < 5 cm < 5 cm
at II input window (17 cm mode)
Adjustment step less step less step less
BV Pulsera - Iris collimator
Minimum beam diameter n.a. < 5 cm < 5 cm

at II input window (17 cm mode)
Adjustment n.a. step less step less
1.2.12 Lead shutters
BV Libra / BV Endura - Lead shutters
Definition Value
Width adjustment Down to < 4 cm slit at II

Rotation 360°
Operation Remotely controlled
Shutters 2 independent
Indication on LIH Yes
BV Pulsera - Lead shutters
Definition Value
Width adjustment Down to < 4 cm slit at II

Rotation 360°
Operation Remotely controlled
Shutters 2 independent
Indication on LIH Yes

ALL RIGHTS RESERVED
Technical Data
1.2.13 II Dose Rate setting
BV Libra / BV Endura – II dose rate setting
For LDF 300 nGy / s (34 µR / s) 200 nGy / s (23 µR / s) 250 nGy / s (28.6 µR / s)
For HDF 720 nGy / s (82.4 µR / s) 480 nGy / s (55 µR / s) 600 nGy / s (68.7 µR / s)
BV Pulsera – II dose rate setting
Definition 9” version 12” version
For LDF 200 nGy / s (23 µR / s) 250 nGy / s (28.6 µR / s)
For LDF plus 333 nGy / s (38.3 µR / s) 417 nGy / s (47.7 µR / s)
For HDF 480 nGy / s (55 µR / s) 600 nGy / s (68.7 µR / s)
For HDF plus 800 nGy / s (92 µR / s) 1.00 µGy / s (114 µR / s)
For Pulsed Fluoroscopy 480 nGy / s (55 µR / s) - 600 nGy / s (68.7 µR / s) -

800 nGy / s (92 µR / s) 1.00 µGy / s (114 µR / s)
For Pulsed Exposure 800 nGy / s (92 µR / s) – 1.00 µGy / s (114 µR / s) –

1.32 µGy / s (152 µR / s) 1.65 µGy / s (189 µR / s)
For Digital Exposure 1.80 µGy / s (207 µR / s) 2.25 µGy / s (257 µR / s)

ALL RIGHTS RESERVED
Technical Data
1.2.14 Dose Rate
NOTE
These are the typical dose rates for the BV Family R1.2.
The actual dose rate displayed on the system is calibrated and will be slightly different from the table.
At the maximum kV value, with larger objects the system switches into high penetration mode (HIP) and
increases the mA (and dose) values.
________________
BV Libra dose rate
System 6" (15 cm) 9" (23 cm) 6" and 9"
Object 20 cm H2O 20 cm H2O Max output

kV 71 66 110
Distance from focus 70 cm 70 cm 70 cm
MODE mA uGy/s mA uGy/s mA uGy/s
Cont. LDF (1)(3) 2.75 110.47 2.11 70.1 3.00 389.4

Cont. HDF 6.59 265.14 5.06 168.2 7.20 934.6
INT 1 LDF (3) 0.66 26.51 0.51 16.8 0.72 93.5
INT 1 HDF 1.58 63.63 1.22 40.4 1.73 224.3
½ dose LDF (2)(3) 1.37 55.24 1.05 35.0 1.50 194.7
½ dose HDF 3.30 132.57 2.53 84.1 3.60 467.3
II Formats Size Dose Size Dose
Middle format n.a. n.a. 7" (17 cm) 50% increase

Small format n.a. n.a. 5" (14 cm) 100% increase
Note (1): IEC Normal Dose Mode

Note (2): IEC Low dose Mode
Note (3): LDF HIP Same output as HDF modes

ALL RIGHTS RESERVED
Technical Data
BV Endura dose rate
System 9" (23 cm) 12" (31 cm) 9" and 12"
Object 20 cm H2O 20 cm H2O Max output

kV 66 67 110
Distance from focus 70 cm 70 cm 70 cm
MODE mA uGy/s mA uGy/s mA uGy/s
Cont. LDF (1)(3) 2.11 70.1 2.27 78.5 3.00 389.4

Cont. HDF 5.06 168.2 5.44 188.4 7.20 934.6
INT 1 LDF (3) 0.51 16.8 0.54 18.8 0.72 93.5
INT 1 HDF 1.22 40.4 1.31 45.2 1.73 224.3
INT 2 LDF (2)(3) 0.97 32.3 1.05 36.2 1.38 179.7
INT 2 HDF 2.34 77.6 2.51 86.9 3.32 431.4
Middle format 7" (17 cm) 50% increase 9" (23 cm) 20% increase
Small format 5" (14 cm) 100% increase 7" (17 cm) 60% increase

Note (3): LDF HIP Same output as HDF modes

ALL RIGHTS RESERVED
Technical Data
BV Pulsera dose rate Normal kV/mA curve
System 9" (23 cm) 12" (31 cm) 9" and 12" 9" and 12"
Object 20 cm H2O 20 cm H2O Default maximum Max output

kV 66 67 110 120
Distance from focus 70 cm 70 cm 70 cm 70 cm
MODE – Normal mA uGy/s mA uGy/s mA uGy/s mA uGy/s
Cont. LDF (1) 2.11 71.5 2.27 80.1 3.00 373.4 3.00 448.9
Cont. LDF HIP n.a. n.a. n.a. n.a. 10.00 1244.8 n.a. n.a.
Cont. HDF 5.06 171.7 5.44 192.3 7.20 896.3 7.20 1077.29
Cont. HDF HIP n.a. n.a. n.a. n.a. 12.00 1493.8 n.a. n.a.
INT 1 LDF (3) 0.51 17.2 0.54 19.2 0.72 89.6 0.72 107.7
INT 1 HDF (4) 1.22 41.2 1.31 46.1 1.73 215.1 1.73 258.5
INT 2 LDF (2)(3) 0.97 33.0 1.05 37.0 1.38 172.4 1.38 207.2
INT 2 HDF (4) 2.34 79.2 2.51 88.7 3.32 413.7 3.32 497.2
Pulsed LDF 2.53 85.8 2.72 96.1 3.60 448.1
Pulse 8 ms 3 Hz 1.01 34.3 1.09 38.5 1.44 179.3
Pulse 10 ms 3 Hz 1.27 42.9 1.36 48.1 1.80 224.1
Pulse 13.3 ms 3 Hz 1.68 57.1 1.81 63.9 2.39 298.0
Pulse 8 ms 25 Hz 8.44 286.1 9.07 320.5 12.00 1493.8
Pulse 10 ms 25 Hz 10.55 357.6 11.34 400.6 15.00 1867.2
Pulse 13.3 ms 25 Hz 14.03 475.7 15.08 532.8 19.95 2483.4
MODE – Normal mAs uGy mAs uGy mAs uGy
DIGRAD 140 ms 2.66 90.1 2.86 101.0 3.78 470.5

DIGRAD 300 ms 5.70 193.2 6.13 216.6 8.10 1008.3
DIGRAD 460 ms 8.73 296.1 9.39 331.7 12.42 1546.1

Note (3): INT 1/2 LDF HIP Dose output will increase by a factor 3.33
Note (4): INT 1/2 HDF HIP Dose output will increase by a factor 1.67
Pulse modes: The dose output for 10 ms pulses can be calculated by scaling [i.e. dose for 8 ms x (10 ms/ 8
ms)]. The dose output for other frequencies can be calculated using the actual frequency.
Display 3 5 8 12 25 Hz
Actual frequency 3.125 5 8.333 12.5 25 Hz
Normal Plus mode: Cont. and INT 1/2 LDF and HDF 66.7% dose increase

ALL RIGHTS RESERVED
Technical Data
BV Pulsera dose rate High Contrast kV/mA curve

kV 64 64 110 120
MODE – HC mA uGy/s mA uGy/s mA uGy/s mA uGy/s
Cont. LDF (1) 2.99 92.8 2.99 92.8 5.00 622.4 5.00 748.1
Cont. HDF 7.18 222.8 7.18 222.8 12.00 1493.8 12.00 1795.5
INT 1 LDF (3) 0.72 22.3 0.72 22.3 1.20 149.4 1.20 179.5
INT 1 HDF 1.72 53.5 1.72 53.5 2.88 358.5 2.88 430.9
INT 2 LDF (2)(3) 1.38 42.8 1.38 42.8 2.31 287.3 2.31 345.3
INT 2 HDF 3.31 102.8 3.31 102.8 5.54 689.4 5.54 828.7
Pulsed LDF 3.59 111.4 3.59 111.4 6.00 746.9
Pulse 13.3 ms 3 Hz 1.43 44.5 1.43 44.5 2.39 298.0
Pulse 13.3 ms 25 Hz 11.935 370.44 11.935 370.44 19.95 2483.4
MODE – HC mAs uGy mAs uGy mAs uGy
DIGRAD 140 ms 3.77 117.0 3.77 117.0 6.30 784.2

DIGRAD 300 ms 8.07 250.6 8.07 250.6 13.50 1680.5
DIGRAD 460 ms 12.38 384.4 12.38 384.4 20.70 2576.8

Note (3): INT 1/2 LDF HIP Dose output will increase by a factor 2

ALL RIGHTS RESERVED
Technical Data
BV Pulsera dose rate Isowatt kV/mA curve

kV 59 60 110 120
MODE – ISO mA uGy/s 70 cm mA uGy/s mA uGy/s mA uGy/s
Cont. LDF 4.53 108.1 4.92 124.4 5.46 679.7 5.00 748.1
Cont. HDF 10.87 259.5 11.80 298.7 13.10 1631.2 12.00 1795.5
INT 1 LDF (1) 1.09 26.0 1.18 29.9 1.31 163.1 1.20 179.5
INT 1 HDF 2.61 62.3 2.83 71.7 3.14 391.5 2.88 430.9
INT 2 LDF (1) 2.09 49.9 2.27 57.4 2.52 313.7 2.31 345.3
INT 2 HDF 5.02 119.8 5.45 137.8 6.05 752.9 5.54 828.7
MODE – ISO mAs uGy mAs uGy mAs uGy
DIGRAD 140 ms 5.71 136.2 6.19 156.8 6.88 856.4

DIGRAD 300 ms 12.23 292.1 13.28 336.2 14.70 1835.1
DIGRAD 460 ms 18.75 447.7 20.35 515.2 22.60 2813.8

Note (3): INT 1/2 LDF HIP Dose output will increase by a factor 1.83
The Interventional reference point is intended to be representative of the point of intersection of the X-ray
beam axis and the patient. For this type of system normal use for interventional procedures is with the c-arm
vertical or horizontal and patient as close as possible to the II.
The Interventional reference point is 30 cm from the image intensifier entrance surface or 69.5 cm from the
focal spot. [ref. IEC 60601-2-43]
The error in estimating the total absorbed dose to the skin introduced from the defined point should average
out as long as the procedure is composed of multiple views. Even under the worst-case conditions, errors
should be less than a factor of two. Of course, assessing the position of the patient and calculating the
appropriate correction factor can eliminate most of this error. [ref. IEC 60601-2-43]

ALL RIGHTS RESERVED
Technical Data
1.2.15 Scattered radiation
The following diagrams show the distribution of scattered radiation in the vicinity of the C-arm stand.
Scattered radiation diagram for BV Libra with 6” II:
200
190
180
170
160
150
140
130
4
25cm
120
3 110
2
100
1
90
80
70
60
50
1 = 5 milli Gy/hr
40 2 = 2 milli Gy/hr
3 = 1 milli Gy/hr
30
BV LIBRA 6" 4 = 0,5 milli Gy/hr
20
10
110kV 200W
37440010
20 30 40 50 60 70 80 90 100
X = distance in cm
Y = distance in cm

ALL RIGHTS RESERVED
Technical Data
Scattered radiation diagram for BV Libra / BV Endura with 9” II:
200
190
180
170
160
5
150
140
4
130
3
25cm
120
2
110
1
100
90
80
70
60
1 = 10 milli Gy/hr
50
2 = 5 milli Gy/hr
4 = 1 milli Gy/hr
30
BV ENDURA 9" 5 = 0,5 milli Gy/hr
20
10
110kV 200W
36260134
20 30 40 50 60 70 80 90 100
X = distance in cm
Y = distance in cm

ALL RIGHTS RESERVED
Technical Data
Scattered radiation diagram for BV Endura with 12” II:
200
190
180
170
160
150
140
5
130
120
25cm
4
110
3
100
2
90
1
80
70
60
1 = 20 milli Gy/hr
50
2 = 10 milli Gy/hr
4 = 2 milli Gy/hr
30
BV ENDURA 12" 5 = 1 milli Gy/hr
20
10
110kV 200W
36260131
20 30 40 50 60 70 80 90 100
X = distance in cm
Y = distance in cm

ALL RIGHTS RESERVED
Technical Data
Scattered radiation diagram for BV Pulsera with 9” II:
200
190
180
170
160
150
140
130
120
25cm
110
1 2 3 4 5
100
90
80
70
60
3 = 5 milli Gy/hr
BV PULSERA 9" 30
4 = 2 milli Gy/hr
10
120kV 300W
36260133
20 30 40 50 60 70 80 90 100
X = distance in cm
Y = distance in cm

ALL RIGHTS RESERVED
Technical Data
Scattered radiation diagram for BV Pulsera with 12” II:
200
190
180
170
160
150
140
130
120
25cm
110
1 2 3 4 5
100
90
80
70
60
3 = 10 milli Gy/hr
BV PULSERA 12" 30
4 = 5 milli Gy/hr
20 5 = 2,5 milli Gy/hr
10
36260132
120kV 300W
20 30 40 50 60 70 80 90 100
X = distance in cm
Y = distance in cm

ALL RIGHTS RESERVED
Technical Data
1.2.16 Scattered radiation (Isokerma data)
Measurement conditions
The tests were made using the maximum X-ray beam for the size of the system.
A 25 cm cube PMMA phantom was placed 5 cm in front of the II input surface. The entrance plane of the
phantom was therefore at the interventional reference point 30 cm in front of the II.
The results are normalized to 1 (uGy/s) / (uGym²/s). The following table provides details of:
• Dose area product at the interventional reference point.
• Actual dose rate for a normalized value of 0.01 (uGy/s) / (uGym²/s).
The table height was set to 87.5 cm, meaning that the centre of the phantom was at a height of 1 meter above
the floor. The degree of uncertainty regarding the results is < ± 50%.
System Nominal X-ray tube Dose area product Dose rate [nGy/s]
voltage [kV] [uGym2/s]
BV Libra 6” 110 3.1 31.0
BV Endura & BV Libra 9” 110 7.0 70.4
BV Endura 12” 110 12.7 127.0
BV Pulsera 9” 120 8.1 80.8
BV Pulsera 12” 120 14.6 146.0

ALL RIGHTS RESERVED
Technical Data
The following figures illustrate the measuring conditions for each system. Measurements were made in the
horizontal position and in the lateral position.
Measurement configuration diagram Horizontal position
Measurement configuration diagram Lateral position

ALL RIGHTS RESERVED
Technical Data
Isokerma maps for BV Libra (6 inch II)

Horizontal position
Isokerma map at 1.0 m and 1.5 m height (uGy/s)/(uGym²/s)
Lateral position

ALL RIGHTS RESERVED
Technical Data
Isokerma maps for BV Libra & BV Endura (9 inch II)

Horizontal position
Lateral position

ALL RIGHTS RESERVED
Technical Data
Isokerma maps for BV Endura (12 inch II)

Horizontal position
Lateral position

ALL RIGHTS RESERVED
Technical Data
Isokerma maps for BV Pulsera (9 inch II)

Horizontal position
Lateral position

ALL RIGHTS RESERVED
Technical Data
Isokerma maps for BV Pulsera (12 inch II)

Horizontal position
Lateral position

ALL RIGHTS RESERVED
Technical Data
1.2.17 Leakage radiation factor
With an average load of 200 W at 110 kV for the BV Libra / BV Endura and 300 W at 120 kV for the BV
Pulsera, the leakage radiation does not exceed 873 nGy/h (100mR/h) at 1 meter from the focal spot.
1.2.18 X-ray tank heating conditions during fluoroscopy operation
BV Libra / BV Endura - X-ray tank surface temperature indication
Message Temperature of tank surface
None Tank oil temperature is within working range

X-ray tank warm Approx. 44 °C
X-ray tank very warm Approx. 48 °C
X-ray tank disabled – tank too warm Approx. 50 °C
BV Pulsera - X-ray tank surface temperature indication
Message Temperature of tank surface
None Tank oil temperature is within working range

X-ray tank warm Approx. 44 °C
X-ray tank very warm Approx. 48 °C
X-ray tank disabled – tank too warm Approx. 50 °C
1.2.19 Anode heat storage
The anode heat storage capacity is monitored in such a way that successive high-definition fluoroscopy
loading or radiography exposures cannot overload the anode.
1.2.20 Grid
Grid
Type Circular
Material Carbon fiber
Lines / cm 60 / cm
FFD 100 cm
Ratio 1:10

ALL RIGHTS RESERVED
Technical Data
1.2.21 Image intensifier
Image Intensifier
Definition 6” II 9” II 12” II
Type Single mode Triple mode Triple mode

Entrance field sizes 15 cm / 6 inch 23 – 17 – 14 cm / 31 – 23 – 17 cm /
9 – 7 – 5 inch 12 – 9 – 7 inch
BV Libra x x
BV Endura x x
BV Pulsera x x
Input screen Csl Csl CsI
1.2.22 TV Camera
TV camera
Type High resolution CCD sensor with BV view image brightness regulation
Lines (interlaced) 625 at 50 Hz
Pre-processing ADC and AGC
Video standards CCIR (50 Hz)
Image rotation Continuous ± 200° (with pre-indication on screen)
Optics High quality lenses with anamorphic optics

ALL RIGHTS RESERVED
Technical Data
1.2.23 Monitors
Standard Monitors
Type High resolution anti reflection / anti static screen (MPR II)
Size 43 cm / 17 “
Scan frequency 75 / 90 Hz Non-interlaced
Brightness control Automatic
High-end Monitors (optional)
Type High contrast, high resolution triple gun / anti static screen (MPR II)
Size 43 cm / 17 “
Scan frequency 75 / 90 Hz Non-interlaced
LCD Monitors (optional)
Type SXGA active matrix monochrome TFT / LCD
Size 46 cm / 18 “
Display matrix 1280 * 1024
1.2.24 Digital processor
Digital processor
Display matrix 1008 x 560 x 8

Type Dedicated 12 bit video pipeline processor with real-time
processing and overlay
Disk storage capacity 50 – 500 – 1000 images (depending on commercial option)
(BV Libra)
Disk storage capacity 500 – 5000 – 10000 images (depending on commercial option)
(BV Endura / BV Pulsera)
Maximum storage speed 50 images disk; up to 3 images / s
(BV Libra) 500 images disk; up to 3 images / s
1000 images disk; up to 5 images / s
Maximum storage speed 500 images disk; up to 5 images / s
(BV Endura / BV Pulsera) 5000 images disk; up to 8 images / s
10000 images disk; up to 25 images / s
Processing options Subtraction – Road mapping - Trace black
(BV Libra zoom, measure and Trace white
subtraction only) Zoom - Measure
Real-time pixel shift – Land marking

ALL RIGHTS RESERVED
Technical Data
1.2.25 Connectivity data
Connectivity DICOM workflow interface
System Specification
DICOM workflow interface Optional

Network protocol Ethernet TCP / IP network using DICOM v3.0 protocol
Network medium 10 BaseT, 100 BaseT
Connectivity data Video output (DFI), 50 Hz
Definition 50 Hz
Horizontal frequency 15.625 kHz

Horizontal front porch 1.50 ms
Horizontal sync width 4.70 ms
Horizontal blanking 12.0 ms
Vertical frequency frame 25 Hz
Vertical frequency field 50 Hz
Vertical front porch 2.5 lines
Vertical sync width 2.5 lines
Vertical blanking (field) 25 lines
Pixel aspect ratio 1.37
Pixel clock frequency 20.25 MHz
Pixels / line 1296
Lines / image 575
Interlaced Yes
External pixel clock available No
Pre equal pls 5
Post equal pls 5
Separating pls Yes

ALL RIGHTS RESERVED
Technical Data
1.2.26 Power supply

Power supply
Voltage 100, 110, 120, 130, 200, 210, 220, 230 or 240 V
Configuration Single phase (power / neutral, separate earth)
Frequency 50 or 60 Hz
Max frequency deviation +/- 1 Hz
Wall outlet sockets must be provided with a proper ground connection accepting grounding cord plugs. Mains
plug must be Hospital grade in the USA and Canada. In other countries, the plug must be approved for use in
this application by the relevant local safety regulations.
The resistance in the socket must conform as follows:
BV Libra / BV Endura – Mains supply requirements
Definition Values Values (Fluoro only)
100 V
Current LT / mom 15 / 40 A (max 4 s) 15 / 20 A (max 20 s)
Max impedance 0.1 Ω 0.2 Ω
Mains voltage tolerance ± 10 % ± 10 %
Mains fuse Slow Slow
120 / 130 V
Current LT / mom 15 / 40 A (max 4 s) 15 / 20 A (max 20 s)
Max impedance 0.12 Ω 0.24 Ω
Mains voltage tolerance ± 10 % ± 10 %
Mains fuse Slow Slow
Mains plug (USA only) NEMA 5-20P NEMA 5-15P
230 V
Current LT / mom 10 / 25 A (max 4 s) Not applicable
Max impedance 0.6 Ω Not applicable
Mains voltage tolerance ± 10 % Not applicable
Mains fuse 16 A slow Not applicable

ALL RIGHTS RESERVED
Technical Data
BV Libra / BV Endura mains specification
Mains supply Standby LDF HDF RAD Units

100 / 130 V 7 15 20 40 A
200 / 240 V 5 10 15 25 A
100 / 240 V 800 1200 1900 3500 W
100 / 240 V 950 1400 2200 4500 VA
NOTE
The measured values will not exceed the specified values by more than 10% (UL 2601). Mains current values
in large text are as quoted on the system labels. BV Libra and BV Endura – LDF/HDF/RAD values for max.
output. BV Pulsera LDF/HDF/RAD values for 110 kV and max. mA. BV Pulsera ‘Stator’ acceleration time 0.3
or 0.9 seconds.
________________
BV Pulsera – Mains supply requirements
Definition Values
100 V
Current LT / mom 10 / 20 A (max 1 s)
Max impedance 0.1 or 0.2 Ω
Mains voltage tolerance +10 / -8 % or +10 / -6 %
Mains fuse Slow
Definition Values
120 / 130 V
Max impedance 0.18 or 0.24 Ω
Mains voltage tolerance ± 10 % or +10 / -9 %
Mains fuse Slow
Mains plug (USA only) NEMA 5-15P
Definition Values
230 V
Max impedance 0.6 Ω
Mains voltage tolerance ± 10 %
Mains fuse 16 A slow

ALL RIGHTS RESERVED
Technical Data
BV Pulsera mains specification
Mains supply Standby STATOR LDF HDF RAD Units
100 / 130 V 8 20 10 10 10 A
200 / 240 V 5 10 6 6 6 A
100 / 240 V 800 200 900 900 900 W
100 / 240 V 850 2200 1100 1100 1100 VA
Total Heat dissipation 800 200 1440 2400 9000 W
NOTE
The measured values will not exceed the specified values by more than 10% (UL 2601). Mains current values
in large text are as quoted on the system labels. BV Libra and BV Endura – LDF/HDF/RAD values for max.
output. BV Pulsera LDF/HDF/RAD values for 110 kV and max. mA. BV Pulsera ‘Stator’ acceleration time 0.3
or 0.9 seconds.
________________
BV Pulsera – 100 V and 120 V mains Supply requirements
0.900
EXAMPLE:
Ri = 0.400 Vmains >= 120 V - 6.6 %
0.800
Ri = 0.240 Vmains >= 120 V - 9.1 %
Ri = 0.300 Vmains >= 120 V - 8.2 %
0.700 Ri = 0.180 Vmains >= 120 V - 10 %
0.600
0.500
0.400
0.300
0.200
EXAMPLE:
Ri = 0.100 Vmains >= 100 V - 8.0 %
0.100
Ri = 0.200 Vmains >= 100 V - 6.0 %
Ri = 0.300 Vmains >= 100 V - 4.0 %
0.000
0 1 2 3 4 5 6 7 8 9 10
A dedicated AC power line is recommended to avoid conflicts with the power requirements of other
equipment. When mains impedance is such that the momentary voltage drop is too large, a dedicated mains
circuit has to be used, with requirements for the minimal voltage.
For the USA the momentary voltage drop on a normal mains circuit is 4% at rated current. Most other
countries have similar regulations. The local authorities or the Philips representative has to be consulted for
more details on mains requirements.

ALL RIGHTS RESERVED
Technical Data
1.2.27 Battery charge BV Pulsera only

The following graph shows the time it takes to re-charge a battery for the BV Pulsera.
BV Pulsera – Battery charging time
100
90
80
70
60
% CHARGE
50
40
30
20
10
0
0 1 2 3 4 5 6
TIME ( HOURS )
1.2.28 Options & Accessories

BV Family R1.2 – Options
DICOM workflow interface Specifications
Network protocol Ethernet TCP/IP network using DICOM v3.0 protocol

Network medium 10BaseT, 100BaseT
DICOM conformance Modality work list management (SCU)
Image storage (SCU)
Basic grey scale print (SCU)
MPPS (SCU)
Storage Commit (SCU)
Exam based export Yes

ALL RIGHTS RESERVED
Technical Data
DFI Featuring
Extended processing Electronic blanking, Zoom and pan, Measure

Vascular functions Subtraction
Trace black (BV Endura / BV Pulsera)
Roadmap (BV Endura / BV Pulsera)
Remasking
Pixelshift (BV Endura / BV Pulsera)
Landmarking (BV Endura / BV Pulsera)
Extended vascular functions Trace white (CO2)
(BV Endura / BV Pulsera)
Cardiac Pulsed Functions Cardio 8 ms
(BV Pulsera) Cardio 10 ms
Cardio 13 ms
Image storage
BV Endura / BV Pulsera Capacity 500 – 5000 – 10000 images
BV Libra Capacity 50 – 500 – 1000 images
Laser positioning tools Specifications
Laser aiming device Installed on image intensifier;

Output power:
- IEC class 3a
- FDA class II
Wavelength 670 nm
Alignment accuracy < 0.3% of SID in vertical beam point projection
Point projection
Laser alignment tool Integrated in X-ray assembly;
Output power:
- IEC class 3a
- FDA class II
Wavelength 670 nm
Alignment accuracy < 0.3% of SID in vertical beam point projection
Cross hair projection on installed target cross plate with lead cross hair

ALL RIGHTS RESERVED
Technical Data
Other options Specifications
Spacers -20 cm SSD

-30 cm SSD
System lock Key switch to enable/disable radiation and/or height
(Standard) movement
VCR Refer to VCR User manual for specifications
VCDR Refer to VCDR User manual for specifications
Printer Manufacturer: Sony
Type: UP-960
Media: paper
Manufacturer: Sony
Type: UP-980
Media: paper & transparency
BV Family R1.2 - Accessories
Accessories Description
Sterile covers (3x) Tank unit

Image intensifier
C-arm
Springbow To install sterile cover C-arm
Cassette holder 6” Type universal cassette holder cassette format
(not for USA) 24x24 IEC 60406 or
24x30 IEC 60406
24x24 IEC 60406 or
24x30 IEC 60406
24x24 IEC 60406 or
24x30 IEC 60406
WARNING
Only the options and equipment delivered by PMS may be used in conjunction with the systems. The use of
accessory equipment not complying with the equivalent safety requirements of this equipment may lead to a
reduced level of safety in the resulting system. Consideration relating to the choice shall include : 1 – use of
the accessory in the patient vicinity; 2 – evidence that the safety certification of the accessory has been
performed in accordance with the appropriate IEC 60601 – 1 and/or IEC 60601 – 1 – 1 harmonized national
standards.
________________

ALL RIGHTS RESERVED
Technical Data
1.3 DIMENSIONS AND WEIGHTS
1.3.1 The BV Libra C-arm stand dimensions
BV Libra C-arm stand movement specification.
BV Libra - C-arm stand specifications geometry
Longitudinal travel 20 cm
Panning movement ± 10°
Motorized height movement 49 cm (range from +41 to –8 cm)
Rotation Beyond ± 180° with safety stop at ± 135°
Angulation +90° / -25°
Source image distance Fluoroscopy 99.5 cm
Radiography with cassette holder 94.5 cm
Source skin distance 20 cm (optional 30 cm for USA)
Distance from image intensifier screen to 78 cm
X-ray tube output window
Distance from C-arm to X-ray beam 61 cm
Weight 6” 260 kg
Weight 9” 260 kg

ALL RIGHTS RESERVED
Technical Data
1.3.2 Diagrams of BV Libra versions
The following diagrams show the geometry of the 6” and the 9” versions of the BV Libra respectively. The
dimensions of both systems are indicated on all diagrams.
BV Libra 6” front view:
BV Libra 6” side view:

ALL RIGHTS RESERVED
Technical Data
BV Libra 6” top view:
BV Libra 9” front view:

ALL RIGHTS RESERVED
Technical Data
BV Libra 9” side view:
BV Libra 9” top view:

ALL RIGHTS RESERVED
Technical Data
1.3.3 The BV Endura C-arm stand dimensions
BV Endura C-arm stand movement specification.
BV Endura - C-arm stand specifications geometry
Weight 9” 280 kg
Weight 12” 295 kg

ALL RIGHTS RESERVED
Technical Data
1.3.4 Diagrams of BV Endura versions
The following diagrams show the geometry of the 9” and the 12” versions of the BV Endura respectively. The
BV Endura 9” front view:
with classic wheel base with ultra compact wheel base

360
°
MIN. 1750
MAX. 2240
800
880
BV Endura 9” side view:
with classic wheel base25 with ultra compact wheel base

25°° or 45° for extended rotation (45° for extended rotation)
° 0
9
200
430
1685
60
990
MIN. 1840
MAX. 2040

ALL RIGHTS RESERVED
Technical Data
BV Endura 9” top view:
with classic wheel base (measures in cm) with ultra compact wheel base
BV Endura 12” front view:

0
36
°
MIN. 1750
MAX. 2240
800
880

ALL RIGHTS RESERVED
Technical Data
BV Endura 12” side view:

25°° or 45° for extended rotation (45° for extended rotation)
° 0
9
200
430
1745
60
990
MIN. 1840
MAX. 2040
BV Endura 12” top view:

ALL RIGHTS RESERVED
Technical Data
1.3.5 The BV Pulsera C-arm stand dimensions
The BV Pulsera C-arm stand movement specification
BV Pulsera - C-arm stand specifications geometry
Weight 9” 305 kg
Weight 12” 310 kg

ALL RIGHTS RESERVED
Technical Data
1.3.6 Diagrams of BV Pulsera versions
The following diagrams show the geometry of the 9” and the 12” versions of the BV Pulsera respectively. The
BV Pulsera 9” front view:

360
°
MIN. 1805
MAX. 2295
800
880
BV Pulsera 9” side view:
with classic wheel base 25 with ultra compact wheel base

25° °or 45° for extended rotation (45° for extended rotation)
° 0
9
200
430
1740
60
990
MIN. 1930
MAX. 2130

ALL RIGHTS RESERVED
Technical Data
BV Pulsera 9” top view:
66
10˚ 10˚
BV Pulsera 12” front view:

360
°
MIN. 1805
MAX. 2295
800
880

ALL RIGHTS RESERVED
Technical Data
BV Pulsera 12” side view:

25°°or 45° for extended rotation (45° for extended rotation)
° 0
9
200
430
1735
60
990
MIN. 1930
MAX. 2130
BV Pulsera 12” top view:
66
10˚ 10˚

ALL RIGHTS RESERVED
Technical Data
1.3.7 The BV Pulsera Extended Rotation C-arm stand dimensions
The BV Pulsera Extended Rotation C-arm movement specification
BV Pulsera Extended Rotation C-arm stand specifications geometry
Weight 9” 295 kg
Weight 12” 305 kg

ALL RIGHTS RESERVED
Technical Data
1.3.8 The BV Family R1.2 Mobile Viewing Station
The MVS movement specification.
MVS specifications
Weight (with standard monitors) 210 kg

Weight (with High-end monitors) 220 kg
Weight (with LCD monitors) 210 kg
Video paper / transparency printer (option) 9 kg
Video cassette recorder (option) 7 kg
Video Compact Disc Recorder (option) 5 kg
1.3.9 Diagrams of MVS BV Family R1.2 with standard monitor
BV Family R1.2 – MVS side and front view with standard monitor

ALL RIGHTS RESERVED
Technical Data
1.3.10 Diagrams of MVS BV Family R1.2 with XB monitor
BV Family R1.2 – MVS side and front view with High-end monitor
1.3.11 Diagrams of MVS BV Family R1.2 with LCD monitor
BV Family R1.2 – MVS side and front view with LCD monitor

ALL RIGHTS RESERVED
Technical Data
2 MATERIAL SAFETY DATA SHEET
CAUTION
The supplier has issued the data on the following pages. The information and recommendations are believed
to be accurate. However no guarantee or warranty, expressed or implied, is made.
________________

ALL RIGHTS RESERVED
Technical Data
2.1 SEALED LEAD BATTERY

ALL RIGHTS RESERVED
Technical Data

ALL RIGHTS RESERVED
Technical Data
3 LOOSE ITEMS
3.1 LOOSE ITEMS
The following devices are delivered separately as loose items:
− Equipotential conductor and mounting material

− Footswitch
− Spare consumables; Cable deflectors; Fuses; (box)

ALL RIGHTS RESERVED
Technical Data
4 IDENTIFICATION
The type number plates are located on the PEI units. The location of the PEI number plates and labels is
given in the appropriate PEI documentation. A central information plate is located on the C-arm stand. The
presence of the label plate is indicated by the ‘I’ symbol on the rear C-arm cover.
Identification of the BV Family R1.2 System by serial number
Identification of system by serial number
EP* BV Libra 6” version Fixed anode

EQ* BV Libra 9” version Fixed anode
ER* BV Endura 9” version Fixed anode
ES* BV Endura 12” version Fixed anode
ET* BV Pulsera 9” version Rotating anode
EU* BV Pulsera 12” version Rotating anode
*) relevant part of serial number

ALL RIGHTS RESERVED
Technical Data
5 CERTIFIABLE ITEMS
5.1 THE BV LIBRA / BV ENDURA
The BV Libra / BV Endura is compatible with the following certifiable components:
Component type Model designation Labeling
X-ray Control Stand fixed anode Central

(BV Libra) 9896 001 92221/2
X-ray Control Stand fixed anode Central
(BV Endura) 9896 001 92201/2
Tube Housing Assy HT converter tank Central
Refer to unit manual
Beam Limiting Device Collimator Central
Image intensifier 15 cm II tube assy Central
(BV Libra) 9896 010 23651
or
Image Intensifier 23 cm II tube assy Central
9896 010 23661
or
Image Intensifier 30 cm GG BB Sur Central
(BV Endura) 9896 010 23581
Spotfilm Device 9” cassette holder Local
(BV Endura) Refer to unit manual
Television Receiver MD0709BRM Local
9896 010 02992
or
Television Receiver MMM17AB Local
9896 010 02961
X-ray Control XTV-8 HPA TV camera Central
Laser Product Laser aiming device Local
9896 000 07261
Laser Product Laser alignment tool Central
9896 010 00652
Laser Product MP 3000 Local
9896 000 05871 (50Hz)

ALL RIGHTS RESERVED
Technical Data
5.2 THE BV PULSERA
The BV Pulsera is compatible with the following certifiable components:
Component type Model designation Labeling
X-ray Control Stand rotating anode Central

(BV Pulsera) 9896 001 92211/2
Tube Housing Assy iXion Monoblock Central
X-ray Generator iXion HF generator Central
Beam Limiting Device Collimator Central
Image Intensifier 23 cm II tube assy Central
9896 010 23661
or
Image Intensifier 30 cm GG BB Sur Central
9896 010 23581
Television Receiver MD0709BRM Local
9896 010 02992
or
Television Receiver MMM17AB Local
9896 010 02961
X-ray Control XTV-8 HPA TV camera Central
Laser Product Laser aiming device Local
9896 000 07261
Laser Product Laser alignment tool Central
9896 010 00652
Laser Product MP 3000 Local
9896 000 05871 (50Hz)

ALL RIGHTS RESERVED
Order config & Delivery sheet
Section 2 ORDER CONFIG & DELIVERY SHEET
Contents
1. INTRODUCTION .....................................................................................................................................2
2. ORDER CONFIGURATION & DELIVERY SHEET.................................................................................2

ALL RIGHTS RESERVED
Order config & Delivery sheet
1. INTRODUCTION
In this Section the Trace list and the Packing list have to be filed.
2. ORDER CONFIGURATION & DELIVERY SHEET
To be delivered upon order

ALL RIGHTS RESERVED
Unpacking instructions
Section 3 UNPACKING INSTRUCTIONS
Contents
1. UNPACKING INSTRUCTIONS ...............................................................................................................2

1.1. Unpacking time ........................................................................................................................................2
1.2. Tools ........................................................................................................................................................2
1.3. Transportation..........................................................................................................................................2
1.4. Documents...............................................................................................................................................2
1.5. Transportation tools .................................................................................................................................2

ALL RIGHTS RESERVED
Unpacking instructions
1. UNPACKING INSTRUCTIONS
This Section contains instructions for unpacking, transportation and mounting. The unpacking instructions
are also delivered with the shipping packing.
There are 3 alternative ways in which the BV Family R1.2 System can be packed:
1. The CAS and the MVS are wrapped in plastic foil;
2. The CAS and the MVS are packed in separate (re-usable) crates;
3. The CAS and the MVS are either packed in a single disposable crate;
NOTE
The re-usable crates must be returned. For details of the packing and shipping procedures, refer to the
information inside the crates;
________________
1.1. UNPACKING TIME
The time needed to unpack a BV Family R1.2 System is:

- Re-usable crates: 0.5 hr, 1 FSE
- Disposable crates: 1 hr, 1 FSE
1.2. TOOLS
Disposable crates: electric screwdriver, standard toolkit

Others: standard toolkit
1.3. TRANSPORTATION
For transportation through the hospital building;
The dimensions of the CAS and the MVS must be observed when using elevators or going through doors.
Refer to the Section “Technical Data” for more information about dimensions & weight.
1.4. DOCUMENTS
The service documentation is delivered with the BV Family R1.2 System(s).
1.5. TRANSPORTATION TOOLS
The packed system has to be transported with a dedicated forklift to move the pallets towards its
destination(s).
This could be transportation to and in ports, warehouses and user owned buildings.

ALL RIGHTS RESERVED
Installation instructions
Section 4 INSTALLATION INSTRUCTIONS
Contents
1 INTRODUCTION .....................................................................................................................................2
1.1 Installation activities .................................................................................................................................2
1.2 Required tools & test equipment..............................................................................................................2
1.2.1 Service PC ...........................................................................................................................................2
1.2.2 Other tools & test equipment................................................................................................................2
2 OVERVIEW OF ON-SITE ACTIVITIES...................................................................................................3
3 SITE SURVEY REPORT .........................................................................................................................4

3.1 Relevant aspects .....................................................................................................................................4
3.2 Site survey report format .........................................................................................................................4
3.3 DICOM workflow interface xa questionnaire ...........................................................................................5
3.3.1 Purpose of this Questionnaire..............................................................................................................5
3.3.2 Explanation of the questions in the questionnaire below.....................................................................5
3.3.3 DICOM Workflow Questionnaire ..........................................................................................................7
4 ON-SITE INSTALLATION.....................................................................................................................12
4.1 Check on power supply requirements ...................................................................................................12
4.1.1 Site mains voltage & frequency check ...............................................................................................12
4.1.2 Mains voltage adaptation ...................................................................................................................13
4.1.3 Mains voltage programming...............................................................................................................13
4.1.4 Check on hardware programming of MCU ........................................................................................14
4.2 Installation of relevant options ...............................................................................................................14
4.3 Connection of cabling & earthing...........................................................................................................14
4.3.1 Cabling instructions............................................................................................................................14
4.3.2 Cabling diagram .................................................................................................................................15
4.4 Check on hardware programming sub-systems ....................................................................................15
4.4.1 Check on hardware programming BV Libra / BV Endura generator unit..........................................15
4.4.2 Switching ON......................................................................................................................................15

ALL RIGHTS RESERVED
1 INTRODUCTION
1.1 INSTALLATION ACTIVITIES
The total installation activities will take not more than a working day.
NOTE
X-ray systems have to be configured initially by qualified experts [factory]; the [restricted number of] experts
are trained and do have a professional qualification to work with X-ray devices. FSEs have a level 2
authorization not allowing initial system configuration. The various authority levels have been can be
found in SM-G section 2.
________________
NOTE
The factory obtained test results, of which the data are incorporated in the Service Manual under the Section
“Record of Measured Data”. These data should always be kept and used as on-site reference values.
________________
1.2 REQUIRED TOOLS & TEST EQUIPMENT
1.2.1 Service PC
The installation of the service PC software has been described in SM-SW section 1. The service PC should
have been installed before the commissioning of the system.
1.2.2 Other tools & test equipment
To perform a complete commissioning program, there are no other standard tools and/or test equipment
required.

ALL RIGHTS RESERVED
2 OVERVIEW OF ON-SITE ACTIVITIES
The following flowchart details the activities and handing over of the BV Libra / BV Endura and
BV Pulsera release 1.2 systems.
Program the
generator
frequency of the
system

ALL RIGHTS RESERVED
3 SITE SURVEY REPORT
3.1 RELEVANT ASPECTS
With respect to the on-site installation of the BV Family R1.2 Systems, these systems are relatively easy to
commission because no particular site measures are required, apart from the specific earthing requirements.
To avoid unnecessary confusion it is recommended to carry out a site survey, before the factory assembly of
the system, focusing on eventual power supply requirements. If the option of the DICOM workflow interface is
ordered, also the questionnaire has to be filled in.
The relevant aspects of the power supply are:

1. Voltage
2. Frequency
3. Plug specification
The actual data has to be gathered and reported via a Site Survey Report to (or through) the PMS SSD/SSR
organization for onward transmission to the Philips Medical Systems Nederland marketing department.
A format to report the actual data has been incorporated in this chapter.
The relevant data of the DICOM Workflow Interface should be reported via the questionnaire. This format is
also available in this Service Manual.
3.2 SITE SURVEY REPORT FORMAT
The site survey report will be part of the contractual documents and should be filed and archived together with
the other relevant documents in Section “Record of measured data”.
A (possible) format for the site survey report is the one used by PMS marketing.
NOTE
The Site Survey Report form has to be filled in for each room where the system will be used.
________________

ALL RIGHTS RESERVED
3.3 DICOM WORKFLOW INTERFACE XA QUESTIONNAIRE
The DICOM workflow interface questionnaire is also part of the Site Survey Report and should be filled in and
sent to the PMS SSD/SSR organization for onward transmission to the PMS Marketing department.
NOTE
The DICOM workflow interface questionnaire has to be attached to the Site Survey Report.
________________
3.3.1 Purpose of this Questionnaire
To assure seamless introduction of the BV Family to the hospital network, the Philips Service engineer must
have specific information before installation.
Where:
1. The local sales representative should give this questionnaire to the hospital network administrator.
2. The questionnaire responds should be faxed to the local sales representative
3. The local sales representative is responsible for making the information available to the right persons
within the local organization!
The local sales representative should make the requested information available to the service
engineer.
Providing this information in the way described above will ensure optimal preparation and a smooth
installation procedure.
NOTE
Installation can only take place and be successful if the questionnaire is completely filled out and signed
before installation!
________________
3.3.2 Explanation of the questions in the questionnaire below

3.3.2.1 Hospital information
• Name, address, etc.

Necessary for identification purposes.
• Is a Network available?
If not, it is no use trying to sell a DICOM Workflow Interface to this customer. The only thing you can do is
asking if we can help.
• Type of Network.
Tells the service engineer if special precautions are necessary.
• Hospital Network Administrator.

He or she is your most important partner in communication regarding the DICOM connectivity. (Try to get
a second name, just in case!).

ALL RIGHTS RESERVED
3.3.2.2 Modality information
The BV Family system should be connected to the DICOM network. Information about the modality is
necessary to configure the BV Family as a DICOM modality.
3.3.2.3 Worklist server and MPPS info
This information is only needed if a Worklist Server (RIS/HIS) either with or without an MPPS Server will be
used.
• AE title and an IP address and port number should be made available by the hospital.
• AE title in MWL in the Query set.
The Patient/Procedures on the Worklist Server are primarily assigned to a certain modality (default OT).
They can be made specific for a certain System by including the (Scheduled) Modality AE title in the
query set.
• Unique identification.
• Only one identifier will be used by the BV Family system to uniquely identify the patient entries in the
DFI's 'Patient Administration' list. All other parameters will automatically be updated in case they are
changed on the RIS/HIS system.
Standard the Accession number will be used for this identification. The Scheduled Procedure Step ID or the
Procedure ID can also be used. Contact the PMS helpdesk.
3.3.2.4 Target devices information
This list describes all the target devices (workstations, printers, PC, PACS etc) that should be connected with
our BV Family system.
Target name, AE title, IP address and port number for the target system should be made available by the
hospital!

ALL RIGHTS RESERVED
3.3.3 DICOM Workflow Questionnaire

3.3.3.1 Hospital Information:
a. Name ................................................................................................................................ :
Address ................................................................................................................................ :
Tel ................................................................................................................................
Fax ................................................................................................................................
E-mail ................................................................................................................................
Mains Power supply

50 Hz
60 Hz
b. Is there a Network available?
Yes
No
Is the Network an Ethernet?
Yes
No
What is the speed of the network card?
10 Mbps
100 Mbps
other speed
Is the connector a RJ45 type?
Yes
No: connector type: ...............................................................................................................
c. Hospital Network Administrator:
Name ................................................................................................................................
Tel ................................................................................................................................
Fax ................................................................................................................................
E-mail ................................................................................................................................
Second hospital network administrator or assistant
Name ................................................................................................................................
Tel ................................................................................................................................
Fax ................................................................................................................................
E-mail ................................................................................................................................

ALL RIGHTS RESERVED
3.3.3.2 Modality Information
a. BV Family system information (to be filled in by Philips)
System software release ...................................................................................
b. BV Family System information
IP address . . .
Subnet mask 255.255.255.0
Default Gateway (IP address) (see note 1) ...................................................................................
Station Name (see note 2) BV Family
AE Title BV_Family_AE
Port number for Export, Print, MPPS, WLM 104 (fixed)
Port number for Storage Commit 8104 (fixed)
c. Service PC IP address (see note 3) ...................................................................................
Note: 1
Default gateway to be used when accessing targets outside the subnet (if applicable to be obtained from the
network administrator).
Note: 2
These are default values. In case of more then one BV Family system connected to the same network,
different values, for each system, have to be chosen for the station name.
Note: 3
An IP address for the Service PC is only needed if the Service PC will be connected to the network. If service
will be performed via a serial cable, an IP address is not necessary.
3.3.3.3 Workflow server and MPPS information
This information is only needed in case of a Worklist Server (RIS/HIS) either with or without a MPPS Server.
Worklist server Information (WLM)
Manufacturer ...........................................................................................................
Model ........................................................................................................... :
Version ........................................................................................................... :
Name ........................................................................................................... :
AE Title ........................................................................................................... :
IP address ...........................................................................................................
Port number ...........................................................................................................

ALL RIGHTS RESERVED
Query (attributes)
(The query attributes below will be used to search the worklist server for entries scheduled for the BV-Family
system.)
• Modality Enable/Disable
if Yes +OT / XA / RF
• Scheduled Station AE Title Enable/Disable
• Scheduled Station Name Enable/Disable
• Scheduled Procedure Step Start date: Enable/Disable
if Enable:
Today
Three day range (Yesterday, today and tomorrow)
One week range (1 Week range centered around today)
Two week range (2 Week range centered around today)
MPPS server Information
Manufacturer ........................................................................................................................................
Model ........................................................................................................................................
Version ........................................................................................................................................
Name ........................................................................................................................................
Enable
Yes
No
AE Title ........................................................................................................................................
IP address ........................................................................................................................................
Port number ........................................................................................................................................
3.3.3.4 Target information
Print targets Information
Printer 1
Manufacturer ................................................................................................................................
Model ................................................................................................................................ :
Version ................................................................................................................................ :
Target name in
BV Family user interface ................................................................................................................................
AE Title ................................................................................................................................ :
IP address ................................................................................................................................
Port number ................................................................................................................................
Printer type (to be filled in by Philips) ......................................................................................................................

ALL RIGHTS RESERVED
Printer 2
Manufacturer ................................................................................................................................
Model ................................................................................................................................ :
Version ................................................................................................................................ :
Target name in
BV Family user interface ................................................................................................................................
AE Title ................................................................................................................................ :
IP address ................................................................................................................................
Port number ................................................................................................................................
Printer type (to be filled in by Philips) ......................................................................................................................
3.3.3.5 Store targets Information
Store targets can be used either with or without storage commitment. In case of storage commitment
additional the storage commitment AE title, IP address and the Port number have to be entered.
Storage target 1
Manufacturer ........................................................................................
Model ........................................................................................ :
Version ........................................................................................ :
Name (Name which will appear in the BV Family user interface)

........................................................................................
AE Title ........................................................................................ :
IP address ........................................................................................
Portnumber ........................................................................................
Storage Commit (to be used for this target): Enabled / Disabled
In case of a storage commitment application:
• Storage commitment AE Title ........................................................................................
• Storage commitment IP address ........................................................................................
• Storage commitment Port number ........................................................................................

ALL RIGHTS RESERVED
Storage target 2
Manufacturer ........................................................................................ :
Model ........................................................................................ :
Version ........................................................................................ :
Name (Name which will appear in the BV Family user interface)

........................................................................................
AE Title ........................................................................................ :
IP address ........................................................................................ :
Portnumber ........................................................................................ :
In case of a storage commitment application:
• Storage commitment AE Title ........................................................................................
• Storage commitment IP address ........................................................................................
• Storage commitment Port number ........................................................................................
3.3.3.6 Signature
a. Please sign this questionnaire:
Date ........................................................................................................................................
Name ........................................................................................................................................
Signature ........................................................................................................................................
b. Please fax this questionnaire to (to be filled in by Philips):
Name ........................................................................................................................................
Address ........................................................................................................................................
Fax ........................................................................................................................................

ALL RIGHTS RESERVED
4 ON-SITE INSTALLATION
4.1 CHECK ON POWER SUPPLY REQUIREMENTS
4.1.1 Site mains voltage & frequency check
As the systems are mobile X-ray systems, all the rooms where the systems are going to be used have to be
checked for mains conditions.
− The mains resistance should be checked. The results must be in accordance with the data of the
System Survey Report.
− The mains voltage should be checked. The results must be in accordance with the data of the
− The mains frequency should be checked. The results must be in accordance with the data of the

ALL RIGHTS RESERVED
4.1.2 Mains voltage adaptation
The system uses an internal voltage of 230 V AC.
The system voltage is adjusted to either 120 or 230 V, according tot the wall outlet.
To adapt the system to the different hospital voltages perform the procedure mentioned below:
• For 230 V, cross 120 V out on mains rating label at the rear of the mobile viewing station.
• For 120 V, cross 230 V out on mains rating label at the rear of the mobile viewing station monitor.
• For other voltages, add the new label delivered with the system indicating the programmed voltage.
NOTE
Strike out the unused current value indication on the fuse holder.
________________
4.1.3 Mains voltage programming
To adapt the system to the mains voltage proceed as follows:

1. Remove the rear and front panel of the MVS.
2. Connect the mains input voltage connector according the table below.
3. Program the transformer input voltages at the terminal block by connecting the (5) programming wires
according to the table below.
4. Insert the proper fuses for F1 and F2.
5. In the BV Libra and BV Endura, check or program jumper SEA2:W3 of the Fet power control in the 50 or
60 Hz position, for a drawing refer to SM-CM section 7.
6. In the BV Pulsera, check or position the jumper on the SEA2 board to K1 for 50 or 60 Hz, (the jumper in
the highest position is 50 Hz, in the lowest position is 60 Hz).
7. Re-install the rear and front panel of the MVS.
CAUTION
Check WA1:X5 / X3 connector according the table below. Improper connection could cause damage.
________________
Mains Main input Fuses Transformer lead connected to:

[voltage] to WA1 [F1, F2]
1 2 3 4 5
100 V X5 15 A* 105 101 104 106 109
110 V X5 15 A* 102 101 104 105 109
120 V X5 15 A* 106 101 104 105 109
130 V X5 15 A* 107 101 104 105 109
200 V X3 15 A 105 102 103 107 108
210 V X3 15 A 105 102 103 106 108
220 V X3 15 A 104 102 103 105 108
230 V X3 15 A 106 102 103 105 108
240 V X3 15 A 107 102 103 105 108
* The fuses F1 and F2 should be 30 A for the BV Libra and BV Endura when the Radiography mode is
enabled. If the fuse rating is changed: cross out the incorrect fuse rating on the lable next to the fuses using a
black permanent marker.

ALL RIGHTS RESERVED
Check on hardware programming BV Pulsera generator
Set up the stator supply board (SEA 2) as follows:
Mains frequency Jumper position SEA2

K1 K2
50 Hz IN OUT
60 Hz OUT IN
4.1.4 Check on hardware programming of MCU
Based on a proper filled in site survey report the MCU hardware programming has been done in the factory. A
check on this programming is sufficient to control the essential jumper settings.
CAUTION
Incorrect connections can cause malfunctioning of the unit and may cause a Safety Hazard.
________________
System type Position cable Jumper Jumper Jumper Connection

WA – X5 into position position Position between WA – T1:
position WA1 – W1 WA1 – W2 WA1 – W3 115 116
BV Libra WA – X2 1-2 Always open 1–2 Closed
BV Endura WA – X2 1-2 Always open 1–2 Closed
BV Pulsera WA – X3 1-2 Always open 1–3 Open
4.2 INSTALLATION OF RELEVANT OPTIONS
Depending on the ordered options, these options have to be installed and connected as well.
For further information, refer to the Section “Options”. Pre-installation usually has been done during factory
testing.
4.3 CONNECTION OF CABLING & EARTHING
4.3.1 Cabling instructions
No cables need to be attached to walls, floor or ceiling.
CAUTION
Check adaptation of the system to the mains voltage before connecting to the mains.
________________
CAUTION
Never extend or replace the special type hospital mains supply cable of the BV Family System.
Length, earth wire, diameter of cable are subject to legal requirement.
________________

ALL RIGHTS RESERVED
CAUTION
Hospital mains must be “Hospital Grade” in the USA and Canada. In other countries, the plug must comply
with local safety regulations. For further information, refer to the Section “Technical Data”.
The mains plug can be changed but for max Ri of mains wall outlet, refer to the Section “Technical Data”.
________________
4.3.2 Cabling diagram
Connect all the cables and earthing wires according to this cabling diagram.
4.4 CHECK ON HARDWARE PROGRAMMING SUB-SYSTEMS
4.4.1 Check on hardware programming BV Libra / BV Endura generator

unit
Set the jumper X3 on the FET power control board (SEA 2) to the 50 Hz or 60 Hz position depending on your
mains frequency.
4.4.2 Switching ON
When the system is switching on it performs a system initialization and self-test.
The system is ready to be used when the MVS shows the “Patient administration” on the left (live) monitor and
the CAS display shows the status and settings without error messages.

ALL RIGHTS RESERVED
Setting to Work procedure
Section 5 SETTING TO WORK PROCEDURE
Contents
1 INTRODUCTION .....................................................................................................................................2
2 SETTING TO WORK PROCEDURES ....................................................................................................3

2.1 Switching the system ON.........................................................................................................................3
2.2 Setting to work the VCR, VCDR & Paper printer [optional, if present] ....................................................3
2.3 Setting to work the DICOM Workflow [optional, if present]......................................................................3
2.4 Customizing the system...........................................................................................................................3
3 SOFTWARE PROGRAMMING ...............................................................................................................4

3.1 Check on the software license authority..................................................................................................4
3.2 Check on software programming of BV Family R1.2 System .................................................................4
3.2.1 Checking the configuration of the BV Family R1.2 System .................................................................4
3.2.2 Checking the System Settings .............................................................................................................5
3.2.3 Checking the Examinations names......................................................................................................9
3.3 Setting to work of DICOM workflow interface ........................................................................................10
4 FUNCTIONAL CHECKS .......................................................................................................................11

4.1 X-ray control function check ..................................................................................................................11
4.2 Iris check................................................................................................................................................11
4.3 II-LAT check...........................................................................................................................................11
4.4 Tank LAT check .....................................................................................................................................11
4.5 Lamp test CAS.......................................................................................................................................11
4.6 Lamp test MVS ......................................................................................................................................11
4.7 Check of [level 1] image quality .............................................................................................................11
5 X-RAY TUBE CONDITIONING .............................................................................................................12

5.1 General ..................................................................................................................................................12
5.2 Conditioning of BV Libra and BV Endura ..............................................................................................12
5.3 Conditioning of BV Pulsera....................................................................................................................13
5.4 Completion of the Setting to Work .........................................................................................................13

ALL RIGHTS RESERVED
1 INTRODUCTION
After having completed the procedure for unpacking and re-installation of the system, with reference to the
various Sections, the system is ready to be connected to the hospital mains power supply. The BV Family
R1.2 Systems are also pre-adjusted, so no actual new on-site adjustments have to be carried out.
If the previous re-installation measures did not take place, refer to the Section “Installation instructions”.
This Section deals with the setting to work procedure(s) as part of the commissioning: a general check on the
functionality of the system.
In case that software adjustments should be performed, refer to the Section “Adjustment & Verification”.
In general, the delivered equipment could have been stored in warehouses before the setting to work. For this
reason an X-ray tube conditioning program is developed and should be considered.
If the X-ray tube has been out of order for more than 3 months, the conditioning program has to be performed.
A separate procedure is developed for the BV Libra \ BV Endura and the BV Pulsera.
Part of the whole procedure is also a check on the options for the license key. The (32) character string should
allow for the relevant and ordered configuration.
SMI 5 - 2 (04.0) BV Family R1.2 / Volume 1

ALL RIGHTS RESERVED
2 SETTING TO WORK PROCEDURES
2.1 SWITCHING THE SYSTEM ON
NOTE
The BV Family R1.2 Systems are earthed through the mains supply cable.
________________
CAUTION
Always allow 10 seconds between switching off and on the power to prevent possible damage to power
supply components in the BV Family R1.2 Systems.
________________
1. Connect the cable between the MVS and the CAS.

2. Plug in the hospital mains cable of the MVS to the mains supply – grounded - wall socket.
3. Switch ON the system by pressing the “Power-on” button on the MVS console or CAS console.
4. Enable the key switch.
2.2 SETTING TO WORK THE VCR, VCDR & PAPER PRINTER [OPTIONAL, IF PRESENT]
Press the I/O button on the VCR/VCDR and the I/O button on the paper/transparency printer for setting to
work of the devices. After the setting to work, the devices are not switched off, due to central on & off
switching (red button) of both the MVS and/or CAS.
2.3 SETTING TO WORK THE DICOM WORKFLOW [OPTIONAL, IF PRESENT]
DICOM functions are integrated in the software. Configuration is required. For more information, refer to SM-
SW section 1, 2 and 3.
2.4 CUSTOMIZING THE SYSTEM
For customizing the BV Family R1.2 Systems, refer to the Section “Customizing the BV Family R1.2 System”.

ALL RIGHTS RESERVED
3 SOFTWARE PROGRAMMING
3.1 CHECK ON THE SOFTWARE LICENSE AUTHORITY
NOTE
When the system is delivered initially, the user’s software license number has already been entered into in the
factory. The form showing the license number is shipped together with the system. This form should be filed
as a contract document very carefully.
________________
3.2 CHECK ON SOFTWARE PROGRAMMING OF BV FAMILY R1.2 SYSTEM
NOTE
Downloading the application software has to be repeated in case of malfunctioning.

________________
For the complete installation procedure of the BV Family R1.2 System application software, refer to the
Section “Software installation”.
In the factory the settings of the system has been configured based on default values. This check is a check
on programming these default values only.
Perform the Program manual procedures for [configuration and examination of] default programming. A
requirement is the Service PC has been configures according to SM-SW section 3.
3.2.1 Checking the configuration of the BV Family R1.2 System
1. On the MVS, select Enable service

2. Open BV-Scope.
3. Select: Install > Program Manual > System Configuration. The window below appears.
4. Click the Info button. A window appears that gives a survey of installed and not installed options.

ALL RIGHTS RESERVED
3.2.2 Checking the System Settings
Select: Install > Program Manual > System Settings

Perform BV-Scope window instructions System settings to change the APF settings of the BV Family
R1.2 systems.
Scroll setting window for more system settings.
Example for BV Libra and BV Endura:
WARNING
Compliance with IEC 60601-2-43 Interventional Procedures.

For compliance with IEC 60601-2-43, the system must not be customized with ‘Pulsed LDF’ mode as the
switch on default mode ( i.e. Default technique = Exposure and Default X-mode = Pulsed). This mode has a
dose output above the IEC Normal dose level (see table in the technical data section).
As the default Examination can be selected by the User on the MVS interface,
this applies to all examination types.
________________

ALL RIGHTS RESERVED
Example for BV Pulsera:

ALL RIGHTS RESERVED
Parameter Value range
Common
kV/mA curve Normal, High Contrast, Isowatt
Focus Small, Large
XTV Measure Field Size 0 = auto, 1 ... 7
Left button
Image processing:
Enable subtraction yes, no
Trace black/white black, white
Landmarking level 0 ... 3
Image storage:
Storage Rate [fr/s] 0, 1, 2, 3, 5, 8, 12, 25
Store Last Image Hold yes, no
VCR Control on, off
Video processing
Integration factor 0 ... 60
FM Noise Reduction Level 1, 3/4, 1/2, 1/4, 1/8, 1/16
FM Movement Detection on, off
FM Movement Sensitivity off, low, medium, high
FM Contrast -49 ... +49
FM Brightness -49 ... +49
FM Edge Enhancement off, low, medium, high
FM Video Invert on, off
SM Noise Reduction Level 1, 3/4, 1/2, 1/4, 1/8, 1/16
SM Movement Detection on, off
SM Movement Sensitivity off, low, medium, high
SM Contrast -49 ... +49
SM Brightness -49 ... +49
SM Edge Enhancement off, low, medium, high
SM Video Invert on, off
Table: system settings (APF) parameters for left button

ALL RIGHTS RESERVED
Parameter Value range
Right button
X-ray generator:
Pulse width short, medium, long
Initial pulse rate (pulsed) 3, 5, 8, 12, 25
Image processing:
Enable subtraction yes, no
Trace black/white black, white
Landmarking level 0 ... 3
Image storage:
Storage Rate [fr/s] 0, 1, 2, 3, 5, 8, 12 25
Store Last Image Hold yes, no
VCR Control on, off
Video processing
Integration factor 0 ... 60
FM Noise Reduction Level 1, 3/4, 1/2, 1/4, 1/8, 1/16
FM Movement Detection on, off
FM Movement Sensitivity off, low, medium, high
FM Contrast -49 ... +49
FM Brightness -49 ... +49
FM Edge Enhancement off, low, medium, high
FM Video Invert on, off
SM Noise Reduction Level 1, 3/4, 1/2, 1/4, 1/8, 1/16
SM Movement Detection on, off
SM Movement Sensitivity off, low, medium, high
SM Contrast -49 ... +49
SM Brightness -49 ... +49
SM Edge Enhancement off, low, medium, high
SM Video Invert on, off
Table: system settings (APF) parameters for right button

ALL RIGHTS RESERVED
3.2.3 Checking the Examinations names
Select Install > Program Manual > Examination names

Perform BV-Scope window instructions Examination names.

ALL RIGHTS RESERVED
3.3 SETTING TO WORK OF DICOM WORKFLOW INTERFACE
The application software has already been installed in the factory.
For (re)configuration of the software, refer to SM-SW section 1 and 3.
NOTE
To allow for re-configuring the DICOM workflow interface, refer to the site survey data obtained from the user
via the DICOM workflow interface Questionnaire (refer to SMI section 4).
________________

ALL RIGHTS RESERVED
4 FUNCTIONAL CHECKS
Check if the system starts-up without error codes on the display of the MVS or CAS, if not note the error code
and check and perform the service instructions before continuing the functional checks.
4.1 X-RAY CONTROL FUNCTION CHECK
Check the X-ray control functions of the system as described in the “Instructions for Use”.
4.2 IRIS CHECK
Check the iris functions of the system as described in the “Instructions for Use”.
4.3 II-LAT CHECK
Check the II LAT functions of the system as described in the “Instructions for Use”.
4.4 TANK LAT CHECK
Check the tank LAT functions of the system as described in the “Instructions for Use”.
4.5 LAMP TEST CAS
Check the lamps of the CAS as described in the “Instructions for Use”.
4.6 LAMP TEST MVS
Check the lamps of the MVS as described in the “Instructions for Use”.
4.7 CHECK OF [LEVEL 1] IMAGE QUALITY
Check the level 1 image quality performance of the BV Family R1.2 member.
Refer to the System Manual Corrective Maintenance, Section “Image Performance Checks”.

ALL RIGHTS RESERVED
5 X-RAY TUBE CONDITIONING
5.1 GENERAL
NOTE
Only carry out the X-ray tube conditioning procedure if the X-ray Tank has been out of use for a longer period
of time (+/- 3 months), has been replaced or arcs too much (> 3 times / day).
________________
Perform BV-Scope window instructions as per the relevant BV Family R1.2 System.
5.2 CONDITIONING OF BV LIBRA AND BV ENDURA
The duty cycles for the BV Libra and BV Endura are incorporated in the BV-Scope windows.
[Select BV-Scope path]: Install > Adjustment > X-ray tube > Conditioning
Perform BV-Scope window instructions Conditioning.

ALL RIGHTS RESERVED
5.3 CONDITIONING OF BV PULSERA
The particular values for the BV Pulsera are incorporated in the BV-Scope windows
[Select BV-Scope path]: Install > Adjustment > X-ray tube > Conditioning.
Perform BV-Scope window instructions Conditioning.
5.4 COMPLETION OF THE SETTING TO WORK
This will complete the setting to work procedure. To continue, refer to the Section “Performance check
program”.

ALL RIGHTS RESERVED
Performance check program
Section 6 PERFORMANCE CHECK PROGRAM
Contents
1 INTRODUCTION .....................................................................................................................................2
1.1 The scope of the checks..........................................................................................................................2
1.2 Required tools & test equipment..............................................................................................................2
1.3 Requirements of status report values ......................................................................................................2
2 PERFORMANCE CHECKS ....................................................................................................................3

2.1 Mechanical checks ..................................................................................................................................3
2.2 Functional test..........................................................................................................................................4
2.2.1 X-ray control function check.................................................................................................................4
2.2.2 Iris check ..............................................................................................................................................5
2.2.3 Laser aiming device check...................................................................................................................5
2.2.4 Laser alignment tool check ..................................................................................................................5
2.2.5 Beep and lamp test C-arm stand .........................................................................................................5
2.2.6 Beep and lamp test mobile viewing station..........................................................................................5
2.3 Image quality check [level 1]....................................................................................................................6
3 CHECK LOCALLY REQUIRED COMPLIANCE(S)................................................................................7
4 COMPLETION OF THE PERFORMANCE CHECK PROGRAM ...........................................................7

ALL RIGHTS RESERVED
1 INTRODUCTION
After the system is commissioned on site, a number of performance checks have to be carried out to ensure
that the BV Family R1.2 System(s) are functioning properly and within specification(s).
1.1 THE SCOPE OF THE CHECKS
NOTE
The function of all operator controls and indicators are described in the Instructions for Use as per the relevant
BV Family R1.2 Systems: BV Libra, BV Endura or BV Pulsera.
________________
The performance check program will be as follows:

1. [Mechanical] movement checks
2. Functional checks
3. IQ [level 1] checks
On-site testing is restricted, because X-ray performance testing can only be carried out with certain
constraints to the required facilities. However, the whole performance testing has been done in the factory, for
which a full status report will be supplied together with each individual system delivered. Reference will be
made to the relevant measured data as stored under the Section “Record of Measured Data”.
In this Section, the mechanical movement and functional checks are described. For the image performance,
refer to the System Manual Corrective Maintenance, Section “Image performance checks”.
1.2 REQUIRED TOOLS & TEST EQUIPMENT
The standard recommended service kit will be sufficient to do the on-site [IQ] performance checks. Refer to
the Section “General Introduction”.
For [level 1] image quality measurements, a set of special IQ phantoms is required. The content list is part of
the Section “Image performance checks”.
1.3 REQUIREMENTS OF STATUS REPORT VALUES
The minimum and maximum IQ system values are given in the status report.

ALL RIGHTS RESERVED
2 PERFORMANCE CHECKS
2.1 MECHANICAL CHECKS
CAUTION
Prior to rotate the C-arm, measures must be taken to avoid the 12” II/TV camera to touch anything.
An uncontrolled touch down will damage the camera.
________________
The mechanical movements as described in the Technical Data of the Instructions for Use have to be
checked. The movements can be split up in the following categories:
Check Description
Angulation Check the functioning: +90˚ / -25˚ (+90˚ / -45˚ for extended rotation)
Rotation Check the functioning: beyond +/- 180˚, safety stop at 155˚
Panning movement Check the functioning: +/- 10˚
Longitudinal travel Check the functioning: 20 cm
Motorized height movement Check the functioning: +43 cm / -6 cm
(+41 cm / -8 cm for BV Libra and Extended Rotation)
Horizontal movement Check the functioning of the transportation brakes. For drawings, refer
to SM-I section 1
Cable deflectors Check for presence and damage
Brakes and locks Check the functioning
All mechanical stops Check the functioning
Fasteners and cables Check for damage
Wheels, wheel alignment and cable Check the functioning
deflectors
LCD arm (optional) Check the functioning

ALL RIGHTS RESERVED
2.2 FUNCTIONAL TEST
User routine checks program
The user of a BV-Family system must institute a User Routine Checks Program as detailed in the table below.
Normally, the user will instruct operators to perform these checks and any corresponding actions. In any case,
it is for the operator of the system to make sure that all checks and actions have been satisfactorily completed
before using the system for its intended purpose.
Check Description Frequency
Accessories Availability and integrity Daily 1

Cable deflectors Check for presence and damage Daily 1
Brakes, wheels, steering Ensure correct function Daily 1
Cabling Inspect all cables for kinks and/or cracks Daily 1
Beep and lamp test Check for correct function 3 After start-up 1
Connectors Check correct connection and damage Daily 1
Power-on Check display and monitor for error messages Before use 1
X-ray Ensure correct function 3 Daily 1
Check beep and lamp 3 Daily 1
Check iris settings and verify their position 3 Daily 1
Check the correct function of the system lock Daily 1
Ensure correct function of the keys Daily 1

C-arm stand Check for battery charge warning message After start-up
Energy storage unit Check for damage and correct function Daily 1
(Pulsera only)
Hand switch Check for damage and correct function Daily 1
Foot switch Check for correct function Daily 1
Height movement Ensure correct function of the monitors Daily 1
Mobile viewing station Ensure correct function of the keys Daily 1
Check for damage and correct function Daily 1
Remote control Check for correct alignment 3 Daily 1
Laser alignment tool Check for correct function and paper/ transparency presence Daily 1
Printer Check for correct function/tape presence Daily 1
VCR Check for correct function/cd-r(w) presence Daily 1
VCDR
¹ Visual and/or audible checks.

² Contact Service for advice on error messages which appear after start-up.
³ For detailed instructions see below.
2.2.1 X-ray control function check

The X-ray control function check should be performed daily without any objects in the X-ray beam.
1. Press the ‘kV’ soft key to select manual kV.
2. Enter 70 kV.
3. Press the ‘kV’ soft key to select automatic kV and perform fluoro.
4. If the kV value drops to 42 - 47 kV, the X-ray control function is working properly.

ALL RIGHTS RESERVED
2.2.2 Iris check

The iris should be checked daily.
1. Perform fluoroscopy without any objects in the X-ray beam and close the iris to about half the size.
2. Press the |Select iris| key. The iris circle is displayed.
3. When the circle covers the edge of the image the iris setting is correct.
4. Perform the steps for the other II sizes.
2.2.3 Laser aiming device check

The laser aiming device check should be checked daily or directly after installation of the device.
1. Aim the laser. (Refer to SM-CM 5, chapter ‘Laser alignment tool’ and to the Instructions for use, chapter
‘Laser positioning tools’).
2. Place a pair of scissors, with its scissor point in the laser beam at 30 cm of the II.
Figure: Laser aiming device check with scissor point
3. Perform fluoro.
4. Check if the scissor point coincides with the marking on the image.
2.2.4 Laser alignment tool check

The laser alignment tool (LAT) alignment check should be checked daily.
1. Install the target plate on the II (Refer to the Instructions for use, chapter ‘Laser positioning tools’).
2. Turn the laser on by pressing the |LAT on/off| key.
3. Check if the laser cross coincides with the centre of the lead target plate cross.
2.2.5 Beep and lamp test C-arm stand

The beep and lamp test should be performed after start-up.
1. Press the |Information| and the |Reset shutter(s)/iris| keys simultaneously to activate the beep and lamp
test.
All LEDs are illuminated, a blank (i.e. white/amber) screen will be displayed and all buzzers will sound.
2. Release the keys, or one of the keys, to stop the beep and lamp test.
2.2.6 Beep and lamp test mobile viewing station

The beep and lamp test should be performed after start-up.
1. Press the |Ctrl| and |Shift| keys simultaneously to activate the beep and lamp test.
A short beep sounds and all LEDs and the X-ray on indicator lamp will be turned on.
2. Release the keys, or one of the keys, to stop the beep and lamp test.

ALL RIGHTS RESERVED
A BV Family R1.2 System will start up in the fluoro mode, it should then be checked on its functionality.
Check Description
Accessories Availability and integrity
Cabling Inspect all cables for kinks and/or cracks
Beep and lamp test Check for correct function after start-up
Connectors Check for correct connection and damages
Power-on Check display and monitor for error messages
X-Ray Ensure correct function
Check X-ray indications and beep (with High Dose Fluoroscopy
and after making an Exposure)
Check Collimator settings and verify position
Check correct function of the (optional) system lock
C-arm stand Ensure correct function of the keys
Hand-switch Check for damage and correct function
Foot-switch Check for damage and correct function
Energy Storage Unit (BV Pulsera only) Check for battery charge warning message after start-up
Mobile Viewing Station Ensure correct functioning of the monitors
Mobile Viewing Station Ensure correct functioning of the keys
X-Ray control function check

The X-ray control function check should be performed without any objects in the X-ray beam.
1. Press the ‘kV’ soft key to select manual kV.
2. Set kV value to 70 kV.
3. Press the ‘kV’ soft key to select automatic kV and perform fluoro.
4. If the kV value drops to 42 - 47 kV, the X-ray control function is working properly.
Collimator check
1. Perform fluoroscopy without any objects in the X-ray beam and close the iris to about half the size.
2. Stop Low Dose Fluoroscopy.
3. Press the |Select iris| key for a moment (the collimator iris circle is displayed).
4. When the circle covers the edge of the image the iris setting is correct.
5. Perform the steps for the other II sizes.
6. Perform the steps 1 to 5 for shutters instead of the iris.
Radiography check
1. Make the iris as small as possible and check the visual position of the iris.
2. Check if during a switch to radiography the iris does not move.
3. Check if during a switch to film the iris opens.
4. Make an exposure with 40 kV and the lowest possible mAs and check for beeps after exposure.
2.3 IMAGE QUALITY CHECK [LEVEL 1]
For the [level 1] image quality performance checks, refer to the System Manual Corrective Maintenance,
Section “Image Performance Checks”.
The Image performance checks are part of this Performance check program and shall be carried out
immediately after finalizing the functional checks.

ALL RIGHTS RESERVED
3 CHECK LOCALLY REQUIRED COMPLIANCE(S)
These checks have to be investigated by the local PMS SSR/SSD organization and attached to this Section of
the Service Manual.
4 COMPLETION OF THE PERFORMANCE CHECK PROGRAM
This will complete the Performance check program. To continue, refer to the Section “Hand over procedure”.

ALL RIGHTS RESERVED
Hand-over procedure
Section 7 HAND-OVER PROCEDURE
Contents
1. INTRODUCTION .....................................................................................................................................2
2. PERFORM QUICK CHECKS FOR USER ACCEPTANCE ....................................................................3

2.1. Required documentation..........................................................................................................................3
2.2. Required tools & test equipment..............................................................................................................3
2.3. The test programme ................................................................................................................................4
2.3.1. The setting to work results ...................................................................................................................4
2.3.2. Optimization of the printer [optional, if present] ...................................................................................4
2.4. Evaluation of the test results....................................................................................................................4
2.5. System status report [SSR] .....................................................................................................................4
3. HAND OVER CERTIFICATE ..................................................................................................................4
4. COMPLETION OF THE COMMISSIONING OF THE SYSTEM .............................................................4

ALL RIGHTS RESERVED
Hand-over procedure
1. INTRODUCTION
After the BV Family R1.2 System has been unpacked, installed, set to work and the performances checked,
the owner and the FSE have made sure that the system is operating in accordance with the specifications.
This Section describes the evaluation of the results of the witnessed performance checks and enables the
owner and/or user to accept the system accordingly.
IEC requires to check the performances at a regular basis. It should be advised, due to the specialistic know-
how, the special environment necessary (to be able to do the performance checks) and the special tools &
test equipment required, to have these services rendered by the supplier of the system. For this reason PMS
has developed a general Planned Maintenance service contract including a regular [image] performance
check programme.

ALL RIGHTS RESERVED
Hand-over procedure
2. PERFORM QUICK CHECKS FOR USER ACCEPTANCE
2.1. REQUIRED DOCUMENTATION
To be able to carry out a selection of performance checks, the performance quick checks, the following
documentation is required:
− Shipping documents;
− Service Manual;
− Factory released measured data;
− IQ Performance Manual;
− A dedicated test programme;
− An advice to the owner to witness certain tests;
2.2. REQUIRED TOOLS & TEST EQUIPMENT
To carry out the performance checks the standard service kit is required. Refer to the Section “General
Introduction”.

ALL RIGHTS RESERVED
Hand-over procedure
2.3. THE TEST PROGRAMME
2.3.1. THE SETTING TO WORK RESULTS
The test results are available, refer to the previous setting to work procedures.
2.3.2. OPTIMIZATION OF THE PRINTER [OPTIONAL, IF PRESENT]
Refer to the PEI manaul “VCR / paper printer”.
2.4. EVALUATION OF THE TEST RESULTS
In the Technical Data the evaluation criteria has been tabled. As long as the results are within the prescribed
tolerances, the system is working within specification. The system could be handed over end used by
specified and qualified personnel.
2.5. SYSTEM STATUS REPORT [SSR]
After having completed the programme successfully, a SSR will be composed to inform the owner and the
PMS X-ray HelpDesk. This initial field SSR will form the basis for future periodical control on performances
and has to be stored and archived carefully.
3. HAND OVER CERTIFICATE
To hand over the system to the owner a hand-over certificate has to be signed by PMS and the owner. The
date of signing this certificate is also the date, the warranty period will start. The hand over certificate, the
invoice and the service documentation together will form the [contractual] warranty document.
4. COMPLETION OF THE COMMISSIONING OF THE SYSTEM
This will complete the commissioning procedure. To continue, refer to the Section “Customizing the BV
Family R1.2 System”.

ALL RIGHTS RESERVED
Customizing the BV Family System
Section 8 CUSTOMIZING THE BV FAMILY SYSTEM
Contents
1 INTRODUCTION .....................................................................................................................................2
2 CUSTOMIZING THE SYSTEM................................................................................................................3

2.1 Default settings ........................................................................................................................................3
2.1.1 Customizing the BV Family R1.2 system.............................................................................................4
2.1.2 Example programming System setting ................................................................................................5
2.1.3 Dose limitations ....................................................................................................................................6
2.1.4 DICOM configuration............................................................................................................................6
2.2 Customizing the user printer....................................................................................................................7

ALL RIGHTS RESERVED
Section 8 Service manual BV Family R1.2
1 INTRODUCTION
The BV Family R1.2 Systems can be customized upon request of the user. This customization program will be
carried out after the hand over of the system has taken place to avoid differences in test results between
factory and on site tests.

ALL RIGHTS RESERVED
2 CUSTOMIZING THE SYSTEM
2.1 DEFAULT SETTINGS
Customization takes place through the BV-Scope windows with the BV Family R1.2 System
The default values are:
System configuration, settings panel:
Parameter Default
System Serial number 830
Shutter L + R Coupled No
Camera angle [deg] 0
Radiography possible Yes
No. of examinations types 5
Max kV [kV] 110
French Homologation No
Gamma Correction 1
Initialize Image Disk NO
SW License Key ‘clear’
User configuration, settings panel:
Parameter Default
Hospital name ‘clear’
Language English
Birth date field as Birth date
Data Format dd-mm-yyyy
Live additional text OFF
Display Exam type Yes
Units of measure 0.1 mm
For dose limitations, refer to SM-CM section Adjustment & Verification.

ALL RIGHTS RESERVED
2.1.1 Customizing the BV Family R1.2 system
The BV Family R1.2 system is delivered whereas the site-specific information still has to be configured.
Procedure:
[Select BV-Scope path]: Install > Program Manual > Site Specific
Perform BV-Scope window instructions Site Specific Configuration.
2 Setting window
Parameter Value Value default

range steps
Initialize Image Disk NO, YES n.a. NO

(see the Note below the table) (see the Note below the table)
Run Buffer Size* 5 ... 45 1 • with mem ext. 50 set to 10
10 ... 495 1 • with mem ext. 500 set to 100
10 ... 5000 1 • with mem ext. 10.000 set to 2500
Cocktail: contrast [1] 50 ... 150 1 115 %
Cocktail: brightness [1] 50 ... 150 1 104 %
*) Gives the amount of images that is always left free for storing runs.
NOTE
The runs and images are removed if YES is selected. No other data is removed. If the run buffer size is
changed then the service engineer is forced to initialize the image disk.
________________

ALL RIGHTS RESERVED
2.1.2 Example programming System setting

WARNING
Compliance with IEC 60601-2-43 Interventional Procedures.
For compliance with IEC 60601-2-43, the system must not be customized with ‘Pulsed LDF’ mode as the
switch on default mode ( i.e. Default technique = Exposure and Default X-mode = Pulsed). This mode has a
dose output above the IEC Normal dose level (see table in the technical data section). As the default
Examination can be selected by the User on the MVS interface, this applies to all examination types.
________________
[Select BV-Scope path]: Install > Program Manual > System settings
Perform BV-Scope window instructions System settings;(Scroll the reference/settings if required)
Actual Examination name

Last Exam. Update Date
Common
kV/mA curve Normal
Focus Small
XTV Measure Field Size 0
Left button Right button
X-ray generator:
Pulse width (Pulsera only) short
Initial pulse rate (Pulsera only) 3
Image processing:
Enable subtraction yes Enable subtraction yes
trace black/white black trace black/white black
Landmarking level 0 Landmarking level 0
Image storage:
Storage Rate [fr/s] 0 Storage Rate [fr/s] 0
Store Last Image Hold no Store Last Image Hold no
VCR Control off VCR Control off
Video processing
Integration factor 0 Integration factor 0
FM Noise Reduction Level 1 FM Noise Reduction Level 1
FM Movement Detection off FM Movement Detection off
FM Movement Sensitivity off FM Movement Sensitivity off
FM Contrast 0 FM Contrast 0
FM Brightness 0 FM Brightness 0
FM Edge Enhancement off FM Edge Enhancement off
FM Video Invert off FM Video Invert off
SM Noise Reduction Level 1 SM Noise Reduction Level 1
SM Movement Detection off SM Movement Detection off
SM Movement Sensitivity off SM Movement Sensitivity off
SM Contrast 0 SM Contrast 0
SM Brightness 0 SM Brightness 0
SM Edge Enhancement off SM Edge Enhancement off
SM Video Invert off SM Video Invert off
Table: System Settings window, example for Endura & Pulsera

ALL RIGHTS RESERVED
[Select BV-Scope path]: Install > Program Manual > System Settings; 01: Orthopaedics
Perform BV-Scope window instructions System settings
(Scroll setting window for more system settings.)
System Settings window, example
2.1.3 Dose limitations
For dose limitations, refer to SM-CM section Adjustment & Verification.
2.1.4 DICOM configuration
For DICOM configuration, refer to SM-SW section 3.

ALL RIGHTS RESERVED
2.2 CUSTOMIZING THE USER PRINTER
To optimize the user printer upon user’s requirements the FSE will adjust this accordingly. For details about
how to customize the User’s printer, refer to the PEI manual “VCR / Paper printer”.
After having customized the system, the BV Family System is completely re-installed and is ready for actual
operation to be performed by the user.
NOTE
Write down changed values in the ‘User changed APF settings’ in the Instructions for Use.
Make a copy of the new values on disk.
________________

ALL RIGHTS RESERVED
Record of measured data
Section 9 RECORD OF MEASURED DATA
Contents
1. INTRODUCTION .....................................................................................................................................2
2. MEASURED DATA .................................................................................................................................2

ALL RIGHTS RESERVED
Record of measured data
1. INTRODUCTION
In this Section the factory measured [performance] data of the system have to be filed. Any change in data
due to (regular) performance measurements should be filed here as well.
2. MEASURED DATA
The measured data

ALL RIGHTS RESERVED
Modifications
Section 10 MODIFICATIONS
Contents
1. INTRODUCTION .....................................................................................................................................2
2. MODIFICATIONS ....................................................................................................................................2

ALL RIGHTS RESERVED
Modifications
1. INTRODUCTION
In this Section the Field Changes / Field Change Orders have to be filed.
2. MODIFICATIONS
Field Change orders

ALL RIGHTS RESERVED

Service Manual BV Family R1.2

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Service Manual BV Family R1.2

Uploaded by

Copyright:

Available Formats

Service Manual BV Family R1.

Section 1 TECHNICAL DATA

1 TECHNICAL DATA .................................................................................................................................3

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 1

2 MATERIAL SAFETY DATA SHEET.....................................................................................................63

3 LOOSE ITEMS ......................................................................................................................................66

5 CERTIFIABLE ITEMS ...........................................................................................................................68

SM-I 1 - 2 (04.0) BV Family R1.2 / Volume 1

1.1 STANDARDS AND REGULATIONS

Philips Medical systems

Fax: +31 40 27 63110

1.2.1 Release numbers

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 3

1.2.2 Environmental conditions

BV Libra / BV Endura - Environmental conditions

Operating temperature 10 to 40 ˚C (maximum permitted range)

Air pressure operation & storage 700 / 1100 Hp

Vibration 10 – 150 Hz, 0.35 mm peak

BV Pulsera – Environmental conditions

Operating temperature 10 to 40˚C (maximum permitted range)

Air pressure operation & storage 700 / 1100 Hp

Vibration 10 – 150 Hz, 0.35 mm peak

SM-I 1 - 4 (04.0) BV Family R1.2 / Volume 1

1.2.3 Generator BV Libra / BV Endura

BV Libra / BV Endura - Generator

Type HF converter, DC generator

BV Libra / BV Endura - Maximum loading factors

Definition Fluoro Rad Rad (France)

Nominal X-ray tube voltage 110 kV 105 kV 105 kV

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 5

1.2.4 Generator BV Pulsera

Loading data Fluoroscopy Focus 0.3 / 0.6 IEC

SM-I 1 - 6 (04.0) BV Family R1.2 / Volume 1

BV Pulsera - Maximum loading factors

Continuous mode LDF

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 7

1.2.5 Accuracy of displays

Voltage deviation +/- (8 % + 0.8 kV)

1.2.6 Accuracy of dose area product indication (Gycm2)

<30% of max beam diameter >30% of max beam diameter

1.2.7 Measurement basis for approval tests

kV pk Measured using a non invasive kV pk meter placed 30 cm from the focus

SM-I 1 - 8 (04.0) BV Family R1.2 / Volume 1

BV Pulsera - Measurement basis for approval tests

kV pk Measured using a non invasive kV pk meter placed 30 cm from the focus

1.2.8 X-ray tube

Type Fixed anode

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 9

BV Pulsera - X-ray tube

Definition Specification Alternative tube

Type Rotating anode Rotating anode

SM-I 1 - 10 (04.0) BV Family R1.2 / Volume 1

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 11

BV Libra / BV Endura – Anode heating and cooling curve

SM-I 1 - 12 (04.0) BV Family R1.2 / Volume 1

BV Pulsera – Anode heating and cooling curve

1.2.9 X-ray tube assembly

Manufacturer Philips Medical Systems

BV Pulsera - X-ray tube assembly

BV Family R1.2 / Volume 1 (04.0) SM-I 1 - 13

BV Libra / BV Endura - X-ray tube emission chart, small focus, Voltage DC

BV Libra / BV Endura - X-ray tube emission chart, large focus, Voltage DC

SM-I 1 - 14 (04.0) BV Family R1.2 / Volume 1

BV Libra / BV Endura - X-ray tank emission chart, small focus
