496 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO.
3, MARCH 2018

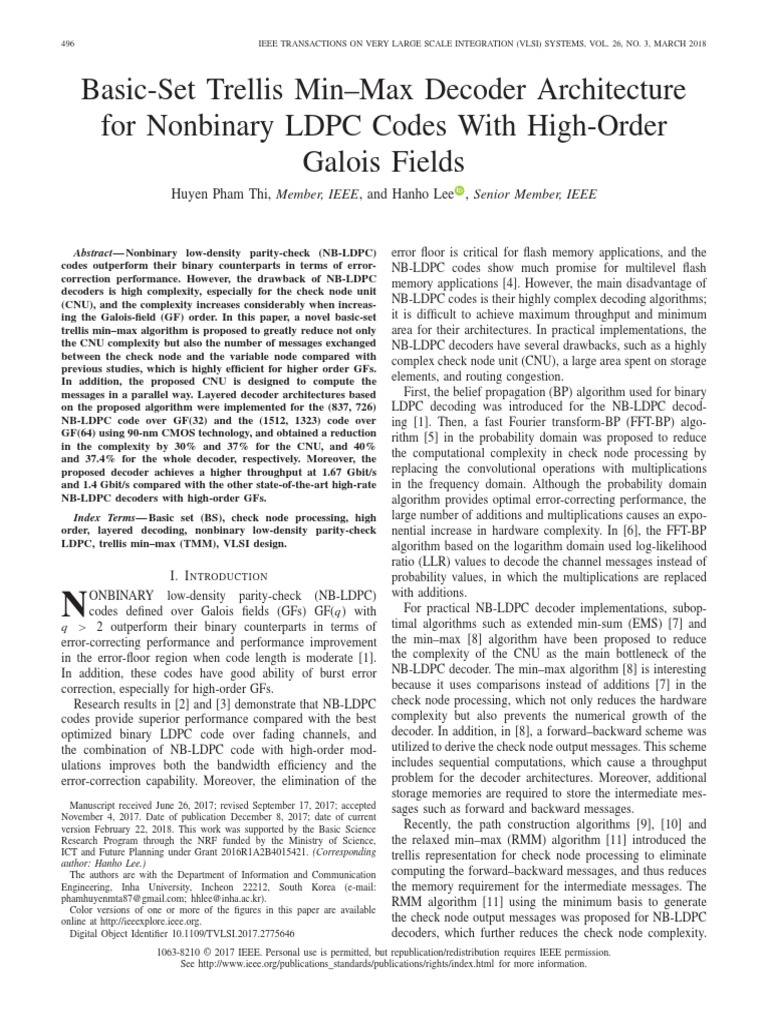

Basic-Set Trellis Min–Max Decoder Architecture
for Nonbinary LDPC Codes With High-Order
Galois Fields
Huyen Pham Thi, Member, IEEE, and Hanho Lee , Senior Member, IEEE
Abstract— Nonbinary low-density parity-check (NB-LDPC)
codes outperform their binary counterparts in terms of error-
correction performance. However, the drawback of NB-LDPC
decoders is high complexity, especially for the check node unit
(CNU), and the complexity increases considerably when increas-
ing the Galois-field (GF) order. In this paper, a novel basic-set
trellis min–max algorithm is proposed to greatly reduce not only
the CNU complexity but also the number of messages exchanged
between the check node and the variable node compared with
previous studies, which is highly efficient for higher order GFs.
In addition, the proposed CNU is designed to compute the
messages in a parallel way. Layered decoder architectures based
on the proposed algorithm were implemented for the (837, 726)
NB-LDPC code over GF(32) and the (1512, 1323) code over
GF(64) using 90-nm CMOS technology, and obtained a reduction
in the complexity by 30% and 37% for the CNU, and 40%
and 37.4% for the whole decoder, respectively. Moreover, the
proposed decoder achieves a higher throughput at 1.67 Gbit/s
and 1.4 Gbit/s compared with the other state-of-the-art high-rate
NB-LDPC decoders with high-order GFs.
Index Terms— Basic set (BS), check node processing, high
order, layered decoding, nonbinary low-density parity-check
LDPC, trellis min–max (TMM), VLSI design.
I. I NTRODUCTION
N ONBINARY low-density parity-check (NB-LDPC)
codes defined over Galois fields (GFs) GF(q) with
q > 2 outperform their binary counterparts in terms of
error-correcting performance and performance improvement
in the error-floor region when code length is moderate [1].
In addition, these codes have good ability of burst error
correction, especially for high-order GFs.
Research results in [2] and [3] demonstrate that NB-LDPC
codes provide superior performance compared with the best
optimized binary LDPC code over fading channels, and
the combination of NB-LDPC code with high-order mod-
ulations improves both the bandwidth efficiency and the
error-correction capability. Moreover, the elimination of the
Manuscript received June 26, 2017; revised September 17, 2017; accepted
November 4, 2017. Date of publication December 8, 2017; date of current
version February 22, 2018. This work was supported by the Basic Science
Research Program through the NRF funded by the Ministry of Science,
ICT and Future Planning under Grant 2016R1A2B4015421. (Corresponding
author: Hanho Lee.)
The authors are with the Department of Information and Communication
Engineering, Inha University, Incheon 22212, South Korea (e-mail:
phamhuyenmta87@gmail.com; hhlee@inha.ac.kr).
Color versions of one or more of the figures in this paper are available
online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TVLSI.2017.2775646
1063-8210 © 2017 IEEE. Personal use is permitted, but republication/redistribution requires IEEE permission.
See http://www.ieee.org/publications_standards/publications/rights/index.html for more information.
error floor is critical for flash memory applications, and the
NB-LDPC codes show much promise for multilevel flash
memory applications [4]. However, the main disadvantage of
NB-LDPC codes is their highly complex decoding algorithms;
it is difficult to achieve maximum throughput and minimum
area for their architectures. In practical implementations, the
NB-LDPC decoders have several drawbacks, such as a highly
complex check node unit (CNU), a large area spent on storage
elements, and routing congestion.
First, the belief propagation (BP) algorithm used for binary
LDPC decoding was introduced for the NB-LDPC decod-
ing [1]. Then, a fast Fourier transform-BP (FFT-BP) algo-
rithm [5] in the probability domain was proposed to reduce
the computational complexity in check node processing by
replacing the convolutional operations with multiplications
in the frequency domain. Although the probability domain
algorithm provides optimal error-correcting performance, the
large number of additions and multiplications causes an expo-
nential increase in hardware complexity. In [6], the FFT-BP
algorithm based on the logarithm domain used log-likelihood
ratio (LLR) values to decode the channel messages instead of
probability values, in which the multiplications are replaced
with additions.
For practical NB-LDPC decoder implementations, subop-
timal algorithms such as extended min-sum (EMS) [7] and
the min–max [8] algorithm have been proposed to reduce
the complexity of the CNU as the main bottleneck of the
NB-LDPC decoder. The min–max algorithm [8] is interesting
because it uses comparisons instead of additions [7] in the
check node processing, which not only reduces the hardware
complexity but also prevents the numerical growth of the
decoder. In addition, in [8], a forward–backward scheme was
utilized to derive the check node output messages. This scheme
includes sequential computations, which cause a throughput
problem for the decoder architectures. Moreover, additional
storage memories are required to store the intermediate mes-
sages such as forward and backward messages.
Recently, the path construction algorithms [9], [10] and
the relaxed min–max (RMM) algorithm [11] introduced the
trellis representation for check node processing to eliminate
computing the forward–backward messages, and thus reduces
the memory requirement for the intermediate messages. The
RMM algorithm [11] using the minimum basis to generate
the check node output messages was proposed for NB-LDPC
decoders, which further reduces the check node complexity.
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
However, the sequential check node processing requires a large
number of clock cycles, which limits the maximum throughput
of the decoder. In [12] and [13], the trellis EMS algorithm
was proposed to improve the throughput of the NB-LDPC
decoders, where the check node output messages are generated
in parallel by means of an extra column inserted to the original
trellis. A disadvantage of the decoders in [12] and [13] is
high area, which causes a reduction of the overall decoder
efficiency. To take advantage of the idea in [12], the simplified
trellis min–max (STMM) algorithm [14] was proposed to
improve the throughput of the min–max decoders with less
complexity. In [15], the one-minimum-only TMM algorithm
was introduced on the basis of the STMM algorithm to reduce
the CNU complexity by obtaining only one minimum and
estimating the second one. In [12]–[15], q × dc check node
output messages are exchanged between the check node and
the variable nodes. For high-order GFs or high-rate NB-LDPC
codes, there are two main drawbacks in [12]–[15]. First, the
amount of exchanged messages increases, which causes wiring
congestion, and thus limits the maximum throughput of the
decoders. Second, the check node output messages are stored
in the memory for the next decoding iteration in the layered
decoders. Therefore, the memory requirement becomes large,
which leads to a significant growth in the decoder area for
NB-LDPC codes.
To overcome the drawbacks of [12]–[15], Lacruz et al. [16]
originally introduced a compression technique to reduce the
exchanged messages between one check node and the variable
nodes to four sets, including the intrinsic and extrinsic infor-
mation, the path coordinates, and the hard-decision symbols
with a size of 5 × (q − 1) + dc messages without any error-
correcting performance loss. For further improvement, the
research in [17] and [18] proposed to simplify the CNU archi-
tecture and reduce the exchanged messages to 4 × (q − 1) + dc
messages with a similar error-correcting performance in [16].
The approximated TMM algorithms in [19] and [20] were
introduced to reduce the amount of intrinsic information from
(q − 1) elements [16] to only two elements and L  q
elements, respectively, at the cost of some error-correcting
performance loss. The remaining elements are calculated from
the approximation functions.
In this paper, a novel basic-set TMM (BS-TMM) algorithm
is proposed for NB-LDPC codes based on the theory of the GF
GF(q = 2 p ), where each field element is uniquely represented
by a linear combination of p independent field elements.
In the proposed BS-TMM algorithm, the basis set including
the intrinsic information of only p = log2 q independent field
elements in the extra column is stored, and the other elements
are constructed on the basis of this basic set. Moreover,
a novel algorithm is introduced for finding p independent
field elements with the most reliable messages of the basic
set in parallel. The BS-TMM algorithm allows the reduction
of exchanged messages between one check node and variable
nodes from 4 × (q − 1) + dc [16] to (q − 1) + 3 × p + dc
messages with a negligible performance loss of 0.1 dB. The
proposed method provides a great area reduction and through-
put improvement for the NB-LDPC decoders with good error-
correction performance. Therefore, it is extremely efficient for
497
Algorithm 1 Layered Min–Max Decoding Algorithm [17]
the design of high-rate and high-order NB-LDPC decoders.
Two NB-LDPC decoders, including (837, 726) over GF(32)
and (1512, 1323) over GF(64), were implemented on the basis
of the BS-TMM algorithm.
The rest of this paper is organized as follows. Section II
reviews the decoding algorithms for the NB-LDPC codes.
Section III presents the proposed BS-TMM decoding algo-
rithm for the NB-LDPC codes. In Section IV, the CNU
architecture and the overall decoder architecture based on
the BS-TMM algorithm are proposed. The implementation
results and comparison with previous works are discussed in
Section V. Finally, conclusions are drawn in Section VI.
II. T RELLIS M IN –M AX D ECODING A LGORITHM
A. Review of the Layered Min–Max Algorithm
A sparse parity-check matrix H with M rows and
N columns defines an NB-LDPC linear block code, where
each nonzero element h mn belongs to the GF GF(q). Moreover,
a Tanner graph corresponding to H is used to represent the
NB-LDPC codes in a graphical way, where variable nodes
represent N columns of H and check nodes represent M
rows of H. Let dc and dv be the check node degree (row
weight) and the variable node degree (column weight) of H,
respectively. Therefore, N(m) denotes the set of dc variable
nodes connected to check node m, and M(n) denotes the set of
dv check nodes connected to variable node n. Let Q mn (a) and
Rmn (a) be the exchanged messages from n variable node to m
check node (V2C) and from m check node to n variable node
(C2V) for each symbol a ∈ GF(q), respectively. A regular
NB-LDPC code with fixed values of dc and dv is considered
in this paper.
A horizontal layered decoding algorithm is applied in
this paper because of its higher convergence with similar
performance, compared with the flood decoding algorithm.
The layered decoding algorithm for the NB-LDPC codes
is presented in Algorithm 1. Let cn be the nth reference
symbol of a received codeword and z n be the nth hard-
decision symbol with the highest reliability. The decoding
process is initialized by obtaining the LLR vectors with a
size of q of the channel information by means of L n (a) =
ln(Pr(cn = z n |channel)/Pr(cn = a|channel)). At the first layer
of the first iteration, Q n (a) as the a posteriori information
498 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO. 3, MARCH 2018
Algorithm 2 TMM Algorithm [14]
for the variable node n is equal to L n (a), and Rmn (a) is
equal to zero. Let k and l be indexes in the loop for the
kth iteration and lth layer, respectively. The Q n (a) messages
are permuted following the nonzero element h mn of matrix H
to obtain Q n (h mn a). Then, the V2C messages Q̃ mn (a) are
derived in step 3, and the normalization of these messages is
implemented by steps 4 and 5 to ensure that the LLR value
for the most reliable symbol in each vector is equal to zero.
Step 6 involves in the computation of the check node output
messages Rmn (a) using the  function, which depends on the
algorithm applied for the check node processing. The updated
messages Q n (a) in step 7 need to be undergone the reverse
permutation before starting a new layer. The decoding process
is repeated until the maximum number of iterations Imax is
reached. Finally, the output codeword c̃n is the most reliable
symbol corresponding to Q n (a) messages.
B. Trellis Min–Max Algorithm With Compressed Messages
In [14], the STMM algorithm was proposed for check node
processing to generate the check node output messages in a
parallel way. The STMM algorithm, which is presented in
Algorithm 2, provides a good tradeoff between the error-
correcting performance and the decoding complexity, com-
pared with the previous works [11], [21]. The first step
involves the transformation of the input messages from the
normal domain Q mn (a) to the delta domain Q mn (a). This
transformation ensures that the most reliable symbols are
always in the first index corresponding to the GF symbol 0,
and the rest of the indexes are in order of {α 0 , α 1 , . . . , α q−1 }.
Step 2 relates to the computation of the syndrome β using the
most reliable symbols z n from V2C messages. In step 3, the
first minimum value m1(a) and its column index m1col (a),
as well as the second minimum value m2(a) for each trellis
row are calculated using the function . Step 4 constructs an
extra column Q(a) based on the most reliable path of the
configuration set conf(nr , n c ) for each symbol a.
Let path 0 be the optimal path for symbol 0 including all
nodes in the first row of the delta trellis. The configuration set
conf(n r , n c ) [13] including the possible paths is constructed by
the nr most reliable messages and a maximum of n c deviations
from path 0. The configuration set conf(1, 2) is considered
in [14], where nr = 1 and n c = 2. Thus, only the most reliable
message m1(a) and maximum of two deviations [η1 (a), η2 (a)]
are considered for each symbol a. In the case of one deviation,
η1 (a) is equal to η2 (a). Otherwise, they are different.
The check node output messages in the delta domain
Rmn (a) are simultaneously generated from step 5 to step 13
depending on the deviation information as η1 (a) and η2 (a).
For each trellis row, if column j is not the deviations of
the most reliable path, then the output message Rmn j (a) is
assigned by the extra column value Q ( a). If the most reliable
path has one deviation at column j , then the second most
reliable message m2(a) is assigned to the output message.
In the case of the most reliable path formed by two deviations,
m1(a) is assigned to the output message. Finally, step 14
transforms the output messages from the delta domain to
the normal domain as the C2V messages Rmn (a). A suitable
scaling factor λ is used to improve the performance of the
decoder, which does not affect the hardware complexity.
A disadvantage of the STMM algorithm [14] is the large
memory requirement to store q × dc output messages of
Rmn (a) for each check node, which causes a high decoder
area. In [18], a compression technique is applied to reduce
the output check node messages from q × dc values to four
elementary sets such as I (a), E(a), P(a), and z n∗ , including
4×(q−1)+dc values without any error-correcting performance
loss, as follows. Thus, the memory requirement is significantly
reduced
⎧
⎪ I (a)
⎪
⎪
⎨ E(a)
Output: (1)
⎪
⎪ P(a)
⎪
⎩ ∗
z n = z n + β.
The set I (a) is generated in a similar way to the extra
column Q(a). The set E(a) includes complement values,
whose values are either m1(a) or m2(a) depending on the
deviation information as shown in (2). The set P(a) contains
the path information for updating the output messages as
shown in (3)

m2(a) if η1 (a) = η2 (a)
E(a) = (2)
m1(a) otherwise.

P(a) = m1col η1 (a) , m1col η2 (a) . (3)
Finally, updating the C2V messages is implemented by
decompression of the check node output messages in the
variable node processing as follows:

 I (a) if P(a) = j
∗
Rmn j a + z n j = (4)
E(a) otherwise.
III. BASIC -S ET T RELLIS M IN –M AX
D ECODING A LGORITHM
A. Basic-Set Trellis Min–Max Algorithm
In this section, the novel BS-TMM algorithm is proposed
to greatly reduce the complexity and the memory requirement
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
Algorithm 3 BS-TMM Algorithm
for check node processing as well as the exchanged messages
between check nodes and variable nodes with a negligible
error-correcting performance loss. The BS-TMM algorithm
is highly efficient for designing the decoders with high-
order GFs. Without loss of generality, the GF GF(q) with
q = 2 p including q elements such as {0, α 0 , α 1 , . . . , α q−2 } is
considered in our work. For each GF GF(2 p ), any field element
is uniquely represented by the linear addition of p independent
field elements. To take advantage of this, in our work, a set of
only p = log2 q independent field elements with the smallest
LLRs, called the basic set B ∗ , are generated in the check node
processing instead of (q−1) nonzero field elements in the extra
column Q(a) [16], [19]. Then, construction of the Q(a)
is implemented in the variable node processing based on the
basic set B ∗ .
The BS-TMM algorithm is represented in Algorithm 3.
Steps 1–3 are similar to steps 1–3 in Algorithm 2. Step 4
computes the basic set B ∗ = {m1l∗ , Il∗ , al∗ }1≤l≤ p including
3 × p values ( p LLR values, p column indexes, and p field
elements), based on the minimum values m1(a) and their
column indexes Icol (a) (1 ≤ a < q). Finding the basic
set B ∗ is given by the function in Algorithm 4. Step 5
relates to calculating the complement values in set E(a). The
complement values for p field elements, which belong to the
basic set B ∗ , are assigned to the second minimum values
m2(a). For the remaining field elements, the complement
values are assigned to the minimum values m1(a). Finally, the
output of the check node processing includes three sets B ∗ ,
E(a), and z n∗ with a size of 3 × p + (q − 1) + dc values, which
are used for generating the C2V messages in the variable node
processing.
Table I shows the number of bits exchanged between check
node and variable node in the proposed algorithm and previous
works for the general GF(q = 2 p ) and w quantization bits for
the LLR values. In addition, the number of exchanged bits
for high-order GFs such as GF(32), GF(64), and GF(128) is
also computed with dc = 27 and w = 6 quantization bits, and
illustrated in Fig. 1. It is clear that the proposed algorithm
greatly reduces the exchanged bits, compared with previous
works. In [14], all C2V messages generated in the check
node processing are exchanged, which causes an extremely
high number of check node output bits. It can be seen that
the exchanged bits are reduced by factors of almost 13, 16,
and 22.46 for GF(32), GF(64), and GF(128), respectively.
499
Fig. 1. Number of exchanged bits between the check node and variable node
for different GFs.
TABLE I
C OMPARISON OF E XCHANGED M ESSAGES B ETWEEN C HECK
N ODE AND VARIABLE N ODE W ITH dc = 27 AND w = 6
In [16]–[19], a small number of fixed sets, in which the size
of each set is proportional to either q or dc , are exchanged.
Compared with the original compression technique [16], the
proposed work reduces the number of exchanged bits by
factors of almost 2.5 and 3.48 for GF(32) and GF(128),
respectively. In comparison with the latest work [19], the
reduction of the exchanged bits is 38.59% and 52.07% for
GF(32) and GF(128), respectively. The BS-TMM algorithm
achieves a large reduction of the exchanged bits for two
reasons. First, the BS-TMM algorithm reduces the number of
fixed sets, where the basic set B ∗ , including 3 × p values, is
exchanged instead of 3 × (q − 1) values of two sets I (a) and
P(a), as shown in (1). Second, the size of the basic set B ∗
is proportional to p = log2 q, whereas the size of sets I (a)
and P(a) is proportional to q. Thus, the BS-TMM algorithm
is extremely efficient for high-order GFs.
The function in Algorithm 4 relates to finding the basic
set B ∗ based on the minimum values m1(a) and their column
indexes Icol (a). Let M be a set including the minimum values
m1(a) and their column indexes Icol (a). In step 1, set M is
rearranged in ascending order of the m1(a) values to generate
a new set M  . The first two field elements from set M  are
selected for the basic set because they are independent field
elements with the smallest LLRs, as shown in steps 2–4.
The remaining elements of the basic set are found by the
loop from steps 5 to 11. The goal of the loop is to find
500 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO. 3, MARCH 2018

Algorithm 4 Function: Finding Basic Set B ∗ Algorithm 5 Construct Extra Column Q(a) and Rmn (a)

the next independent field elements with the smallest LLRs

except for both the selected elements and the elements that
are generated by the possible combinations of the selected
elements in steps 7 and 8. Finally, the basic set B ∗ generated
includes p independent field elements with the most reliable
LLR values.
In the variable node processing, the extra column Q(a) is
recovered and the C2V messages Rmn (a) are generated on
the basis of the output sets of the check node processing,
including B ∗ , E(a), and z n∗ , as shown in Algorithm 5. First,
the extra column Q(a) and the path information d(a) are
calculated in steps 1–7. For p field elements, which belong to
the basic set B ∗ , the Q(a) value is the most reliable LLR
m1l∗ , and the path information d(a) has one deviation at the
column index Il∗ with 1 ≤ l ≤ p. The remaining field elements
are computed on the basis of all possible combinations of the
field elements in the basic set B ∗ . Their Q(a) values are the
maximum LLR value from the LLR values corresponding to
the combined field elements, and their path information d(a)
has more than one deviation and a maximum of p deviations.
Updating the C2V messages is implemented in steps 8–14. Fig. 2. Example of the trellis based on GF(8) with dc = 4.
For each row, if the column index j does not belong to the
part information d(a), the C2V message Rmj (a) is assigned
to the extra column Q(a). Otherwise, the C2V message achieved. The first two field elements from M  are selected
Rmj (a) is assigned to the complement set E(a). Finally, the for the basic set as B ∗ = {(1, 1, α 3 ), (2, 1, α 0 )}. The
C2V messages in the delta domain are converted to the normal third field element selected is the field element with the
domain in step 15. smallest LLR value from the remaining field elements
In Fig. 2, an example of the delta trellis for GF(8) with of set M  except for field element α 1 = α 3 + α 0 or
dc = 4 is presented, where the minimum values in each row (10, 2, α 1 ), which is a combination of two field elements
are marked with a dashed square. The extra column Q(a) in B ∗ . Hence, (3, 4, α 4 ) is selected, and the basic set
in the rightmost column is constructed on the basis of basic B ∗ = {(1, 1, α 3 ), (2, 1, α 0 ), (3, 4, α 4 )} includes p = 3
set B ∗ , as shown in Algorithm 5. This example demonstrates independent field elements with the most reliable messages.
the method of building the basic set B ∗ and the extra column Then, the extra column Q(a) is constructed. For p field
Q(a). From the delta trellis, set M, including the minimum elements in the extra column, which belong to the basic
values and their column indexes as M = {(2, 1, α 0 ), set B ∗ such as {α 3 , α 0 , α 4 }, their LLR values Q(a) and
(10, 2, α 1 ), (26, 3, α 2 ), (1, 1, α 3 ), (3, 4, α 4 ), (30, 1, α 5 ), (4, 1, the path information d(a) are the same as the LLR values
α 6 )}, is generated. After rearranging set M with ascending and column indexes in the basic set B ∗ . For other field
order of the minimum values, set M  = {(1, 1, α 3 ), (2, 1, α 0 ), elements, all combinations of the field elements in B ∗ are
(3, 4, α 4 ), (4, 1, α 6 ), (10, 2, α 1 ), (26, 3, α 2 ), (30, 1, α 5 )} is considered as follows: Q(α 3 + α 0 = α 1 ) = max (1, 2) = 2
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
Fig. 3. FERs of the (837, 726) NB-LDPC code over GF(32) under the
AWGN channel.
and d(α 3 + α 0 = α 1 ) = {1, 1}; Q(α 0 + α 4 = α 5 ) =
max(2, 3) = 3 and d(α 0 + α 4 = α 5 ) = {1, 4}; Q(α 3 + α 4 =
α 6 ) = max (1, 3) = 3 and d(α 3 + α 4 = α 6 ) = {1, 4};
and Q(α 3 + α 0 + α 4 = α 2 ) = max (1, 2, 3) = 3 and
d(α 3 + α 0 + α 4 = α 2 ) = {1, 1, 4}.
B. Performance Analysis
To demonstrate the error-correcting performance of the
proposed BS-TMM decoding algorithm, we performed the
simulations for two GFs: GF(32) and GF(64). Fig. 3 illus-
trates the frame error rate (FER) performance for (837, 726)
NB-LDPC code over GF(32) with dv = 4 and dc = 27
under the additive white Gaussian noise (AWGN) channel and
binary phase shift keying modulation. As shown in Fig. 3,
the floating-point simulation result of the BS-TMM algorithm
with 15 iterations shows a minor performance loss at almost
0.1 dB, compared with the STMM algorithm [14] and the two-
extra-column TMM algorithm [17]. However, the proposed
BS-TMM algorithm provides low computation complexity, a
large area reduction, and a significant improvement in through-
put. This is explained by the fact that (q − 1) messages in the
extra column Q(a) in [14] and [17] are constructed directly
from all reliable messages of the configuration set conf(1, 2)
using (q − 1) processors, whereas these are constructed on
the basis of only p reliable messages in the basic set in our
work. Compared with the R-TMM algorithm [11], in which
C2V messages are generated on the basis of minimum basic
sets, the FER performance of the BS-TMM algorithm is
almost the same as that of the R-TMM algorithm. It is noted
that dc minimum basic sets are required in the R-TMM
algorithm [11] to generate the C2V messages, whereas the
proposed BS-TMM algorithm requires only one basic set to
construct the extra column. Moreover, the sequential design
implemented in [11] causes a throughput problem, whereas
the proposed BS-TMM algorithm-based design performs all
calculations in one clock cycle. For the purpose of hard-
ware implementation, various fixed-point simulations were
501
Fig. 4. FERs of the (1512, 1323) NB-LDPC code over GF(64) under the
AWGN channel.
performed using different quantization schemes. A scheme
with 5-bit quantization and eight iterations was chosen, which
shows a performance loss at almost 0.1 dB, compared with
the floating-point result at 15 iterations.
Fig. 4 represents the FER performance of the
(1512, 1323) NB-LDPC code over GF(64). As can be
seen that the BS-TMM algorithm has a minor performance
loss of 0.07 dB and 0.14 dB in comparison with the
modified trellis min–max (mT-MM) algorithm [19] and the
STMM algorithm [14], respectively. This result demonstrates
that the proposed BS-TMM algorithm provides good
FER performance and significantly reduced computation
complexity for the high-order GF.
IV. BS-TMM D ECODER A RCHITECTURE
In this section, the proposed quasi-cyclic NB-LDPC decoder
architectures and design technologies for the BS-TMM algo-
rithm are described. The quasi-cyclic NB-LDPC codes over
GF(q) are constructed by the algebraic construction method
based on array dispersions of matrices in [22], where a
(q −1)×(q −1) submatrix is generated first. Then, a submatrix
with size (dv , dc ) is selected from the (q − 1) × (q − 1)
submatrix. Each field element from the (dv , dc ) submatrix is
dispersed in either a zero matrix or a circulant permutation
matrix (CPM) of size (q −1)×(q −1). As a result, the H matrix
generated from the (dv , dc ) submatrix has M = (q − 1) × dv
rows and N = (q − 1) × dc columns.
A. CNU Architecture
The top-level CNU architecture for the BS-TMM algo-
rithm is shown in Fig. 5, where each module corresponds
to a step in Algorithm 3. The transformation module con-
verts V2C messages from normal to delta domain using the
control signals z j . This module is constructed by means
of dc reordering networks, as shown in [23], where each
reordering network requires q ×log2 q w-bit multiplexers. The
502 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO. 3, MARCH 2018
Fig. 5. Top-level CNU architecture for BS-TMM algorithm.
Fig. 6. Two-min finder architecture with eight inputs [24].
check node syndrome β is generated by a tree adder struc-
ture. The delta-to-normal domain transformation is derived
later using dc reordering networks with the control signals
z ∗j = z j ⊕ β. The  function is responsible for finding the
first two minimum values and the first minimum value’s index
from dc inputs using the 2-min finder. The 2-min finder is
adopted by applying the technique in [24], which provides a
good tradeoff between the area and latency. Because (q − 1)
rows in the delta trellis except the first row must perform the
 function, a total of (q −1) 2-min finders are required. Fig. 6
shows an example of the 2-min finder architecture with eight
inputs.
In [14]–[19], the values in the extra column Q(a) and
the path information are generated by means of the first
minimum values m1(a) and their column indexes Icol (a).
(q −1) processors are required to generate LLR values and the
path information for (q − 1) nonzero elements in the Q(a).
Each processor is responsible for constructing q/2 possible
paths to find the LLR value and the path information of one
nonzero field element, in the case of using the configuration
set conf(1, 2). For higher order GFs (increasing the value q),
constructing the extra column Q(a) becomes more complex
and costly in terms of area. In our work, a basic set B ∗
including the LLR values and the column indexes of only
p = log2 q independent field elements needs to be constructed,
which provides a large reduction of not only the area but also
Fig. 7. (a) Third element in the basic set. (b) Fourth element in the basic set.
the messages exchanged between check node and variable
node. It is noted that, in our work, multiple nodes can
come from the same column stage. This causes negligible
performance loss as shown in [11]. For example, the trellis
in Fig. 2 shows that two independent field elements in the
basic set, such as {(1, 1, α 3 ) and (2, 1, α 0 )}, come from the
same column stage.
The architecture of the basic set constructor corresponds to
the steps in Algorithm 4. A parallel sorting approach in [20] is
applied in this paper to simultaneously generate the rearranged
minimum values m1 (a) and their indexes Icol  (a) in ascending
order of the m1(a) values in one clock cycle. Then, the
first two field elements in the basic set are selected from
the first two field elements in the rearranged values, such as
(m1∗1 , I1∗ , a1∗ ) = (m1 (a1 ), Icol
 (a ), a ) and (m1∗ , I ∗ , a ∗ ) =
1 1 2 2 2
(m1 (a2 ), Icol (a ), a ). In this paper, we propose an architec-
2 2
ture to obtain the ( p−2) remaining independent field elements
in a parallel way. Thus, p independent field elements in the
basic set B ∗ are calculated in one clock cycle. Fig. 7 shows the
proposed architectures for the next two elements in the basic
set. In Fig. 7(a), the architecture is designed to generate the
third element, where the combination of the first two elements
such as a1∗ + a2∗ is removed from the remaining rearranged
field elements {a3 , a4 , . . . , aq−1 } by assigning the maximum
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
Fig. 8. E(a) complement generator for GF(8).
quantization bits instead of the LLR value m1 (a j ). The min1-
finder architecture is responsible for finding the smallest value
and its index from (q − 3) inputs. Then, the smallest value
is the LLR value of the third element m1∗3 , and its index is
used to obtain the field element a3∗ and the column index
I3∗ . The signals c31 , c41 , . . . , cq−1
1 are used to eliminate the
combination of the previous field elements as a1∗ + a2∗ in
finding the current element and the next element. Immedi-
ately, the fourth element is generated, as shown in Fig. 7(b),
which is independent of the previous elements. To ensure the
independence, two eliminations are made. First, the input field
elements in this stage are either the rearranged field elements
{a3 , a4 , . . . , aq−1 } or assigning to zero element with p bits
depending on the control signals c31 , c41 , . . . , cq−1
1 . Second, the
combinations of the previous elements with the third element,
such as {a1∗ + a3∗ , a2∗ + a3∗ , a1∗ + a2∗ + a3∗ } and the third element
a3∗ , are eliminated. The control signals c32 , c42 , . . . , cq−1
2 are
responsible for both eliminations in finding the fourth element,
and further in the next field element. Finding the LLR value
m1∗4 , field element a4∗ , and column index I4∗ of the fourth
element is similar to that of the third element. This procedure
is the same for the remaining field elements in the basic set.
Finally, p independent field elements in the basic set B ∗ are
generated simultaneously.
The architecture of the E(a) complement generator for
GF(8) is designed to generate (q − 1) LLR values in parallel,
as shown in Fig. 8. The one-hot function generates a group
of q bits, where only one bit at location a ∗j is equal to
“1,” and all the other bits are equal to “0.” Therefore, the
control signal e[0:7] has p high bits. The high bit locations
correspond to the field elements generated from one deviation
path, and the complement values E(a) are assigned to m2(a).
Otherwise, the field elements are generated from more than
two deviations, and the complement values E(a) are assigned
to m1(a).
The outputs of the proposed CNU architecture, includ-
ing z n∗ , E(a), and B ∗ = {m1l∗ , Il∗ , al∗ }1≤l≤ p , are used
to generate the C2V messages Rmn (a) corresponding to
Algorithm 5 in the variable node processing. Thus, the
total number of bits exchanged from C2V is dc × p+
(q − 1) × w + p × (w + log2 (dc )
+ p) bits. is implemented in the variable node processor to generate
The synthesis results of the proposed CNU architecture
for the (837, 726) NB-LDPC code over GF(32) and the
503
TABLE II
S YNTHESIS R ESULTS FOR THE P ROPOSED CNU A RCHITECTURE
(1512, 1323) NB-LDPC code over GF(64) are presented
in Table II using the Synopsys design tools and a TSMC
90-nm CMOS standard cell library. Compared with the works
in [14] and [15], the proposed CNU greatly reduces the
gate count by 51.22% and 34.64% for GF(32), respectively,
because of the removal of (q − 1) processors for finding
the extra column [14], [15] and applying the compression
technique [16]. Compared with the original TMM algorithm
with the compressed messages in [16], it can be seen that
the area saving is almost 30% for GF(32) and 37% for
GF(64). This is due to the complexity reduction for finding
the basic set with a size of p = log2 q instead of finding
the sets corresponding to the extra column with a size of
q [16]. In [20], L = 4 is chosen for designing the CNU
architecture in both GF(32) and GF(64), while log2 (32) = 5
and log2 (64) = 6 values are kept in the proposed CNU
architecture for GF(32) and GF(64), respectively. The number
of exchange bits between check node and variable node in [20]
is almost similar with the one in the proposed work. However,
the proposed CNU architecture reduces the area by 18.7% for
GF(32) and 14.2% for GF(64). This area reduction achieves
because of that the work in [20] requires (q − 1) processors to
calculate (q − 1) elements of the complement set E(a), while
the proposed work uses only one module to calculate (q − 1)
elements of E(a) set. In addition, this improvement will be
significantly increased if L values [20] are chosen similarly
to the proposed CNU design. Compared with [17], since the
proposed CNU needs to find only p = log2 q elements instead
of q elements of two extra columns, the CNU complexity is
reduced by 11.6%.
B. Decoder Architecture
In this section, a complete decoder architecture based on
the BS-TMM algorithm is designed for NB-LDPC codes. The
proposed decoder architecture achieves a great reduction in
the area because of the large area reduction in the CNU
architecture. In addition, an improvement in the throughput
is obtained since reducing the wires between the check node
and variable node processors mitigates the routing congestion.
The layered min–max algorithm for the proposed decoder is
presented in Algorithm 6, where the BS-TMM in Algorithm 3
is implemented in the check node processor. In addition, the
decompression network (DN) corresponding to Algorithm 5
the C2V messages Rmn (a) from outputs of the CNU archi-
tecture. The DN has three parts: 1) generating the LLR
504 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO. 3, MARCH 2018
Fig. 9. Proposed extra column and path information generator for GF(8). (a) Extra column generator for the jth element. (b) Control signal generator. (c)
Path information generator for the jth element.
Algorithm 6 Proposed Layered Decoding Algorithm
values of the extra column Q(a) and the path information
d(a) with a maximum of p deviations on the basis of the
basic set B ∗ = {m1l∗ , Il∗ , al∗ }1≤l≤ p ; 2) generating the C2V
messages in the delta domain as Rmn (a) on the basis of
Q(a), E(a), and d(a); 3) and converting the C2V messages
from delta to normal domain. It is noted that two DNs are
required in the variable node processor. However, the proposed
decoder area is much lower than that of the conventional
decoders [14], [15].
First, Fig. 9 shows the proposed extra column and path
information generator for GF(8). The LLR value of each
element in the extra column Q(a j ) is selected from one
of the p LLR values m1l∗ (1 ≤ l ≤ p) in the basic set B ∗
depending on the p control signals sl [ j ] (1 ≤ l ≤ p), as shown
in Fig. 9(a). (q − 1) architectures as in Fig. 9(a) are required
to compute (q − 1) messages in the Q(a) simultaneously.
p control signals sl [ j ] (1 ≤ l ≤ p) are generated using the
architecture in Fig. 9(b). To compute Q(a j ), only one of
the control signals sl [ j ] is equal to “1,” and others are equal
to “0.” Thus, only one of p LLR values is selected for the
output Q(a j ).
In order to calculate the p control signals sl [ j ], 2 p − 1 =
q − 1 combinations of p field elements in the basic set B ∗
excluding the zero element are divided into p groups, as shown
in Fig. 9(b). p control signals sl [ j ] correspond to p outputs of
the groups. The lth group contains the field element al∗ and its
combinations with all possible combinations of the previous
field elements ak∗ (0 < k < l). Therefore, the lth group (l > 0)
includes 2l−1 combinations of the field elements. In addition,
(q−1) path information corresponding to (q−1) field elements
is also constructed, where each path information d[ j ] has p
column indexes dl [ j ] (1 ≤ l ≤ p). (q − 1) architectures as in
Fig. 9(c) are required to compute (q −1) path information. For
p field elements in the basic set al∗ (1 ≤ l ≤ p), their paths
are one deviation, and thus p values of the path information
{dl [ j ]}1≤l≤ p are the same as column index Il∗ . The path of
the field element generated by the combination of all field
elements in the basic set has a maximum of p deviations; thus,
p values of the path information dl [ j ] (1 ≤ l ≤ p) correspond
to p column indexes Il∗ (1 ≤ l ≤ p) in the basic set. For other
field elements generated by the remaining combinations, the
number of their deviations is k (1 < k < p), and then the dl [ j ]
is assigned to the column index Il∗ with 1 ≤ l ≤ k. Otherwise,
the dl [ j ] with k < l ≤ p is assigned to the column index Ik∗ .
Fig. 10 presents the proposed C2V message generator for
GF(8) with dc = 4. The C2V messages Rmj (a) (1 ≤ j ≤
dc ) are simultaneously introduced by either Q(a) or E(a),
which are the outputs of the multiplexers. The control signals
for the multiplexers depend on the column indexes and p
deviations of the path information. If the column index j
(1 ≤ j ≤ dc ) is equal to at least one of p deviations dl (a)
(1 ≤ l ≤ p), then the output of the multiplexer is assigned
to compensation value E(a). Otherwise, the output of the
multiplexer is assigned to Q(a).
Fig. 11 shows the top-level decoder architecture for the
proposed layered decoding algorithm, where one row of H
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
+ p)+(q−1)×w+dc × p] bits
Fig. 10. Proposed C2V message generator for GF(8) with dc = 4.
Fig. 11. Top-level decoder architecture based on the BS-TMM algorithm.
corresponding to one layer is processed in one clock cycle.
It can be seen that the decoder architecture is divided into a
variable node processor and check node processor.
To start the decoding process, the LLR messages from chan-
nel information L n (a) are loaded in variable node memory
(VNMEM). From the next layer and next iteration, the output
messages of the variable node processor Q k,l n (a) are stored
in the VNMEM. The VNMEM includes dc memories with a
depth of (q − 1) as the size of the CPM [22] and a width of
q × w bits. For each decoding time, one address is read and
one address is written from each memory.
The permutation and depermutation of the variable mes-
sages in steps 4 and 9 in Algorithm 6 are implemented
by modules P and P−1 , respectively. Each module requires
dc × (q − 1) × log2 q multiplexers of w bits to permute or
depermute dc vectors of (q − 1) messages, and the control
signals are based on the h mn nonzero values of H.
The normalization module N is responsible for finding the
most reliable messages and their locations z n , and generating
the Q k,l
mn (a) messages for the inputs of the check node proces-
sor. In addition, normalization ensures that the smallest value
in each LLR vector Q k,lmn (a) is always equal to zero. At the
last decoding iteration, the z n values are the hard-decision
symbols c̃n stored in the output memory, and the P module
and subtractor are inactive during this process.
Since a layered decoding scheme is used, the outputs of the
check node processor in one iteration must be stored in the
check node memory (CNMEM) for the next iteration process.
Thus, the CNMEM in the proposed decoder has a depth of M
and a width of p×(w+ log(dc )
+ p)+(q −1)×w+dc× p bits results of the proposed decoder for the (1512, 1323) NB-LDPC
505
corresponding to the output bits of the check node processor.
A total of M×[ p×(w+ log(dc )
are stored in one iteration. Compared with the M × q × dc × w
bits stored in CNMEM in the conventional approach [14], the
memory requirement for CNMEM in the proposed decoder is
greatly reduced, which leads to a large reduction in decoder
area.
V. I MPLEMENTATION R ESULTS AND C OMPARISON
To illustrate the efficiency of our proposal for NB-LDPC
codes, especially for high-order GFs, the complete decoder
architectures were implemented for two codes (837, 726)
NB-LDPC code over GF(32) and (1512, 1323) NB-LDPC
code over GF(64). A Verilog HDL was used to model the
architectures, and Synopsys design tools with the TSMC
90-nm CMOS standard cell library were used to implement
the proposed decoder architectures. The throughput T p of the
decoders is archived as shown in (5), where seg is the number
of pipeline stages used in the decoder architecture to improve
the timing. In the proposed decoder architectures, seg = 9 was
chosen to obtain a balance between throughput and area
f clk [MHz] × (q − 1) × dc × p
Tp = [Mbps]. (5)
Imax × (M + dv × seg) + (q − 1)
Table III shows the implementation results of the proposed
decoder in comparison with the other state-of-the-art works for
the (837, 726) NB-LDPC code over GF(32). It can be seen
that the proposed decoder outperforms the other approaches
in both area and throughput. Compared with the STMM
algorithm with uncompressed messages [14], our work has
almost 8.3 times higher efficiency, and reduces gate count by
a factor of 4.3. This significant improvement is achieved by
the great reduction in both the storage bits in the CNMEM
and the CNU complexity, as explained previously. Compared
wih [11], our proposal not only reduces the gate count but also
increases the throughput because of its reduced complexity and
parallel processing in the CNU. Thus, the proposed decoder
achieves almost 9.4 times higher efficiency. In [20], a reduced-
complexity NB-LDPC decoder was proposed on the basis of
reducing the size of the intrinsic information and the path
coordinates to L  q values, and the decoder performance
depends on the selected L value, whereas our approach reduces
the size of these sets to p = log2 q values for any GF. Because
the complexity of the proposed CNU is reduced, the efficiency
of the proposed decoder with p = 5 is almost 1.7 times higher
than that in [20] implemented with L = 4. Compared with the
decoders in [16], [19], and [17], the proposed decoder reduces
the gate count by 40%, 35.4%, and 5.5%, and achieves 53%,
44.7%, and 4.5% higher efficiency, respectively. Moreover, the
proposed decoder is almost 14.4 times more efficient than that
of [25].
In our work, the (1512, 1323) NB-LDPC code over GF(64)
is constructed by the submatrix (dv , dc ) = (3, 24) and a CPM
of size (q − 1) × (q − 1) [22], which is the same code rate as
the (1536, 1344) NB-LDPC code in previous works, as shown
in Table IV. It is noted that the size of the CPM in previous
works is q × q instead of (q − 1) × (q − 1). The synthesis
506 IEEE TRANSACTIONS ON VERY LARGE SCALE INTEGRATION (VLSI) SYSTEMS, VOL. 26, NO. 3, MARCH 2018
TABLE III
C OMPARISON OF THE P ROPOSED D ECODER W ITH O THER W ORKS FOR THE (837, 726) NB-LDPC C ODE OVER GF(32)
TABLE IV
I MPLEMENTATION R ESULTS OF THE P ROPOSED D ECODER FOR THE
(1512, 1323) NB-LDPC C ODE OVER GF(64) IN
A 90-nm CMOS P ROCESS
code and the comparison with previous works are presented
in Table IV. For fair comparison with previous works in
terms of throughput, the clock frequency, after placing and
routing the design, was reduced following the work in [20].
It can be seen that the proposed decoder reduces the gate
count by 57% and achieves almost 3.8 times higher efficiency,
compared with the work from [14]. Compared with the works
with compressed messages [16], [19], the proposed decoder
improves not only the gate count but also the throughput
because of a large reduction of the complexity in the CNU
and the messages exchanged between check node and variable
node, which contributes to mitigating the routing congestion.
Therefore, the proposed decoder reduces the gate count by
37.4% and 48.4%, and obtains a higher efficiency at 53.2% and
61.4%, compared with [16] and [19], respectively. Moreover,
the proposed decoder exhibits almost 38.6% higher efficiency,
compared with the work in [20] with L = 5 for codes in
GF(64).
VI. C ONCLUSION
In this paper, we propose a novel basic-set trellis min–max
algorithm for decoding NB-LDPC codes to reduce the com-
plexity of the CNU architecture, the messages exchanged
between the check node and the variable node, and the
storage bits in the CNMEM, compared with previous works.
The implementation results show that the decoder architec-
ture based on the proposed algorithm provides a great area
reduction and throughput improvement, compared with the
other state-of-the-art works. In addition, the results for the
NB-LDPC code over GF(64) demonstrate that the proposed
algorithm is especially efficient for the high-rate NB-LDPC
codes with high-order GFs.
R EFERENCES
[1] M. C. Davey and D. MacKay, “Low-density parity check codes over
GF(q),” IEEE Commun. Lett., vol. 2, no. 6, pp. 165–167, Jun. 1998.
[2] R. Peng and R.-R. Chen, “WLC45-2: Application of nonbinary LDPC
codes for communication over fading channels using higher order
modulations,” in Proc. IEEE Global Telecommun. Conf. (GLOBECOM),
Nov./Dec. 2006, pp. 1–5.
[3] M. Arabaci, I. B. Djordjevic, L. Xu, and T. Wang, “Nonbinary LDPC-
coded modulation for high-speed optical fiber communication without
bandwidth expansion,” IEEE Photon. J., vol. 4, no. 3, pp. 728–734,
Jun. 2012.
[4] C. A. Aslam, Y. L. Guan, and K. Cai, “Non-binary LDPC code with
multiple memory reads for multi-level-cell (MLC) flash,” in Proc.
Asia–Pacific Signal Inf. Process. Assoc., Annu. Summit Conf. (APSIPA),
2014, pp. 1–9.
[5] L. Barnault and D. Declercq, “Fast decoding algorithm for LDPC
over GF(2q ),” in Proc. IEEE Inf. Theory Workshop, Mar./Apr. 2003,
pp. 70–73.
[6] H. Wymeersch, H. Steendam, and M. Moeneclaey, “Log-domain decod-
ing of LDPC codes over GF(q),” in Proc. IEEE Int. Conf. Commun.,
vol. 2. Jun. 2004, pp. 772–776.
[7] D. Declercq and M. Fossorier, “Decoding algorithms for nonbinary
LDPC codes over GF(q),” IEEE Trans. Commun., vol. 55, no. 4,
pp. 633–643, Apr. 2007.
[8] V. Savin, “Min-max decoding for non binary LDPC codes,” in Proc.
IEEE Int. Symp. Inf. Theory, Jul. 2008, pp. 960–964.
[9] X. Zhang and F. Cai, “Reduced-complexity decoder architecture for non-
binary LDPC codes,” IEEE Trans. Very Large Scale Integr. (VLSI) Syst.,
vol. 19, no. 7, pp. 1229–1238, Jul. 2011.
[10] K. He, J. Sha, and Z. Wang, “Nonbinary LDPC code decoder architec-
ture with efficient check node processing,” IEEE Trans. Circuits Syst. II,
Exp. Briefs, vol. 59, no. 6, pp. 381–385, Jun. 2012.
THI AND LEE: BS-TMM DECODER ARCHITECTURE FOR NONBINARY LDPC CODES WITH HIGH-ORDER GFS
[11] F. Cai and X. Zhang, “Relaxed min-max decoder architectures for
nonbinary low-density parity-check codes,” IEEE Trans. Very Large
Scale Integr. (VLSI) Syst., vol. 21, no. 11, pp. 2010–2023, Nov. 2013.
[12] E. Li, D. Declercq, and K. Gunnam, “Trellis-based extended min-sum
algorithm for non-binary LDPC codes and its hardware structure,” IEEE
Trans. Commun., vol. 61, no. 7, pp. 2600–2611, Jul. 2013.
[13] E. Li, F. García-Herrero, D. Declercq, K. Gunnam, J. O. Lacruz,
and J. Valls, “Low latency T-EMS decoder for non-binary LDPC
codes,” in Conf. Rec. 47th Asilomar Conf. Signals, Syst. Comput.
(ASILOMAR), Nov. 2013, pp. 831–835.
[14] J. O. Lacruz, F. García-Herrero, D. Declercq, and J. Valls, “Simplified
trellis min–max decoder architecture for nonbinary low-density parity-
check codes,” IEEE Trans. Very Large Scale Integr. (VLSI) Syst., vol. 23,
no. 9, pp. 1783–1792, Sep. 2015.
[15] J. O. Lacruz, F. García-Herrero, J. Valls, and D. Declercq, “One
minimum only trellis decoder for non-binary low-density parity-check
codes,” IEEE Trans. Circuits Syst. I, Reg. Papers, vol. 62, no. 1,
pp. 177–184, Jan. 2015.
[16] J. O. Lacruz, F. García-Herrero, and J. Valls, “Reduction of complexity
for nonbinary LDPC decoders with compressed messages,” IEEE Trans.
Very Large Scale Integr. (VLSI) Syst., vol. 23, no. 11, pp. 2676–2679,
Nov. 2015.
[17] H. P. Thi and H. Lee, “Two-extra-column trellis min–max decoder
architecture for nonbinary LDPC codes,” IEEE Trans. Very Large Scale
Integr. (VLSI) Syst., vol. 25, no. 5, pp. 1787–1791, May 2017.
[18] J. O. Lacruz, F. García-Herrero, M. J. Canet, J. Valls, and
A. Pérez-Pascual, “A 630 Mbps non-binary LDPC decoder for
FPGA,” in Proc. IEEE Int. Symp. Circuits Syst. (ISCAS), May 2015,
pp. 1989–1992.
[19] J. O. Lacruz, F. García-Herrero, M. J. Canet, and J. Valls, “High-
performance NB-LDPC decoder with reduction of message exchange,”
IEEE Trans. Very Large Scale Integr. (VLSI) Syst., vol. 24, no. 5,
pp. 1950–1961, May 2016.
[20] J. O. Lacruz, F. García-Herrero, M. J. Canet, and J. Valls, “Reduced-
complexity nonbinary LDPC decoder for high-order Galois fields based
on trellis min–max algorithm,” IEEE Trans. Very Large Scale Integr.
(VLSI) Syst., vol. 24, no. 8, pp. 2643–2653, Aug. 2016.
[21] Y.-L. Ueng, K.-H. Liao, H.-C. Chou, and C.-J. Yang, “A high-throughput
trellis-based layered decoding architecture for non-binary LDPC codes
using max-log-QSPA,” IEEE Trans. Signal Process., vol. 61, no. 11,
pp. 2940–2951, Jun. 2013.
[22] B. Zhou, J. Kang, S. Song, S. Lin, K. Abdel-Ghaffar, and M. Xu,
“Construction of non-binary quasi-cyclic LDPC codes by arrays
and array dispersions,” IEEE Trans. Commun., vol. 57, no. 6,
pp. 1652–1662, Jun. 2009.
507
[23] J. Lin, J. Sha, Z. Wang, and L. Li, “Efficient decoder design for
nonbinary quasicyclic LDPC codes,” IEEE Trans. Circuits Syst. I,
Reg. Papers, vol. 57, no. 5, pp. 1071–1082, May 2010.
[24] C.-L. Wey, M.-D. Shieh, and S.-Y. Lin, “Algorithms of finding the first
two minimum values and their hardware implementation,” IEEE Trans.
Circuits Syst. I, Reg. Papers, vol. 55, no. 11, pp. 3430–3437, Dec. 2008.
[25] X. Chen and C.-L. Wang, “High-throughput efficient non-binary
LDPC decoder based on the simplified min-sum algorithm,” IEEE
Trans. Circuits Syst. I, Reg. Papers, vol. 59, no. 11, pp. 2784–2794,
Nov. 2012.
Huyen Pham Thi (M’14) received the B.S. degree
from the Department of Information and Commu-
nication Engineering, Military Technical Academy,
Ha Noi, Vietnam, in 2011. She is currently work-
ing toward the M.S. and Ph.D. integrated degree
with the Department of Information and Commu-
nication Engineering from Inha University, Incheon,
South Korea.
Her current research interests include algorithms
and VLSI architecture design for digital signal
processing, forward error correction architectures,
and communication systems.
Hanho Lee (M’98–SM’13) received the Ph.D. and
M.S. degrees in electrical and computer engineering
from the University of Minnesota, Minneapolis, MN,
USA, in 2000 and 1996, respectively.
From 2000 to 2002, he was a Member of Technical
Staff with Lucent Technologies (Bell Labs Innova-
tions), Allentown, PA, USA. From 2002 to 2004,
he was an Assistant Professor with the Department
of Electrical and Computer Engineering, Univer-
sity of Connecticut, Storrs, CT, USA. Since 2004,
he has been with the Department of Information
and Communication Engineering, Inha University, Incheon, Korea, where
he is currently a Professor. From 2010 to 2011, he was a Visiting Scholar
with Bell Labs, Alcatel-Lucent, Murray Hill, NJ, USA. His current research
interests include VLSI architecture design for forward error correction coding,
cryptographic, VLSI signal processing, and digital communications.
