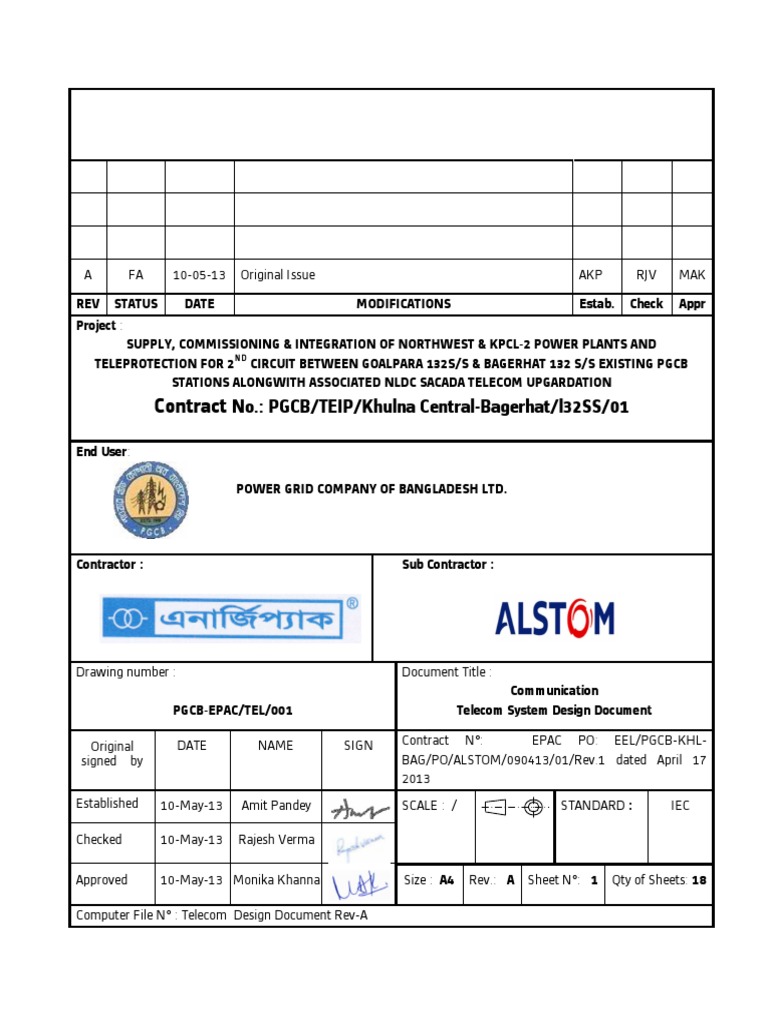

A FA 10-05-13 Original Issue AKP RJV MAK

REV STATUS DATE MODIFICATIONS Estab. Check Appr

Project :
SUPPLY, COMMISSIONING & INTEGRATION OF NORTHWEST & KPCL-2 POWER PLANTS AND
TELEPROTECTION FOR 2ND CIRCUIT BETWEEN GOALPARA 132S/S & BAGERHAT 132 S/S EXISTING PGCB
STATIONS ALONGWITH ASSOCIATED NLDC SACADA TELECOM UPGARDATION
Contract No.: PGCB/TEIP/Khulna Central-Bagerhat/l32SS/01
End User:

POWER GRID COMPANY OF BANGLADESH LTD.

Contractor : Sub Contractor :

Drawing number : Document Title :

Communication
PGCB-EPAC/TEL/001 Telecom System Design Document

Original DATE NAME SIGN Contract N°: EPAC PO: EEL/PGCB-KHL-

signed by BAG/PO/ALSTOM/090413/01/Rev.1 dated April 17
2013
Established 10-May-13 Amit Pandey SCALE : / STANDARD : IEC

Checked 10-May-13 Rajesh Verma

Approved 10-May-13 Monika Khanna Size : A4 Rev.: A Sheet N°: 1 Qty of Sheets: 18

Computer File N° : Telecom Design Document Rev-A

 REVISION HISTORY RECORDS

REV DATE CREATE / UPDATING

A 10-May-13 ORIGINAL ISSUE

2
 TABLE OF CONTENT
1 REFERENCES ............................................................................................................................................................... 4
2 INTRODUCTION ........................................................................................................................................................... 5
3 COMMUNICATION SOLUTION FOR NEW STATIONS .................................................................................................... 6
3.1 OPTICAL CONNECTIVITY OVER OPGW ON STM-1 ............................................................................................................... 6
3.1.1 Site specific SDH Equipment Configuration ..................................................................................................... 6
..................................................................................................................................................................................... 7
3.1.2 SDH Equipment Details .................................................................................................................................. 8
3.1.3 Link Budget Calculations ................................................................................................................................ 9
3.1.4 Network Diagram ......................................................................................................................................... 11
3.2 TELEPROTECTION CONNECTIVITY .................................................................................................................................. 12
3.2.1 KPCL-2 Power Plant to Khulna Central 132S/S ............................................................................................ 12
3.2.2 Northwest Power Plant to Khulna Central 132S/S........................................................................................ 12
3.2.3 Goalpara 132 S/S to Bagerhat 132 S/S ........................................................................................................ 12
3.2.4 Teleprotection Links ...................................................................................................................................... 13
3.2.5 Teleprotection Station wise BOQ................................................................................................................... 13
3.2.6 Termination details between CR panel & Teleprotection ................................................................................ 14
3.3 ACCESS EQUIPMENT FOR SERVICES .............................................................................................................................. 14
3.3.1 Site wise Access Equipment Configuration .................................................................................................... 15
4 INTEGRATION ............................................................................................................................................................ 15
4.1.1 Khulna Central 132 Existing PGCB S/S ......................................................................................................... 15
4.1.2 Northwest Power station.............................................................................................................................. 16
4.1.3 KPCL-2 Power station .................................................................................................................................. 16
4.1.4 Goalpara 132 Existing PGCB S/S .................................................................................................................. 16
4.1.5 Bagrehat 132 Existing PGCB S/S .................................................................................................................. 16
5 RTU DATA COMMUNICATION WITH CONTROL CENTERS .......................................................................................... 17

3
1 REFERENCES

1. EPAC PO: EEL/PGCB-KHL-BAG/PO/ALSTOM/090413/01/Rev.1 dated April I 7. 2013

4
2 INTRODUCTION
The aim of this document is to present the Network Design of the Telecommunications Network being
provided under the contract.The document details:

1. Communication & Protection Solution New Stations :

a. KPCL-2 Power Plant to Existing PGCB Substation Khulna central
b. Northwest Power Plant to Existing PGCB Substation Khulna central

2. Teleprotection Link for Circuit-2 between Goalpara 132 S/S & Bagerhat 132S/S

5
3 COMMUNICATION SOLUTION FOR NEW STATIONS

3.1 Optical connectivity over opgw on STM-1

ALSTOM will supply new SDH, PDH & teleprotection Equipment’s at both new stations:
a. KPCL-2
b. Northwest Power Plant

Both these stations will be connected to Existing PGCB Substation Khulna central 132 S/S over OPGW
(not in ALSTOM Scope) through new SDH Equipment’s proposed at these two stations over a capacity of
MSP STM-1.

New SDH equipment will also be provided at existing equipment at Khulna Central 132 S/S as existing
equipment at this station cannot be upgraded. The existing SDH equipment at Khulna Central 132 S/S
will be replaced by new SDH equipment in the existing Telecom Cubicle. The new equipment will have
suitable optical interfaces for optical connectivity to new stations and existing PGCB stations already
connected with Khulna central S/S.

3.1.1 Site specific SDH Equipment Configuration

The station wise details of equipment’s at are detailed below:

6
 Khulna South 132 S/S
SDH EQUIPMENT MSE-5010(OSN 1500)

8-Port 10M/100M BaseT Fast Ethernet Interface Board

SSR1PIUB
SSN1D12B-32xE1/T1 Electrical Interface Board
EMPTY
SSR1PIUB
EMPTY
EMPTY SSR2PD1B
8 FE 10/100M Fast Ethernet Processing Board with LAN Switch EMPTY
FAN SLOT-11SSR1SLQ103(4xSTM-1 Optical Interface Board) EMPTY
SLOT-4 SSQD0CXLLN00 SSRD100EOW02
SLOT-5 SSQD0CXLLN00 SSR2AUX

Northwest Power Plant

SDH EQUIPMENT MSE-5010(OSN 1500)

8-Port 10M/100M BaseT Fast Ethernet Interface Board

SSR1PIUB
SSN1D12B-32xE1/T1 Electrical Interface Board
EMPTY
SSR1PIUB
EMPTY
EMPTY SSR2PD1B
8 FE 10/100M Fast Ethernet Processing Board with LAN Switch EMPTY
FAN EMPTY EMPTY
SLOT-4 SSQD0CXLLN00 SSRD100EOW02
SLOT-5 SSQD0CXLLN00 SSR2AUX

KPCL-2 Power Plant

SDH EQUIPMENT MSE-5010(OSN 1500)

8-Port 10M/100M BaseT Fast Ethernet Interface Board

SSR1PIUB
SSN1D12B-32xE1/T1 Electrical Interface Board
EMPTY
SSR1PIUB
EMPTY
EMPTY SSR2PD1B
8 FE 10/100M Fast Ethernet Processing Board with LAN Switch EMPTY
FAN EMPTY EMPTY
SLOT-4 SSQD0CXLLN00 SSRD100EOW02
SLOT-5 SSQD0CXLLN00 SSR2AUX

7
3.1.2 SDH Equipment Details

The slot allocation of boards is given in the table below:

SLOT DETAILS OF SDH EQUIPMENT MSE-5010(OSN 1500)

5U 14 18
Not 15
Equipped 16
19
17
11 6
12 7
20 13 8
4 9
1U 5 10

The board description is given in the Table below:

SDH EQUIPMENT MSE5010/OSN 1500 Board Details

Board Board Description Slot
SSR1PIUB 48V DC Power Supply 18,19
SSR2AUX System Auxiliary Process Board 10
SSRD100EOW02 Engineering OrderWire Board 9
FAN FAN Board 20

SSND00EFS011 8 FE 10/100M Fast Ethernet Processing Board with LAN Switch 12

SSN1D12B 32xE1/T1 Electrical Interface Board 15

SSR2PD1B 32xE1 Service Processing Board(120ohm) 7

SSQD0CXLLN00 STM-1/4/16 System Control,Cross-connect,Optical Interface Board 4&5

SSR1SLQ103 4xSTM-1 Optical Interface Board 11

SSN1ETF8 8-Port 10M/100M BaseT Fast Ethernet Interface Board 14
Optical Transceiver,eSFP,1310nm,STM1,-15~-8dBm,-
eSFP-FE-LX-SM1310 NA
31dBm,LC,SM,15km
Optical Transceiver,eSFP,1310nm,STM4,-3~2dBm,-
eSFP-1310nm-L-4.1 NA
30dBm,LC,SM,40km

8
3.1.3 Link Budget Calculations
Optical Link Budget:KWPPL-Khulana Central
Design Parameters Unit Values
Transmission rate STM-4
Fiber type SMF
Distance between Two Stations(including 5% addition & 1.0 KM extra
Km 20.00
than actual distance)
Source nominal wavelength nm 1310.00
Cable loss@1310 nm dB/Km 0.35
Optical fiber loss dB 7.00
Splice loss (0.05 dB per splice - 1 splice per 3.0km) dB 0.33
Optical path penalty dB 1.00
Connector loss dB 1.00
Maintenanace margin @ 2.5dB/100Km dB 0.50
Total Cable Attenuation dB -9.83
SDH ADM Equipment Parameters
ALSTOM e-terragridcom MSE
Equipment
5010/Huawei OSN 1500
Optical Interface S1.1
Transmitter power EoL (at point S of CCITT) : -14.0
Receiver sensitivity with BER=E-10 (at point R of CCITT) : -34
Calculated Values Unit Values
Recived Level dbm -23.83
Additional margin db 10.17

9
 Optical Link Budget:KWPPL-Khulana Central
Design Parameters Unit Values
Transmission rate STM-4
Fiber type SMF
Distance between Two Stations(including 5% addition & 1.0 KM extra
Km 25.00
than actual distance)
Source nominal wavelength nm 1310.00
Cable loss@1310 nm dB/Km 0.35
Optical fiber loss dB 8.75
Splice loss (0.05 dB per splice - 1 splice per 3.0km) dB 0.42
Optical path penalty dB 1.00
Connector loss dB 1.00
Maintenanace margin @ 2.5dB/100Km dB 0.63
Total Cable Attenuation dB -11.79
SDH ADM Equipment Parameters
ALSTOM e-terragridcom MSE
Equipment
5010/Huawei OSN 1500
Optical Interface S1.1
Transmitter power EoL (at point S of CCITT) : -14.0
Receiver sensitivity with BER=E-10 (at point R of CCITT) : -34
Calculated Values Unit Values
Recived Level dbm -25.79
Additional margin db 8.21

10
3.1.4 Network Diagram

11
3.2 Teleprotection Connectivity
3.2.1 KPCL-2 Power Plant to Khulna Central 132S/S
The transmission Line between KPCL-2 to Khulna Central is a Single Circuit Line. Hence it is provided
with one number of Digital protection coupler (ALSTOM e-terragridcom DIP-5000) at each of these two
stations.

At both stations these protection couplers will be integrated with SDH Equipment through E-1 Links and
will communicate with each other over STM-1 optical Fiber Link.

For the Control Relay Panel (CR Panel) side the I/O board (SR-200) of protection coupler will be wired at
site to existing CR Panel (Supply of CR Panel and cable between CR Panel to Protection Coupler is not in
scope of ALSTOM).
3.2.2 Northwest Power Plant to Khulna Central 132S/S
The transmission Line between KPCL-2 to Khulna Central is a Double Circuit Line. Hence it is provided
with two number of Digital protection coupler (ALSTOM e-terragridcom DIP-5000) at each of these two
station.

At both stations these protection couplers will be integrated with SDH Equipment through dedicated E-1
Links and will communicate with each other over STM-1 optical Fiber Link.

For the CR Panel side the I/O board (SR-200) of protection coupler will be wired at site to existing CR
Panel (Supply of CR Panel and cable between CR Panel to Protection Coupler is not in scope of
ALSTOM).

3.2.3 Goalpara 132 S/S to Bagerhat 132 S/S

The existing transmission Line between KPCL-2 to Khulna Central is a Single Circuit Line and is already
provided with protection coupler under PGCB NLDC project.

Now this section is being augmented to Double circuit by addition of one more bay. To provide protection
to second circuit; both stations are being provided with one number of Digital Protection Coupler
(ALSTOM e-terragridcom DIP-5000) at each of the two stations. At both stations these new protection
couplers will be integrated with SDH Equipment through dedicated E-1 Links and will communicate with
each other over STM-1 optical Fiber Link.

12
For the CR Panel side the I/O board (SR-200) of protection coupler will be wired at site to existing CR
Panel (Supply of CR Panel and cable between CR Panel to Protection Coupler is not in scope of
ALSTOM).
3.2.4 Teleprotection Links
Transmission Line Quantity of Teleprotection Unit
Circuit
Station-A Station-B Station-A Station-B
Khulna central 132 S/S Northwest Power Station I 1 1
Khulna central 132 S/S Northwest Power Station II 1 1
Khulna central 132 S/S KPCL-2 Power Station I 1 1
Goalpara 132 S/S Bagerhat 132 S/S II 1 1

3.2.5 Teleprotection Station wise BOQ

Teleprotection Equipment Bill of Quantities
Item Description Khulna central 132 S/S Northwest Power Station KPCL-2 Power Station Goalpara 132 S/S Bagerhat 132 S/S
Subrack AM 170D - SUB RACK 3 2 1 1 1
Processing Board UT 148D - CPU 3 2 1 1 1
Digital communication with G703-6 (2 M bps) - 120 Ohms IR 173 -120 G703-6 2 Mbps 120 Ohms 3 2 1 1 1
Voltage acquisition command from 24 to 250 Vdc SR200 - Enhanced I/0 card 3 2 1 1 1
Nominal voltage from 48 Vdc to 60 Vdc AL137 -48/60Vdc 3 2 1 1 1
Nominal voltage from 48 Vdc to 60 Vdc AL137 -48/60Vdc 3 2 1 1 1

13
3.2.6 Termination details between CR panel & Teleprotection

3.3 Access Equipment for Services

Access Equipment ALSTOM e-terragridcom DXC is provided at both new Power plants viz Northwest
Power Plant & KPCL-2 Power plant for
1. Providing speech services. The speech will be extended to these stations as Remote subscriber
from existing PGCB PABX at Khulna South or Goalpara.
2. Back up communication path for RTU at these stations to Bidyut Bhavan

14
3.3.1 Site wise Access Equipment Configuration

Northwest Power Plant

C D 1 2 3 4 5 6 7 8 9 # # 12
Power 48Vdc

Small E1

Small E1

Quad E1 120Ω

12xFXS

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK
CTRL

CTRL
Power 48Vdc

Router A

BLANK

A B 1 2 3 4 5 6 7 8 9 # # 12

KPCL-2 Power Plant

C D 1 2 3 4 5 6 7 8 9 # # 12
Power 48Vdc

Small E1

Small E1

Quad E1 120Ω

12xFXS

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK

BLANK
CTRL

CTRL
Power 48Vdc

Router A

BLANK

A B 1 2 3 4 5 6 7 8 9 # # 12

4 INTEGRATION

4.1.1 Khulna Central 132 Existing PGCB S/S

The new SDH Equipment being supplied at this station will be installed in place of existing SDH
equipment in the existing Telecom cubicle. The two new teleprotection equipments will also be housed in
the same existing cubicle.
15
4.1.2 Northwest Power station
Single (one number) fully factory integrated 42 U Telecom Cubicle hosing following equipment’s will be
supplied for this station:
a. SDH Equipment-01
b. Access Equipment-01
c. Teleprotection Equipment-02
4.1.3 KPCL-2 Power station
Single (one number) fully factory integrated 42 U Telecom Cubicle hosing following equipment’s will be
supplied for this station:
a. SDH Equipment-01
b. Access Equipment-01
c. Teleprotection Equipment-01
4.1.4 Goalpara 132 Existing PGCB S/S
The one new teleprotection equipment’s will be housed in the existing cubicle.

4.1.5 Bagrehat 132 Existing PGCB S/S

The one new teleprotection equipment’s will be housed in the existing cubicle.

The color shade of new Telecom Cubicles will be RAL 7035

16
5 RTU DATA COMMUNICATION WITH CONTROL CENTERS

RTU communication will be over 104 protocol from both Northwest & KPCL-2 Power stations.
The redundant path for RTU data from these stations upto Rampura NLDC & Bidyut Bhavan back up
NLDC will be configured. This will be by reconfiguration of existing SDH & PDH Equipment’s in the PGCB
NLDC Telecom network.
The first connection towards Front End 1 (FE1) server and Front End 2 (FE2) server is carried out using
one VLAN (read links in the diagram below) via EoS backbone network. The first Ethernet port for RTU is
connected to collocated SDH Ethernet board belonging to EoS access network; one VC12/E1 trunk is
used to connect this SDH to EoS backbone switch.
The VLAN connection is terminated in Port 3 of FE1 and FE2 servers which handle VLAN tagging for
RTU addressing traffic. The RTU VLAN has two possible ways towards RAMPURA NLDC1 and RAMPURA
NLDC2 EoS switches in order to remedy to network failure.
The RTU is connected to PDH-Router card in DXC5000 which provides a second connection to Port 4 of
FE1, FE2 and FE backup servers. The RTU transport traffic is carried out using IP Network. One Inter-
center Ethernet link is provided for transporting IP traffic between RAMPURA NLDC and BIDD.BHABAN
backup NLDC.

17
 BIDD.BHABAN
RAMPURA NLDC Backup NLDC

FE 1 FE 2 FE backup

FE 2

P4

P4
P4

P3
P3

RAMPURA RAMPURA Backbone

NLDC1 NLDC2 Router

EoS Backbone
WAN/PDH/SDH

VLAN link

IP routing
link

Collocated PDH-Router
Collocated SDH
Ethernet board

Ethernet switching process Ethernet over SDH

board on Backbone Network access network

RTU

18
