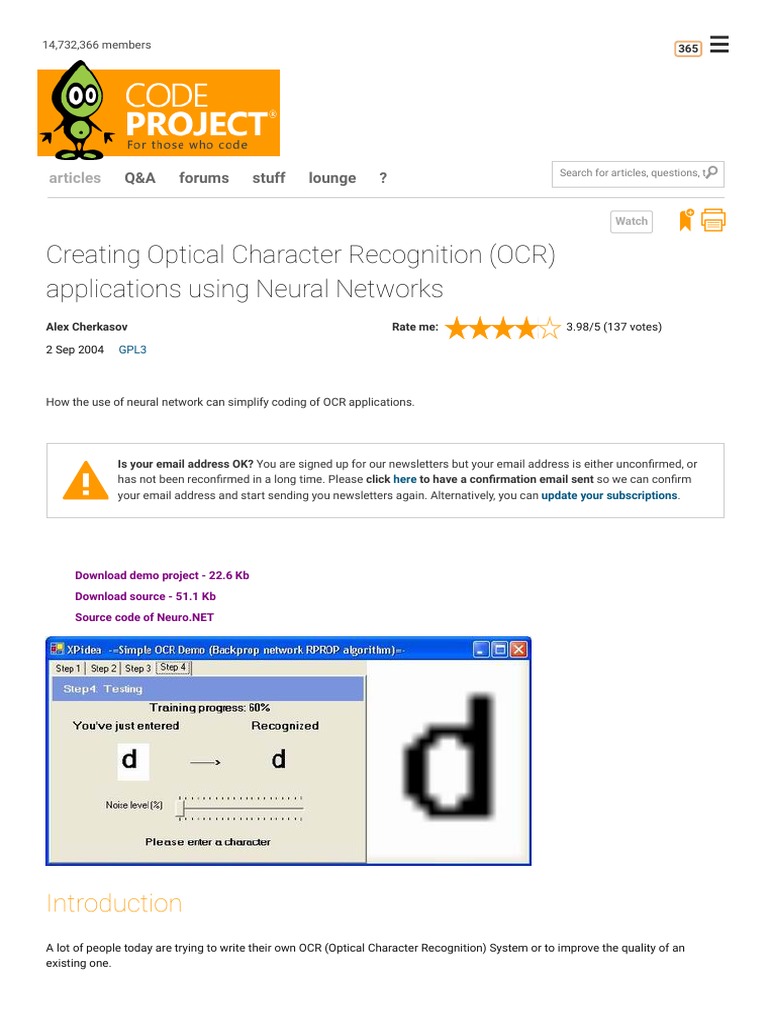

Creating Optical Character Recognition (OCR)

applications using Neural Networks
Alex Cherkasov Rate me: 3.98/5 (137 votes)

2 Sep 2004 GPL3

How the use of neural network can simplify coding of OCR applications.

Is your email address OK? You are signed up for our newsletters but your email address is either unconfirmed, or
has not been reconfirmed in a long time. Please click here to have a confirmation email sent so we can confirm
your email address and start sending you newsletters again. Alternatively, you can update your subscriptions.

Download demo project - 22.6 Kb

Download source - 51.1 Kb
Source code of Neuro.NET

Introduction
A lot of people today are trying to write their own OCR (Optical Character Recognition) System or to improve the quality of an
existing one.
This article shows how the use of artificial neural network simplifies development of an optical character recognition application,
while achieving highest quality of recognition and good performance.

Background
Developing proprietary OCR system is a complicated task and requires a lot of effort. Such systems usually are really complicated
and can hide a lot of logic behind the code. The use of artificial neural network in OCR applications can dramatically simplify the
code and improve quality of recognition while achieving good performance. Another benefit of using neural network in OCR is
extensibility of the system – ability to recognize more character sets than initially defined. Most of traditional OCR systems are not
extensible enough. Why? Because such task as working with tens of thousands Chinese characters, for example, is not as easy as
working with 68 English typed character set and it can easily bring the traditional system to its knees!

Well, the Artificial Neural Network (ANN) is a wonderful tool that can help to resolve such kind of problems. The ANN is an
information-processing paradigm inspired by the way the human brain processes information. Artificial neural networks are
collections of mathematical models that represent some of the observed properties of biological nervous systems and draw on the
analogies of adaptive biological learning. The key element of ANN is topology. The ANN consists of a large number of highly
interconnected processing elements (nodes) that are tied together with weighted connections (links). Learning in biological
systems involves adjustments to the synaptic connections that exist between the neurons. This is true for ANN as well. Learning
typically occurs by example through training, or exposure to a set of input/output data (pattern) where the training algorithm adjusts
the link weights. The link weights store the knowledge necessary to solve specific problems.

Originated in late 1950's, neural networks didn’t gain much popularity until 1980s – a computer boom era. Today ANNs are mostly
used for solution of complex real world problems. They are often good at solving problems that are too complex for conventional
technologies (e.g., problems that do not have an algorithmic solution or for which an algorithmic solution is too complex to be
found) and are often well suited to problems that people are good at solving, but for which traditional methods are not. They are
good pattern recognition engines and robust classifiers, with the ability to generalize in making decisions based on imprecise input
data. They offer ideal solutions to a variety of classification problems such as speech, character and signal recognition, as well as
functional prediction and system modeling, where the physical processes are not understood or are highly complex. The advantage
of ANNs lies in their resilience against distortions in the input data and their capability to learn.

Using the code

In this article I use a sample application from Neuro.NET library to show how to use Backpropagation neural network in a simple
OCR application.

Let’s assume you that you already have gone through all image pre-processing routines (resampling, deskew, zoning, blocking etc.)
and you already have images of the characters from your document. (In the example I simply generate those images).

Creating the neural network.

Let’s construct the network first. In this example I use a Backpropagation neural network. The Backpropagation network is a
multilayer perceptron model with an input layer, one or more hidden layers, and an output layer.

The nodes in the Backpropagation neural network are interconnected via weighted links with each node usually connecting to the
next layer up, till the output layer which provides output for the network. The input pattern values are presented and assigned to the
input nodes of the input layer. The input values are initialized to values between -1 and 1. The nodes in the next layer receive the
input values through links and compute output values of their own, which are then passed to the next layer. These values propagate
forward through the layers till the output layer is reached, or put another way, till each output layer node has produced an output
value for the network. The desired output for the input pattern is used to compute an error value for each node in the output layer,
and then propagated backwards (and here's where the network name comes in) through the network as the delta rule is used to
adjust the link values to produce better, the desired output. Once the error produced by the patterns in the training set is below a
given tolerance, the training is complete and the network is presented new input patterns and produce an output based on the
experience it gained from the learning process.

I will use a library class BackPropagationRPROPNetwork to construct my own OCRNetwork.

Hide   Copy Code

//Inherit form Backpropagation neural network

public class OCRNetwork: BackPropagationRPROPNetwork
{
//Override method of the base class in order to implement our
//own training method
public override void Train(PatternsCollection patterns)
{
...
}
}

I override the Train method of the base class to implement my own training method. Why do I need to do it? I do it because of
one simple reason: the training progress of the network is measured by quality of produced result and speed of training. You have to
establish the criteria when the quality of network output is acceptable for you and when you can stop the training process. The
implementation I provide here is proven (based on my experience) to be fast and accurate. I decided that I can stop the training
process when network is able to recognize all of the patterns, without a single error. So, here is the implementation of my training
method.

Hide   Shrink   Copy Code

public override void Train(PatternsCollection patterns)

{ //Current iteration number
if (patterns != null)
{
double error = 0;
int good = 0;
// Train until all patterns are correct
while (good < patterns.Count)
{
good = 0;
for (int i = 0; i<patterns.Count; i++)
{
//Set the input values of the network
for (int k = 0; k<NodesInLayer(0); k++)
nodes[k].Value = patterns[i].Input[k];
//Run the network
this.Run();
//Set the expected result
for (int k = 0;k< this.OutputNodesCount;k++)
this.OutputNode(k).Error = patterns[i].Output[k];
//Make the network to remember corresponding output
//values. (Teach the network)
this.Learn();
//See if network did produced correct result during
//this iteration
if (BestNodeIndex == OutputPatternIndex(patterns[i]))
good++;
}
//Adjust weights of the links in the network to their
//average value. (An epoch training technique)
foreach (NeuroLink link in links)
((EpochBackPropagationLink)link).Epoch(patterns.Count);
}
}
}

Also, I have implemented a BestNodeIndex property that returns the index of the node having maximum value and having the
minimal error. An OutputPatternIndex method returns the index of the pattern output element having value of 1. If those
indices are matched – the network has produced correct result. Here is how the BestNodeIndex implementation looks like:
 Hide   Copy Code

public int BestNodeIndex

{
get {
int result = -1;
double aMaxNodeValue = 0;
double aMinError = double.PositiveInfinity;
for (int i = 0; i< this.OutputNodesCount;i++)
{
NeuroNode node = OutputNode(i);
//Look for a node with maximum value or lesser error
if ((node.Value > aMaxNodeValue)||
((node.Value >= aMaxNodeValue)&&(node.Error <aMinError)))
{
aMaxNodeValue = node.Value;
aMinError = node.Error;
result = i;
}
}
return result;
}
}

As simple as it gets I create the instance of the neural network. The network has one constructor parameter – integer array
describing number of nodes in each layer of the network. First layer in the network is an input layer. The number of elements in this
layer corresponds to number of elements in input pattern and is equal to number of elements in digitized image matrix (we will talk
about it later). The network may have multiple middle layers with different number of nodes in each layer. In this example I use only
one layer and apply “not official rule of thumb” to determine number of nodes in this layer:

Hide   Copy Code

NodesNumber = (InputsCount+OutputsCount) / 2

Note: You can experiment by adding more middle layers and using different number of nodes in there - just to see how it will affect
the training speed and recognition quality of the network.

The last layer in the network is an output layer. This is the layer where we look for the results. I define the number of nodes in this
layer equal to a number of characters that we going to recognize.

Hide   Copy Code

//Create an instance of the network

backpropNetwork = new OCRNetwork(new int[3] {aMatrixDim * aMatrixDim,
(aMatrixDim * aMatrixDim + aCharsCount)/2, aCharsCount});

Creating training patterns

Now let's talk about the training patterns. Those patterns will be used for teaching the neural network to recognize the images.
Basically, each training pattern consists of two single-dimensional arrays of float numbers – Inputs and Outputs arrays.

Hide   Copy Code

/// <summary>
/// A class representing single training pattern and is used to train a
/// neural network. Contains input data and expected results arrays.
/// </summary>
public class Pattern: NeuroObject
{
private double[] inputs, outputs;
...
}

The Inputs array contains your input data. In our case it is a digitized representation of the character's image. Under “digitizing”
the image I mean process of creating a brightness (or absolute value of the color vector-whatever you choose) map of the image.
To create this map I split the image into squares and calculate average value of each square. Then I store those values into the
array.

I have implemented CharToDoubleArray method of the network to digitize the image. There I use an absolute value of the
color for each element of the matrix. (No doubt that you can use other techniques there…) After the image is digitized, I have to
scale-down the results in order to fit them into a range from -1 ..1 to comply with input values range of the network. To do this I
wrote a Scale method, where I look for the maximum element value of the matrix and then divide all elements of the matrix by it.
So, implementation of CharToDoubleArray looks like this:

Hide   Shrink   Copy Code

//aSrc – an image of the character

//aArrayDim – dimension of the pattern matrix
//calculate image quotation X step
double xStep = (double)aSrc.Width/(double)aArrayDim;
//calculate image quotation Y step
double yStep = (double)aSrc.Height/(double)aArrayDim;
double[] result = new double[aMatrixDim*aMatrixDim ];
for (int i=0; i<aSrc.Width; i++)
for (int j=0;j<aSrc.Height;j++)
{
//calculate matrix address
int x = (int)(i/xStep);
int y = (int)(j/yStep);
//Get the color of the pixel
Color c = aSrc.GetPixel(i,j);
//Absolute value of the color, but I guess, it is possible to
//use the B component of Alpha color space too...
result[y*x+y]+=Math.Sqrt(c.R*c.R+c.B*c.B+c.G*c.G);
}
//Scale the matrix to fit values into a range from 0..1 (required by
//ANN) In this method we look for a maximum value of the element
//and then divide all elements of the matrix by this maximum value.
return Scale(result);

The Outputs array of the pattern represents an expected result – the result that network will use during the training. There are as
many elements in this array as many characters we going to recognize. So, for instance, to teach the network to recognize English
letters from “A” to “Z” we will need 25 elements in the Outputs array. Make it 50 if you decide to include lower case letters. Each
element corresponds to a single letter. The Inputs of each pattern are set to a digitized image data and a corresponding element
in the Outputs array to 1, so network will know which output (letter) corresponds to input data. The method
CreateTrainingPatterns does this job for me.
Hide   Shrink   Copy Code

public PatternsCollection CreateTrainingPatterns(Font font) {

//Create pattern collection
// As many inputs (examples) as many elements in digitized image matrix
// As many outputs as many characters we going to recognize.
PatternsCollection result = new PatternsCollection(aCharsCount,
aMatrixDim * aMatrixDim, aCharsCount);
 // generate one pattern for each character
for (int i= 0; i<aCharsCount; i++)
{
//CharToDoubleArray creates an image of the character and digitizes it.
//You can change this method to pass actual the image of the character
double[] aBitMatrix = CharToDoubleArray(Convert.ToChar(aFirstChar + i),
font, aMatrixDim, 0);
//Assign matrix value as input to the pattern
for (int j = 0; j<aMatrixDim * aMatrixDim; j++)
result[i].Input[j] = aBitMatrix[j];
//Output value set to 1 for corresponding character.
//Rest of the outputs are set to 0 by default.
result[i].Output[i] = 1;
}
return result;
}

Now we have completed creation of patterns and we can use those to train the neural network.

Training of the network.

To start training process of the network simple call the Train method and pass your training patterns in it.

Hide   Copy Code

//Train the network

backpropNetwork.Train(trainingPatterns);

Normally, an execution flow will leave this method when training is complete, but in some cases it could stay there forever (!).The
Train method is currently implemented relying only on one fact: the network training will be completed sooner or later. Well, I
admit - this is wrong assumption and network training may never complete. The most “popular” reasons for neural network training
failure are:

Training never completes because: Possible solution

1. The network topology is too simple to handle

amount of training patterns you provide. You will have Add more nodes into middle layer or add more middle layers to the network.
to create bigger network.

2. The training patterns are not clear enough, not As a solution you can clean the patterns or you can use different type of
precise or are too complicated for the network to network /training algorithm. Also, you cannot train the network to guess
differentiate them. next winning lottery numbers... :-)

3. Your training expectations are too high and/or not

Lower your expectations. The network could be never 100% "sure"
realistic.

4. No reason Check the code!

Most of those reasons are very easy to resolve and it is a good subject for a future article. Meanwhile, we can enjoy the results.

Enjoying the results

Now we can see what the network has learned. Following code fragment shows how to use trained neural network in your OCR
application.

Hide   Copy Code

//Get your input data

double[] aInput = ... (your digitized image of the character)
 //Load the data into the network
for (int i = 0; i< backpropNetwork.InputNodesCount;i++)
backpropNetwork.InputNode(i).Value = aInput[i];
//Run the network
backpropNetwork.Run();
//Get result from the network and convert it to a character
return Convert.ToChar(aFirstChar + backpropNetwork.BestNodeIndex).ToString();

In order to use the network you have to load your data into input layer. Then use the Run method to let the network process your
data. Finally, get your results out from output nodes of the network and analyze those (The BestNodeIndex property I created
in OCRNetwork class does this job for me).

License
This article, along with any associated source code and files, is licensed under The GNU General Public License (GPLv3)

Share

About the Author

Alex Cherkasov
Web Developer Watch
United States this Member

Senior System Architect with 11+ yrs experience. Masters degree in CS (PhD is
in progress). Experienced in design and implementation of enterprise wide computer systems,
n-Tier applications, application servers, computer vision, image analysis and
AI. Provide project design, development and management consulting services
through owned company http://www.xpidea.com

Comments and Discussions


  Email Alerts Search Comments
Add a Comment or Question

First Prev Next

Using existing OCR to build new app

Member 13512948 9-Nov-17 22:01

Re: Using existing OCR to build new app

Karthik_Mahalingam 10-Nov-17 2:15

Using this library for recognizing languages other than English characters
Saeedek 30-Sep-15 10:43
Source code of Neuro.NET
Alex Cherkasov 28-Jun-15 7:34

Missing source code?

Member 11721360 27-May-15 7:32

plate recognition
merve123 5-Mar-14 15:36

qestion
aymandesoky 30-Mar-13 5:43

My vote of 5
Manoj Kumar Choubey 11-Apr-12 15:31

Complete source code not included ?

Soliant 29-Jun-11 15:13

My vote of 5
NormDroid 1-Apr-11 10:34

My vote of 5
Member 3837040 5-Jan-11 3:43

C# ocr A1 eurobanking font

jigasvicar 19-Sep-10 23:07

My vote of 4
Tanuj Srivastava 25-Aug-10 11:05

[OCR] Help Needed

Kayode Nubi 25-May-10 8:43

Re: [OCR] Help Needed

Dehan Wijesekara 15-May-14 16:41

ANN & backpropagation project

FoodGood 18-May-10 0:15

DTW
metyouba 14-Mar-10 13:06

Help needed....
deepak7777 16-Dec-09 6:44

Re: Help needed....

Kayode Nubi 25-May-10 8:46

Great article but...

vbguyny 11-May-09 22:43

Ocr with java........

Eti Roy 13-Sep-08 12:43

Re: Ocr with java........

scanreg 28-Jan-09 15:57

What about MNIST?

juicy_emad 19-Jul-08 2:09
 Liscence?
Barbarrosa 11-May-08 16:38

thanks :)
*Jori* 23-Apr-08 0:46

Refresh 1 2 3 4 5 6 7 8 Next ᐅ

General    News    Suggestion    Question    Bug    Answer    Joke    Praise    Rant    Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

Permalink Layout: fixed | fluid Article Copyright 2003 by Alex Cherkasov

Advertise Everything else Copyright © CodeProject, 1999-
Privacy 2021
Cookies
Terms of Use Web02 2.8.20210114.1
