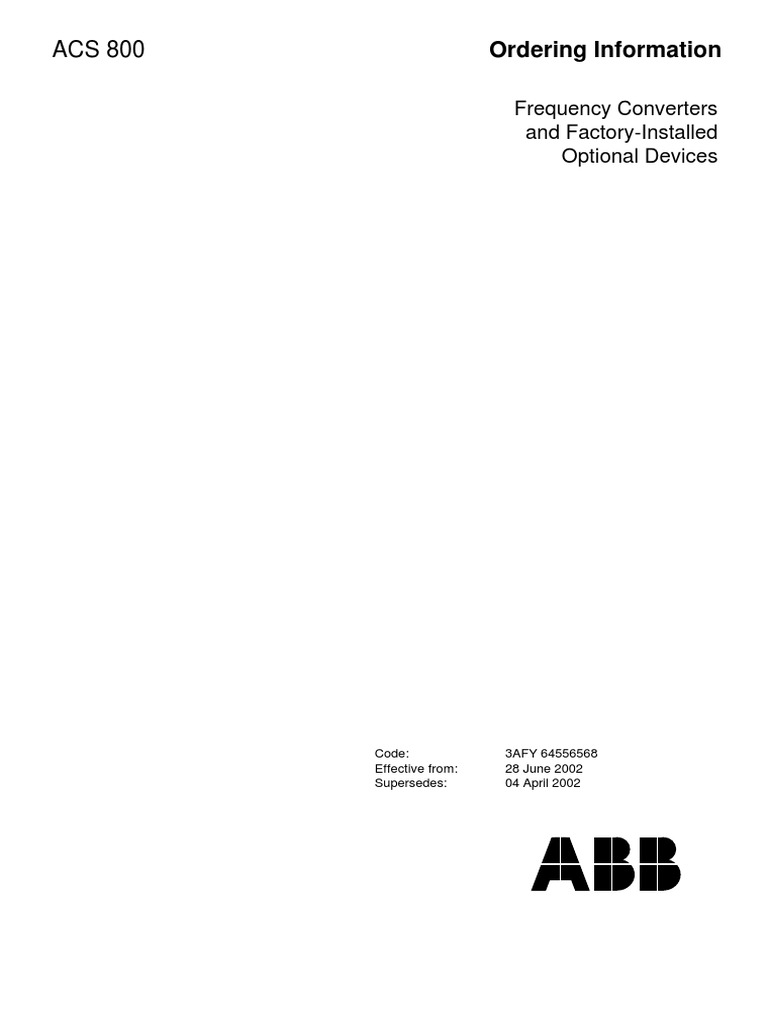

ACS 800 Ordering Information

Frequency Converters
and Factory-Installed
Optional Devices

Code: 3AFY 64556568

Effective from: 28 June 2002
Supersedes: 04 April 2002
 Ordering Information
Updated: 28 June 2002
Overview

This document consists of

- a Type Code Key
- ACS800: ACS Type Code Sheets (=Order Sheets).

Only the ACS 800 and the optional devices that are assembled inside the ACS 800 housing
can be ordered with the codes described in this document. However, most of the optional
devices are also available as Add-On Kits. Add-On Kits are to be ordered separately. For
Add-On Kits Ordering Codes, please see the ACS 800 price list.

The Type Code for ordering ACS 800 consists of 16 characters, which identify the basic
product with default features. Options are ordered by four digit option codes which are
separated by '+' signs. On the next page you will find the Type Code Key that shows the
priciple of the the Type Code and Option Codes. With the assistance of the Type Code
Sheet you are able to form the correct ordering code (technical definition) for the unit(s) you
wish to buy.

Available options and restrictions on option combinations are explained in detail in the
respective Option Sheets.

You may include the Type Code Sheet, filled in with the requested basic product and the
quantity of selected options, in your order or you may copy the correct Type Code onto your
order sheet. Please send orders by Lotus Notes or fax to the country responsible Sales
Assistant in Helsinki.
Type Code Key
ACS 8 0 0 - 0 1 - 0 0 7 0 - 3 + X X X X +

Product Series

Construction

Size

Voltage Rating

Option codes

Example ACS800 - 01 - 0020 - 3 + E202 + 2L501 + L503

20 kVA 400 V basic drive

EMC filter

2pcs of digital I/O extensions RDIO-01

Communication board RDCO-03

 Ordering Information
Updated on 28 June 2002

How to fill in the Industry Segment and Application Area boxes on the Order Sheets

On the subsequent Order Sheets (Type Code Sheets), you will need to fill in the Industry Segment
and Application Area boxes on top of each sheet.
Below is a list of the Industry Segment and Application Area abbreviations defined in our Order Processing
System (SAP). On the Order Sheets, you may view these using the Industry Segment and Application Area
scroll bars and then select the respective abbreviations from the Industry Segment and Application Area
drop-down menus.

Abbreviations for Industry Segments and Application Areas

(you may view these on the Order Sheets)
Industry Segments Application Areas

Automotive (AUT) Cable Car (CAB)

Cement (CEM) Calander Line (CAL)
Chemical (CHE) Centrifuge (CEN)
Electronics (ELE) Coating (COA)
Food & Beverage (FOO) Compressor (COM)
HVAC (HVA) Conveyor (CON)
Material Handling (MAH) Crane (CRA)
Marine (MAR) Crusher (CRU)
Metal (MET) Cutting,Shear,Saw (CUT)
Mining (MIN) Drilling (DRI)
Offshore (OFF) Drum (DRU)
Pulp & Paper (P&P) Elevator (ELE)
Printing House (PAP) Extruder (EXT)
Oil & Gas (PET) Fan (FAN)
Power Plant (POW) Flat Rolling (FLA)
Rubber, Plastics (RUB) Induction Heating (IND)
Sawmill (SAW) Kiln (KIL)
Textile (TEX) Machine Tool (MAC)
Water (WAT) Mixer, Stirrer (MIX)
Others (OTH) Paper Machine (PAP)
Not known (N/A) Processing Line (PRC)
Press (PRE)
Printing Machine (PRI)
Profile Rolling (PRO)
Propulsion (PRP)
Pump (PUM)
Roller Table (ROL)
Skilift (SKI)
Spinning (SPI)
Test Bench (TES)
Thruster (THU)
Winch (WIC)
Windmill (WID)
Winder (WIN)
Others (OTH)
Not known (N/A)
ACS800-01 Type Code Sheet 3 - 55 kW, Wall Mounted
Updated on 28 June 2002
1…6 A C S 8 0 0 Product Series Industry Segment
Industry Segments

7…9 - 0 1 Construction
01 = Wall Mounted, IP21, with control panel CDP312R, no EMC Application Area
filter, Standard software, Cable lead through entry, Braking chopper
in frame sizes R2 and R3, Board without coating, One set of English Application Areas
documents

10…14 - Size
Frame Size R2 Frame Size R3 Frame Size R4 Frame Size R5 Frame Size R6
400V 0003 0004 0005 0011 0016 0020 0025 0030 0040 0050 0060 0070 0100 0120
0006 0009

500V 0004 0005 0006 0016 0020 0025 0030 0040 0050 0060 0070 0100 0120 0140
0009 0011

15…16 - Voltage Rating

3 = 400 V 5 = 500 V

Option codes

I/O options
L500 Analogue I/O extension RAIO-01
L501 Digital I/O extension RDIO-01
L502 Pulse encoder interface RTAC-01
2 slots available for I/O options or Fieldbus
L503 DDCS Communication 3 RDCO-03 adapters.
L509 DDCS Communication 2 RDCO-02 Communication board has always one
L508 DDCS Communication 1 RDCO-01 dedicated slot.
2 digital I/O extension are supported.
Fieldbus
K451 DeviceNet adapter RDNA-01
K454 Profibus-DP adapter RPBA-01
K458 Modbus adapter RMBA-01

Software
N650 Pump and Fan Control (PFC)
N651 Master/Follower
N666 Extruder Control
N653 Application Program Template Available only for Drives Engineering Centers
N654 Spinning Control
N668 Traverse Control

Control panel
J405 No control panel

ACS800-01 - 1
ACS800-01 Type Code Sheet 3 - 55 kW, Wall Mounted
Updated on 28 June 2002

Protection class
B056 IP55
P901 Coated boards

Filters
E200 EMC/RFI-filter, 2nd Environment, Unrestricted (Earthed Network)
E202 EMC/RFI-filter, 1st Environment, Restricted (A-limits, Earthed Network)

Resistor braking
D150 Braking chopper Included as standard in frame sizes R2 and R3

Cabling
H358 Cable conduit entry (US & UK version)

Documentation language
R700 English
R701 German
R702 Italian
R703 Dutch Check availability
R704 Danish
R705 Swedish
R706 Finnish
R707 French Check availability
R708 Spanish
R709 Portuguese (in Portugal) Check availability

Specialities
P904 Extended warranty

ACS800-01 - 2
ACS800-02 Type Code Sheet 90 - 500 kW, Free standing
Updated on 28 June 2002
1…6 A C S 8 0 0 Product Series Industry Segment
Industry Segments

7…9 - 0 2 Construction
02 = Free standing, 6 pulse diode bridge, IP21, with control panel Application Area
CDP312R, no EMC filter, Standard software, Cable lead through
entry, Bottom entry and exit of cables, Boards without coating, One Application Areas
set of English documents

10…14 - Size
Frame Size R7 Frame Size R8
400V 0140 0170 0260 0320 0400
0210 0440 0490

500V 0170 0210 0320 0400 0440

0260 0490 0550 0610

15…16 - Voltage Rating

3 = 400 V 5 = 500 V

Option codes

I/O options
L500 Analogue I/O extension RAIO-01
L501 Digital I/O extension RDIO-01
L502 Pulse encoder interface RTAC-01
L503 DDCS Communication 3 RDCO-03
L509 DDCS Communication 2 RDCO-02
L508 DDCS Communication 1 RDCO-01
L504 Additional I/O-Terminal Block (requires Enclosure extension)
L505 Thermistor Relay (requires Enclosure extension) 2 slots available for I/O options or
L506 Pt100 Relay (requires Enclosure extension) Fieldbus adapters.
2 digital I/O extension are supported.
Fieldbus Communication board has always one
dedicated slot.
K451 DeviceNet adapter RDNA-01
Max. 2 Thermistor Relays or 3 Pt100
K454 Profibus-DP adapter RPBA-01
relays can be selected with Enclosure
K458 Modbus adapter RMBA-01 extension.

Software
N650 Pump and Fan Control (PFC)
N651 Master/Follower
N666 Extruder Control
N653 Application Program Template Available only for Drives Engineering Centers
N654 Spinning Control
N668 Traverse Control

ACS800-02 - 1
ACS800-02 Type Code Sheet 90 - 500 kW, Free standing
Updated on 28 June 2002

Control panel
J405 No control panel

Protection class
P901 Coated boards

Construction
C111 Enclosure extension (Incl. Door Interlock Disconnect Switch Fuse)

Filters
E210 EMC/RFI-filter, 2nd Environment, Unrestricted (Earthed/Unearthed Network)
E202 EMC/RFI-filter, 1st Environment, Restricted (A-limits, Earthed Network)
E204 Du/dt limitation by gate drivers Check availability
E208 Common mode filter
E209 Common mode filter (light)

Resistor braking
D150 Braking chopper

Line options (Enclosure Extension required, standard aux voltage 230V)

F250 Line contactor + Emergency Stop, category 0 Devices (requires Enclosure extension)

Cabling
H351+ H353 Top entry & top exit (requires Enclosure extension)
H358 Cable conduit entry (US & UK version)

Cabinet options (Enclosure Extension required)

G304 115 VAC Control Voltage (option for Enclosure extension)

ACS800-02 - 2
ACS800-02 Type Code Sheet 90 - 500 kW, Free standing
Updated on 28 June 2002

Documentation language
R700 English
R701 German
R702 Italian
R703 Dutch Check availability
R704 Danish
R705 Swedish
R706 Finnish
R707 French Check availability
R708 Spanish
R709 Portuguese (in Portugal) Check availability

Specialities
P904 Extended warranty

ACS800-02 - 3
ACS800-U1 Type Code Sheet 2 - 150 HP, Wall Mounted
Updated on 28 June 2002
1…6 A C S 8 0 0 Product Series Industry Segment
Industry Segments

7…9 - U 1 Construction
U1 = Wall Mounted (USA),UL Type1 (IP21), with control panel Application Area
CDP312R, no EMC filter, Standard software (US), Cable conduit
entry, Braking chopper in frame sizes R2 and R3, Boards without Application Areas
coating, One set of English documents

10…14 - Size
Frame Size R2 Frame Size R3 Frame Size R4 Frame Size R5 Frame Size R6
500V 0004 0005 0006 0016 0020 0025 0030 0040 0050 0060 0070 0100 0120 0140
0009 0011

15…16 - Voltage Rating

5 = 500 V

Option codes

I/O options
L500 Analogue I/O extension RAIO-01
L501 Digital I/O extension RDIO-01
L502 Pulse encoder interface RTAC-01
2 slots available for I/O options or Fieldbus
L503 DDCS Communication 3 RDCO-03 adapters.
L509 DDCS Communication 2 RDCO-02 Communication board has always one
L508 DDCS Communication 1 RDCO-01 dedicated slot.
2 digital I/O extension are supported.
Fieldbus
K451 DeviceNet adapter RDNA-01
K454 Profibus-DP adapter RPBA-01
K458 Modbus adapter RMBA-01

Software
N650 Pump and Fan Control (PFC)
N651 Master/Follower
N666 Extruder Control
N653 Application Program Template Available only for Drives Engineering Centers
N654 Spinning Control
N668 Traverse Control

Control panel
J405 No control panel

ACS800-U1 - 1
ACS800-U1 Type Code Sheet 2 - 150 HP, Wall Mounted
Updated on 28 June 2002

Protection class
B056 UL Type 12 (IP55)
P901 Coated boards

Filters
E200 EMC/RFI-filter, 2nd Environment, Unrestricted (Earthed Network)
E202 EMC/RFI-filter, 1st Environment, Restricted (A-limits, Earthed Network)

Resistor braking
D150 Braking chopper Included as standard in frame sizes R2 and R3

Cabling
H357 Cable lead through entry (European)

Documentation language
R700 English
R701 German
R702 Italian
R703 Dutch Check availability
R704 Danish
R705 Swedish
R706 Finnish
R707 French Check availability
R708 Spanish
R709 Portuguese (in Portugal) Check availability

Specialities
P904 Extended warranty

ACS800-U1 - 2
ACS800-U2 Type Code Sheet 150 - 600 HP, Free standing
Updated on 28 June 2002
1…6 A C S 8 0 0 Product Series Industry Segment
Industry Segments

7…9 - U 2 Construction
U2 = Free standing (USA), 6-pulse diode bridge, UL Type 1 (IP21), Application Area
with control panel CDP312R, no EMC filter, Standard software (US),
Enclosure extension (Top entry, Top exit), Cable conduit entry, Application Areas
common mode filter in R8, Boards without coating, One set of English
documents

10…14 - Size
Frame Size R7 Frame Size R8
500V 0170 0210 0320 0400 0440
0260 0490 0550 0610

15…16 - Voltage Rating

5 = 500 V

Option codes

I/O options
L500 Analogue I/O extension RAIO-01
L501 Digital I/O extension RDIO-01
L502 Pulse encoder interface RTAC-01
L503 DDCS Communication 3 RDCO-03
L509 DDCS Communication 2 RDCO-02
L508 DDCS Communication 1 RDCO-01
L504 Additional I/O-Terminal Block (requires Enclosure extension)
L505 Thermistor Relay (requires Enclosure extension) 2 slots available for I/O options or
L506 Pt100 Relay (requires Enclosure extension) Fieldbus adapters.
2 digital I/O extension are supported.
Fieldbus Communication board has always one
dedicated slot.
K451 DeviceNet adapter RDNA-01
Max. 2 Thermistor Relays or 3 Pt100
K454 Profibus-DP adapter RPBA-01
relays can be selected with Enclosure
K458 Modbus adapter RMBA-01 extension.

ACS800-U2 - 1
ACS800-U2 Type Code Sheet 150 - 600 HP, Free standing
Updated on 28 June 2002

Software
N650 Pump and Fan Control (PFC)
N651 Master/Follower
N666 Extruder Control
N653 Application Program Template Available only for Drives Engineering Centers
N654 Spinning Control
N668 Traverse Control

Control panel
J405 No control panel

Protection class
P901 Coated boards

Construction
C112 No Enclosure extension

Filters
E210 EMC/RFI-filter, 2nd Environment, Unrestricted (Earthed/Unearthed Network)
E202 EMC/RFI-filter, 1st Environment, Restricted (A-limits, Earthed Network)
E204 Du/dt limitation by gate drivers Check availability
E208 Common mode filter (only for R7)
E209 Common mode filter (light) (only for R7)

Resistor braking
D150 Braking chopper

Line options (Enclosure Extension required, standard aux voltage 115V)

F250 Line contactor + Emergency Stop, category 0 Devices (requires Enclosure extension)

Cabling
H350+ H352 Bottom entry & Bottom exit
H357 Cable lead through entry (European)

Cabinet options (Enclosure Extension required)

G320 220 VAC Control Voltage

ACS800-U2 - 2
ACS800-U2 Type Code Sheet 150 - 600 HP, Free standing
Updated on 28 June 2002

Documentation language
R700 English
R701 German
R702 Italian
R703 Dutch Check availability
R704 Danish
R705 Swedish
R706 Finnish
R707 French Check availability
R708 Spanish
R709 Portuguese (in Portugal) Check availability

Specialities
P904 Extended warranty

ACS800-U2 - 3
