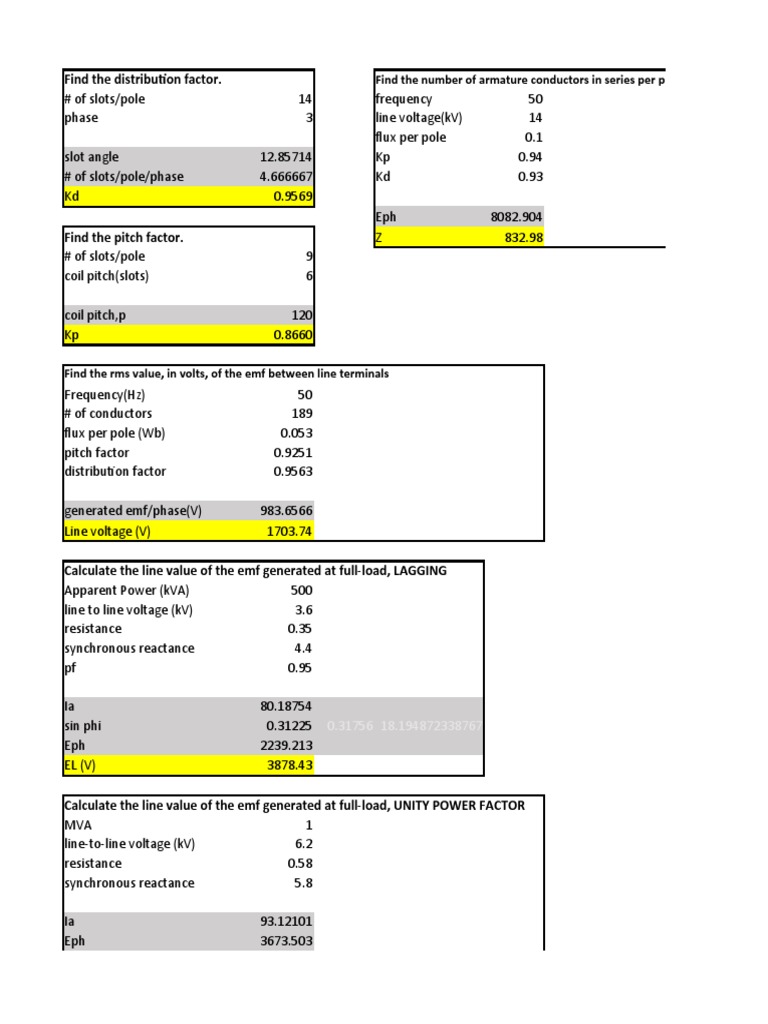

Find the distribution factor.

Find the number of armature conductors in series per phase

# of slots/pole 14 frequency 50
phase 3 line voltage(kV) 14
flux per pole 0.1
slot angle 12.85714 Kp 0.94
# of slots/pole/phase 4.666667 Kd 0.93
Kd 0.9569
Eph 8082.904
Find the pitch factor. Z 832.98
# of slots/pole 9
coil pitch(slots) 6

coil pitch,p 120

Kp 0.8660

Find the rms value, in volts, of the emf between line terminals
Frequency(Hz) 50
# of conductors 189
flux per pole (Wb) 0.053
pitch factor 0.9251
distribution factor 0.9563

generated emf/phase(V) 983.6566

Line voltage (V) 1703.74

Calculate the line value of the emf generated at full-load, LAGGING

Apparent Power (kVA) 500
line to line voltage (kV) 3.6
resistance 0.35
synchronous reactance 4.4
pf 0.95

Ia 80.18754
sin phi 0.31225 0.31756 18.194872338767
Eph 2239.213
EL (V) 3878.43

Calculate the line value of the emf generated at full-load, UNITY POWER FACTOR
MVA 1
line-to-line voltage (kV) 6.2
resistance 0.58
synchronous reactance 5.8

Ia 93.12101
Eph 3673.503
EL 6362.69

Calculate the line value of the emf generated at full-load, LEADING

MVA 1.5
line-tp-line voltage(kV) 6
resistance 0.59
synchronous reactance 5.4
pf 0.91

Ia 144.3376
Vph 3464.102
sin phi 0.414608 0.427512 24.49464847142
Eph 3303.448
EL 5721.74

Calculate the percent voltage regulation

MVA 1.4
line-to-line voltage 6
resistance 0.59
synchronous reactance 5.5
pf 0.8

Ia 134.7151
Vph 3464.102
sin phi 0.6 0.643501 36.869897645844
Eph 4009.468
%VR 15.74

Calculate the synchronous reactance, in Ohms

resistance 0.57
full load current 265
voltage (open circuit),kV 1.21

Zs 4.566038
Xs 4.53

Find the synchronous reactance, in ohms per phase

short circuit (kA) 0.67
open circuit voltage (kV) 1.82
resistance bet a pair of terminals 0.12
AC resistance (times) 1.1

Voc per phase 1050.777

Isc per phase 670
Zs 1.568325
Rdc 0.06
Ra 0.066
Xs 1.57
series per phase
