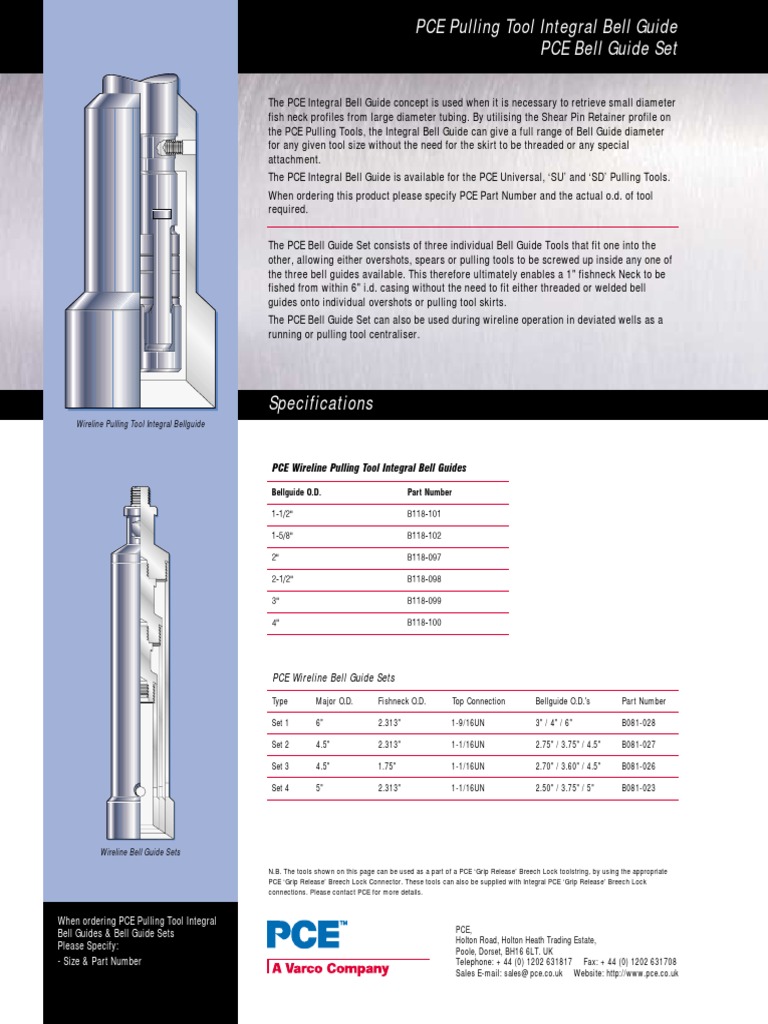

PCE Pulling Tool Integral Bell Guide

PCE Bell Guide Set

The PCE Integral Bell Guide concept is used when it is necessary to retrieve small diameter
fish neck profiles from large diameter tubing. By utilising the Shear Pin Retainer profile on
the PCE Pulling Tools, the Integral Bell Guide can give a full range of Bell Guide diameter
for any given tool size without the need for the skirt to be threaded or any special
attachment.
The PCE Integral Bell Guide is available for the PCE Universal, ‘SU’ and ‘SD’ Pulling Tools.
When ordering this product please specify PCE Part Number and the actual o.d. of tool
required.

The PCE Bell Guide Set consists of three individual Bell Guide Tools that fit one into the
other, allowing either overshots, spears or pulling tools to be screwed up inside any one of
the three bell guides available. This therefore ultimately enables a 1" fishneck Neck to be
fished from within 6" i.d. casing without the need to fit either threaded or welded bell
guides onto individual overshots or pulling tool skirts.
The PCE Bell Guide Set can also be used during wireline operation in deviated wells as a
running or pulling tool centraliser.

Specifications
Wireline Pulling Tool Integral Bellguide

PCE Wireline Pulling Tool Integral Bell Guides

Bellguide O.D. Part Number

1-1/2" B118-101

1-5/8" B118-102

2" B118-097

2-1/2" B118-098

3" B118-099

4" B118-100

PCE Wireline Bell Guide Sets

Type Major O.D. Fishneck O.D. Top Connection Bellguide O.D.'s Part Number

Set 1 6" 2.313" 1-9/16UN 3" / 4" / 6" B081-028

Set 2 4.5" 2.313" 1-1/16UN 2.75" / 3.75" / 4.5" B081-027

Set 3 4.5" 1.75" 1-1/16UN 2.70" / 3.60" / 4.5" B081-026

Set 4 5" 2.313" 1-1/16UN 2.50" / 3.75" / 5" B081-023

Wireline Bell Guide Sets

N.B. The tools shown on this page can be used as a part of a PCE ‘Grip Release’ Breech Lock toolstring, by using the appropriate
PCE ‘Grip Release’ Breech Lock Connector. These tools can also be supplied with Integral PCE ‘Grip Release’ Breech Lock
connections. Please contact PCE for more details.

When ordering PCE Pulling Tool Integral

Bell Guides & Bell Guide Sets PCE,
Holton Road, Holton Heath Trading Estate,
Please Specify: Poole, Dorset, BH16 6LT. UK
- Size & Part Number Telephone: +44 (0) 1202 631817 Fax: +44 (0) 1202 631708
Sales E-mail: sales@pce.co.uk Website: http://www.pce.co.uk
