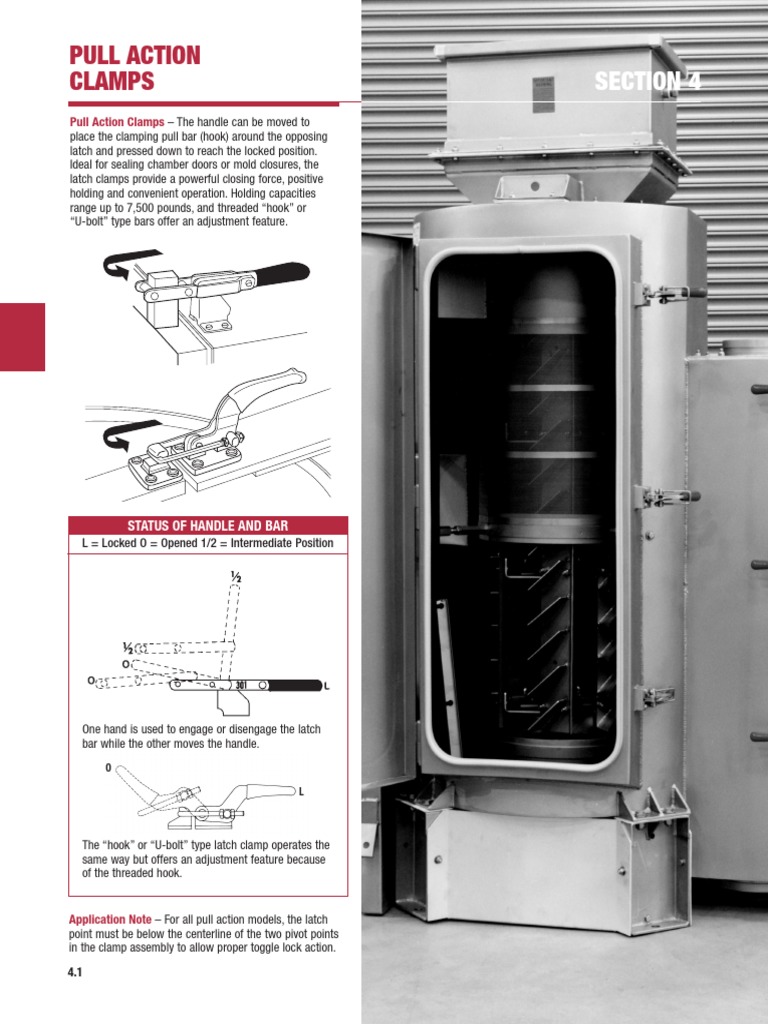

PULL ACTION

CLAMPS SECTION 4
Pull Action Clamps – The handle can be moved to
place the clamping pull bar (hook) around the opposing
latch and pressed down to reach the locked position.
Ideal for sealing chamber doors or mold closures, the
latch clamps provide a powerful closing force, positive
holding and convenient operation. Holding capacities
range up to 7,500 pounds, and threaded “hook” or
“U-bolt” type bars offer an adjustment feature.

STATUS OF HANDLE AND BAR

L = Locked O = Opened 1/2 = Intermediate Position

One hand is used to engage or disengage the latch

bar while the other moves the handle.
O

The “hook” or “U-bolt” type latch clamp operates the

same way but offers an adjustment feature because
of the threaded hook.

Application Note – For all pull action models, the latch

point must be below the centerline of the two pivot points
in the clamp assembly to allow proper toggle lock action.
4.1
NOTE: Engineering dimensions and specifications in
this catalog are subject to change without notice.

Model Holding Drawing Page Model Holding Drawing Page Model Holding Drawing Page
No. Capacity Movement No. No. Capacity Movement No. No. Capacity Movement No.
301 375 lbs. 4.00" 4.5 323 360 lbs. 1.81" 4.6 324 500 lbs. 1.53" 4.7
311 1200 lbs. 3.38" 4.5 331 1200 lbs. 1.75" 4.6 334 1000 lbs. 2.00" 4.7
341 2000 lbs. 2.50" 4.6 344 2000 lbs. 2.50" 4.7
374 4000 lbs. 1.75" 4.7

Model Holding Drawing Page Model Holding Drawing Page Holding Drawing Page
No. Capacity Movement No. No. Capacity Movement No. Series Capacity Movement No.

375 4000 lbs. 3.50" 4.8 330 200 lbs. 2.31" 4.9 351 375 lbs. 4.00" 4.10
375-B 4000 lbs. 3.50" 4.8 371 750 lbs. 5.38" 4.10
385 7500 lbs. 2.19" 4.8 381 1000 lbs. 6.13" 4.10
385-L 7500 lbs. 2.19" 4.8

Model Clamp Page Model Holding Total Page

No. Model No. No. Capacity Elongation No.

330000 330 4.11 326 8 lbs. 1.25" 4.12

351000 351 4.11 336 12 lbs. 1.50" 4.12
371000 371 4.11 346 25 lbs. 1.50" 4.12
381000 381 4.11

4.2
PULL ACTION
CLAMPS
Latch clamp Pull action
Models 301 and clamp, Model 331,
351 used to latch secures a cover
down a lid on an in this OEM air
injection molding filtration system.
application.

Horizontal clamp Several 331-SS

Model 225-U stainless steel pull
and latch clamp action clamps are
Model 311 used to secure
on a foam mold. doors on an
industrial dryer.

Model 301-SS Model 344 holding

holds a rotational a cartridge for
mold together. thermal forming.
Stainless steel Clamps permit
clamps withstand quick changing or
the heat and servicing of the
cooling cycles cartridge without
during the the use of tools.
molding process.

Model 323 clamps Model 375 holds

are holding a a cover on a
canister vacuum vessel. Using a
housing during clamp to replace
assembly. Clamps fasteners holding
securely hold a cover saves
the housing and time and makes
provide quick it easier on the
removal of operator.
the completed
assembly.

4.3 Phone: 248.594.5600 • www.destaco.com

PULL ACTION
CLAMPS
Model 330 securely Pull action clamp
holds the sections Models 351 and
of an OEM bulk 323, plus hold-
material handling down action
system. Access Models 247 are
for cleaning and used to secure
inspection is made a part during a
easy using clamps. robotic welding
operation.

Model 330 latch Model 371 latch

clamp used to clamp with a
hold a solar panel special hook
to a car body extension to
during racing. hold the lid on a
refuse container.

Phone: 248.594.5600 • www.destaco.com 4.4

PULL ACTION
CLAMPS
MODELS
301, 311
F
Latch-type pull action clamps with red vinyl handle for D J
comfortable operation. A fixed stop automatically limits N
handle travel at various clamping positions once the clamp
is installed, removing the need to adjust a manual stop. K E G
Model 301 has 4" drawing movement and the larger
Model 311 has 3 3/8".

ALSO AVAILABLE
In Stainless Steel Model 301-SS Page 9.5 A

53010
Model 301

53110
Model 311

Force
Model Max. Mechanical Applied
No. Advantage (M.A.) to Handle
at D
301 29:1 0.500
301-SS 29:1 0.500
311 31:1 0.500

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B D E F G J K N
301 53010 375 lbs. 0.70 lbs. 4.00" 1.63 8.36 .75 1.25 1.38 1.75 .28 .56 .13
311 53110 1200 lbs. 1.16 lbs. 3.38" 2.06 9.63 1.25 1.78 1.91 2.53 .33 .56 .13

4.5 Phone: 248.594.5600 • www.destaco.com

PULL ACTION
CLAMPS
MODELS
323, 331, 341 J1
J

The over-center toggle locking action of these clamps suits them

K L
ideally for holding against heavy forces such as those generated
in plastic molding operations. These models are ideal for quick
clamping of doors, lids, or access covers onto drums, containers, N
or other vessels. The threaded U-bolts permit easy adjustment
and provide a positive connection with the supplied latch plate.
All models are supplied with ergonomic handle grip. B

ALSO AVAILABLE
A
As Toggle-Lock Plus Models 331-R, 341-R Page 8.7 O
In Stainless Steel Model 323-SS Page 9.5
Models 331-SS, 331-RSS Page 9.5 C D
E
Models 341-RSS, 341-SS Page 9.5 H F
G
Q

53310 53410
Model 331 Model 341

53230
Model 323

For added convenience and functionality, every DE-STA-CO pull action

clamp is now equipped with a thumb control lever as a standard feature.

Locknut

Thumb
Control
Lever

Force
Model Max. Mechanical Applied
No. Advantage (M.A.) to Handle
at D
Optional Hook Configurations 323 27:1 0.250
Add The Following Suffix To Model No.: 323-SS 27:1 0.250
Model No. Suffix Description 331 32:1 0.250
xxx – M-25 For 25 mm longer hook 331-SS 32:1 0.250
M-50 For 50 mm longer hook 341 29:1 0.250
M-100 For 100 mm longer hook 341-SS 29:1 0.250

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B* C D E F G H J J1 K L N O Q Min Q Max
323 53230 360 lbs. .15 lbs. 1.81" 1.14 3.47 .39 .63 .75 1.03 1.11 .78 .17 .17 .75 .52 .13 .47 1.85 2.34
331 53310 700 lbs. .56 lbs. 1.75" 1.78 5.97 .56 .75 1.25 1.56 1.75 1.00 .27 .27 1.00 .69 .19 .66 2.56 3.15
341 53410 2000 lbs. 1.43 lbs. 2.50" 2.78 7.50 .75 1.63 1.50 2.38 2.13 1.50 .33 .33 1.75 1.19 .31 .94 3.88 4.64
*Minimum Dimension

Phone: 248.594.5600 • www.destaco.com 4.6

PULL ACTION
CLAMPS
MODELS
324, 334, 344, 374 F
D
J

The over-center toggle locking action of these clamps suits them

E G
ideally for holding against heavy forces such as those generated in
plastic molding operations. These models are ideal for installations
where it is preferable to mount the clamp on the lid and the latch B

plate on the vessel. The threaded U-bolts permit easy adjustment and
provide a positive connection with the latch plate. Models 324, 334
and 344 are supplied with a latch plate. All models are supplied with
ergonomic handle grip. A M

Q N
ALSO AVAILABLE
In Stainless Steel Models 324-SS, 334-SS Page 9.5 H C
P
Models 344-SS, 374-SS ▲ Page 9.5
O L
J1
K

53240 53340 53440

Model 324 Model 334 Model 344
53740
Model 374
With Optional
Latch Plate
(374104)
53741
Model 374104
Optional
Latch Plate

For added convenience and functionality, every DE-STA-CO pull action

clamp is now equipped with a thumb control lever as a standard feature.

Locknut

Force
Thumb Model Max. Mechanical Applied
Control No. Advantage (M.A.) to Handle
Lever at D
324 31:1 0.250
324-SS 31:1 0.250
334 31:1 0.250
Optional Hook Configurations
Add The Following Suffix To Model No.: 334-SS 31:1 0.250
Model No. Suffix Description 344 45:1 0.250
xxx – M-25 For 25 mm longer hook 344-SS 45:1 0.250
M-50 For 50 mm longer hook 374 36:1 0.750
M-100 For 100 mm longer hook 374-SS 36:1 0.750

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B C D E F G H J J1 K L M* N O P Q Min Q Max
324 53240 500 lbs. .25 lbs. 1.53" 2.00 3.18 .56 .50 .88 1.00 1.38 1.00 .20 .17 .81 .53 2.69 .14 .19 .63 .48 .98
334 53340 1000 lbs. .60 lbs. 2.00" 2.44 4.10 .81 .75 1.00 1.31 1.56 1.50 .28 .22 1.13 .69 3.69 .31 .34 .69 .62 1.42
344 53440 2000 lbs. 1.50 lbs. 2.50" 3.13 5.21 1.03 1.25 1.44 1.94 2.13 2.13 .34 .34 1.75 1.19 5.31 .31 .50 1.25 .78 2.04
374 53740 4000 lbs. 2.10 lbs. 1.75" 3.25 5.69 .56 1.25 1.50 2.50 2.50 2.72 .41 .25 1.63 1.13 4.94 .39 .56 .75 .37 2.40
*Minimum Dimension ▲ Available upon request, as are a number of other modifications.

4.7 Phone: 248.594.5600 • www.destaco.com

PULL ACTION
CLAMPS
Model 375
MODELS
375, 375-B, 385, 385-L J

Models 375 and 385 combine maximum holding capability with easy operation L E K G
and simple adjusting. Both use threaded U-bolts for adjustment. A cast latch plate
is available for both models as an optional accessory. The latch plate is useful in
applications such as two piece molds. The holding capacities of both clamps are
B
sufficient to handle the high pressures generated by expanding rigid urethane.
Model 385-L is the same as Model 385 except with a low profile handle.
N A
O
53752
ALSO AVAILABLE Model 375-B
As Toggle-Lock Plus Model 375-R Page 8.9 With Supplied C D
Model 385-R Page 8.9 Latch Plate H F
(375509) Q

Model 375-B G

L K
53850
53750 Model 385
Model 375 With Optional
With Optional Latch Plate
Latch Plate (385102) B
(385102)

O N
A
53851
Model 385-L

H F
Q

Model 385
53852 J
Model 385102
Optional
Latch Plate
L E K G

For added convenience and functionality, every DE-STA-CO pull action

clamp is now equipped with a thumb control lever as a standard feature.
B

Locknut
N A
O

Thumb
Control
Lever C D
H F
Q

Optional Hook Configurations

Force
Add The Following Suffix To Model No.: Model Max. Mechanical Applied
Model No. Suffix Description No. Advantage (M.A.) to Handle
xxx – M-25 For 25 mm longer hook at D
M-50 For 50 mm longer hook 375 44:1 0.750
M-100 For 100 mm longer hook

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B* C D E F G H J K L N O Q Min Q Max
375 53750 4000 lbs. 2.75 lbs. 3.50" 4.19 9.63 1.38 2.25 2.25 3.38 3.13 2.25 .41 1.75 3.13 .39 1.13 5.63 6.32
375-B 53752 4000 lbs. 2.50 lbs. 3.50" 4.19 9.63 – – – 2.81 1.00 1.38 – 1.75 .88 .39 1.13 5.35 6.12
385 53850 7500 lbs. 3.62 lbs. 2.19" 3.75 8.75 1.38 2.25 2.25 3.38 3.13 2.25 .41 2.13 3.13 .47 1.13 5.63 6.70
385-L 53851 7500 lbs. 3.62 lbs. 2.19" 2.00 9.16 1.38 2.25 2.25 3.38 3.13 2.25 .41 2.13 3.13 .47 1.13 5.63 6.70
*Minimum Dimension

Phone: 248.594.5600 • www.destaco.com 4.8

PULL ACTION
CLAMPS
MODEL
330 F J
N D
Models 330 and 330-SS are the smallest in our line of pull action
clamps. As with Models 351, 371, and 381 these clamps can be
used in a variety of latching operations. With the base bolted or E G
welded in place, these compact units can be used for latching
pressure vessels, clean-out doors, etc., and can be fit into tight
areas where space is a limitation. The pull bar is threaded for
easy adjustment, and the handle is supplied with an ergonomically
B
contoured grip. Model 330-SS is the stainless steel version.
C

A
ALSO AVAILABLE
In Stainless Steel Model 330-SS Page 9.5 K Q

53300
Model 330 53302
Model 330000
Optional Latch Plate
for Model 330
(see page 4.11
for details)

For added convenience and functionality, every DE-STA-CO pull action

clamp is now equipped with a thumb control lever as a standard feature.

Thumb Control Lever

Locknut

Optional Hook Configurations Force

Add The Following Suffix To Model No.: Model Max. Mechanical Applied
Model No. Suffix Description No. Advantage (M.A.) to Handle
at D
xxx – M-25 For 25 mm longer hook
M-50 For 50 mm longer hook 330 17:1 0.250
M-100 For 100 mm longer hook 330-SS 17:1 0.250

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B* C D E F G J K N Q Min Q Max
330 53300 200 lbs. 0.24 lbs. 2.31" 1.00 5.56 .56 .50 1.22 1.00 1.69 .22 .31 .19 1.60 1.85
*Minimum Dimension

4.9 Phone: 248.594.5600 • www.destaco.com

PULL ACTION
CLAMPS
SERIES
351, 371, 381
F
The pull actions of Models 351, 371, and 381 are excellent for D F
many types of latching operations. With base bolted or welded D
in place, unit can be used for latching pressure vessels, clean-
G E G
out doors, etc. Pull bar is threaded for convenient adjustment.
351-B Base
Furnished with red vinyl grip on Model 351, and an ergonomic
J
handle grip on Models 371 and 381. N
K

A
C
ALSO AVAILABLE Q
B
As Toggle-Lock Plus Models 351-R, 371-R Page 8.8
In Stainless Steel Models 351-BSS, 351-SS Page 9.5
Models 371-SS, 381-SS Page 9.5
53515
Model 351-B

53810
Model 381

53510 53710
Model 351 Model 371

53513 53713 53812

Model 351000 Model 371000 Model 381000
Optional Latch Plate Optional Latch Plate Optional Latch Plate
for Model 351 for Model 371 for Model 381
For added convenience and functionality, every DE-STA-CO pull action (see page 4.11 (see page 4.11 (see page 4.11
clamp is now equipped with a thumb control lever as a standard feature. for details) for details) for details)

Thumb Control Lever

Locknut

Force
Model Max. Mechanical Applied
No. Advantage (M.A.) to Handle
at D

Optional Hook Configurations 351 21:1 0.375

Add The Following Suffix To Model No.: 351-SS 21:1 0.375
Model No. Suffix Description 371 36:1 0.750
xxx – M-25 For 25 mm longer hook 371-SS 36:1 0.750
M-50 For 50 mm longer hook 381 37:1 0.750
M-100 For 100 mm longer hook 381-SS 37:1 0.750

Model EDP Holding Drawing Dimensions

No. No. Capacity Weight Movement A B* C D E F G J K N Q Min Q Max
351 53510 375 lbs. 0.61 lbs. 4.00" 1.44 8.56 .75 .75 1.38 1.50 1.94 .20 .44 .31 1.75 2.18
351-B 53515 375 lbs. 0.61 lbs. 4.00" 1.44 8.56 .86 1.50 – 2.00 .56 .27 .44 .31 1.75 2.18
371 53710 750 lbs. 1.53 lbs. 5.38" 2.19 12.00 1.42 1.25 1.94 1.94 2.63 .34 .50 .39 2.02 2.83
381 53810 1000 lbs. 2.56 lbs. 6.13" 2.63 13.28 1.81 1.13 2.38 2.13 3.38 .41 .63 .47 2.17 3.10
*Minimum Dimension

Phone: 248.594.5600 • www.destaco.com 4.10

PULL ACTION
CLAMPS
MODELS
330000, 351000, 330000 351000

371000, 381000
(Latch Plate Accessories)
DE-STA-CO has developed J-hook latch plates to help reduce
engineering time when installing DE-STA-CO J-hook style
clamps. The J-hook latch plate guarantees that the latch point
is below the centerline of the clamp assembly’s two pivot
points. This allows for the proper toggle lock action. All latch
plates are available in steel or stainless steel.

ALSO AVAILABLE
In Stainless Steel Model 330900
Model 351900
Model 371900
Model 381900 371000 381000

53302 53513
Model 330000 Latch Plate 351000
Used with Clamp Model 330 Used with Clamp Model 351

53713 53812
Latch Plate 371000 Latch Plate 381000
Used with Clamp Model 371 Used with Clamp Model 381

Model EDP Dimensions

No. No. Weight A C D E F G H I J
330000 53302 .04 lbs. 0.22 0.47 0.63 1.00 1.02 1.34 0.25 0.17 0.31
351000 53513 .14 lbs. 0.31 0.75 0.75 1.44 1.50 2.00 0.38 0.20 0.38
371000 53713 .44 lbs. 0.53 1.42 1.25 1.94 1.94 2.63 0.50 0.34 0.47
381000 53812 .66 lbs. 0.31 1.81 1.13 2.50 2.13 3.51 0.63 0.41 0.63

4.11 Phone: 248.594.5600 • www.destaco.com

PULL ACTION
CLAMPS
MODELS
326, 336, 346 Model 326
.14 Dia

DE-STA-CO “T” handle rubber latches provide vibration and sound

dampening and compensation for severe misalignment. The latch handle
is made of an ozone resistant synthetic rubber and the base and keeper 1.88 .92
are formed of passivated stainless steel. Operation is easy: simply pull
on handle and stretch to slide bulb of rubber handle into the keeper. .50

■ Automatically compensates for misalignment .47

3.22
■ Dampens vibration
■ Dampens sound
■ Easy to operate .13 Dia.
Alignment Lug
■ Ozone resistant synthetic rubber (EPDM)
■ Durometer 70 ± 5
■ Stainless steel (passivated) components (302-304SS) .75

■ Three models
■ Low cost
.34
■ Max. temperature rating 250° F (121° C)
1.25 .63

Model 336
53260 0.20 Dia (4 Holes)
Model 326

2.44 1.22

.44

3.74

1.25

LOAD DEFLECTION CHART

.50
.75 1.50 .88
1.50
336
TOTAL ELONGATION (in.)

1.25
326 346 Model 346
1.00 .20 Dia (4 Holes)
.38 Dia.
0.75
.50
0.50
3.13 1.55
0.25

0 .69
0 10 20 30 40 50
.75
LOAD (lbs.) 4.78

Model EDP Holding 1.17

No. No. Capacity Weight
326 53260 8 lbs. .07 lbs.
336 53360 12 lbs. .16 lbs. .56
.81 2.00 1.00
346 53460 25 lbs. .36 lbs.

Phone: 248.594.5600 • www.destaco.com 4.12
