    33 22 4 55

    11 22 4 55
    11 22 33 22

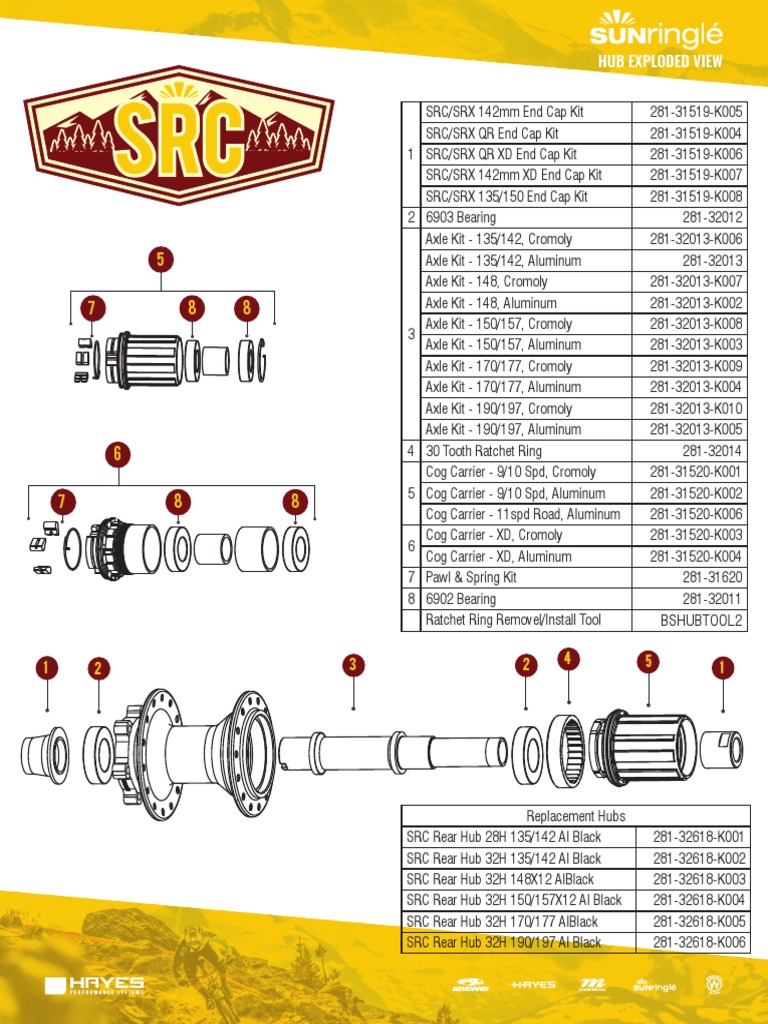

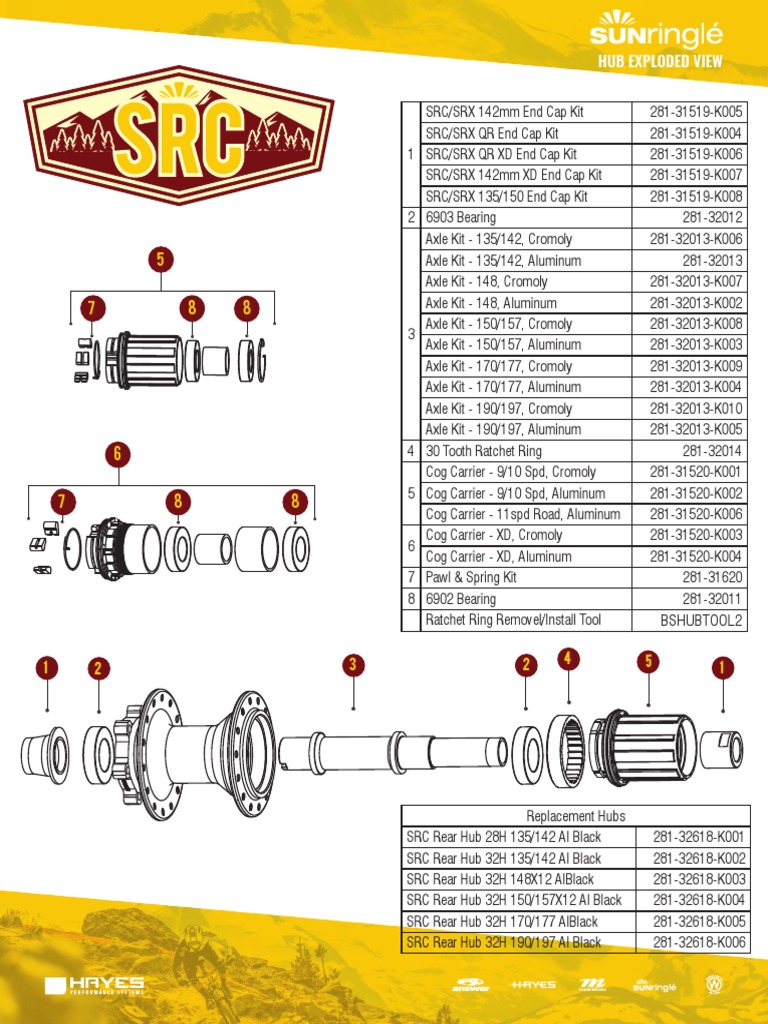

    HUB EXPLODED VIEW

    SRC/SRX 142mm End Cap Kit 281-31519-K005


    SRC/SRX QR End Cap Kit 281-31519-K004
    1 SRC/SRX QR XD End Cap Kit 281-31519-K006
    SRC/SRX 142mm XD End Cap Kit 281-31519-K007
    SRC/SRX 135/150 End Cap Kit 281-31519-K008
    2 6903 Bearing 281-32012
    Axle Kit - 135/142, Cromoly 281-32013-K006
    555 Axle Kit - 135/142, Aluminum 281-32013
    5
    Axle Kit - 148, Cromoly 281-32013-K007
    Axle Kit - 148, Aluminum 281-32013-K002
    77 88 88
    77 88 88 Axle Kit - 150/157, Cromoly 281-32013-K008
    3
    Axle Kit - 150/157, Aluminum 281-32013-K003
    Axle Kit - 170/177, Cromoly 281-32013-K009
    Axle Kit - 170/177, Aluminum 281-32013-K004
    Axle Kit - 190/197, Cromoly 281-32013-K010
    Axle Kit - 190/197, Aluminum 281-32013-K005
    666 4 30 Tooth Ratchet Ring 281-32014
    6
    Cog Carrier - 9/10 Spd, Cromoly 281-31520-K001
    7 8 8
    77 88 88 5 Cog Carrier - 9/10 Spd, Aluminum 281-31520-K002
    7 8 8
    Cog Carrier - 11spd Road, Aluminum 281-31520-K006
    Cog Carrier - XD, Cromoly 281-31520-K003
    6
    Cog Carrier - XD, Aluminum 281-31520-K004
    7 Pawl & Spring Kit 281-31620
    8 6902 Bearing 281-32011
    Ratchet Ring Removel/Install Tool BSHUBTOOL2

    33 22 4 55
    11 22 11

    Replacement Hubs
    SRC Rear Hub 28H 135/142 Al Black 281-32618-K001
    SRC Rear Hub 32H 135/142 Al Black 281-32618-K002
    55
    SRC Rear Hub 32H 148X12 AlBlack 281-32618-K003
    SRC Rear Hub 32H 150/157X12 Al Black 281-32618-K004
    77 88 88
    SRC Rear Hub 32H 170/177 AlBlack 281-32618-K005
    SRC Rear Hub 32H 190/197 Al Black 281-32618-K006
