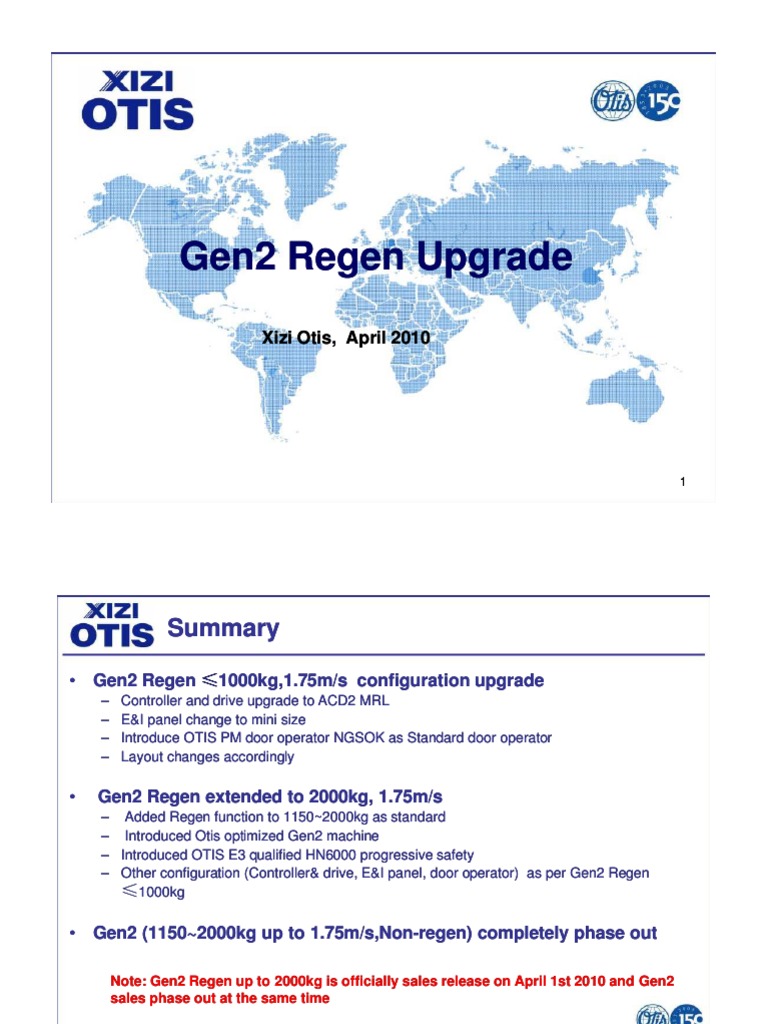

Gen2 Regen Upgrade

Xizi
Xizi Otis,
Otis, April
April 20
2010
10

1
 Summary

• Gen2 Regen ≤1000kg,1.7

1000kg,1.75m/s
5m/s configuration upgrade
 – Controller and drive upgrade to ACD2 MRL
 – E&I panel change
change to mini size
 – Introduce OTIS PM door
door operator NGSOK as Standard
Standard door operator
operator
 – Layout changes
changes accordingly
accordingly

• Gen2 Regen extended to 2000kg, 1.75m/s

 – Added Regen
Regen function to 1150~2000kg
1150~2000kg as standard
 – Introduced Otis optimized
optimized Gen2 machine
machine
 – Introduced OTIS E3 qualified
qualified HN6000
HN6000 progressive safety
 – Other configuration
configuration (Controller& drive, E&I panel, door operator)
operator) as per Gen2 Regen
Regen
≤1000kg

• Gen2 (1150~2000kg up to 1.75m/s,Non-regen) completely phase out

Note: Gen2 Regen up to 2000kg is officially sales release on April 1st 2010 and Gen2
sales phase out at the same time
Configuration Upgrade

 Gen2 Regen ≤1000kg configuration upgrade

 Gen2 Regen extended to 2000kg to replace GeN2

Machine Upgrade

GeN2 GeN2-Regen

ABA20220AS ABA20220BD
Apply to 1150kg to 2000kg Gen2 Regen only

- OTIS optimized Gen2 Machine from the same

supplier as GeN2
- Noise and vibration performance is improved
- Otis Optimized Gen2 machine for ≤1000kg will
be introduced later once it’s available
 Controller Upgrade

GeN2-Regen
GeN2
&Previous Gen2 Regen up to 1000kg

-OTIS global new controller for

MRL product
-More compact
- OH-CONB604B MRL will be
phase out

OH-CON4424 (For GeN2) ACD2-MRL Controller

OH-CONB604MRL(for previous Gen
2 Regen up to 1000kg)
Apply to 630kg to 2000kg Gen2 Regen
 Regen function is added

GeN2 GeN2-Regen
&Previous Gen2 Regen up to 1000kg

-OTIS global integrated regen

drive for MRL
- More compact
- OH-CONB604B MRL will be
phase out
Non-Regen drive(OH-CON4424)
Otis Regen drive for previous
Gen2 Regen up to 1000kg ACD2 MRL regen drive
Apply to 630kg to 2000kg Gen2 Regen
 E&I PANEL Upgrade

GeN2
& Previous Gen2 Regen up to 1000kg
  GeN2-Regen

Min E&I PANEL

Apply to 630kg to 2000kg Gen2 Regen
 Door Operator upgrade

GeN2    GeN2-Regen
&Previous Gen2 Regen up to 1000kg

Apply to 630kg to 2000kg Gen2 Regen

STD: AT120 STD: NGSOK

- NGSOK is OTIS global PM operator

- DO2000 is still optional
 Safety Gear Upgrade

  GeN2-Regen
GeN2

STD:9672D/E
STD:HN6000B/C Apply to 1150kg to 2000kg only

- HN6000B/C are OTIS global E3 safety components

- Bigger running clearance. Ride quality is improved
and false tripping is eliminated
- 9672D/E are still optional
Layout Changes
 New Controller & Drive Architecture

Previous Gen2 Regen

GeN2-Regen
(OH-CONB604MRL controller)
(ACD2 MRL)

 0 0 k g
GeN2(OH-CON4424 Controller)   g~ 2 0
 k
 6 3 0

New arrangement is easier for controller and

drive inspection
E&I PANEL cutout size

GeN2    GeN2-Regen
Apply to 630kg to 2000kg Gen2 Regen

Top floor

Min E&I PANEL size reduced, the cutout 1600(H)x250(W).

 New Bracket Spacing for top floor

  Gen2-Regen
GeN2

Apply to 630kg to 2000kg Gen2 Regen

Top floor brackets
-Stronger rail bracket made machine more stable
- Noise and vibration is improved
Back up
ACD2 MRL Introduction
 PRODUCT DESCRIPTION

 Integrated Regen controller

Improve aesthetics and performance
OTIS WWE (World Wide Engineering) lead design
OTIS global source and SSI management

Drive E&I Panel Controller

210W x 540H x 90D 320W x1300H x 160D
Duty Table
 Controller Operational Parameters

Feature Values Feature Values

Baseline Product GCS -EN Max Speed (m /s) 1.75

Operation Control Max 8 Car Group Max Duty (kg) 2000

OVFR2B-402,403,404,
Drive Maximum # of Stops 24
OVFR1A-406
NGSOK/AT120/AT400
Door Maximum # of Opening 32
 /DO2000
LWD Analog LWD Service Tool OTIS SVT

Machine Opt. GeN2 Rescue operation MRO*

Position Reference Photo-sensor

Max Rise (m) 75

Note: MRO function is standard. ARO function should be offered as an optional function after June 2010.
 Performance
Parameter Target
350 @ 1.0m/s
Min. Floor Distance (mm)
500 @ 1.5m/s ~1.75m/s
Max Floor Distance (m) 11

Maximum Acceleration (PMT measurement: m/s2) <1.2

Maximum Jerk (PMT measurement: m/s 3) 1.0

150@1.0m/s
Maximum Starts Per Hour 180@ 1.5m/s ~1.75m/s,
40% duty cycle
Speed Tolerance (%) ±5

Stopping Accuracy (mm) Typical/Maximum ± 3/ ± 5

Max In Car Noise (dB), Fan Off 52

Noise at Top landing with door closed. (dB) Average 52

A95,11
Max Vertical Vibrations (mg) @ normal speed
PK-PK,14
 System Requirement
 Power Supply

Supply Voltage 380/400/415/440Vac ±10%

Frequency 50/60Hz ±2Hz

Note: TN-S (five wires net = 3 phases +neutral +earth)

For 220/460V power supply, there need an extended additional transformer in system.
 Application Environment

 Max Elevation:
 – 1000m: full performance
 – 2000m: Reduced performance(1% of rated running current per 100m)

 Operating Humidity
 –  95% non-condensing

 Operating Temperature range (machine room):

 – 0~45℃
 Product Advantages

 Operational controller based on GECB (Global Elevator Control Board)

+ Motion controller based on GDCB (Global Drive Control Board)
 CAN-bus communication interface between operational and motion controllers
 External system interface following global SIMBA
 Energy effectiveness from the regenerative drive
 Mini E&I Panel
 Easily expandable computing core with high-speed 32bit CPU
