DecodingLora

From RevSpace

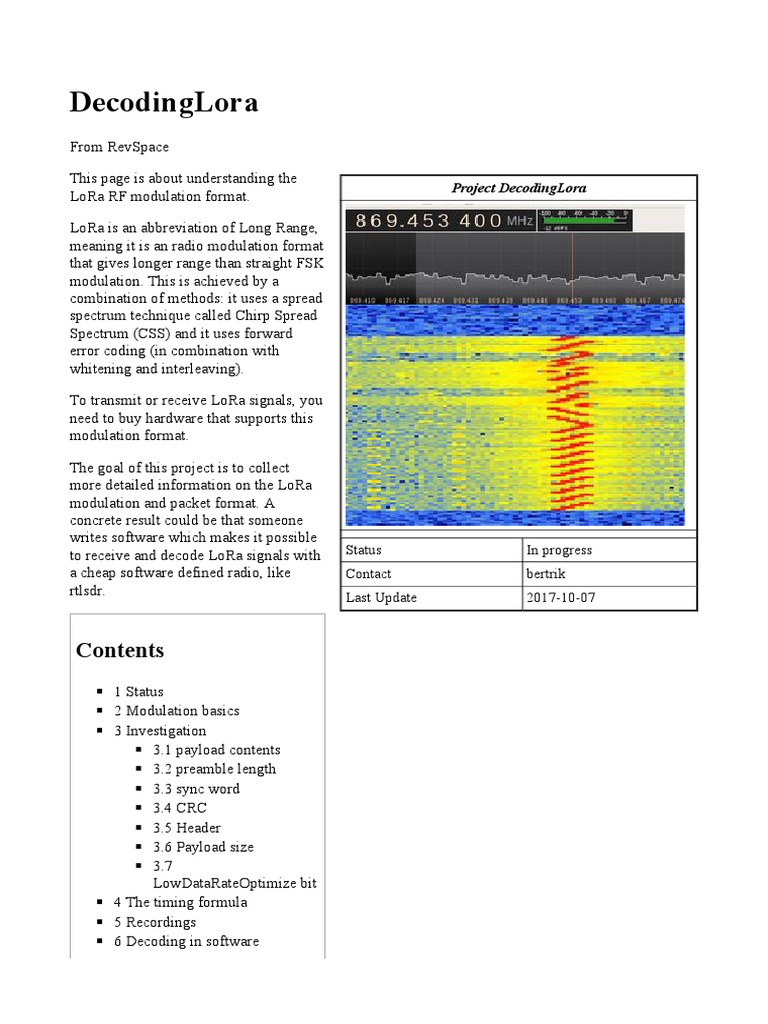

This page is about understanding the

Project DecodingLora
LoRa RF modulation format.

LoRa is an abbreviation of Long Range,

meaning it is an radio modulation format
that gives longer range than straight FSK
modulation. This is achieved by a
combination of methods: it uses a spread
spectrum technique called Chirp Spread
Spectrum (CSS) and it uses forward
error coding (in combination with
whitening and interleaving).

To transmit or receive LoRa signals, you

need to buy hardware that supports this
modulation format.

The goal of this project is to collect

more detailed information on the LoRa
modulation and packet format. A
concrete result could be that someone
writes software which makes it possible
to receive and decode LoRa signals with Status In progress
a cheap software defined radio, like Contact bertrik
rtlsdr.
Last Update 2017-10-07

Contents
◾ 1 Status
◾ 2 Modulation basics
◾ 3 Investigation
◾ 3.1 payload contents
◾ 3.2 preamble length
◾ 3.3 sync word
◾ 3.4 CRC
◾ 3.5 Header
◾ 3.6 Payload size
◾ 3.7
LowDataRateOptimize bit
◾ 4 The timing formula
◾ 5 Recordings
◾ 6 Decoding in software
 ◾ 6.1 Algorithmic steps
◾ 7 External links

Status
◾ 2016-05-08: can no longer get either sdrangel nor rtl-sdranglelove to compile: sdrangel needs
a newer cmake than my distro provides (and building cmake from source is very
cumbersome), rtl-sdrangelove needs some qt5 multimedia package that I forgot how to install
◾ 2016-02-19: ran into this patent EP2763321 (https://www.google.com/patents/EP2763321A1?
cl=en), it explains a lot of the details investigated here, like the symbol encoding, interleaving
method
◾ 2016-02-16: can no longer get a decode to work with rtl-sdrangelove (something changed),
sdrangel still works
◾ 2016-01-17: decoded a transmission from an RFM95 module in software using sdrangelove
lora plugin (just use the right settings ...)

Work done on decoding LoRa by other people:

◾ A nice explanation and set of GnuRadio blocks (https://myriadrf.org/blog/lora-modem-

limesdr)
◾ a paper on reverse engineering LoRa by Matt Knight
(http://www.jailbreaksecuritysummit.com/s/Reversing-Lora-Knight.pdf)
◾ github repository with GNURadio blocks for receiving LoRa modulated radio messages using
SDR (https://github.com/rpp0/gr-lora) by Pieter Robyns

Modulation basics
The LoRa modulation appears to be defined by the following basic parameters:

◾ the bandwidth BW, meaning the difference in minimum and maximum frequency
◾ the spreading factor SF, this is a measure for the number of bits encoded per symbol
◾ the coding rate CR, this is a measure for the amount of forward error correction

Additionally the following settings can be changed:

◾ preamble length and SyncWord value

◾ whether an explicit header is sent with the message, this header contains information about the
parameter of the rest of the message (payload length, the CR parameter, CRC presence)
◾ presence of a 16-bit CRC
◾ the LowDataRateOptimization bit (DE)

On the air I have seen the following waveforms:

◾ a series of up-chirps at the start of a message (preamble), the number of up-chirps corresponds
to the PreambleLength registers
◾ two up-chirps with a chirp-phase corresponding to the contents of the SyncWord register
◾ two down-chirps at the end of the preamble (sync-pattern)
 ◾ data-chirps, these consist only of up-chirps (like the preamble), but with a jump in the
"phase"/timing of the chirp. The frequency shift of this jump likely encodes one symbol
representing several data bits (SF bits per symbol).

One symbol has a length in time of (2^SF)/BW. Chirps seem to have a constant chirp rate for a
specific modulation setting, both when going up and down. When the frequency of a chirp reaches
the end of the band, it "wraps around" to the other side. One chirp nominally covers the entire
bandwidth BW once during one symbol time.

Investigation
The image on the right shows the LoRa
spectrogram for a short message as recorded by
gqrx, when sending a 1-byte payload (with
settings SF=12,BW=8,CR=4/8, implicit header).
At the bottom of the spectrogram you can see the
preamble consisting of 10 up-chirps and 2 down-
chirps. At the top of the spectrogram you see the
data portion of the signal, consisting solely of
up-chirps.

Since the LoRa signal is basically a single carrier

being swept over a certain bandwidth in a
specific way, it is possible to recover the
frequency by FM demodulation of the signal
generated by a Semtech chip. This allows for a
more compact representation of the signal for
analysis.

The approach used on this page is to receive the LoRa signal with an inexpensive rtlsdr receiver,
FM-demodulate it in SDR-application qgrx and record the resulting output in the audio application
Audacity.

Some thoughts on analysis:

◾ For simplicity, the output length of the forward error coding parameter CR can be chosen to be
equal to the symbol size SF. This way each 4-bit input nibble should result in exactly one
output symbol. For example use CR=4/6 with SF=6, CR=4/7 with SF=7, CR=4/8 with SF=8,
◾ make the payload equal to the PRNG sequence, such that the whitening effect of the PRNG is
cancelled out, possibly making analysis easier.
◾ vary the payload with a walking-bit sequence, so the shuffling order of the interleaver can be
analysed.

payload contents

The image on the right shows the audio captured in audacity from an FM-demodulated LoRa-signal
(with settings BW=8kHz, CR=4/8, SF=8, implicit mode, 1-byte payload), with the single-byte
changed from 0x00 (top) to 0xFF (bottom). In the highlighted area, some differences can be seen
between the FM-waveforms.
preamble length

Some experimentation shows that when the

preamble length n is set to 0 through the register
interface, we still see 2 up-chirps and 2 down-
chirps (plus 1/4th of a up-chirp) in the preamble
on-air. This is consistent with the preamble
timing formula in the datasheet, which states that
the preamble is (n + 4.25) symbols long.

Actually the final two up-chirps in the preamble encode for the 'SyncWord'.

sync word

Something that is not mentioned in the RFM95

datasheet, but is mentioned in the SX1276
datasheet, is the SyncWord setting in register
0x39. The datasheet mentions a default setting of
0x12 and a LoRaWAN setting of 0x34.

Modifying this setting results in the following

changes to the FM waveform just before the
reverse chirps. From top to bottom: 0x00, 0x12,
0x34, 0xFF. It seems the setting influences the
"starting value" of the two chirps just before the
reverse chirps. The starting value appears to be
closely related to the low nibble of the sync word (with 0xF corresponding to half the symbol time).

This setting only has influence on the preamble/sync, there is no influence on the rest of the packet.

CRC

The datasheet suggests that CRC can be turned

off and on through bit RxPayloadCrcOn (mistake
in datasheet: Rx should be TX?) in register
RegModemConfig2 (0x1E). The image on the
right shows the effect of turning it off (top) and
on (bottom).

Oddly enough, this doesn't seem to influence the

length of the transmission.

Settings: BW=8,CR=4/8,SF=8, 1 byte payload (0x00).

Header

A header can be specified. This header tells the receiving end about the length of the payload,
presence of CRC and coding rate of the rest of the message. The header itself is encoded with a
coding rate CR=4/8.

The image on the right shows the effect of turning it on (top) and off (bottom).
The difference in length is about 8.4 symbols.

Settings: BW=8,CR=4/8,SF=8, 1 byte payload

(0x00).

Payload size

The image on the right shows the FM-

demodulated signal with varying payload. A
payload size of 1 (0x00) on top and a payload
size of 2 (0x00 0x00) on the bottom.

Curiously, the size of the transmission is exactly

the same.

LowDataRateOptimize bit

Register 0x26, bit 3 contains a

LowDataRateOptimize setting, which should
have some influence on the number of payload
symbols transmitted according to the datasheets.

The image on the right shows the effect of

turning it off (top) and on (bottom) Settings:
BW=8,CR=4/8,SF=8, 1 byte payload (0x00),
implicit mode, no CRC.

The image below it shows the effect of turning it

off (top) and on (bottom) with the same settings,
except now a payload of 4 bytes 0x00.

So, I see no difference in over-the-air length with payloads of 1 and 4 bytes when this bit is
modified.

The timing formula

In paragraph 4.1.1.7 of the SX1276 datasheet, the time on air for a LoRa packet is discussed. This is
derived from the symbol time (2^SF / BW), the number of preamble symbols and number of payload
symbols.

A lot of information on the packet structure and the effect of certain parameters can be obtained from
the formula that gives the number of payload symbols:

Parameters:

◾ PL: number of payload bytes

◾ SF: spreading factor
 ◾ CRC: presence of a CRC (0 if absent, 1 if present,
I assume)
◾ IH: whether the header is enabled (0 if enabled, 1
if disabled)
◾ DE: whether low data rate optimization is on (0 if
disabled, 1 if enabled)
◾ CR: the coding rate (1 meaning 4/5 rate, 4
meaning 4/8 rate)

What we can derive from this formula:

◾ there are always at least 8 payload symbols in a

packet, and these are completely independent of
parameters like PL, SF, CR, etc.
◾ the upper part of the fraction under the ceil()
function expresses a number of *bits* (because
PL, number of payload bytes, is multiplied by 8)
◾ the CRC is 16 bits long
◾ the difference in length between implicit and
explicit header mode is 20 bits
◾ the number calculated under the ceil() expresses a
number of *nibbles*, since it divides by SF
(number of bits/symbol) and the factor 4 (4
bits/nibble).
◾ when low data rate optimization DE is turned on,
the number of bits encoded in each symbol
(nominally SF) is reduced by 2.

Recordings
See here (http://bertrik.sikken.nl/sdr/) for some IQ
recordings of the LoRa signal.

The filenames contain a code for the LoRa modulation

setting which was used for each recording. This should
mostly be obvious. For example, a postfix of
BW21CR48SF6PL64x00 means the following:

◾ BW21: Bandwidth is approximately 21 kHz (20.8 actually)

◾ CR48: Code rate is 4/8
◾ SF6: Spreading factor is 6
◾ PL64x00: Payload is 64 bytes of 0x00

The files were recorded on ms windows using sdr# v1.0.0.1111 at a sample rate of 1024 kHz.

Decoding in software
There exists a LoRa plug-in for the SDR application sdrangelove. This plug-in is able to decode
(with varying success) the payload from a LoRa message with the following settings:
 ◾ BW = 8, SF = 8, CR = 4/6, DE = 1 (LowDataRateOptimization=on)

The code for the SDR application sdrangelove with the LoRa plugin can be found here
(https://github.com/hexameron/rtl-sdrangelove) To build it:

◾ get the code from github with git clone

◾ cmake .
◾ make

Code for driving a HopeRF RFM95 module from a 3.3V 8MHz Arduino mini pro can be found here
(in loratest.ino) (https://github.com/bertrik/loratest) This code is configured with the settings
mentioned earlier. This code uses my clone of the RadioHead library
(https://github.com/bertrik/RadioHead) to control the RFM95.

Algorithmic steps

The LoRa plugin appears to perform the following steps (in this order):

◾ decode the chirp phase

◾ undo the whitening sequence by XORing again with the PRNG
◾ undo the interleaving
◾ undo the forward error coding

External links
◾ Datasheets:
◾ RFM95 datasheet (http://www.hoperf.com/upload/rf/RFM95_96_97_98W.pdf)
◾ Semtech AN1200.22 (http://www.semtech.com/images/datasheet/an1200.22.pdf) Lora
modulation basics
◾ Background:
◾ A nice explanation of the preamble and data modulation at link-labs (http://www.link-
labs.com/what-is-lora/)
◾ The US7791415 (https://www.google.com/patents/US7791415) patent, which describes
mostly the structure of the transmitter side.
◾ The EP2763321 (https://www.google.com/patents/EP2763321A1) patent, which
describes both the general frame structure and modulation method
◾ Annotated analysis of the LoRa signal
(http://leobodnar.com/balloons/files/LoRa/LoRa-2.gif) by Leo Bodnar, clearly showing
the preamble, preamble-end-marker and the data bits
◾ Tools:
◾ Semtech LoRa Calculator (http://www.semtech.com/apps/filedown/down.php?
file=SX1272LoRaCalculatorSetup1%271.zip), allows you to play with modulation
parameters and see the impact on symbol time, sensitivity etc.
◾ Code:
◾ rtl-sdrangelove lora plugin on f4exb github
(https://github.com/f4exb/sdrangel/tree/master/plugins/channel/lora)
◾ rtl-sdrangel lora plugin on hexameron github (https://github.com/hexameron/rtl-
sdrangelove/tree/master/plugins/channel/lora)
Retrieved from ‘https://revspace.nl/index.php?title=DecodingLora&oldid=16146’

Category: Project

◾ This page was last modified on 7 October 2017, at 21:15.

◾ Content is available under Creative Commons Attribution Share Alike unless otherwise noted.
